Industrial Panel Pc Manufacturer Industrial Dust Proof Touch Screen Panel Pc Piesia 15.6 Inch Industrial Panel Pc
- Category: >>>
- Supplier: Guangzhou Xishida Information Technology Co. Ltd.Guangzhou Ltd.
Share on (1601291620721):
Product Overview
Description
Product Description

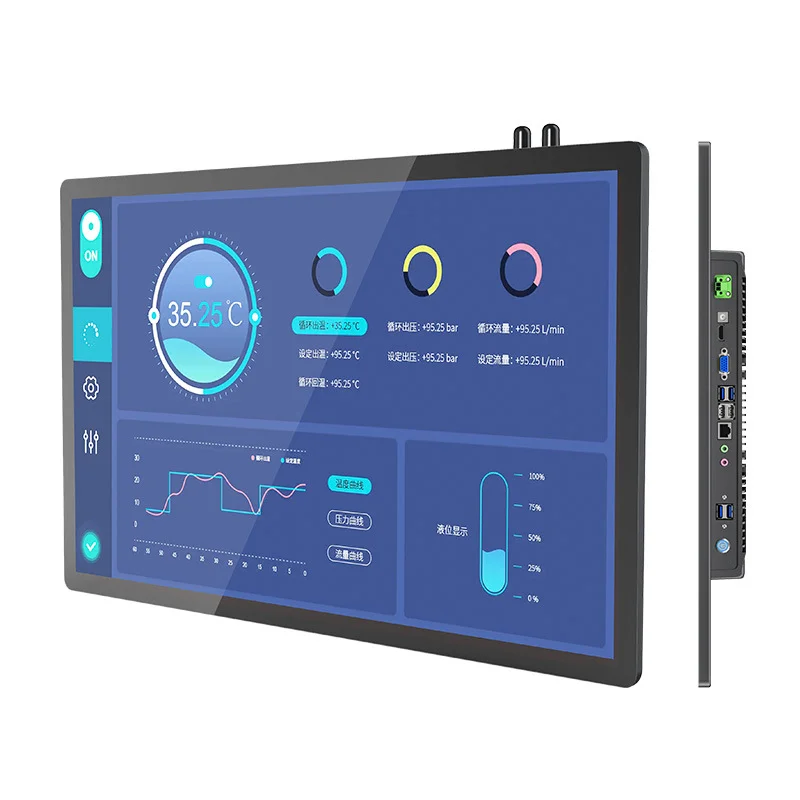

Industrial All in one PC

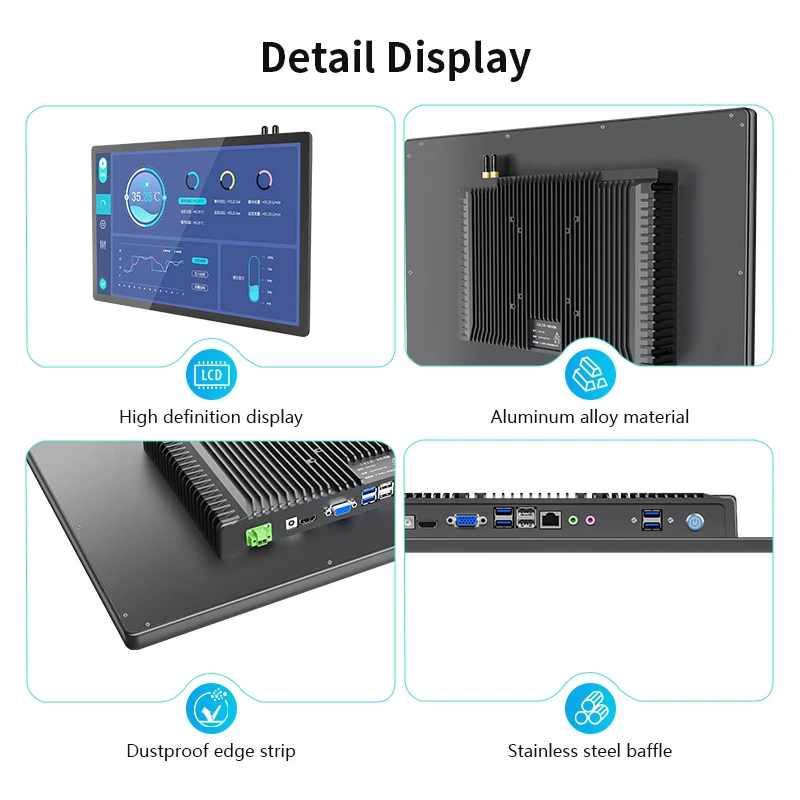

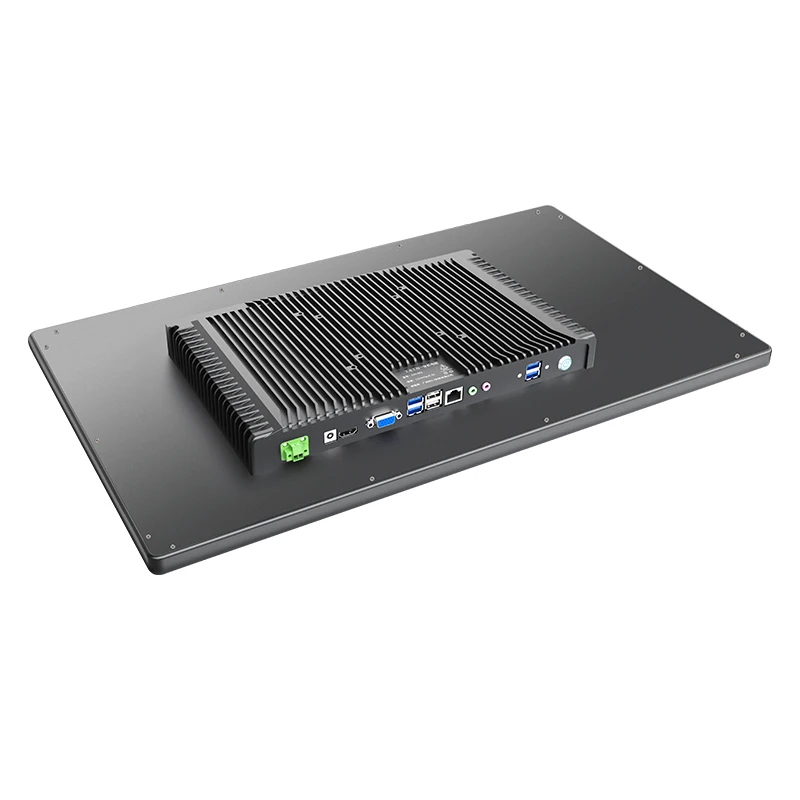

industrial panel PCs feature a fully sealed aluminum construction, providing a superior visual experience and a thinner body,while effectively preventing dust and moisture ingress. The entire unit adopts a fanless composite cooling structure,
incorporating an aluminum alloy embedded copper tube and a full aluminum profile back cover, ensuring stable performance in various complex and harsh environments, including extreme high-temperature conditions.
incorporating an aluminum alloy embedded copper tube and a full aluminum profile back cover, ensuring stable performance in various complex and harsh environments, including extreme high-temperature conditions.
Features:
✦ Capacitive touchscreen / G+G / 10-point multi-touch

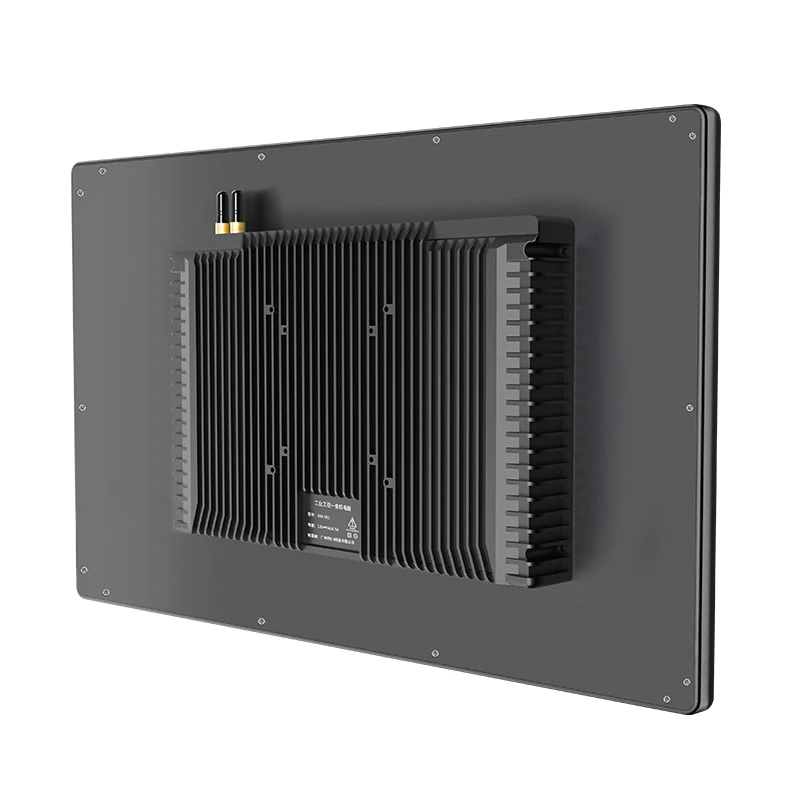

✦ Full aluminum structure, passive cooling, fanless design
✦ Supports installation of X86 / Android / monitor mainboards
✦ The front panel supports IP65 protection rating

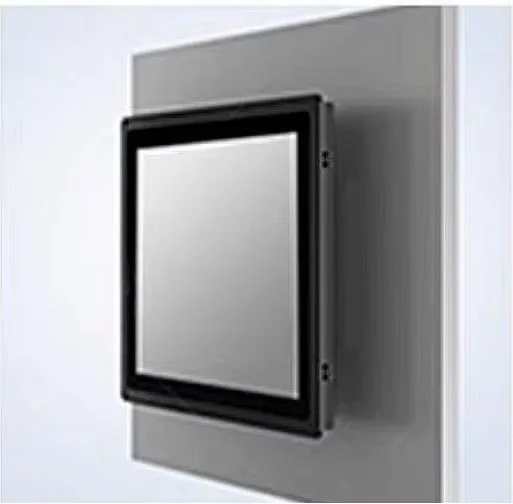

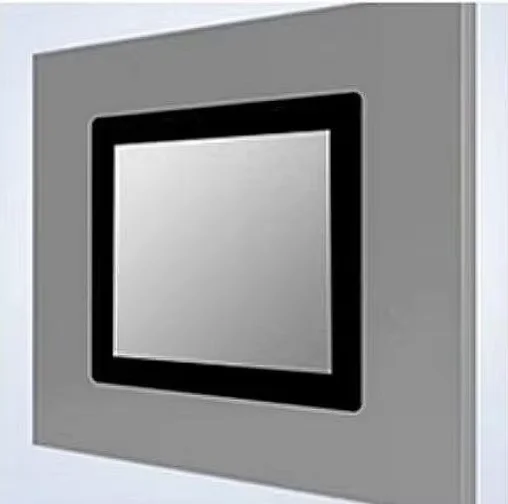

✦ Mounting structure compatible with desktop, wall-mounted, and External embedded installations

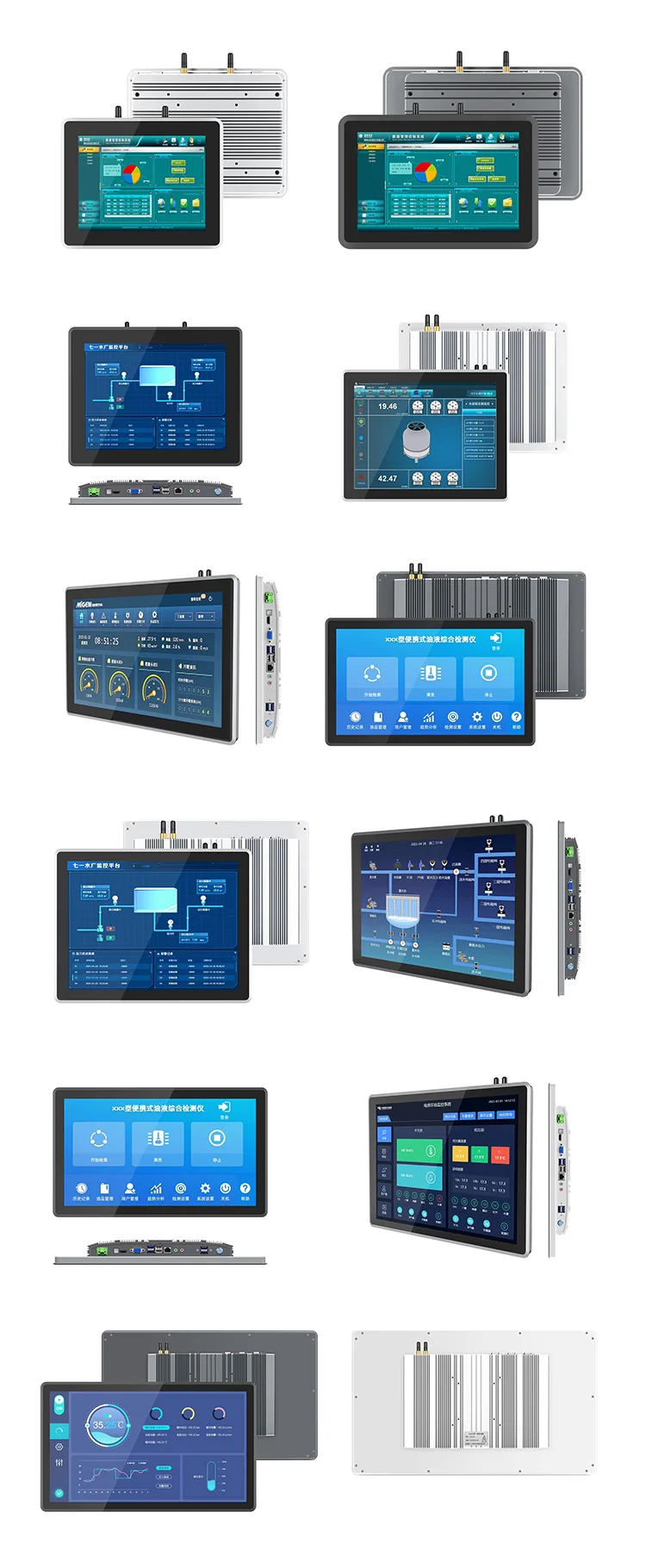

✦ Size: 8/10.1/10.4/12.1/13.3/15/15.6/17/18.5/19/21.5 Inch Optional
✦ CPU: Intel Celeron J1900 / Intel Core i5-2467M, i7-2617M, i5-3317U, i7-3517U, i5-4200U, i5-4250U, i5-5200U, i5-5300U, i5-6200U,i5-7200U, i5-8250U, Amologic A311D, Rockchip RK3288 , RK3399 , RK3566 , RK3568 , RK3588
Processor | Intel Baytrail J1900,4C4T,2.0-2.42Ghz | i5-2467M,2C4T,1.4-2.3Ghz i7-2617M,2C4T,1.5-2.6Ghz i5-3317U,2C4T,1.7-2.6Ghz i7-3517U,2C4T,1.9-3.0Ghz | i5-4200U,2C4T,1.6-2.6Ghz i5-4250U,2C4T,1.3-2.6Ghz i5-5200U,2C4T,2.2-2.7Ghz i5-5300U,2C4T,2.3-2.9Ghz | i5-6200U 2C4T, 2.3-2.8GHz i5-7200U 2C4T, 2.5-3.1GHz i5-8250U 4C8T,1.6-3.4GHz |
Graphics | IntelHD Graphics for Intel Atom Processor Z3700 Series | Intel HD Graphics | Intel HD Graphics | Intel HD Graphics Intel UHD Graphics |
Memory | 1× DDR3L, Max to 8GB | 2× DDR3L, Max to 16GB | 1× DDR3L, Max to 8GB | 2× DDR4L, Max to 32GB |
Storage | 1×Msata SSD | 1×Msata SSD | 1×Msata SSD | 1×M.2 2280 SATA/NVME SSD |
Extension | 1×mPCIE WiFi/BT/4G（Optional） | 1×mPCIE WiFi/BT/4G（Optional） | 1×mPCIE WiFi/BT/4G（Optional） | 1×mPCIE WiFi/BT/4G（Optional） |

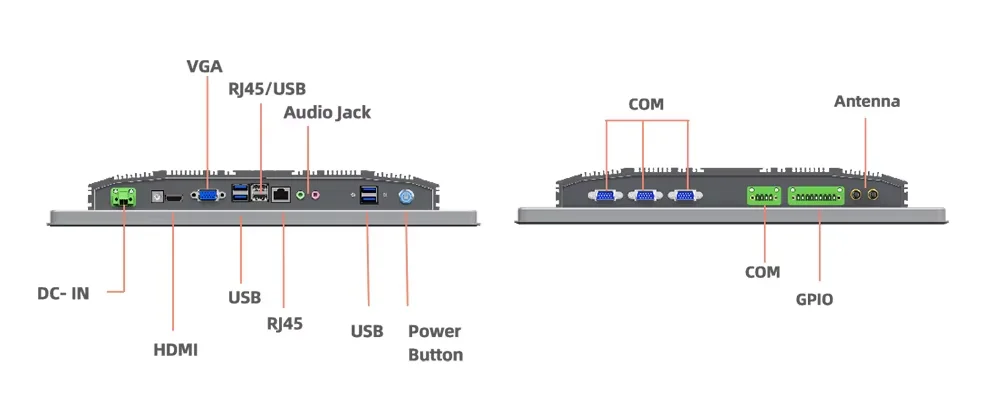

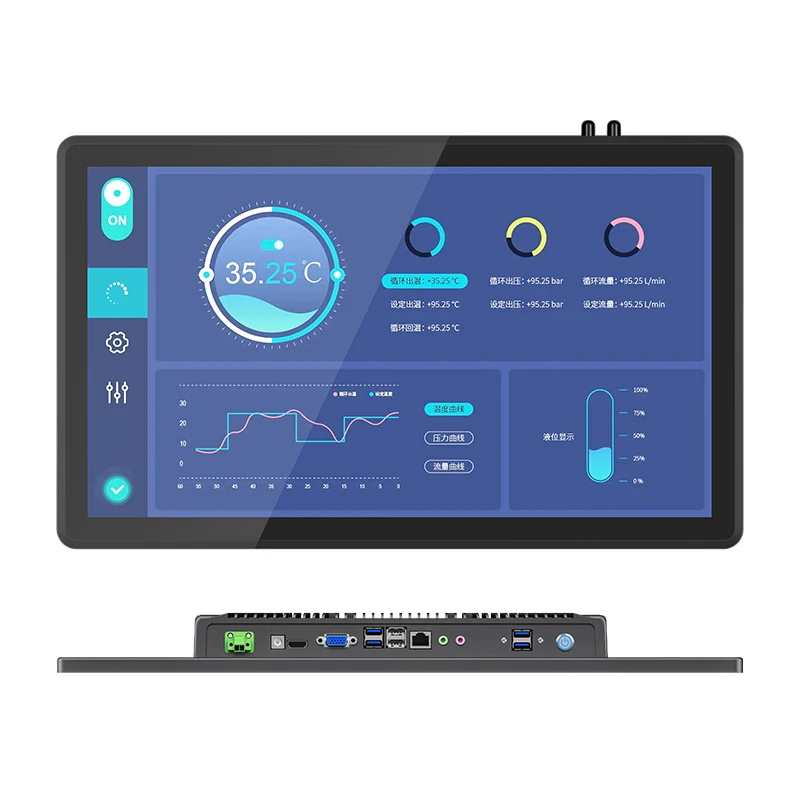

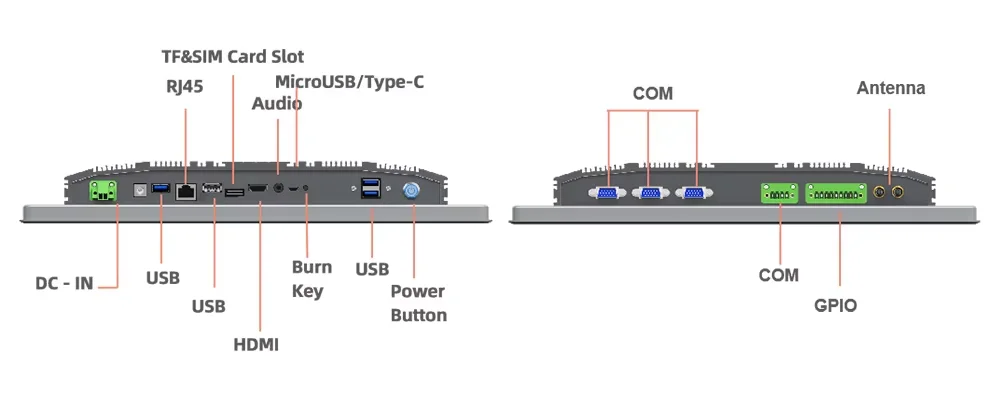

Interface | 2×USB3.0 2×USB2.0 1×MIC In 1×Line Out 1×COM 1xVGA 1×RJ45 10/100/1000M | 2×USB3.0 2×USB2.0（Optional） 1×MIC In 1×Line Out 1×HDMI 1xVGA 2×RJ45 10/100/1000M | 2×USB3.0 2×USB2.0（Optional） 1×MIC In 1×Line Out 1×HDMI 1xVGA 2×RJ45 10/100/1000M | 2×USB3.0 2×USB2.0（Optional） 1×MIC In 1×Line Out 1×HDMI 1xVGA 2×RJ45 10/100/1000M |
Expansion Interface | 2xUSB 4xCOM/USB 1x 3P COM | 2xUSB 4xCOM/USB 1x 3P COM | 2xUSB 4xCOM/USB 1x 3P COM | 2xUSB 4xCOM/USB 1x3P COM 1x10P GPIO |
Power | DC 12V 5.5*2.5 DC In JACK | DC 12V 5.5*2.5 DC In JACK | DC 12V 5.5*2.5 DC In JACK | DC 12V 5.5*2.5 DC In JACK |
OS | Win7/10/Ubuntu | Win7/10/Ubuntu | Win7/10/Ubuntu | Win7/10/Ubuntu/Win11（Optional TPM） |
Processor | Amologic A311D Cortex-A73 quad core+Cortex A53 dual core, up to 2.2GHz | RK3288 Cortex A17 quad core, up to 1.8GHz | RK3399 Cortex A72 dual core and Cortex A53 quad core, up to 1.8GHz | RK3566 Cortex A55 dual core, up to 1.8GHz | RK3568 Cortex A55 dual core, up to 2.0GHz |
RAM | LPDDR4 2GB / 4GB | LPDDR3 2GB / 4GB | LPDDR4 2GB / 4GB | LPDDR4 2GB / 4GB | LPDDR4 2GB / 4GB / 8GB |
ROM | 16GB ~128GB EMMC | 16GB ~128GB EMMC | 16GB ~128GB EMMC | 16GB ~128GB EMMC | 16GB ~128GB EMMC |
WLAN | IEEE 802.11 b/g/n+BT | IEEE 802.11 b/g/n+BT | IEEE 802.11 b/g/n+BT | IEEE 802.11 b/g/n+BT | IEEE 802.11 b/g/n+BT |
Interface | 1*USB3.0 1*USB2.0 1*RJ45 10/100/1000M 1*HDMI 1*TF Card 1*MicroUSB 1*Micro-SIM 1* CTIA 4-pole HP/Mic socket | 2*USB2.0 1*RJ45 10/100M 1*HDMI 1*TF Card 1*MicroUSB 1*Micro-SIM 1* CTIA 4-pole HP/Mic socket | 1*USB3.0 1*USB2.0 1*RJ45 10/100/1000M 1*HDMI 1*TF Card 1*Type-C 1*Micro-SIM 1* CTIA 4-pole HP/Mic socket | 1*USB3.0 1*USB2.0 1*RJ45 10/100/1000M 1*HDMI 1*TF Card 1*MicroUSB 1*Micro-SIM 1* CTIA 4-pole HP/Mic socket | 1*USB3.0 1*USB2.0 2*RJ45 10/100/1000M 1*HDMI 1*TF Card 1*Micro-SIM 1* CTIA 4-pole HP/Mic socket |
Expansion Interface | 2*COM 2*USB/COM | 2*COM 2*USB/COM | 2*COM 2*USB/COM | 2*COM 2*USB/COM | 2*COM 2*USB/COM |
Power | DC 12V/5A | DC 12V/5A | DC 12V/5A | DC 12V/5A | DC 12V/5A |
OS | Android 9.0 | Android 7.1 / 5.1 / 6.0 / 8.1, Linux Buildroot / Debian 9 / Ubuntu-18.04 | Android 7.1 / 8.1 / 9.0 / Linux Buildroot / Debian 9 / Ubuntu-18.04 | Android 11 / Linux Buildroot / Debian 10 / Ubuntu-18.04 | Android 11 / Linux Buildroot / Debian 10 / Ubuntu-18.04 |

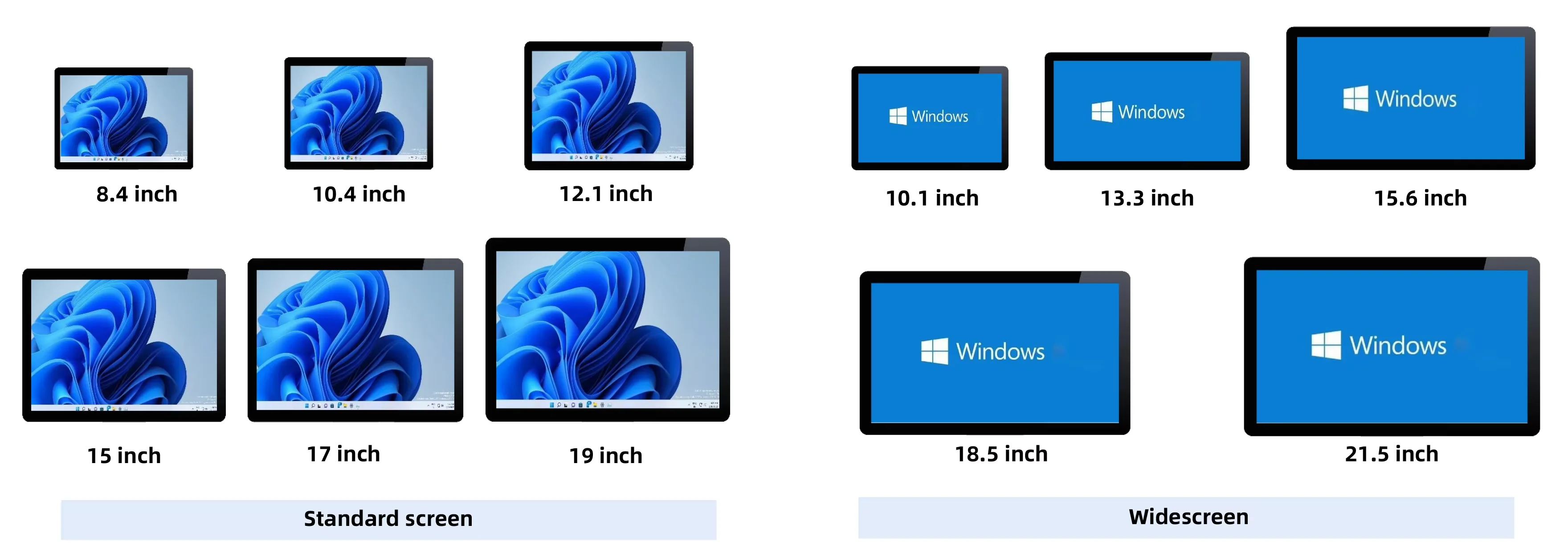

Widescreen vs. Standard screen size comparison

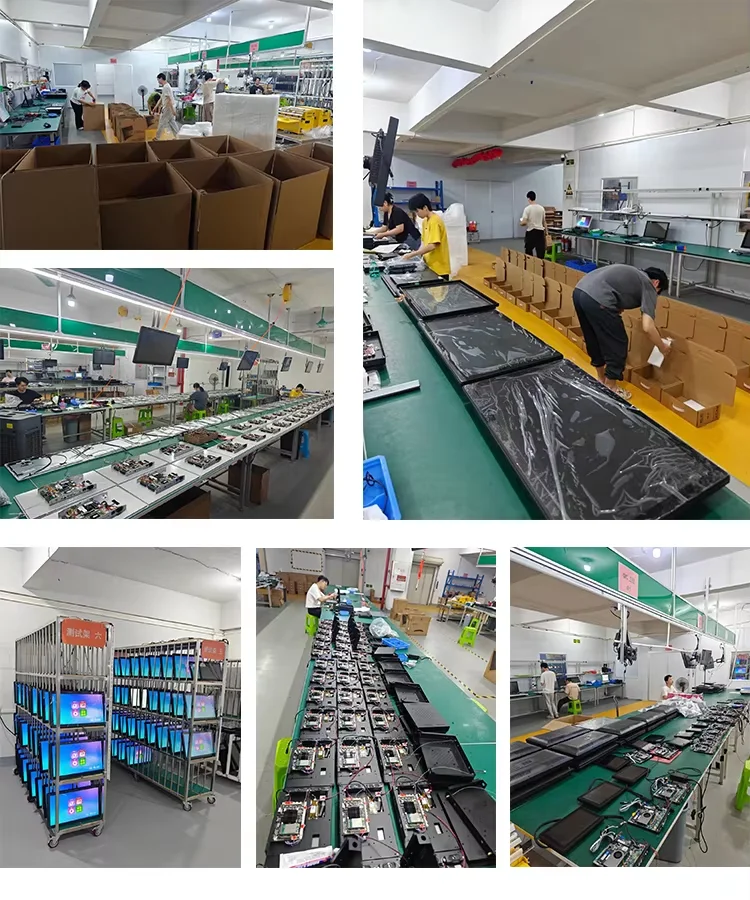

Company Profile
Packing & Delivery
FAQ
1. Q: Are you a manufacturer or trading company?
Guangzhou Xishida Information Technology Co., Ltd. is a high-tech innovative enterprise integrating the research and development,production and sales of visual products in the fields of smart medical care, education, finance, government affairs, hotels,catering, etc.
2. Q: How does your factory do regarding quality control?
Always a pre-production sample before mass production, Always final Inspection before shipment,We focus on every detail ,Our factory has gained ISO9001, ISO14001, CE, RoHS authentication.
3.Q:what can you buy from us?
A:self-service terminalseries, RFID cabinet series, touch all-in-one machine series, queuing and calling machine series,
advertising machine series,teaching and conference all-in-one machine series, and other products.
advertising machine series,teaching and conference all-in-one machine series, and other products.
4.Q: What is your MOQ?
A: Any quantity is acceptable for your order. And the price is negotiable for large quantity.
5. Q: When will you make the delivery?
A: We can make the delivery within 15 working days according to the size and quantities
6.Q: Do you have your own enclosure factory?
Yes , we do have our own enclosure factory, We have a team for software R&D, Our software engineer have over 30 years
experience,we have ability to customize software for customer. OEM ODM is also acceptable.
experience,we have ability to customize software for customer. OEM ODM is also acceptable.
7.Q:Which payment is acceptable?
A:We accept most of the payment methods,but mainly accept T/T,L/C,Western Union, Paypal, Cash and MoneyGram.
