Product Overview
Description
Company Profile
Welcome to China Coal Group
Your Premier Destination for Scraper Chain Conveyor
This price is the deposit price for product production
Products Description

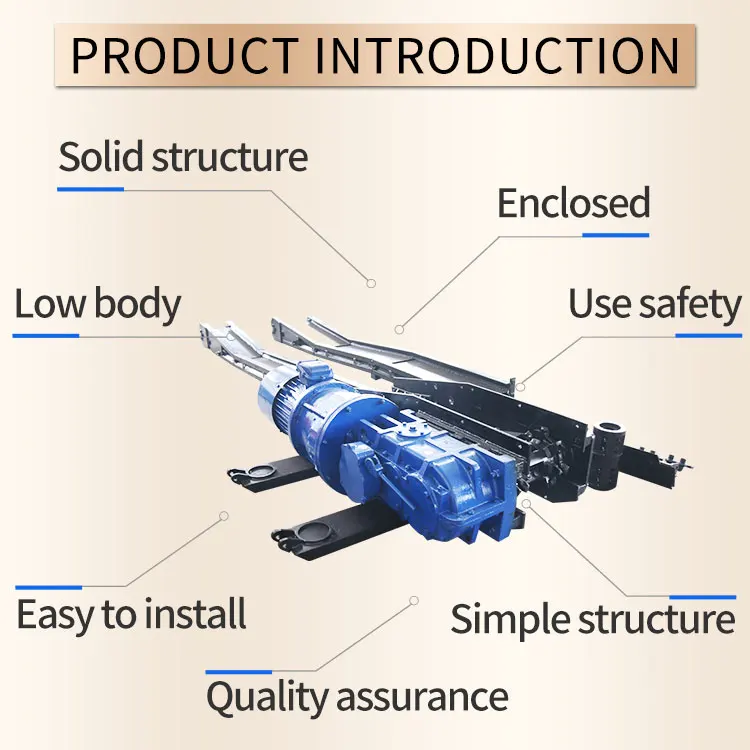

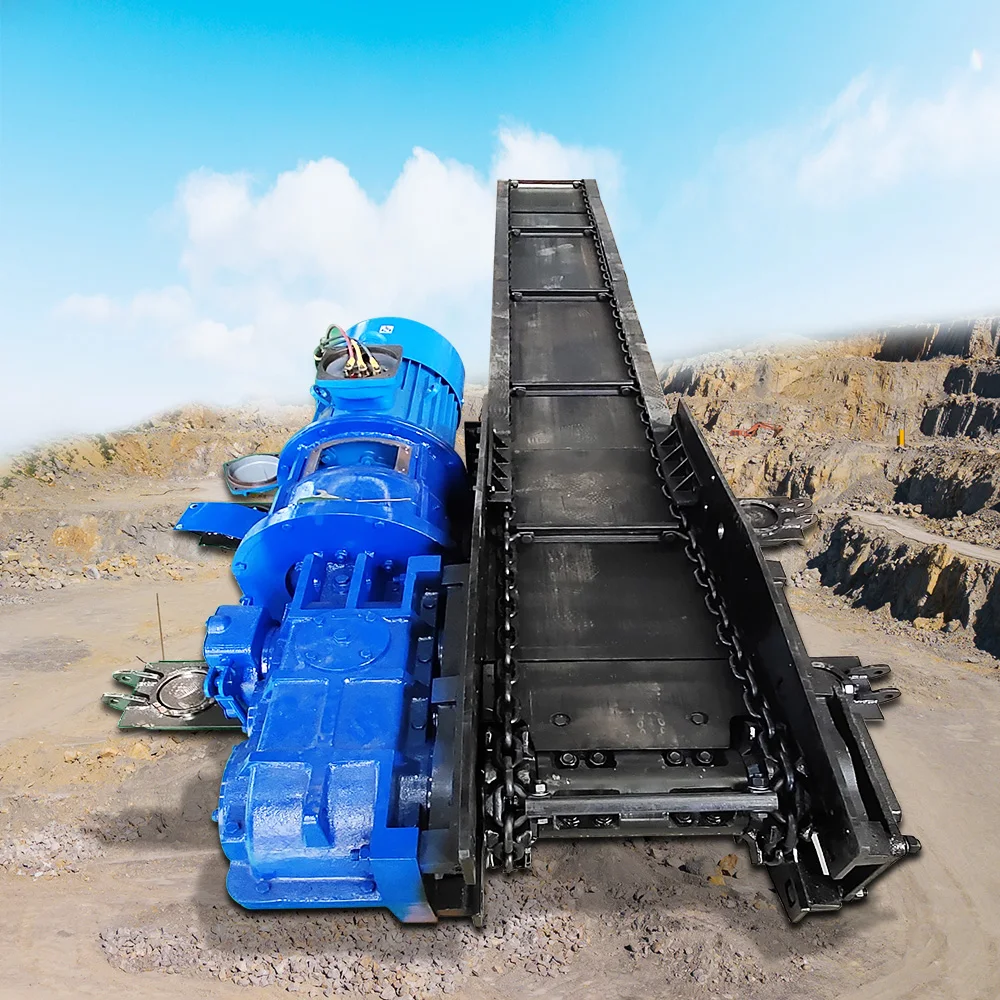

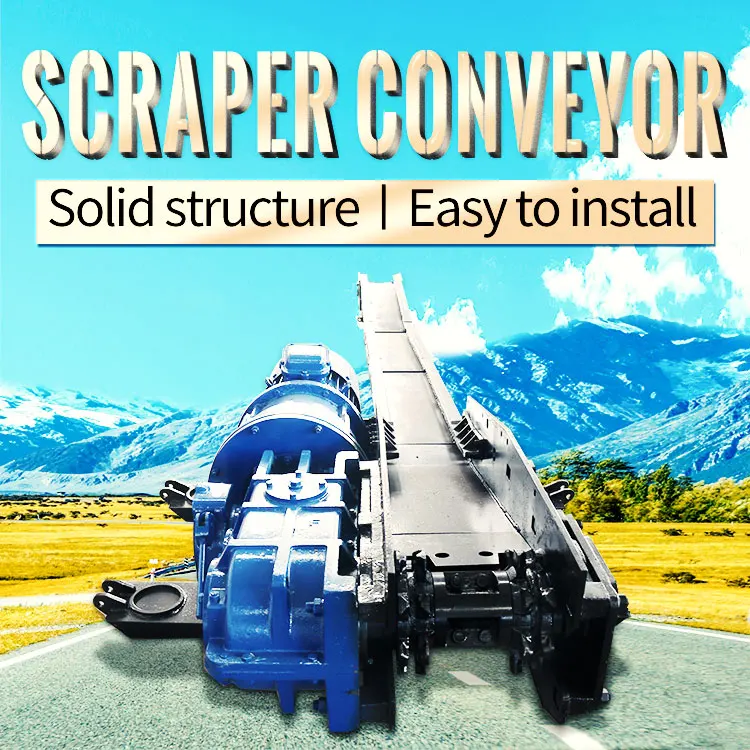

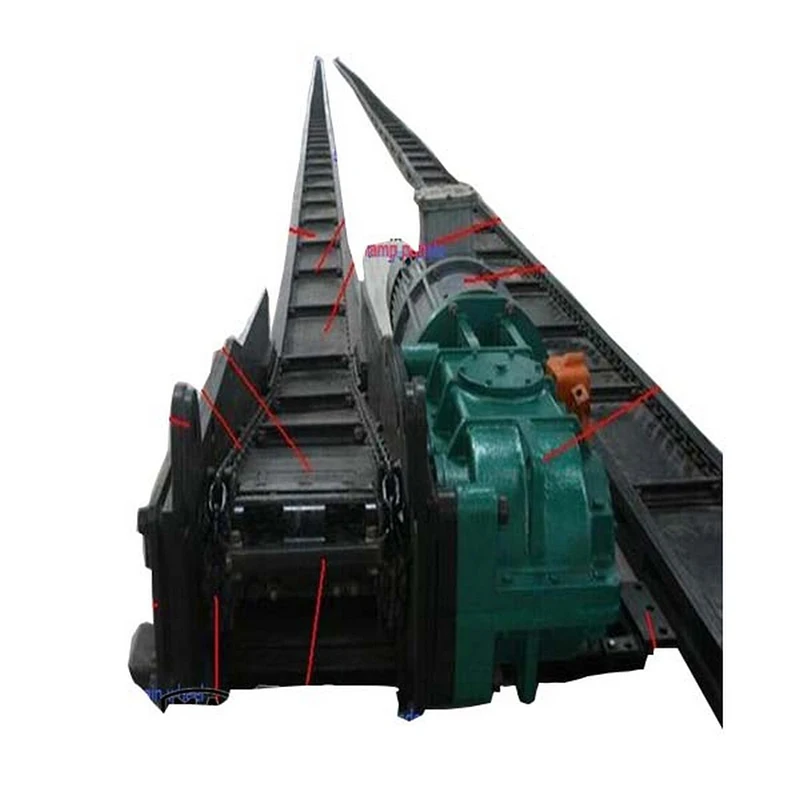

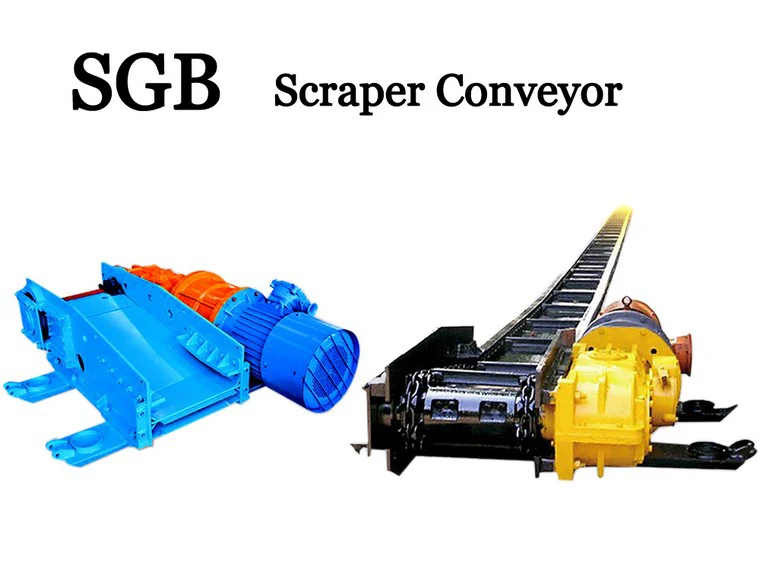

Introduction Of Scraper Chain Conveyor
SGB Scraper Chain Conveyor Machine apples to slow gently inclined thin coal seam working face conveyor of coal. Mining height is broken floor to 0.6 m, dip angle of coal seam is not more than 25 degrees.
SGB Scraper Chain Conveyor Machine is more suitable for hard coal, large blocks or more inner dirt band conveyor coal. The scraper conveyor is designed to mainly for horizontal transportation in the underground coal mining industry and metallurgical mine. zmwm17
SGB Scraper Chain Conveyor Machine is more suitable for hard coal, large blocks or more inner dirt band conveyor coal. The scraper conveyor is designed to mainly for horizontal transportation in the underground coal mining industry and metallurgical mine. zmwm17
Product Paramenters
Model | SGB420/22 | SGB420/30 | SGB420/40X | SGB620/40 | SGB620/55 | SGB620/80 | ||
Delivery Capacity (t/h) | 60 | 80 | 100 | 150 | 150 | 150 | ||
Standard length(m) | 80 | 100 | 100 | 100 | 100 | 160 | ||
Chain speed(m/s) | 0.88 | 0.88 | 0.86 | 0.86 | 0.86 | 0.86 | ||
Electric motors | Model number | JDSB-22 | JDSB30 | JDSB40 | DSB40 | DSB55 | DSB40 | |
Power(kW) | 22 | 30 | 40 | 40 | 55 | 2*40 | ||
Voltage(V) | 220/380 | 380/660 | 380/660 | 380/660 | 380/660 | 380/660 | ||
Scraper chain | Form | Side double-stranded | Side double-stranded | Side double-stranded | Side double-stranded | Side double-stranded | Side double-stranded | |
Chain size(mm) | 14*50 | 14×50 | 18×64 | 18×64 | 18×64 | 18×64 | ||
Breaking load(KN) | ≥250 | ≥250 | 320 | ≥320 | ≥320 | ≥320 | ||
Middle Flute size (L* W * H) | 1200*420*150 | 1200×420×150 | 1200×420×180 | 1500×620×180 | 1500×620×180 | 1500×620×180 | ||
Total weight(t) | 8.5 | 10.6 | 16 | 17.8 | 17.9 | 28.6 | ||

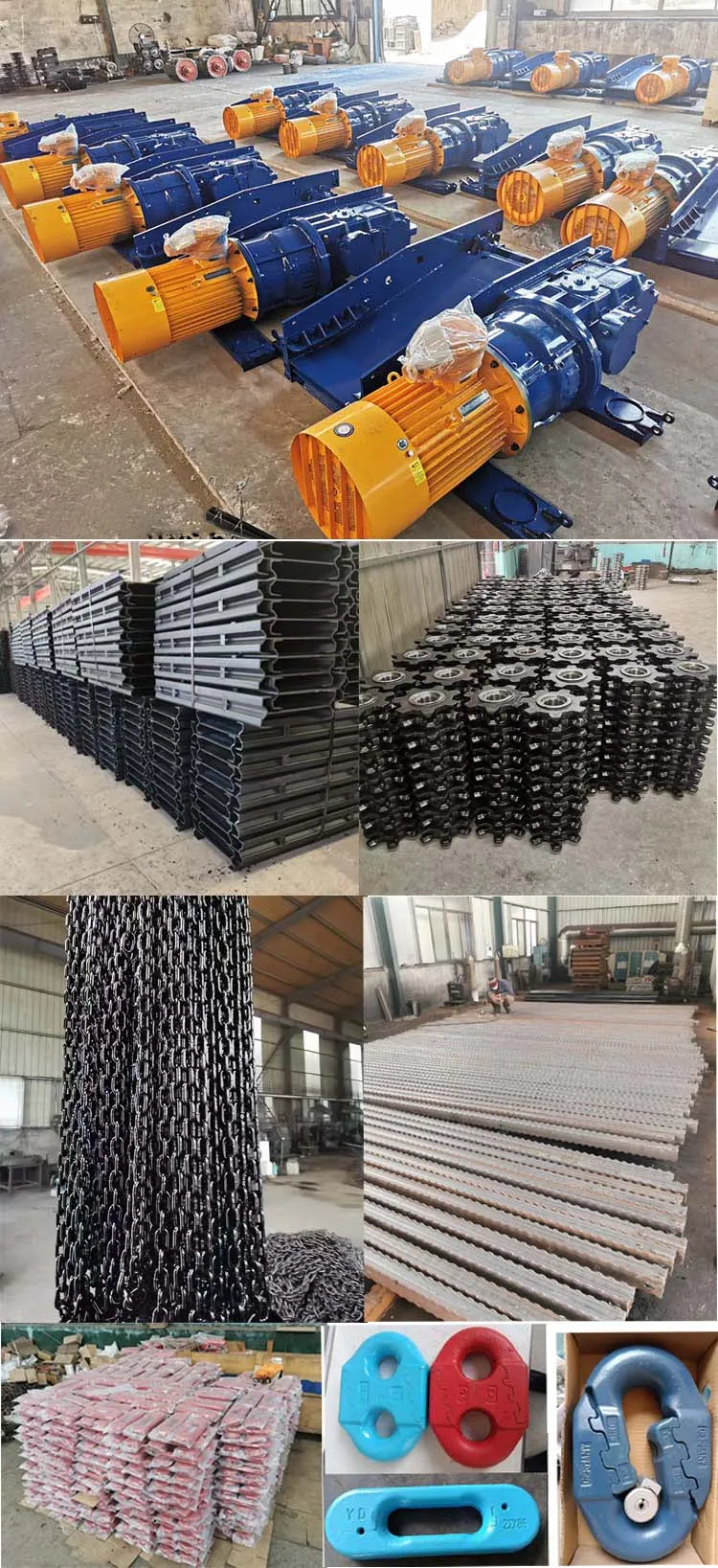

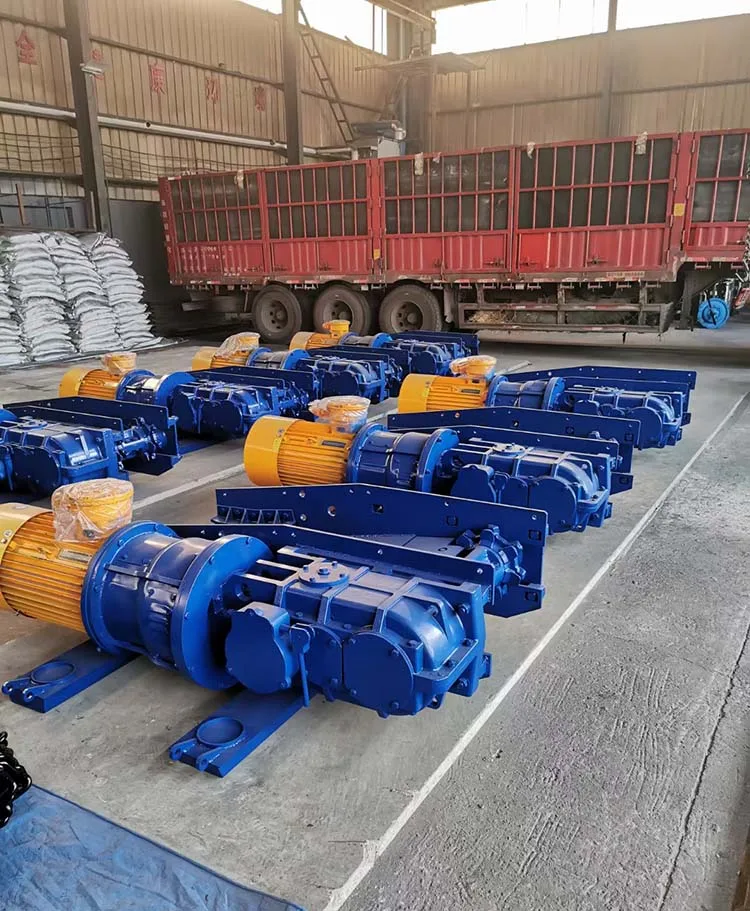

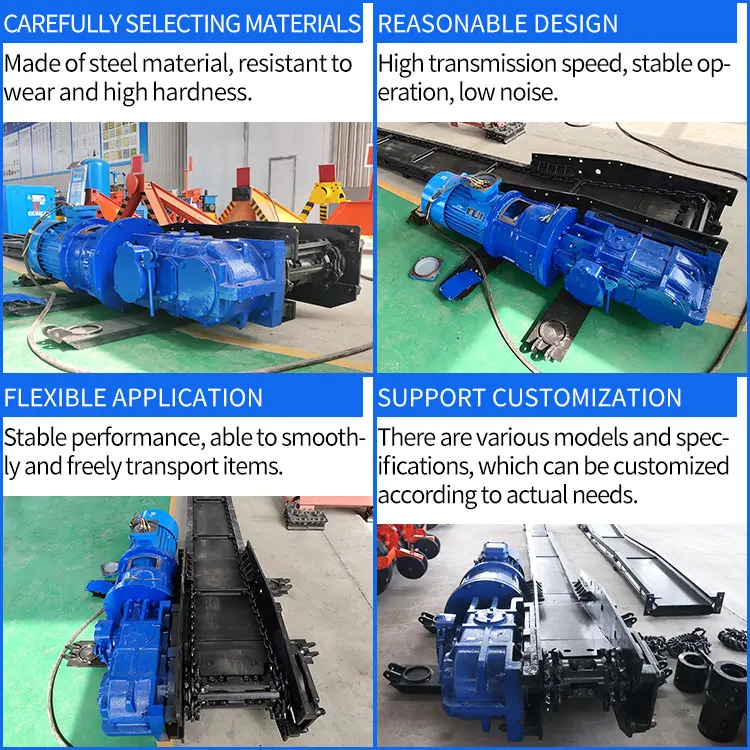

Details Images
