Factory Cheap Price 21.5 Inch 1080P IPS LCD Panel Wall Mounted Garbage Station Display Outdoor 1500Nits IP65 LCD Digital Signage
- Category: >>>
- Supplier: Shenzhen Outdoor Special Display Equipment Co. Ltd.Shenzhen Ltd.
Share on (1601291694674):
Product Overview
Description
Products Description

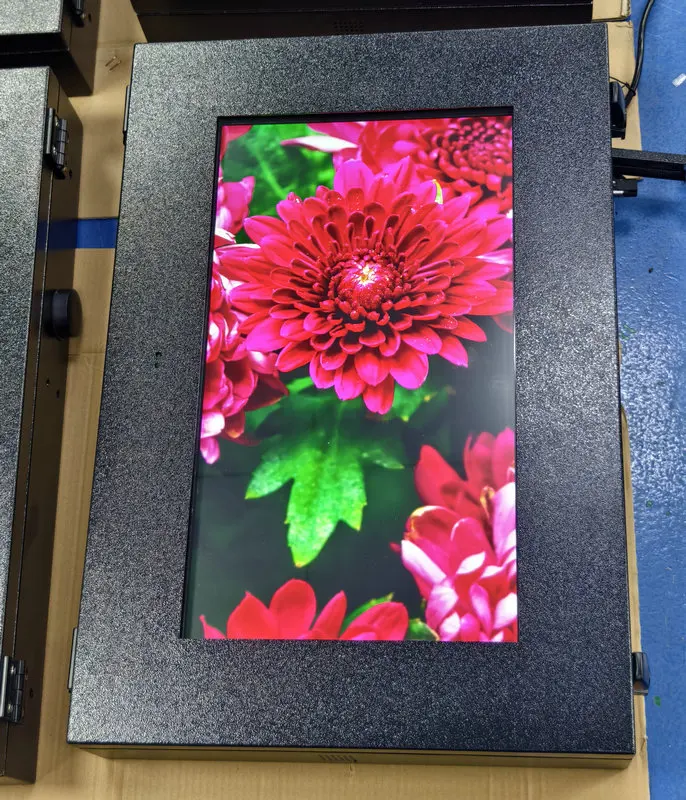

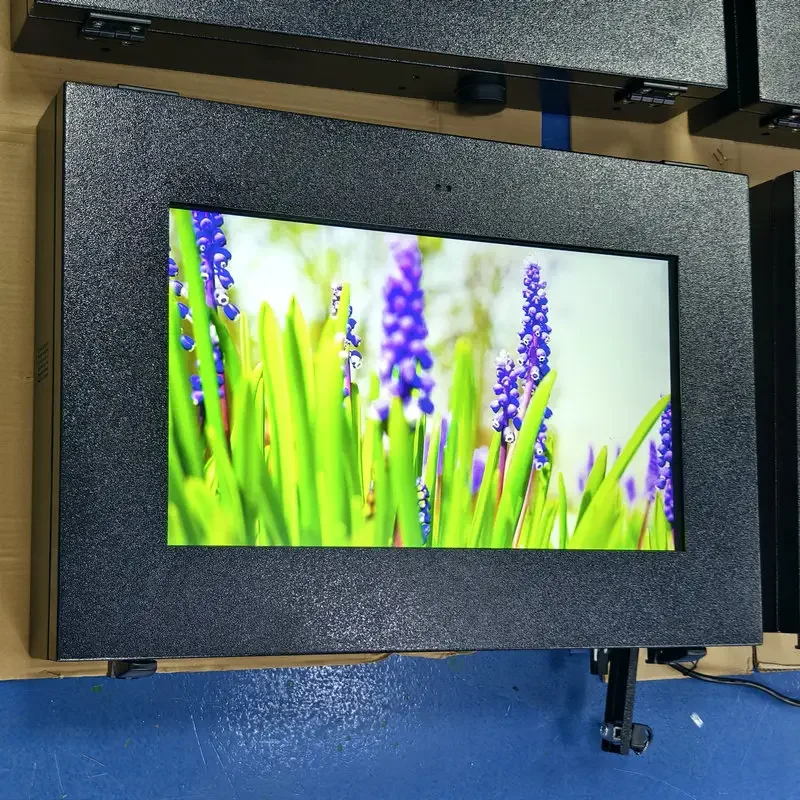

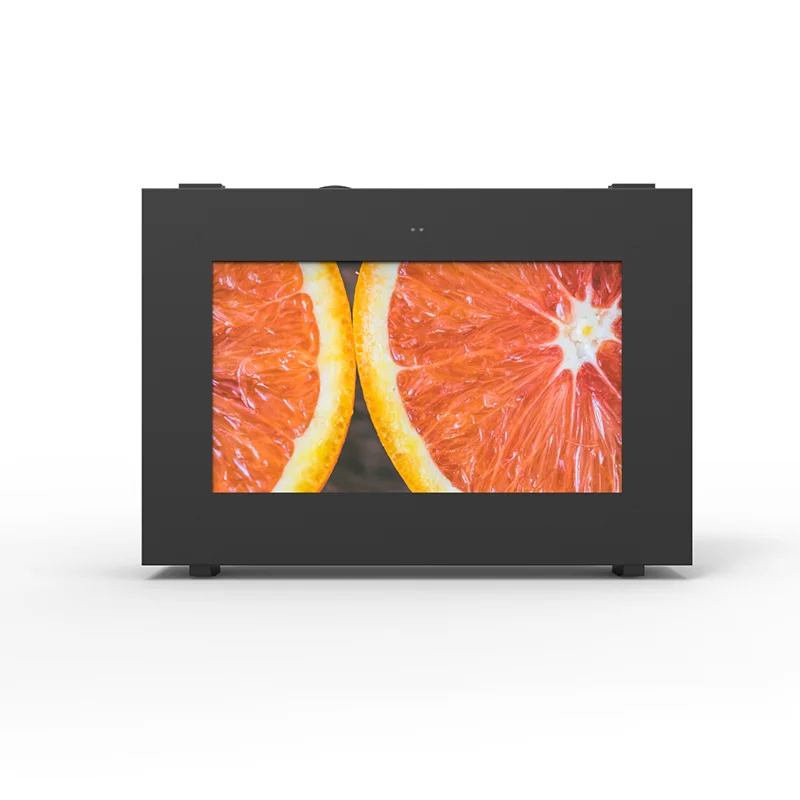

Wall-mounted 21.5" Outdoor IP55 High Brightness LCD Display
Screen Size: 21.5 Inch

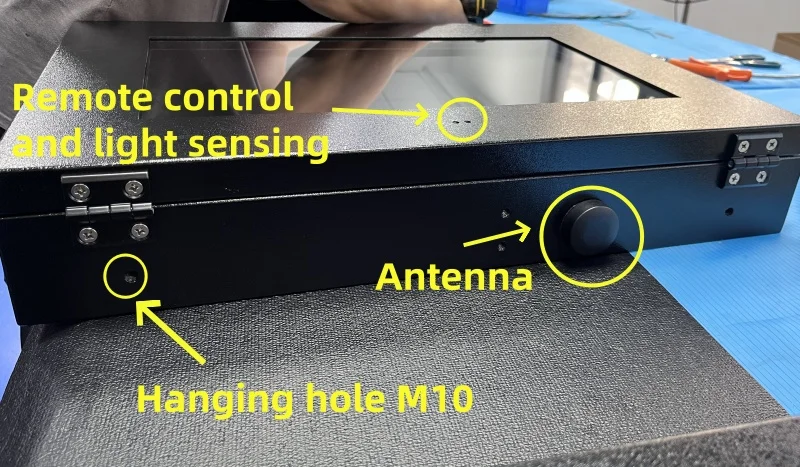

Brightness:, 1500cd/㎡; With ambient light sensing technology;
Resolution: 1920*1080; FHD
Mainboard: Android (optional)
Durability: Suitable for commercial applications, capable of long-term stable operation
Brightness:, 1500cd/㎡; With ambient light sensing technology;
Resolution: 1920*1080; FHD
Mainboard: Android (optional)
Durability: Suitable for commercial applications, capable of long-term stable operation
Glass: 5mm tempered explosion-proof glass, suitable for outdoor environments

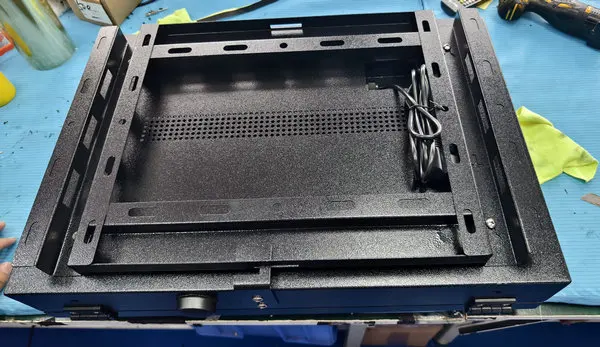

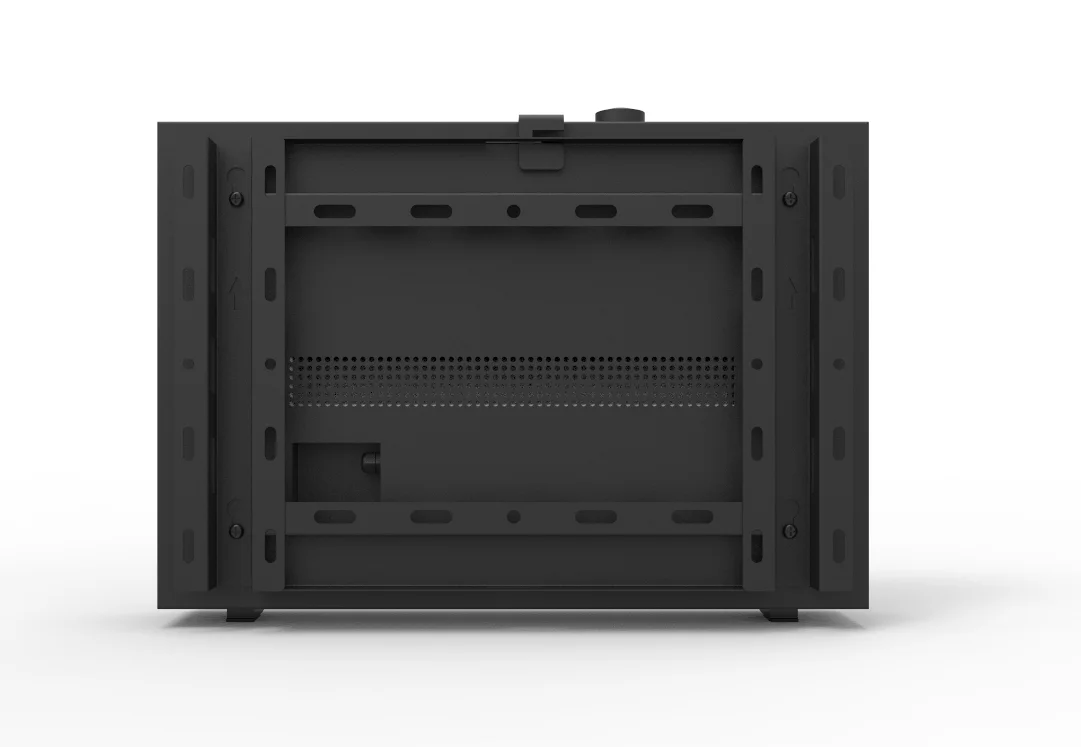

Installation: Wall-mounted

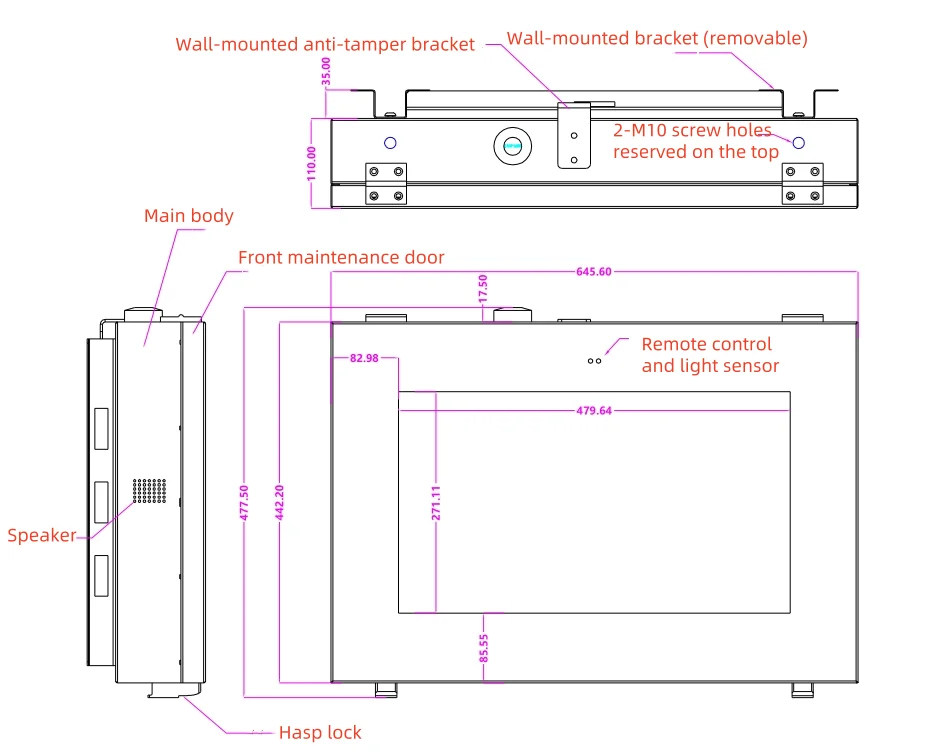

Product Paramenters
一，Basic parameters | ||||||||||||
Panel size | 21.5 inch lcd panel | Contrast | 1000:1 | |||||||||
Active area | 476.64×268.11 mm（W*H） | Viewing angle | 178（H）/178（V） | |||||||||
Display ratio | 16:09 | Response time | 5ms | |||||||||
Backlight type | LED | Display color | 16.7M | |||||||||
Resolution | 1920*1080 | Panel brightness | 1500cd/m2 | |||||||||
Audio power | 8 ohms 5 watts | Cooling method | Air cooling | |||||||||
Protective glass | Special tempered | Working environment temperature | -20-45℃ | |||||||||
Casing color | White (optional) | Installation method | Wall-mounted | |||||||||
Casing material | SPCC+electrostatic spray paint | Environmental automatic dimming | PWM modulation | |||||||||
Product size | / | Power input voltage | AC100V-240V（50/60Hz） | |||||||||
Weight | / | Complete power consumption | ＜80W | |||||||||
二，Function parameters | ||||||||||||
Control mode | Remote control/management software control | Input and output interface | SD card*1 HDMI（OUT*1） USB*2 RJ45*1 | |||||||||
Motherboard configuration | Android（3288, 4+32） | Protection level | IP55 | |||||||||
Network version features | Supports mainstream 1920X1080 high-definition video formats such as AVI/MP4/MPG/TS/MKV/WMV and JPEG/BMP/PNG/MP3 pictures and music. It also supports multiple split-screen playback and RSS, PDF, slides, TXT subtitle files, weather forecasts, etc. It supports LAN/WAN, WIFI and 3G. Storage supports large-capacity SATA hard drives and SD card storage media. It supports U disk update interface, which can be updated flexibly even without a network, and supports software timed power on and off. The management software supports windows2000/xp/7/8. | |||||||||||
Vulnerability overload surge protection | Supoort | Power Customization Management | Support 16 segments per day | |||||||||
Details Images

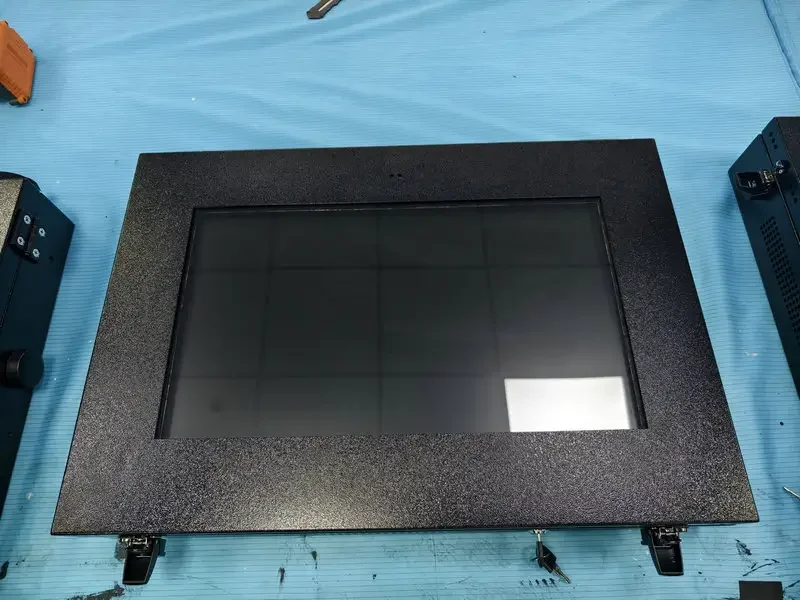

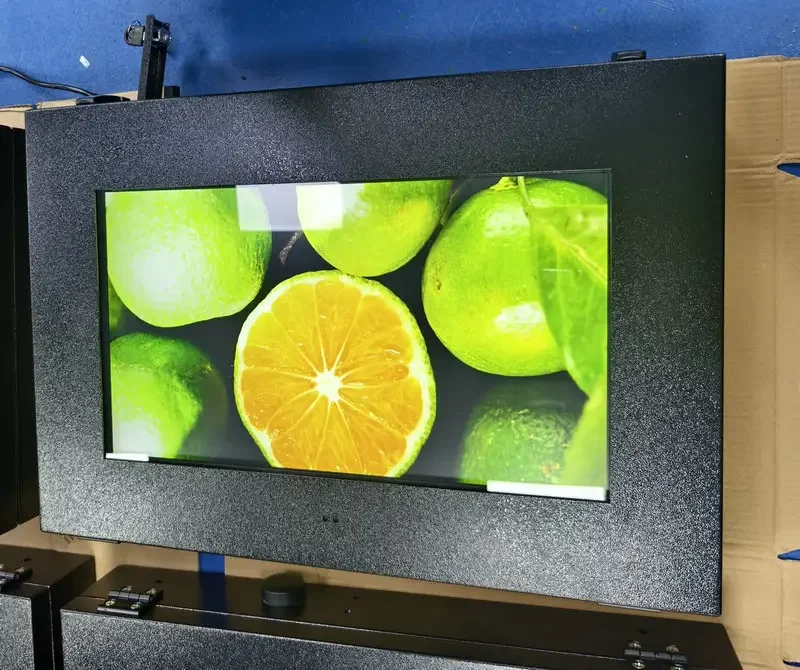

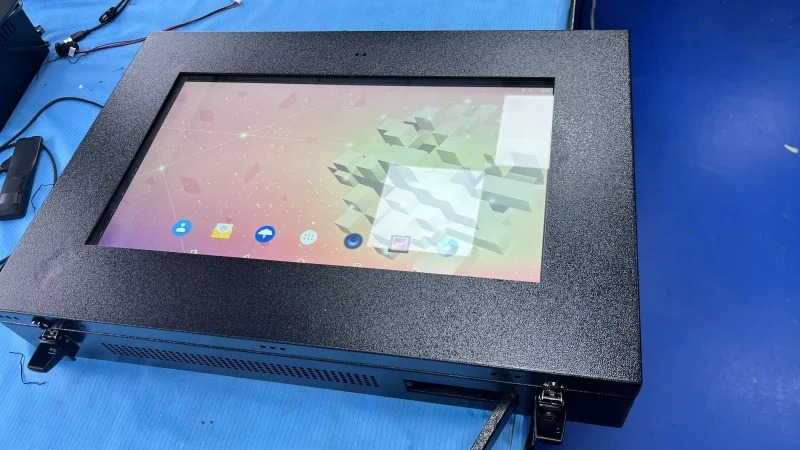

Water Ripple Paint for Outdoor Use.
21.5-inch outdoor LCD display uses outdoor paint pigment, water ripple outdoor paint, corrosion-resistant, friction-resistant, and not easy to scratch; black paint, dirt-resistant, fashionable
There are other colors available
There are other colors available

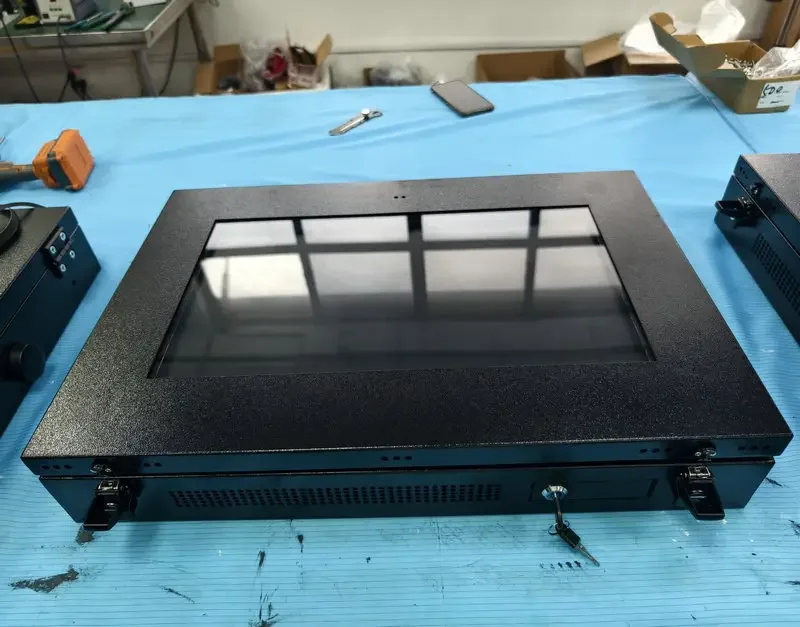

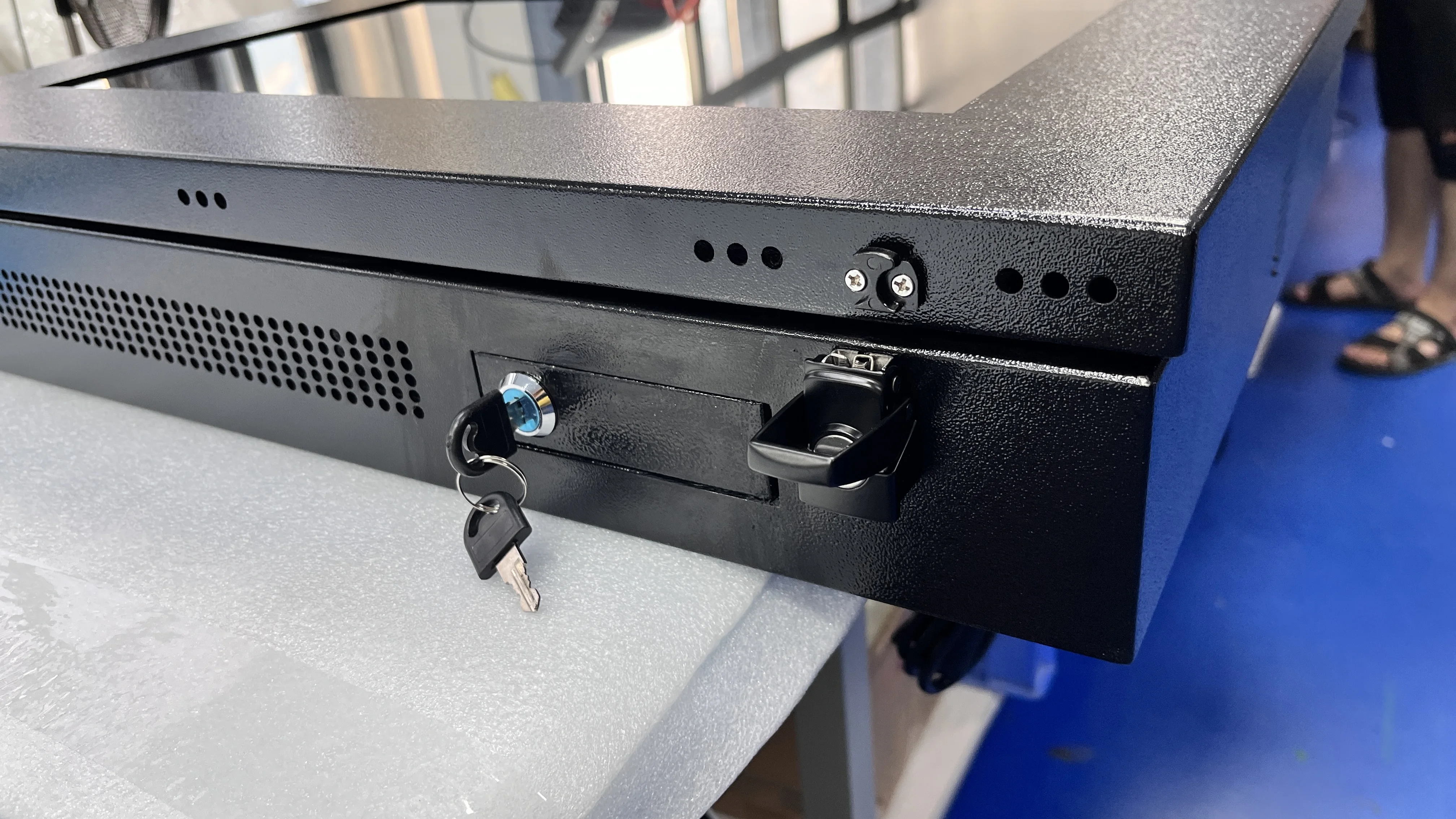

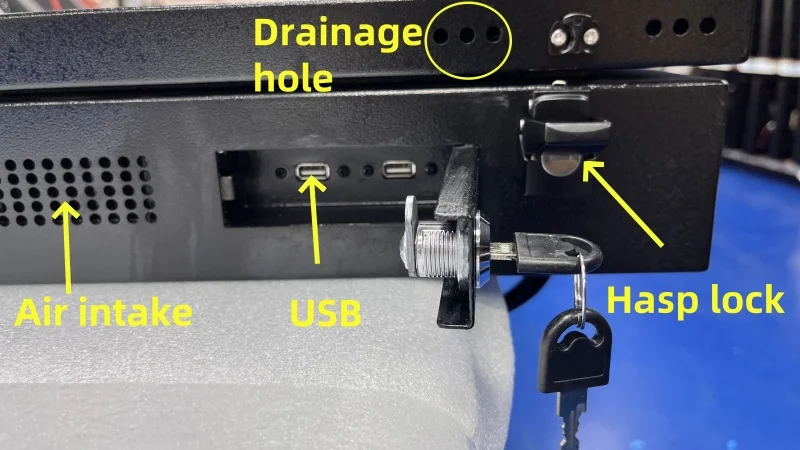

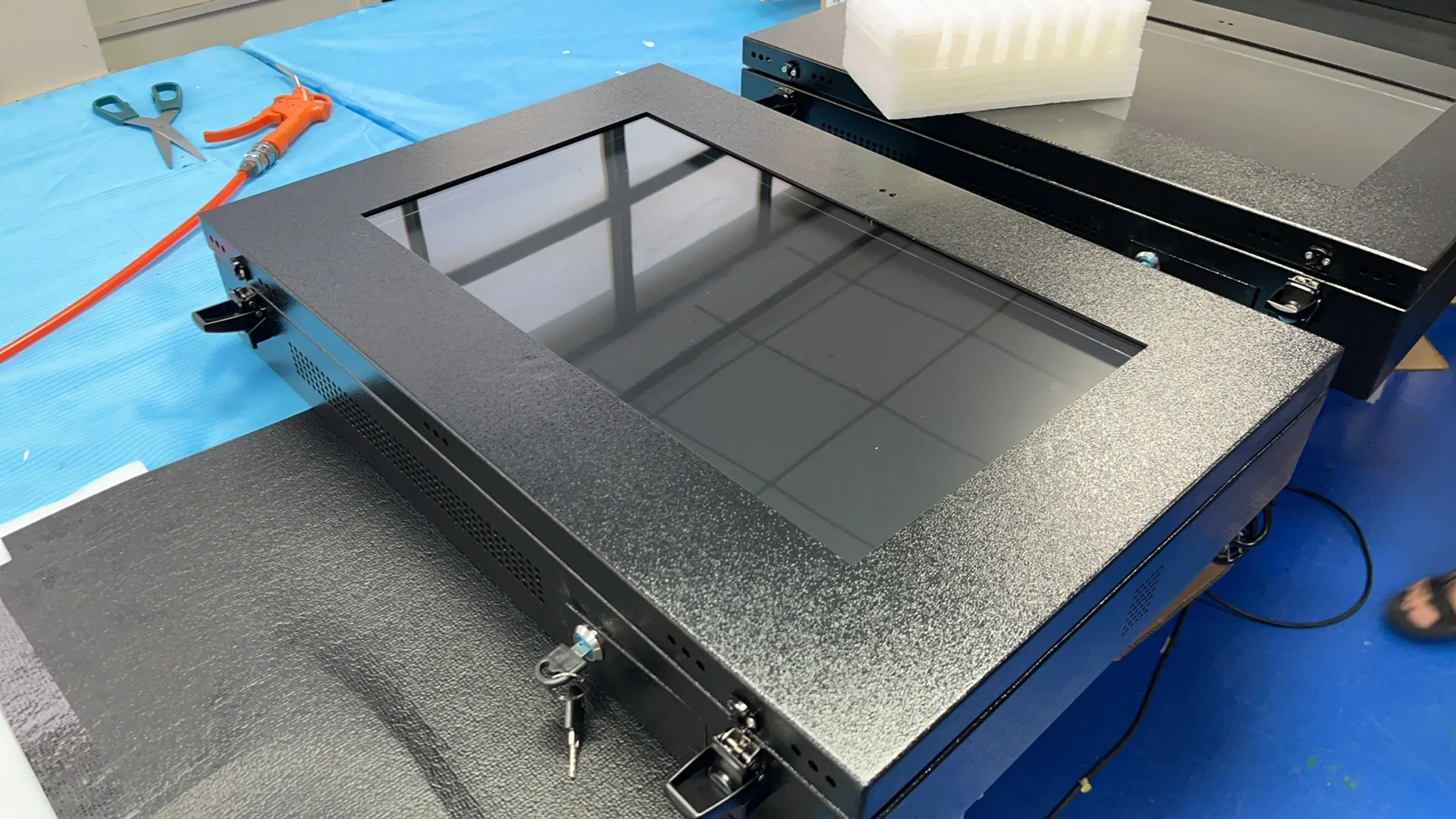

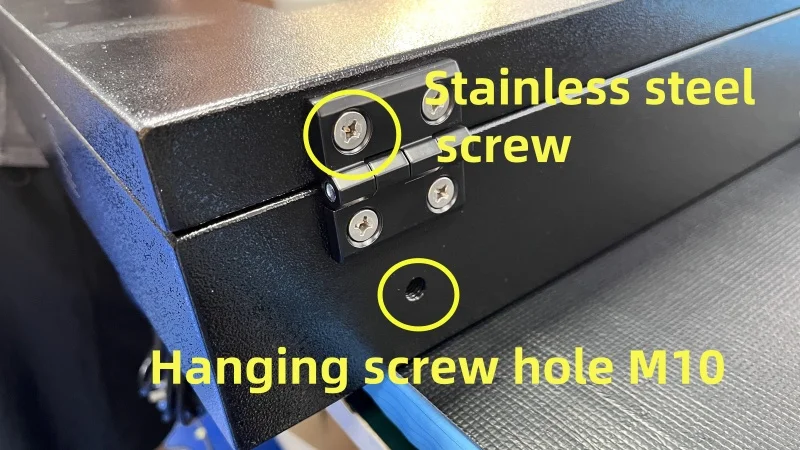

Anti-theft Buckle Lock.
The 21.5-inch LCD display is equipped with two hasp locks, and key locks are designed for USB and other interfaces. It is more suitable for outdoor use, preventing the monitor from being stolen outdoors and protecting the display content from being tampered with at will.

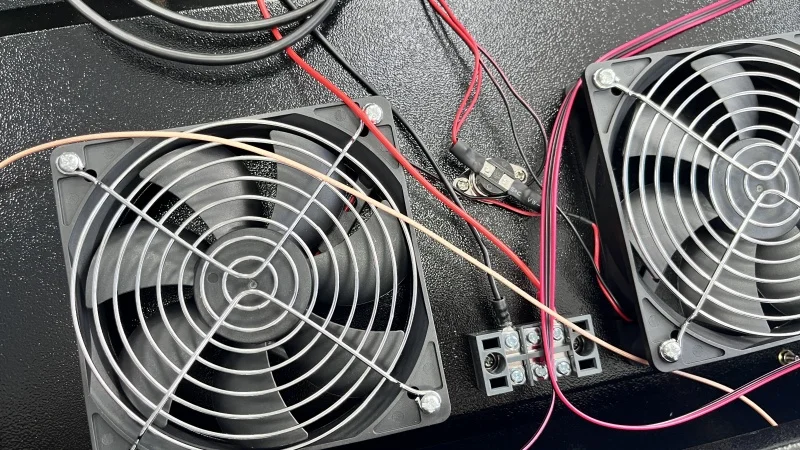

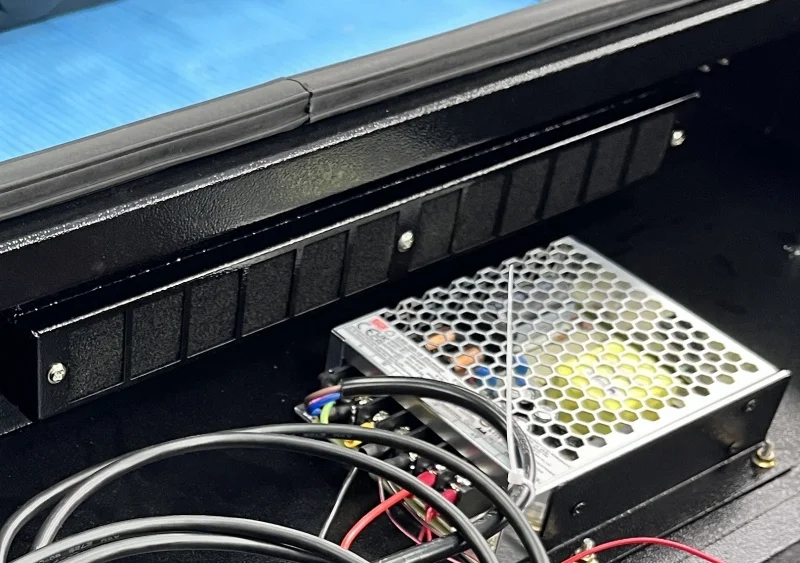

Cooling Fan.
The display is equipped with two cooling fans to help cool the machine, so that the machine can work in a normal temperature environment, extend the service life of the machine and ensure the safety of the machine.
Dust-proof Cotton Design.
The 21.5-inch display has dustproof cotton added to the air inlet to filter dust and debris, protect the normal use of the machine, and extend the life of the machine.
In addition, the dustproof cotton is replaceable and can be operated by yourself
Content Playback and Interaction:
* Content Playback: Supports a variety of content formats including images, animations, videos, etc.
* Interactive Features: Touch capabilities can be added for audience interaction, enhancing engagement and attraction
* Network Management: Smart network system supports synchronized playback across multiple devices nationwide, facilitating
content management
Specific Uses:

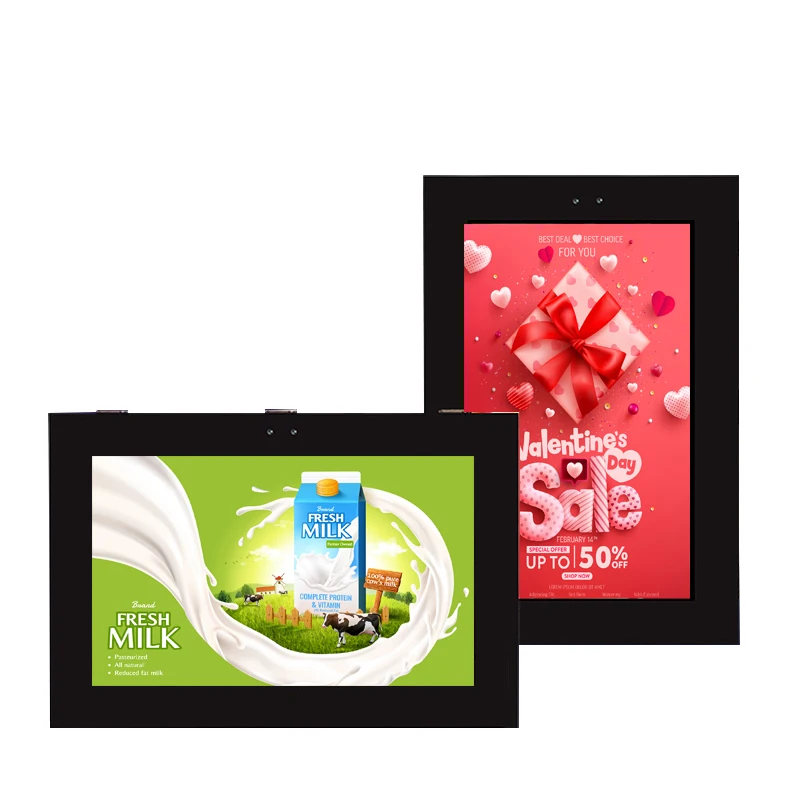

1. Advertising Display: Capable of showcasing dynamic advertisements such as video ads, animated ads, and static images to capture the attention of passersby and motorists.
2. Information Dissemination: Used for posting community announcements, event notifications, or public service messages like weather forecasts and traffic updates, providing practical information services to residents.
3. Interactive Experience: With touchscreen capabilities, it facilitates interactive features such as touchscreen maps, product showcases, and interactive games, enhancing user engagement.
Recommend Products
Logistics and Transport
Company Profile
FAQ
1.Q: Are you a factory?
A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!
2.Q: What’s sample production time?
A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly. (Around 5-6 working weeks)
3.Q:What’s your warranty term?
A: Our product Warranty--one year under normal use. Definition – All products ordered will be covered by a parts replacement warranty. Should any faulty product be identified by customer, customer shall inform us of the component that is faulty, and we shall ship a replacement component to CUSTOMER free of charge.
4.Q: What’s the outdoor LCD display working temperature range?
A: With air flow cooling system, working temperature -10℃-60℃.
5.Q: What’s your outdoor LCD screen brightness?
A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel optional.
6.Q: How to use and install it?
A: To help customer easy to use and install, we will send user manual and instruction videos to customer.

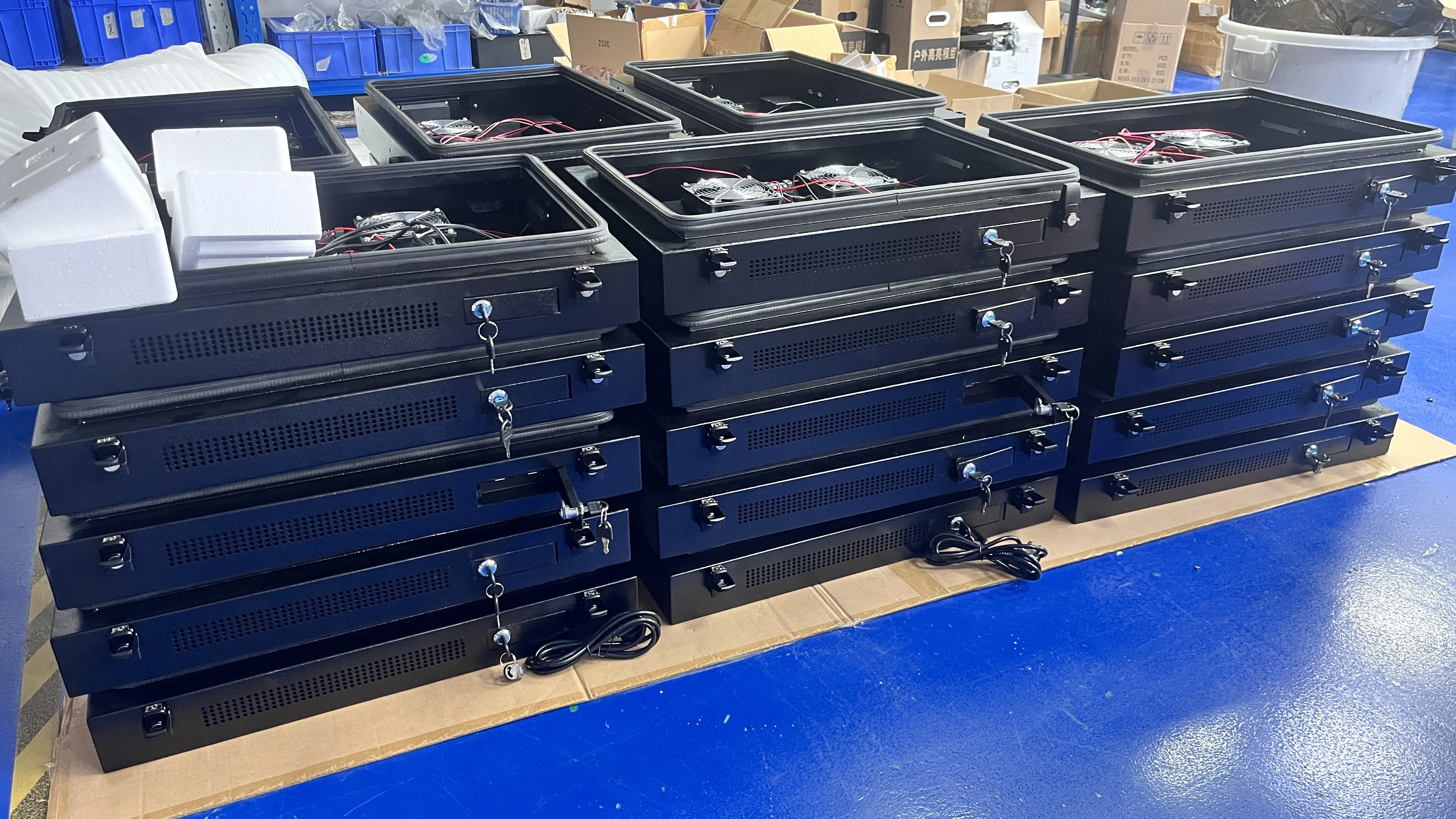

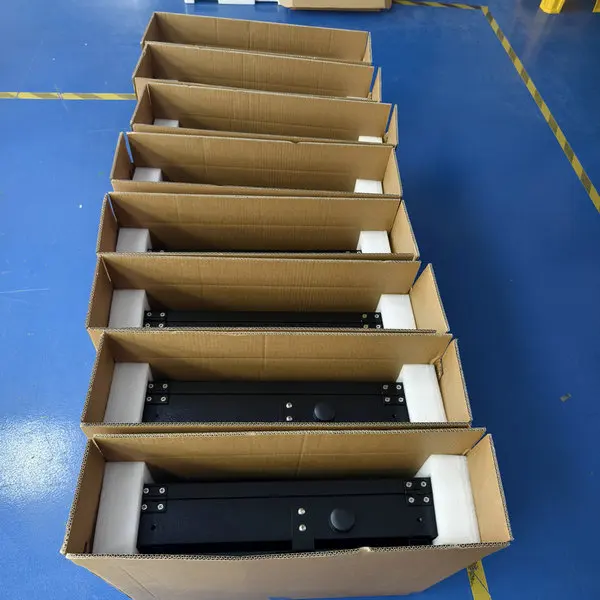

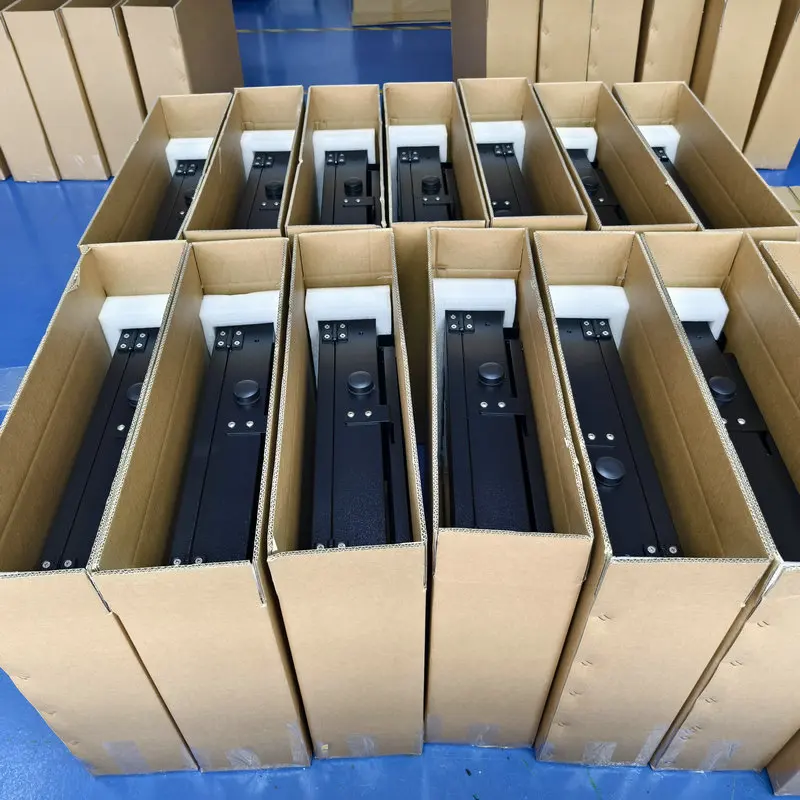

7.Q: What’s the packing?

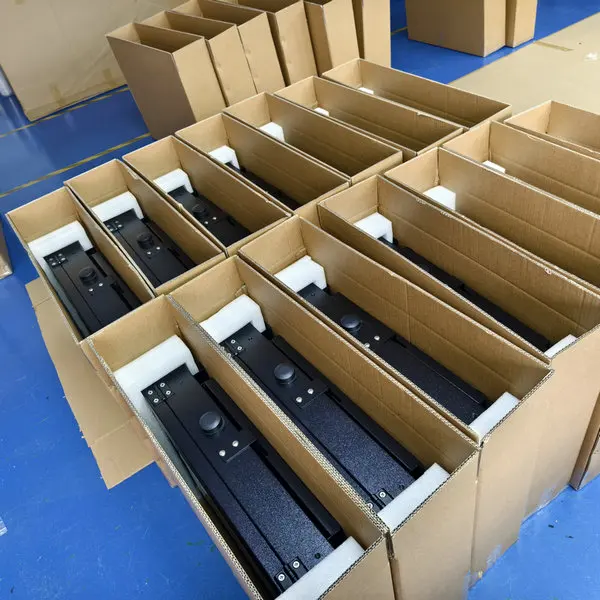

A:For LCD digital signage, we adopt thick foam inside with goods packed into strong plywood wooden box to ensure the safety during export delivery.
A: Yes, we are an OEM/ODM manufacturer of indoor & outdoor LCD digital signage in Shenzhen, China. Welcome to visit our company at any time!
2.Q: What’s sample production time?
A: For standard model of outdoor display, normally need 2-3 working weeks. For customized project, the production time need to be confirmed accordingly. (Around 5-6 working weeks)
3.Q:What’s your warranty term?
A: Our product Warranty--one year under normal use. Definition – All products ordered will be covered by a parts replacement warranty. Should any faulty product be identified by customer, customer shall inform us of the component that is faulty, and we shall ship a replacement component to CUSTOMER free of charge.
4.Q: What’s the outdoor LCD display working temperature range?
A: With air flow cooling system, working temperature -10℃-60℃.
5.Q: What’s your outdoor LCD screen brightness?
A: For outdoor display, we have 1500nits to 5000nits high brightness LCD panel optional.
6.Q: How to use and install it?
A: To help customer easy to use and install, we will send user manual and instruction videos to customer.
7.Q: What’s the packing?
A:For LCD digital signage, we adopt thick foam inside with goods packed into strong plywood wooden box to ensure the safety during export delivery.
