Triple Product Dense Media Cyclone Mineral Separator Non Pressurized for Coal Industry
- Category: >>>
- Supplier: Weihai Shangpin Mechanical Equipment Technology Co. Ltd.Weihai Ltd.
Share on (1601291863959):
Product Overview
Description
Product Description

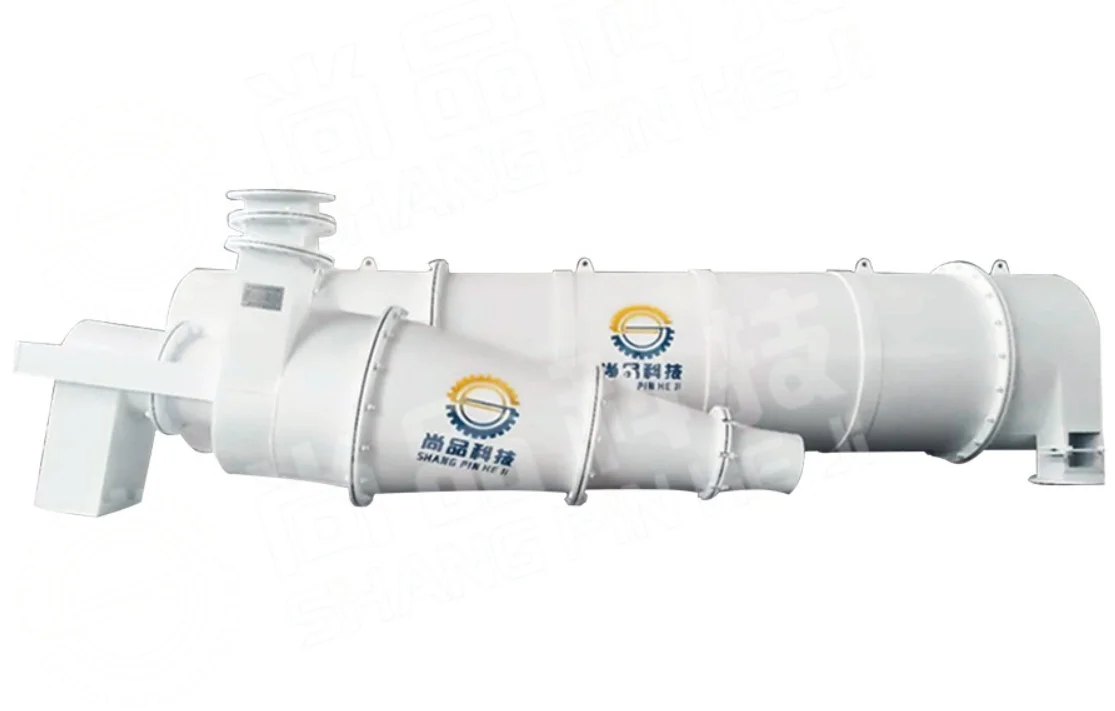

The Non-pressurized Triple-Product Dense-Media Cyclone uses a single medium system to produce three products. Raw coal and qualified suspension are fed in reverse, and through the concentration effect of the cyclone itself, the second-stage separation density requirement is achieved, thereby separating the raw coal into clean coal, middlings, and gangue.
Product Performance and Features
The feeding particle size range of the Non-pressurized Triple-Product Dense-Media Cyclone is 110mm-0.23mm; the maximum processing capacity with desliming can reach 600t/h, and without desliming can reach 500t/h; separation accuracy: for the 0.5mm level Ep1=0.02-0.03kg/L, Ep2=0.03-0.06Kg/L (related to the separation density), and for the 0.5-0.25mm level Ep≤0.1Kg/L.
Raw coal is fed into the cyclone by dropping, without passing through a slurry pump, thus reducing the amount of secondary coal slime and light wear on the pipes.

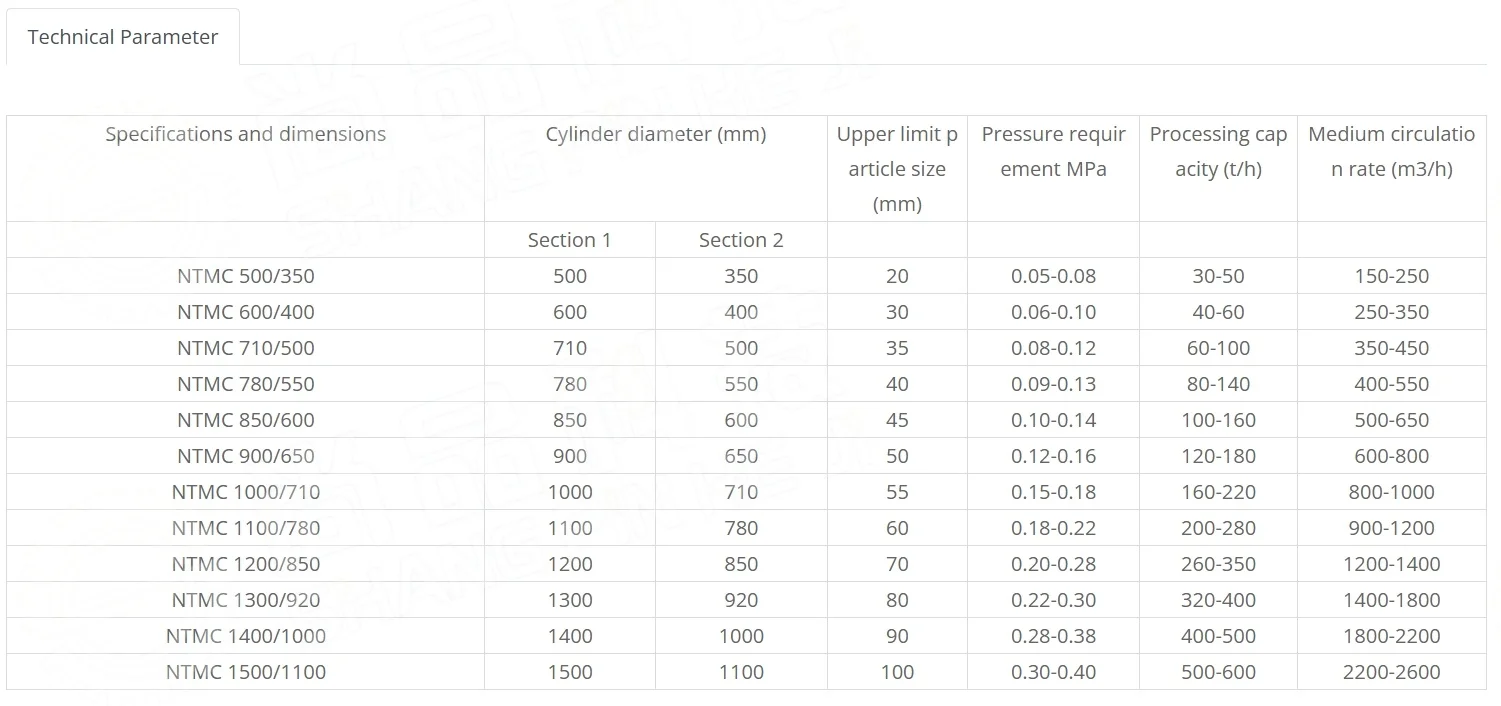

Size Information
Product details
Prochuet Perfrmance and Features
Weihai Shangpin Machinery Equipment Co., Ltd. was established in 2013. It is a national high-tech enterprise specializing in "cyclone separation technology, screening technology, new wear-resistant material research and development, and related equipment design and production". It has won many honors such as "Specialized and New Small and Medium Enterprises" and "Advanced Enterprise of Scientific and Technological Innovation" in Shandong Province.
Weihai Shangpin Machinery's products include:
"cyclone, high-frequency dewatering screen, spiral separator, TBS (Teeter Bed Separator) coarse coal slime separator" and other mining machinery;
"sand washing module, fine sand recovery module, double-pass cyclone module" and other construction machinery;
"de-sander, desilter" and other oilfield machinery; and "new wear-resistant and anti-corrosion materials" and other categories.
Weihai Shangpin Machinery's products include:
"cyclone, high-frequency dewatering screen, spiral separator, TBS (Teeter Bed Separator) coarse coal slime separator" and other mining machinery;
"sand washing module, fine sand recovery module, double-pass cyclone module" and other construction machinery;
"de-sander, desilter" and other oilfield machinery; and "new wear-resistant and anti-corrosion materials" and other categories.
