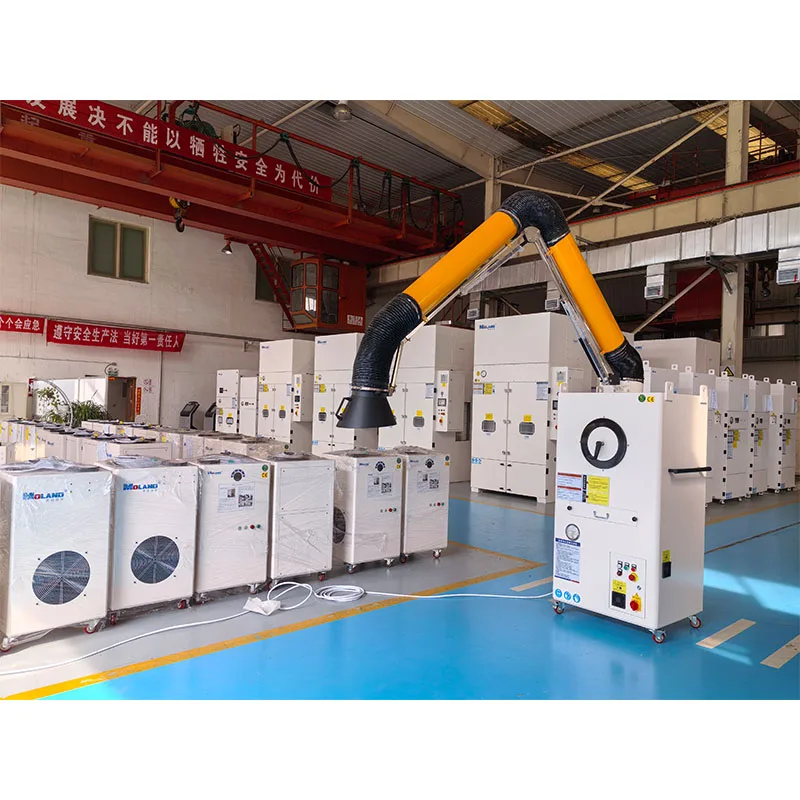

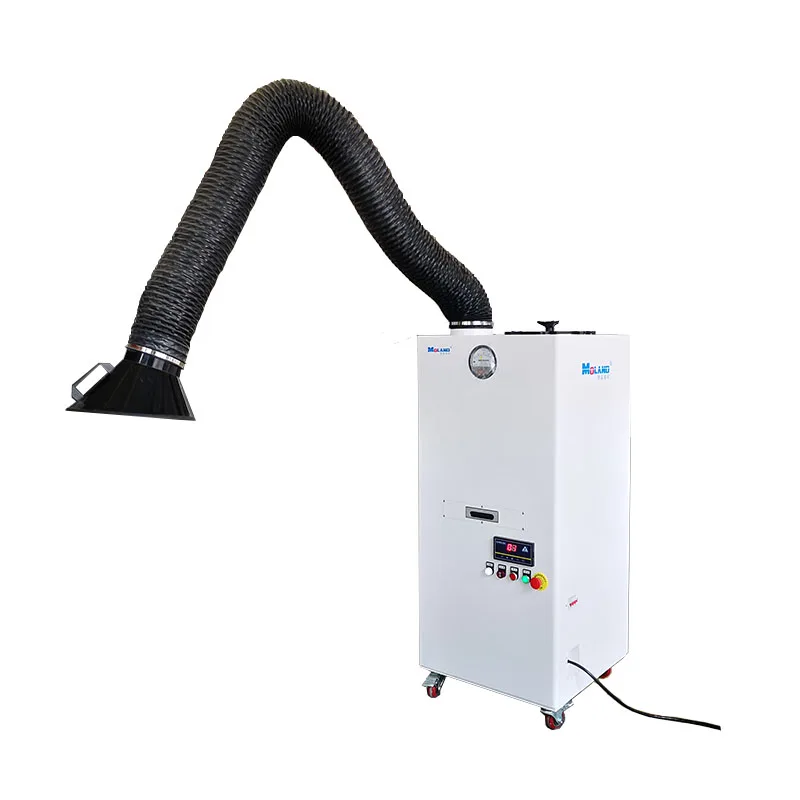

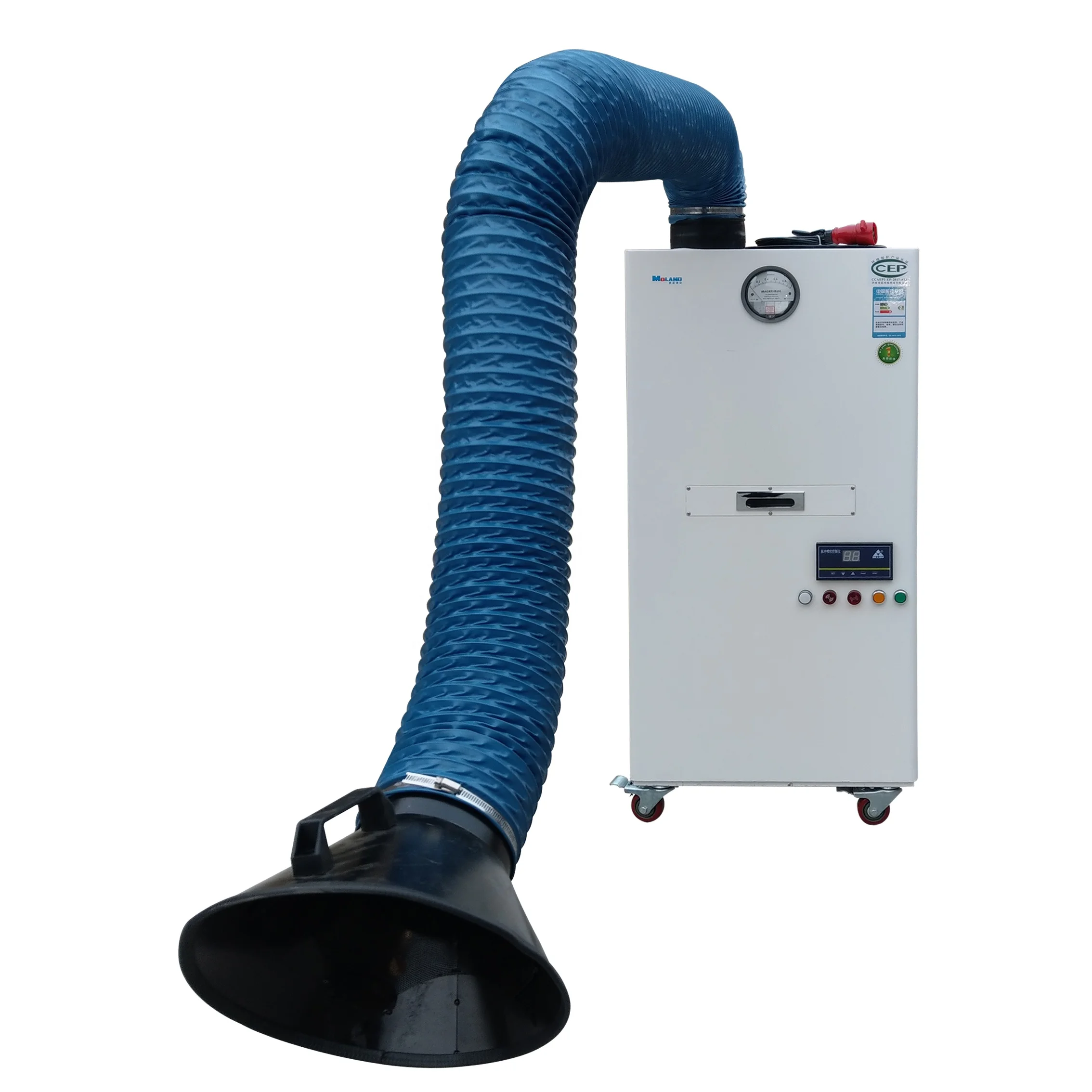

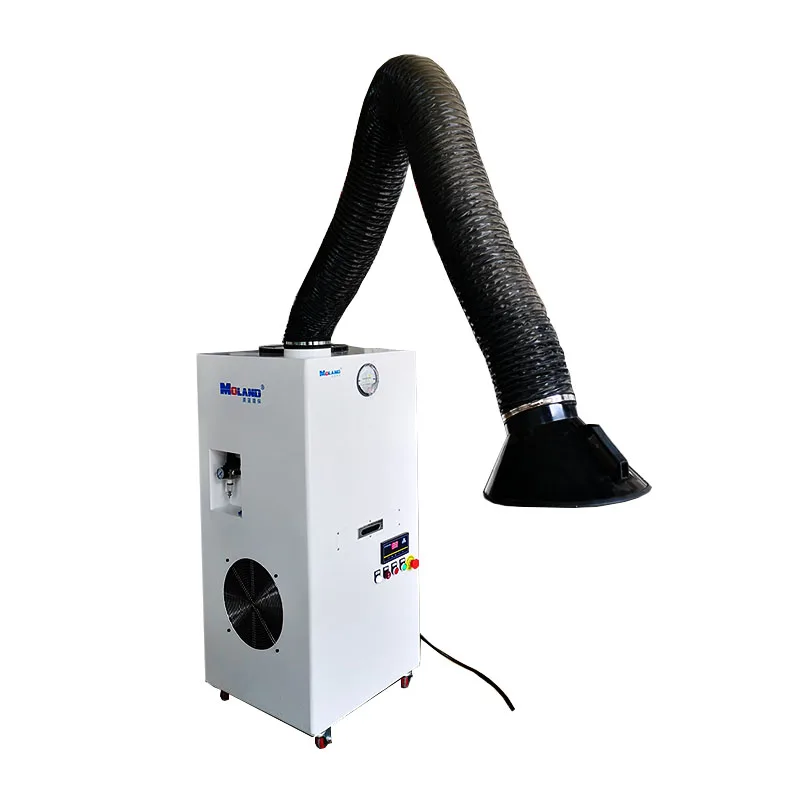

High Level Mobile Welding Fume Extractor Industrial Dust Collector Filtration System For Welding
High Level Mobile Welding Fume Extractor Industrial Dust Collector Filtration System For Welding
High Level Mobile Welding Fume Extractor Industrial Dust Collector Filtration System For Welding
High Level Mobile Welding Fume Extractor Industrial Dust Collector Filtration System For Welding
High Level Mobile Welding Fume Extractor Industrial Dust Collector Filtration System For Welding
High Level Mobile Welding Fume Extractor Industrial Dust Collector Filtration System For Welding
High Level Mobile Welding Fume Extractor Industrial Dust Collector Filtration System For Welding

High Level Mobile Welding Fume Extractor Industrial Dust Collector Filtration System For Welding

Share on (1601292024570):


Price:$810.00-1,120.00

Quantity:


Product Overview

Description



Specification




Model
MLWF220FA
Motor Power
1.5 KW
Working Voltage
380V 50Hz
Air Volume
2200 m^3/h
Filter Efficiency
0.3um 99.9%
Filter Material
Flame retardant coated polyester fiber
Cleaning Mode
Automatic pulse jet cleaning
Filter Area
10m^2
Noise Level
65 dBA
Size
600*600*1405mm
Weight
125kg
Logo
Moland or customized
Color
White or customized
Application
Metal working process, such as welding, cutting, polishing, etc






Details Images

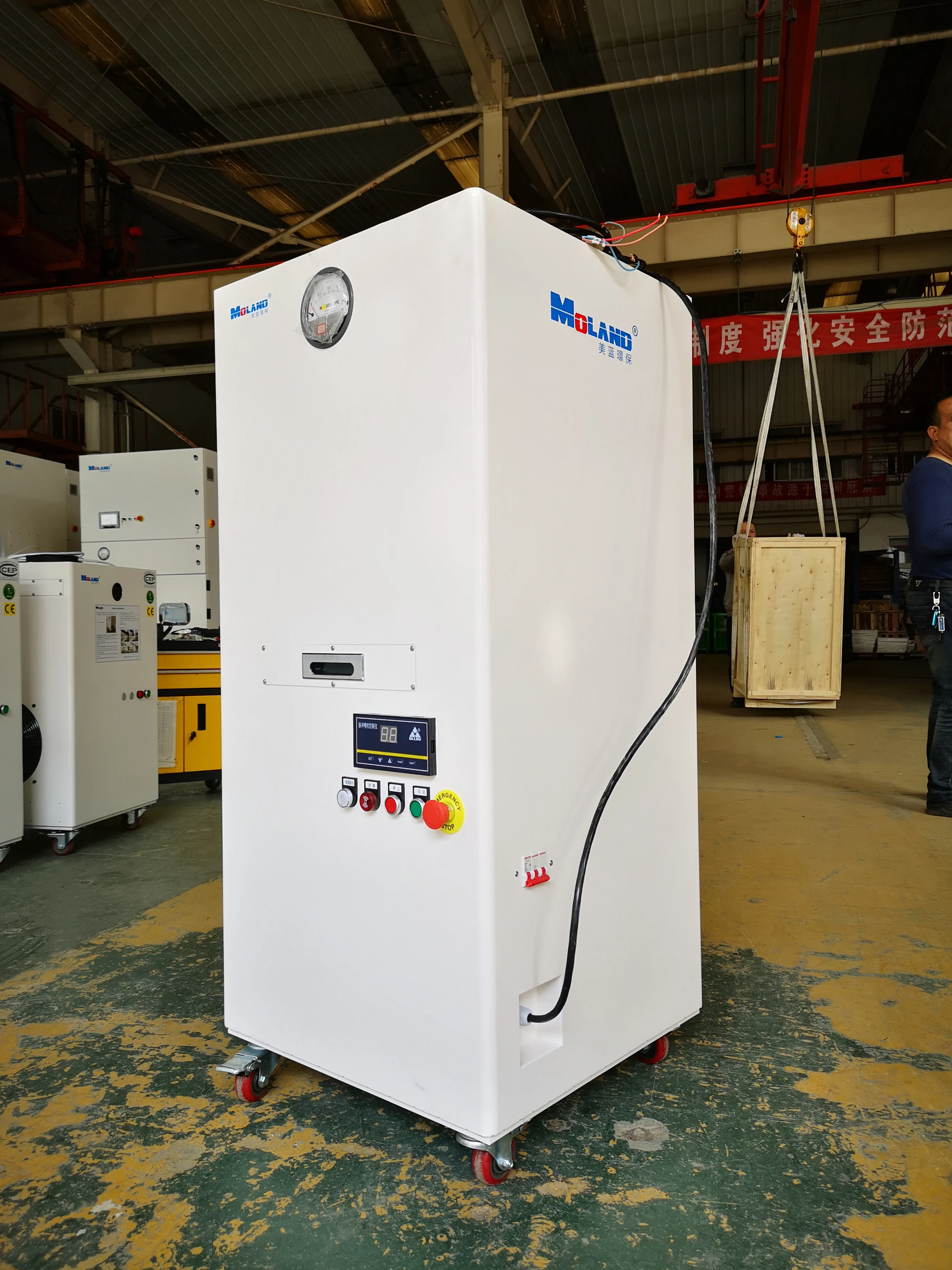

Simple Control System
* With pulse jet controller.
* Power supply light
* Fault alarm light
* Start button
* Stop button

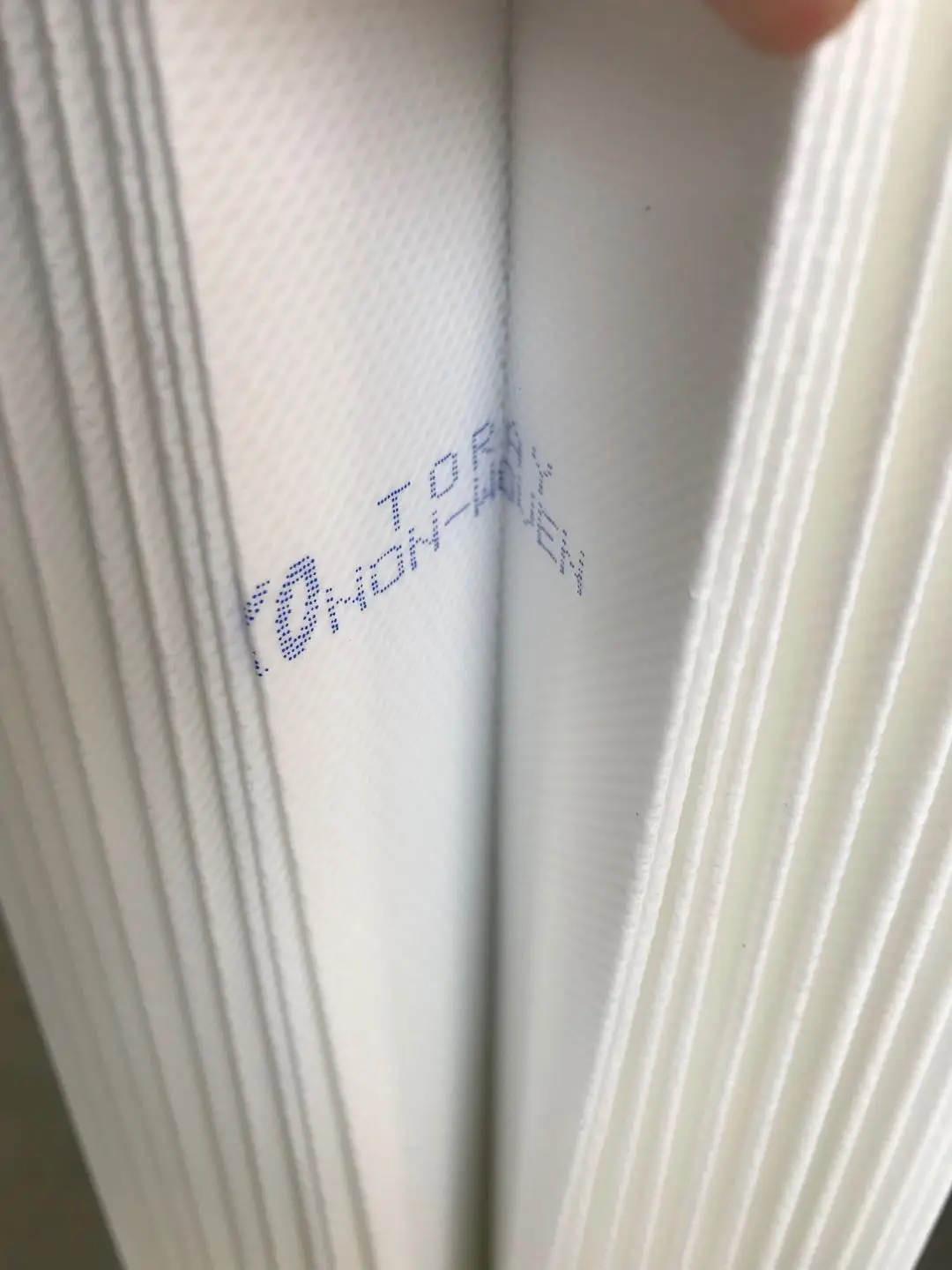

Cartridge Filter
Size: Φ325*600mm
Qty: 1 pc
Material: Flame Retardant Coated polyester fiber
Brand: Toray, Japan
Filter area: 10m^2
Cleaning mode: Automatic pulse jet cleaning
Filtration efficiency: 0.3um >99.9%

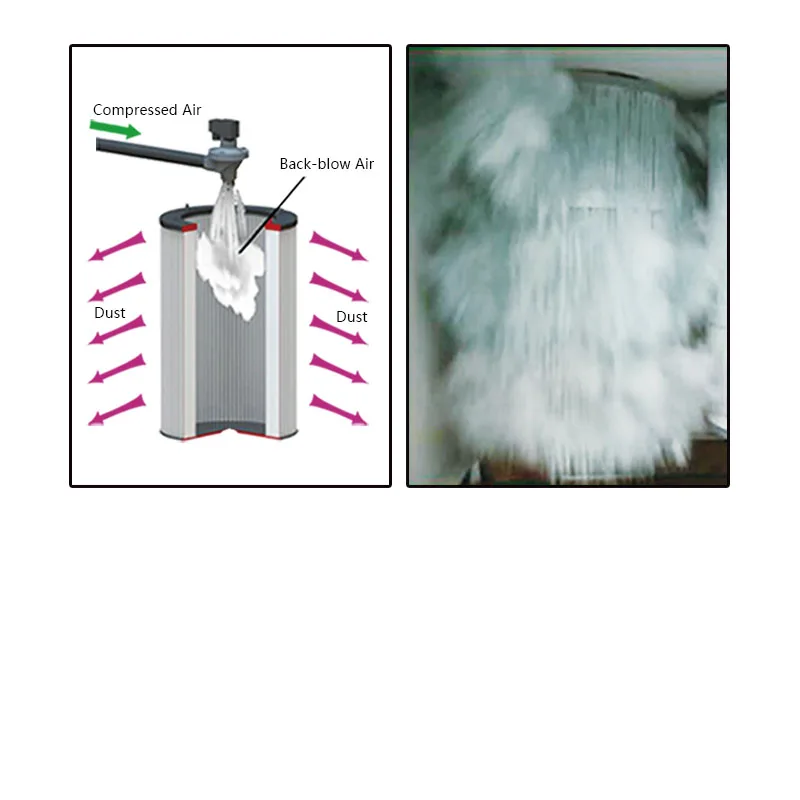

Automatic Pulse Jet Cleaning System
The omni-directional pulse blowback dust removal system, which can automatically clean the filter cartridge with a filtration
efficiency of 99.9%.

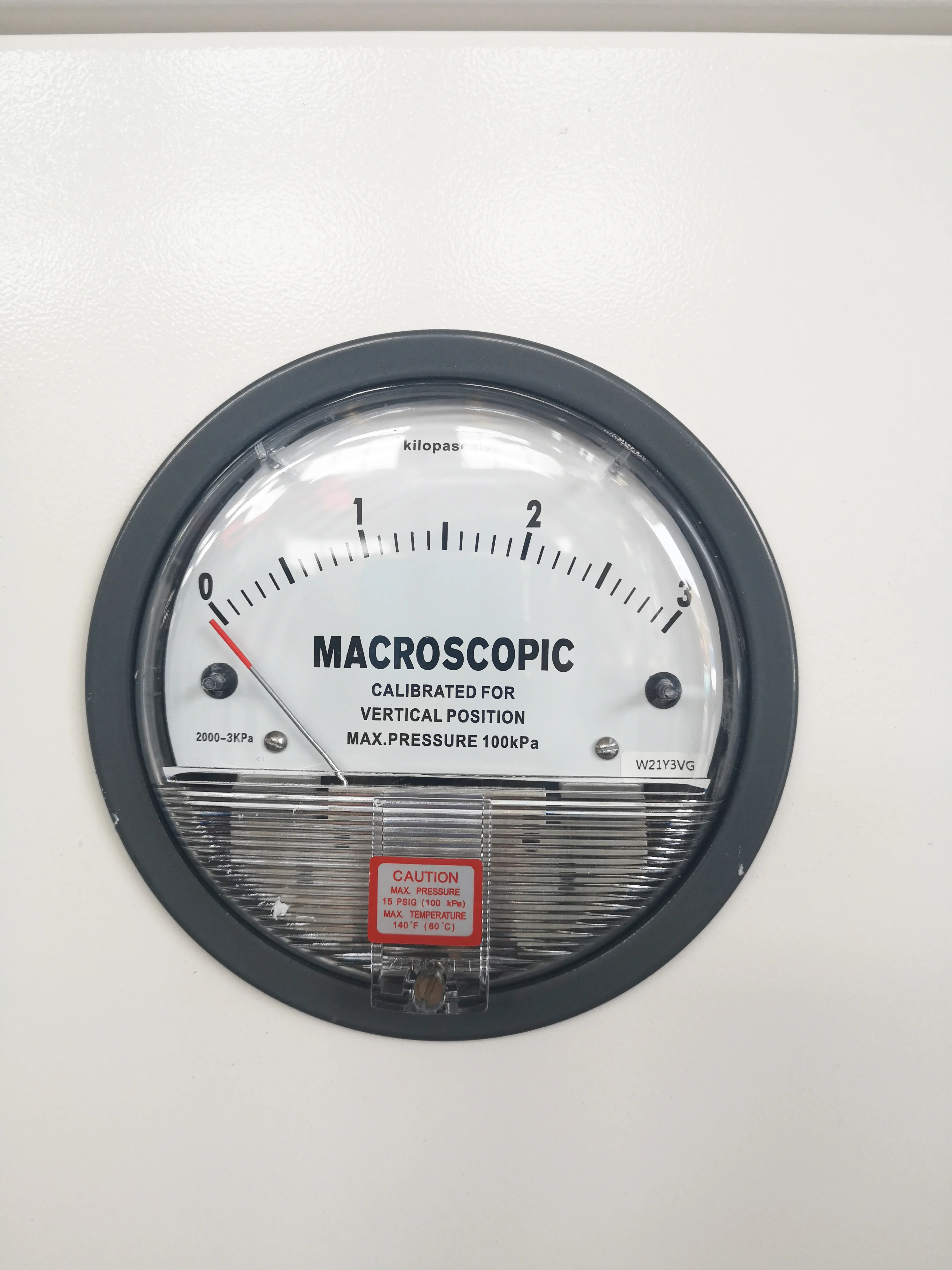

Pressure Differential Gauge
The pointer visually displays the pressure difference, and the use of the filter cartridge is monitored in real time. When the pressure difference is too high, the dust collector automatically blows back and cleans the dust.

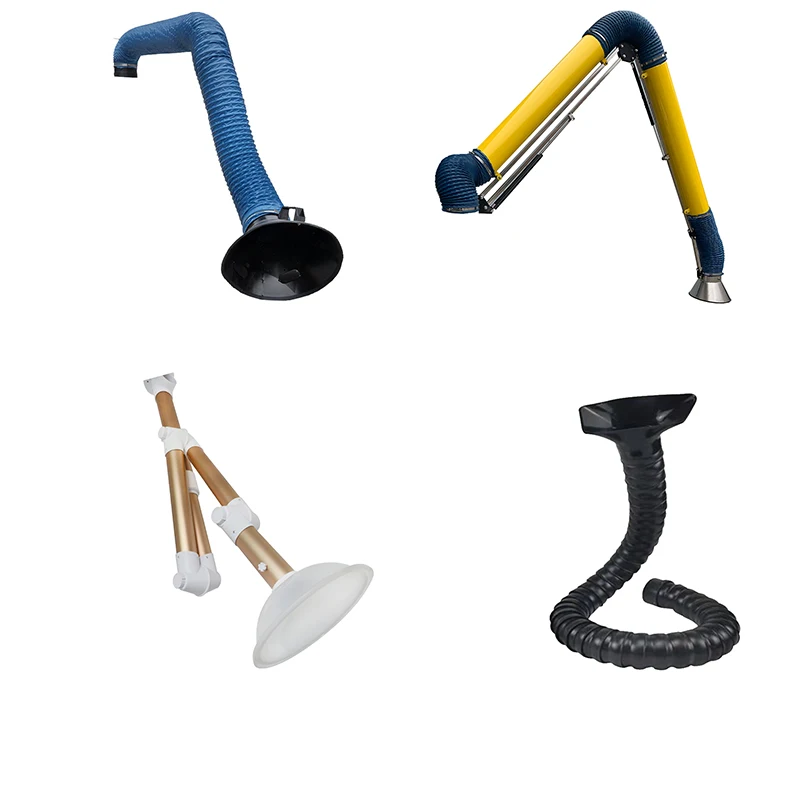

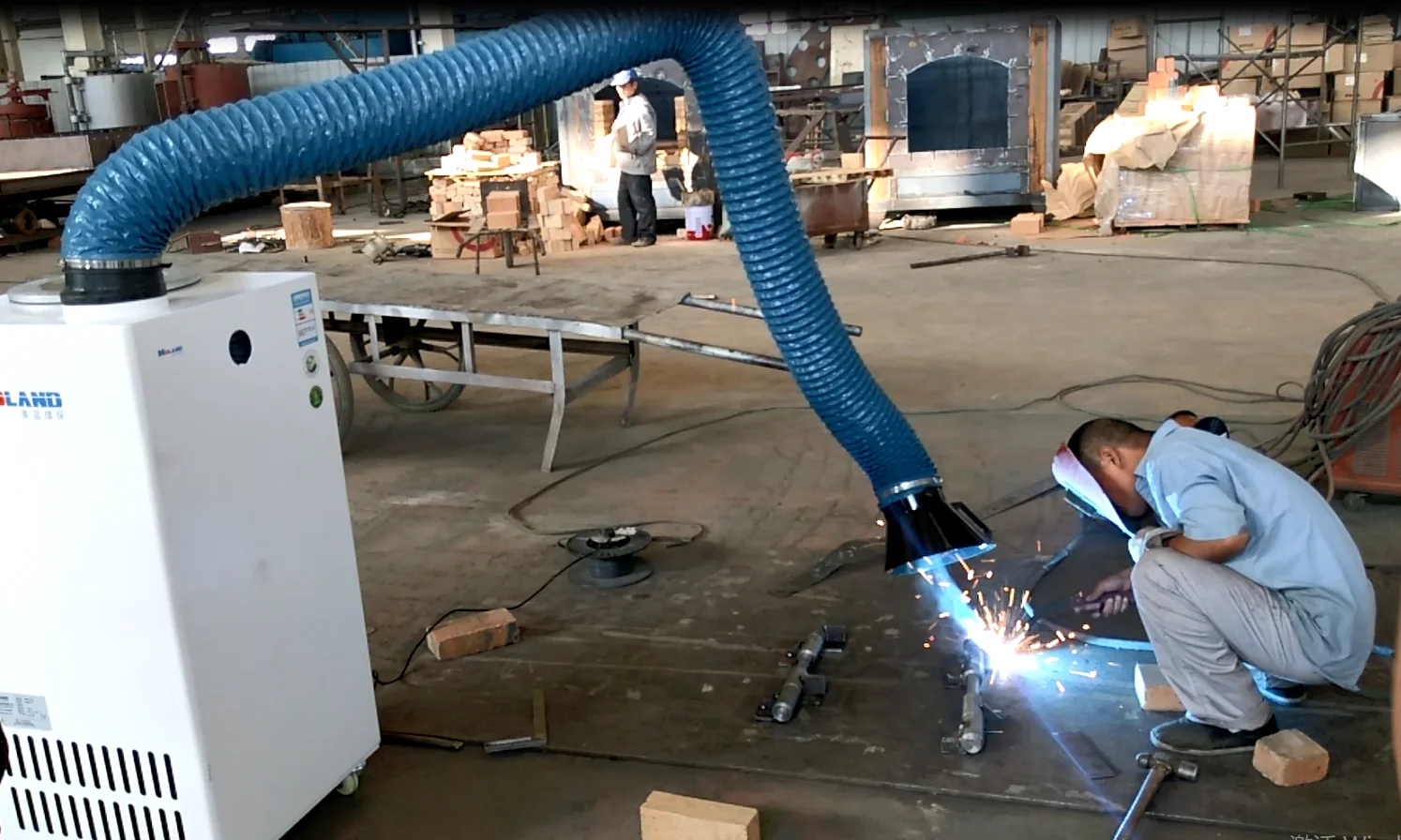

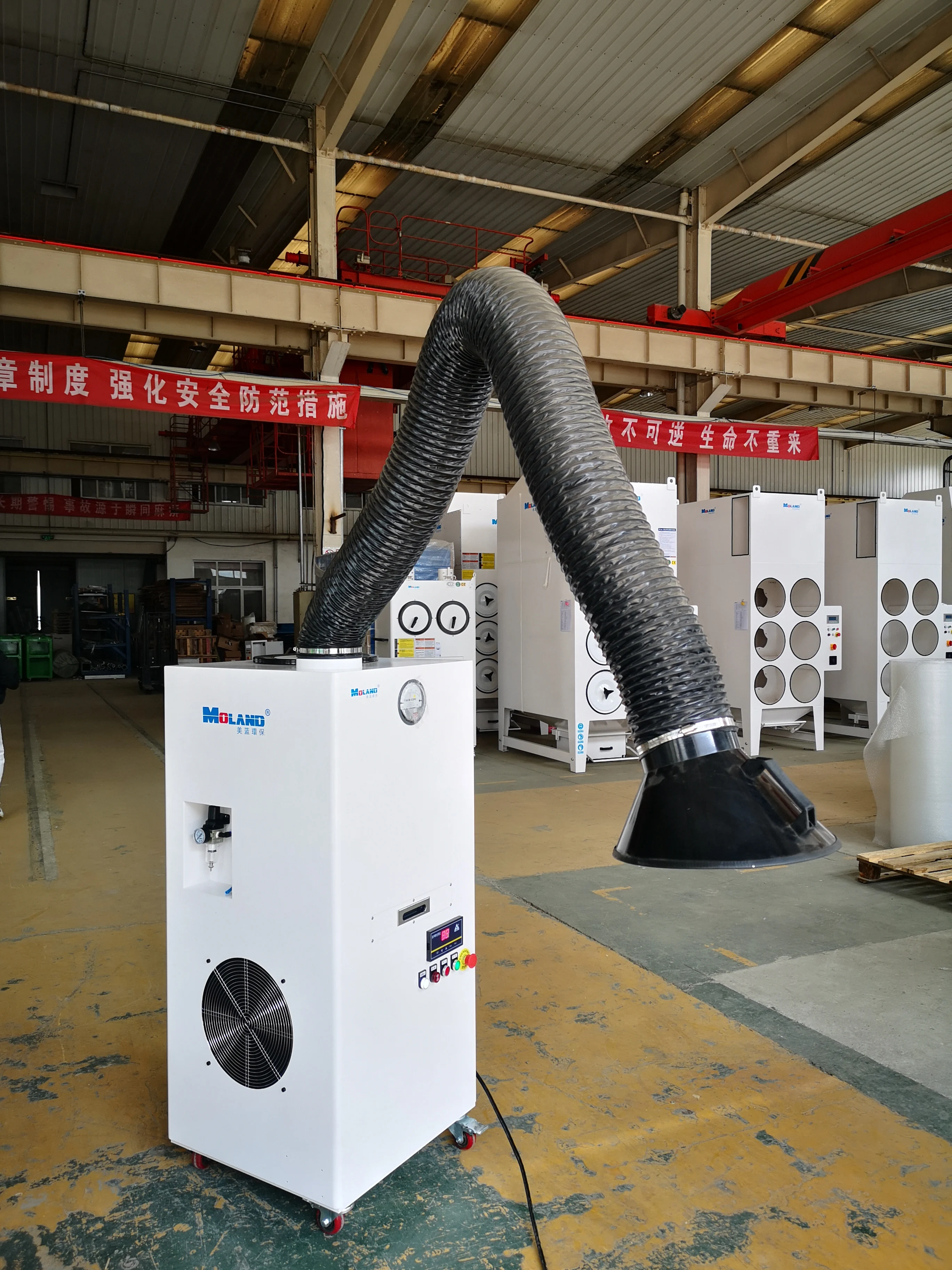

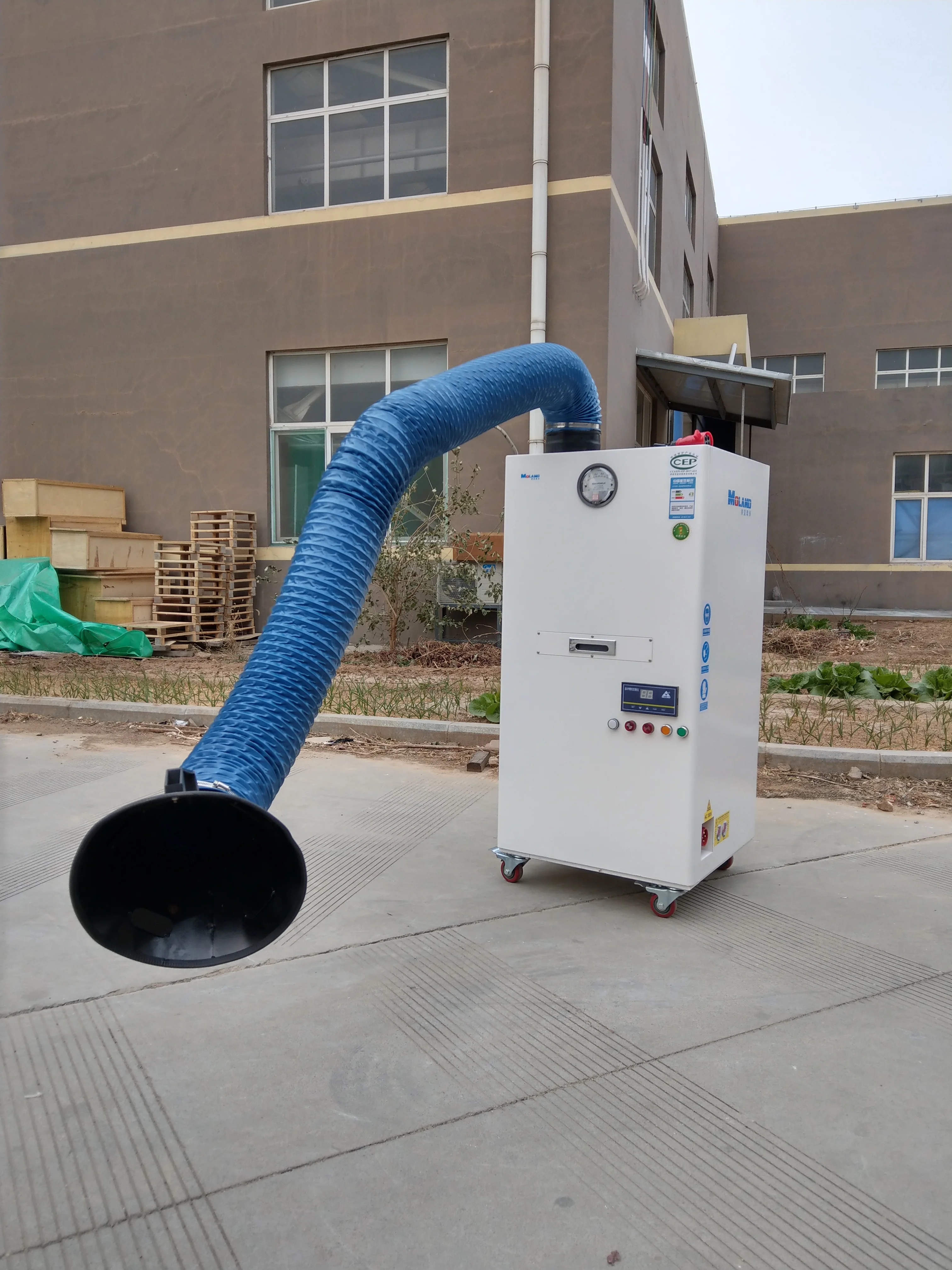

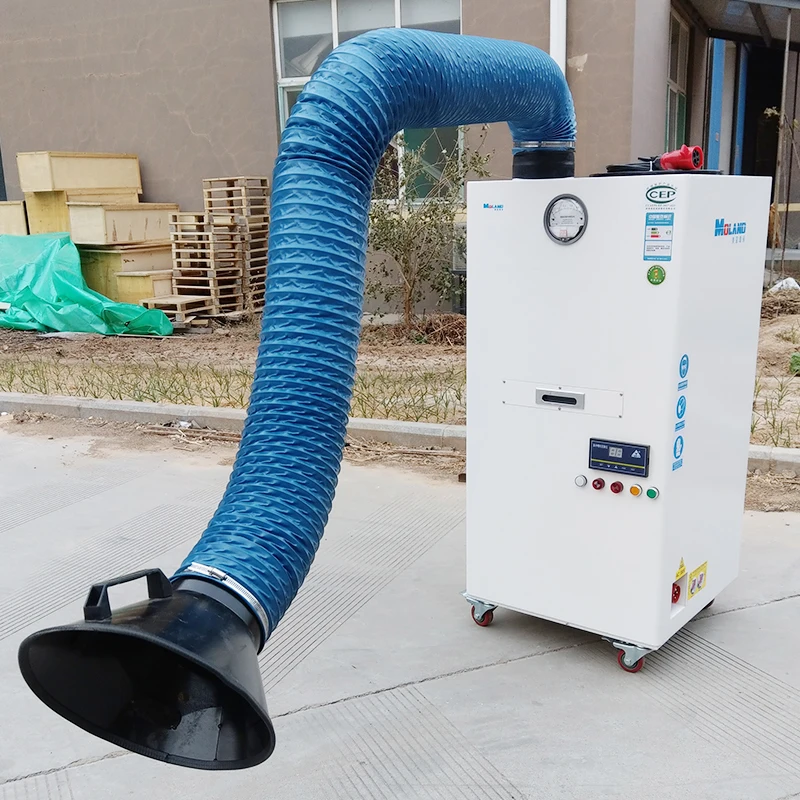

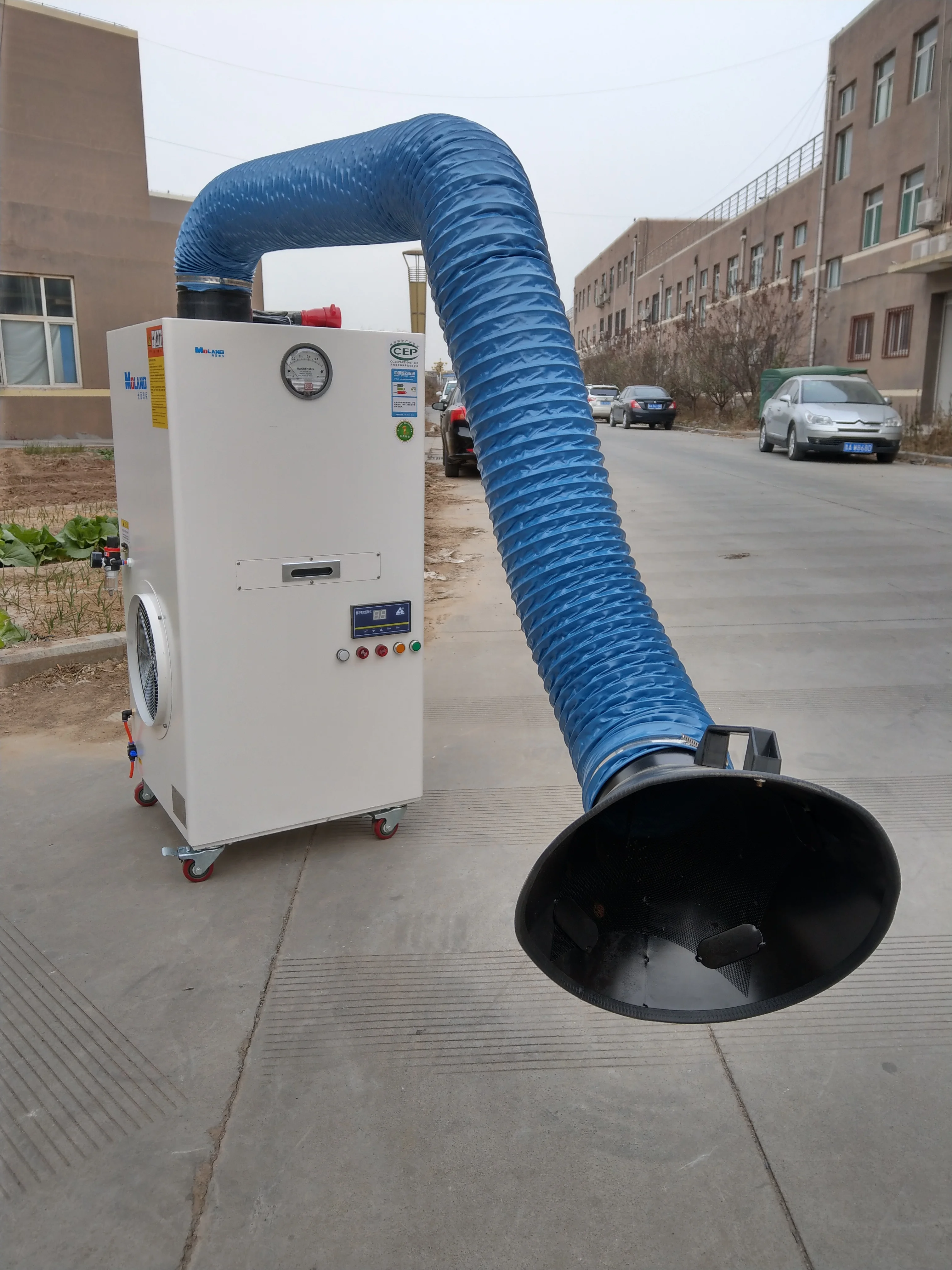

Flexible Extraction Arm
* With flexible extraction arm to collect dust and smoke at the generating source.
* Can be rotated 360 degree.

* Size: Dia.160mm, Length: 3m









Company Profile

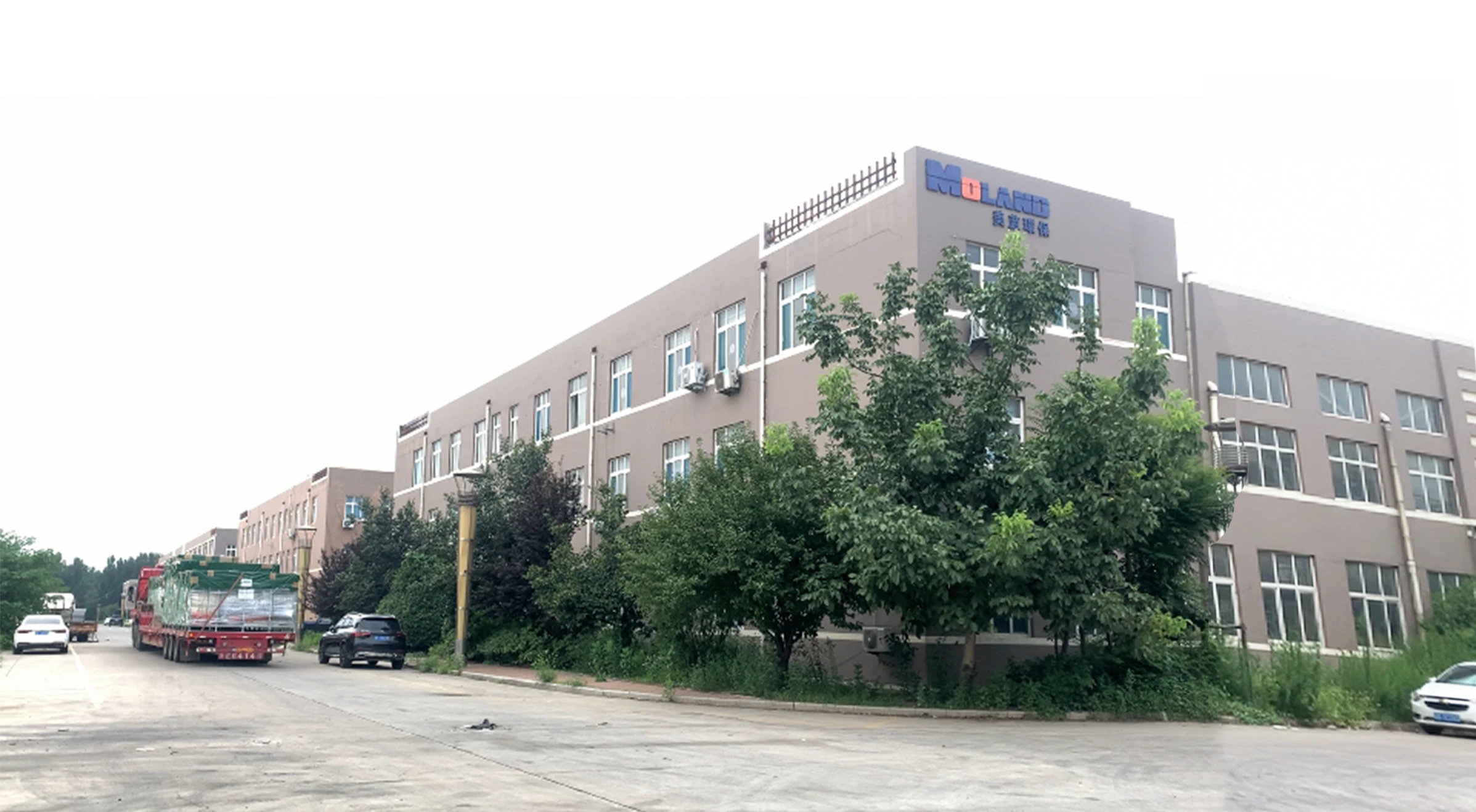

Shandong Moland Environmental Tech. Co.,Ltd
Shandong Moland Environmental Tech. Co.,Ltd is located in No. 11889 Jingshi West Road, Changqing District, Jinan City, Shandong, China, established in 2016. It’s an environmental protection technology enterprise specializing in research, development, manufacture and sale of efficient smoke purification systems.
The company is committed to reducing the environmental impact of production process, protecting workers from harmful gases and dust, and creating a cleaner working environment. At present, the company′s products have been successfully applied in automobile, railway, construction machinery, marine engineering, aviation and other mechanical processing industries, as well as new materials, grain, wood, recycled resources processing and other industries.
The company has passed the ISO 9001 quality management system certification, obtained the certification of China Environmental Protection Products issued by China Environmental Protection Industry Association, and CE certification of EU. It also has a number of invention patents, utility model patents and appearance patents. Through continuous R&D and innovation, many products of the company have reached the International leading level.
Moland′s environmental services cover the whole process from project design, product manufacturing to installation, commissioning and after-sales service. We will provide you with the most professional governance program and the best quality service.

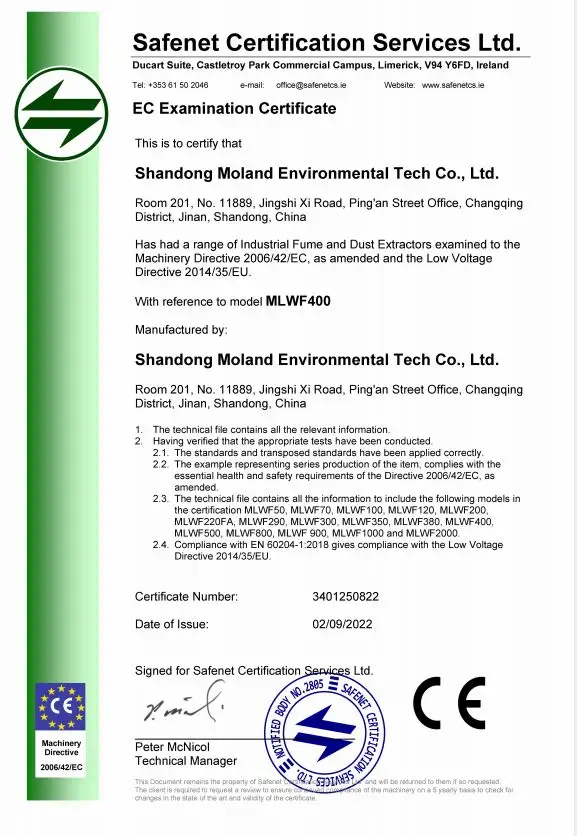

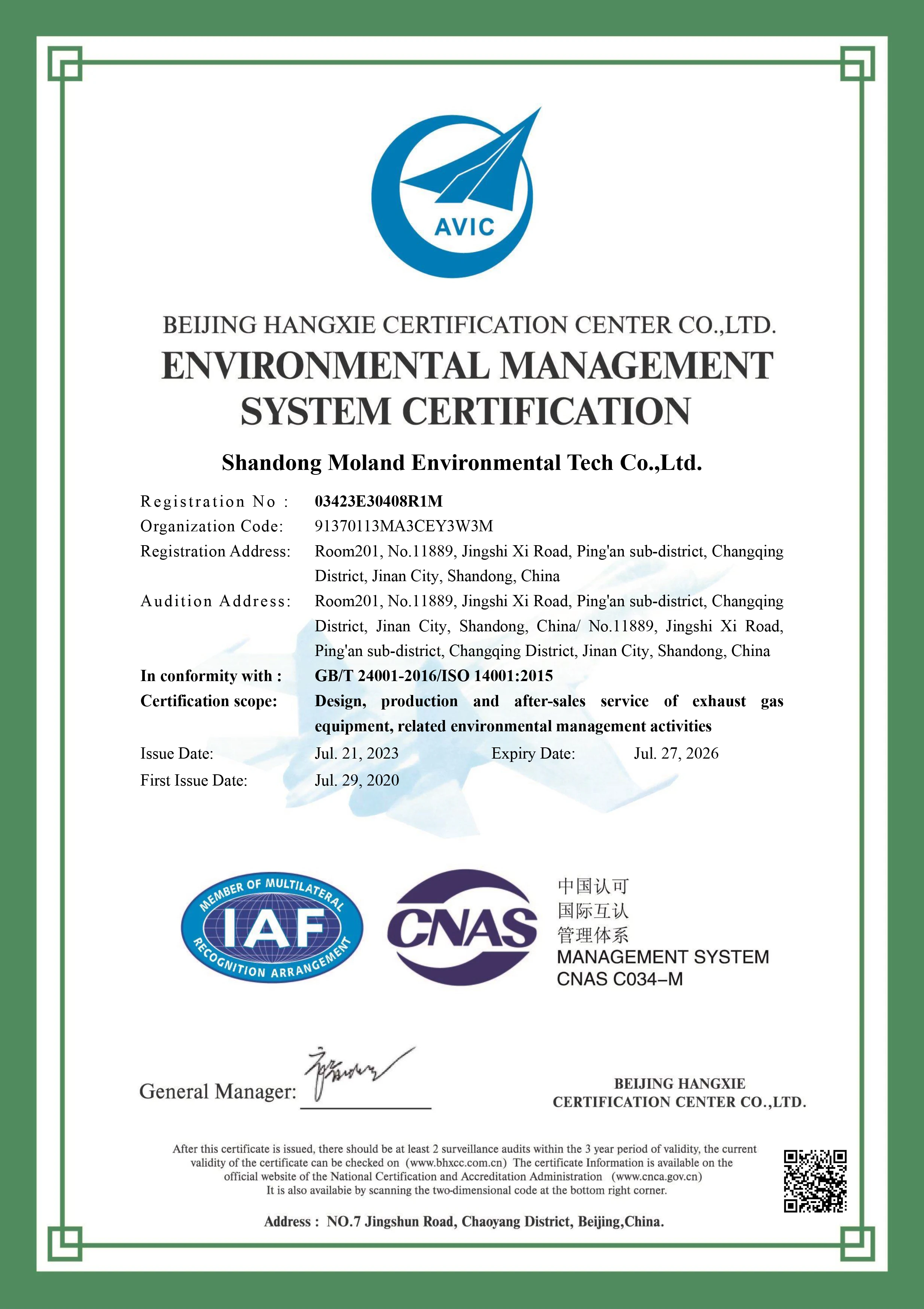

Certifications








Product: CE, ISO9001, ISO14001, ISO45001, Third-party Inspection Reports, etc.
R&D: Utility Model Patent Certificate，Appearance Patent Certificate
Employee: Ecological Environment Technician Certificate， Senior Environmental Engineer， Welder Certificate， High Altitude Work Certificate, etc.
Company: High-tech Enterprise Certificate， Member of Environmental Protection Association， Honest Supplier Enterprise Certificate, CCTV Brand China column recommended brand, etc.


Our advantage

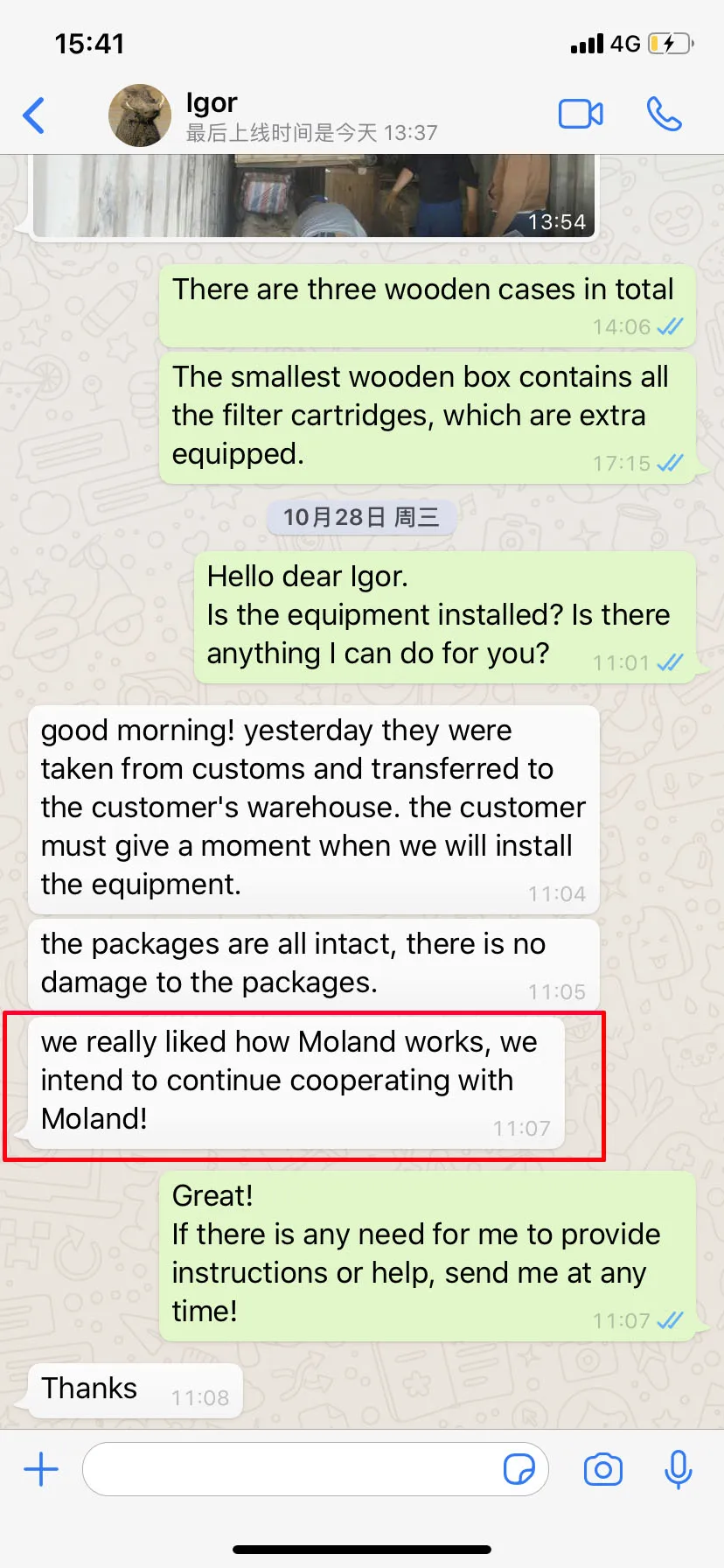

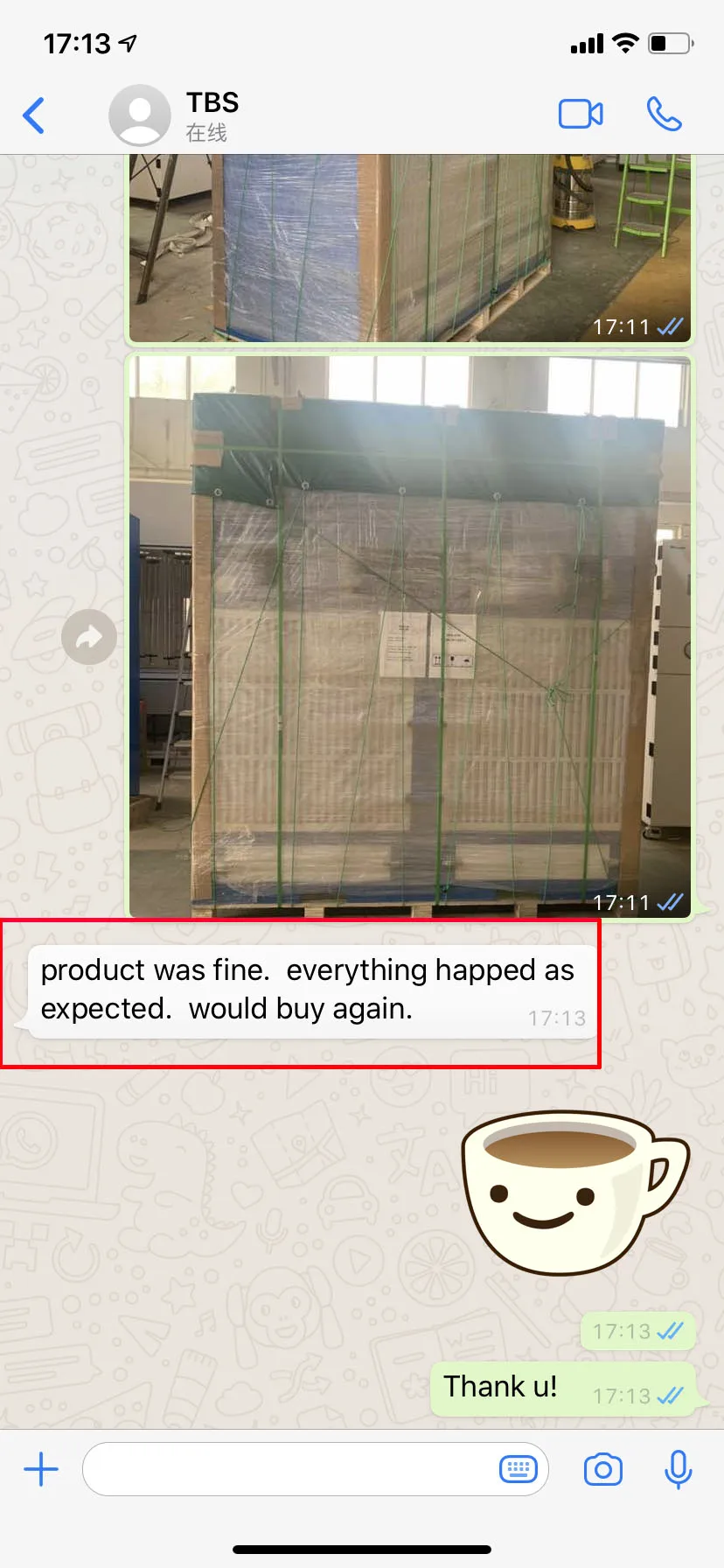

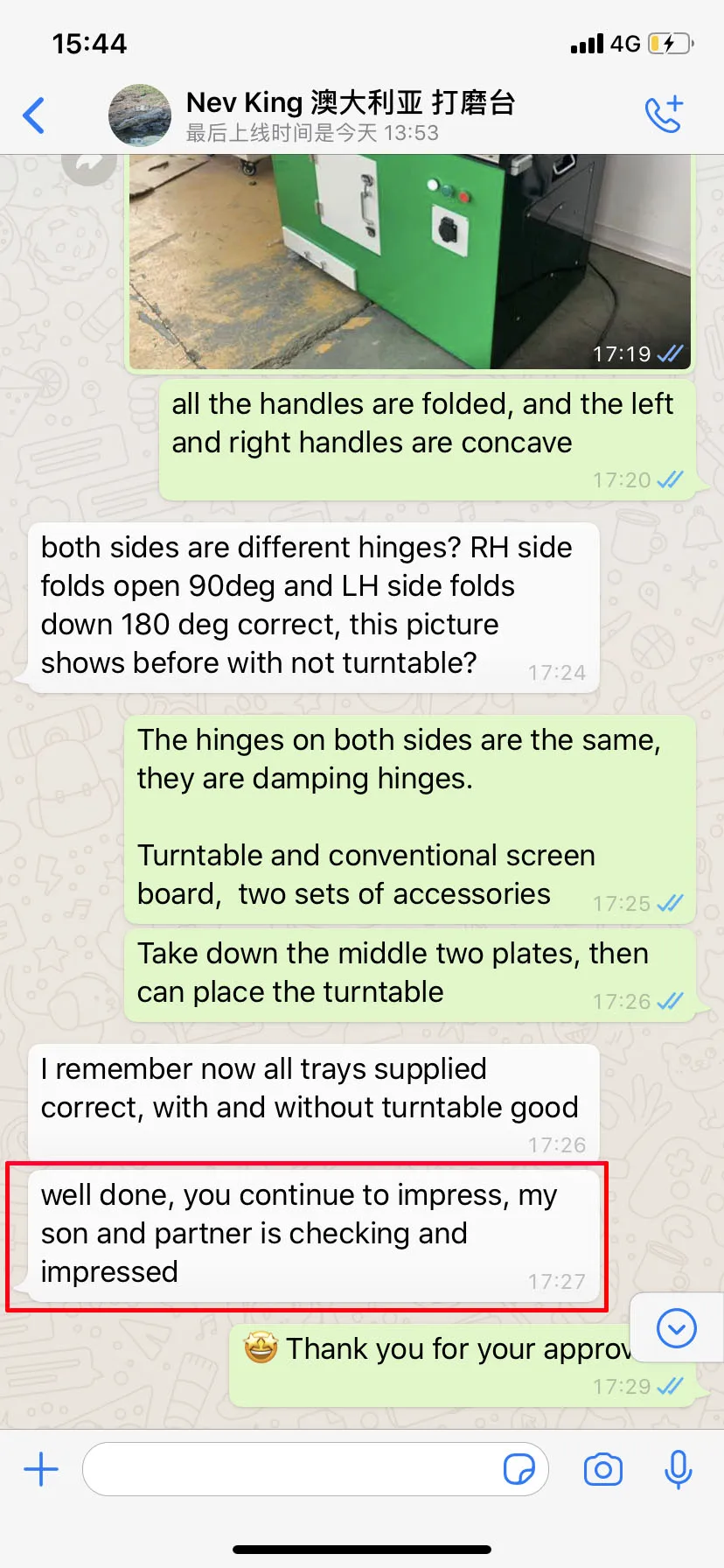

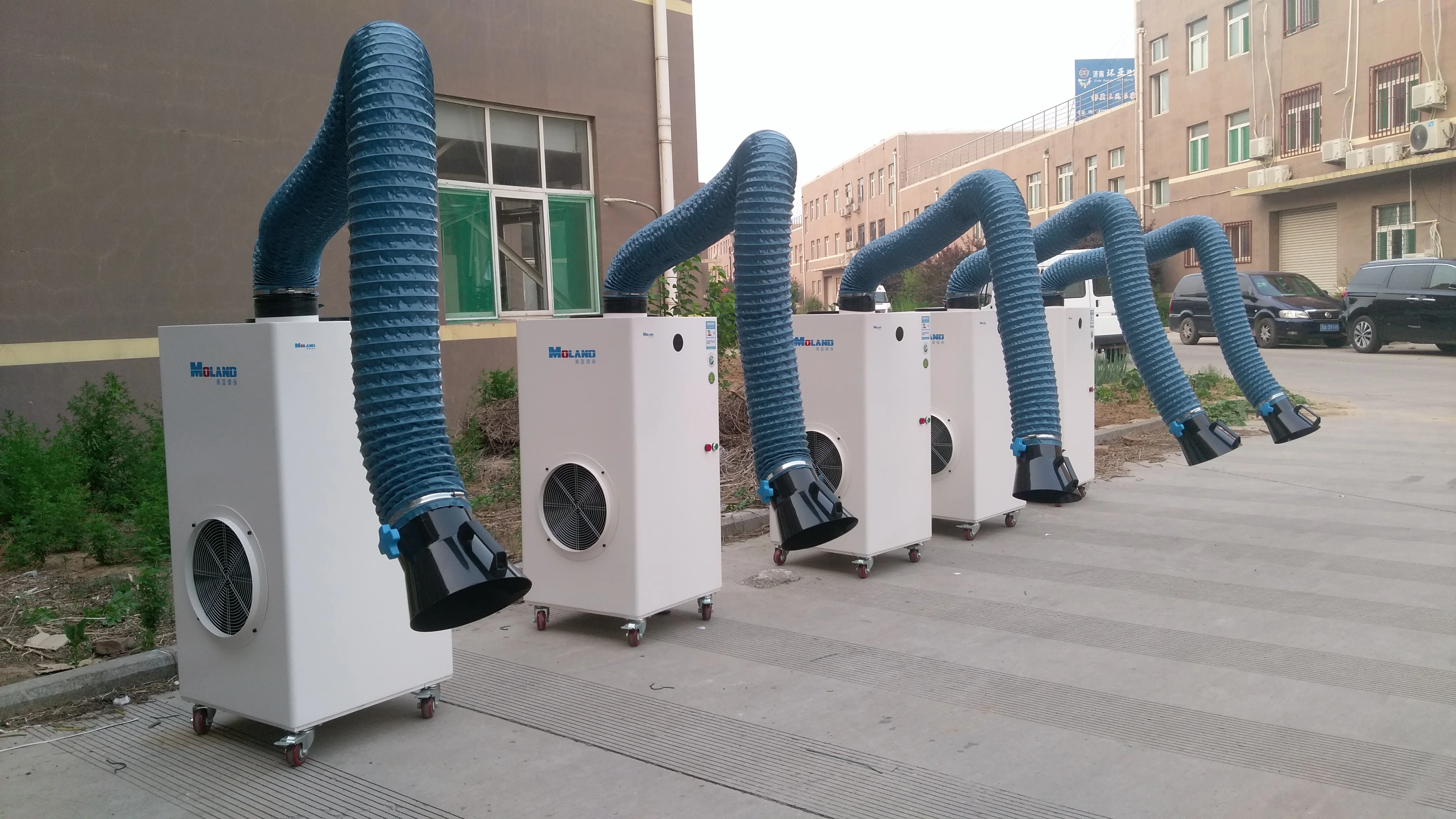

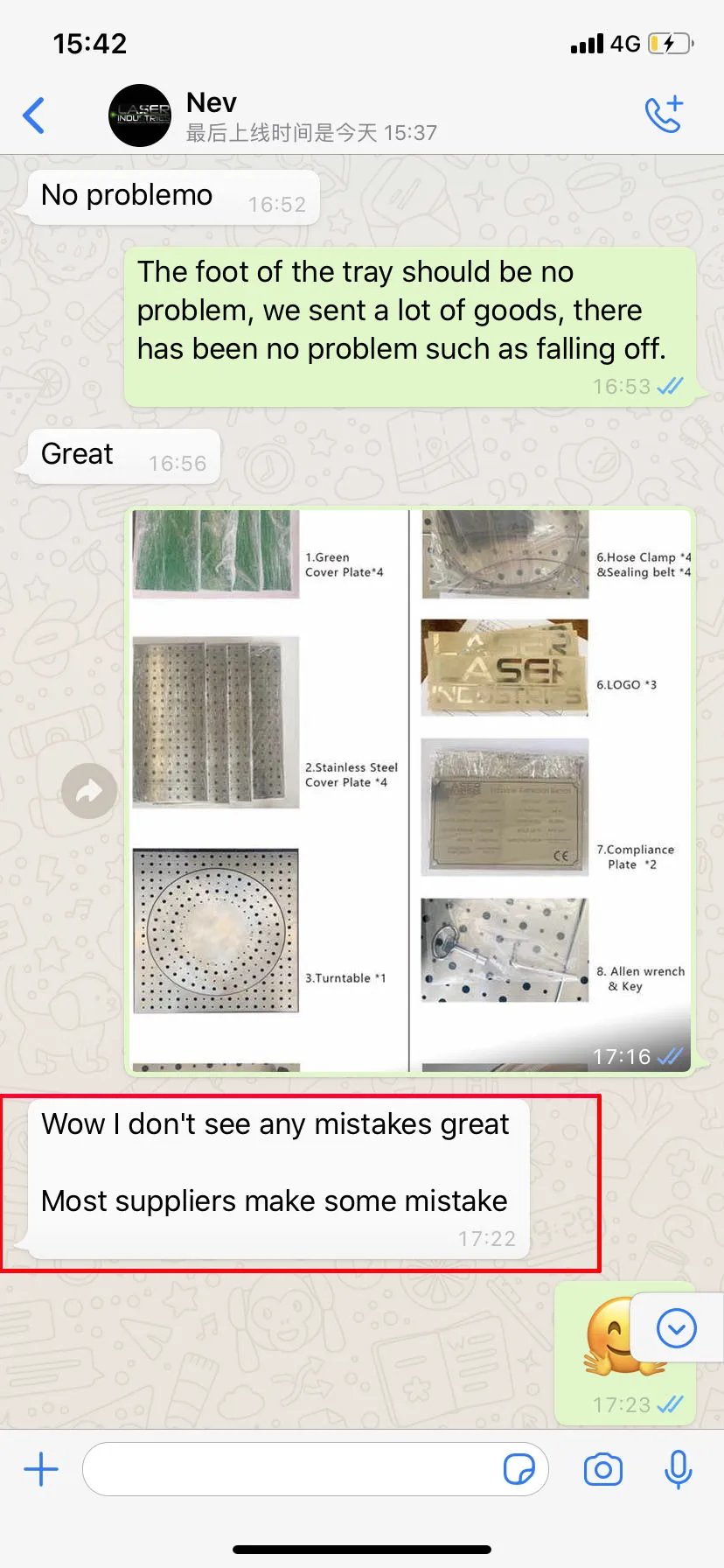

Exhibition & Customer Feedback












FAQ


Q1:What's the OEM serivce of Moland?
A: Customized and OEM orders are welcome if you need. You only need to provide us with your logo drawing, function requirements, colors, etc.

Q2: What's the package?

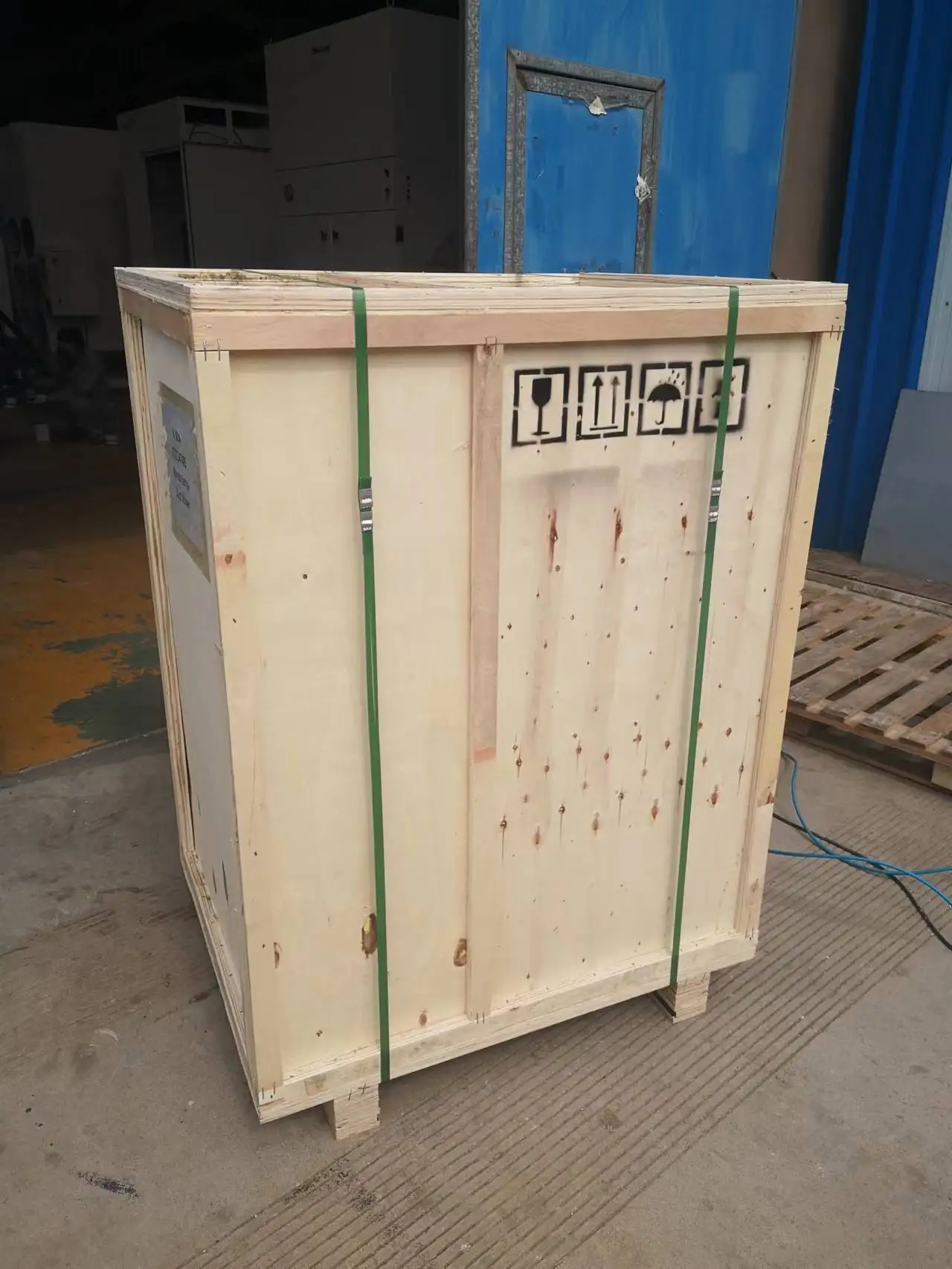

A: We have 3 layers package. For the outside, we adopt wooden case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q3: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have rich experience in safe tranportation. We have exported to 80 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q4: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can learn by themselves.

Q5: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
