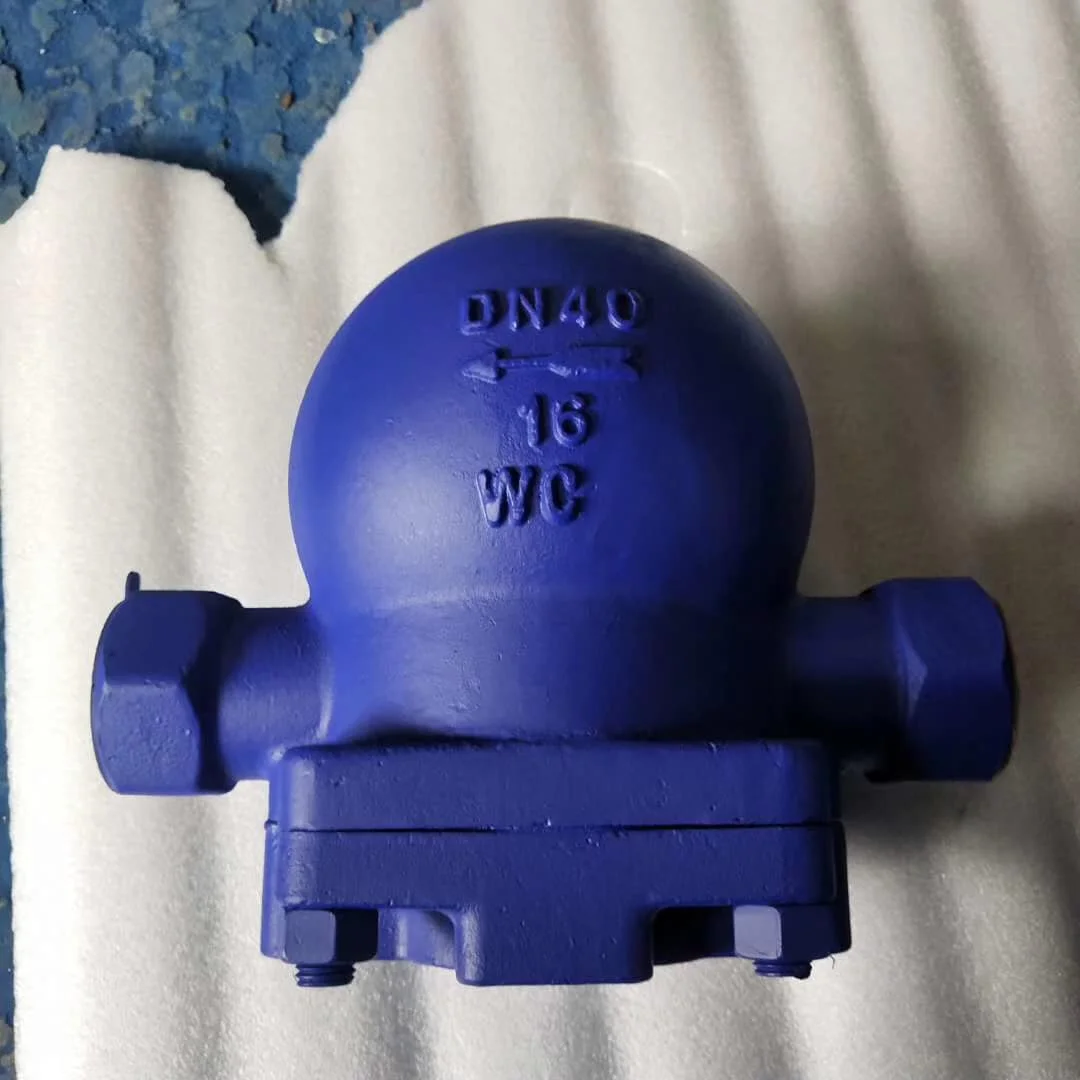

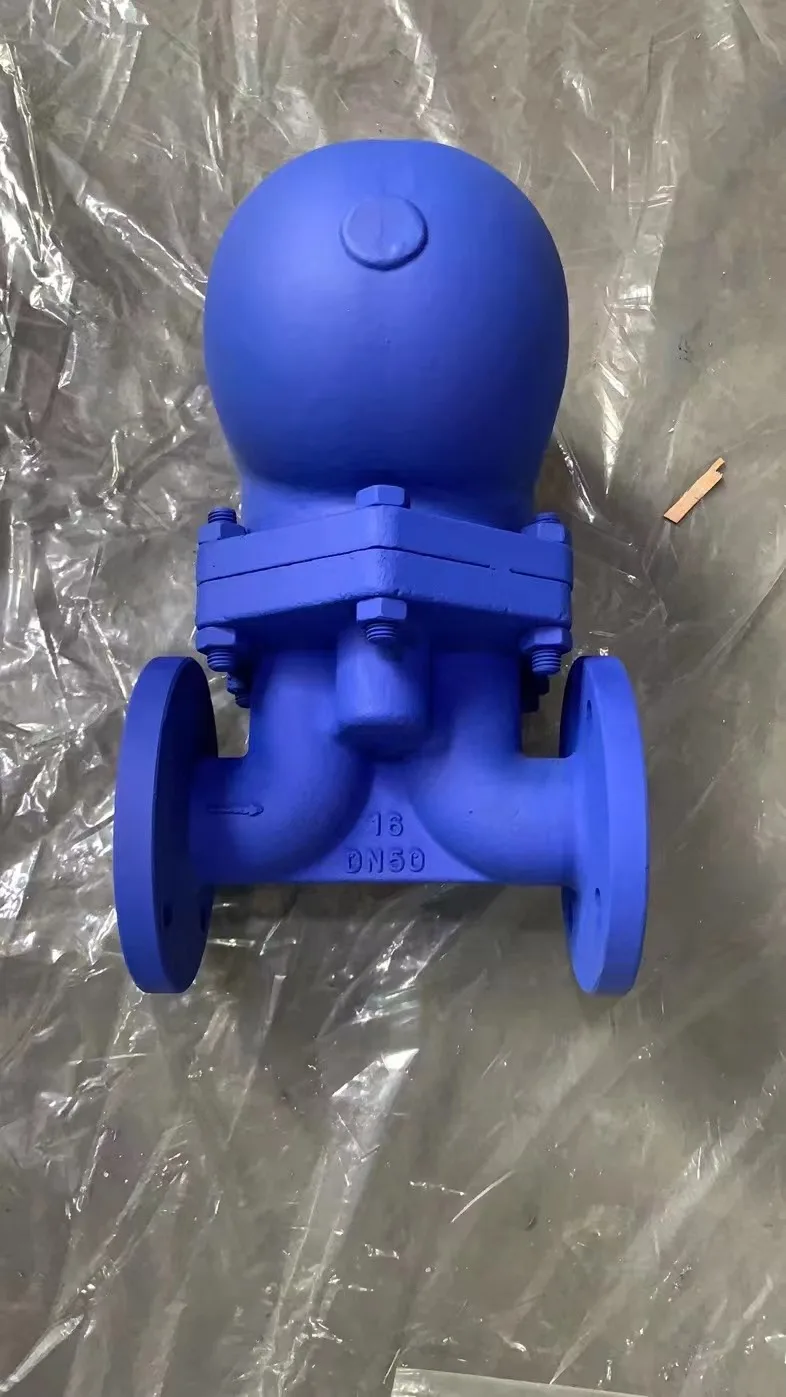

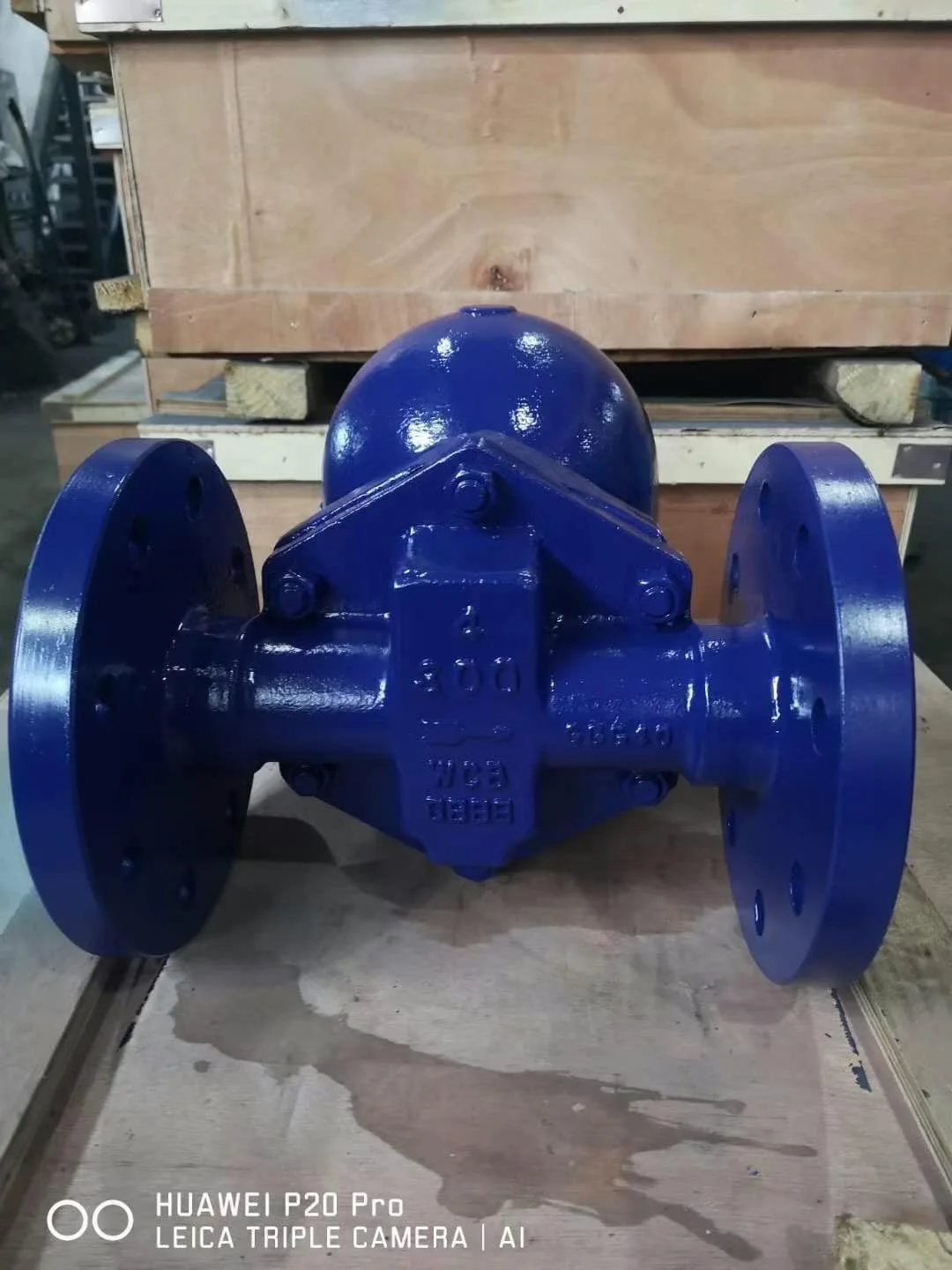

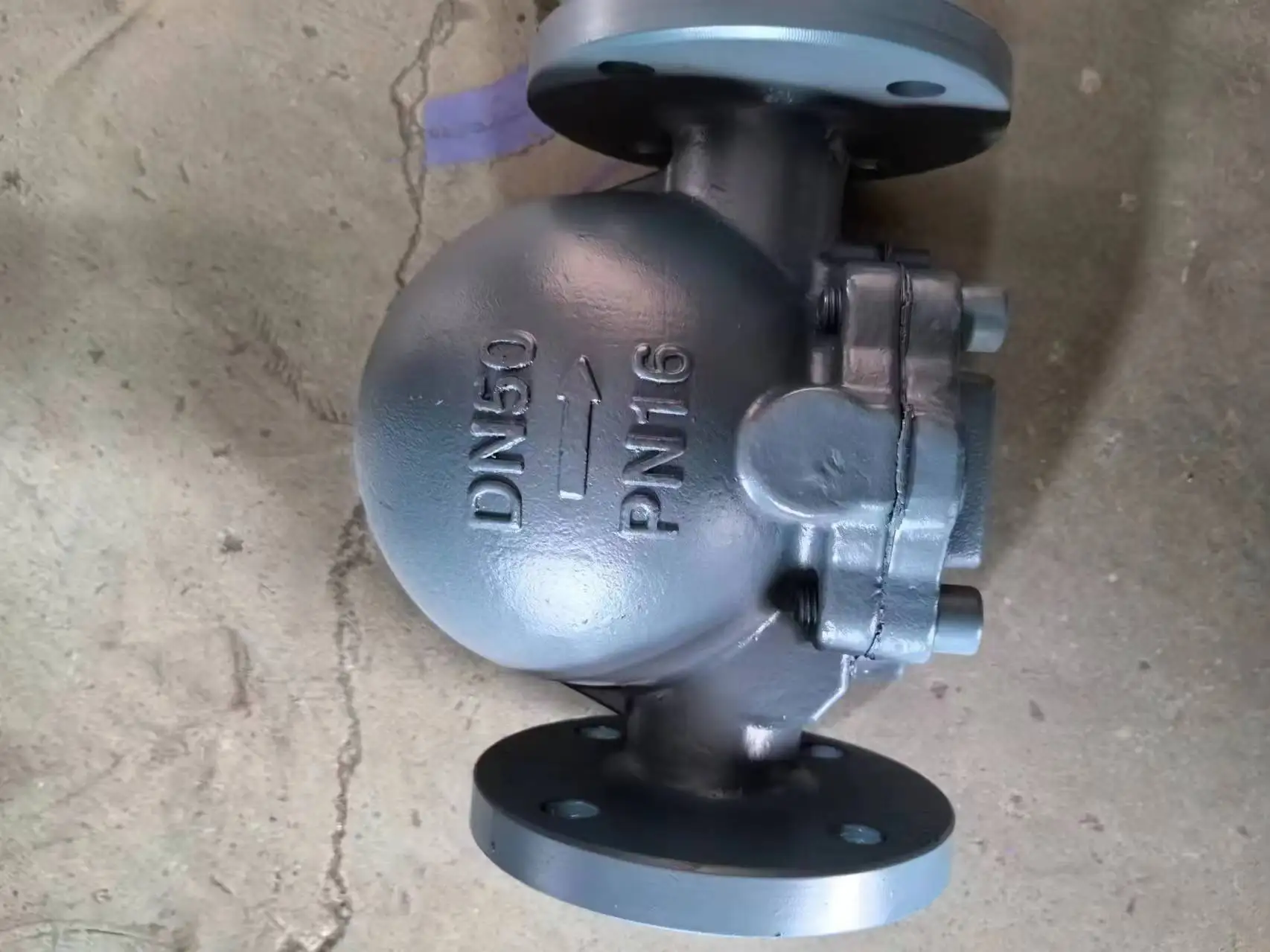

LANHUI Stainless steel Steam Trap Valve spirax sarco steam trap valve
- Category: >>>
- Supplier: Hebei Lanhui Intelligent Fluid Equipment Co. Ltd.Hebei Ltd.
Share on (1601292058076):
Product Overview
Description
Products Details
A drain valve
A drain valve is a type of valve, also known as a trap or drain valve. The detailed introduction is as follows:
Function: Used in steam pipelines and equipment, it can automatically discharge condensed water, air, and other non condensable gases, while maximizing automatic prevention of steam leakage.
Working principle: Based on the gravity effect of the medium itself and pressure changes in the pipeline system, the valve is automatically opened to discharge condensed water. According to the different working principles of steam trap valves, they can be divided into the following three types:
1. Mechanical type: also known as float type, it uses the density difference between condensed water and steam to change the liquid level of condensed water, causing the float to rise and fall and drive the valve disc to open or close, achieving the purpose of blocking steam and draining water.
2. Thermal static type: It uses the temperature difference between steam and condensed water to cause deformation or expansion of the temperature sensing element, which drives the valve core to open and close the valve.
3. Thermodynamic type: Based on the principle of phase change, the different thermodynamic principles of the flow rate and volume changes of steam and condensed water passing through create different pressure differences between the upper and lower parts of the valve plate, driving the valve plate to open and close the valve.
• Features: There are many varieties with different performances. The drain valve needs to be able to "recognize" steam and condensed water in order to play a role in blocking steam and draining water.
• Application areas:
1. Steam system: Eliminate condensed water generated in steam pipelines to prevent water hammer and ensure safe and efficient operation of the system.
2. Heating system: Eliminate the accumulated condensed water in the heating equipment to ensure the heating effect and system stability.
3. Cooling system: Drain condensed water to prevent pipeline blockage and corrosion.
4. Air conditioning system: Remove condensed water to ensure the normal operation of air conditioning equipment.
5. Petrochemical industry: Eliminate condensed water and non condensed gases in the process flow to maintain the stability and safety of the process flow.
6. Food and beverage processing: Ensure efficient heat exchange of production line equipment to prevent products from being affected by temperature fluctuations.
7. Pharmaceutical industry: Maintain clean steam and condensate systems to ensure the quality of drug production and environmental stability.
In summary, drain valves are indispensable components in industrial fluid systems.
Function: Used in steam pipelines and equipment, it can automatically discharge condensed water, air, and other non condensable gases, while maximizing automatic prevention of steam leakage.
Working principle: Based on the gravity effect of the medium itself and pressure changes in the pipeline system, the valve is automatically opened to discharge condensed water. According to the different working principles of steam trap valves, they can be divided into the following three types:
1. Mechanical type: also known as float type, it uses the density difference between condensed water and steam to change the liquid level of condensed water, causing the float to rise and fall and drive the valve disc to open or close, achieving the purpose of blocking steam and draining water.
2. Thermal static type: It uses the temperature difference between steam and condensed water to cause deformation or expansion of the temperature sensing element, which drives the valve core to open and close the valve.
3. Thermodynamic type: Based on the principle of phase change, the different thermodynamic principles of the flow rate and volume changes of steam and condensed water passing through create different pressure differences between the upper and lower parts of the valve plate, driving the valve plate to open and close the valve.
• Features: There are many varieties with different performances. The drain valve needs to be able to "recognize" steam and condensed water in order to play a role in blocking steam and draining water.
• Application areas:
1. Steam system: Eliminate condensed water generated in steam pipelines to prevent water hammer and ensure safe and efficient operation of the system.
2. Heating system: Eliminate the accumulated condensed water in the heating equipment to ensure the heating effect and system stability.
3. Cooling system: Drain condensed water to prevent pipeline blockage and corrosion.
4. Air conditioning system: Remove condensed water to ensure the normal operation of air conditioning equipment.
5. Petrochemical industry: Eliminate condensed water and non condensed gases in the process flow to maintain the stability and safety of the process flow.
6. Food and beverage processing: Ensure efficient heat exchange of production line equipment to prevent products from being affected by temperature fluctuations.
7. Pharmaceutical industry: Maintain clean steam and condensate systems to ensure the quality of drug production and environmental stability.
In summary, drain valves are indispensable components in industrial fluid systems.
Steam trap form | Float ball type | Open up float type | Open down float type | Bimetallic sheet type |
Drainage mode | Continuous drainage | Indirect drainage | Indirect drainage | Continuous drainage |
Capacity to discharge saturated water | Can drain saturated water | Can drain saturated water | Poor drainage capacity of saturated water | Only water below saturation temperature can be discharged |
Air discharge capacity | Additional emptying device is required | Additional emptying device is required | The air discharge rate is very slow | Large amount of air can be discharged |
Steam loss | Can keep heat, surface heat dissipation, steam loss is small | surface heat dissipation, steam loss is small | Movement requires a small amount of air | small |
Technological process
