Locor High speed Roll to roll laminating machine laminator machine for outdoor advertisement materials
- Category: >>>
- Supplier: Zhengzhou Yucai electronics Technology Co. LtdZhengzhou Ltd
Share on (1601292073446):
Product Overview
Description
Specification
Wide format printer eco solvent sublimation printing machine with XP600 DX5 I3200 printhead in workshop
Locor 1.6m/1.8m (5ft / 6ft) large format eco solvent printer is our most popular model since 2003. It has gained good popularity among our domestic market and oversea dealers with it's fashionable outlook, stable performance, wide application range and cost effective features.
1) Fashionable outlook and durable mechannical design
2) Epson DX5/XP600/4720/i3200 print heads for high resolution image output
3) Standard ICC file tested with different print head and our inks for best performance
4) 1850mm large print size meet wide range of print jobs for your business
5) Easy for installation, use and maintain.
1) Fashionable outlook and durable mechannical design
2) Epson DX5/XP600/4720/i3200 print heads for high resolution image output
3) Standard ICC file tested with different print head and our inks for best performance
4) 1850mm large print size meet wide range of print jobs for your business
5) Easy for installation, use and maintain.

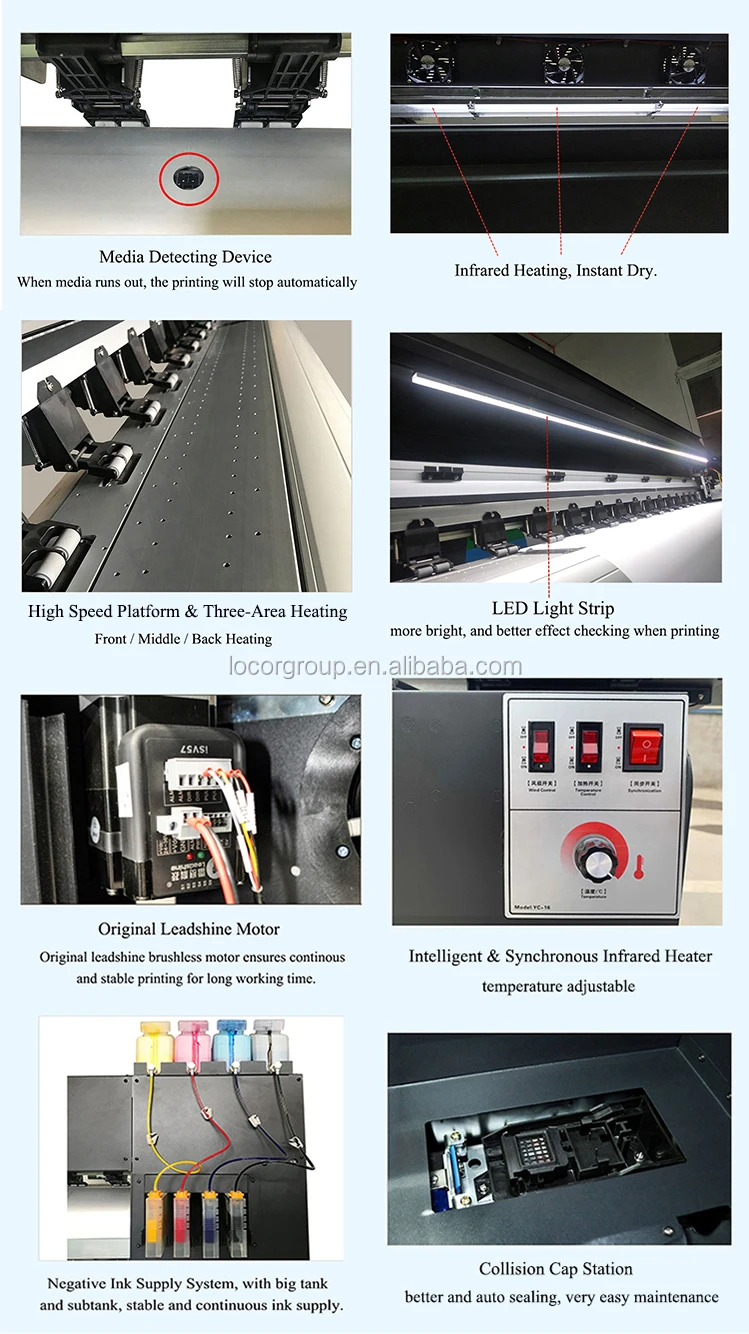

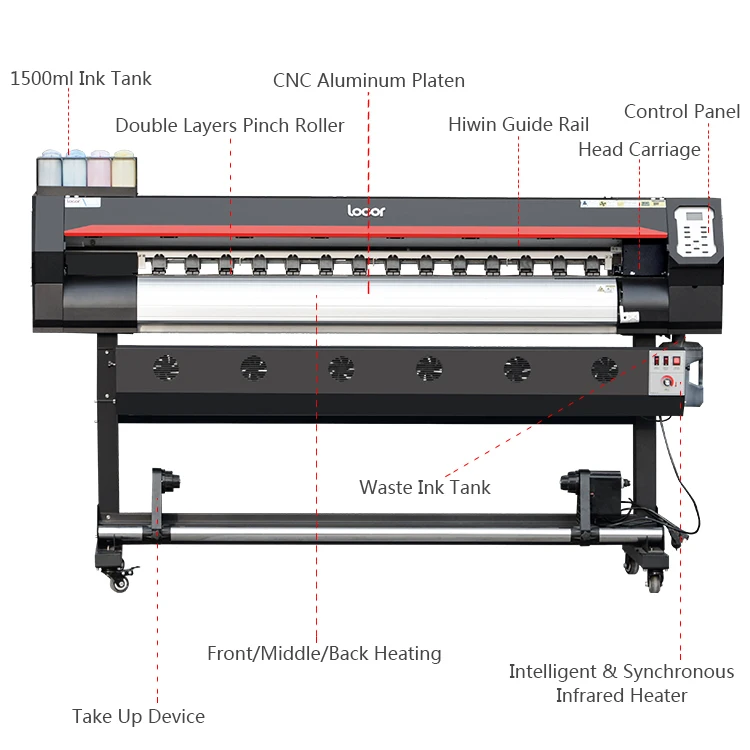

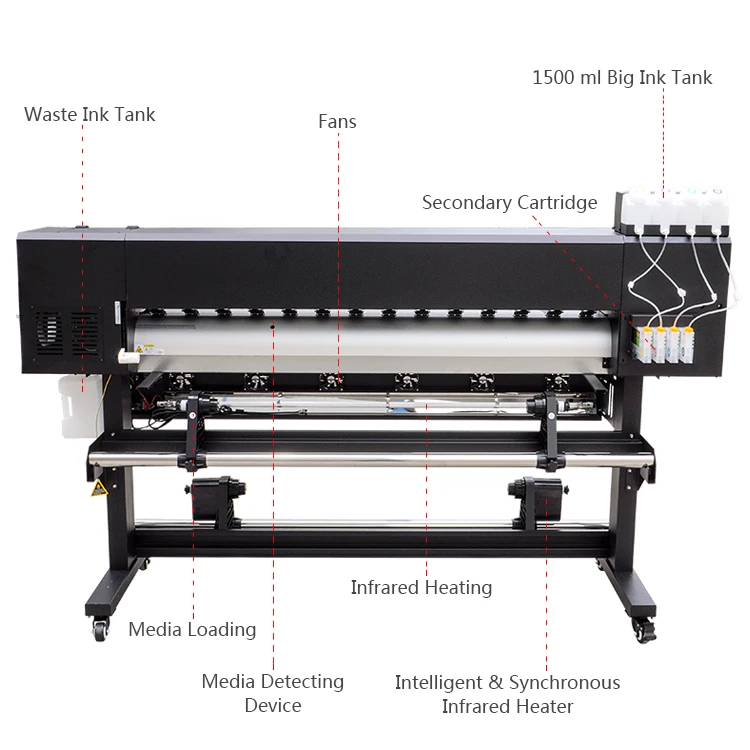

Products Details
Product parameter
Model | Easyjet 1601-1602 | Easyjet 1801-1802 | |||
Print Head | Ep son XP600 / DX5 / 4720 / i3200 | Ep son XP600 / DX5 / 4720 / i3200 | |||
Print Head Number | 1/2 | 1/2 | |||
Print resolution | 1440dpi (4720 head: 3200 dpi) | 1440dpi (4720 head: 3200 dpi) | |||
Feeding Width | 1600mm | 1890mm | |||
Print Width | 1540mm | 1850mm | |||
Print Speed | Production 4 Pass | 15.9 sqm/h (one xp600 head speed) | 35 sqm/h (two xp600 heads speed) | ||
Precision 6 Pass | 12.3 sqm/h (one xp600 head speed) | 28 sqm/h (two xp600 heads speed) | |||
Ink | Ink Type | Eco solvent ink / water-based ink / Sublimation Ink | |||
Color | CMYK 4 Colors | ||||
Ink Tank Volume | 1500ml tank for each color | ||||
Supply Type | Negative Pressure CISS | ||||
Print Media | Water-based Media | PP self-adhesive vinyl, backlit film, photo paper, movable PP self-adhesive vinyl, photo cloth, Sublimation Transfer Paper, etc. | |||
Oil-based Media | photo paper , canvas ,car sticker, reflective film, PVC cold lamination film etc. | ||||
Heating System | Inside automatic smart micro control heating system | ||||
Drying System | Infrared heating system with fans | ||||
Media Loading & Take up System | Standard | ||||
Cleaning System | Automatic cleaning | ||||
Data Transmission | 1000M Network port printing | ||||
Software | Maintop, ONYX/Photoprint (optional) | ||||
Power Supply | Single Phase 220V ±10%, 50Hz/60Hz temperature 15° C-30° C relative humidity 40-60% | ||||
Power | Min: 32W, Max: 2300W | ||||
Package Size | 210kg±5% /2450*766*665mm | 240kg±5% /2750*766*665mm | |||
Applications
Packing&Shipping
Our Service
Warranty Service:
1 Year Warranty for printer;
(not include print head, cable, damper and cap. as they are consumables.)
Online after sales service, professional engineers team for online technical support and solutions.
1 Year Warranty for printer;
(not include print head, cable, damper and cap. as they are consumables.)
Online after sales service, professional engineers team for online technical support and solutions.
More than 18 years rich printer experience.
Onsite engineer service available, but round air tickets and accommodation cost shall be based on mutual agreement.
Onsite engineer service available, but round air tickets and accommodation cost shall be based on mutual agreement.
Company Profile
FAQ
1) What's your delivery time?
We will arrange the shipment within 3~10 working days after received the deposit. And we keep some models in stock all year round.2) What payment method are supported?
Payment method is T/T, D/P, Western Union, Credit Card, etc.
3) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.
4) Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.
5) Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.
