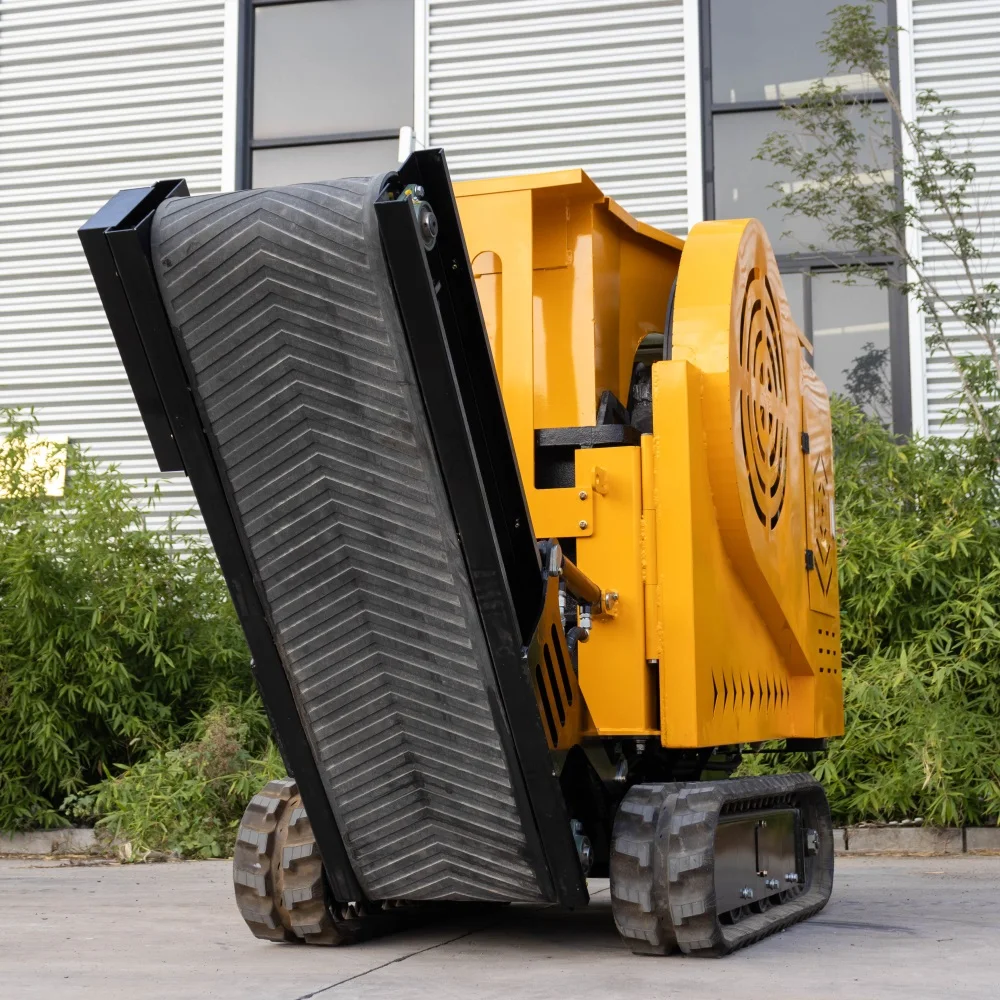

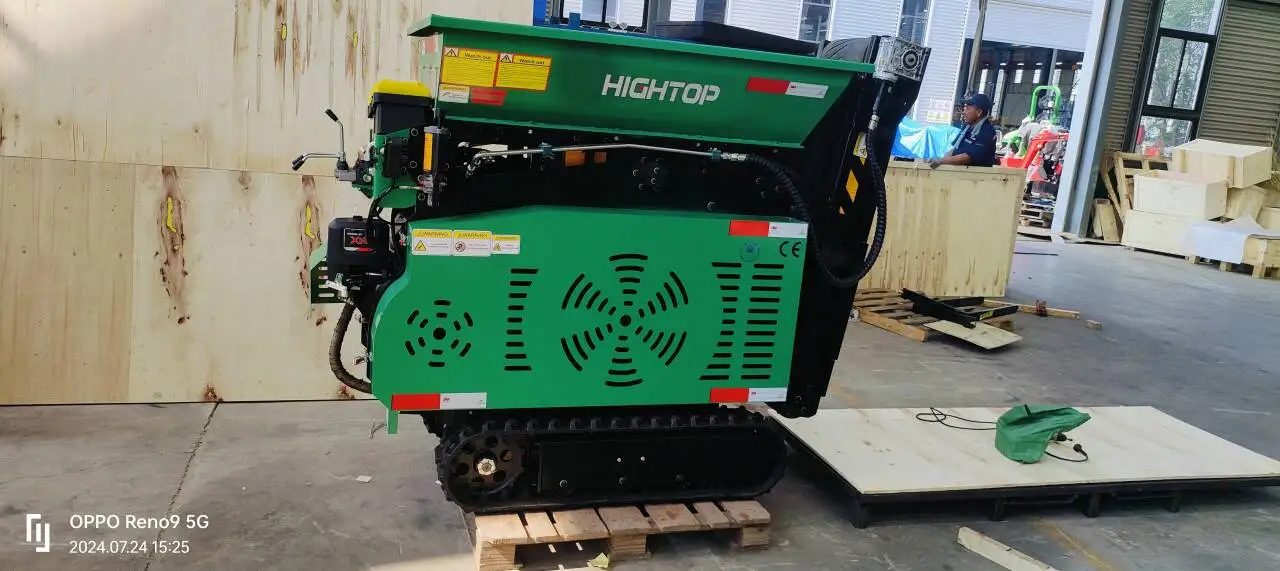

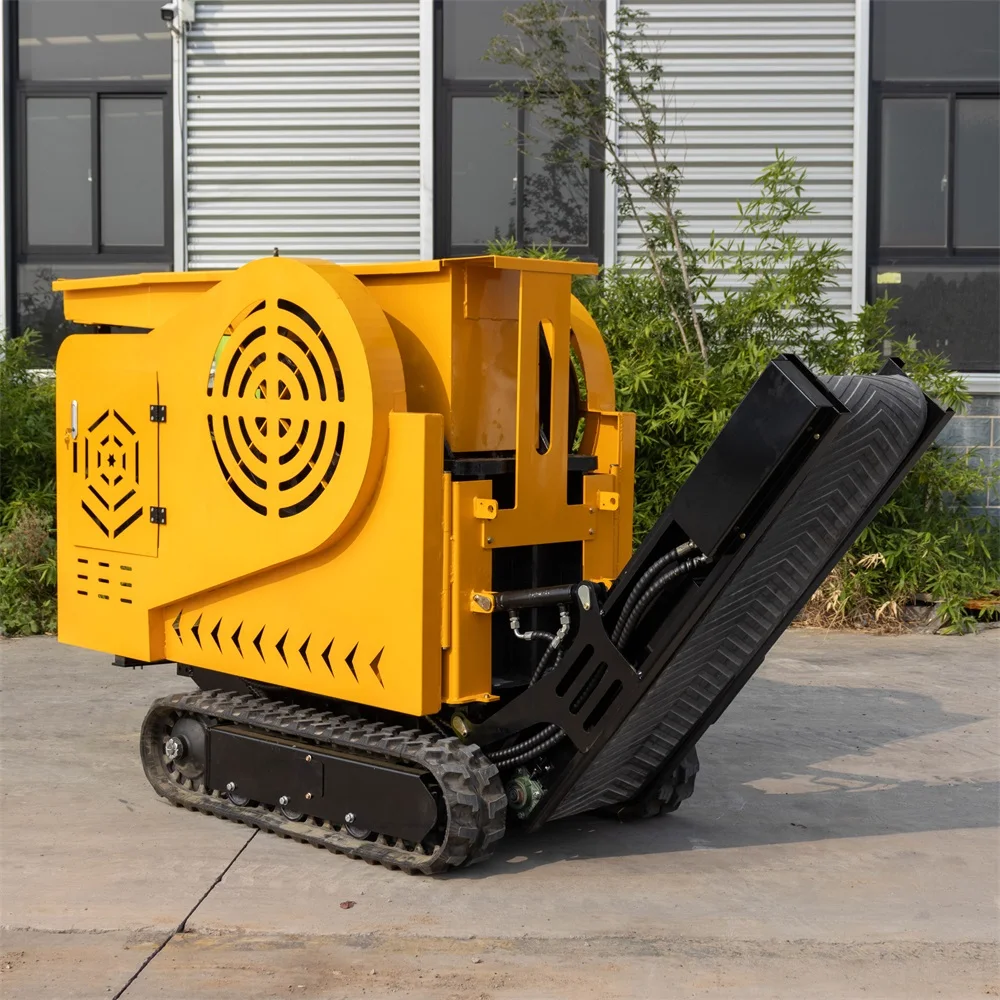

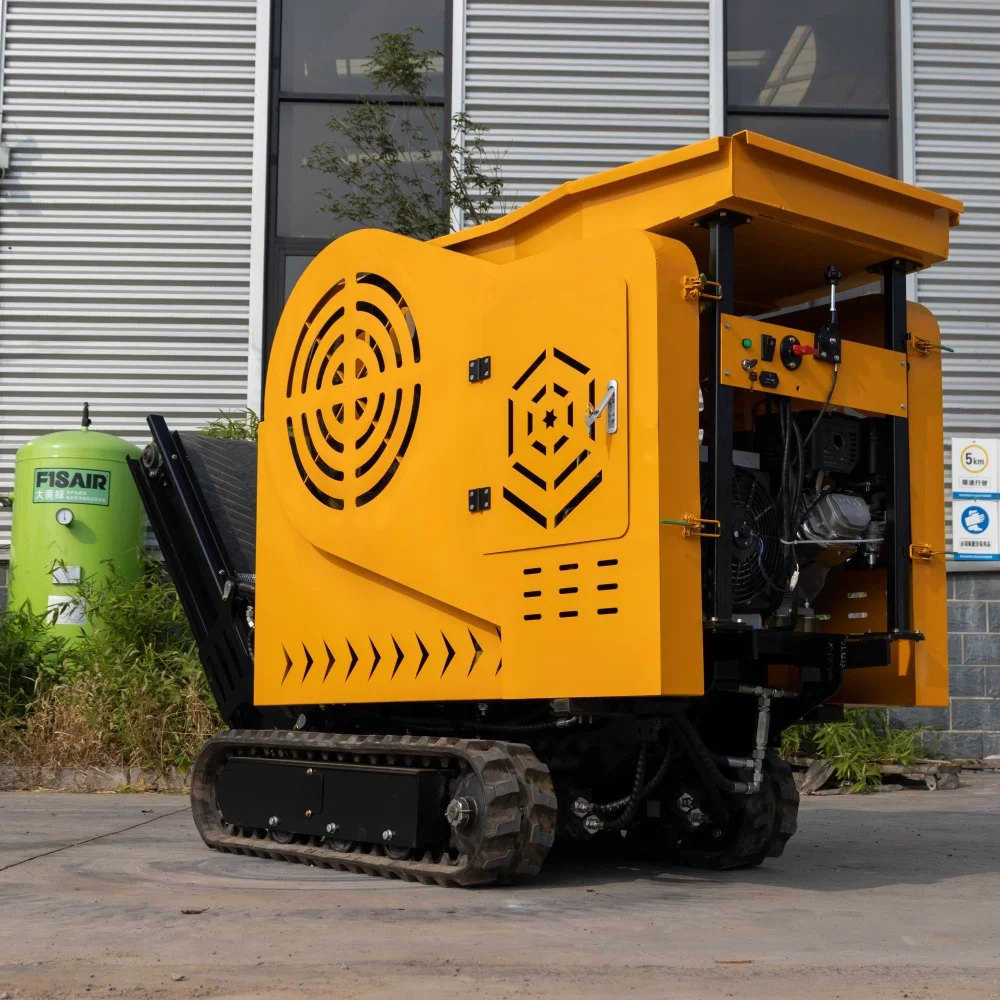

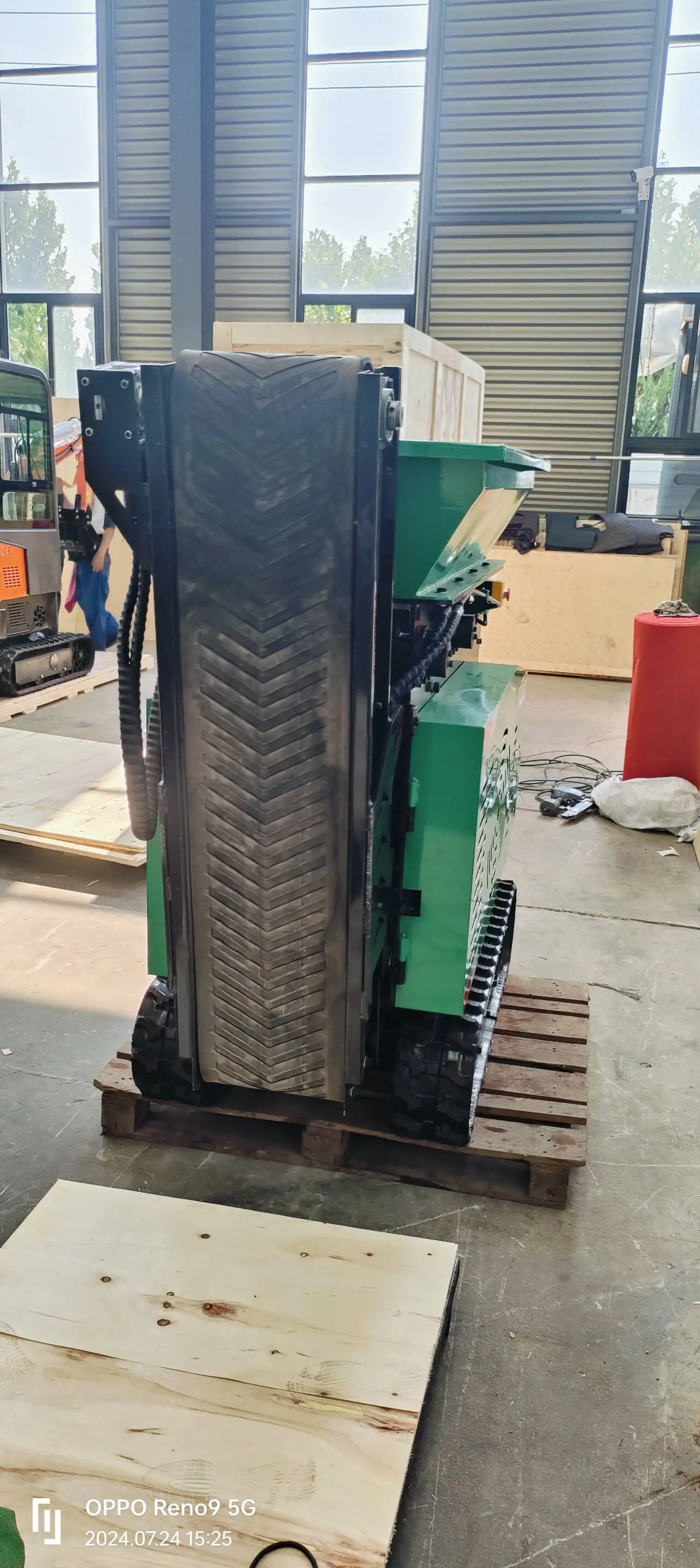

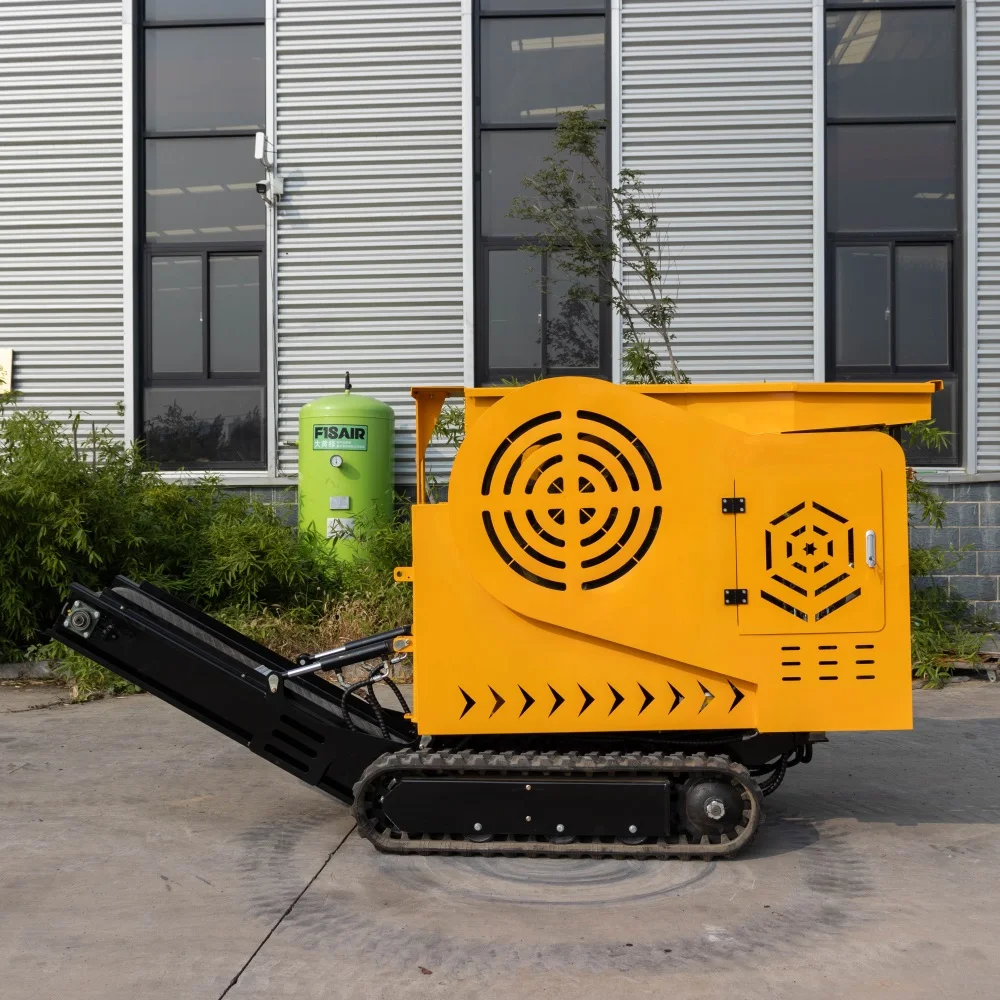

Product Name | Crawler Jaw Crusher | |
Model | HTJC430 | |
working size | 3200×1000×1620mm | |
Inner width of vertical board | 380mm | |
Shipping dimensions | 2100×1000×1750mm | |
Total outer width of guard | 960mm | |
Track model | 180×72×41mm | |
Roller diameter | 126mm | |
Number of supporting wheels | 6groups | |
Inlet size | 220×350 | |
Maximum feed size | 200mm | |
Silo volume | 0.25m³ | |
Stacking height | 700-1150mm | |
Feeding conveyor | 1500×500mm | |
Gravel range | Diameter 15-50mm | |
Walking speed | 0-3km/h | |
Track specifications | Rubber tracks | |
Production capacity | 2T-5T/h | |
Conveyor belt width | 400mm | |
Operation form and main accessories parameters | ||
Equipment operation mode | Manual hydraulic valve | |
walking style | hydraulic powered crawler | |
Travel motor model | 6K-395 | |
Continuous torque (N.m) | 850 | |
Hydraulic pump specifications | PGP5108 | |
Conveyor mechanism motor model | BMER-300 | |
Conveyor lifting method | Manually operated hydraulic lift | |
Jaw crusher mechanism lubrication method | grease | |
Track tension adjustment method | Mechanical | |
Power system | ||
Gasoline engine standard | Rato R500-V2-18HP | |
Output power max | 13KW/3600r/min | |
Output torque max | 28N.m/2500r/min | |
Fuel tank volume | 6.5L | |
Oil type and dosage | ||
fuel tank volume | Gasoline engine 6.5L | |
Oil volume | 1L | |
Hydraulic tank volume | 35L 32#/46# hydraulic oil |
