Product Overview
Description

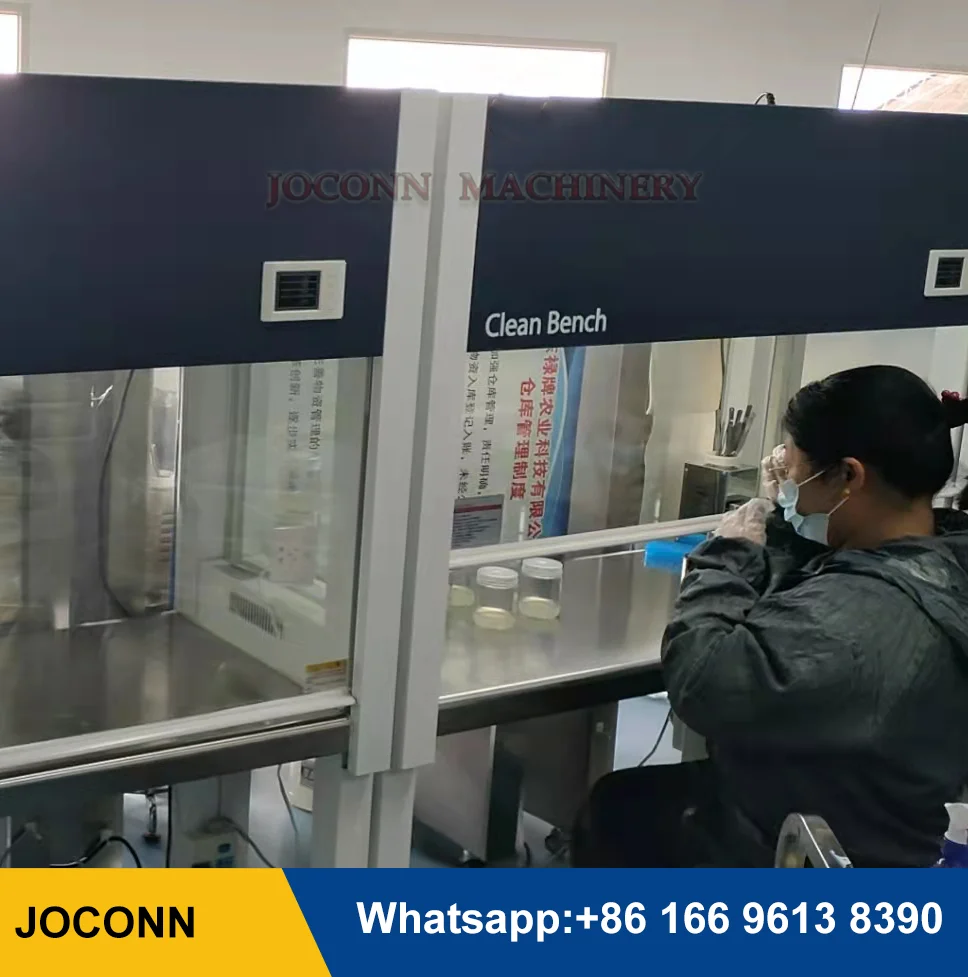

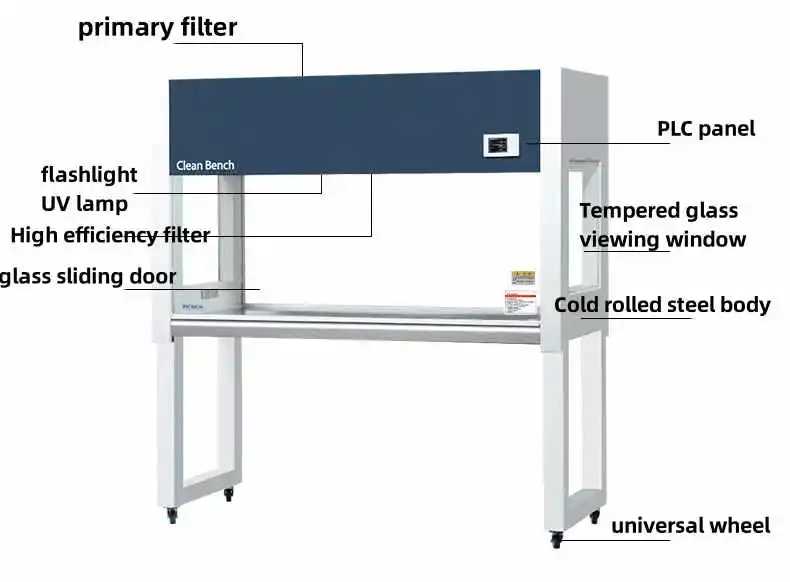

The clean bench is a local purification device, makes certain operating area space relatively dust-free and sterile. The air is sucked into the primary filter through the fan, and then enters the high-efficiency filter through the static pressure box for filtration. The filtered air is sent out in a vertical or horizontal airflow state, so that the operating area reaches Class 100 cleanliness and ensures the production requirements for environmental cleanliness.
Clean benches are divided into vertical flow clean benches and horizontal flow clean benches according to the direction of airflow, and are divided into single-sided operation and double-sided operation according to the operation structure.
Clean benches are divided into vertical flow clean benches and horizontal flow clean benches according to the direction of airflow, and are divided into single-sided operation and double-sided operation according to the operation structure.
1 | Horizontal flow shape, quasi-closed stainless steel countertop, easy to operate | ||||||
2 | The remote control switch is used to control the fan system at fast and slow speeds to ensure that the working wind speed is always in an ideal state. | ||||||
3 | Use LED LCD panel control. | ||||||
4 | The experimental area is made of stainless steel, and the work area is equipped with a 2KW spare socket to provide convenience for operation certificates. | ||||||
Model | JC-CJ-1F | JC-CJ-2F | JC-CJ-1FD | JC-CJ-2FD | |||
Air cleanliness | ISO level five，Level 100(American federal209E) | ||||||
Average wind speed | ≥0.3 | ||||||
Noise | ≤62 | ||||||
illumination | ≥300 | ||||||
Power supply | AC220v，1φ，50Hz | ||||||
Rated power | 250 | 500 | 250 | 500 | |||
Weight | 130 | 170 | 130 | 170 | |||
Work area size(mm) | 870x690x520 | 1360x690x520 | 870x690x520 | 1360x690x520 | |||
Physical dimension(mm) | 1010x750x1600 | 1500x750x1600 | 1010x730x1600 | 1500zx730x1600 | |||
High efficiency filter size specifications | 820x600x50x1 | 610x610x50x2 | 820x600x50x2 | 610x610x50x2 | |||
Sedimentation bacteria concentration | ≤0.5cfu/dish 0.5h | ||||||
Suitable for number of people | Single person double sided | Double person double sided | Single person single sided | Double person single sided | |||

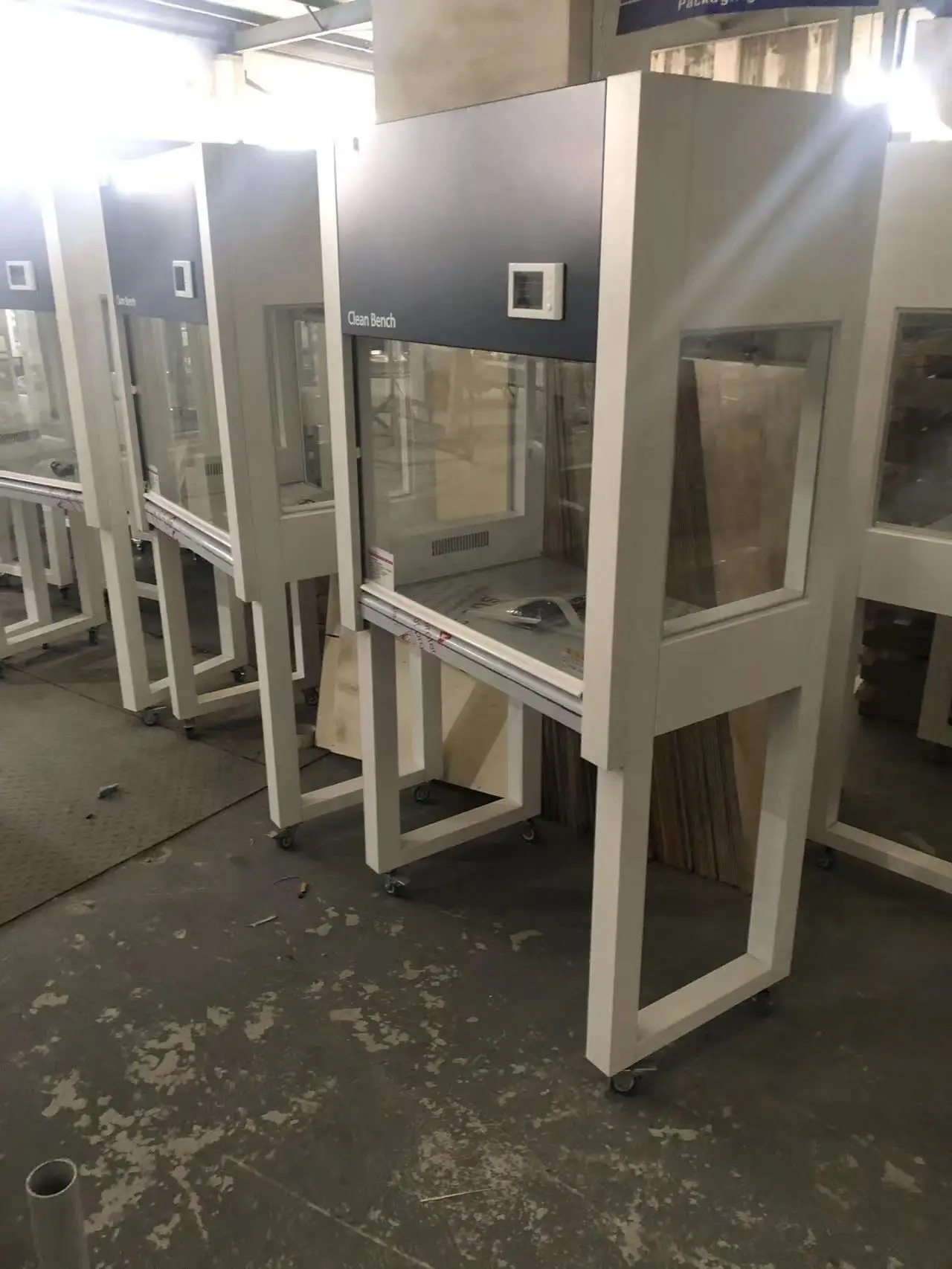

Regular Type↓

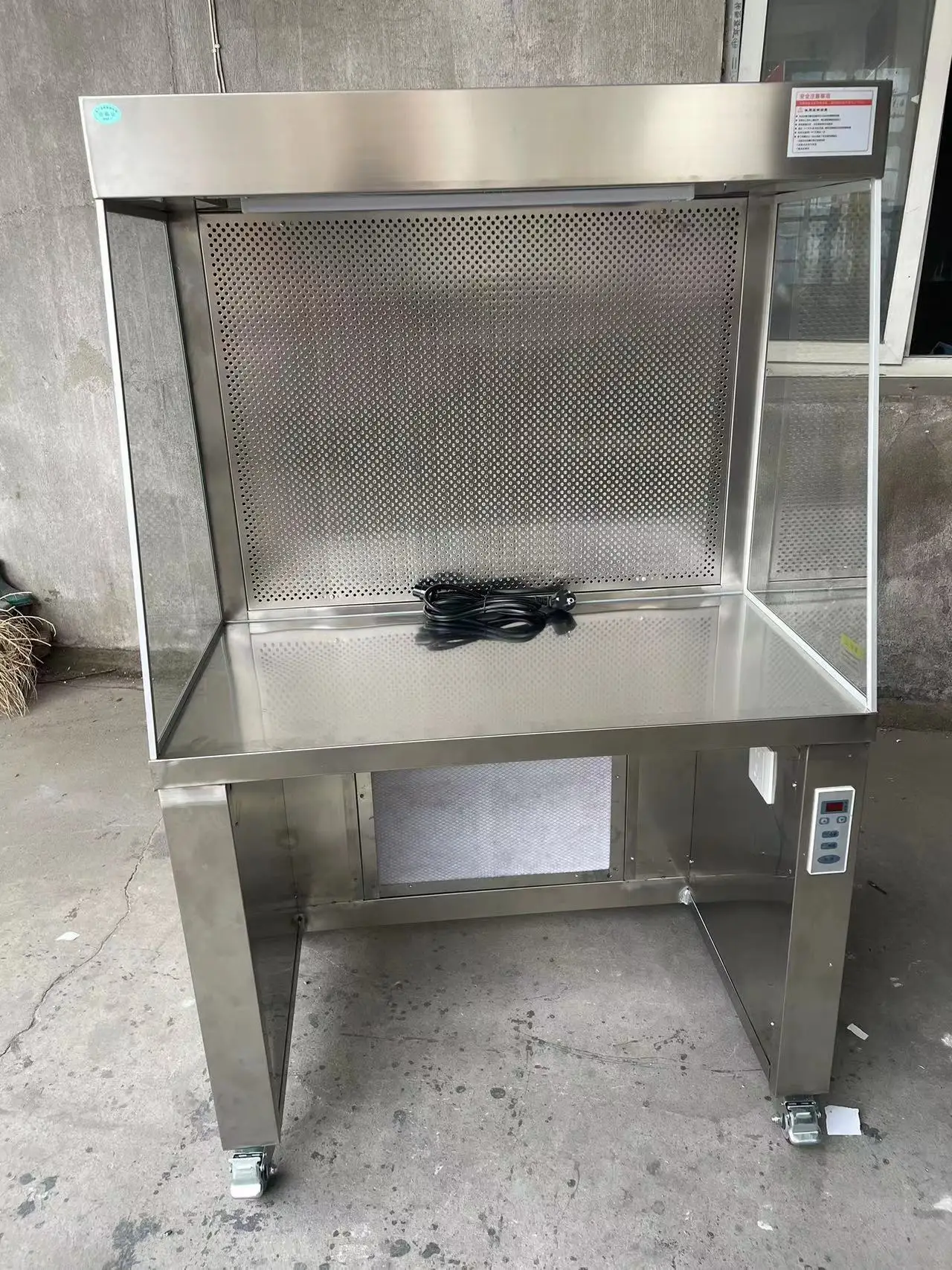

Stainless Steel Type↓

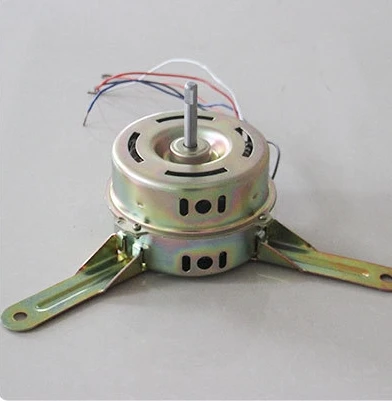

Workbench fan
Copper core fan
long lasting
long lasting

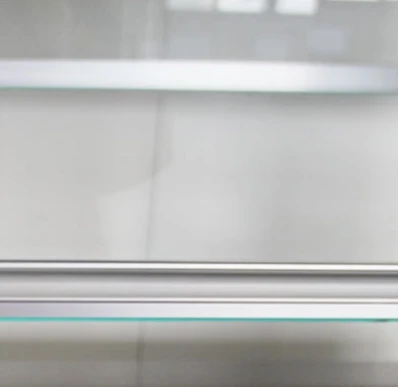

Tempered glass sliding door
The front and rear visual glass of the purification table are all made of tempered glass.
Good safety
Good safety

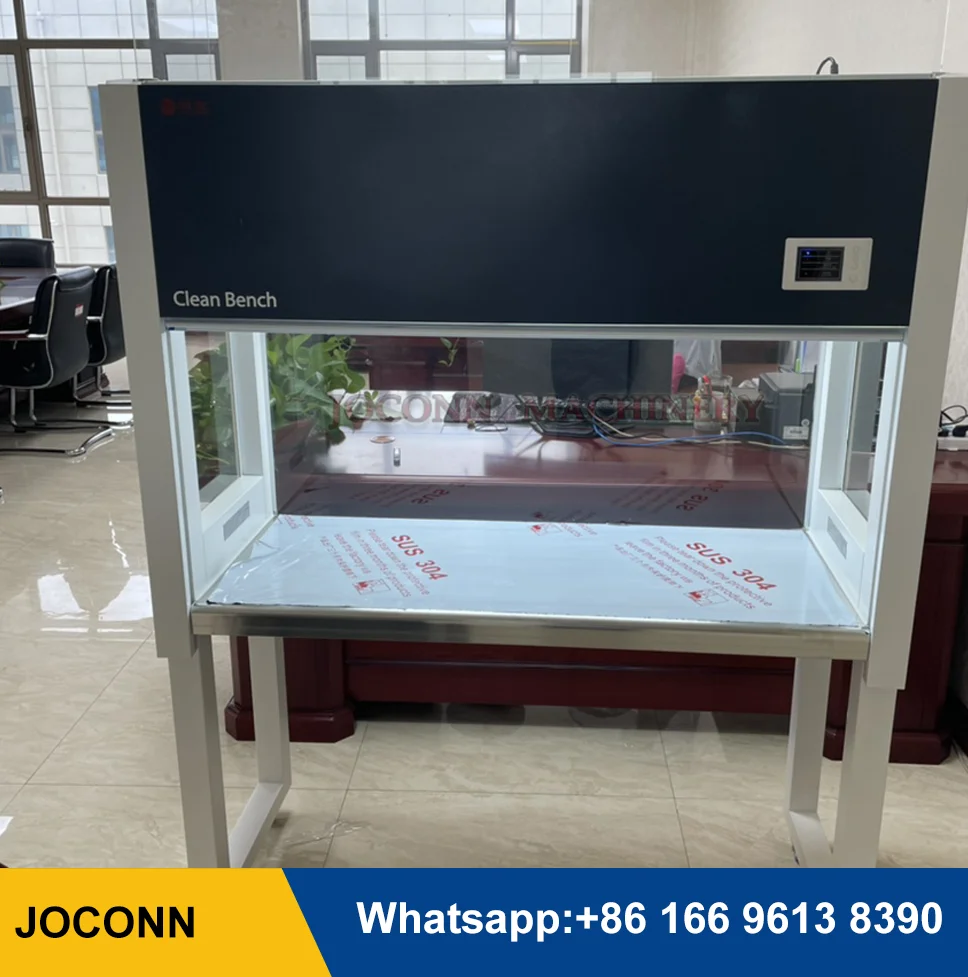

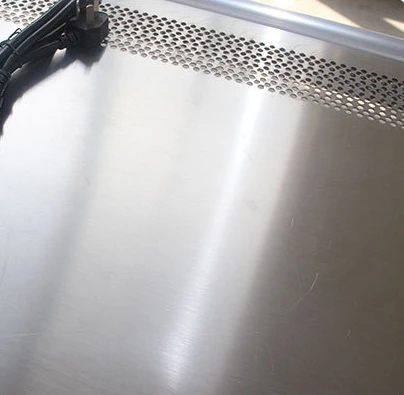

Stainless steel workbench
Corrosion resistant,
easy to clean

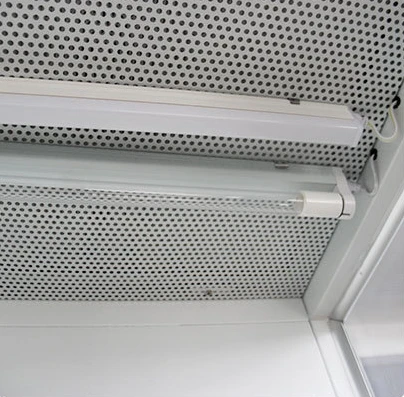

Lighting lamp UV lamp
Lighting sterilization system safety

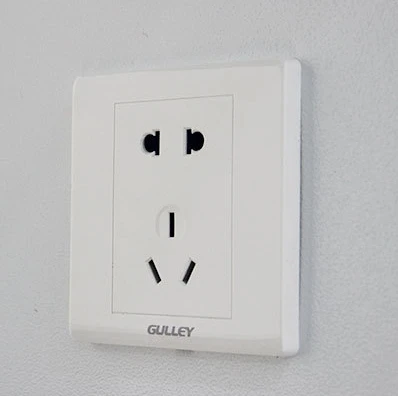

Work area socket
Five-hole socket for convenient plug-in needs

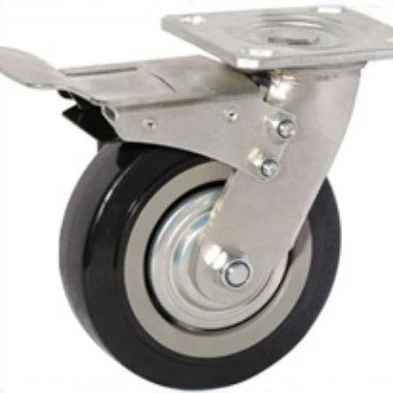

Universal wheel
Easy to move at any time

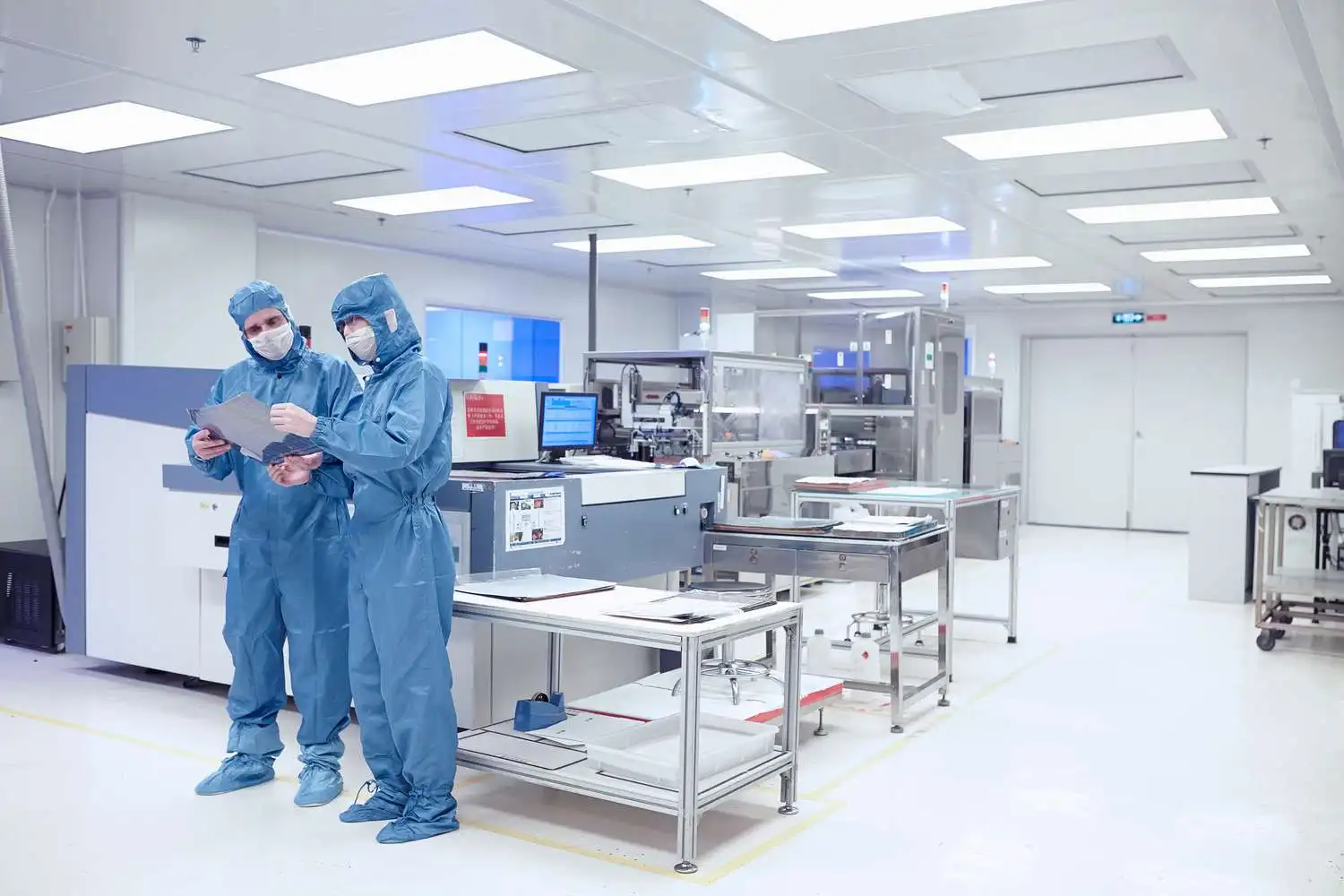

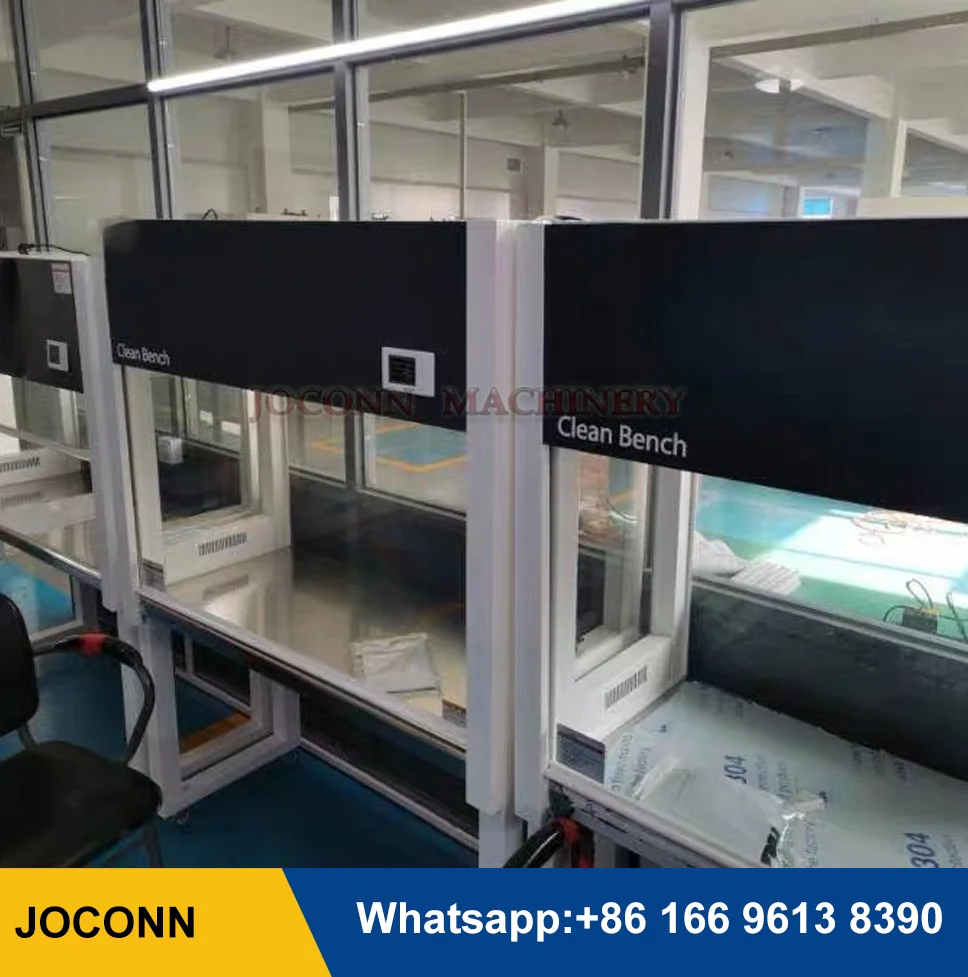

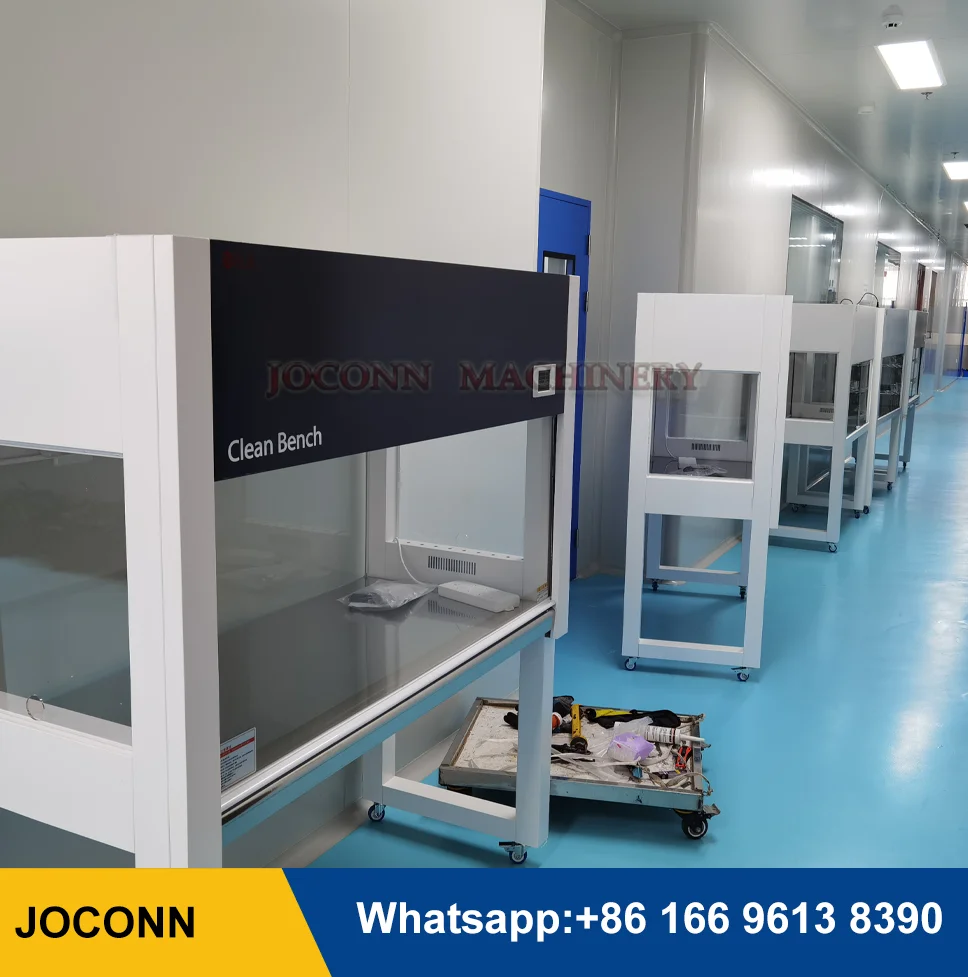

laboratory Clean room
