Factory Price Underground Explosion Proof JZ Type Electric Underground Mining Winch Underground Hoist Mining Winch Price
- Category: >>>
- Supplier: Shandong China Coal Industrial Mining Supplies Group Co. Ltd.Shandong Ltd.
Share on (1601292248838):
Product Overview
Description
This price is the deposit price for product production
We adhere to the business philosophy of customer first, all products have been strictly inspected before leaving the factory to ensure that they meet the highest safety standards, we believe you will be very satisfied with its quality after receiving the goods.
If you don't find the product you need, you can tell us, we will provide diverse styles for you to choose, please feel free to buy! Thanks again.
ABOUT OUR PRODUCTS
Shandong China Coal Import & Export Co., Ltd
Product Description
Shaft sinking winch is mainly used for some equipment and material lifting in coal mines, metal mines and non-metallic mine shafts. It can also be used for other underground and ground lifting Heavy objects.
It has the advantages of strong lifting capacity, large capacity and stable operation.zmwm24
It has the advantages of strong lifting capacity, large capacity and stable operation.zmwm24
Product Parameters
Product Parameters
Model | JZ10/800 | JZ16/800 | JZ16/1000 | 2JZ16/1000 | JZ25/1000 | JZ40/1000 | JZ40/1800 | ||
Wire rope Max. Static tension (KN) | 100 | 160 | 160 | 160 | 250 | 400 | 400 | ||
Wire rope Capacity (m) | 800 | 800 | 1000 | 1320 | 1000 | 1000 | 1800 | ||
Drum specification | Diameter (mm) | 800 | 1000 | 1000 | 1000 | 1050 | 1250 | 1250 | |
Width (mm) | 820 | 1400 | 1400 | 1400 | 1210 | 1480 | 2060 | ||
Center height (mm) | 900 | 1050 | 1050 | 1050 | 1326 | 1500 | 1500 | ||
Wire rope diameter | 32 | 40 | 40 | 40 | 52 | 60 | 60 | ||
Number of winding layers | 8 | 7 | 7 | 8 | 10 | 9 | 10 | ||
First layer rope speed | Fast (m/min) | 5 | 4.7 | 4.7 | 4.7 | 4.8 | 5.2 | 5.2 | |
Slow (m/min) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ||
Electric motor | Model | YRT250M2-8 | YRT250M2-8 | YRT250M2-8 | YRT280S-8 | YRT280S-8 | YRT355S-8 | YRT355S-8 | |
Power (KW) | 22 | 30 | 30 | 55 | 45 | 90 | 90 | ||
Speed (RPM) | 730 | 730 | 730 | 723 | 723 | 730 | 730 | ||
Voltage (V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | ||
Dimensions | Length (mm) | 2883 | 3600 | 3600 | 5726 | 3980 | 4725 | 4305 | |
Width (mm) | 2962 | 3280 | 3280 | 3806 | 3935 | 4593 | 4593 | ||
High (mm) | 1728 | 2300 | 2300 | 2988 | 2620 | 3300 | 3300 | ||
Weight (kg) | 7480 | 11500 | 11500 | 18000 | 14680 | 35000 | 3800 | ||

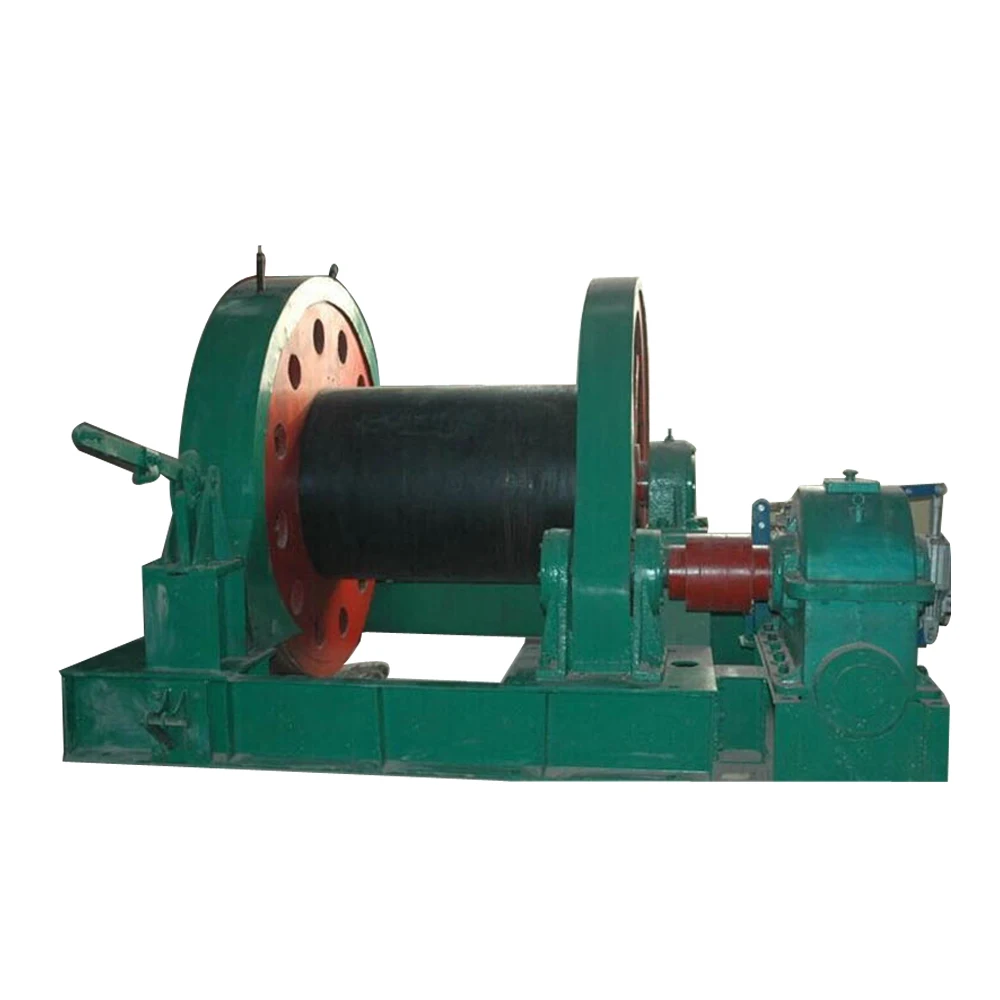

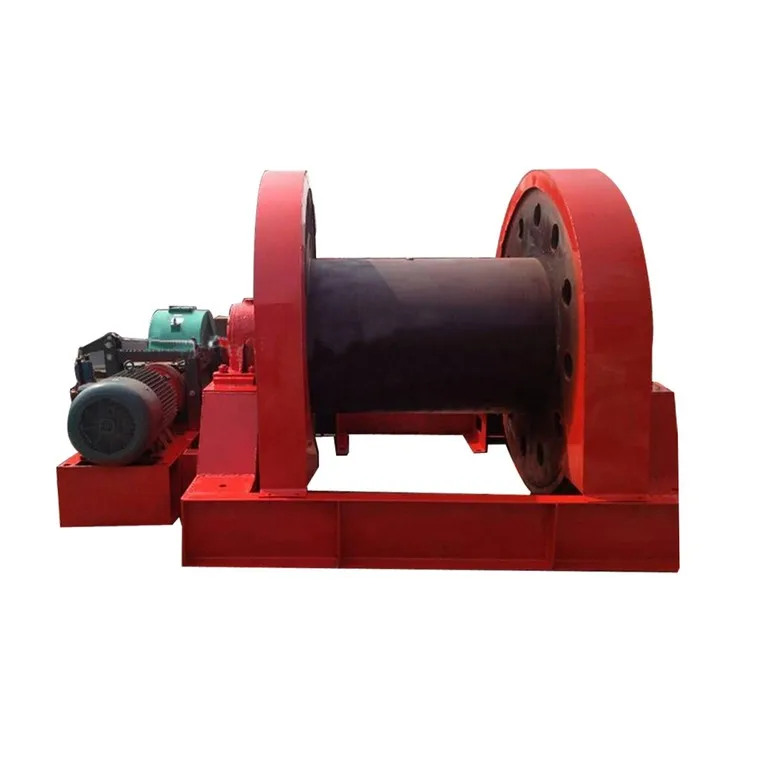

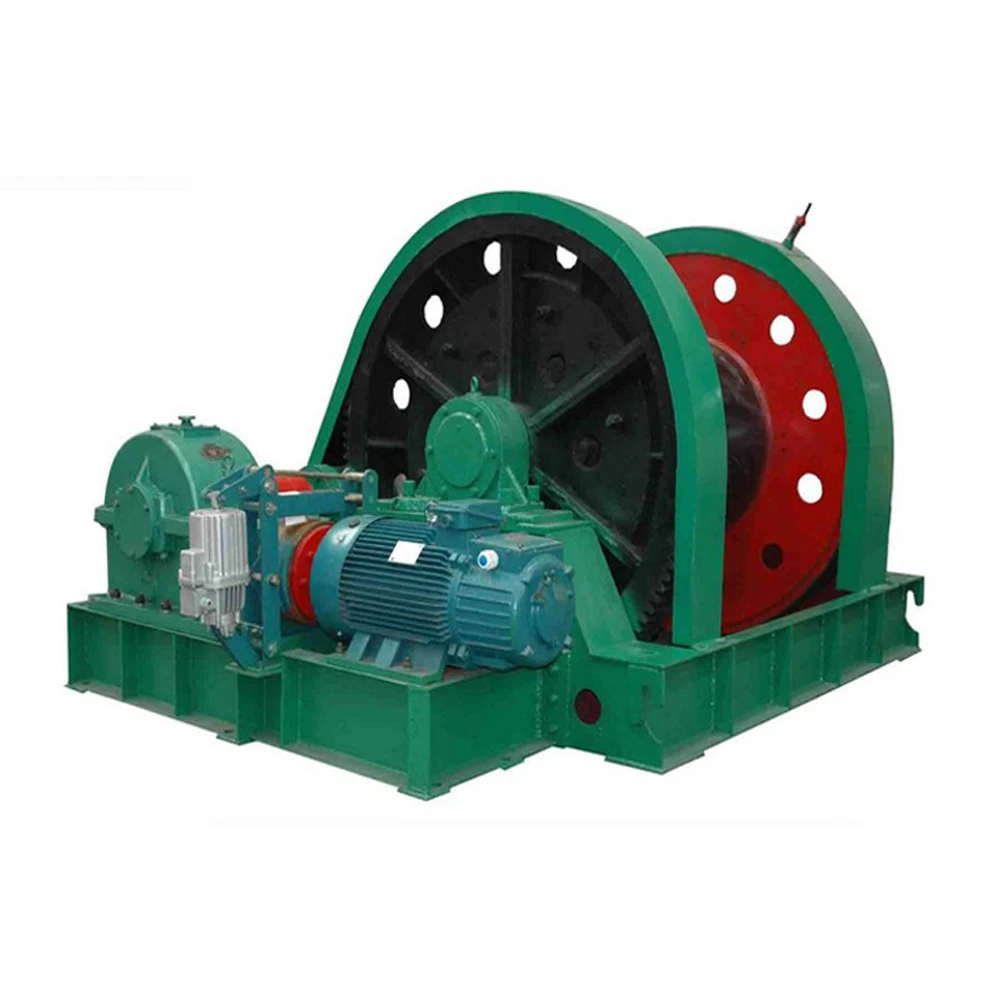

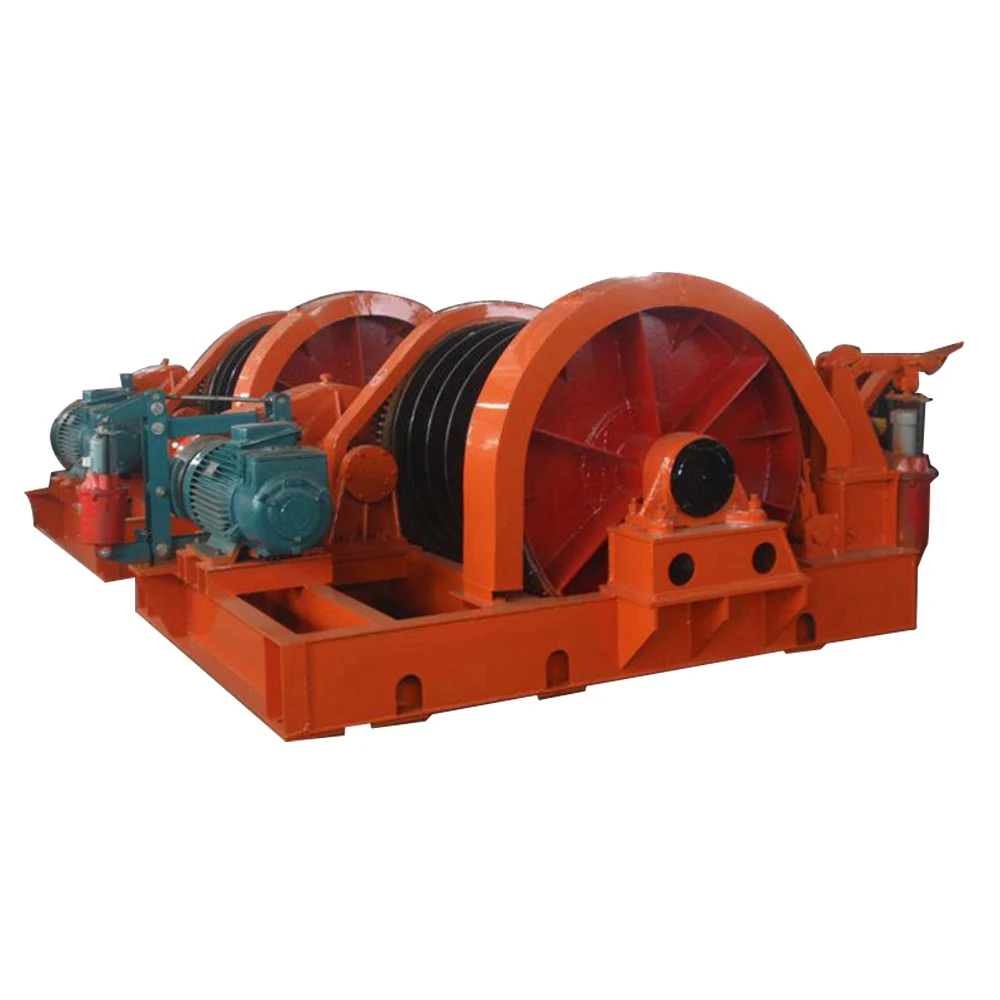

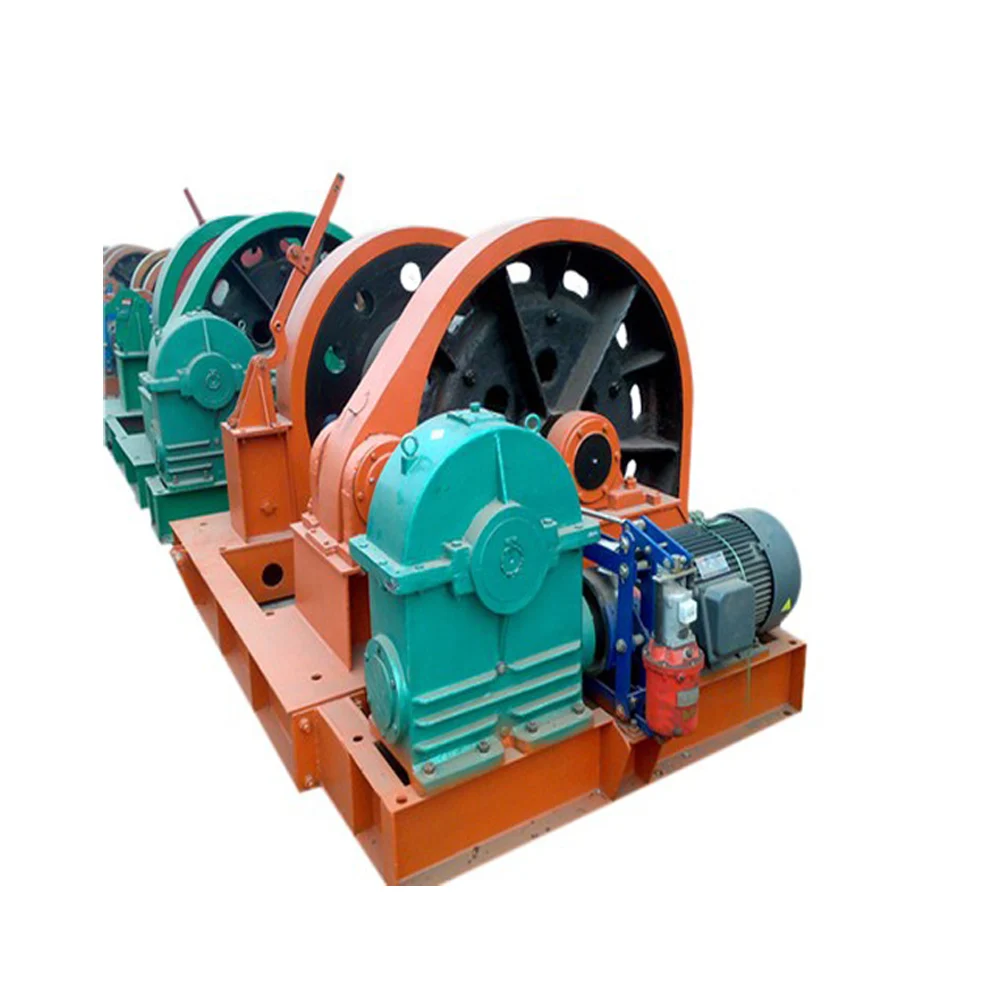

Product Pictures
Product Pictures
Product Video
Why Choose Us
FAQ
Are you the manufacuturer or trade company ?
We are the manufacturer for producing tunnel grilled slag machine,rock mucking loader , mining transport car ,and verious attachments With mining equipment.
And we have owned trading company to do the International Business,
So that :
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
Can you do the ODM or OEM, what is MOQ?
Yes, it is possible as both discussed, MOQ: 1unit.
What about delivery time, how long can I get the machine since order?
The producing time fast to 15-20 workings if you will customerized machine.
The standard machine in stock, can delivery as soon as possible after ordering.
How to pay for you ?
30% down payment, then producing start, the balance 70% paid before
shipping.
If the machines in stock, pay 100% then delivery.
We are the manufacturer for producing tunnel grilled slag machine,rock mucking loader , mining transport car ,and verious attachments With mining equipment.
And we have owned trading company to do the International Business,
So that :
1)-We can supply good service with professional international trade experience.
2)-The price is much more competitive.
Can you do the ODM or OEM, what is MOQ?
Yes, it is possible as both discussed, MOQ: 1unit.
What about delivery time, how long can I get the machine since order?
The producing time fast to 15-20 workings if you will customerized machine.
The standard machine in stock, can delivery as soon as possible after ordering.
How to pay for you ?
30% down payment, then producing start, the balance 70% paid before
shipping.
If the machines in stock, pay 100% then delivery.
