Heat Recovery Ventilation System Tuya App Control Easy Installation Tiny Homes Energy Saving Fresh Air Unit Air Filters
- Category: >>>
- Supplier: Guangzhou Airwoods Environment Technology Co. Ltd.Guangzhou Ltd.
Share on (1601292278466):
Product Overview
Description
Product Description

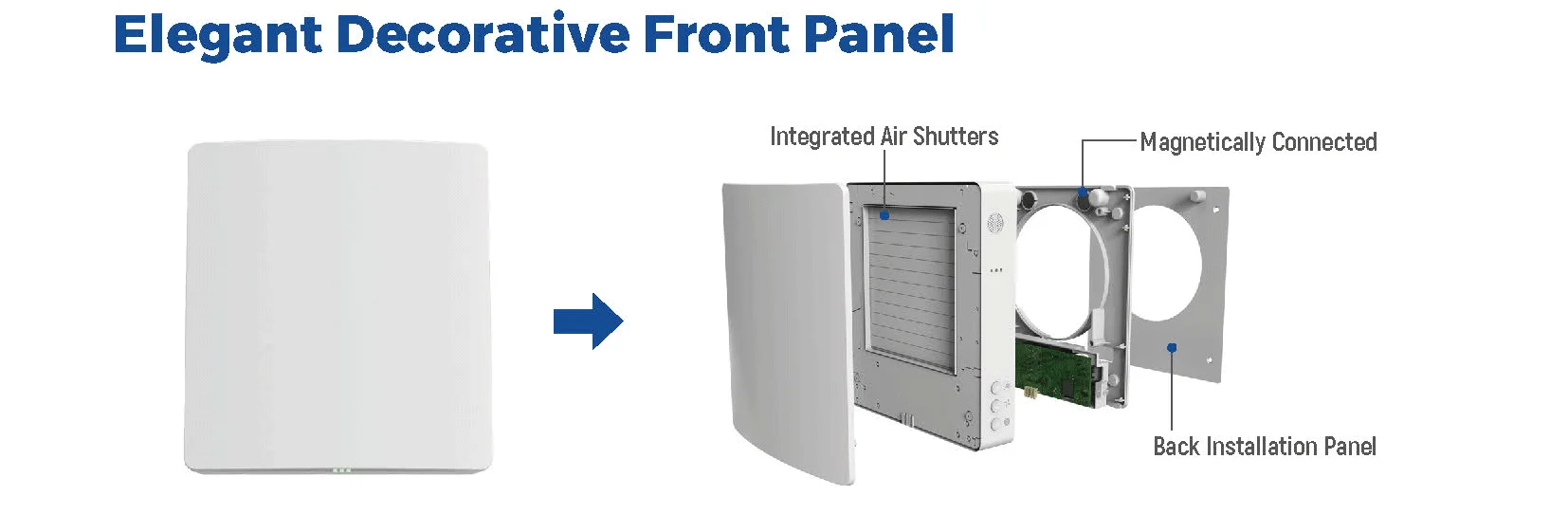

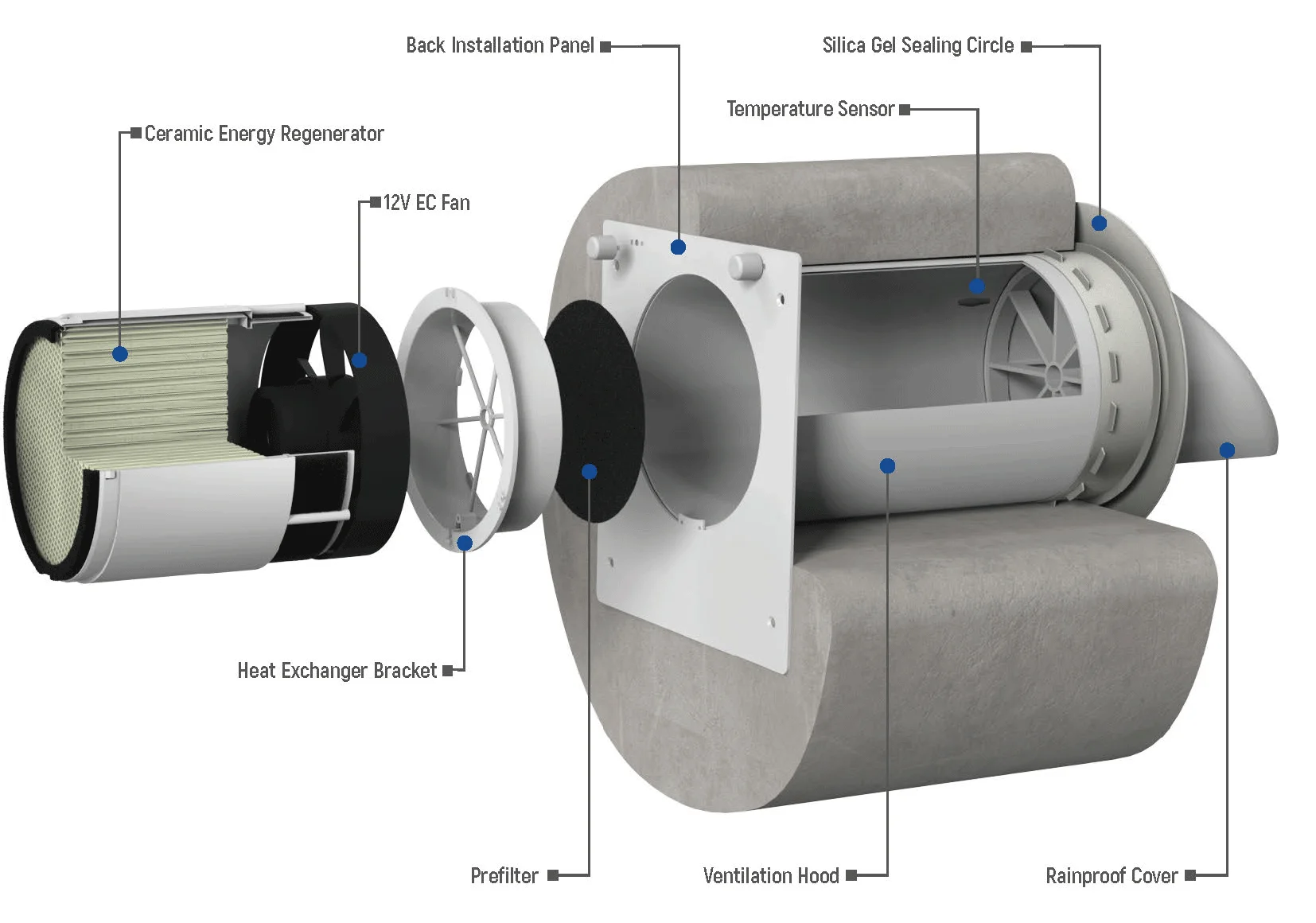

Product Structure
Reversible DC Motor
The reversible axial fan is with EC technology. The fan is characterised by low power consumption and silent operation. The fan motor has built-in thermal protection and ball bearings for long life.
Ceramic Energy Regenerator
The high-tech ceramic energy accumulator with a regeneration efficiency of up to 97% ensures heat recovery from the exhaust air to heat or cool the supply air flow. Due to its cellular structure, the unique regenerator has a large air contact surface and high heat conducting and accumulating properties.
The ceramic regenerator is treated with an antibacterial composition to prevent bacterial growth inside.
The ceramic regenerator is treated with an antibacterial composition to prevent bacterial growth inside.

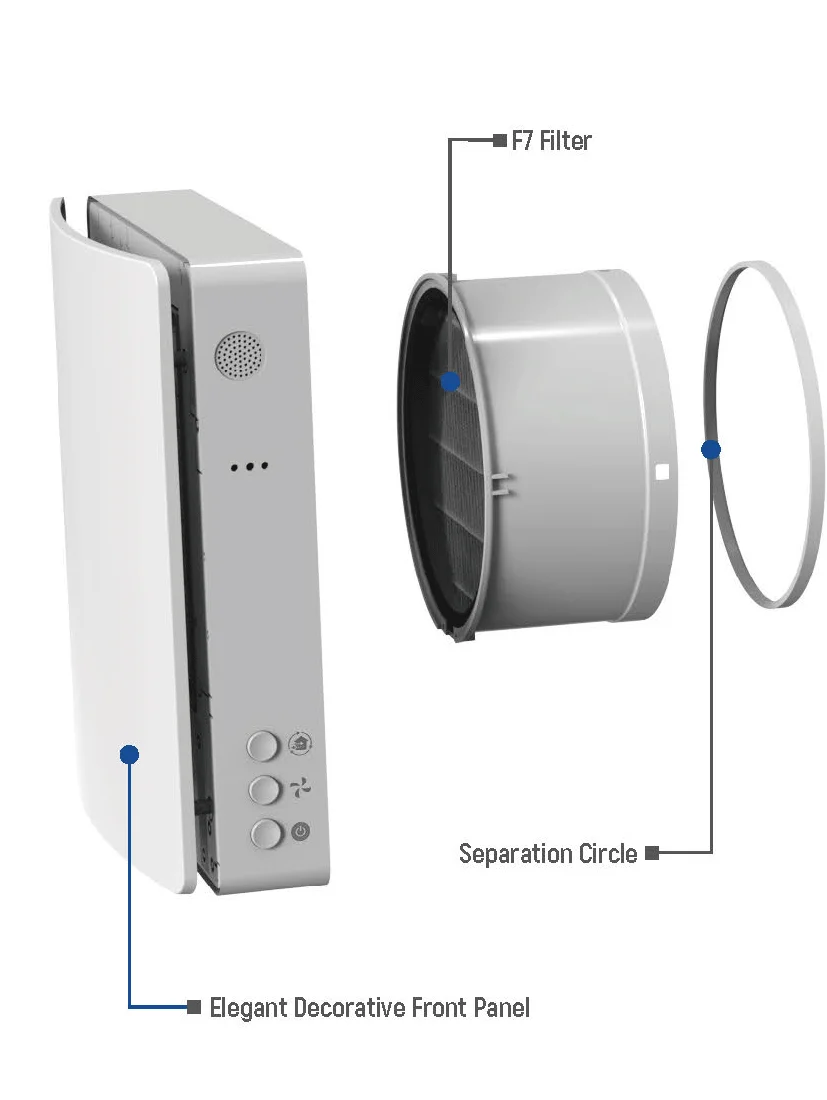

Air Filters
Two integrated air pre-filters and a F7 air filter are fitted as standard to provide supply and extract air filtration. The filters prevent the ingress of dust and insects into the supply air and contamination of the fan parts.
The filters are also antibacterially treated.
The filters are cleaned with a vacuum cleaner or by flushing with water.
The antibacterial solution will not be removed.
The filters are cleaned with a vacuum cleaner or by flushing with water.
The antibacterial solution will not be removed.
ENERGY SAVING
The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.
The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.

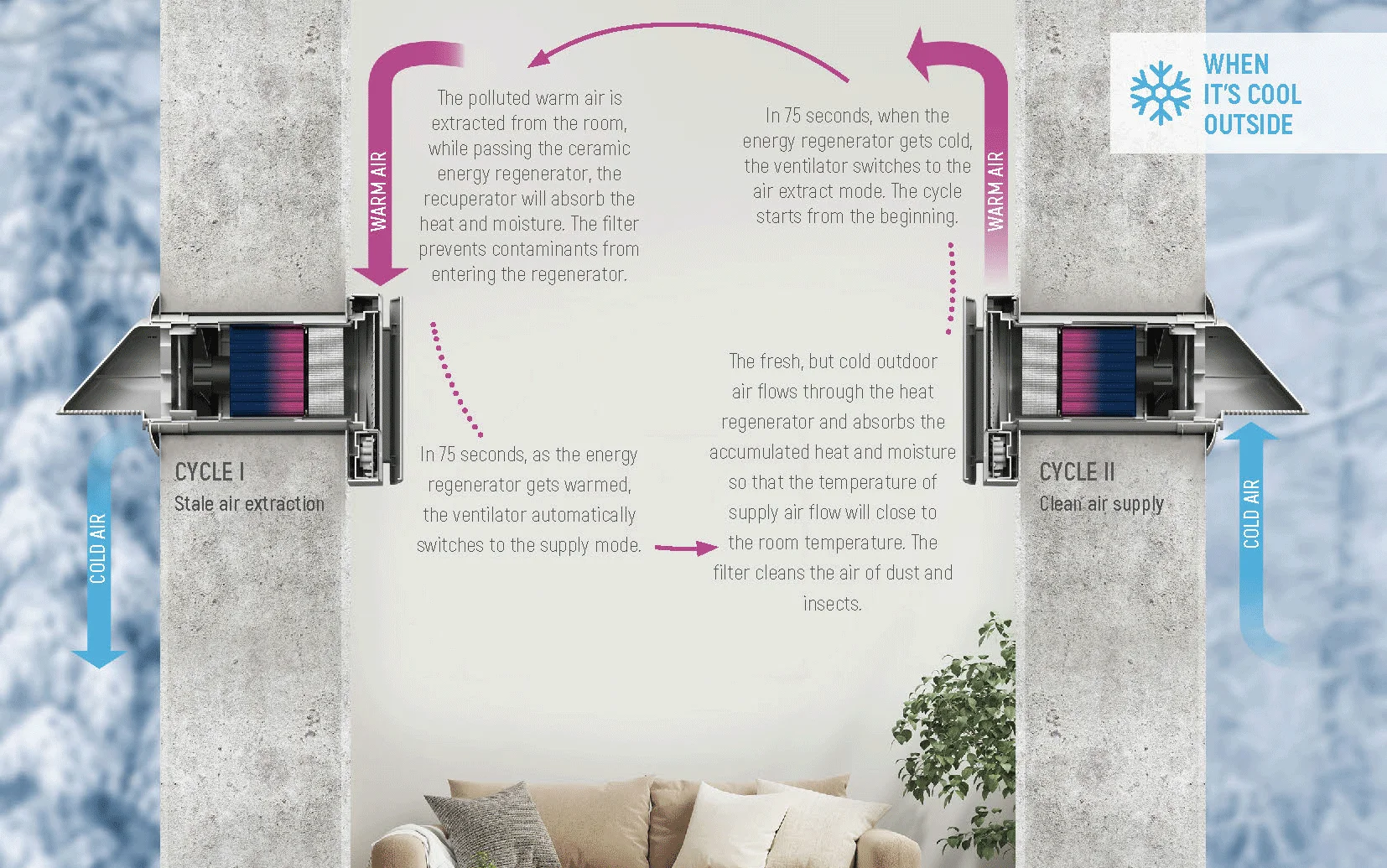

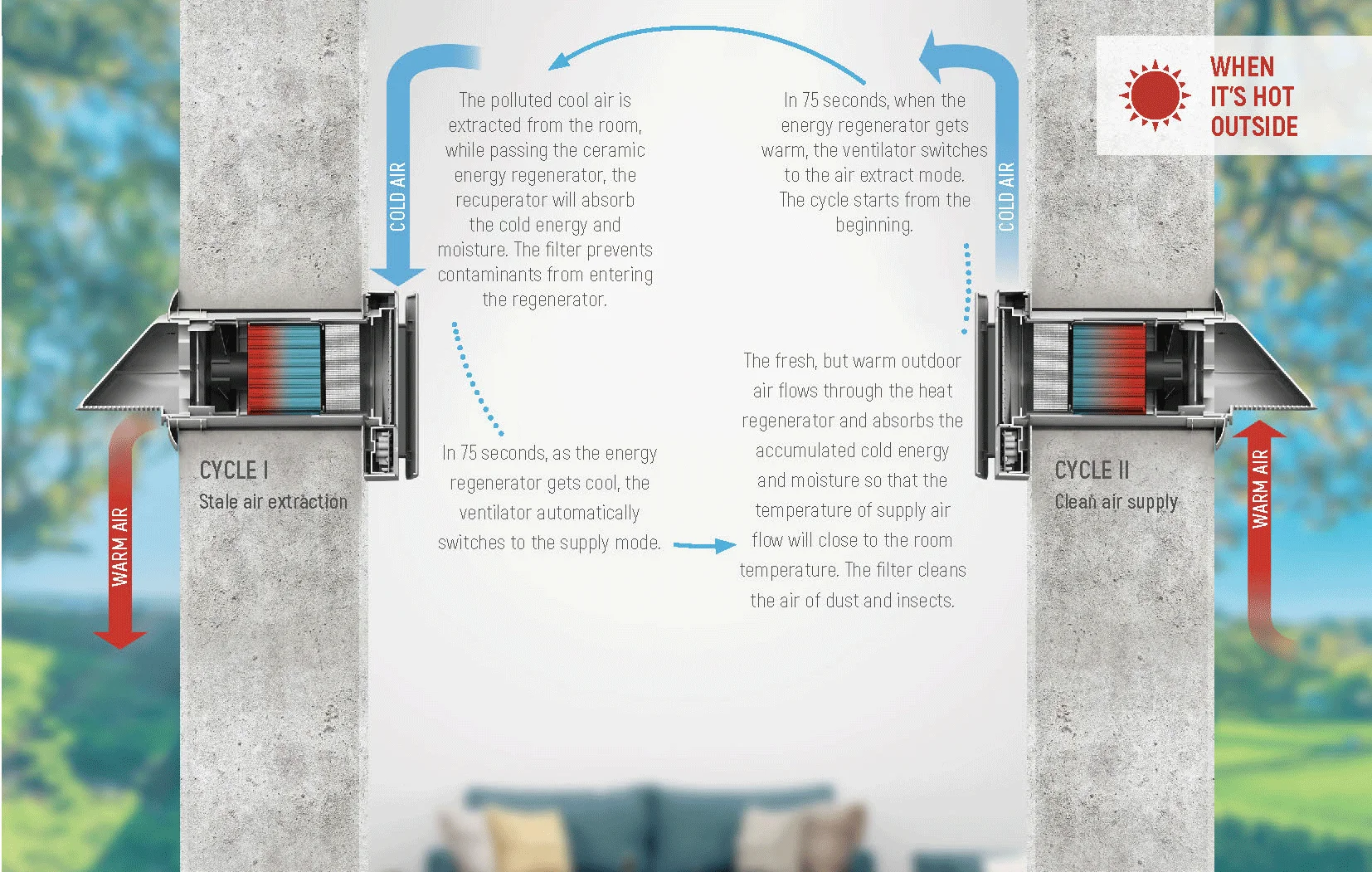

The ventilator operates in the heat recovery mode with two cycles. Two units intake/exhaust air alternately at the same time to achieve balance ventilation. It will increase the indoor comfort and make ventilation more effective. The heat and humidity in the room can be recovered during ventilating and the load on cooling system can be reduced in summer.
Model No. | AV-TTW5-W | ||||
Voltage | 100V~240V AC /50-60Hz | ||||
Power [W] | 6 | 7 | 7.8 | ||
Current [A] | 0.04 | 0.05 | 0.06 | ||
Air flow in regeneration mode [m3/h] | 20 | 40 | 50 | ||
Air flow in energy recovery mode [m3/h] | 14 | 27 | 32 | ||
SFP [W/m3/h] | 0.43 | 0.31 | 0.35 | ||
Sound pressure level at 1 m distance [dBA] | 28 | 32.9 | 36.7 | ||
Sound pressure level at 3 m distance [dBA] | 12 | 27.5 | 31.9 | ||
Regeneration Efficiency | Up to 97% | ||||
SEC | Class A | ||||
Transported air temperature [°C] | -20~50 | ||||
Ingress Protection Rating | IP22 | ||||
RPM | 2000 (max) | ||||

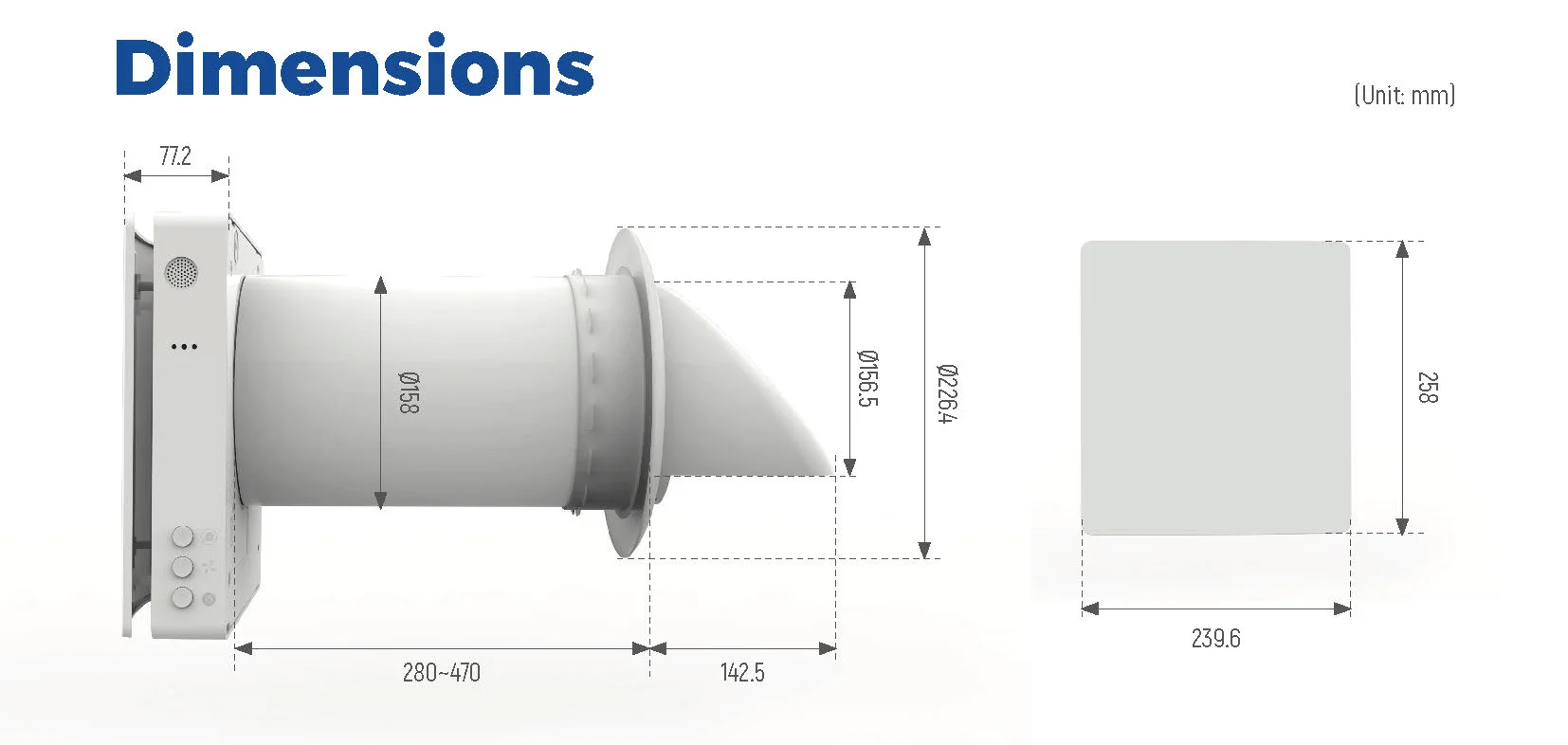

Diameter of duct [mm| | 158mm | ||||
Type of installation | Wall mounting | ||||
Net Weight | 4.2kg | ||||

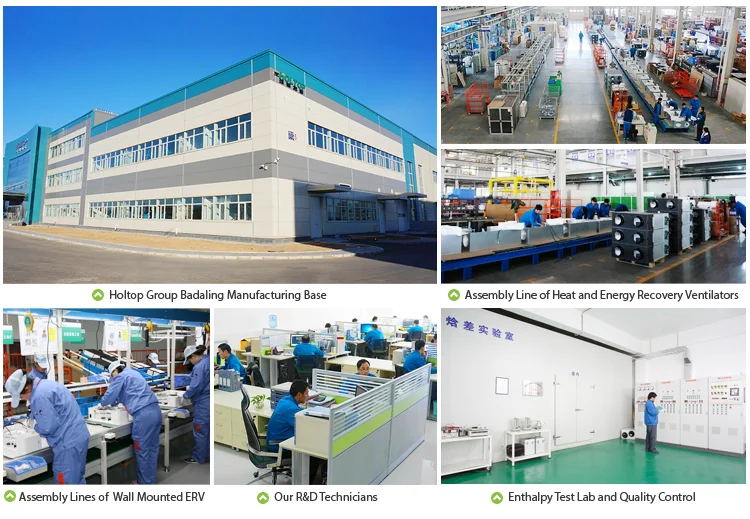

Company Profile
Certifications
FAQ
1. How to select the suitable model ?
Before we make recommendations to you, we may need below information:
* Where do you want to apply it?
* What is the room size/ room type/ number of person
We will make advice to you according to your specific conditions, based on the airflow required and application.
2. Why choose Holtop as a business partner?
Because Holtop can be a trustworthy supplier, a fore runner in the production of air to air heat recovery equipment/ fresh air purification equipment for more than 18 years.
3. How about your product quality?
Our professional R&D team, certificates of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT, customer feedback, and long-term customer relationship can speak for themselves.
4. Do you work with famous brands ?
Yes, we have established reliable relationship and been a regular supplier to MIdea, Haier, Hitachi, LG, Mcquay, Trane Technology, Gree, etc.
5. Where is your market?
Currently, we mainly export to Europe, the Middle East, Southeast Asia, and is expanding.
PS: Follow our Alibaba store & add the product to " my favorite" , to get new arrivals, trending and special discounts for you!
Before we make recommendations to you, we may need below information:
* Where do you want to apply it?
* What is the room size/ room type/ number of person
We will make advice to you according to your specific conditions, based on the airflow required and application.
2. Why choose Holtop as a business partner?
Because Holtop can be a trustworthy supplier, a fore runner in the production of air to air heat recovery equipment/ fresh air purification equipment for more than 18 years.
3. How about your product quality?
Our professional R&D team, certificates of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT, customer feedback, and long-term customer relationship can speak for themselves.
4. Do you work with famous brands ?
Yes, we have established reliable relationship and been a regular supplier to MIdea, Haier, Hitachi, LG, Mcquay, Trane Technology, Gree, etc.
5. Where is your market?
Currently, we mainly export to Europe, the Middle East, Southeast Asia, and is expanding.
PS: Follow our Alibaba store & add the product to " my favorite" , to get new arrivals, trending and special discounts for you!
