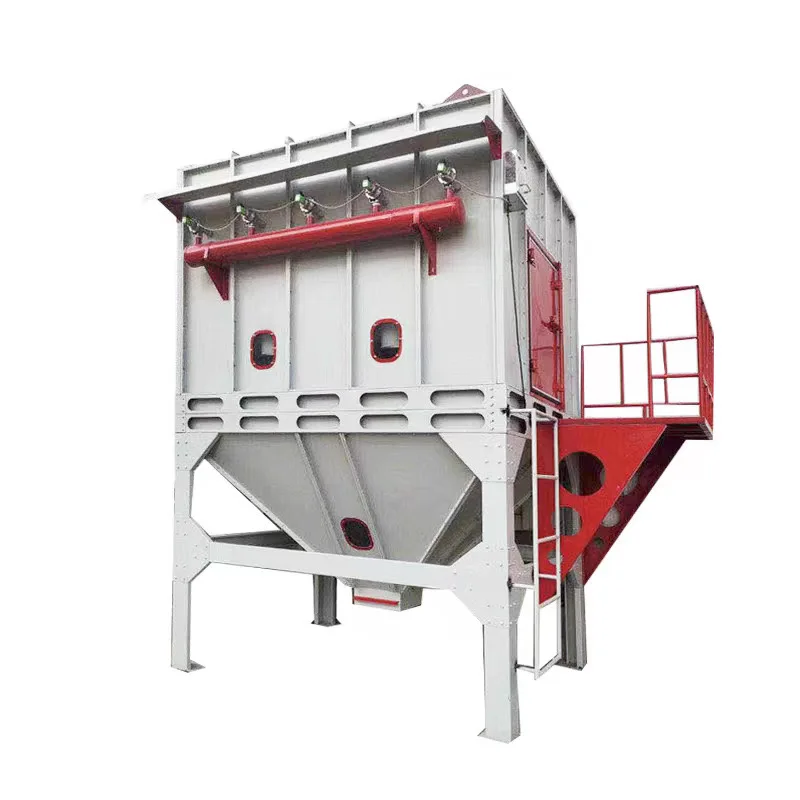

Cylinder dust collector pulse automatic ash discharge type flue gas filtration
Cylinder dust collector pulse automatic ash discharge type flue gas filtration
Cylinder dust collector pulse automatic ash discharge type flue gas filtration
Cylinder dust collector pulse automatic ash discharge type flue gas filtration
Cylinder dust collector pulse automatic ash discharge type flue gas filtration
Cylinder dust collector pulse automatic ash discharge type flue gas filtration
Cylinder dust collector pulse automatic ash discharge type flue gas filtration

Cylinder dust collector pulse automatic ash discharge type flue gas filtration

Share on (1601292367524):


Price:$4,500.00-5,500.00

Quantity:


Product Overview

Description

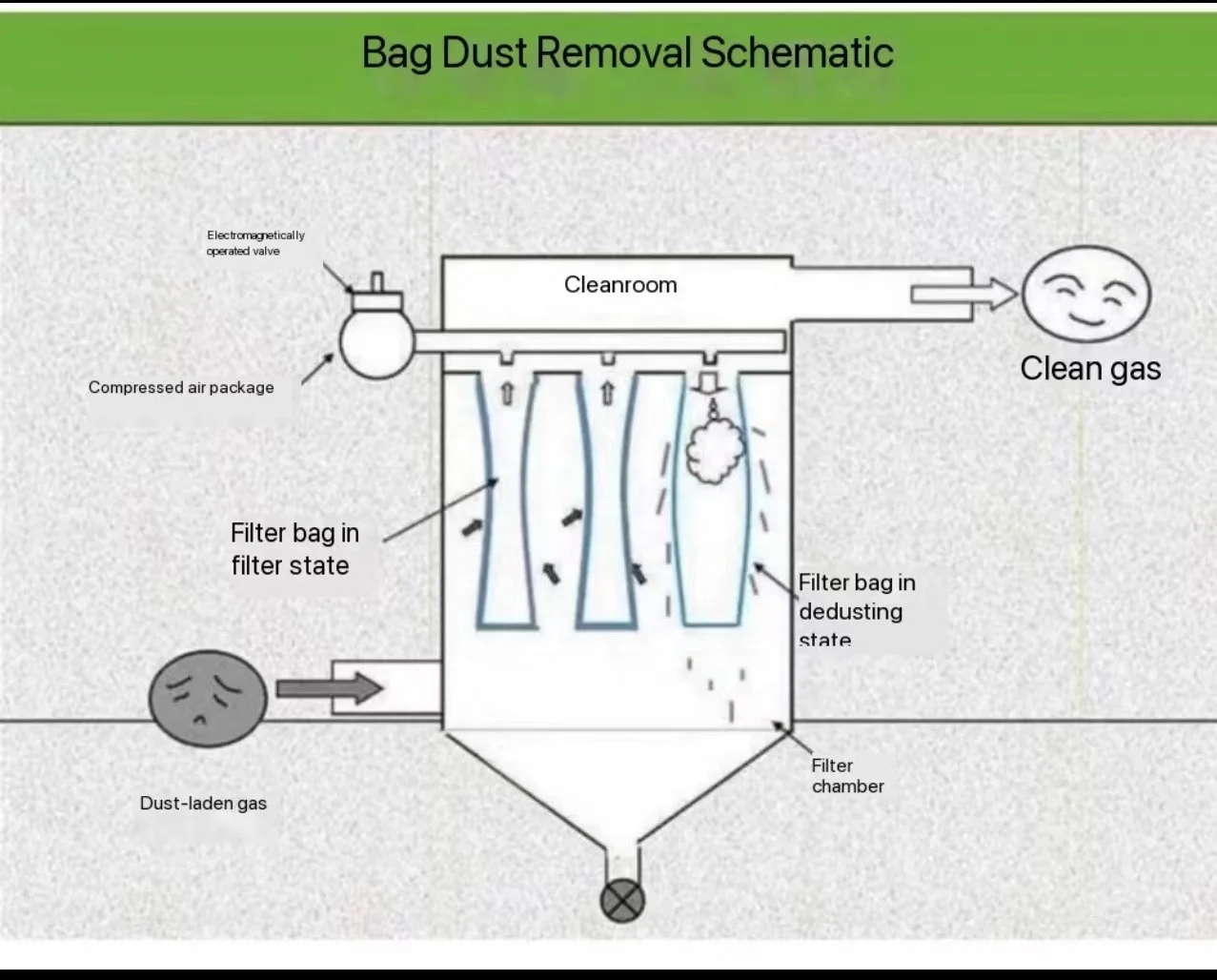

Thepulse bag dust collector is composed of ash hopper, upper box, middle box and lower box. When the utility model works, the dust-containing air enters the ash hopper from the air inlet duct, the coarse dust particles directly fall into the bottom of the ash hopper, the fine dust particles enter the middle and lower boxes with the air flow turning upward, the dust accumulates on the external surface area of the filter bag, the filtered air enters the upper box body to the clean air collecting tube-exhaust duct,and is discharged into the atmosphere by the exhaust fan. The cleaning process is to cut off the clean air outlet air channel of the chamber at first, so that the cloth bag of the chamber is in a state of no air flow passing through (dust cleaning by stopping the wind in each chamber). Then the pulse valve is opened to carry out pulse injection cleaning with compressed air, and the closing time of the cut-off valve is sufficient to ensure that the dust peeled from the filter bag settles to the ash hopper after injection. The phenomenon that the dust is attached to the surface of the adjacent filter bag with the air flow after separating from the surface of the filter bag is avoided, so that the filter bag is cleaned thoroughly, and the exhaust valve, pulse valve and ash discharge valve are fully automatically controlled by the programmable controller.

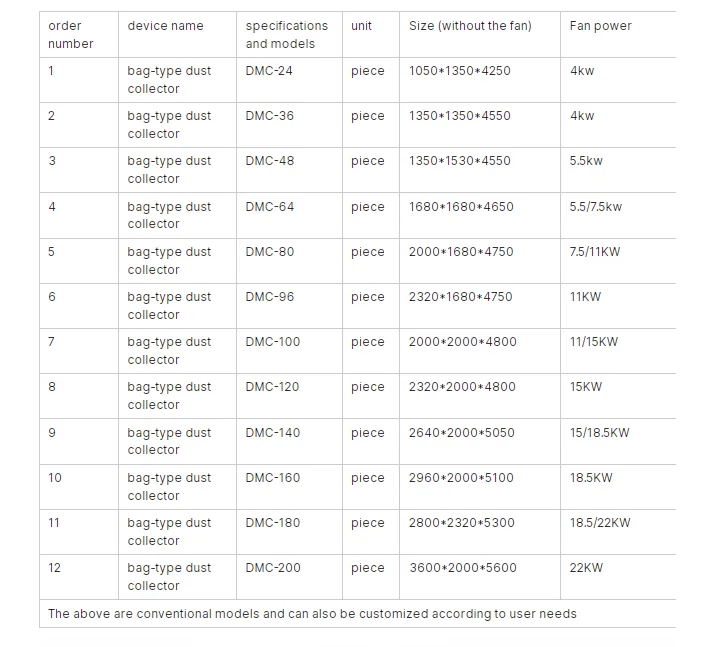

Specification


item
value
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail, Energy & Mining, Construction works , Other, Advertising Company
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Not Available
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
Motor, fabric filter diret catcher pulse dust collector D
Place of Origin
China
Hebei
Weight
1000kg
Warranty
1 Year
Condition
New
Brand Name
nuode
Dimension(L*W*H)
1900*1900*3300
Applicable Industries
Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail
Showroom location
None
marketing type
Ordinary Product
Warranty period
1 Year
core components
Motor, fabric filter dirt catcher pulse dust collector D
Degree of old and new
New
Place of Origin
China Hebei
brand
nuode
Dimension(L*W*H)
1900*1900*3300
weight
1000kg














Packing & Delivery


To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.


FAQ


1. who are we?
We are based in Hebei, China, start from 2015,sell to Eastern Asia(45.00%),Mid East(6.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Spray tower,Polishing table,Welding fume purifier,bag-type dust collector,catalytic combustion

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
