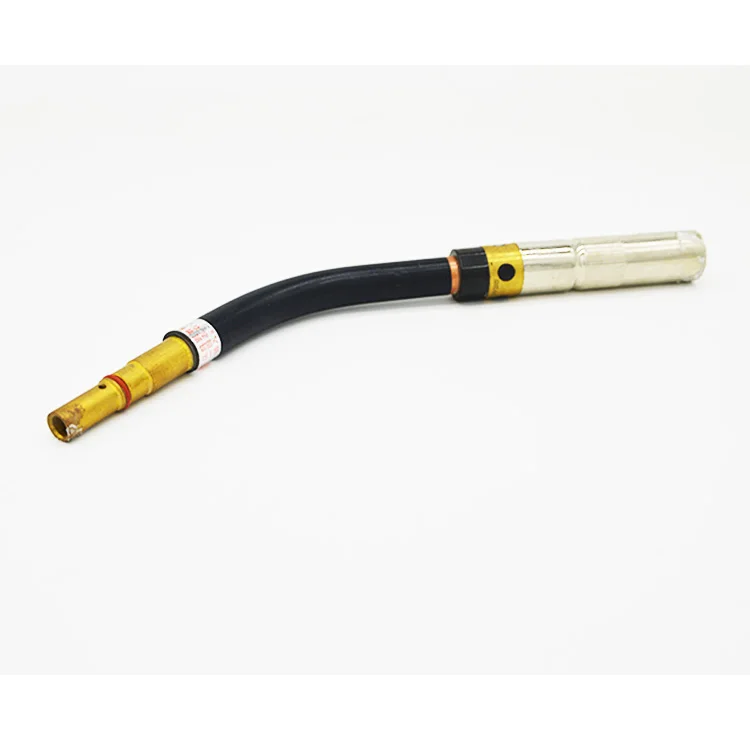

Welding Gun Multipurpose Custom 180a Co2 150a Welding Torch 14ak Mixed Gas Welding Torch
- Category: >>>
- Supplier: Shandong Keda Electric Co. Ltd.Shandong Ltd.
Share on (1601292387373):
Product Overview
Description
Overview
Video Overview
Product description

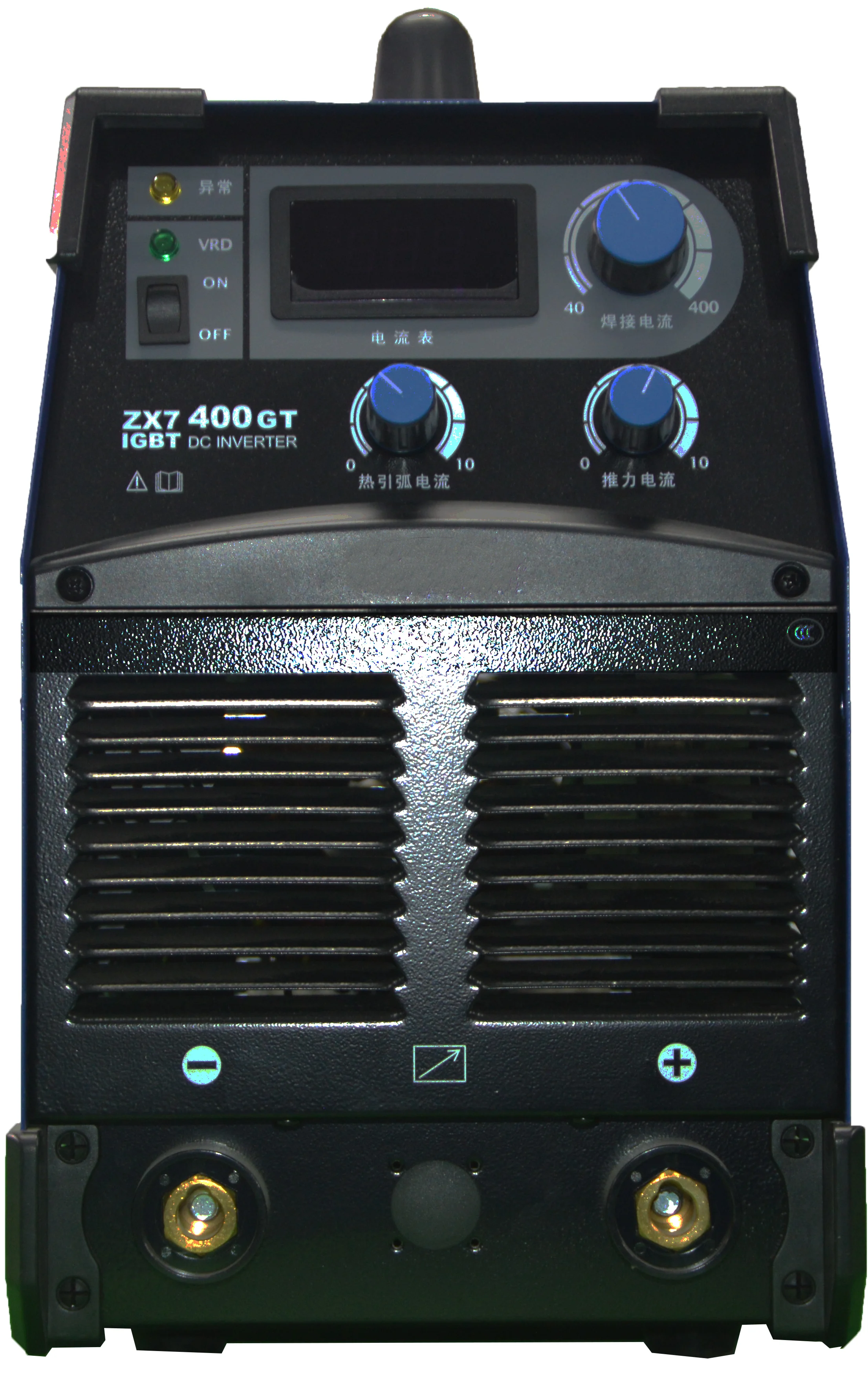

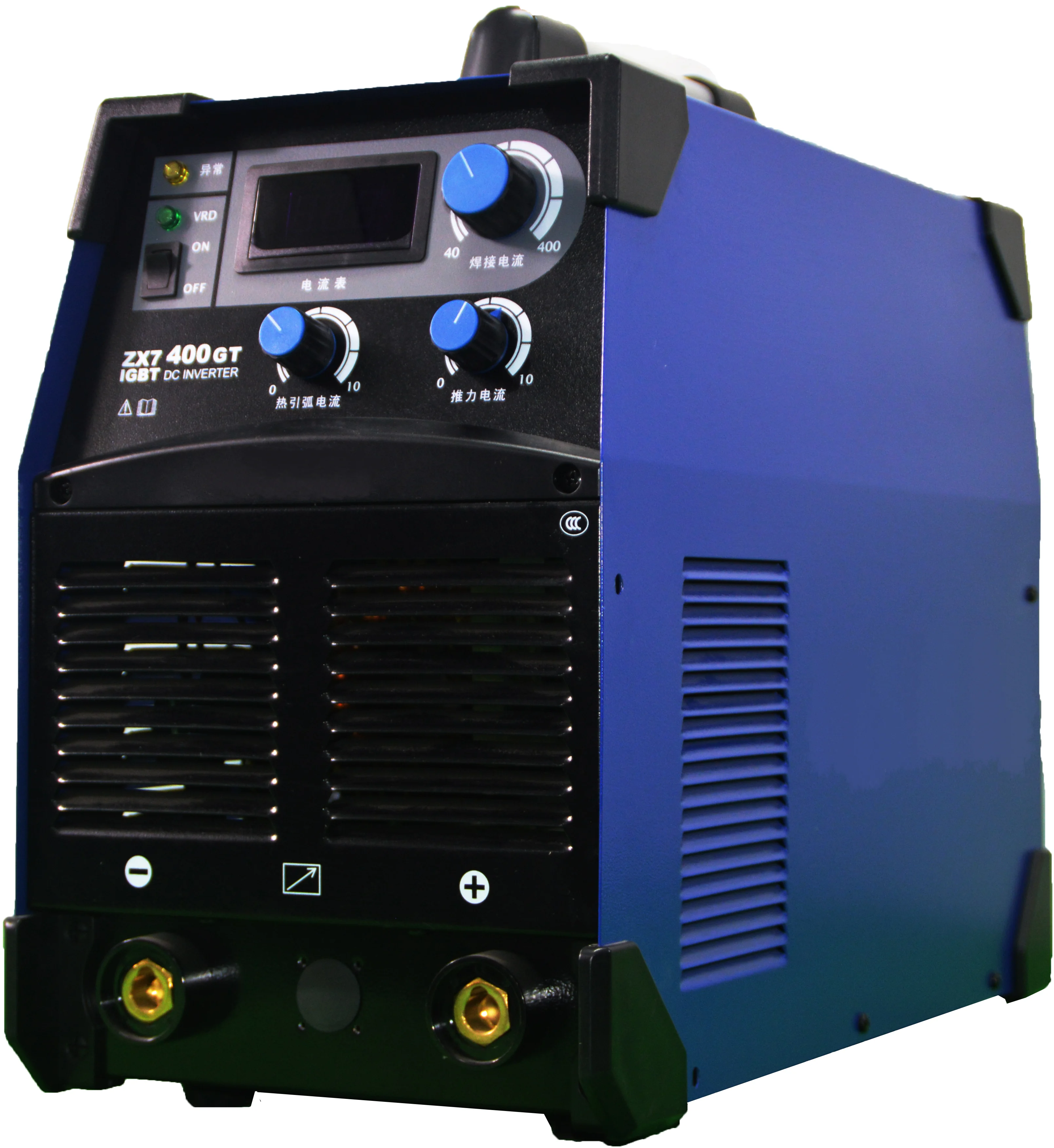

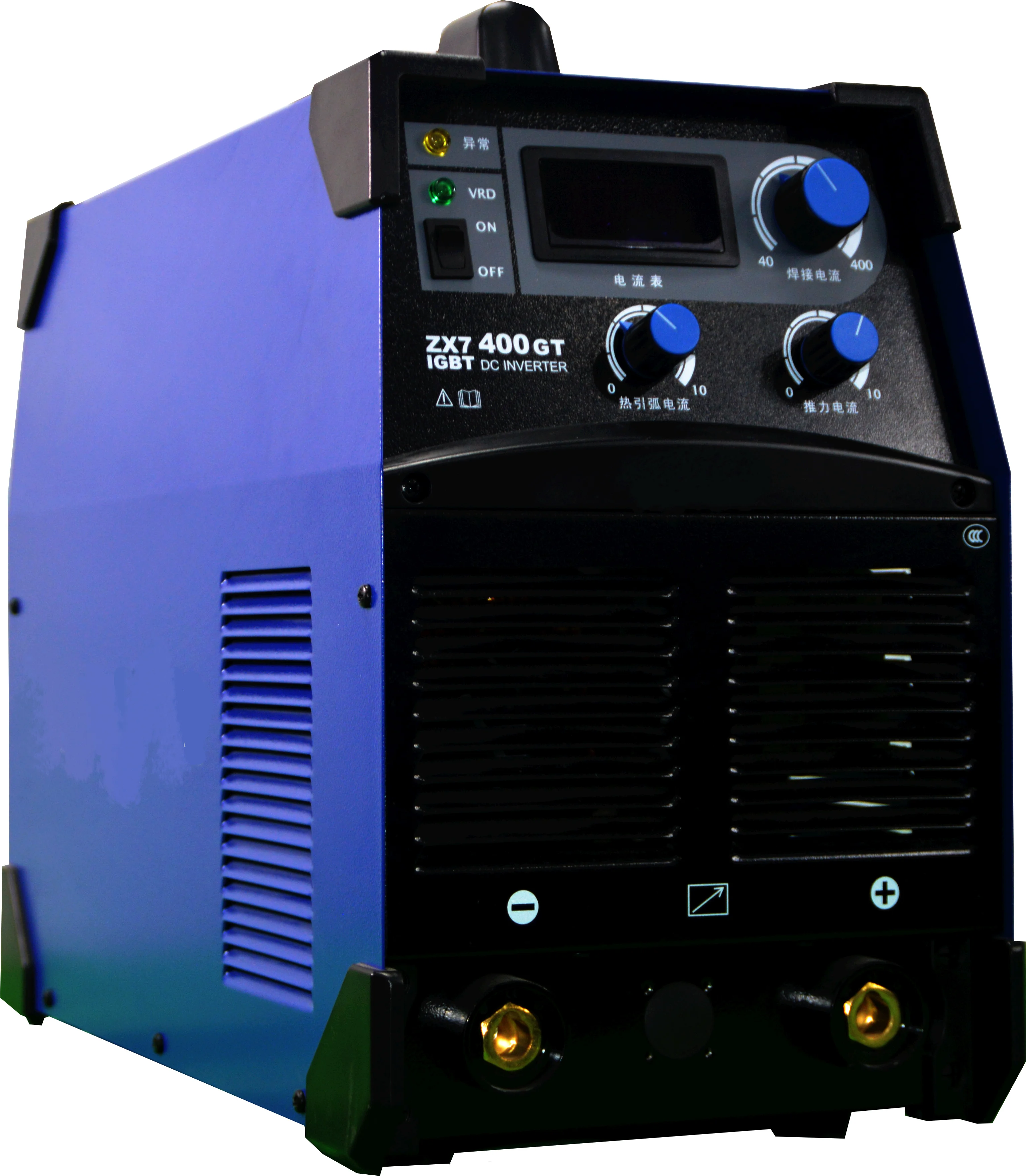

Ruiling ZX7-400GT is a light industrial-grade inverter DC manual welding machine. The following is its relevant introduction:
I. Basic parameters:
1. Working voltage:
380V three-phase alternating current can adapt to the network voltage of three-phase AC323-437V, and can be used with generators. It is suitable for various power environments such as field work.
2. Current and voltage adjustment range:
40/21.6~ 400/36, with a wide range of current and voltage regulation, can meet different welding needs.
3. Weight:
It weighs about 22 kilograms and is relatively lightweight, making it easy to carry and move.
4. External dimensions:
It is generally 485 x 234 x 425mm (different batches may vary slightly), and its small size makes it convenient to use in construction sites and other places with limited space.
II. Performance characteristics:
1. High load duration:
When the ambient temperature is 40 ° C, the load duration is high, which can meet the needs of long-term and high-intensity welding operations. For example, in some large-scale engineering welding operations, it can maintain stable welding performance.
2. High-quality air duct design:
Adopting patented three-proof air duct technology, it has the functions of waterproof, dustproof and windproof, which can improve the reliability and service life of the electronic components in the welding machine, and is suitable for various harsh working environments.
3. Stable output:
With the function of automatic compensation for voltage fluctuations, when the grid voltage fluctuates, the output voltage can be automatically adjusted to compensate for line loss, ensuring the stability of welding current. The lengthened line can be greater than 100 meters, making it convenient for long-distance welding operations.
4. High welding quality:
Adopting imported IGBT single tube, the dynamic response speed is fast, and the output current of the welding machine is strong. Whether it is acid electrode or alkaline electrode, it can be welded stably, with high arc stability and good weld quality.
5. Thrust compensation and thermal arc current adjustable:
The thrust adjustment range is generally 0 to 135A, and the hot arc current can be adjusted according to the welding requirements, which facilitates arc initiation and reduces welding defects.
6. Safe and reliable:
With VRD anti-shock function, attention to the user's personal safety, in line with international practice.
III. Operation and display:
1. Easy to operate:
The panel design is intuitive, the bevel design is ergonomic, the function area setting is intuitive and simple, and the switch knob is reliable.
2. Display clearly:
Some products are equipped with digital display meters, which can intuitively display welding current and other parameters, making it convenient for welders to grasp the welding status in real time.
IV. Scope of application:
It is widely used in welding and field work in petroleum pipeline, chemical industry, automobile, shipbuilding, boiler, power construction, nuclear power, aerospace, industrial installation, bridge construction and other industries.
I. Basic parameters:
1. Working voltage:
380V three-phase alternating current can adapt to the network voltage of three-phase AC323-437V, and can be used with generators. It is suitable for various power environments such as field work.
2. Current and voltage adjustment range:
40/21.6~ 400/36, with a wide range of current and voltage regulation, can meet different welding needs.
3. Weight:
It weighs about 22 kilograms and is relatively lightweight, making it easy to carry and move.
4. External dimensions:
It is generally 485 x 234 x 425mm (different batches may vary slightly), and its small size makes it convenient to use in construction sites and other places with limited space.
II. Performance characteristics:
1. High load duration:
When the ambient temperature is 40 ° C, the load duration is high, which can meet the needs of long-term and high-intensity welding operations. For example, in some large-scale engineering welding operations, it can maintain stable welding performance.
2. High-quality air duct design:
Adopting patented three-proof air duct technology, it has the functions of waterproof, dustproof and windproof, which can improve the reliability and service life of the electronic components in the welding machine, and is suitable for various harsh working environments.
3. Stable output:
With the function of automatic compensation for voltage fluctuations, when the grid voltage fluctuates, the output voltage can be automatically adjusted to compensate for line loss, ensuring the stability of welding current. The lengthened line can be greater than 100 meters, making it convenient for long-distance welding operations.
4. High welding quality:
Adopting imported IGBT single tube, the dynamic response speed is fast, and the output current of the welding machine is strong. Whether it is acid electrode or alkaline electrode, it can be welded stably, with high arc stability and good weld quality.
5. Thrust compensation and thermal arc current adjustable:
The thrust adjustment range is generally 0 to 135A, and the hot arc current can be adjusted according to the welding requirements, which facilitates arc initiation and reduces welding defects.
6. Safe and reliable:
With VRD anti-shock function, attention to the user's personal safety, in line with international practice.
III. Operation and display:
1. Easy to operate:
The panel design is intuitive, the bevel design is ergonomic, the function area setting is intuitive and simple, and the switch knob is reliable.
2. Display clearly:
Some products are equipped with digital display meters, which can intuitively display welding current and other parameters, making it convenient for welders to grasp the welding status in real time.
IV. Scope of application:
It is widely used in welding and field work in petroleum pipeline, chemical industry, automobile, shipbuilding, boiler, power construction, nuclear power, aerospace, industrial installation, bridge construction and other industries.
Product features:
Ruiling ZX7-400GT manual welding has the following characteristics:
1. High efficiency and energy saving:
Adopting a new generation of IGBT inverter technology, the input three-phase alternating current can be efficiently converted into direct current for welding operations, with high power conversion efficiency and more energy saving than traditional welding machines, which can reduce energy consumption and usage costs.
2. Lightweight and portable:
Although it is a 400-type welding machine, the overall design is relatively compact and the weight is relatively light, making it convenient to move and handle in different situations such as construction sites, and it is suitable for various working environments.
3. Excellent welding performance:
①. The current output is stable:
With a good current adjustment range, it can output a stable welding current, with a wide range of adjustment from tens of amps to 400 amps, which can meet the welding requirements of workpieces of different thicknesses and materials, and the current fluctuation during the welding process is small, ensuring the stability of welding quality.
②. Arc stability:
It can ensure the stability of the welding arc, make the molten pool easy to control, reduce the generation of welding defects, and form a beautiful weld. Whether it is bottom welding, fill welding or cover welding, good welding results can be obtained.
③. Wide range of welding electrodes:
Acid, alkaline and other electrodes can be used, and it has good adaptability to the welding of various metal materials such as carbon steel, stainless steel, and copper, and has a wide range of applications.
4. Easy to operate:
①. Humanized panel design:
The design of the control panel is ergonomic, the function area setting is intuitive and simple, the switch knob is easy to operate, and the welder can adjust the welding parameters quickly and accurately.
②. Flexible parameter adjustment:
Equipped with hot arc current regulation and thrust current regulation functions, the hot arc function can instantly increase the output current when the electrode and the workpiece are short-circuited, improve the success rate of arc initiation, and is especially suitable for small current welding; the thrust current regulation function can be used in vertical welding, overlay welding and other special welding positions with welding current to achieve the ideal welding effect.
5. Safe and reliable:
①. VRD anti-shock function:
With VRD anti-shock function, when the function is turned on, the no-load output voltage is reduced, which improves the safety of the operator and reduces the risk of electric shock.
②. Good protective performance:
Adopting the company's patented three-proof air duct technology, it has the functions of waterproof, dustproof, and windproof, which can protect the electronic components in the welding machine, improve the reliability and service life of the welding machine, and is suitable for various harsh working environments.
6. Strong grid capability:
It is suitable for three-phase AC323-437V network voltage, which can be used with generators. It can also work normally in field operations or unstable power supply situations, and has strong grid adaptability.
7. High load duration:
When the welding machine is working for a long time, it can maintain a high load duration rate, meet the needs of high-intensity and long-term welding operations, and improve work efficiency.
1. High efficiency and energy saving:
Adopting a new generation of IGBT inverter technology, the input three-phase alternating current can be efficiently converted into direct current for welding operations, with high power conversion efficiency and more energy saving than traditional welding machines, which can reduce energy consumption and usage costs.
2. Lightweight and portable:
Although it is a 400-type welding machine, the overall design is relatively compact and the weight is relatively light, making it convenient to move and handle in different situations such as construction sites, and it is suitable for various working environments.
3. Excellent welding performance:
①. The current output is stable:
With a good current adjustment range, it can output a stable welding current, with a wide range of adjustment from tens of amps to 400 amps, which can meet the welding requirements of workpieces of different thicknesses and materials, and the current fluctuation during the welding process is small, ensuring the stability of welding quality.
②. Arc stability:
It can ensure the stability of the welding arc, make the molten pool easy to control, reduce the generation of welding defects, and form a beautiful weld. Whether it is bottom welding, fill welding or cover welding, good welding results can be obtained.
③. Wide range of welding electrodes:
Acid, alkaline and other electrodes can be used, and it has good adaptability to the welding of various metal materials such as carbon steel, stainless steel, and copper, and has a wide range of applications.
4. Easy to operate:
①. Humanized panel design:
The design of the control panel is ergonomic, the function area setting is intuitive and simple, the switch knob is easy to operate, and the welder can adjust the welding parameters quickly and accurately.
②. Flexible parameter adjustment:
Equipped with hot arc current regulation and thrust current regulation functions, the hot arc function can instantly increase the output current when the electrode and the workpiece are short-circuited, improve the success rate of arc initiation, and is especially suitable for small current welding; the thrust current regulation function can be used in vertical welding, overlay welding and other special welding positions with welding current to achieve the ideal welding effect.
5. Safe and reliable:
①. VRD anti-shock function:
With VRD anti-shock function, when the function is turned on, the no-load output voltage is reduced, which improves the safety of the operator and reduces the risk of electric shock.
②. Good protective performance:
Adopting the company's patented three-proof air duct technology, it has the functions of waterproof, dustproof, and windproof, which can protect the electronic components in the welding machine, improve the reliability and service life of the welding machine, and is suitable for various harsh working environments.
6. Strong grid capability:
It is suitable for three-phase AC323-437V network voltage, which can be used with generators. It can also work normally in field operations or unstable power supply situations, and has strong grid adaptability.
7. High load duration:
When the welding machine is working for a long time, it can maintain a high load duration rate, meet the needs of high-intensity and long-term welding operations, and improve work efficiency.

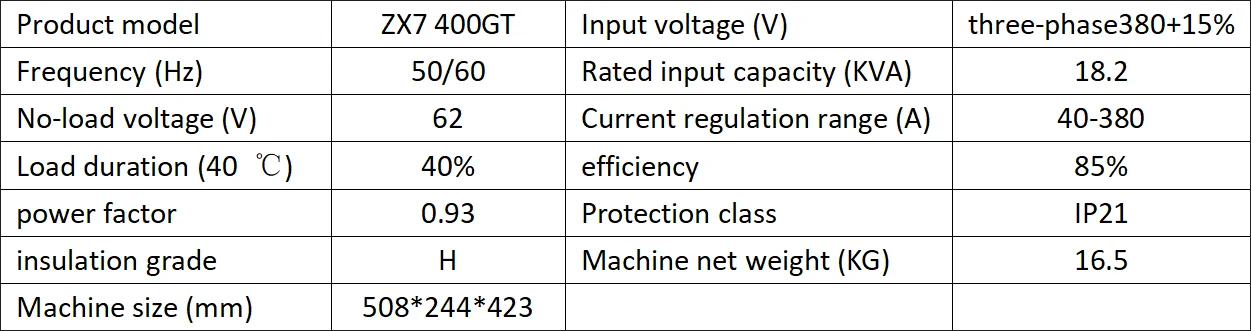

Technical parameters
