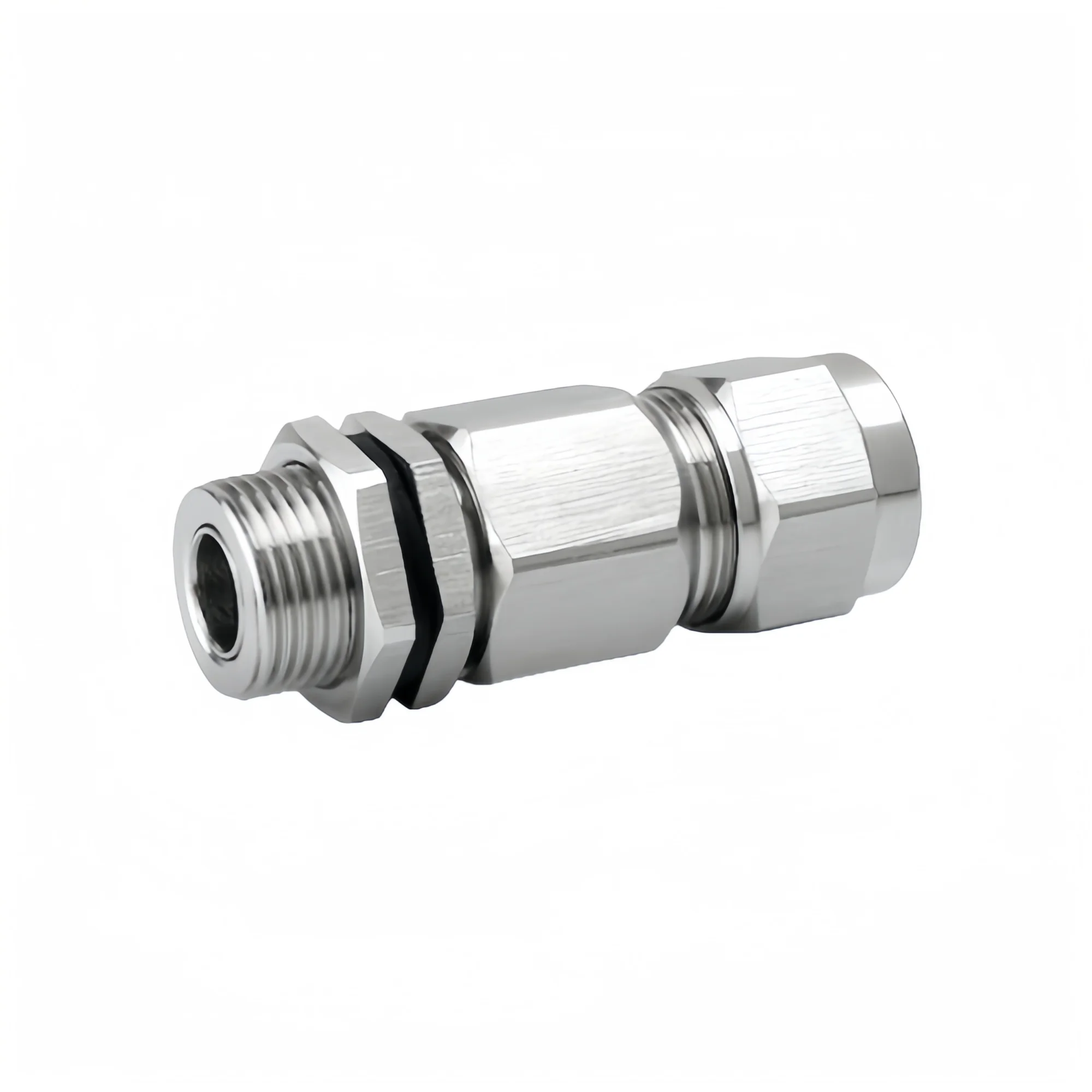

ATEX IP66 Weatherproof G3 M20 M32 Customizable Explosion Proof Armoured Cable Gland Protect Wires Safely
- Category: >>>
- Supplier: Changzhou Maxtree Technology Co. Ltd.Changzhou Ltd.
Share on (1601292399644):
Product Overview
Description
Product Parameters
ITEM | Product Name | ||||||
AC20 | Explosion Proof Armored Cable Gland/Cable Connector | ||||||
COMMON | IP Grade: | IP66 | Anti Corrosion Level: | WF1/WF2 | |||
Sealing Ring: | NBR | Work Temp: | -40-200°C | ||||
Lifespan: | 100000H | Warranty: | 5 Year | ||||
Material: | Carbon Steel/Nickel-plated Brass/Stainless Steel/Plastic | ||||||
CERT | ATEX,CE,IP66 | ||||||
FEATURES | ●Made of high-quality carbon steel, nickel-plated brass, plastic or stainless steel. ●Displacement type cable clamping device with strong waterproof performance. ●Single-layer sealing structure, threaded connection port at the inlet end, suitable for the introduction of non-armored and armored cables. ●Single-layer/double-layer sealing structure of filler optional. ●A variety of different types of products to meet different installation requirements, all can be customized. ●Reducer pipe joints can be made according to user needs. ●The product can be used to clamp armored or non-armored cables. ●The product thread specifications can be customized according to user requirements, such as metric, imperial and American non-standard threads. | ||||||
APPL | ●Warehouse ●Factory&Manufactory ●Oil and Gas Facilities●Chemical Processing Plants ●Mining Operations ●Industrial Zones with Hazardous Materials ●Marine Environments ●Wastewater Treatment Plants ●Chemical Storage Areas ●Railway and Highway Tunnels ●High-Risk Industrial Zones ●Zone 1 Zone 2 | ||||||
Product Description
An explosion-proof cable connector, also known as an explosion-proof cable gland, is a specialized component used in hazardous environments where there is a risk of explosive atmospheres. These connectors are designed to prevent the ignition of flammable gases, vapors, or dust particles present in such environments.

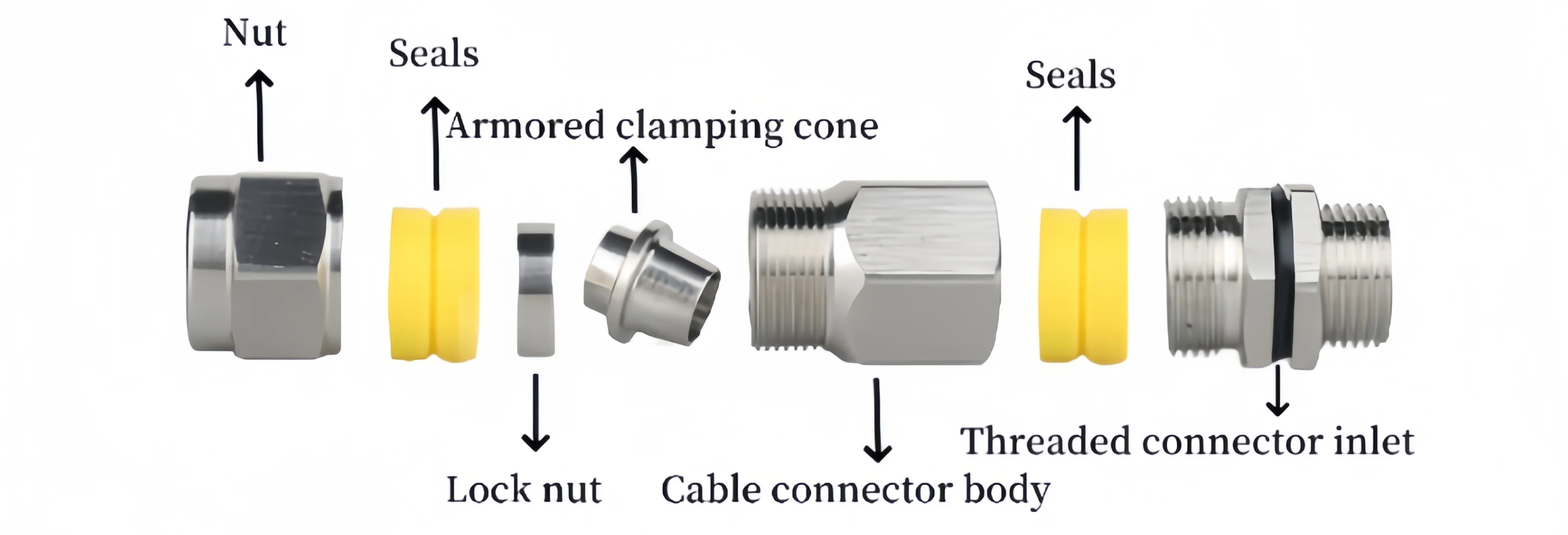

The explosion-proof cable connector typically consists of several parts, including a housing, sealing elements,
The explosion-proof cable connector typically consists of several parts, including a housing, sealing elements,
clamping mechanism, and cable entry. The housing is constructed from robust materials such as stainless steel or aluminum, capable of withstanding high pressures and impacts. The sealing elements ensure a tight seal around the cable entry point, preventing the ingress of gases or dust. The clamping mechanism securely holds the cable in place, providing strain relief and ensuring electrical continuity.
01/
clamping jaws
Clamping cables are large, tight tightness, tensile resistance, stronger tensile capacity strengthening waterproof performance.
Thick sealing ring
High-elastic sealing ring, the inner groove design improves, environmentally friendly materials have no pungent smell.
Strict craft requirements
Waterproof joint production is strict, and the model is clearly visible.
Waterproof Joint thread is clear, the surface Is smooth and no burrs.
High Performance
Made of high-quality carbon steel, nickel-plated brass or stainless steel, the displacement cable clamping device has strong waterproof performance and a double-layer sealing structure of filler, and is suitable for the introduction of armored cables.

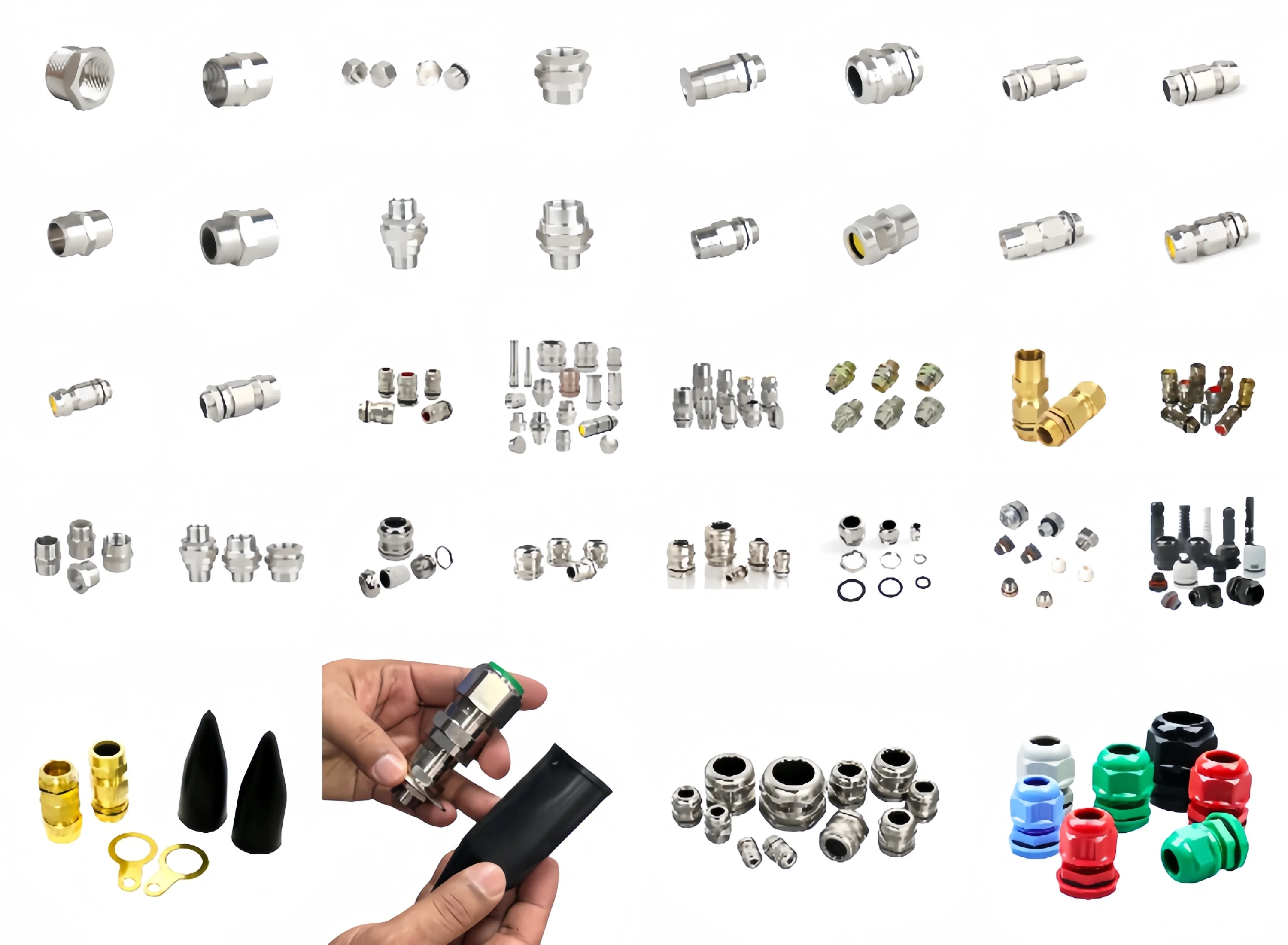

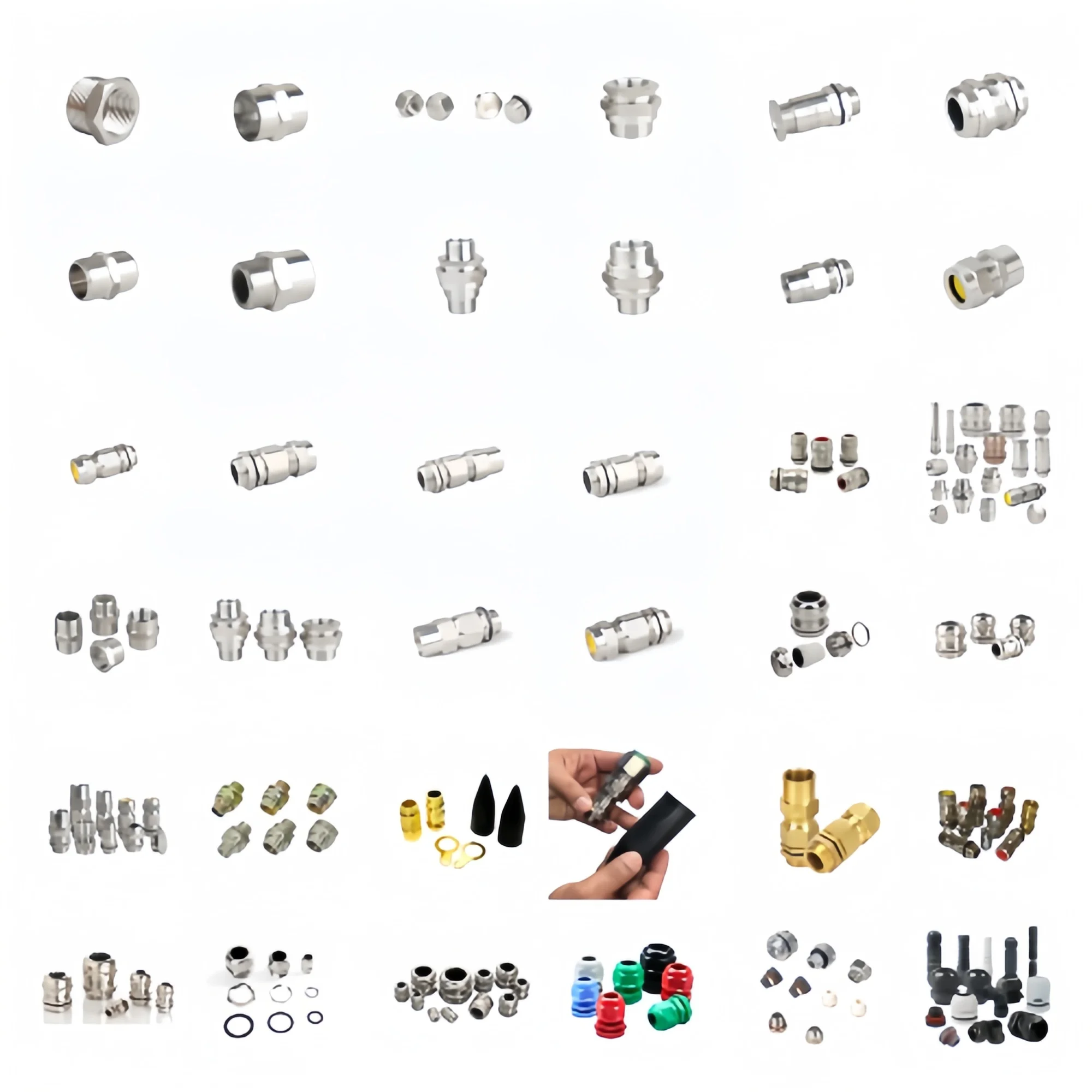

For more cable gland types and other products, please contact us！

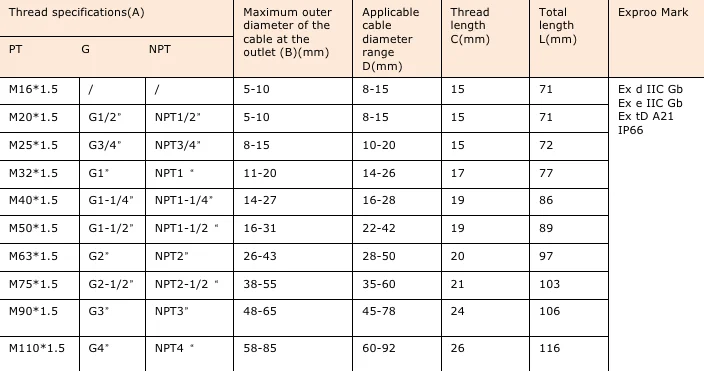

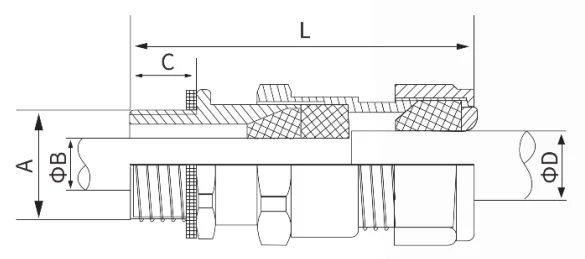

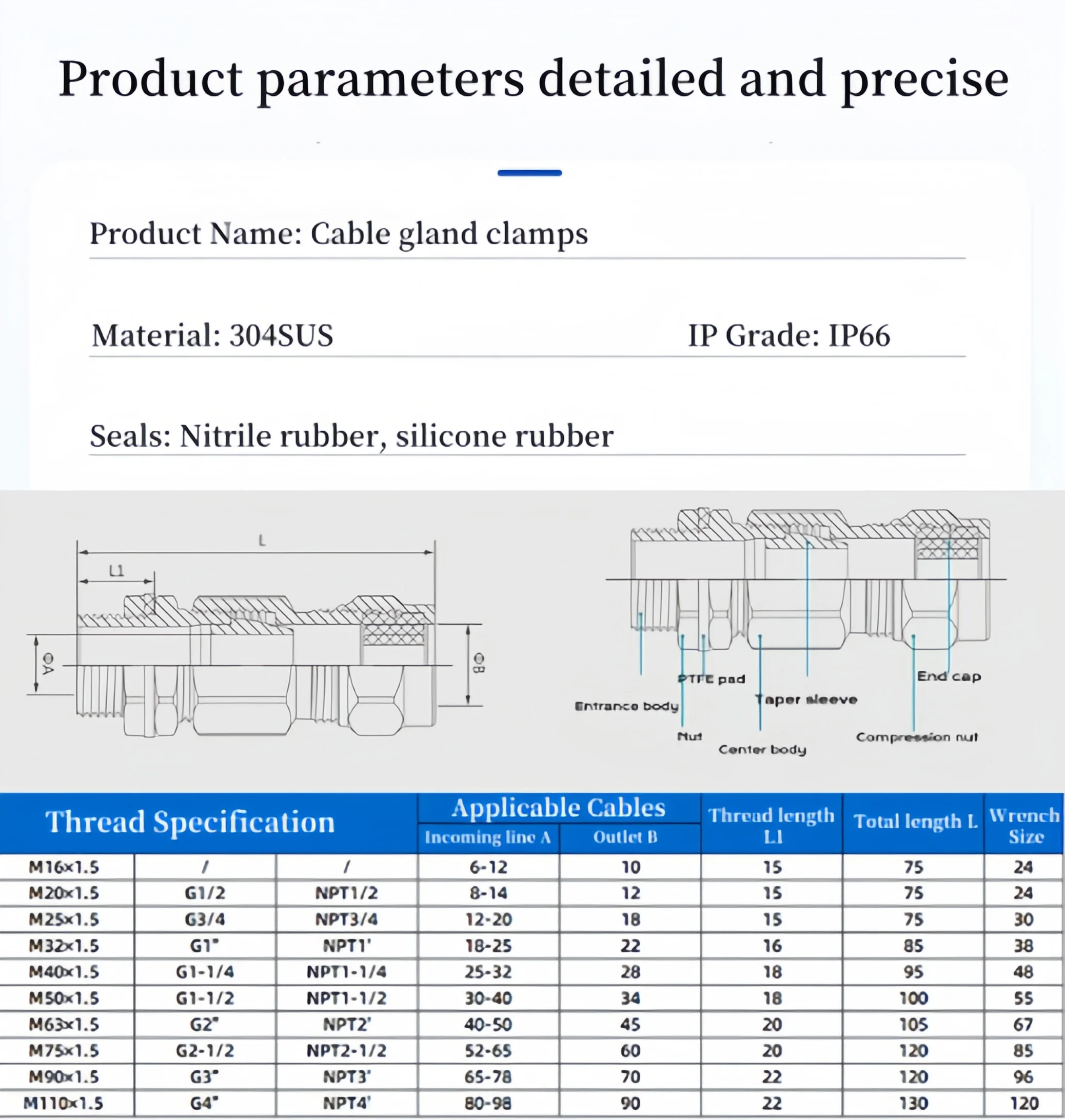

Dimensions
Applications
Product Applications:
●Warehouse
●Factory&Manufactory
●Oil and Gas Facilities
●Chemical Processing Plants
●Mining Operations
●Industrial Zones with Hazardous Materials
●Marine Environments
●Wastewater Treatment Plants
●Chemical Storage Areas
●Railway and Highway Tunnels
●High-Risk Industrial Zones
●Factory&Manufactory
●Oil and Gas Facilities
●Chemical Processing Plants
●Mining Operations
●Industrial Zones with Hazardous Materials
●Marine Environments
●Wastewater Treatment Plants
●Chemical Storage Areas
●Railway and Highway Tunnels
●High-Risk Industrial Zones
●Zone 1 Zone 2

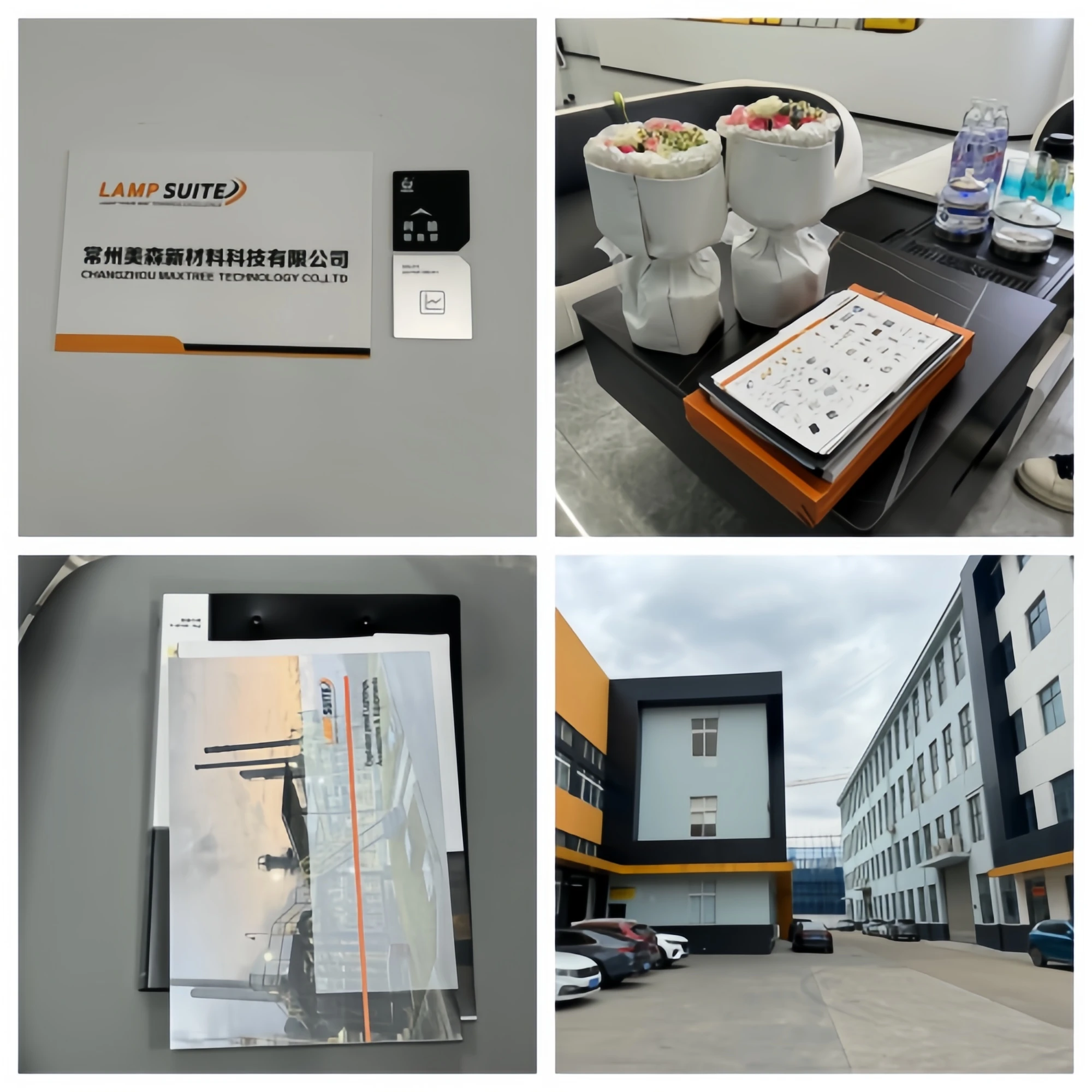

Customer Visit
Company Introduction
About Lampsuite
Lampsuite was established in 2016. It is a national high-tech enterprise that covers R&D production, sales and service. The headquarters is located in Changzhou Dianya Plaza and serves as the leader of explosion proof lighting industry.
There are more than 200 workers including the R&D team, technical engineers and other workers. We have more than 28 production lines. Monthly output can reach 10000 units. With the German OSRAM, PHILPS, Cree and other international brand enterprises to cooperate fully,the introduction of advanced technology and production testing equipment at home and abroad, the realization of machining precision automation.
Among them, Lampsuite Lighting upholds strict quality management, applies new ideas, new forces, new technologies, and is committed to R&D and production various kinds of industrial lighting fixtures, and provides professional customization according to the individual needs of the market such as oil, chemical, natural gas, marine platform, coal mine,army, public security, fire, railway, highway, port and other industries.
Lampsuite was established in 2016. It is a national high-tech enterprise that covers R&D production, sales and service. The headquarters is located in Changzhou Dianya Plaza and serves as the leader of explosion proof lighting industry.
There are more than 200 workers including the R&D team, technical engineers and other workers. We have more than 28 production lines. Monthly output can reach 10000 units. With the German OSRAM, PHILPS, Cree and other international brand enterprises to cooperate fully,the introduction of advanced technology and production testing equipment at home and abroad, the realization of machining precision automation.
Among them, Lampsuite Lighting upholds strict quality management, applies new ideas, new forces, new technologies, and is committed to R&D and production various kinds of industrial lighting fixtures, and provides professional customization according to the individual needs of the market such as oil, chemical, natural gas, marine platform, coal mine,army, public security, fire, railway, highway, port and other industries.

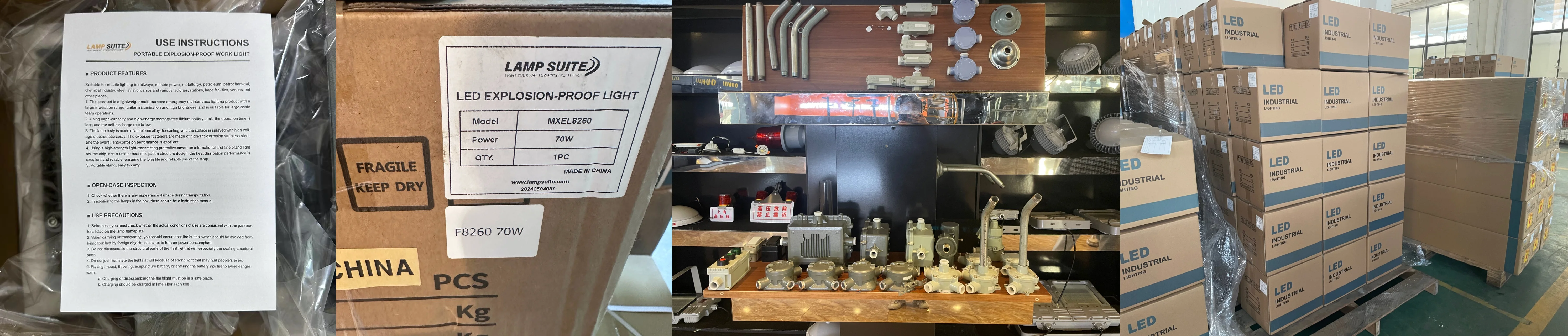

Packing&Shipping
