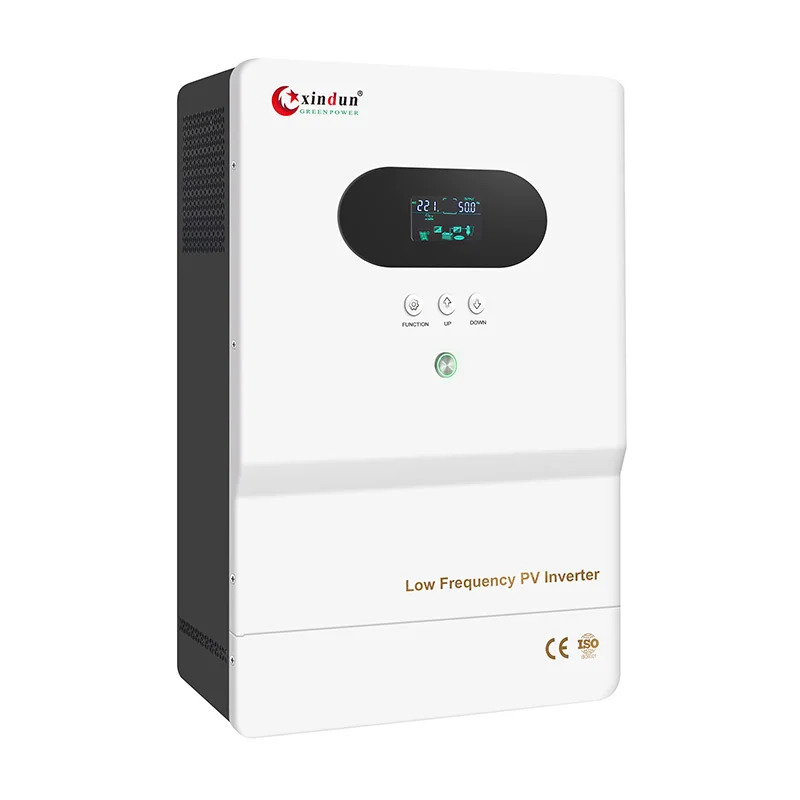

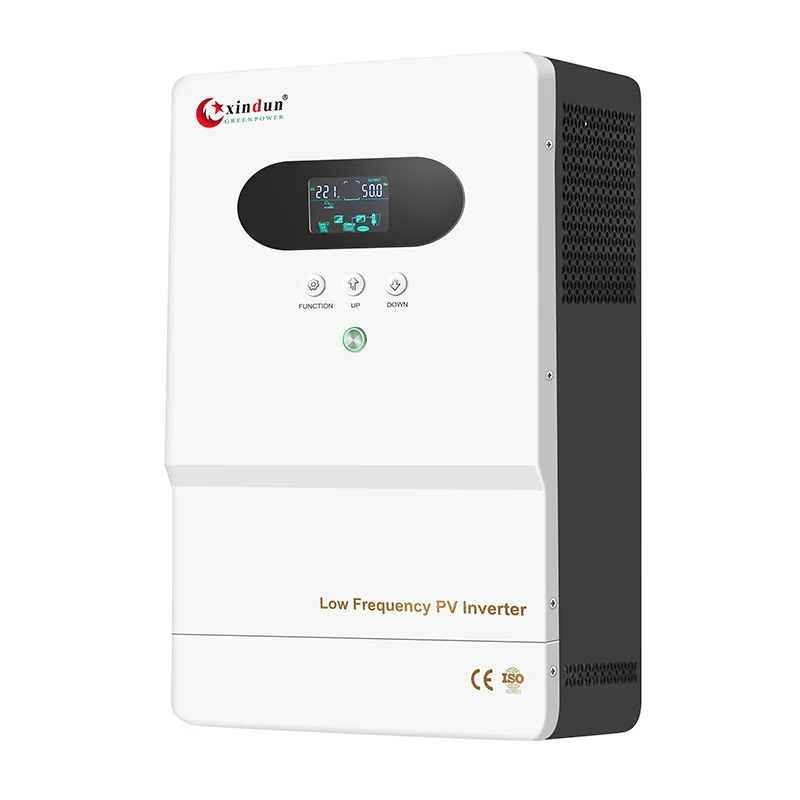

High Efficiency 5Kw 48V 5 Kw 5.5Kva 3000 W Cheap Off Grid Hybrid Inverter Solar Dc To Ac 12Kw 8Kw 10Kw Solar Inverter For Home
- Category: >>>
- Supplier: Guangdong Xindun Power Technology Co. Ltd.Guangdong Ltd.
Share on (1601292442126):
Product Overview
Description
Feature

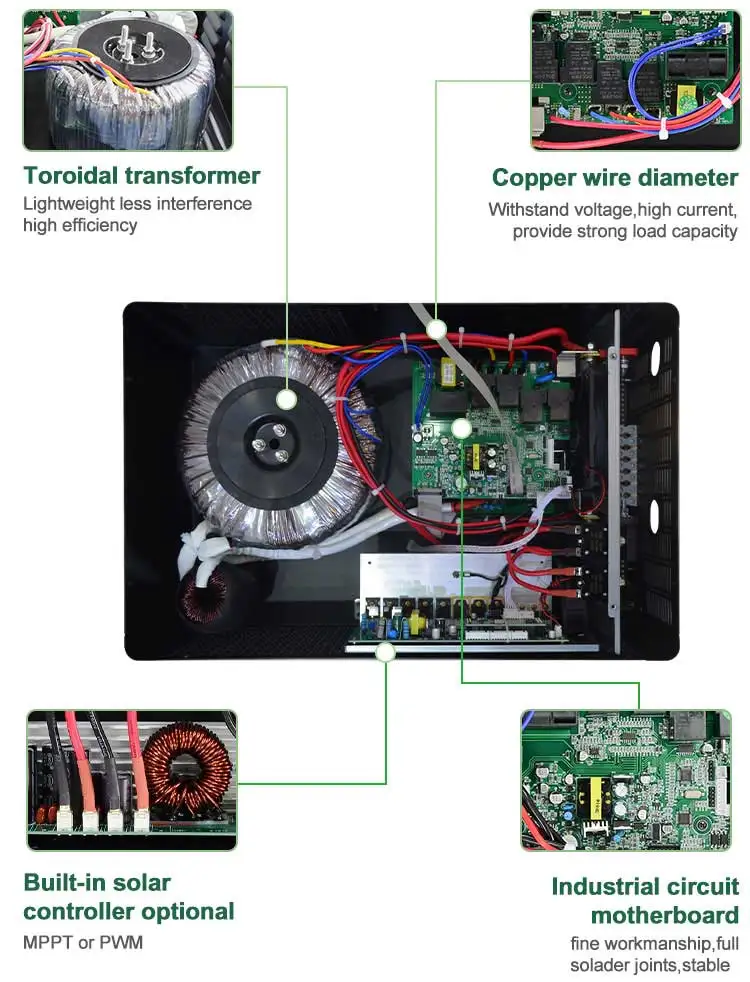

1. Pure sine wave, toroidal low loss transformer, customizable mode dual output voltage.
2.Smart LCD show equipment status and parameters.
3.The adjustable mains charging current range is 0~30A.
4.Suffer 3 times peak power, ensure the safe and stable operation of the equipment.
5.Support diesel and gasoline generators, suitable for various power grid.
6.Suitable for industrial and residential used, wall-mounted desigm.
2.Smart LCD show equipment status and parameters.
3.The adjustable mains charging current range is 0~30A.
4.Suffer 3 times peak power, ensure the safe and stable operation of the equipment.
5.Support diesel and gasoline generators, suitable for various power grid.
6.Suitable for industrial and residential used, wall-mounted desigm.
Highlight

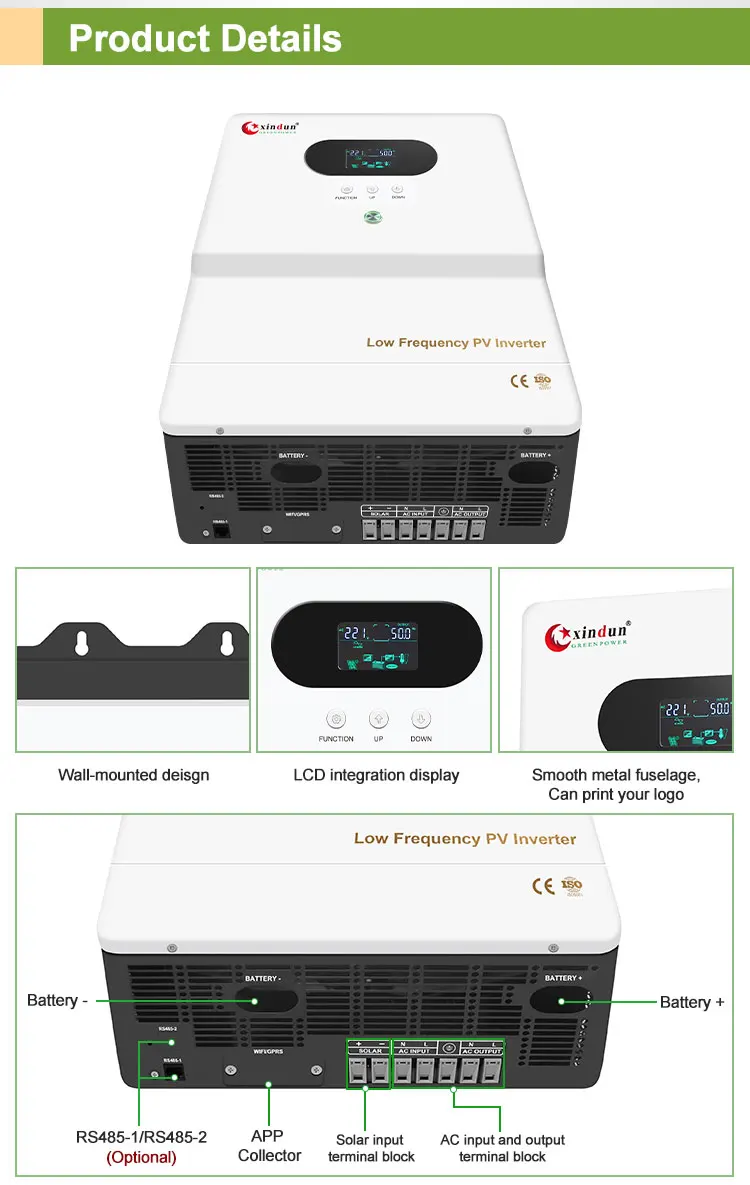

Product Detail
Specification
Model :LF | 10212/24 | 15212/24/48 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | |||||||
Power | ||||||||||||||
Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |||||||
Phase Type | Single phase L-N | Single phase L-N ; Split phase can be customized L1-L2,L1-N,L2-N | ||||||||||||
Battery | ||||||||||||||
Standard Battery Voltage | 12/24VDC | 12/24/48VDC | 24/48VDC | 24/48VDC | 48VDC | 48VDC | ||||||||
Battery Type | Lead-acid / Lithium Batteries / Custom battery | Lead-acid / Gel Battery / Lithium Batteries / Custom battery | ||||||||||||
AC Input | ||||||||||||||
Rated Input Voltage | 220VAC /230VAC/ 240VAC | 110VAC/120VAC/220VAC /230VAC/ 240VAC | ||||||||||||
AC Input Voltage Range | 145VAC~275VAC (220VAC) / 155VAC~285VAC (230VAC ) / 165VAC~295 (240VAC) | 85VAC~138VAC（110VAC）/ 95VAC~148VAC（120VAC）/ 170VAC~275VAC（220VAC）180VAC~285VAC（230VAC）/ 190VAC~295VAC（240VAC） | ||||||||||||
AC Input Frequency Range | 45Hz~55Hz（50Hz），55Hz~65Hz（60Hz） | |||||||||||||
AC Output | ||||||||||||||
Output Wave / Conversion Efficiency | Pure Sine Wave >85% | |||||||||||||
AC Output Voltage / Frequency Range(INV mode) | 220VAC±2% / 230VAC±2% / 240VAC±2% | 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10% | ||||||||||||
Built-in MPPT Solar Charge Controller （Optional） | ||||||||||||||
Rated Current | 30A | 60A | 80A | 100A | ||||||||||
PV Array Max Power | 12V(420W)/24V(840W) | 12V（420W）/24V（840W）/48V（1680W） | 12V（840W）/24V（1680W）/48V（3360W） | 4480W | 5600W | |||||||||
Max PV Input Voltage（Voc） (At The Lowest Temperature) | 12V/24V system：120VDC；48V system：180VDC | |||||||||||||
MPPT Tracking Voltage Range | 12V System（15V-80V）/24V System（30V-100V）/48V System（60V-140V） | |||||||||||||
Other | ||||||||||||||
Protection | Battery undervoltage protection/Battery overvoltage protection/Overload power protection/Inverter output short circuit protection/Temperature protection | |||||||||||||
Protection Degree | IP20 | |||||||||||||
Display | LCD | |||||||||||||
Cooling Method | Cooling Fan in Intelligent Control | |||||||||||||
Communication Interfaces | RS485/RS232,APP（WIFI monitoring or GPRS monitoring）Optional | |||||||||||||
Working Mode（settable） | Battery priority / Mains priority | |||||||||||||
Operating Temperature | -15℃~40℃ | |||||||||||||
Relative Humidity | 0%~95% , No Condensation | |||||||||||||
Dimensions and Weight | ||||||||||||||
Product Size(L*W*Hmm) | 333*253*126 | 500*300*140 | 530*335*150 | |||||||||||
Packing Size(L*W*Hmm) | 423*318*205 | 550*365*223 | 610*400*233 | |||||||||||
N.W.(kg) | 9 | 13.5 | 18 | 20 | 22 | 24 | 26 | |||||||
G.W.(kg) | 10 | 15 | 19.5 | 21.5 | 24 | 26 | 28 | |||||||
*lf power is from 1kw~12kw, If you want to get other watts information,
Please do not hesitate to contact us!

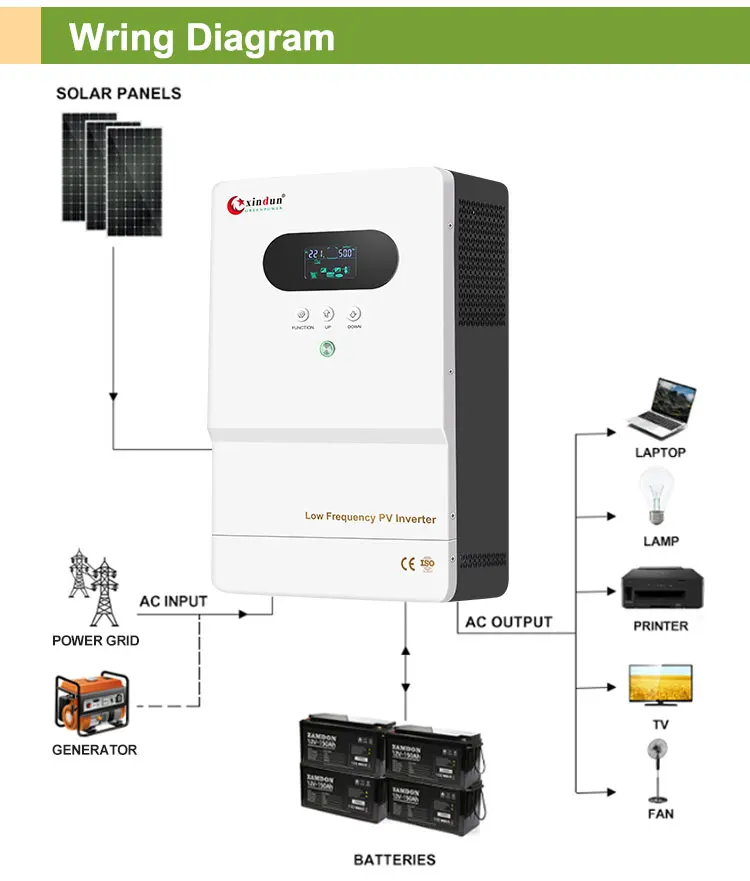

Wiring Diagram
1. We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.

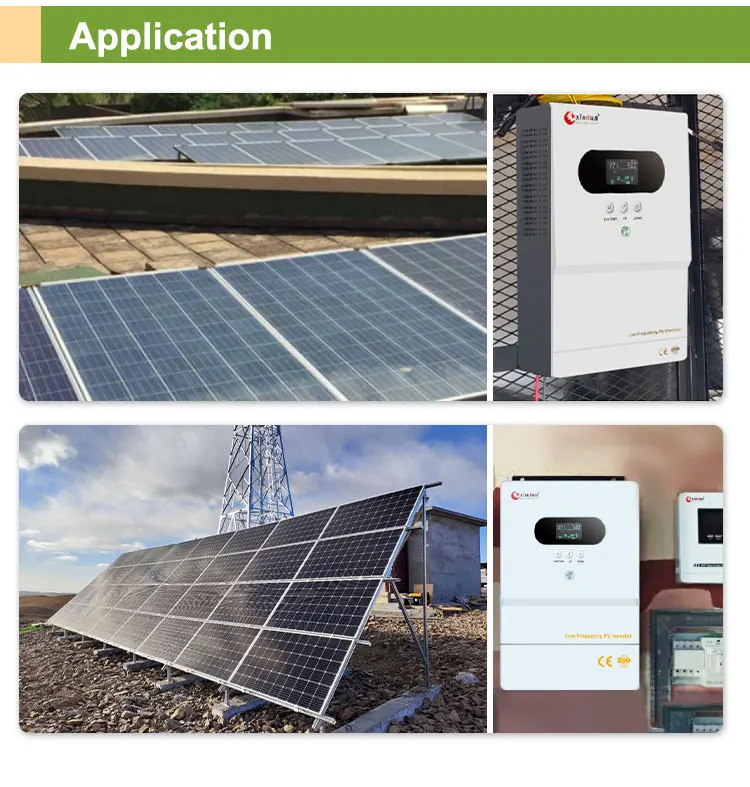

Application

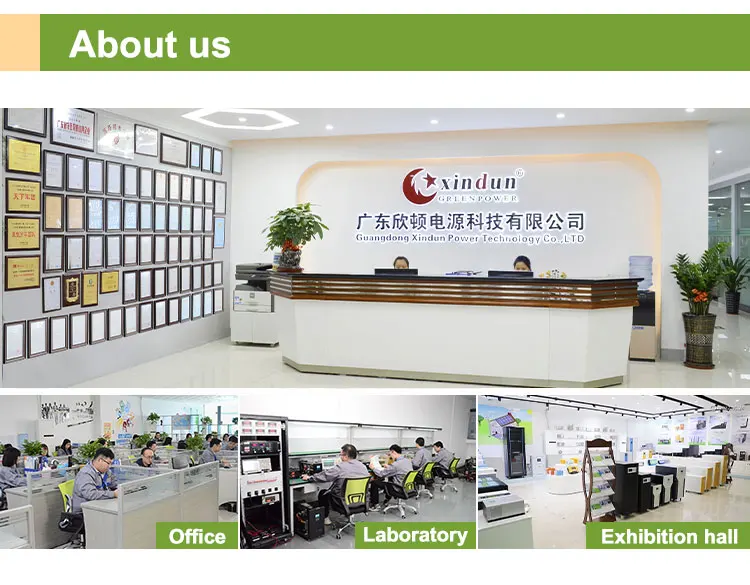

Company Profile
Guangdong Xindun Power Technology Co.,Ltd | ||
Factory Location | Foshan,Guangdong,China | |
Industry Experience | 15-year manufacturer, 17-year trading, 11-year alibaba gold supplier | |
Product Range | solar inverter, hybrid inverter, ups, solar charge controller, solar power system, mini solar dc system | |
Main Market | Africa, Middle East, Asia & South America. (Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Afriac, Ghana, Thailand, Philippines, etc.) | |

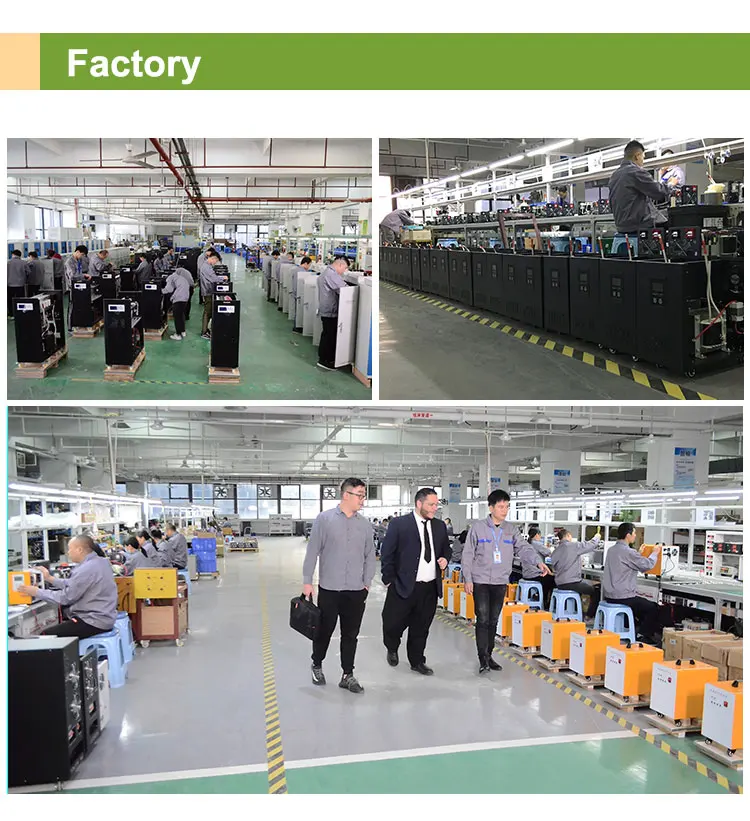

Factory | 7000 Square Meters, 100+ workers | |
Department | R&D, Production, Sales, Marketing, Purchasing, QA, After-sale service department | |
Certificate | ISO 14001:2015, CE, IEC, TUV, etc. | |
Patent | Software Paten, Design Patent, Project Pantent | |
