Tunnel mining loader with 2 ton payload underground mining scooptram LHD loader
- Category: >>>
- Supplier: Yantai Hunk Machinery Co. Ltd.Yantai Ltd.
Share on (1601292593583):
Product Overview
Description
Product Description

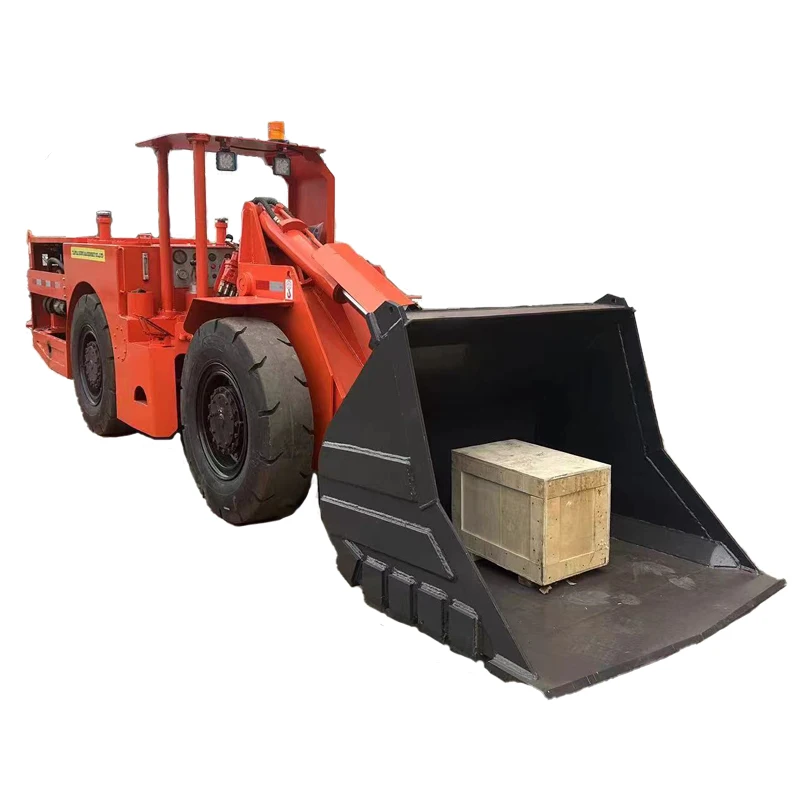

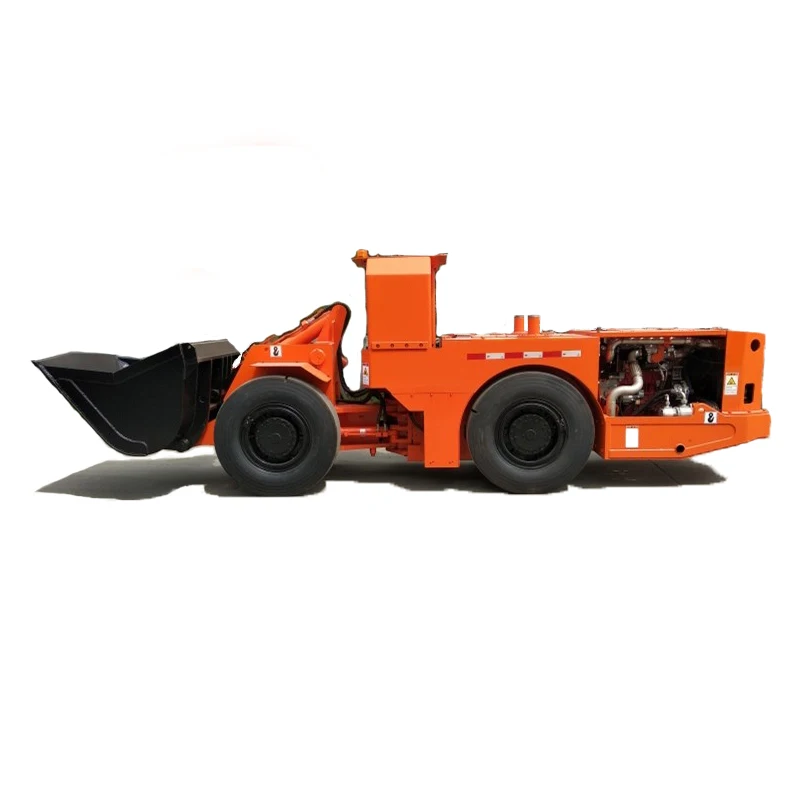

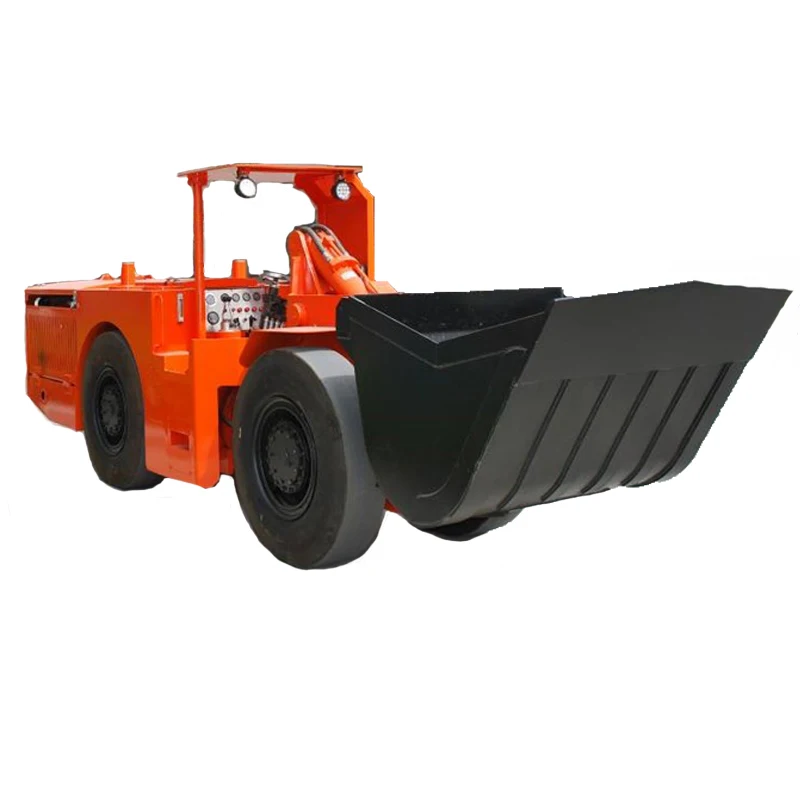

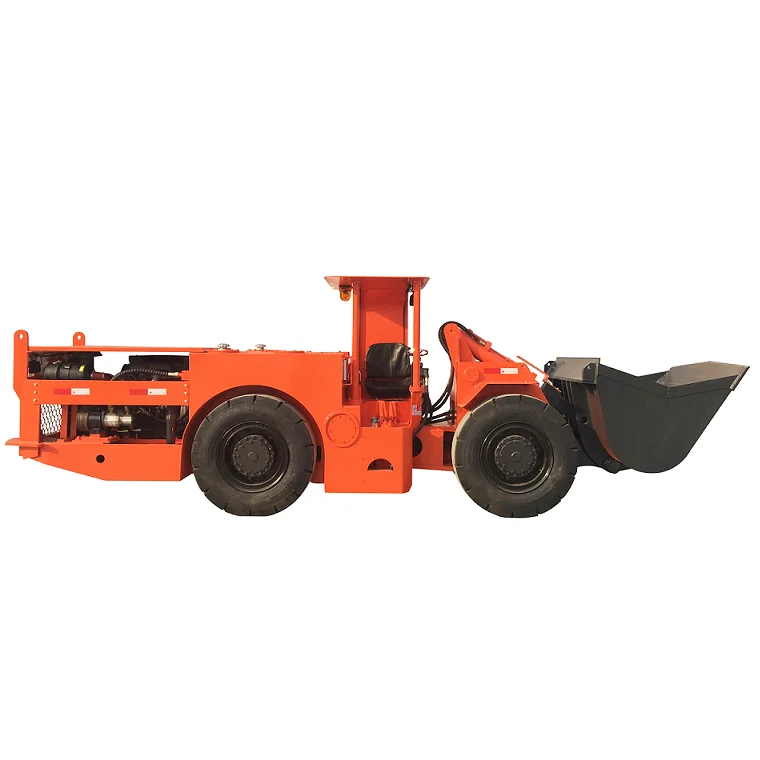

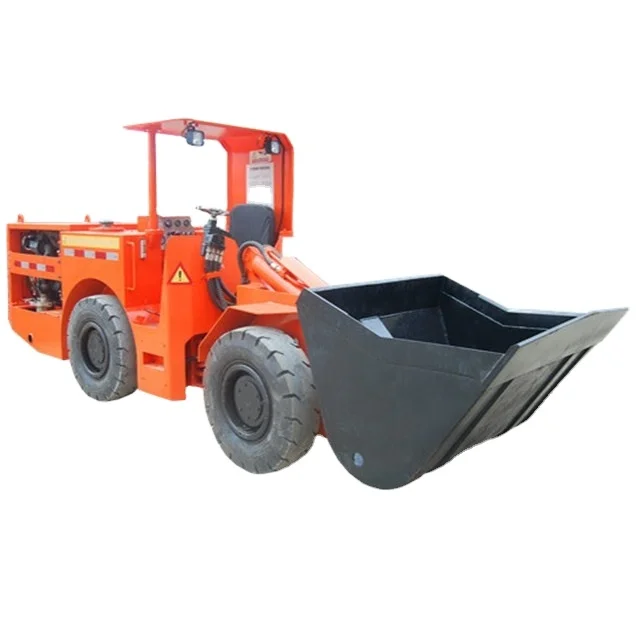

HKWJ-1 Scooptram
This Mini Diesel Scooptram is capacity of 2000KG. It's driven by DEUTZ Engine BF4L914 or F4L914. It is generally used
transporting, digging,unloading, filling,leveling. It is compact, flexible, efficient and durable.This low profile piece of heavy
equipment is used in underground mining and it transports blasted or loose rock ore in an underground mine. A scoop or bogger will work the face and load ore cars which are then used to haul material that will ultimately be processed in a mill.
transporting, digging,unloading, filling,leveling. It is compact, flexible, efficient and durable.This low profile piece of heavy
equipment is used in underground mining and it transports blasted or loose rock ore in an underground mine. A scoop or bogger will work the face and load ore cars which are then used to haul material that will ultimately be processed in a mill.
Our Advantages
Features at a glance
COMPACT DIMENSIONSPROVEN TECHNOLOGY FOR HARD ROCK AND TUNNELLING APPLICATIONS
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
ROPS/FOPS APPROVED CANOPY
DESIGN UPDATE OF WORLDWIDE WELL-TRIED MACHINE
SAFETY FRAME
SIMPLE CONTROL
EASY MAINTENANCE
ROPS/FOPS APPROVED CANOPY
DESIGN UPDATE OF WORLDWIDE WELL-TRIED MACHINE
Product Parameters
Main Dimensions | Dimension(transport) | 6030*1300*2000mm |
Capacity | Bucket Capacity (SAE Heaped) | 1 m³ （1.5 yard³） |
Rated Loading Capacity | 2000 KG | |
Machine Weight | 7200KG | |
Max. Gradeability | 15° | |
Max. Tractive Force | 56KN | |
Max. Shovel Force | 48 KN | |
Running Speed | 0-10 km/h | Full speed for forward or reverse |
Service Data | Max. Discharging Height | 1050mm |
Min. Discharging Distance | 860mm | |
Min. Ground Clearance | 200mm | |
Oscillation Angle | ±8°, Slewing bearing mounted on rear frame | |
Steering | Max. Steering Angle | ±38° |
Min. Steering Rasius | Inner:2540mm Outer:4260mm |
Product Configuration
Deutz BF4L914 Engine.
Axial Piston Pump PV22
Axial Piston Motor MV23
Sales and Service Network

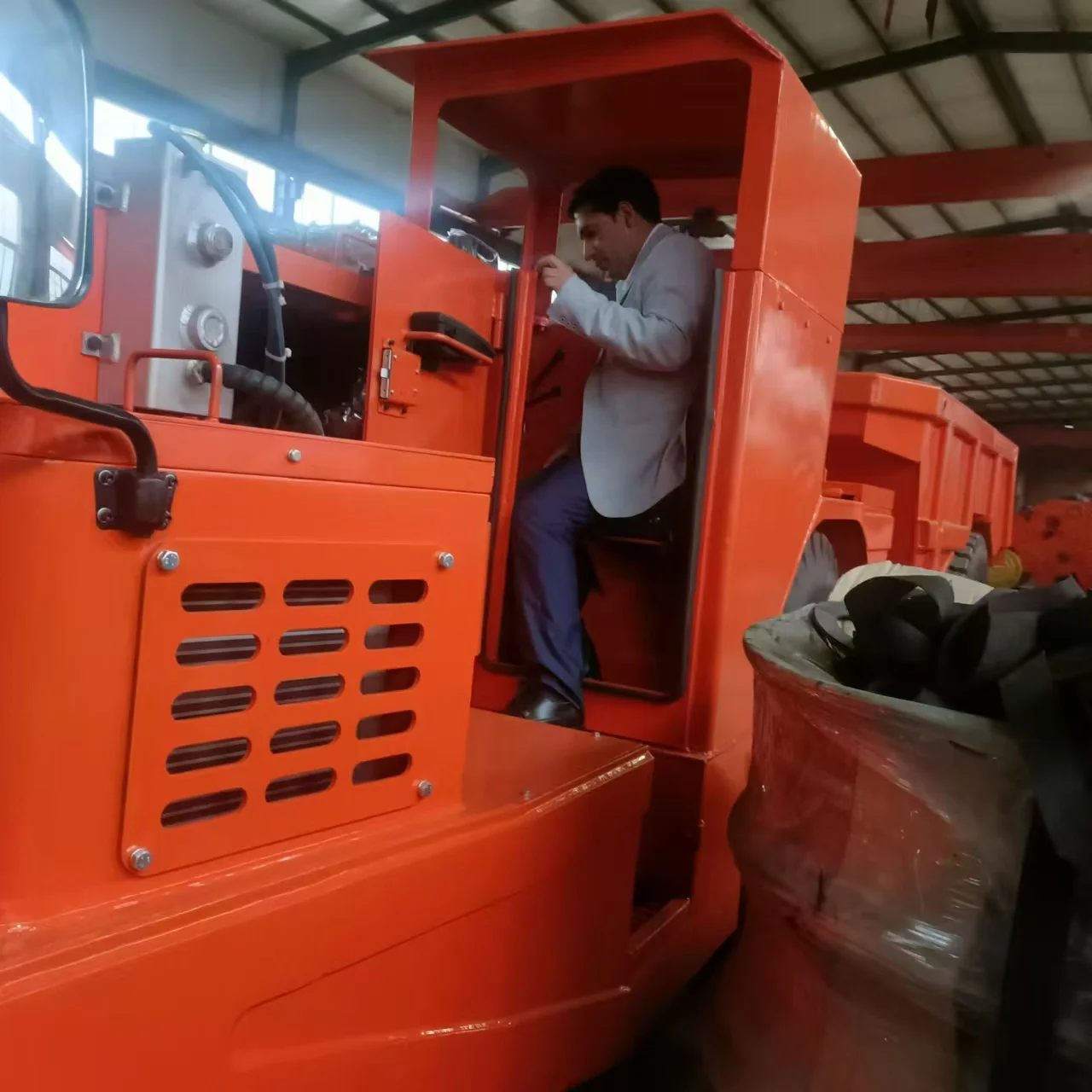

Customer Stories
Similar Products
FAQ

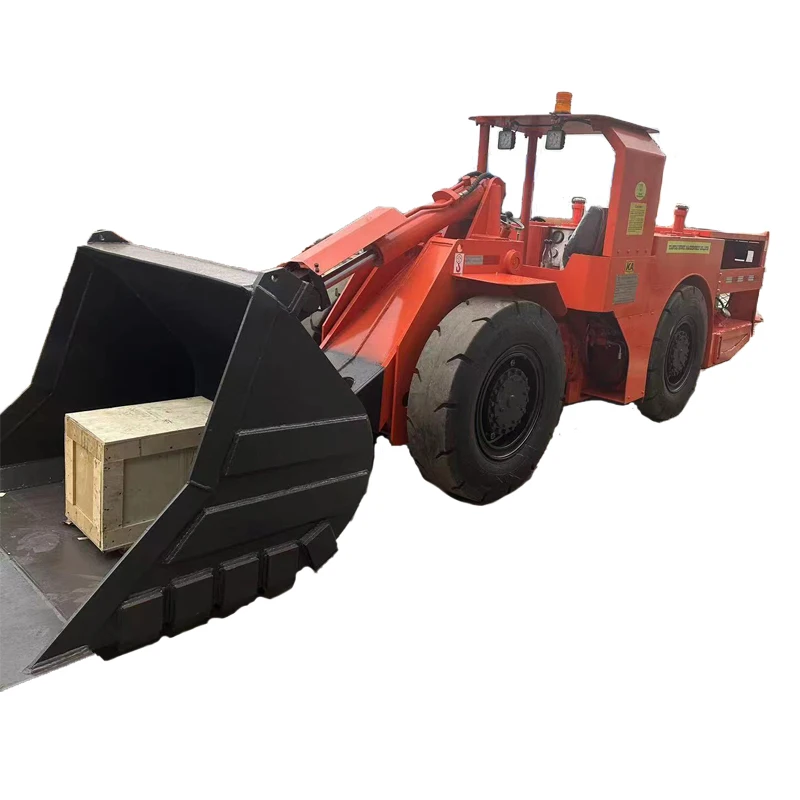

1, Will you provid accompanying spare parts? Yes, we ship them with the scooptram and packed them in plywood case
2, What about your prices?
We always supply our products with a reasonable prices. We believe that only the reasonable prices could build long- term
business and earn good reputation.
3, What about the order lead time?
1~5 month. Different models different lead times.
4, How to pay?
T/T, L/C or other ways by negotiation
2, What about your prices?
We always supply our products with a reasonable prices. We believe that only the reasonable prices could build long- term
business and earn good reputation.
3, What about the order lead time?
1~5 month. Different models different lead times.
4, How to pay?
T/T, L/C or other ways by negotiation
