SCBN TOOLS Solid super hard CBN inserts CNMN090404/CNGN090408/CNGN120412 For Brake Drum
- Category: >>>
- Supplier: Henan Wegcl New Materials Co. Ltd.Henan Ltd.
Share on (1601292666214):
Product Overview
Description

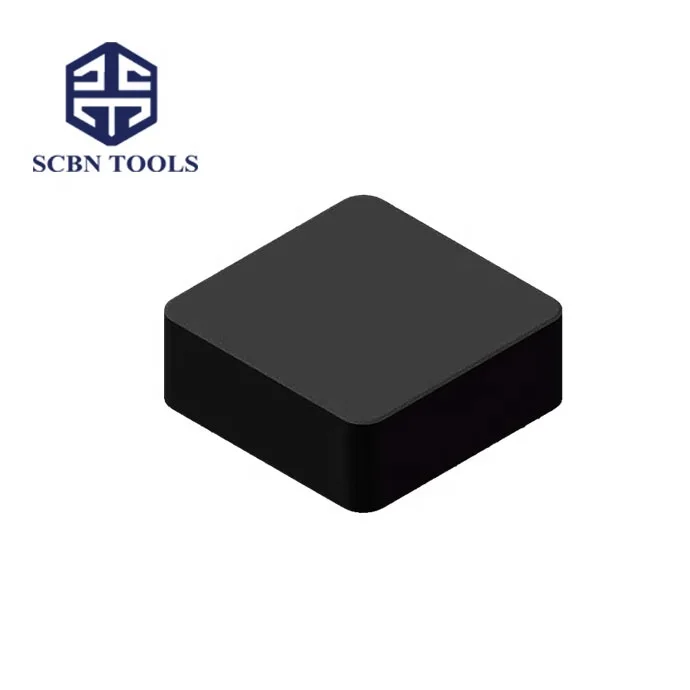

SCBN TOOLS Solid super hard CBN inserts CNMN090404/CNGN090408/CNGN120412 For Brake Drum
Product Description

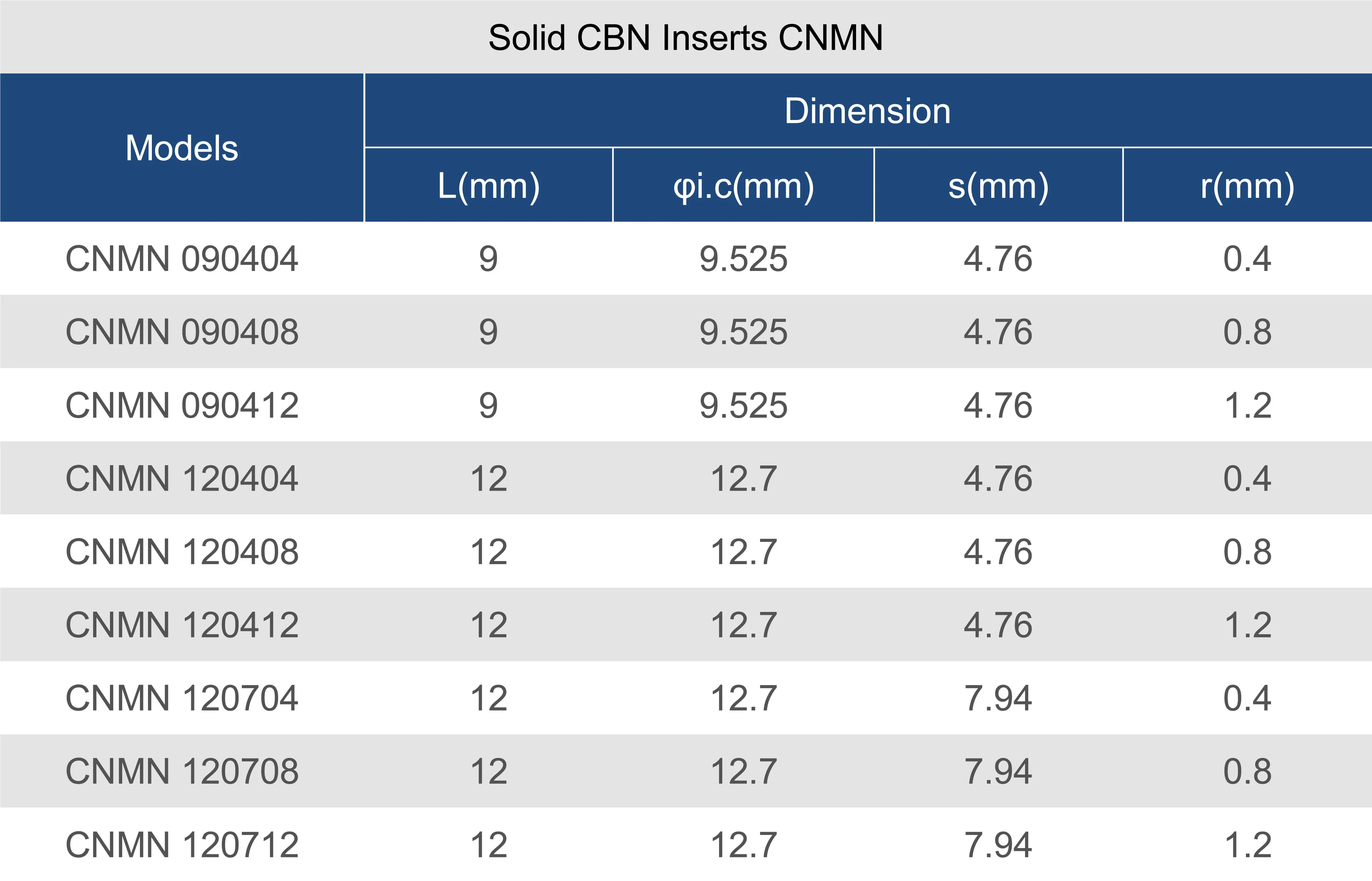

Introduction of CNMN series CBN inserts

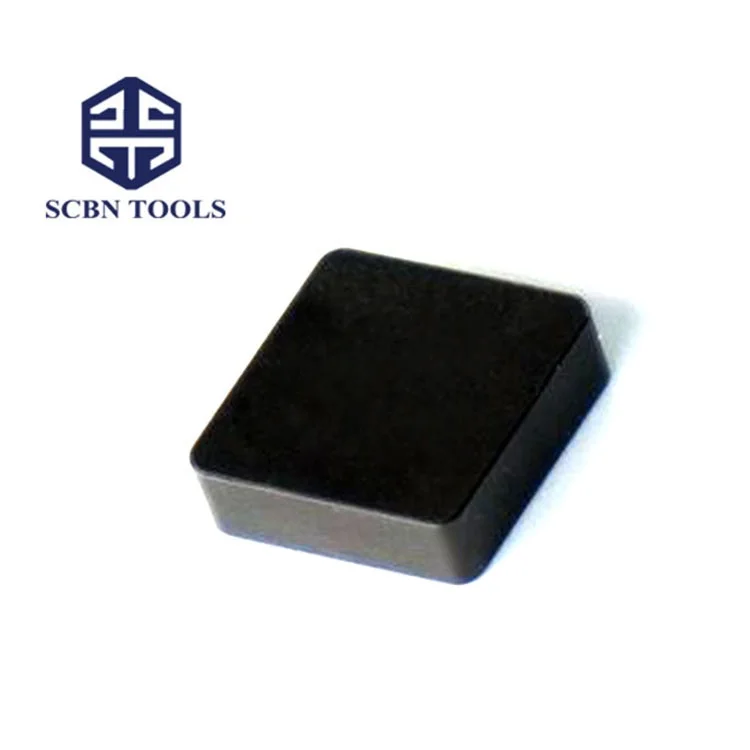

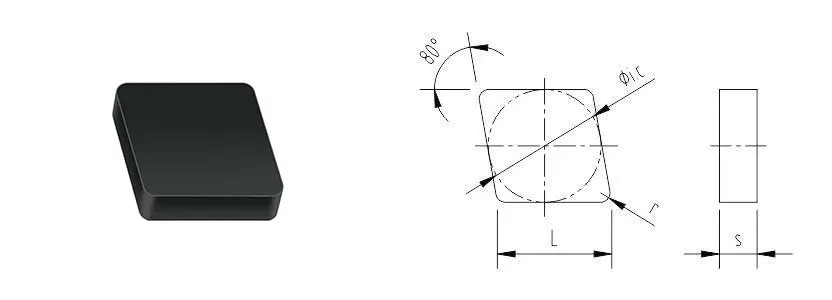

CNMN series CBN inserts have a shape of 80° rhombus, and the main cutting edge relief angle is 0°. They can be called CNMN/CNGN. The inserts are non-porous and synthesized by polycrystalline cubic boron nitride at high temperature and ultra-high pressure, and are called CBN solid inserts. , has excellent heat resistance, wear resistance and chemical stability.
The CNMN CBN inserts are designed for finish turning and precision machining applications. They have a diamond shape, which makes them ideal for machining small or complex parts. These inserts are versatile and can be used on various materials, including cast iron and hardened steel. They offer high precision and excellent surface finish quality, suitable for high-value workpieces.
CBN inserts are the best choice for high speed and precision machining of high hard material, difficult to cut material and cast irons. They can be used for machining normal gray cast iron with high speed, like engine cylinder and cover; Or machining alloy cast iron and alloy cast steel, like roller, slurry pump; Or used for machining some tough material such as hardened steel,bearing steel and die steel; Or machining wear resistant alloy cast iron like brake disc and brake drum; They also can be used for machining high temperature alloy like aeroengine.
Solid CBN InsertsGrade
Specific For Machining Different Materials Rolls, (Including Cast Iron Rolls, HSS Steel Rolls, Chilled Cast iron Rolls, Cast Steel Rolls,ect )SCBN Tools offer 3 different CBN Grade as follow:
SBN800
Low-hardness, Good Toughness.
The ultimate grade for cast iron processing, balancing lifespan and cost-effectiveness.
The ultimate grade for cast iron processing, balancing lifespan and cost-effectiveness.
SBN850
Moderate hardness and toughness.
Suitable for machining both cast iron and hardened steel materials. More universal.
Suitable for machining both cast iron and hardened steel materials. More universal.
SBN900
High hardness, low toughness.
Suitable for machining high hardness steel.
Suitable for machining high hardness steel.

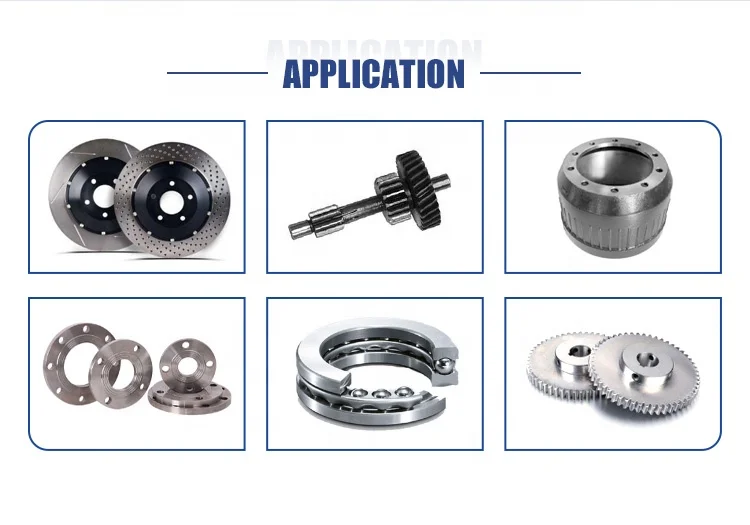

APPLICATION DETAILS

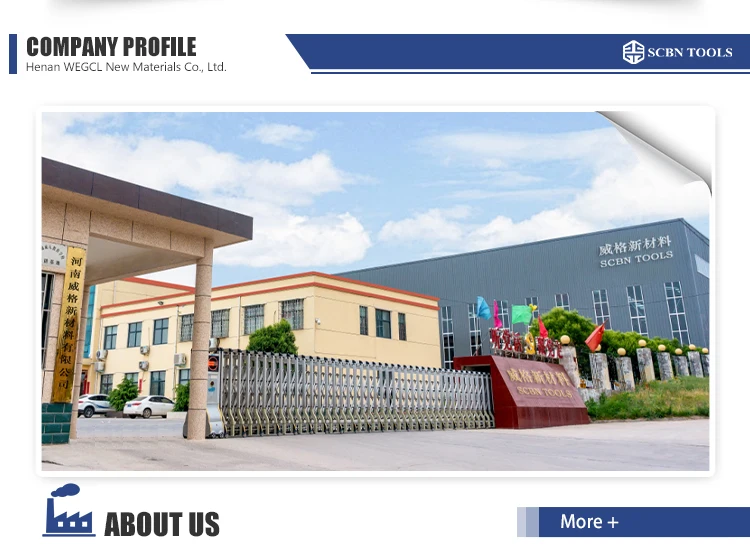

Henan WEGCL New Materials Co., Ltd. (Named SCBN TOOLS), originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China), focusing on the research and development and production of superhard materials, is committed to providing the best cutting solutions and tools for global customers, and is regarded by customers as a reliable supplier of superhard material tools.
After several years of rapid development, SCBN TOOLS has formed an industrial pattern based on the advantages of raw materials and turning tools, and has realized the self-sufficiency of the whole industry chain. In the application technology and material research and development of superhard materials, it is at the leading level in China, and has passed the IOS9001 quality system certification.
The main products are: Solid CBN inserts, Tipped PCBN Inserts and other precision machine cutting tools, etc. Solid CBN Grade SBN800,SBN850, have unique advantages on cast iron materials. It has an absolute cost-effective advantage in the processing of typical parts brake discs and brake drums.
Products are widely used in gears, bearings, automobiles, iron and steel metallurgy and aerospace and other industries, has reached cooperation with many well-known enterprises around the world, and our products are exported to Germany, Italy, South Africa, South Korea and other countries in Southeast Asia.
After several years of rapid development, SCBN TOOLS has formed an industrial pattern based on the advantages of raw materials and turning tools, and has realized the self-sufficiency of the whole industry chain. In the application technology and material research and development of superhard materials, it is at the leading level in China, and has passed the IOS9001 quality system certification.
The main products are: Solid CBN inserts, Tipped PCBN Inserts and other precision machine cutting tools, etc. Solid CBN Grade SBN800,SBN850, have unique advantages on cast iron materials. It has an absolute cost-effective advantage in the processing of typical parts brake discs and brake drums.
Products are widely used in gears, bearings, automobiles, iron and steel metallurgy and aerospace and other industries, has reached cooperation with many well-known enterprises around the world, and our products are exported to Germany, Italy, South Africa, South Korea and other countries in Southeast Asia.
Why Choose Us
01 Technical support: We have a professional technical team that provides comprehensive technical support and consultation services. Please contact us at any time when you have any problems and we will provide timely solutions.
02 Quality guarantee: All SCBN TOOLS products undergo strict quality control and testing to ensure they meet ISO standards. If there are any quality issues, please contact us and we will handle them promptly. We are committed to providing our customers with high-quality products and services.
03 Fast response service: We promise to respond within 24 hours of receiving your feedback, and provide you with a solution in the shortest possible time.
04 Fast shipping: We promise to arrange delivery as soon as possible after receiving your order and choose the fastest express delivery method to ensure you receive the product as soon as possible. (DHL, FedEx, UPS, TNT)
FAQ
1 Who Are We?
SCBN TOOLS are based in Zhengzhou,Henan,China,originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China).
2 How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always multiple quality inspection steps in the production and final inspection before shipment;
3 What Can You Buy From Us?
Solid cbn inserts,tipped pcbn inserts,coating pcbn inserts,wiper pcbn inserts,CBN Grooving Inserts,Chipbreaker PCBN Inserts and any other customized CBN Inserts.
4 Why Should You Buy From Us Not From Other Suppliers?
1) Integrating R&D, production and sales.
2) Formerly known as Henan Advanced Materials Research Institute, located in China's Superhard material Base.
3) Known for "SCBN TOOLS" Brand and have exported our products to various countries.
5 What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,German,Russian,Korean
SCBN TOOLS are based in Zhengzhou,Henan,China,originated from China Henan New Materials Research Institute (formerly a comprehensive materials research institution directly under the Ministry of Machinery Industry of China).
2 How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always multiple quality inspection steps in the production and final inspection before shipment;
3 What Can You Buy From Us?
Solid cbn inserts,tipped pcbn inserts,coating pcbn inserts,wiper pcbn inserts,CBN Grooving Inserts,Chipbreaker PCBN Inserts and any other customized CBN Inserts.
4 Why Should You Buy From Us Not From Other Suppliers?
1) Integrating R&D, production and sales.
2) Formerly known as Henan Advanced Materials Research Institute, located in China's Superhard material Base.
3) Known for "SCBN TOOLS" Brand and have exported our products to various countries.
5 What Services Can We Provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,German,Russian,Korean
