Awithz New Mini Spot Welding Machine 80 Level Adjustable LCE Screen 1.0mm 15A Charging Speed Preheat 1 10 for Welding

Product Overview

Description

Specification



Model: P20B

Material: Copper

Color: Black

Process: Polishing, Sanding

Assembly Required: Yes

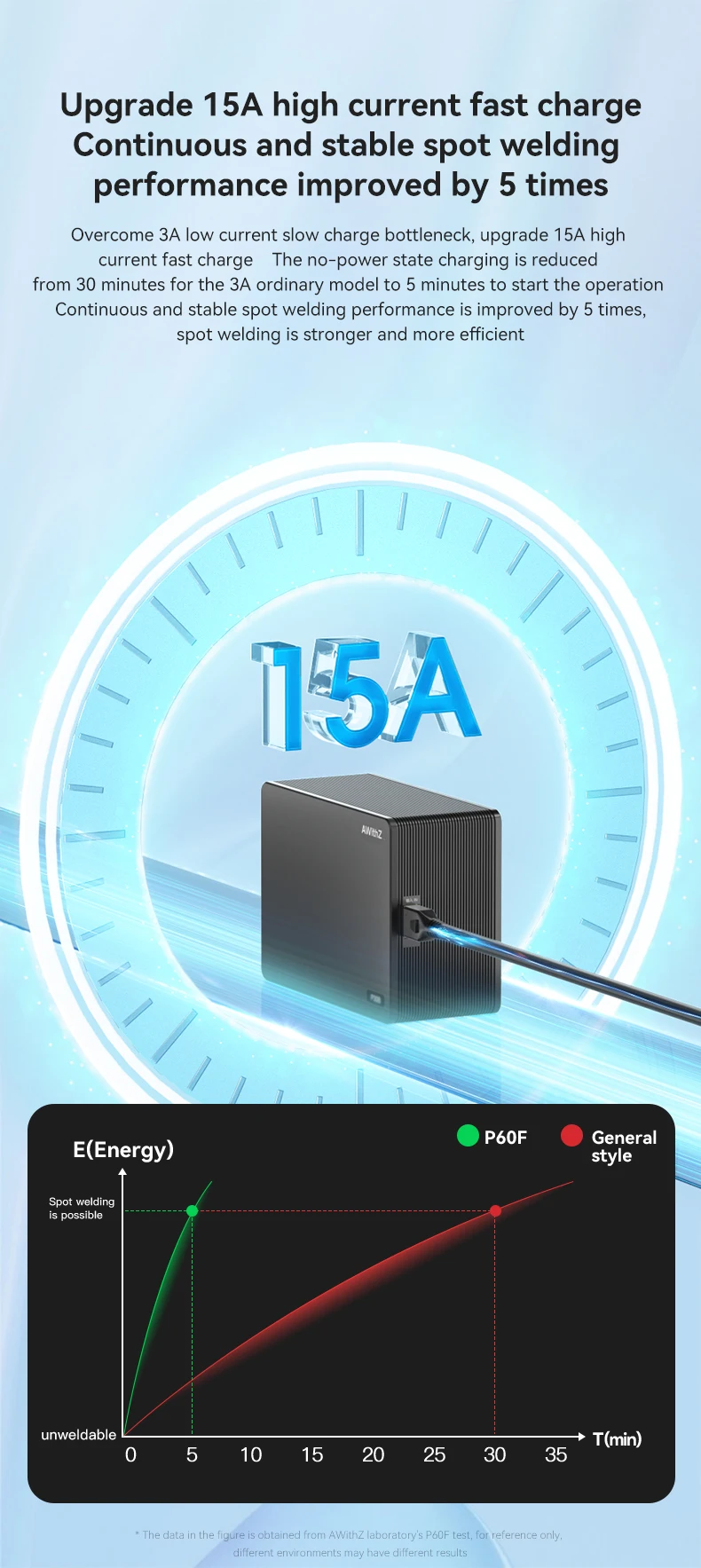

Charger Input: AC 100-240V 50-60Hz

Output: DC 9V 15A

Plug Type:US Standard/EU Standard

Power: 14.6KW

Current: Max. 1625A

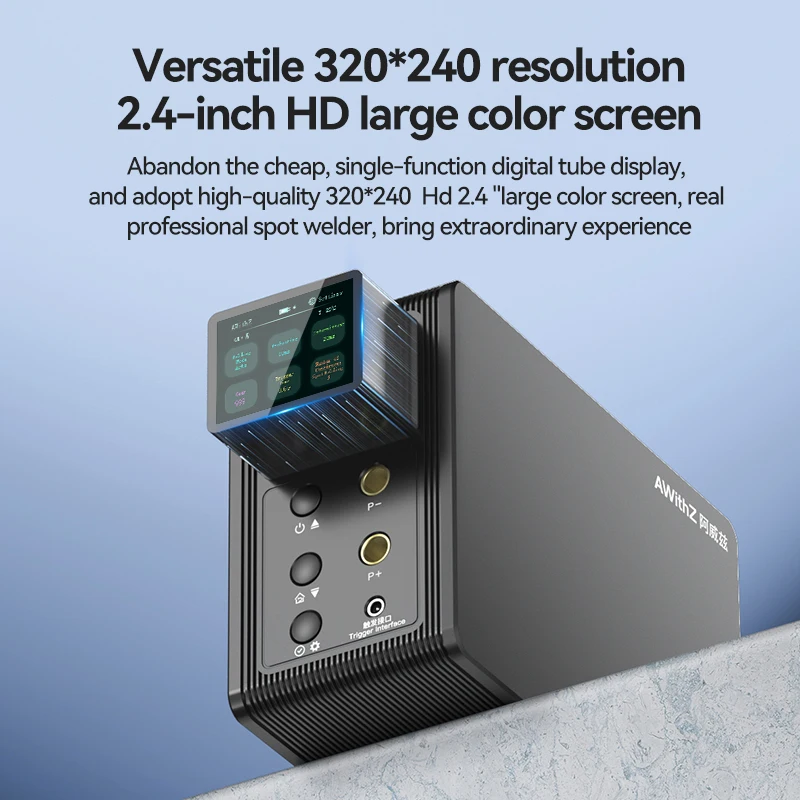

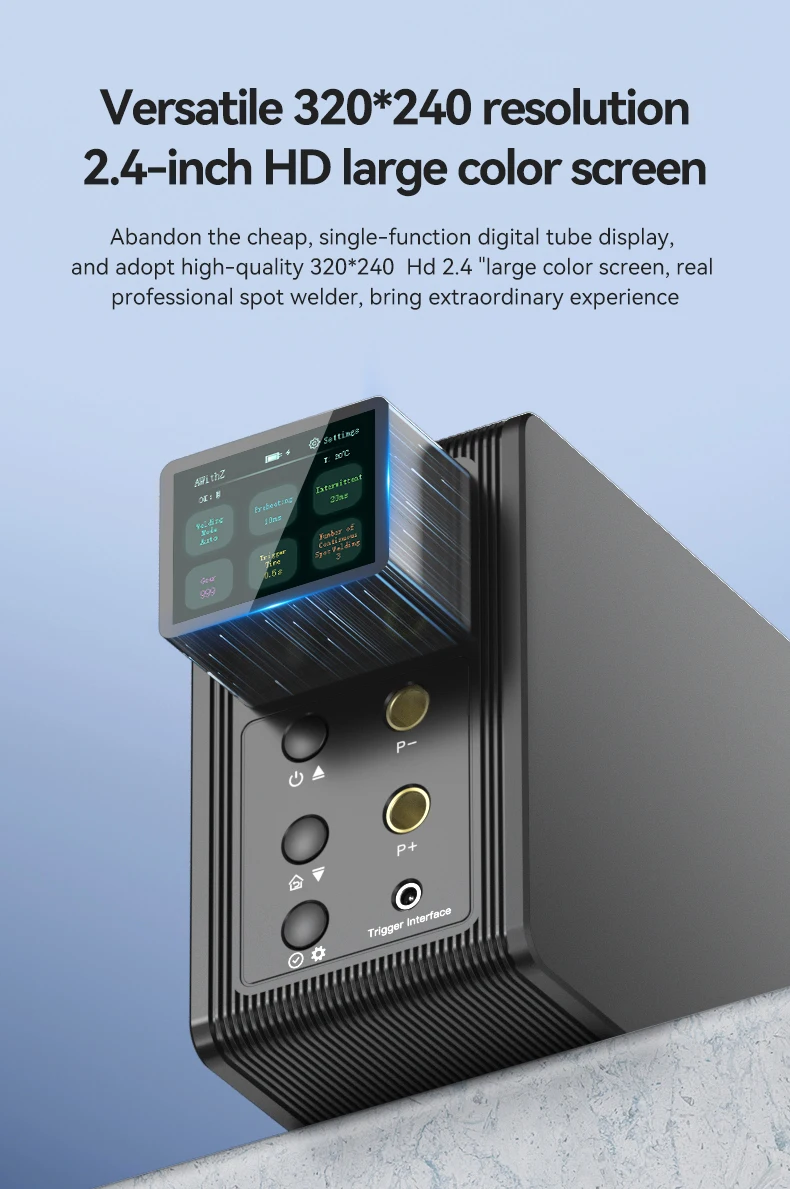

Screen Type: LCD

LCD Screen Size: 6.1cm/2.4in

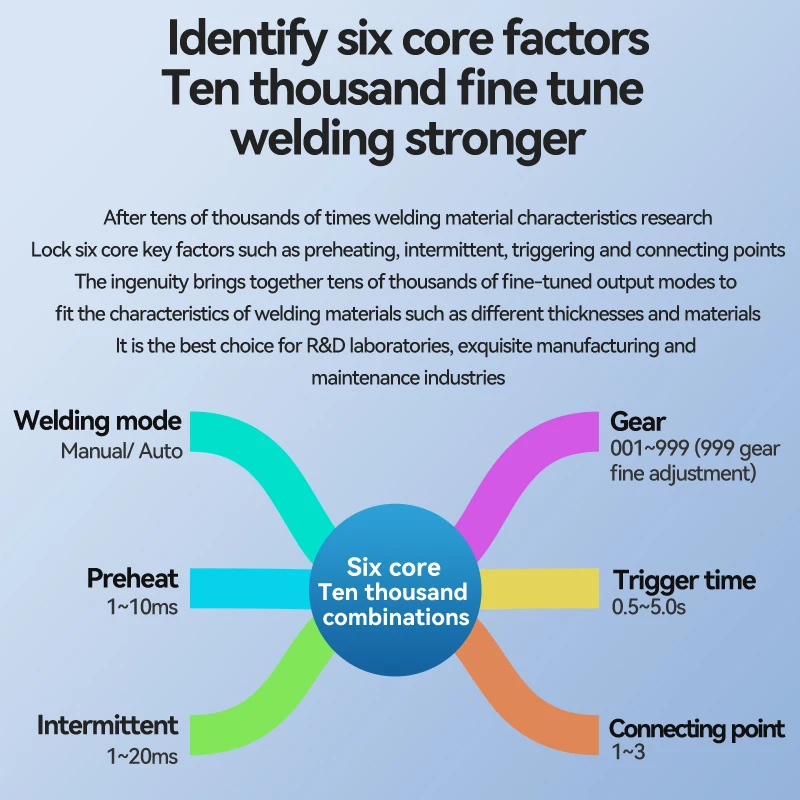

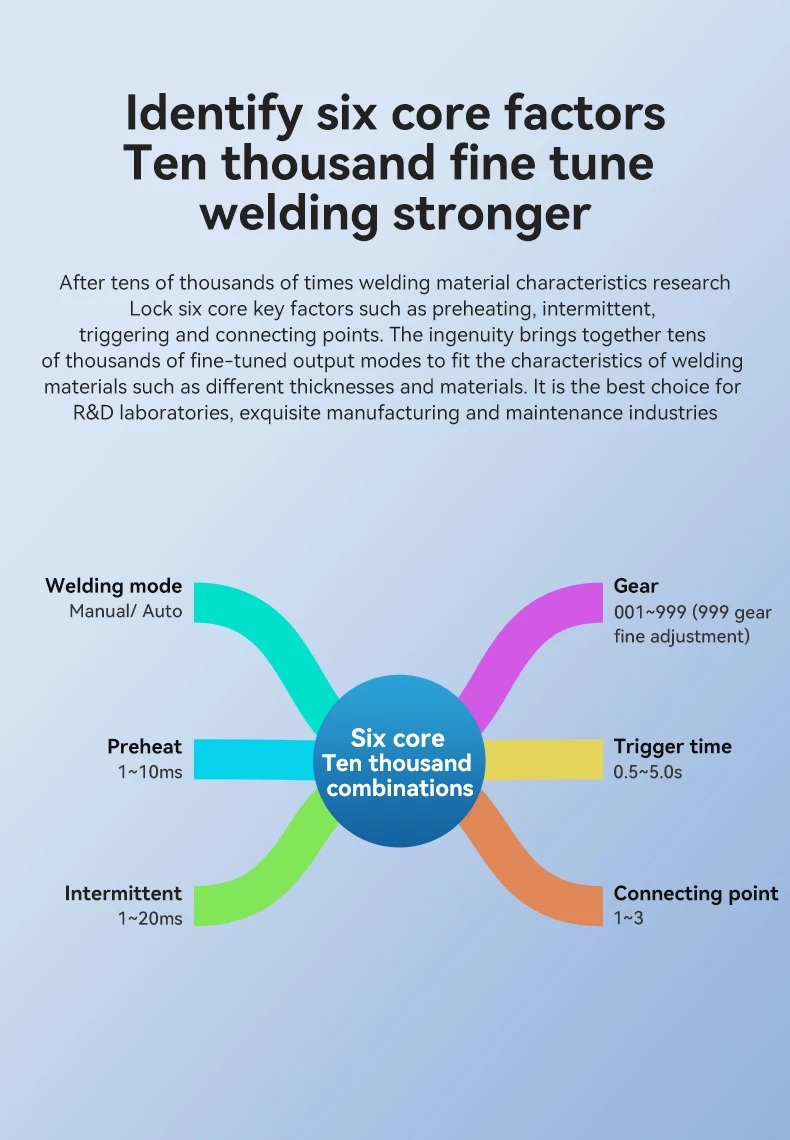

Welding Mode: Foot Pedal/Automatic

Preheat: 0-0.5ms

Intermittent: 1-20ms

Gear: 1-999

Trigger Time: 0.5-5s

Connecting Point: 1-3

Foot Pedal Power Cord Length: 2m/6.56ft

Nickel-plated Sheet Length: 5m/16.4ft

Nickel-plated Sheet Thickness: 0.15mm/0.006in

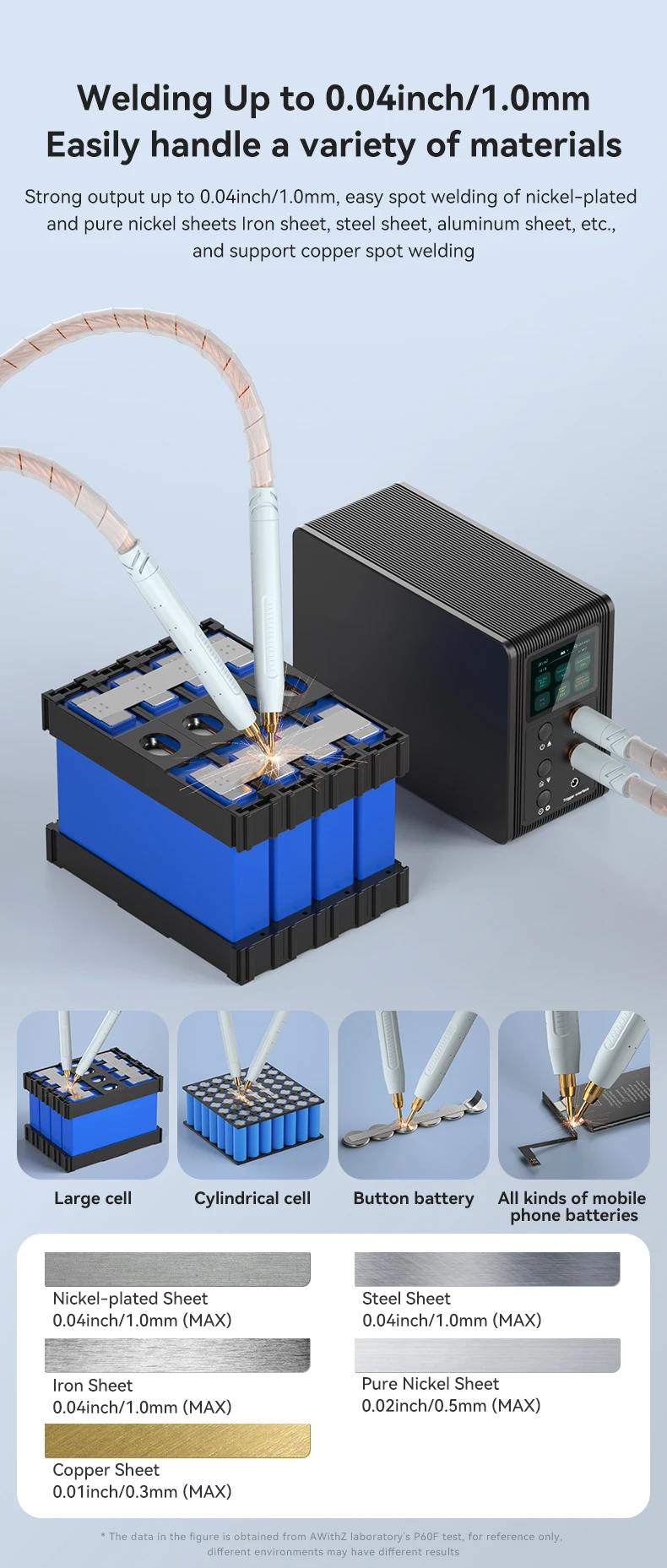

Spot Welding Thickness: 0.6mm/0.024in

Product Size: 18*8*13.1cm/7.09*3.15*5.16in

Package Size: 23*22*15cm/9.06*8.66*5.91in

Gross Weight: 2.57kg/5.67lbs

Net Weight: 2.5kg/5.51lbs

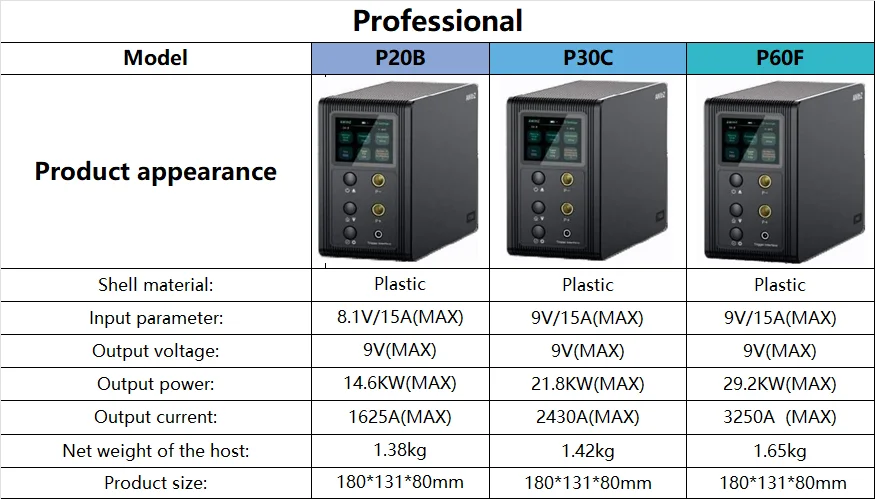

Model:P30C
Shell material:Plastic
Input parameter:9V/15A(MAX)
Output voltage:9V(MAX)
Output power:21.8KW(MAX)
Output current:2430A(MAX)
Net weight of the host:1.42kg
Product size:180*131*80mm

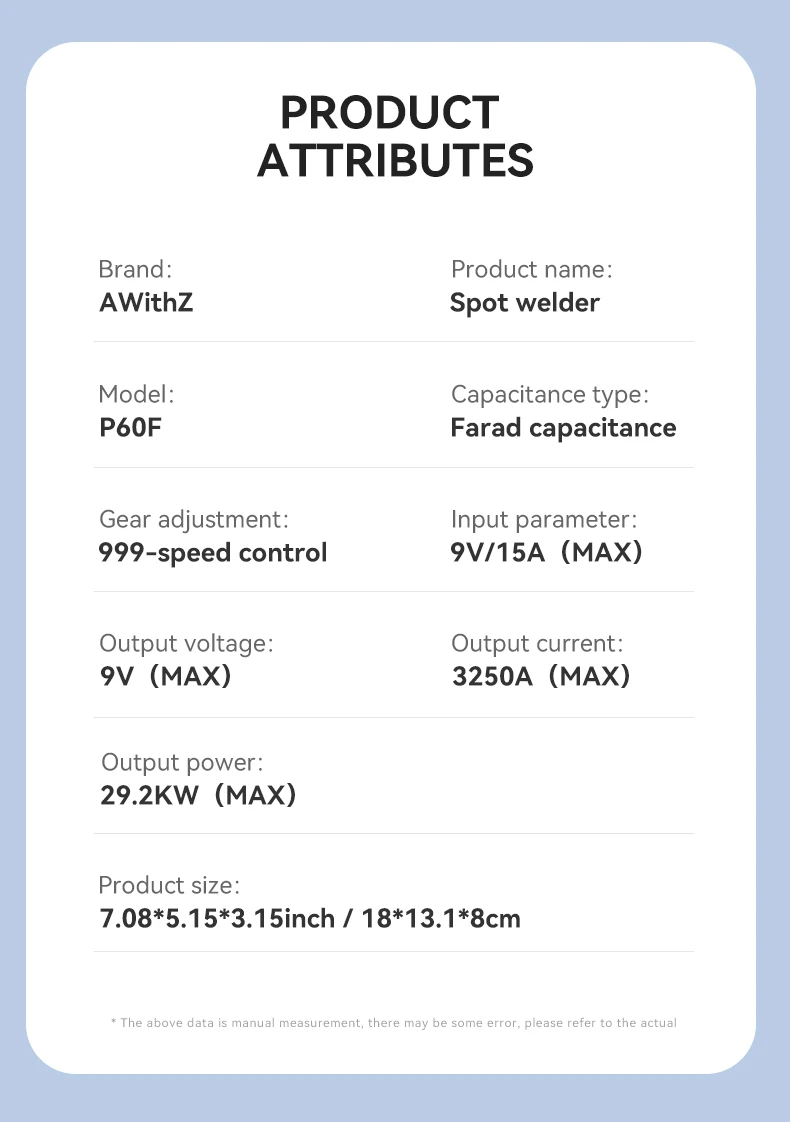

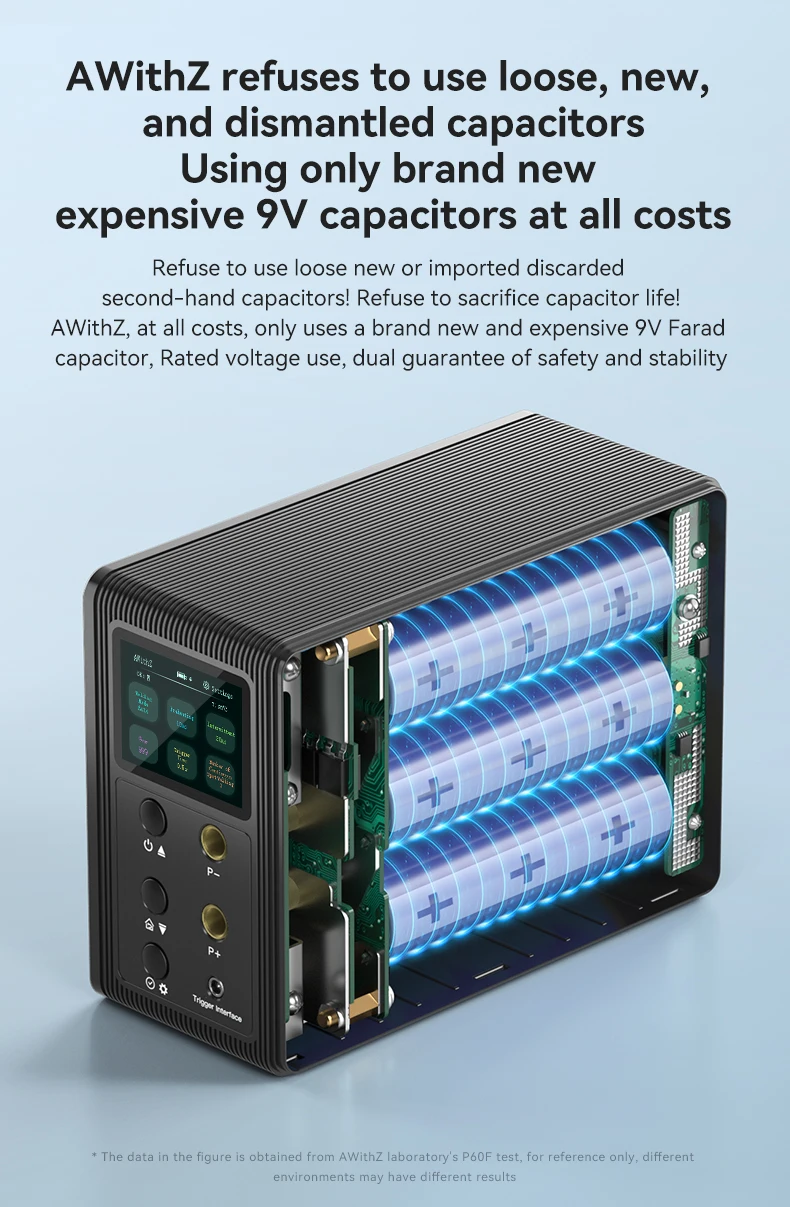

Model:P60F
Shell material:Plastic
Input parameter:9V/15A(MAX)
Output voltage:9V(MAX)
Output power:29.2KW(MAX)
Output current:3250A (MAX)
Net weight of the host:1.65kg
Product size:180*131*80mm

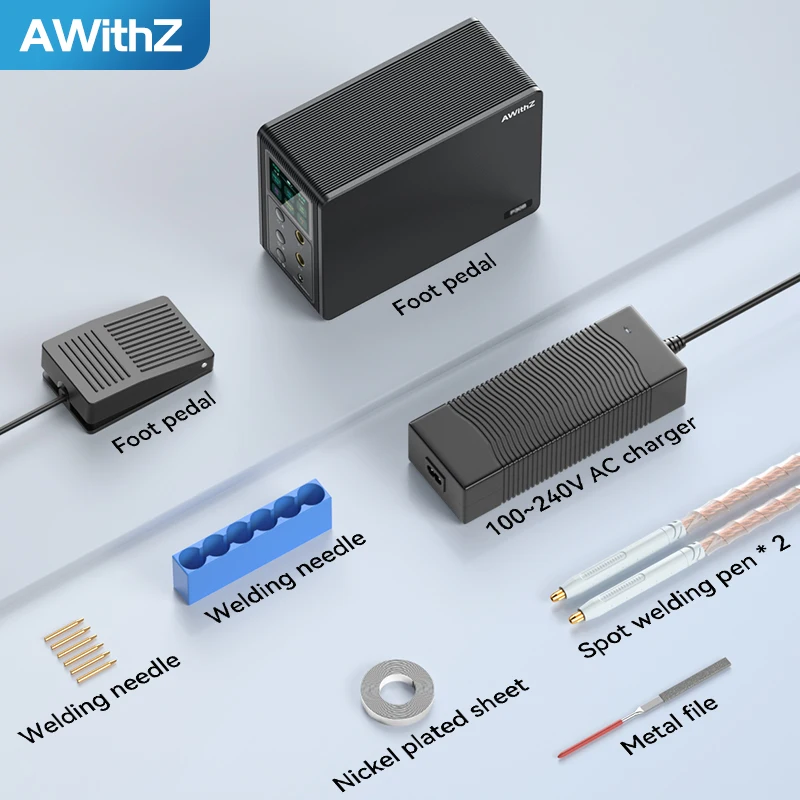

Package Included



1* Spot Welding Machine

1* Charger

1* Foot Pedal

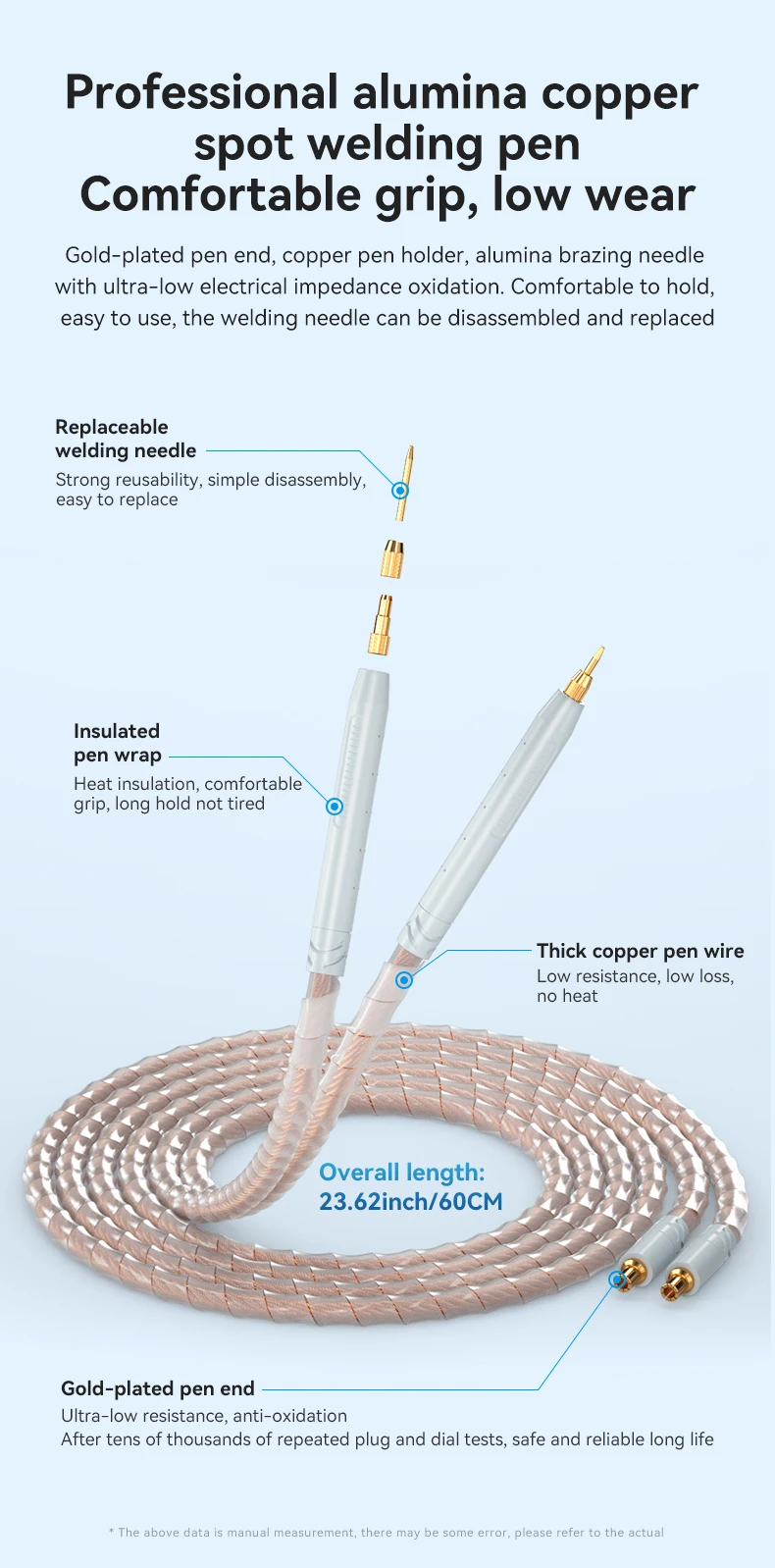

2 * Welding Pens

1 Roll* Nickel-plated Sheet

1* 18650 Battery Holder

1* File

1* English Manual

1* Power Cable

All Accessories for Use



How to Use



1.Charge 5 minutes to activate it. "OK" to begin welding.

2.Connect the welding pen.

3.Set the gear and mode.

4.Start welding.



Notes



1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

2.If there is no operation for 8 minutes, it will turn off automatically.

3.When installing the pen tips, please install them firmly. If they are not installed firmly, spot welding may not be possible.

4.When there is too much spark during spot welding, please use a file to friction the spot welding pen. The reason for excessive sparks is that the gear is too high, the spot welding pen is severely oxidized, and the power of the spot welding pen is too high.

5.If you use it for a long time, it may cause the temperature of the spot welding machine to be too high, causing the output function of the spot welding machine to be temporarily turned off and unable to work. Please wait for the machine to cool down before restarting because the machine is equipped with high-temperature protection measures. If the temperature is too high, it may cause the machine to not work.

6.The most important thing is for you to practice multiple times and become familiar with the product. Please gradually familiarize yourself with the minimum gear and wear protective equipment (not included) when using it.

7.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
