Fine Hazemag Impact Crusher Used For Stone Crushing Plant

Share on (1601292760433):


Price:$5,000.00

Quantity:


Product Overview

Description





Product Overview

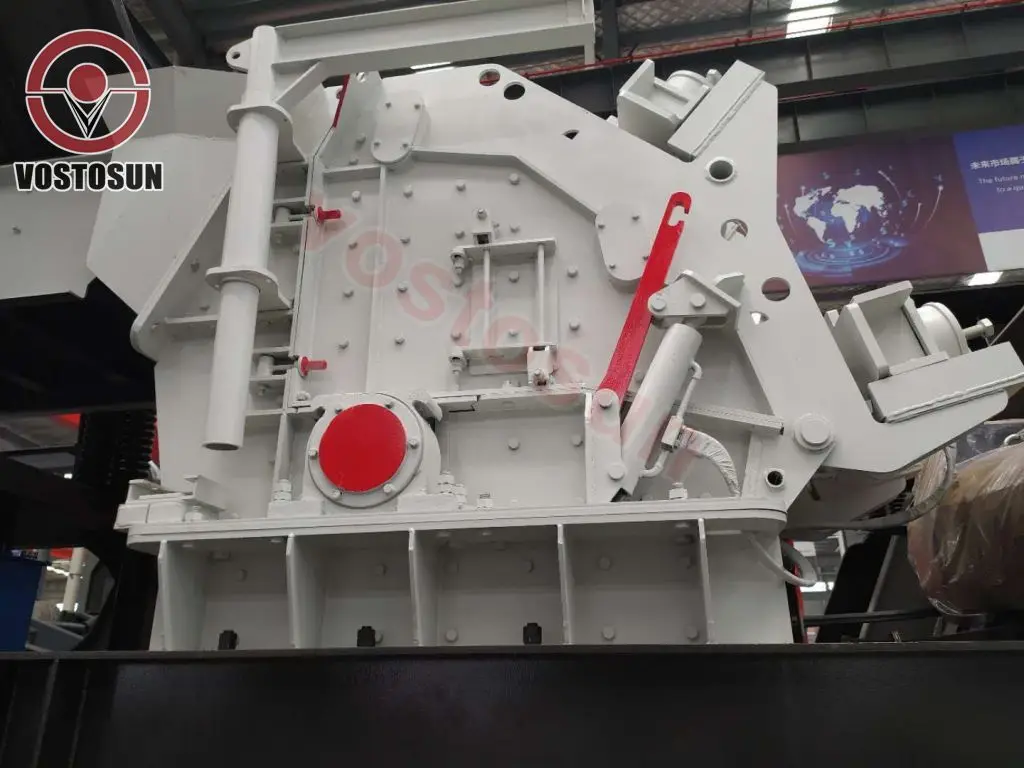

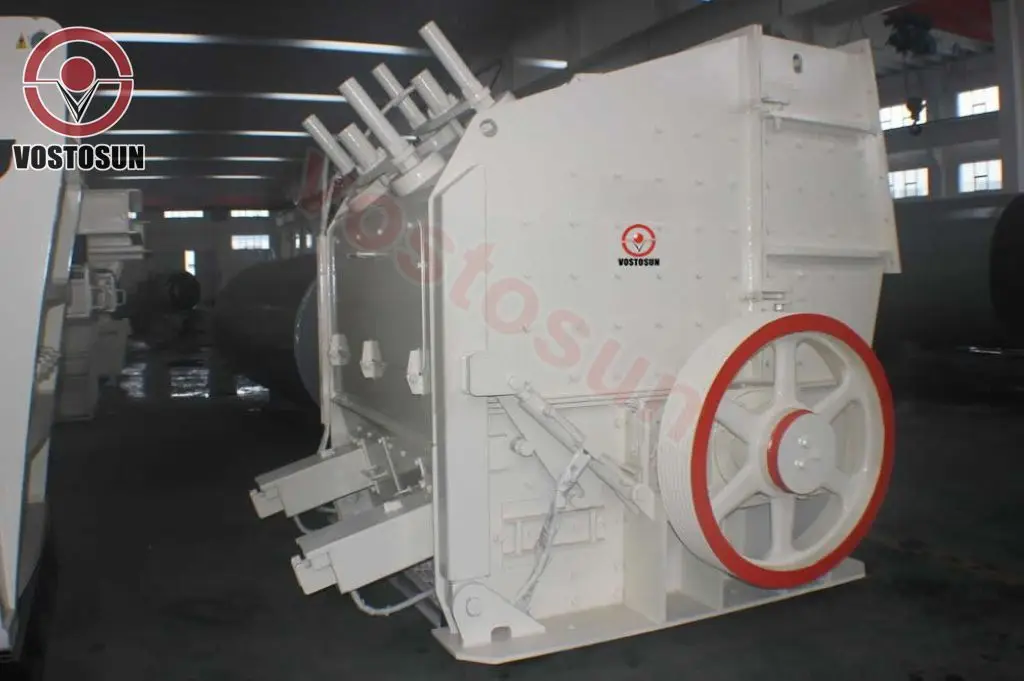

Impact Crusher




PF&PFV Series Impact Crusher are usually used as medium crushing machine after coarse crushing. It is capable of crushing mineral rocks with compressive strength up to 320 MPa, featuring with greater processing capability and finer discharging particles. The crushed products are in cubic shape with low flakes and no internal cracks. This type of equipment is preferable to be selected as the first choice for crushing fine quality stone materials used for highway, water conservancy, airport, civil construction and other industries.








FEATURES AT A GLANCE










1.The combination of multi crushing chambers can make the product in uniform particle sizes, which are suitable for crushing

hard rocks;

2. The bottom impact plate structure makes the crushed products smaller in cubic shape with no internal cracks;

3. These series have big feed opening which is more easily for disposing production lines;

4. New type of high alloy abrasion material makes the service life of blow bars, impact plates, and liner plates longer.

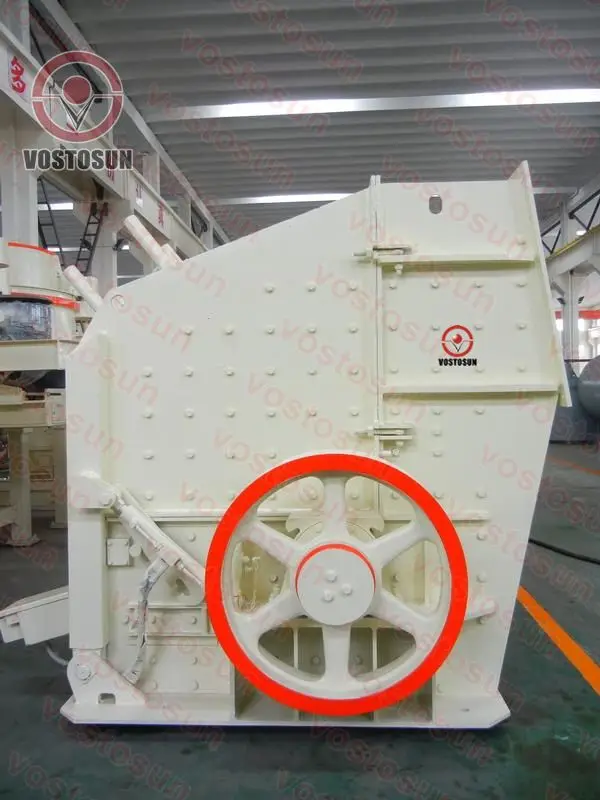

Right elevation













Left elevation













Front elevation









PRODUCT SPECIFICATIONS

























































































































Model


Specification


Feeding

opening Size (mm)


Feeding Size

(mm)


Capacity

(t/h)


Power

(kW)


PF-1007


φ1000×700


400×730


≤250


15-60


37


PF-1010


φ1000×1050


400×1080


≤300


50-90


75


PF-1210


φ1250×1050


400×1080


≤300


70-130


110


PF-1212


φ1250×1200


400×1250


≤300


70-140


132


PF-1214


φ1250×1400


400×1430


≤300


90-180


132


PF-1315


φ1300×1500


680×1520


≤350


120-250


200


PF-1320


φ1300×2000


680×1570


≤500


160-350


280


PFV-1010


φ1000×1050


400×1030


≤200


35-60


75


PFV-1210


φ1250×1050


570×1030


≤250


70-140


110


PFV-1214


φ1250×1400


570×1430


≤250


90-190


160


PFV-1315


φ1300×1500


625×1530


≤300


150-280


200


PFV-1380


φ1300×1800


625×1830


≤300


220-350


250


PFV-1415


φ1400×1500


800×1530


≤300


280-350


250












































SALES AND SERVICE NETWORK

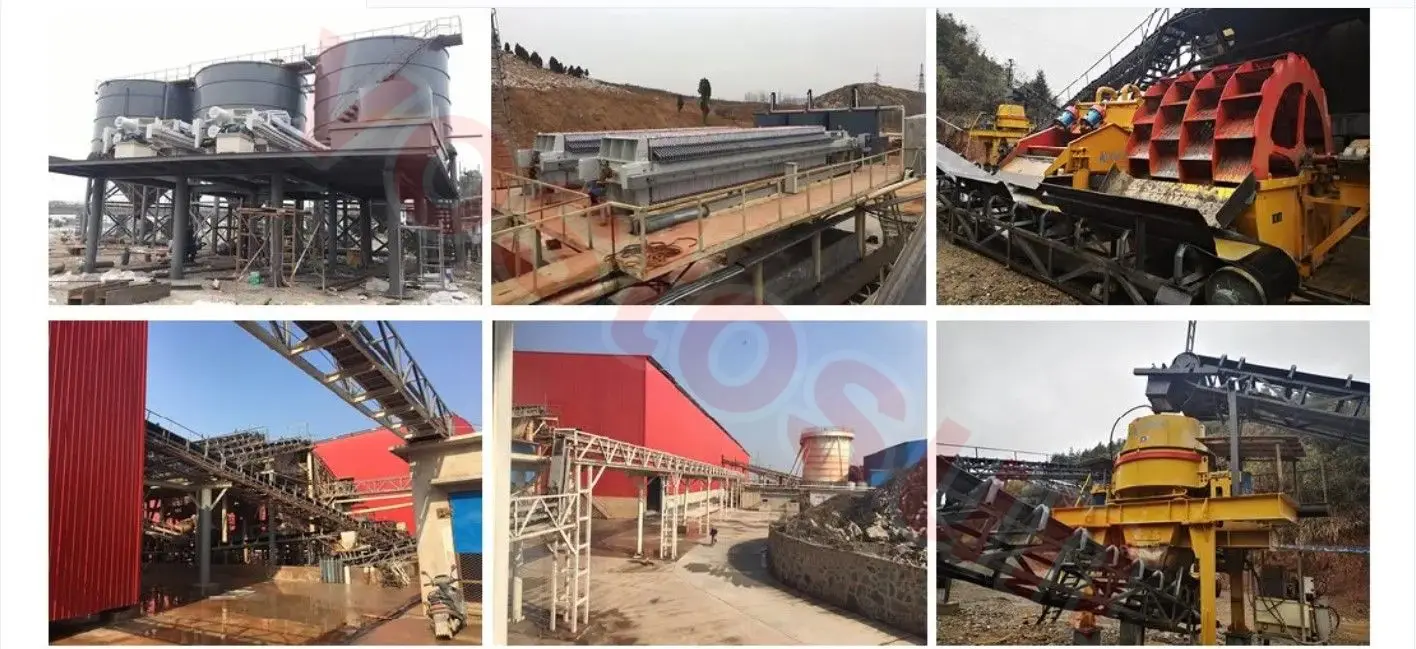

Successful Project
