Small 10 Inch Csd250 Fully Hydraulic Heavy Duty Marine Engine Customizable Sand Machine Cutter Suction Dredger For Selling
- Category: >>>
- Supplier: Qingzhou Keda Environment Protection Machinery Co. Ltd.Qingzhou Ltd.
Share on (1601292767562):
Product Overview
Description
Product Overview

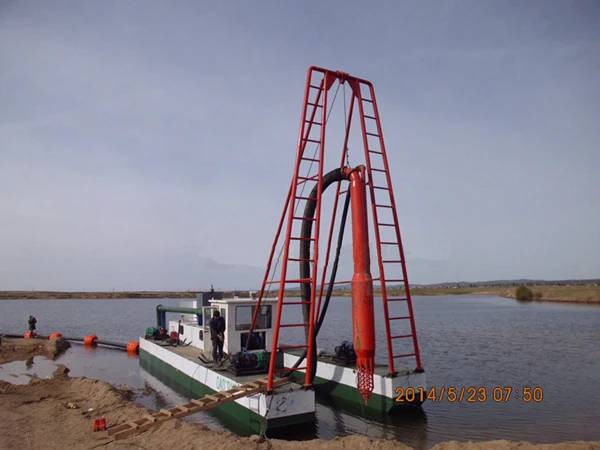

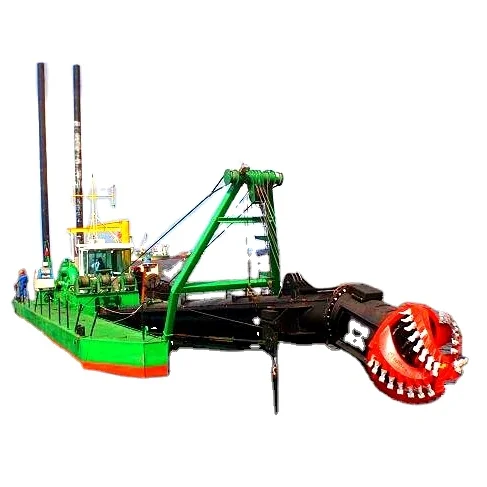

KD Cutter Suction Dredger
As a manufacturing and trade combo, we have been supplying the world cutter suction dredger from 6-28 inches, with water flow capacity varing from 450-7000 cubic meter per hour. All our dredgers can be customized to meet our clients' request and all the parts can be designed and installed as per request.
FEATURES AT A GLANCE
MOST OUTSTANDING FEATURES
1) Compact dimensions & split hopper dredger, easy ttto transport and assemble;
2) Simple control in the console room, efficient and effective in working;
3) customized design, adjustable to all working conditions and preferences;
4) thick marine steel plate with Epoxy Zinc-rich, durable with minimum maintenance work

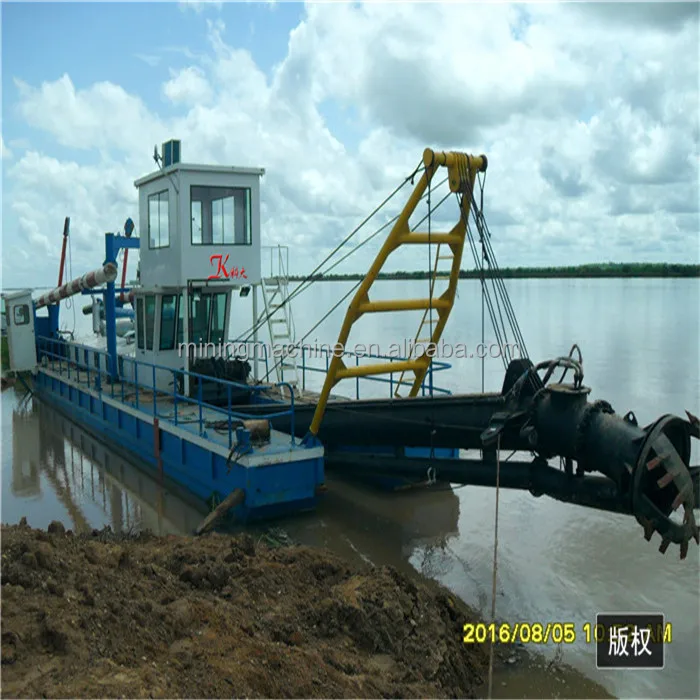

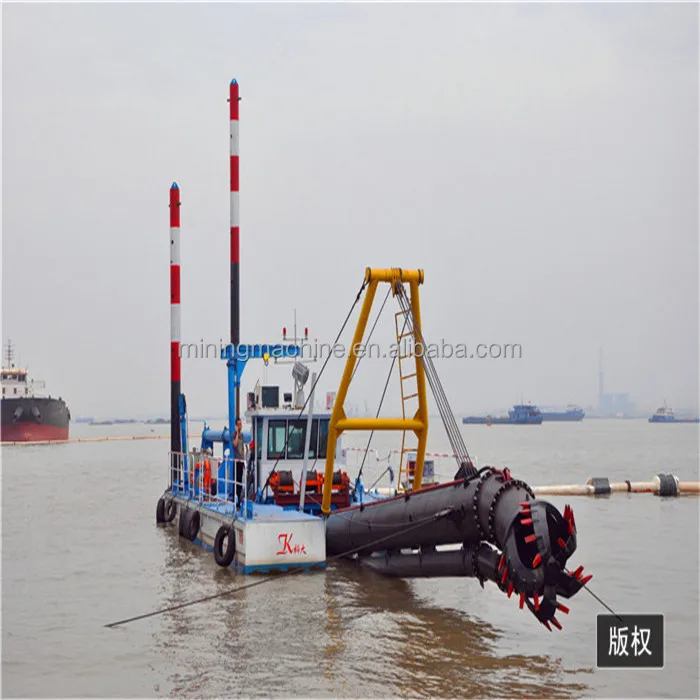

Facade Profile

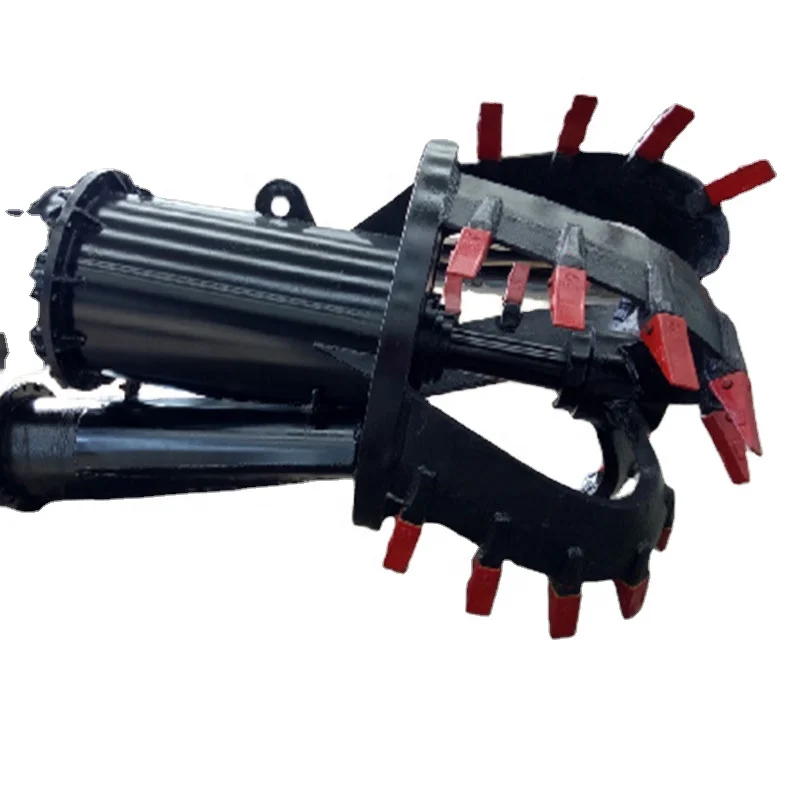

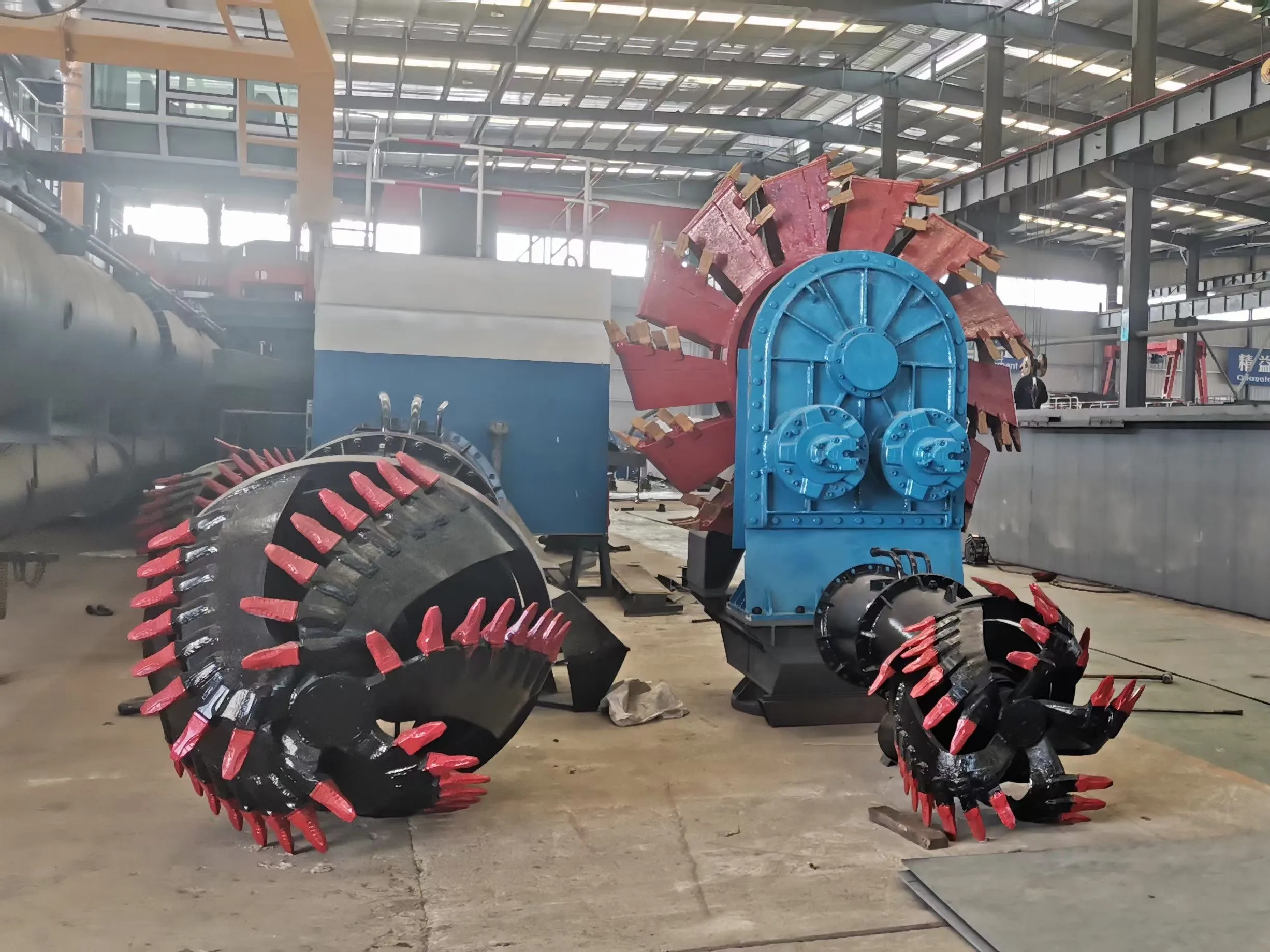

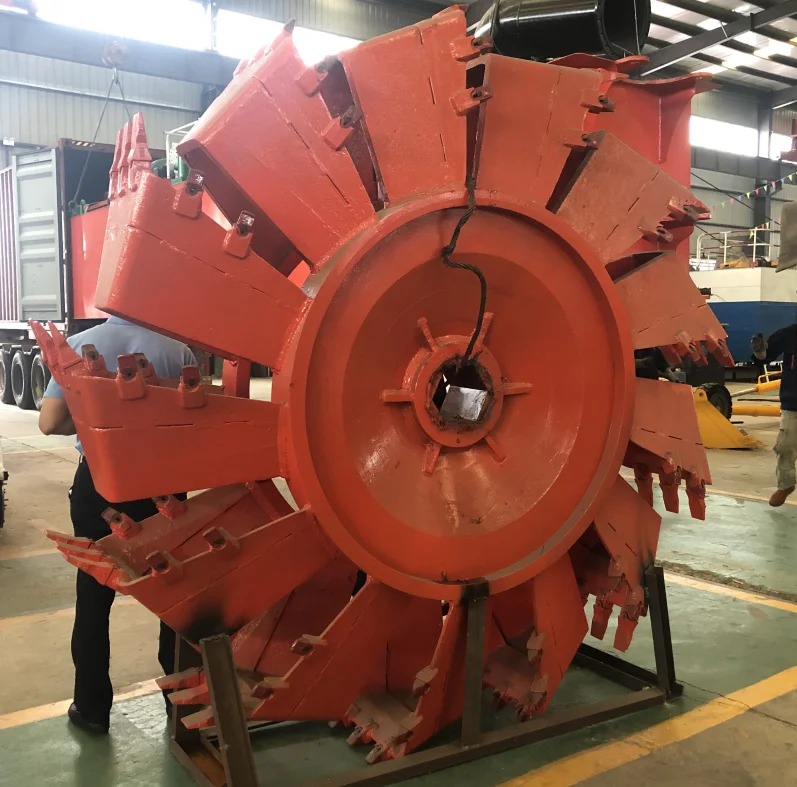

Cutter Head
Hydraulic Winch
PRODUCT SPECIFICATIONS
KDCSD 100 | KDCSD 150 | KDCSD200 | KDCSD250 | KDCSD300 | KDCSD350 | KDCSD450 | |
Water Flow (m³/h) | 280 | 450 | 800 | 1200 | 1800 | 2500 | 3500 |
Length(m) | 19 | 22 | 26 | 33 | 35 | 39 | 41 |
Width(m) | 3.5 | 4 | 5.3 | 6.6 | 6.6 | 7 | 8 |
Height(m) | 1 | 1.25 | 1.5 | 1.8 | 1.8 | 2 | 2.5 |
Max. Dredging Depth(m) | 8 | 10 | 12 | 15 | 15 | 17 | 17 |
Suction Diameter (mm) | 150 | 200 | 250 | 300 | 400 | 450 | 650 |
Discharge Diameter (mm) | 100 | 150 | 200 | 250 | 300 | 350 | 450 |
Total Power (kw) | 132 | 220 | 336 | 460 | 670 | 895 | 1166 |
Cuttetr Head Diameter (mm) | 650 | 850 | 950 | 1200 | 1200 | 1500 | 1700 |
Discharge Distance (m) | 400 | 500 | 800 | 1000 | 1200 | 1500 | 1800 |
PRODUCT CONFIGURATION
HIGH PERFORMANCE GEAR BOX
POWERFUL PUMPS
CUSTOMIZED ENGINE SYSTEM
SALES AND SERVICE NETWORK

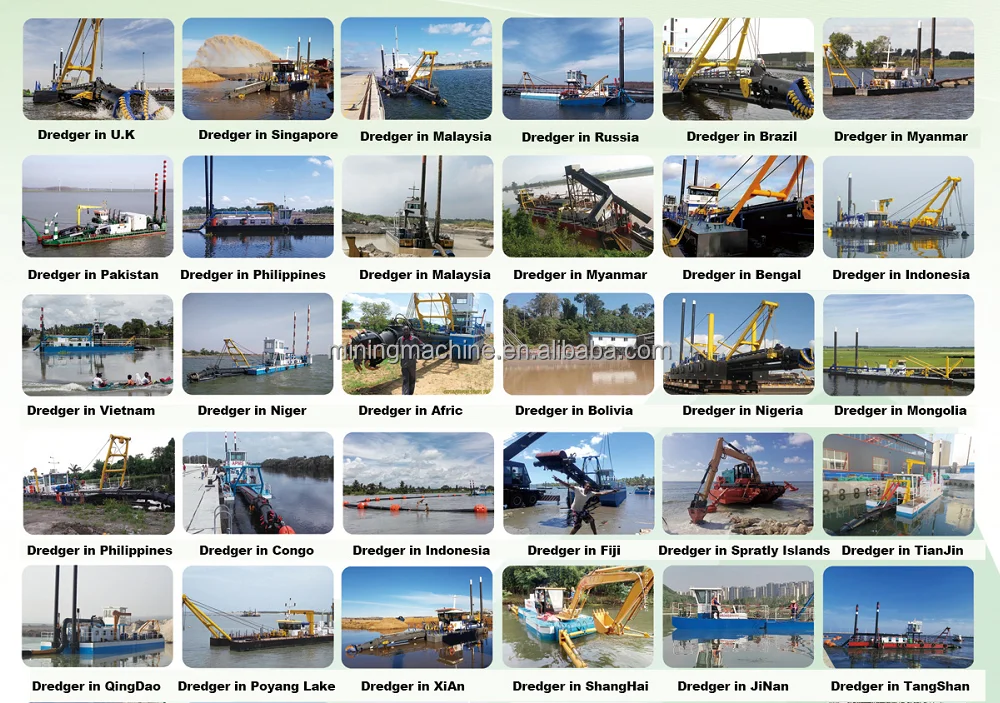

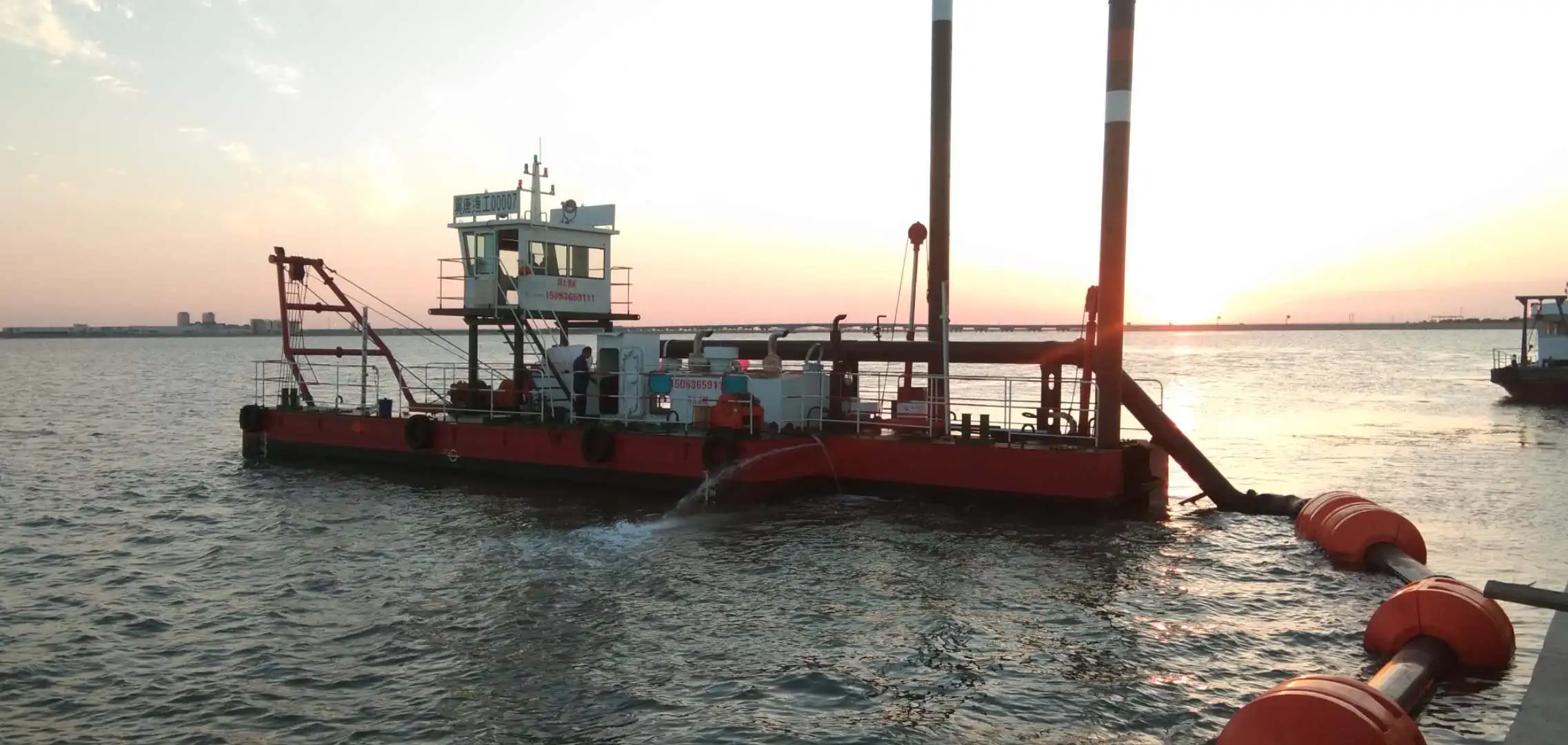

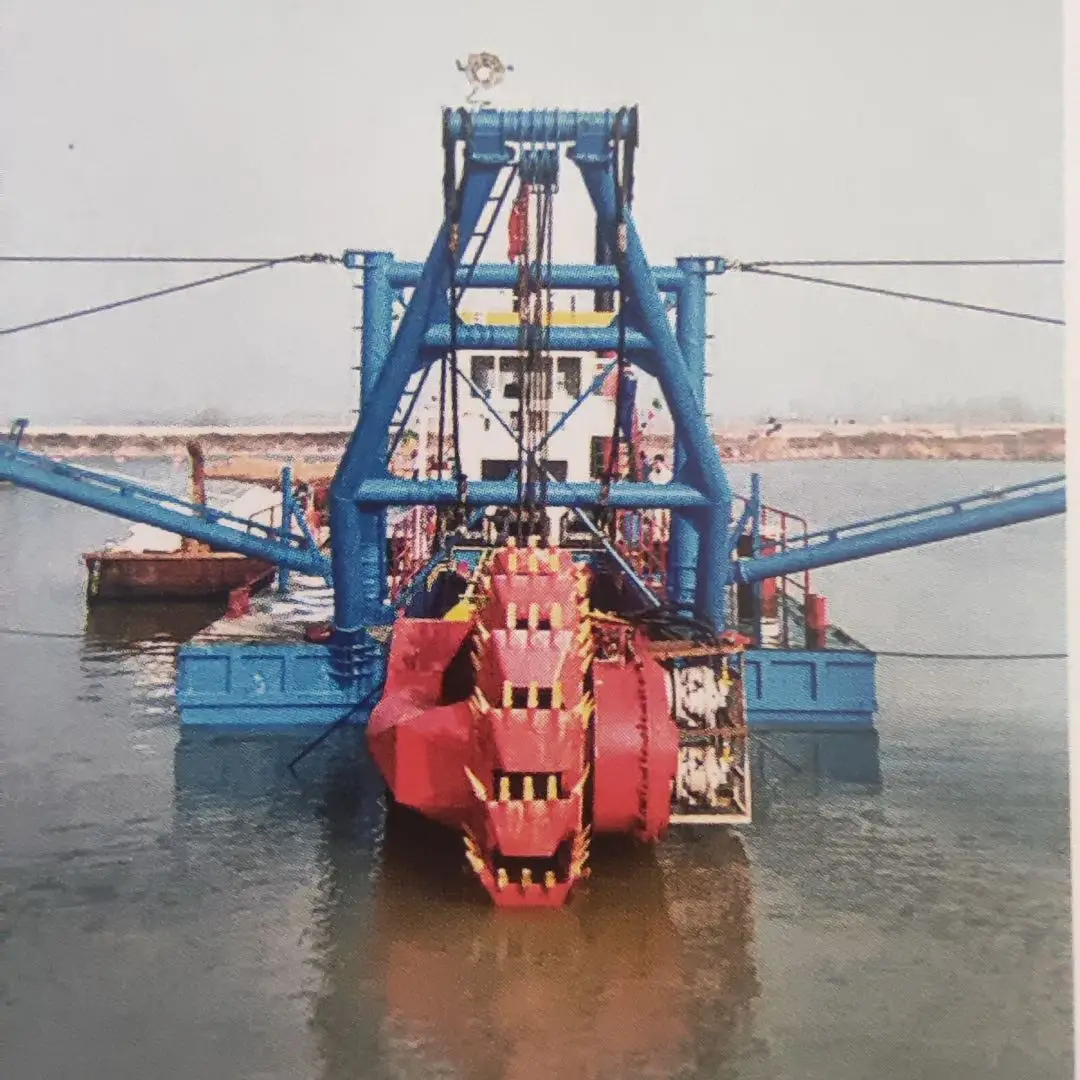

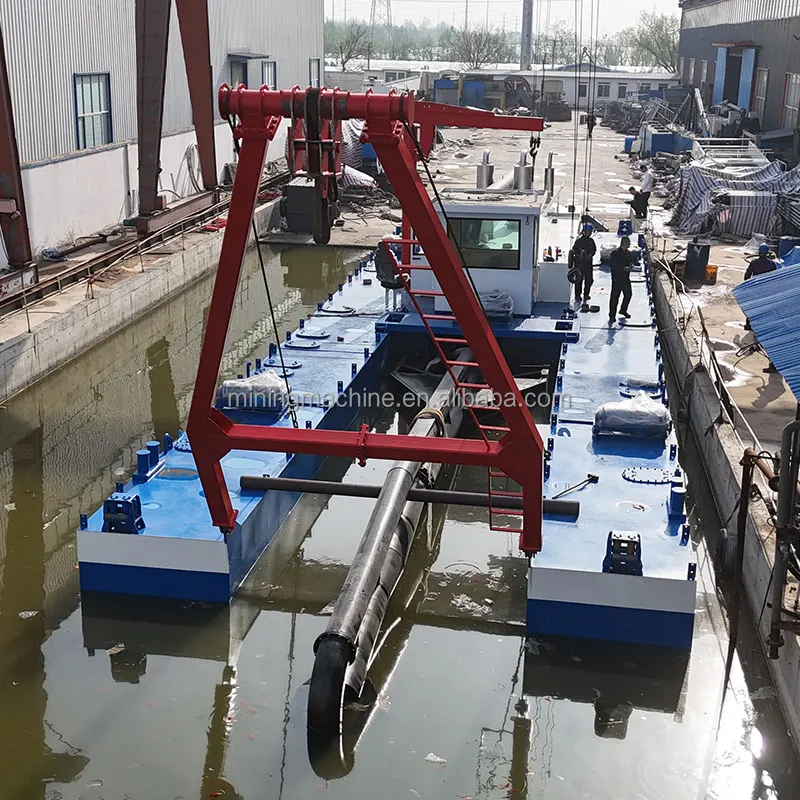

Successful Project

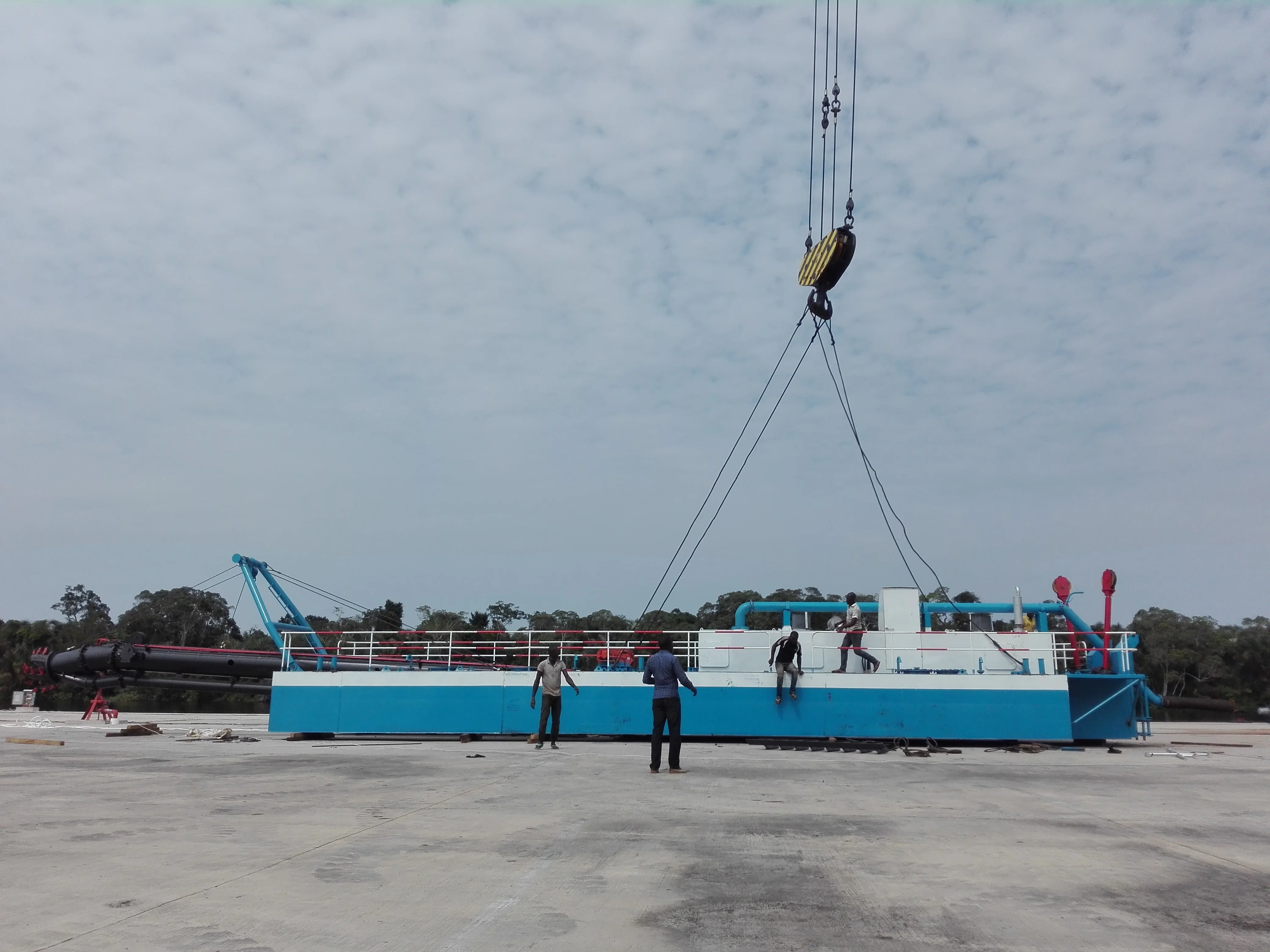

CASE 1
CASE 2
CASE 3

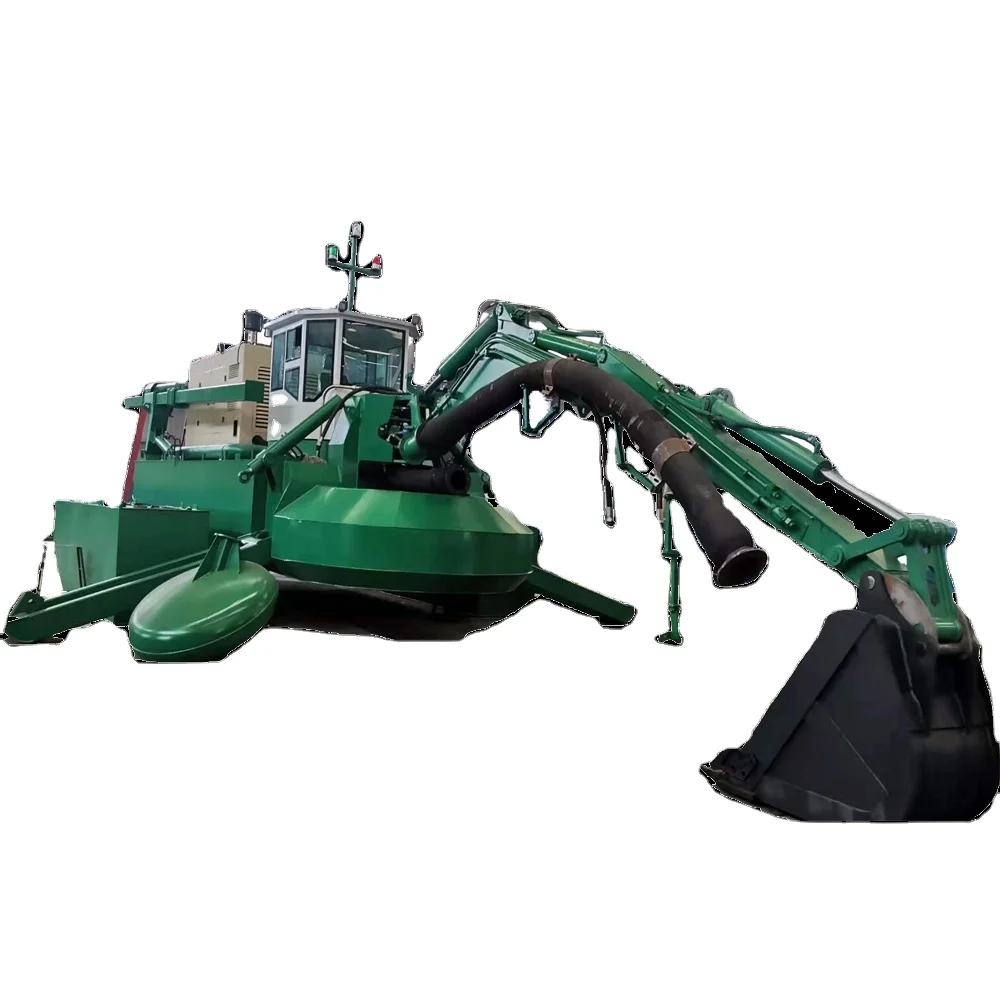

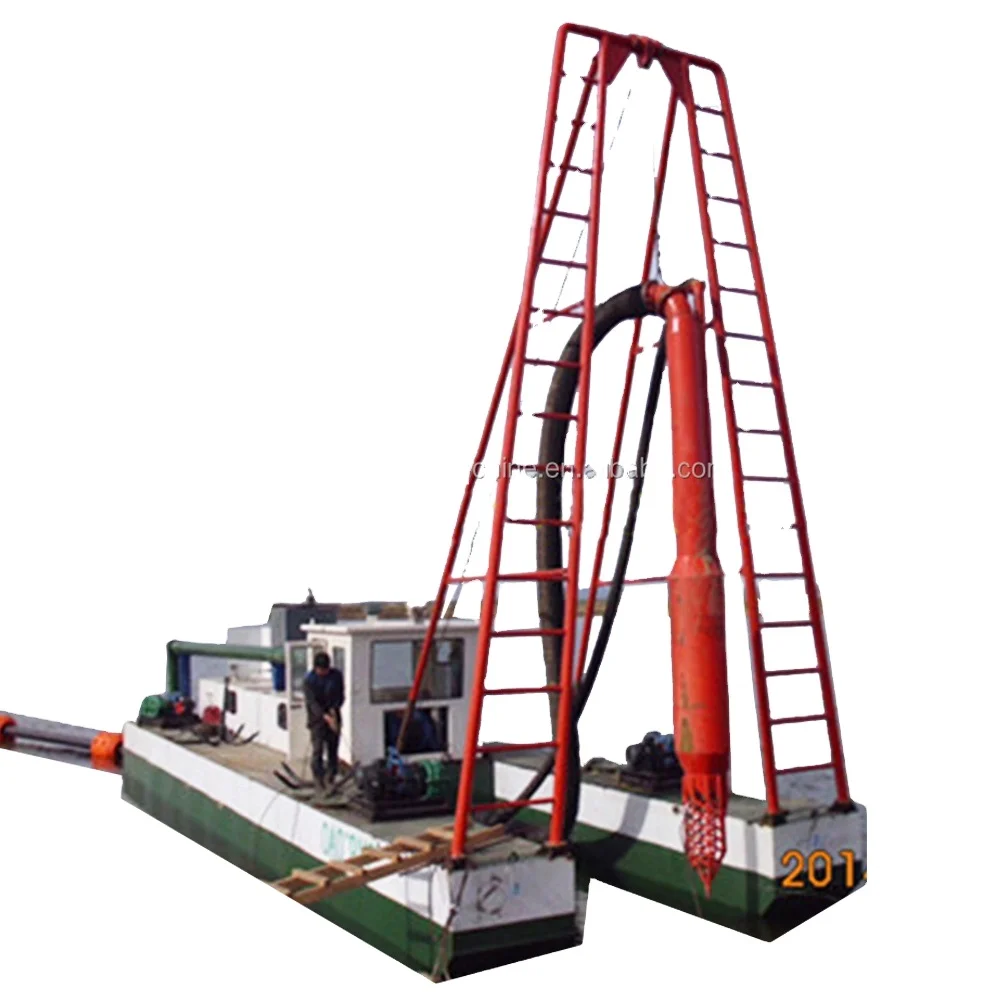

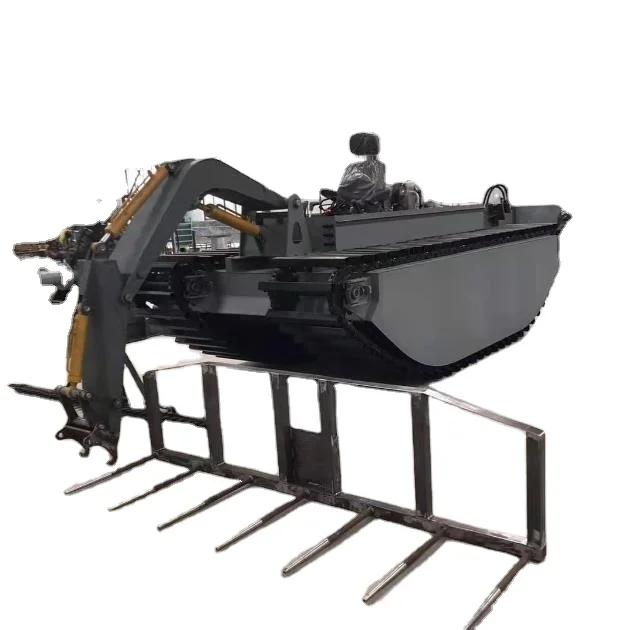

SIMILAR PRODUCTS
FAQ
Q1：Are You a Factory or a Trading Company?
Q2:What kinds of machines do you make?
A2:Our facility manufactures both machines for land and water use, which include all types of dredgers, amphibious dredgers, weed harvesters as well as gold panning machines.
Q3: I never used this kind of machine, is it easy to operate?
A3:Yes.
Most of our equipment is user friendly, which means that they are easy to assemble and dismantle and once in place, can be controlled by one man.
Also, our engineers will guide you in the installation and use.
Plus, there are English manuals and guide videos about the configuration, the installation and the maintenance of the machine.
Q4:Are our products certified or patented?
A4:Yes, we only provide certified products.
Q5:What’s your product warranty?
A5:Yes, the warranty of most of our products is one year and all spare parts will be provided fast with the most favorable price. And we’ll always be there for you, any time.
Q6:What services do you provide?
A6:Customized Design, OEM, ODM
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union, and Cash;
Language Spoken:English,Chinese, and French
A1：Qing Zhou Keda Environment Dredging Equipment Co., Ltd is located in Qingzhou City, Shandong Province, China. We are manufacturing and trade combo for years, and we have built an efficient team over the years including seasoned engineers, responsible sales and customer-centered after-sale service personnel.
Q2:What kinds of machines do you make?
A2:Our facility manufactures both machines for land and water use, which include all types of dredgers, amphibious dredgers, weed harvesters as well as gold panning machines.
Q3: I never used this kind of machine, is it easy to operate?
A3:Yes.
Most of our equipment is user friendly, which means that they are easy to assemble and dismantle and once in place, can be controlled by one man.
Also, our engineers will guide you in the installation and use.
Plus, there are English manuals and guide videos about the configuration, the installation and the maintenance of the machine.
Q4:Are our products certified or patented?
A4:Yes, we only provide certified products.
Q5:What’s your product warranty?
A5:Yes, the warranty of most of our products is one year and all spare parts will be provided fast with the most favorable price. And we’ll always be there for you, any time.
Q6:What services do you provide?
A6:Customized Design, OEM, ODM
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union, and Cash;
Language Spoken:English,Chinese, and French
