High temp Electroplating Epoxy Resin Powder Coating Anodizing Masking PET Polyester Film Silicone Glue Self Adhesive Tape
- Category: >>>
- Supplier: Changsha Aqr Trade Co. Ltd.Changsha Ltd.
Share on (1601292795863):
Product Overview
Description
OVERVIEW
LEAD TIME | China | |||||||
Quantity (rolls) | 1-200 | 201-500 | 501-1000 | over 1000 | ||||
L/T(days) | 20 | 25 | 30 | To be negotiated | ||||
Customization | ||||||
Custom (Thick*Width*Length) | +Liner service available | Custom(Logo*Label*Package) | Die-cutting service available | |||
Min. order: 1 roll | Min. order: 10 rolls | Min. order: 100 rolls or 500rollsbased on different size or tapes | Min. order: 500 rolls | |||
Product structure：
Product description: Polyester film tape is made of PET film as the base material and baked using different pressure-sensitive adhesives. It is durable and High temperature, electrical insulation, radiation resistance, solvent resistance. Commonly used colors: green, blue, yellow, red, black, transparent, etc.
Product features and applications: This product has good adhesion performance and leaves no residual adhesive when peeled off. It is suitable for ultra-high temperature baking paint, powder spraying, CNC process protection, aluminum substrate protection, surface treatment process protection, various new energy applications and is suitable for Electronics products industry in various fields.
Product description: Polyester film tape is made of PET film as the base material and baked using different pressure-sensitive adhesives. It is durable and High temperature, electrical insulation, radiation resistance, solvent resistance. Commonly used colors: green, blue, yellow, red, black, transparent, etc.
Product features and applications: This product has good adhesion performance and leaves no residual adhesive when peeled off. It is suitable for ultra-high temperature baking paint, powder spraying, CNC process protection, aluminum substrate protection, surface treatment process protection, various new energy applications and is suitable for Electronics products industry in various fields.
Basic parameters:
Parameter name | Unit | Inspection data |
Material | / | PET transparent silicone tape |
Product number | / | KS0D1CY transparent |
Thickness | mm | 0.1±0.005mm |
Substrate thickness | mm | 0.025+0.003mm |
Appearance | / | Transparent |
Full width | mm | 500/600 |
Length | M | 33M |
Tensile Strength | Mpa | ≥140 |
Elongation at break | % | ≥40 |
Withstand voltage | KV | 2~3 |
180° Peel force | g/25mm | 700-900 |
Oven test baking temperature | 30 Minute | 180℃ Judgment: There are no bubbles or residual glue on the surface of the stainless-steel plate, and the tape is not broken during the stretching process. |
Test environment | / | 23±2℃,50±10% Relative humidity |
Temperature resistance test parts | SUS steel plate | 25mm/min No bubbles, conforms to the roller： 2Kg |
Temperature resistance test frequency | Second-rate | 5000M/1 Second-rate |
Note for users: The above product data is the average of the general laboratory test results, and the product description is based on our understanding and is only for your customer's reference and does not serve as a standard for product acceptance. When using a product for a specific purpose, only the user can fully understand and control the actual requirements. Therefore, the user should test and evaluate the product by himself to ensure that it is indeed suitable for the purpose and usage required by your company. Different adherends and different Depending on the pasting conditions, it may cause peeling data deviation and abnormal peeling.
Product Description
Polyester silicone tape
Polyester silicone tape is made from polyester film with single side coated silicone adhesive, it is used in applications at temperatures as high as 180°C and won’t leave glue and color. Polyester silicone tape has excellent thermal and electrical insulation properties, making it suitable for use in high-temperature environments. It can withstand temperature range up to 180°C without losing properties or adhesive strength. The tape also has good chemical resistance and is resistant to most solvents, acids, and oils.

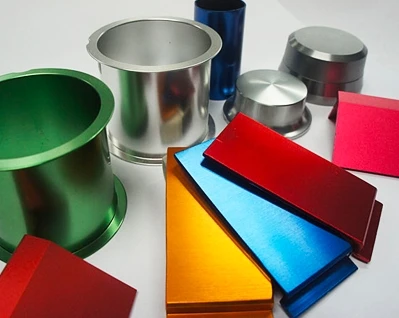

PET silicone tape is usually used for spraying, gold plating, electroplating, aluminium anodizing, circuit boards etc. It has green, transparent, blue, red etc. customized colors available.
PET silicone tape is usually used for spraying, gold plating, electroplating, aluminium anodizing, circuit boards etc. It has green, transparent, blue, red etc. customized colors available.
Product Application
Product Details
Device Testing
ABOUT PACKAGING AND SHIPPING
1. Goods will be packaged in suitable standard export cartons carefully or based on customer's requests.
2. We have SF INTERNATIONAL EXPRESS and FEDEX company account that we may help customers to offer better economical freight services for certain shipments. And it is OK to ship by air or by sea or any other couriers designated by customers, such as UPS, DHL etc.
Q1. Sample Service
R1: We provide free samples from our stock, you just need to pay the freight accordingly. Also we welcome sample orders to test and check quality.
Q2. Customized Service
R2: We provide OEM&ODM services, please feel free to contact us with your any enquires.
Q3. MOQ Limit
R3: Usually there is no MOQ for tapes if no logo, packing etc. requested.
Q4. About the Delivery
R4: It takes 5~10 days for current-stock products and the L/T for custimzed products is negotiated with customers.
Q5. About Payment
R5: Western Union, T/T and Paypal etc. is acceptable. The payment terms is negotiable with long term business relation.
R1: We provide free samples from our stock, you just need to pay the freight accordingly. Also we welcome sample orders to test and check quality.
Q2. Customized Service
R2: We provide OEM&ODM services, please feel free to contact us with your any enquires.
Q3. MOQ Limit
R3: Usually there is no MOQ for tapes if no logo, packing etc. requested.
Q4. About the Delivery
R4: It takes 5~10 days for current-stock products and the L/T for custimzed products is negotiated with customers.
Q5. About Payment
R5: Western Union, T/T and Paypal etc. is acceptable. The payment terms is negotiable with long term business relation.
