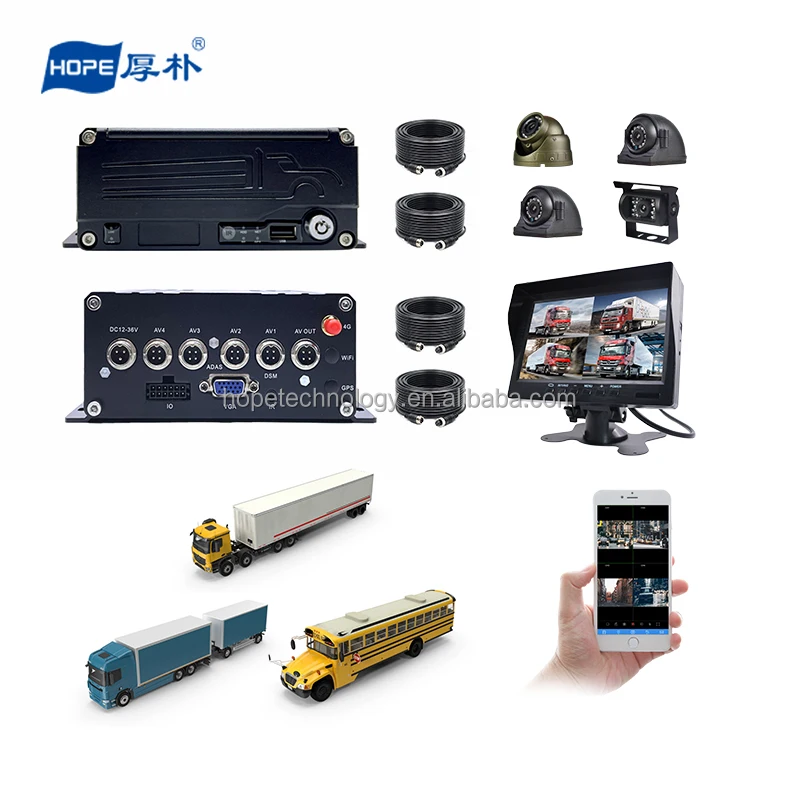

Loop Recording Waterproof Mini 720P 1080P Truck Camera HDD 2TB 4CH GPS 4G Mobile DVR
- Category: >>>
- Supplier: Shenzhen Hope Technology Development Co. Ltd.
Share on (1601292992565):
Product Overview
Description
Parameters
Project | Device parameters | Performance |
System | Operating system | Embedded Linux operating system |
Operating language | Chinese / English | |
Operation interface | Graphical menu operation interface, support mouse operation | |
Password security | Two-level management of user password and administrator password | |
Audio and video | Video format | PAL/ NTSC |
Compression standard | H.264/H.265 | |
Image Resolution | 1080P/720P /960H/D1/CIF | |
Playback quality | 1080P/720P /960H/D1/CIF | |
Combination method | 4ch 1080P/4ch 720P/4ch 960H/2ch 720P+2ch 960H(V1V5) 8ch 1080P/8ch 720P/8ch 960H/4ch 720P+4ch 960H(V3V7) | |
Decoding ability | 4ch 1080P real-time(V1V5) 8ch 1080P real-time(V3V7) | |
Video quality | Level 1 to 6 can be equipped | |
Screen display | Support 1, 4 screen display(V1/V5) Support 1, 8 screen display(V3/V7) | |
Audio compression | G.726 | |
Recording method | Synchronous recording of sound and video | |
Recording and playback | Video mode | Manual, alarm |
Video bitrate | Full frame 4096Mbps, 6-level image quality optional | |
Audio bit rate | 8KB/s | |
Storage medium | 1* HDD+1SD card storage （2TB+256GB) | |
Video query | Search by channel and video type | |
Local playback | Playback by file | |
software upgrade | Upgrade mode | Manual upgrade, automatic upgrade, remote upgrade |
Upgrade method | USB interface, wireless network | |

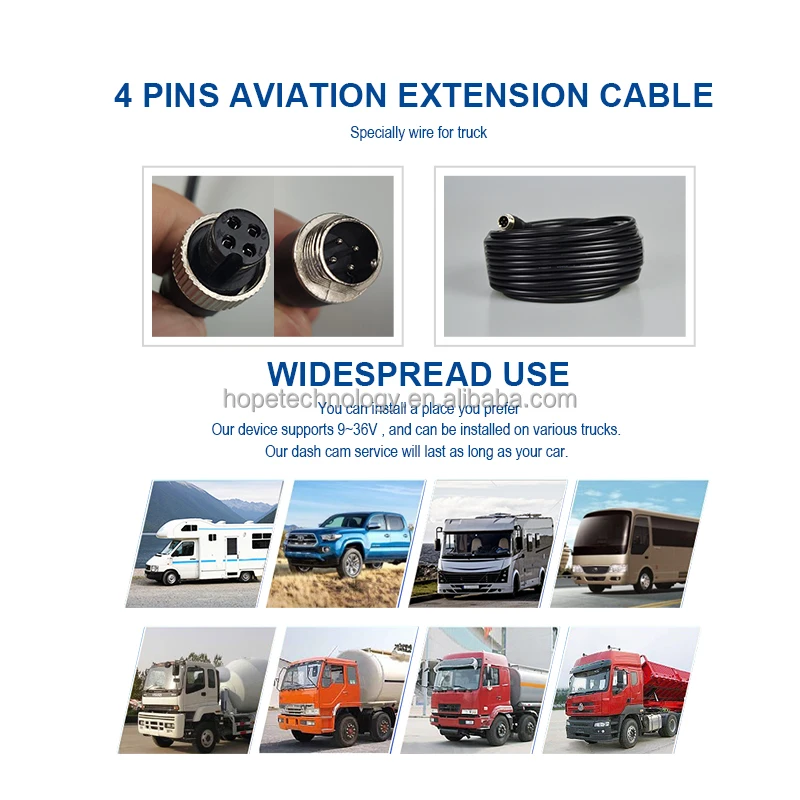

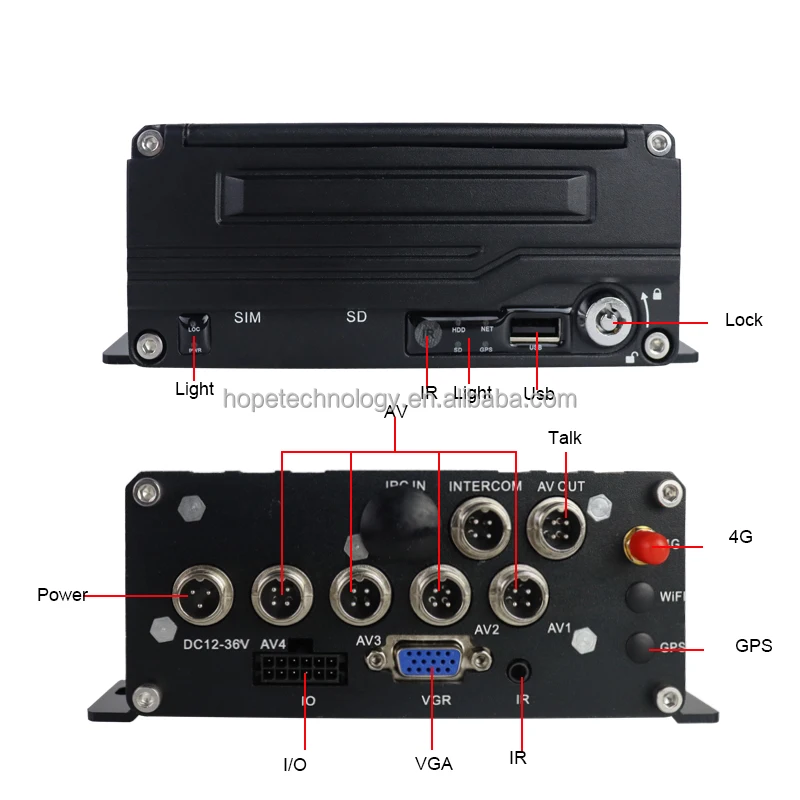

Interface | Audio and video input | 4-way aviation interface |
Audio and video output | 1 VGA video output, 1 aviation audio and video output | |
Alarm input | 4 level signal inputs, 2 outputs | |
USB interface | 1 USB 2.0 (support full mouse operation, USB delayed self-test) | |
LED indicator | PWR/GPS/REC/NET | |
Ignition input | 1 channel ACC signal | |
HDD lock | 1 piece | |
Extensions | GPS | GPS or GLONASS positioning |
3G/4G | Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE | |
Other | Power input | DC：8V~36V |
Power Output | 12V/2A | |
Power consumption | Standby 3mA Maximum power consumption 18W @12V 1.5A @24V 0.75A | |
Operating temperature | -20 --- 70℃ | |
storage | 720P 1G/hour/channel 960H 750M/hour/channel | |

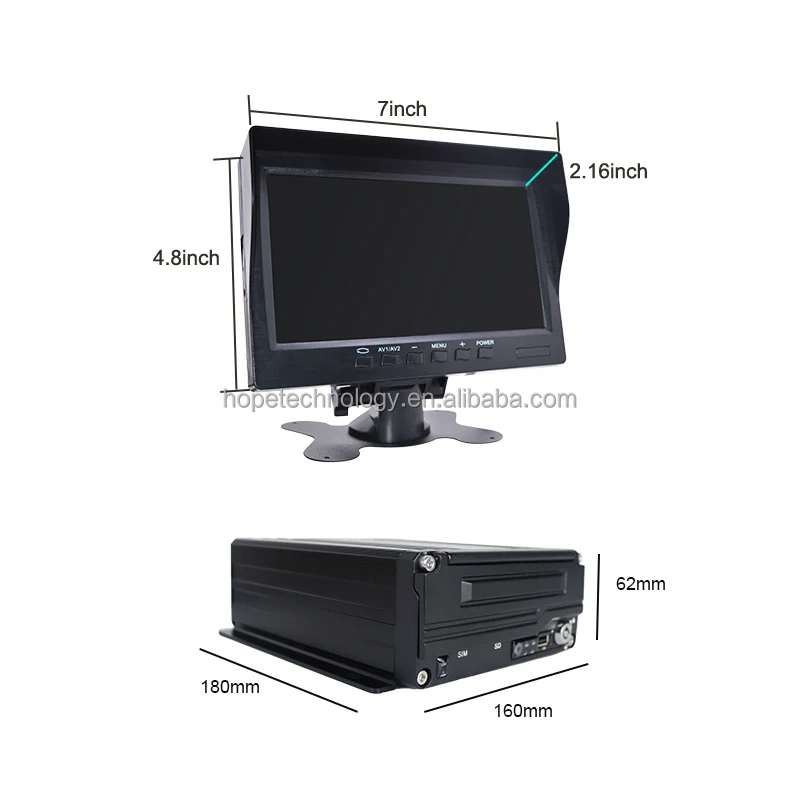

size | 147mm*180mm*41mm |
Highlights

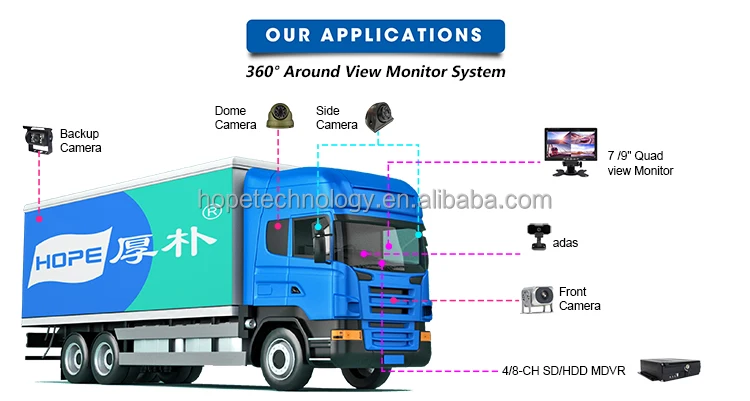

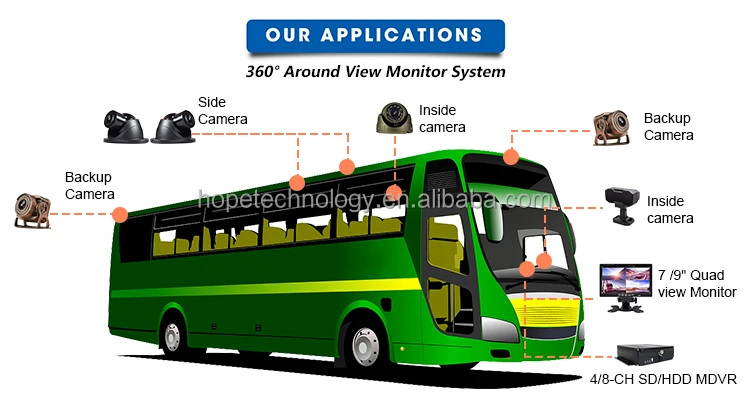

Solutions
Package
Our brand boxes can customize as your requirements.
Natural package can customize as your requirements.
Certifications
Company Profile
FAQ
1.Q: How long is the leading time?
A: 3-5 days for sample orders. 7-12 days for mass production orders (based on different quantities).
2.Q: How will you ship the goods for me?
A: Ship by air, sea and express. We cooperate with international express such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.
3.Q: How long will i receive the goods?
A: 5-7 days for air transportation, 3-5 days for international express.20-40 days for sea transportation. Shipping times are for reference only. Updating after order confirmed.
4..Q: What payment methods do you accept?
A: T/T, L/C, Western Union, Money Gram, Trade Assurance, Credit Card etc.
5.Q: What certificates do you have?
A: We have CE / RoHS / FCC / E-mark/ IATF16949 / ISO9001/ IP68 certification..
6.Q: What is your product quality?
A: our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. We have QC department.
7.Q: What is the reason why the image is not displayed after the camera is connected?
A: Confirm whether the machine system is corresponding to the camera, P/ N, 720P/1080P, switch to the corresponding match with the camera.
8.Q: After the camera is connected, the image display is intermittent, or blue screen, splintered screen, what is the reason?
A: Check whether the aerial head of the tail wire of the camera is fully in place and whether the lock is tight. Or plug and
reinstall can be.
9.Q: What is your warranty?
A: Our warranty is 12 months after delivery and we pay high attention to after sale service!! we do provide life time
maintenance,but you bear all cost after 12 months.
A: 3-5 days for sample orders. 7-12 days for mass production orders (based on different quantities).
2.Q: How will you ship the goods for me?
A: Ship by air, sea and express. We cooperate with international express such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.
3.Q: How long will i receive the goods?
A: 5-7 days for air transportation, 3-5 days for international express.20-40 days for sea transportation. Shipping times are for reference only. Updating after order confirmed.
4..Q: What payment methods do you accept?
A: T/T, L/C, Western Union, Money Gram, Trade Assurance, Credit Card etc.
5.Q: What certificates do you have?
A: We have CE / RoHS / FCC / E-mark/ IATF16949 / ISO9001/ IP68 certification..
6.Q: What is your product quality?
A: our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. We have QC department.
7.Q: What is the reason why the image is not displayed after the camera is connected?
A: Confirm whether the machine system is corresponding to the camera, P/ N, 720P/1080P, switch to the corresponding match with the camera.
8.Q: After the camera is connected, the image display is intermittent, or blue screen, splintered screen, what is the reason?
A: Check whether the aerial head of the tail wire of the camera is fully in place and whether the lock is tight. Or plug and
reinstall can be.
9.Q: What is your warranty?
A: Our warranty is 12 months after delivery and we pay high attention to after sale service!! we do provide life time
maintenance,but you bear all cost after 12 months.
