Welding Machine Professional Automatic Water Cooled Aluminum And Stainless Jinan factory for metal welding
- Category: >>>
- Supplier: Shandong Pratt Cnc Machinery Co. Ltd.Shandong Ltd.
Share on (1601293013522):
Product Overview
Description
Product Description
4 in 1 Handheld Laser Welding Machine
This machine adopts fiber laser to make welding/cutting/cleaning with four-in-one welding head. 4 in 1 welding head integrates the four functions in one system. The system can make switch freely according to different application scenarios, providing diversified solutions for users' different application requirements. It's suitable for a welding base, cleaning required and simple cutting.
The advantafe of Pratt CNC Laser Welding Machine
The advantafe of Pratt CNC Laser Welding Machine
1. Flexible for welding/cutting/cleaning work-piece with an optical fiber up to 8-10 m.
2. The weld seam is smooth with nice appearance, no grinding or only a little grinding.

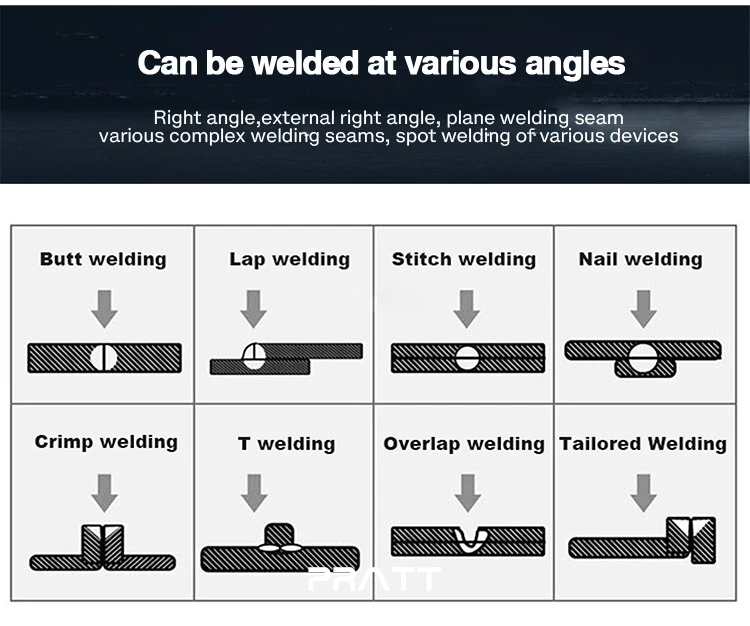

3. Applicable to a variety of welding processes, including spot welding, seam welding and overlap welding.
4. A contact-less cleaning for metal rust removal, paint removal, oil grease dirt removal.
5. Easy cut on metal for optional using.
6. With Use program-controlled robot can weld sharp parts with specific routine, can cut metal in specific shape.
7. It's simple and easy to handle, and do not need a traditional professional welder.
8. Do not need wear face-mask instead of wear the laser protective goggles.
9. Low use-cost. Low power consumption, low gas consumption and low lens consumption.
1. Flexible for welding/cutting/cleaning work-piece with an optical fiber up to 8-10 m.
2. The weld seam is smooth with nice appearance, no grinding or only a little grinding.
3. Applicable to a variety of welding processes, including spot welding, seam welding and overlap welding.
4. A contact-less cleaning for metal rust removal, paint removal, oil grease dirt removal.
5. Easy cut on metal for optional using.
6. With Use program-controlled robot can weld sharp parts with specific routine, can cut metal in specific shape.
7. It's simple and easy to handle, and do not need a traditional professional welder.
8. Do not need wear face-mask instead of wear the laser protective goggles.
9. Low use-cost. Low power consumption, low gas consumption and low lens consumption.

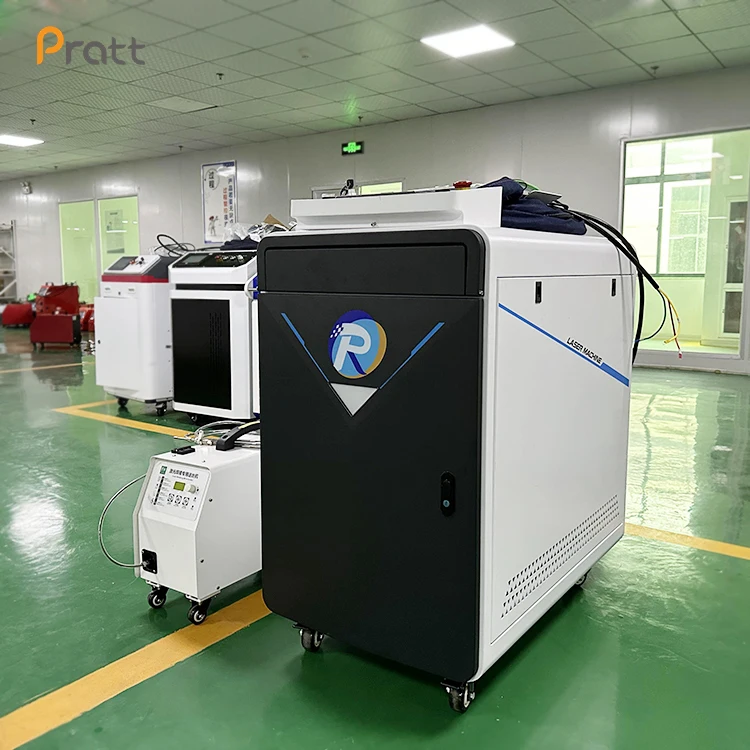

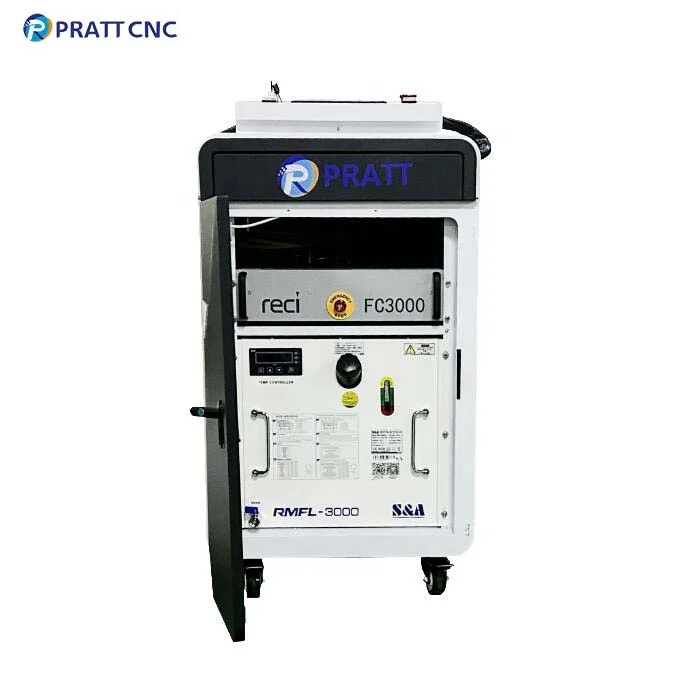

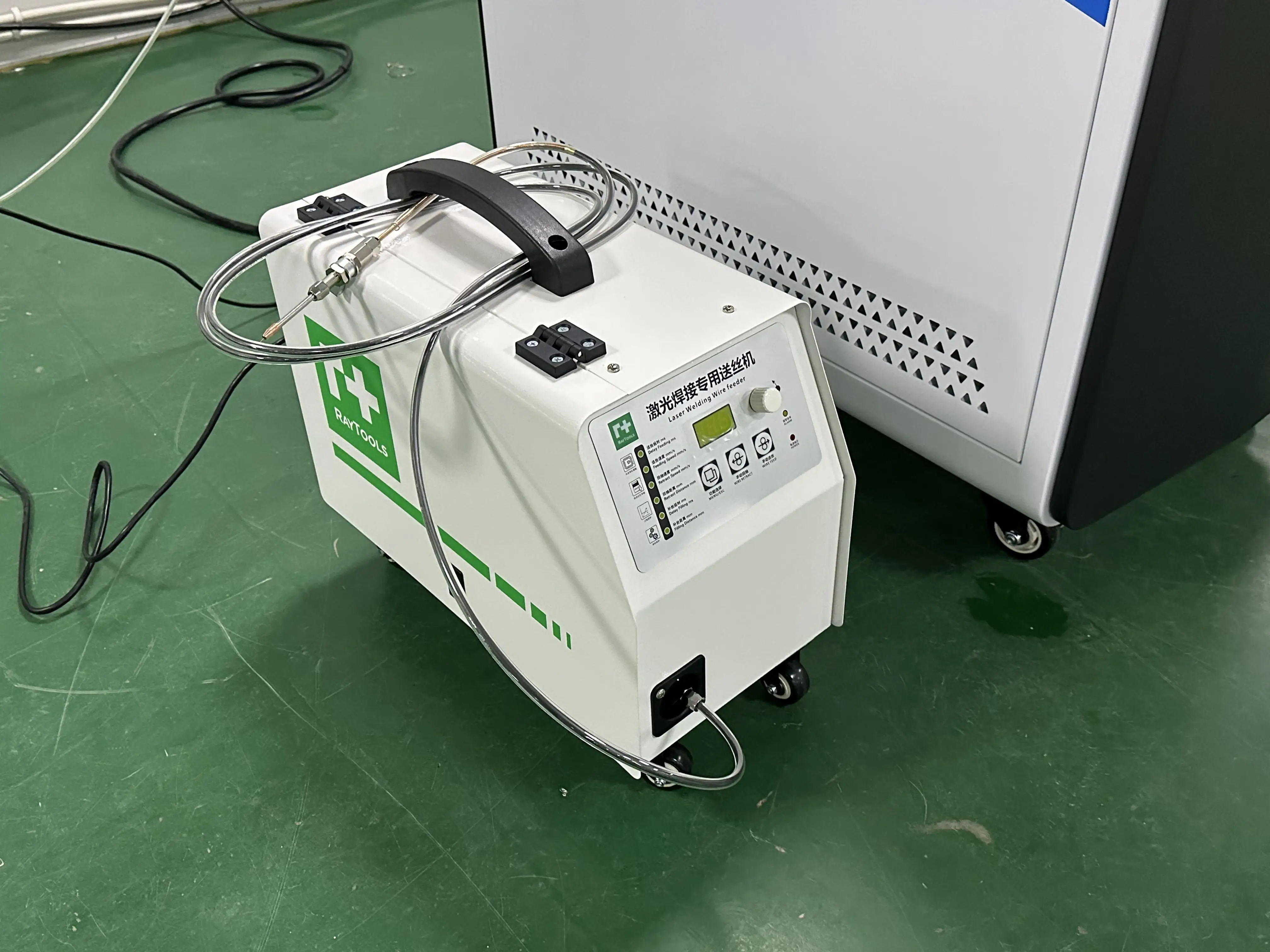

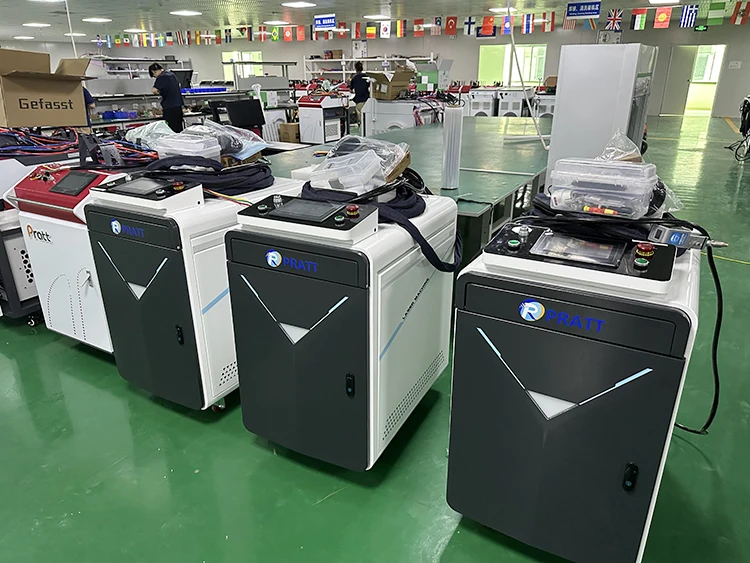

Machine pictures

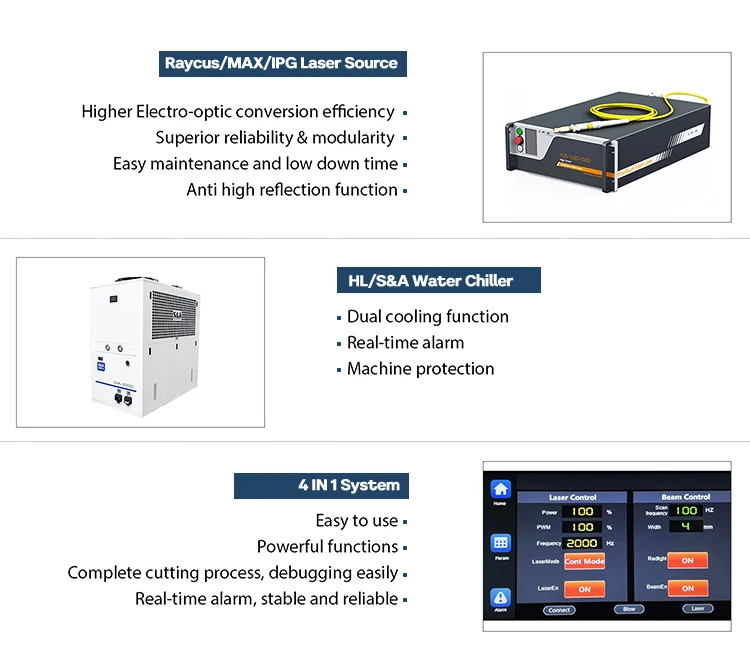

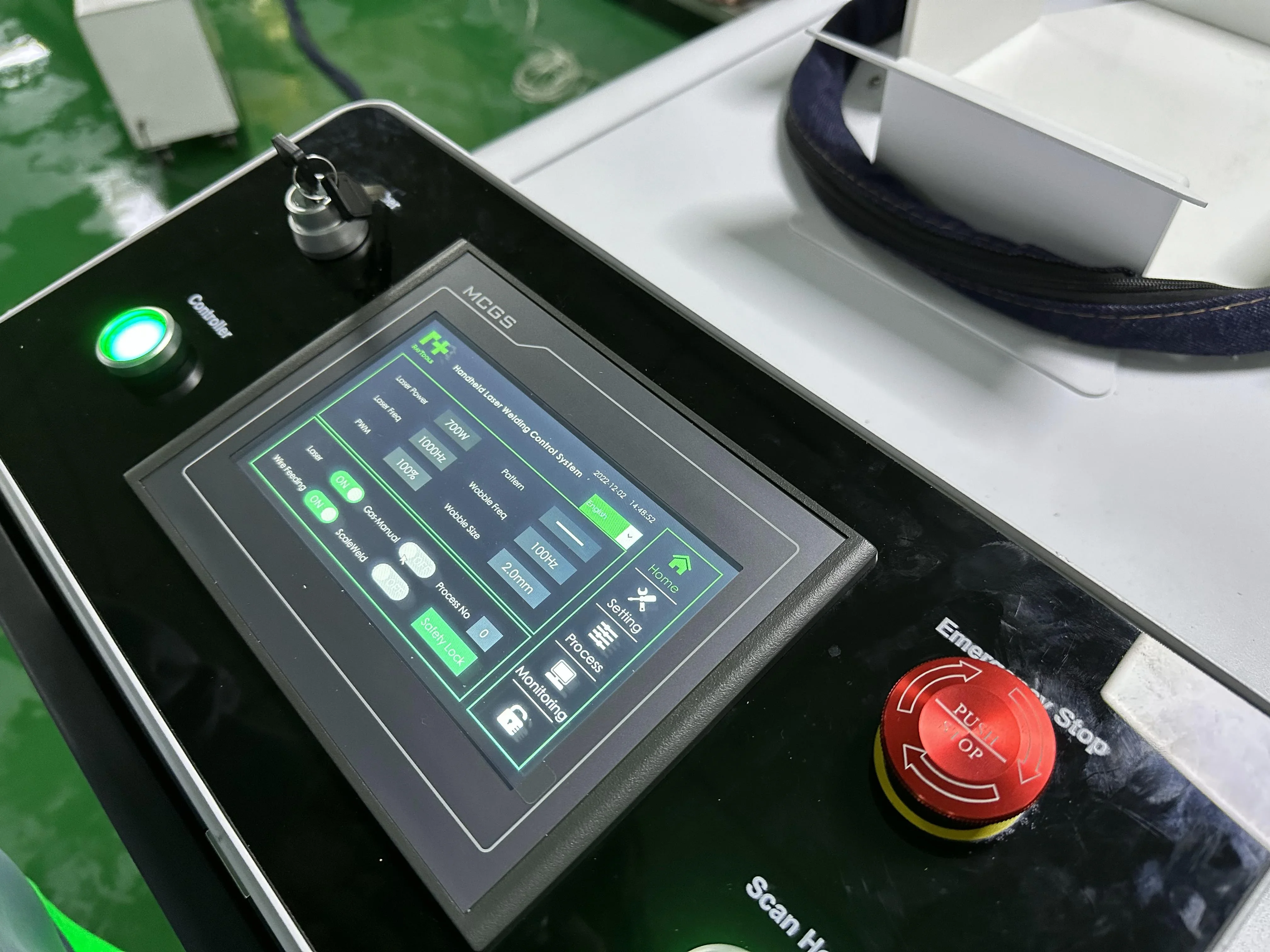

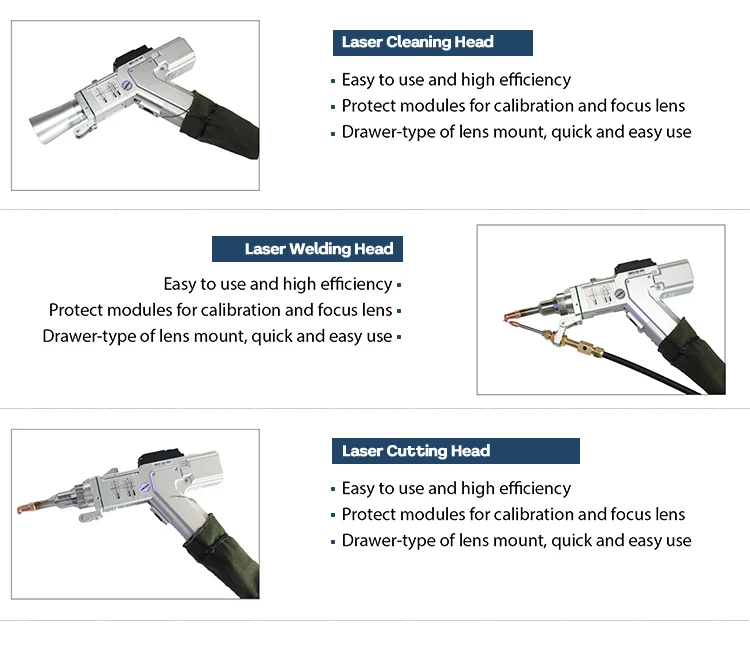

Main Detail Images
Product Parameter
Model | PRW1000CW | PRW1500CW | PRF2000CW | PRF3000CW | ||
Laser Power | 1000W | 1500W | 2000W | 3000W | ||
Welding depth (SS) | 2.68mm | 3.59mm | 4.57mm | 6.87mm | ||
Welding depth (CS) | 2.06mm | 2.77mm | 3.59mm | 4.79mm | ||
Welding depth (Al) | 2mm | 3mm | 4mm | 6mm | ||
Feeding Wires' Dimenson | 0.8-1.2 wire | 0.8-1.6 wire | 0.8-1.6 wire | 0.8-2.0 wire | ||
Max Cleaning Width | 40mm | 40mm | 40mm | 40mm | ||
Laser Wavelength | 1070 +/-10 nm | 1070 +/-10 nm | ||||
Laser Frenquency | 50-5000HZ | 50-5000HZ | ||||
Position System | Red Light Indicator | Red Light Indicator | ||||
Power Adjustment | 10-100% | 10-100% | ||||
Cooling Method | Water Chiller | Water Chiller | ||||
Spot Size | 1.2-3.0mm (option) | 1.2-3.0mm (option) | ||||
Power Instability | <3% | <3% | ||||
Shielding Gas Flow | 15-20 L/min (Ar Or N) | 15-20 L/min (Ar Or N) | ||||
Power Supply | 220V 50&60HZ | 380V /50&60HZ | ||||
Size(L*W*H) CM | 90*40*70 | 90*40*70 | 115*65*87 | |||
Net Weight | 160KG | 170KG | 180KG | 220KG | ||
Total Power Consumption | ≤3KW | ≤4.5KW | ≤6KW | ≤9KW | ||

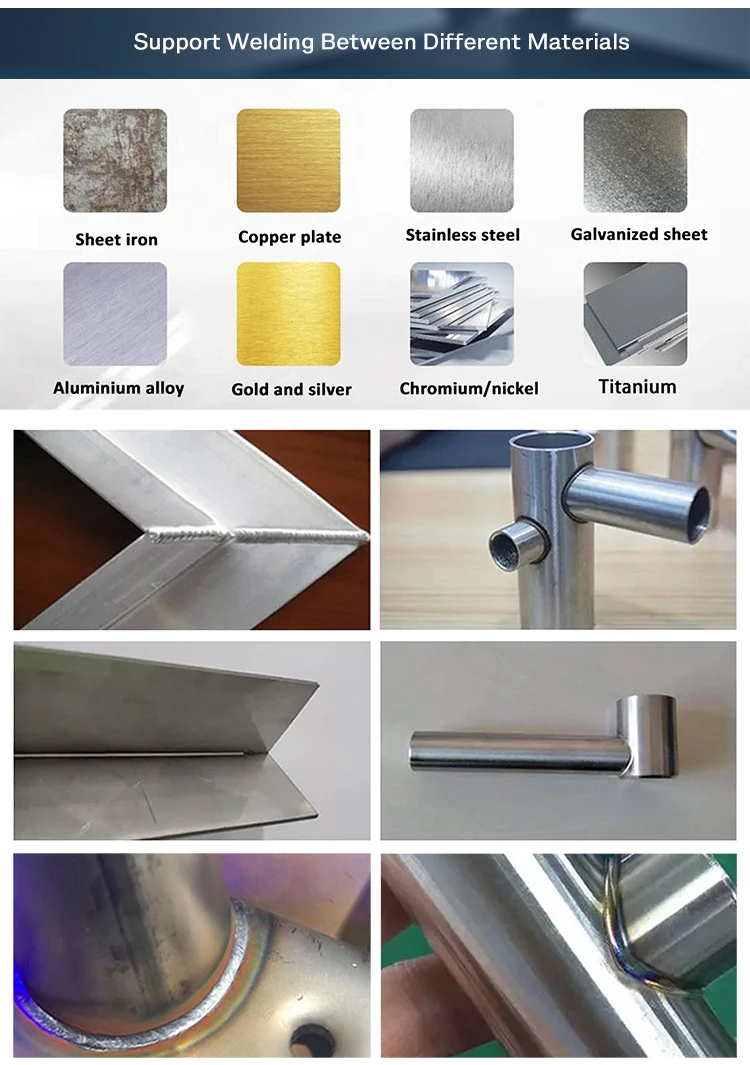

Samples
Company Profile
FAQ
1.How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
What kind of materials mainly? Cutting/engraving, Max thickness for cutting?
How big working area you need?
2.How long can delivery the machine ?
Common machine can be delivered within 7-10 days. Customade machine need 15-45 days.
3.If there is any technical help after we receive the machine?
Yes, we have perfect after-sale service team to supply technical support to our customers.
Our technical can assist you to install machine and give you free training after you receive machine.
4.If there is some problems for some parts during warranty period, will your company repair or replace for me?
Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty
time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including
the consumable parts and Man-made damage.
5.Will the machine will send to my door?
1)Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea
or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you find broker help you to do
customs clearance ).
2)For small size machine, we can quote price with DHL express cost. Then the machine can send to your door.
6.Can I buy spare parts from your company if I have spare parts in the future?
Yes, please. Our company supply spare parts for all of our machine.
7.Give me reasons to chose your company ?
1)Professional factory with competitive price;
2)High quality control and perfect service: All of our machine are adopted top quality parts → Test machine work well for 3 days
before delivery → sent working video and all items photos base on the order list to buyer to check → buyer check everything is
included and satisfied → Professional plywood package to avoid damage → shipping machine
3)Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support
to our clients for free. You can talk with them at any time if you need.
4)Strict implementation of after-sales warranty.
5)The important is that you will receive the Corresponding goods after you do payment.
8.How we pay you?
Please talk with us firstly. After we confirm the machine and optional part, spare parts for order with each other, we will give
you the link to order.
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?
What kind of materials mainly? Cutting/engraving, Max thickness for cutting?
How big working area you need?
2.How long can delivery the machine ?
Common machine can be delivered within 7-10 days. Customade machine need 15-45 days.
3.If there is any technical help after we receive the machine?
Yes, we have perfect after-sale service team to supply technical support to our customers.
Our technical can assist you to install machine and give you free training after you receive machine.
4.If there is some problems for some parts during warranty period, will your company repair or replace for me?
Yes, we will. Please send the main part back to our company, we will repair and send back them to you for free within warranty
time. If the problem part can not be repaired well, we will send new one to you within warranty time for free. PS: Not including
the consumable parts and Man-made damage.
5.Will the machine will send to my door?
1)Usually for large size and heavy machine, we will quote CFR price. The best shipping way for the large and heavy goods is by sea
or air. We ship the goods by sea for shipping free to your base seaport in your country ( Need you find broker help you to do
customs clearance ).
2)For small size machine, we can quote price with DHL express cost. Then the machine can send to your door.
6.Can I buy spare parts from your company if I have spare parts in the future?
Yes, please. Our company supply spare parts for all of our machine.
7.Give me reasons to chose your company ?
1)Professional factory with competitive price;
2)High quality control and perfect service: All of our machine are adopted top quality parts → Test machine work well for 3 days
before delivery → sent working video and all items photos base on the order list to buyer to check → buyer check everything is
included and satisfied → Professional plywood package to avoid damage → shipping machine
3)Supply technical support all life time for our machine; We have professional after-sale service team to supply technical support
to our clients for free. You can talk with them at any time if you need.
4)Strict implementation of after-sales warranty.
5)The important is that you will receive the Corresponding goods after you do payment.
8.How we pay you?
Please talk with us firstly. After we confirm the machine and optional part, spare parts for order with each other, we will give
you the link to order.
