Hot Sale in USA PP PE PA PET Plastic Recycling Granulators Equipment Compacting Water Ring Granulation Machine
- Category: >>>
- Supplier: Jiangsu Acemech Machinery Co. Ltd.
Share on (1601293143786):
Product Overview
Description
Why Choose Us

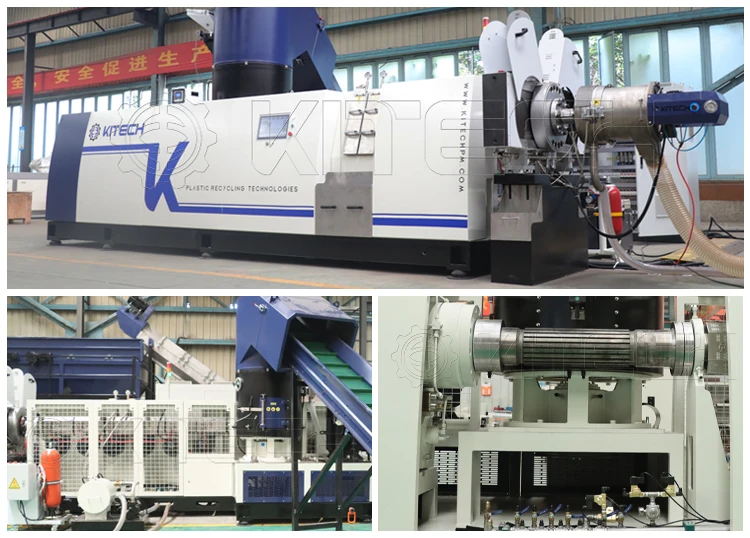

Our Factory
JIANGSU KITECH MACHINERY CO.,LTD
KITECH has been specialized in plastics recycling machines for over25 years.Several experienced engineers are devoted to creating ourequipment with a high level of innovation, durability and operationalreliability. Over 25 years of knowledge and experience in plasticrecycling processing helps us to contribute actively to the successof our customers by offering sustainable solutions that meet industryneeds. KITECH is inspired to continue developing technologies thatare better and more powerful. That is why our R&D team consistingof highly qualified specialists carries our research activities for newpelletizing & recycling systems continuously while perfecting existingmachines.
Our Service
7/24 Online Service
1.Machine running video
2.Watch our factory online
3.More service contact us
3.More service contact us
Successful recycling machine Plant
1.Supply a running recycling machine in your country , you can see machine running directly.
Installation / Debug / Training
1.We will arrange seasoned technician for equipment installation, debug and test production.
2.Our company offers technology
training to the customer in his factory.
training to the customer in his factory.
3.We promise that our goods are all new and not used.
After-sales Service
1.After checking, we offer 12 months as a quality guarantee, free offer wearing parts and offer other parts at the lowest price.
2.If you could not solve the problems, we will arrange a technician to your factory solving the problems.
2.If you could not solve the problems, we will arrange a technician to your factory solving the problems.
3.After quality guarantee, we offer technical support and after-sales service.
Product Description
Machine Model | KCP |
Brand | KITECH |
Applicable material | LDPE, LLDPE, HDPE, PP, BOPP, CPP, EPS, PS, PPS, ABS, PA, PLA |
Capacity | 200-1200KG/H |
Screw diameter | 80-180MM |
Screw design | Single Screw |
L/D ratio | 33-44 |
Screw rpm | 90-180 |
Screw material | 38CrMoAl |
Gearbox type | High torque vertical |
Motor brand | WEG/SIEMENS |
Degassing zone | 2 |
Pelletizer type | Water ring pelletizer |
Total power | 159-674KW |
Delivery time | 2-4 months ready for inspection |
Guarantee | 1 year |
Certificate | CE |

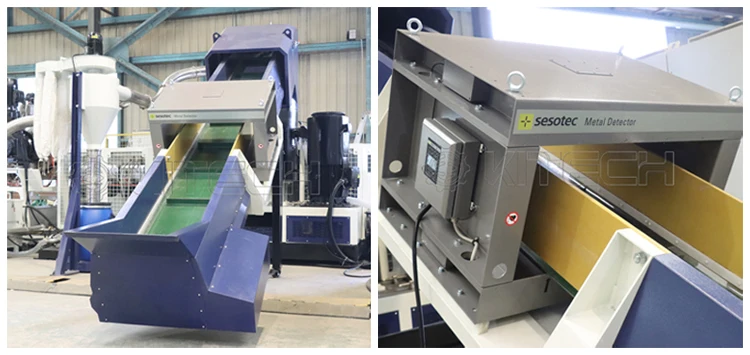

Belt conveyor
>>Belt conveyor as standard feeding device for plastic film, raffia, filament, woven bag, nonwoven fabric, etc.
>>Metal detector can be installed on conveyor as optional item, Detecting and separating the metal to protect the compactor and extruder effectively.

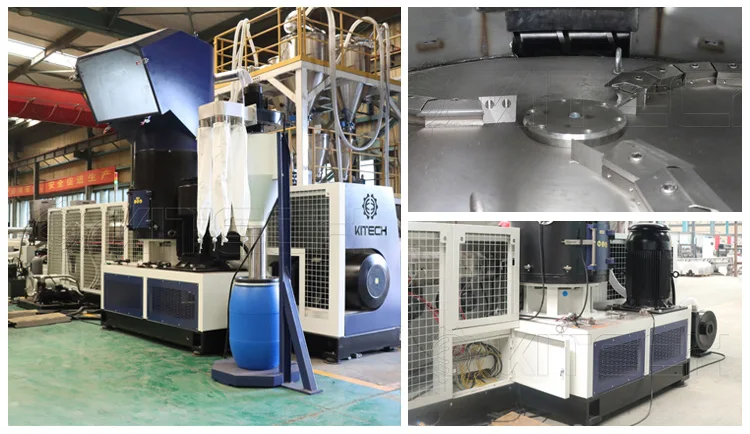

Compactor
>>With optimal design of rotary blades and stationary blades.
>>The material got cutting, mixing and compacting in the compactor uniformly, to ensure the material heated and dried effectively which guarantee a fast and stable feeding from the compactor into the extruder.

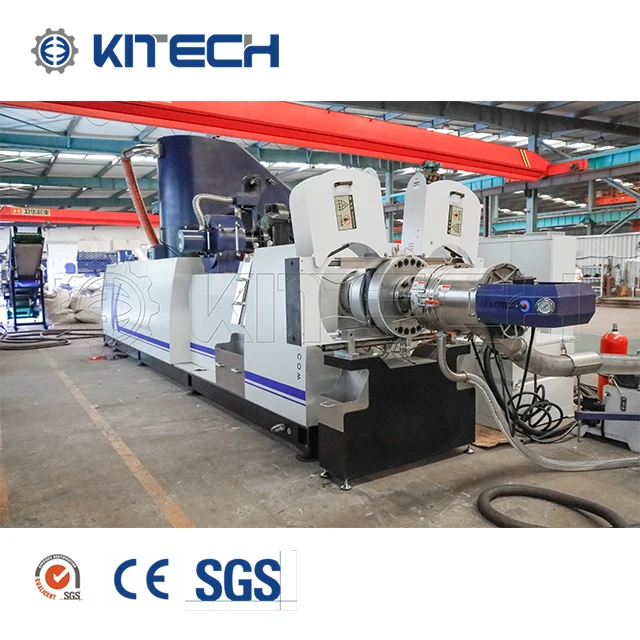

Single screw extruder
>>Referring to the Germany design concept and method, designed for single screw extrusion machine, with the structure of involute gear teeth.
>>High efficiency and low noise, Long use life and low maintenance cost.
Degassing unit
>>Force vacuum degassing system with two vents to get rid of the low molecular, moisture and printing ink effectively, make sure high quality output products.
Filter
>>Plate type, pistion type and automatic self-cleaning type filter, Different choice according to impurity contents in material and client’s habit.
>>Plate type filter is cost-effective and easy to operate which mainly used for regular thermoplastic as usual
filtration solution.
filtration solution.

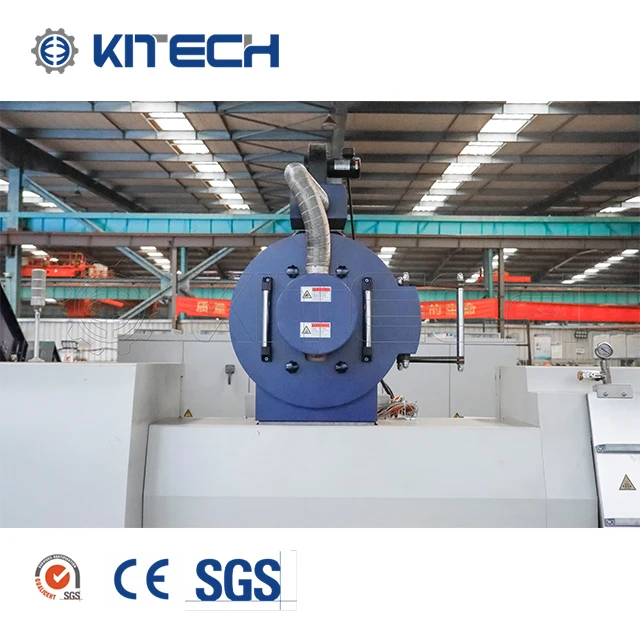

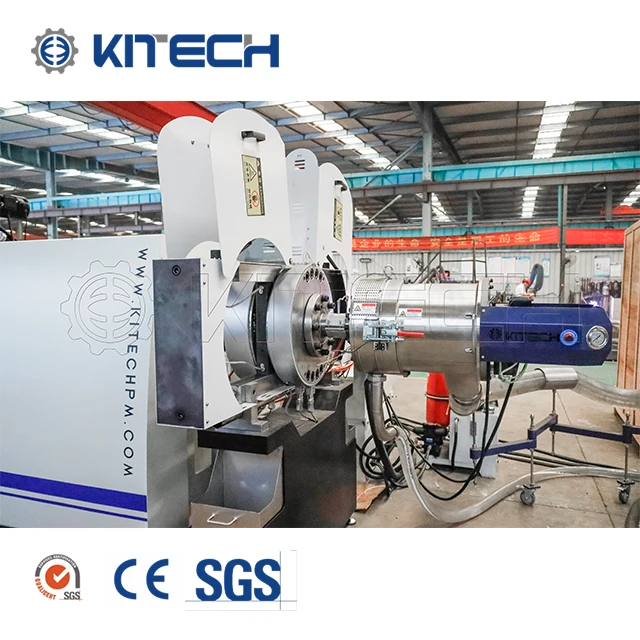

Water ring pelletizer
>>Cutting speed of pelletizer controlled automatically by PLC according to the pressure of die head, which could achieve the uniform size for output pellets.
>>Blades of pelletizer touch to die plate automatically by pneumatic system, make sure blades
contact with die plate properly, easy to operate and abrasion avoided.
contact with die plate properly, easy to operate and abrasion avoided.

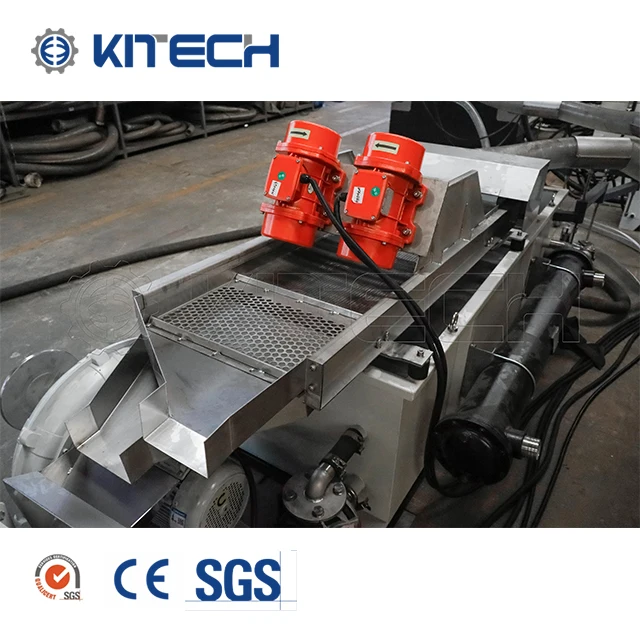

Vibration dryer
>>With heater exchanger at water tank for cooling. Make the water recycling.
>> All accessories and pipe system have soundproof
enclosure with low noise.
>>Two-part filter design, the right side of the water will filter out most of the unqualified particles, the left side will filter
out excessive spilled water impurities, play an auxiliary role.
enclosure with low noise.
>>Two-part filter design, the right side of the water will filter out most of the unqualified particles, the left side will filter
out excessive spilled water impurities, play an auxiliary role.
Centrifugal dryer
>>Centrifugal drying system can get final pellet humudity less than 1%.
>>The brand of the motor is Siemens original motor and the
bearings are SK from Japan,Speed up to 1440 rpm per min.
>>Horizontal design of dewaterer with small floor area.
bearings are SK from Japan,Speed up to 1440 rpm per min.
>>Horizontal design of dewaterer with small floor area.

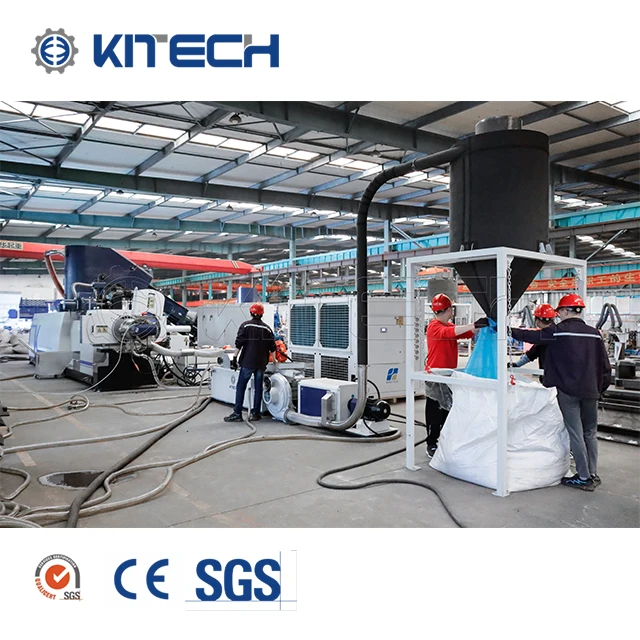

Silo
>>The function of the blower is to transport particles to the silo through stainless steel pipes.
>>Pipes and silos are wrapped with black sound insulation cotton, which reduces the volume from 82dB to 68dB.
>>New design makes it easier to operate.
PLC
>>PLC & Touch screen controller to control the whole system automaticlly .
>>One button " start" to start whole system as per
processing technic.
>>One button " stop" to stop machine with proper sequence.
processing technic.
>>One button " stop" to stop machine with proper sequence.
>>Brand:Siemens brand.
Electrical control cabinet
>>All electrical units mounted in a strong safe electrical cabinet; >>Safety interlock principle applied in the system;
>>Inverter:ABB/FUJI/DELTA;
>>Contactor: Schneider;
>>Adopt CE safety electrical components;
>>Solid state relay is optional for heating control.
>>Inverter:ABB/FUJI/DELTA;
>>Contactor: Schneider;
>>Adopt CE safety electrical components;
>>Solid state relay is optional for heating control.

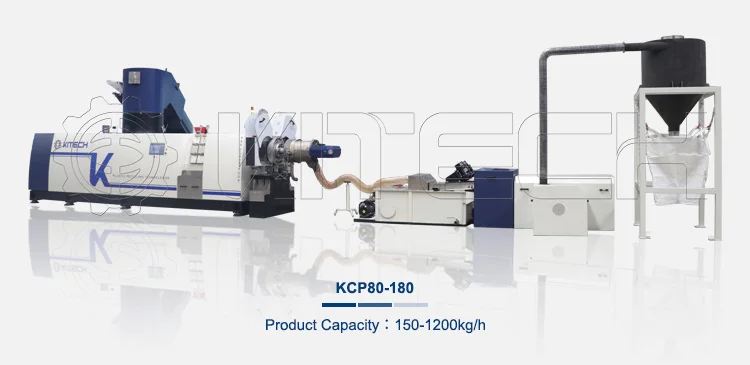

Technology Parameter
Technology Parameter | ||||||||||||||
Type | KCP80 | KCP100 | KCP120 | KCP140 | KCP160 | KCP180 | ||||||||
Capacity (kg/h) | 150-250 | 300-420 | 400-600 | 600-750 | 800-950 | 1000-1200 | ||||||||
Energy consumption (kWh/kg) | 0.2-0.33 | 0.2-0.33 | 0.2-0.33 | 0.2-0.33 | 0.2-0.33 | 0.2-0.33 | ||||||||
A / Length (mm) | 10,300 | 10,300 | 11,400 | 11,400 | 14,800 | 14,800 | ||||||||
B / Width (mm) | 6,200 | 6,200 | 6,450 | 6,450 | 6,850 | 6,850 | ||||||||
C / Height (mm) | 3,500 | 3,750 | 3,980 | 4,250 | 4,460 | 4,850 | ||||||||
Compactor | Volume(L) | 300 | 500 | 800 | 1000 | 1200 | 1400 | |||||||
Motor power(KW) | 37-45 | 55-75 | 75-90 | 90-132 | 132-160 | 160-185 | ||||||||
Extruder | Screw Diameter (mm) | φ80 | φ100 | φ120 | φ140 | φ160 | φ180 | |||||||
L/D | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | ||||||||
Motor power (kW) | 55-75 | 90-110 | 132-160 | 160-200 | 250-315 | 315-355 | ||||||||
Filter (optional) | Two position plate type | ● | ● | ● | ● | ● | ● | |||||||
Two position piston type | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
Back flush piston type | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
Automatic self-cleaning type | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
2nd Extruder (optional) | Screw Diameter (mm) | φ100 | φ120 | φ140 | φ160 | φ180 | φ200 | |||||||
L/D | 10-18 | 10-18 | 10-18 | 10-18 | 10-18 | 10-18 | ||||||||
Motor power (kW) | 37-45 | 45-55 | 55-75 | 75-90 | 90-110 | 110-160 | ||||||||
Downstream (optional) | Water ring pelletizer | ● | ● | ● | ● | ● | ● | |||||||
Strand pelletizer | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
Auto strand pelletizer | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
Underwater pelletizer | ○ | ○ | ○ | ○ | ○ | ○ | ||||||||
● Standard ○ Alternative
FAQ
HOW TO FIND KITECH MACHINERY?
● Search Alibaba, Made in China, Google, Youtube , Facebook and Link in
● Visit exhibition in different countries
● Send KITECH Machinery an request and tell your basic inquiry
● KITECH Machinery sales manager will reply you in short time and add instant chatting tool
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to KITECH Machine site
● The meaning of visiting supplier, because seeing is believing, KITECH Machine with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
SEE KITECH MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF KITECH MACHINERY!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
● Search Alibaba, Made in China, Google, Youtube , Facebook and Link in
● Visit exhibition in different countries
● Send KITECH Machinery an request and tell your basic inquiry
● KITECH Machinery sales manager will reply you in short time and add instant chatting tool
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME.
● If we can fullfill your request and you interested in our products, you may pay a visit to KITECH Machine site
● The meaning of visiting supplier, because seeing is believing, KITECH Machine with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
SEE KITECH MACHINE HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 20 years
●After all the equipment are completed, we will connect all the machines and run the full production line to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF KITECH MACHINERY!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
