Durable Solar Sun Tracker Withstand Harsh Climates Ensure Long Term Solar Energy Gain Pyranometer Sensor
- Category: >>>
- Supplier: BGT Technology (Beijing) Co. Ltd.BGT Ltd.
Share on (1601293198663):
Product Overview
Description
Products Description

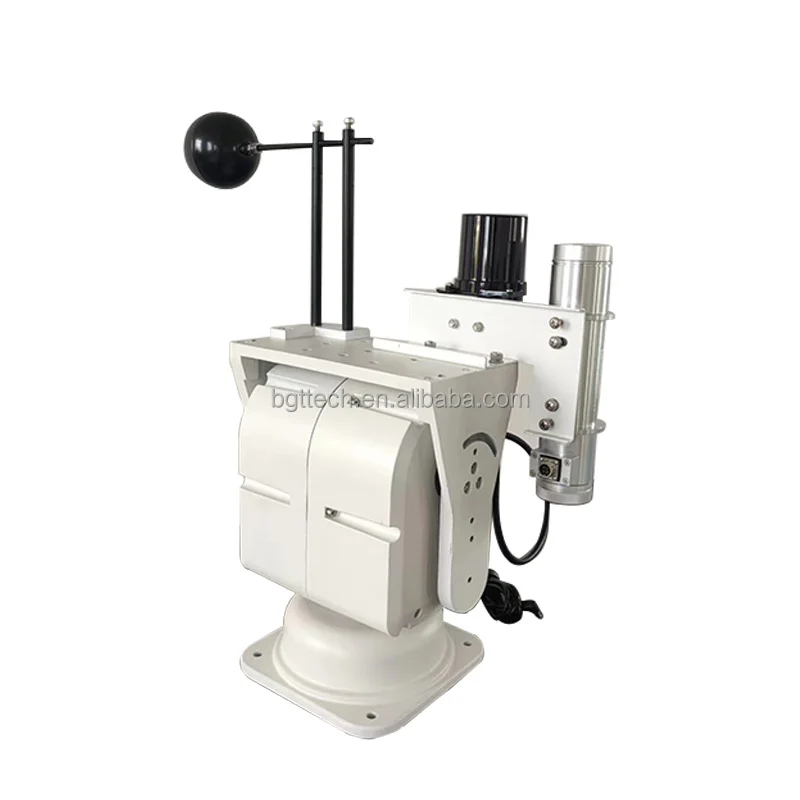

BGT Full Automatic sun solar tracking system solar tracker with Direct solar radiation and scattered radiation sensor
Automatic solar tracker tracking method: the sensor tracking method and solar movement tracking method.The sensor tracking method is real-time sampling by photoelectric converter.Calculate analysis and compare the change Intensity of sunlight.Which drives the mechanism to track the sun.Make the direct radiation tracking measurement more accurate.
Pyrheliometer is the first standard radiometer used to measure radiation perpendicular to the solar surface and scattering from the very narrow circumsolar sky around the sun.The automatic tracker can be used in meteorological stations and scientific research departments to continuously measure the direct radiation intensity of the sky.according to the ISO9060 standard”Specification and classification of solar, hemispheric and direct heliographs”.Can be used as a level 1 standard direct radiation meter.Suitable for all kinds of harsh environment. Fast response, accurate automatic tracking.
The scattered radiation sensor is a first-level radiation meter used to measure the irradiance of the received earth plane. It is mainly used to measure the total solar radiation in the spectral range of 0.3 to 3μm. If placed horizontally downward, the radiation can be measured, and the scattered radiation can be measured with a perfunctory halo.
Pyrheliometer is the first standard radiometer used to measure radiation perpendicular to the solar surface and scattering from the very narrow circumsolar sky around the sun.The automatic tracker can be used in meteorological stations and scientific research departments to continuously measure the direct radiation intensity of the sky.according to the ISO9060 standard”Specification and classification of solar, hemispheric and direct heliographs”.Can be used as a level 1 standard direct radiation meter.Suitable for all kinds of harsh environment. Fast response, accurate automatic tracking.
The scattered radiation sensor is a first-level radiation meter used to measure the irradiance of the received earth plane. It is mainly used to measure the total solar radiation in the spectral range of 0.3 to 3μm. If placed horizontally downward, the radiation can be measured, and the scattered radiation can be measured with a perfunctory halo.
Technical Parameters
Automatic tracking parameter | ||
Tracking accuracy | 0.5° | |
Load | 10kgs | |
Working temperature | -30℃～+60℃ | |
Power supply | 12-20V DC | |
Rotation Angle | Elevation: -5-120 degrees, azimuth 0-350 | |
Tracking method | Sun tracking +GPS tracking | |
Weight | 5 kgs | |
Power consumption | Running power consumption 3.6W, standby power consumption 0.95W | |
Direct solar sensor technical Parameters | ||
Spectral range | 280～3000nm | |
measuring range | 0～2000W/m2 | |
Sensitivity | 7～14μV∕W.m-2 | |
Tracking accuracy | ＜168h±1° | |
time constant | ≤6S(99%) | |
Open angle | 4° | |
Annual stability | ±1%（Sensitivity change rate） | |
Internal resistance | About 10-30 ohms. | |
Power | 9-30V DC | |
Output | RS485 Modbus(External transmitter) 0-20mA | |
measurement accuracy | ＜2% | |
Instrument line length | Standard：3m or customized | |
work environment | -45℃～+55℃,humidity）≤100％RH | |
Rated voltage | 300v,（Temperature class）:80℃ | |
Product weight | 1.5kgs | |
Customer Testimonials
Company Profile
Our Factory

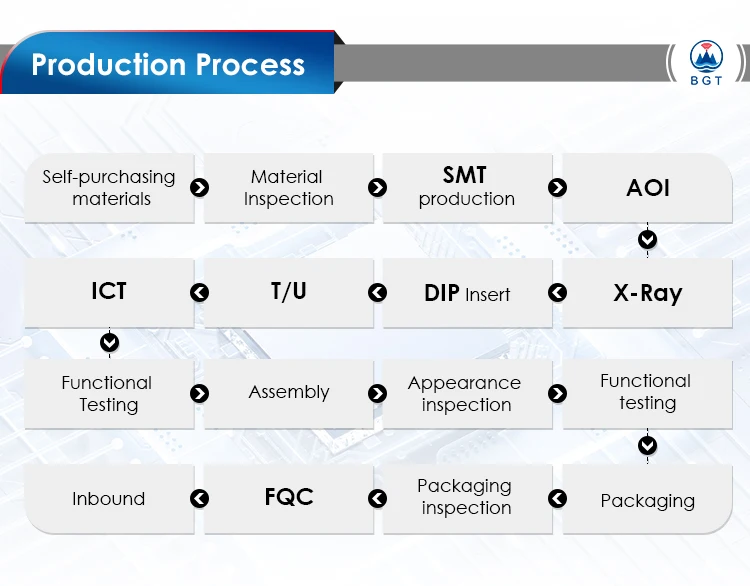

Production Process
