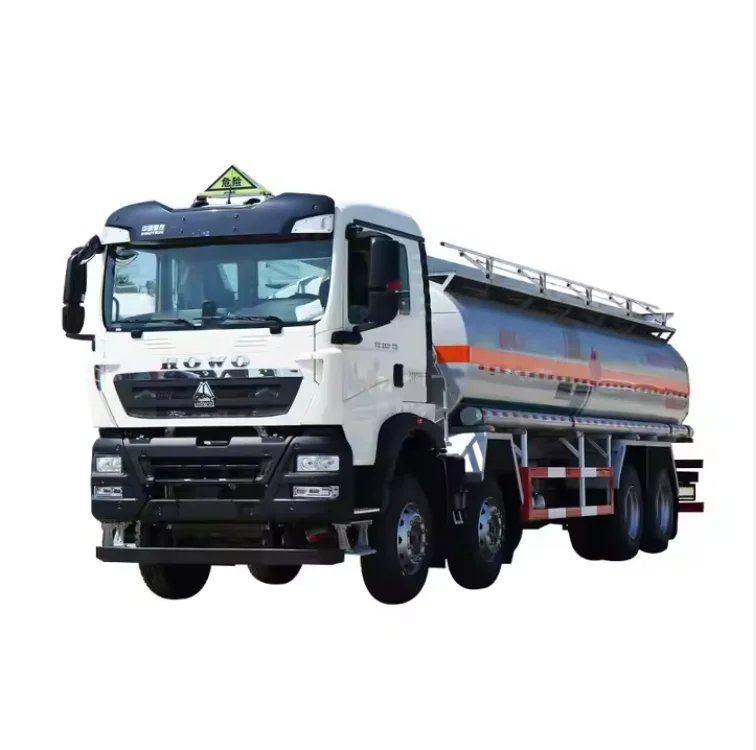

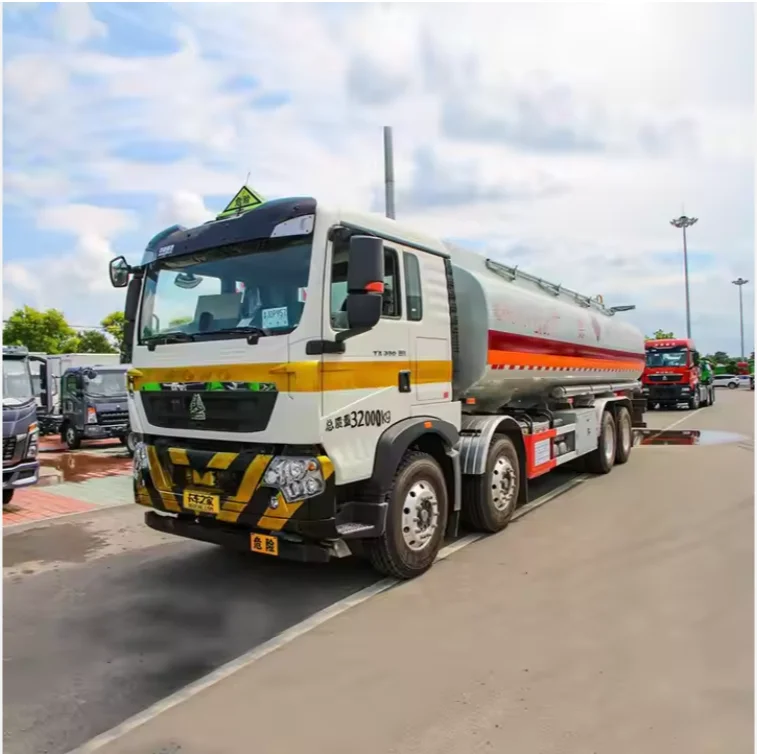

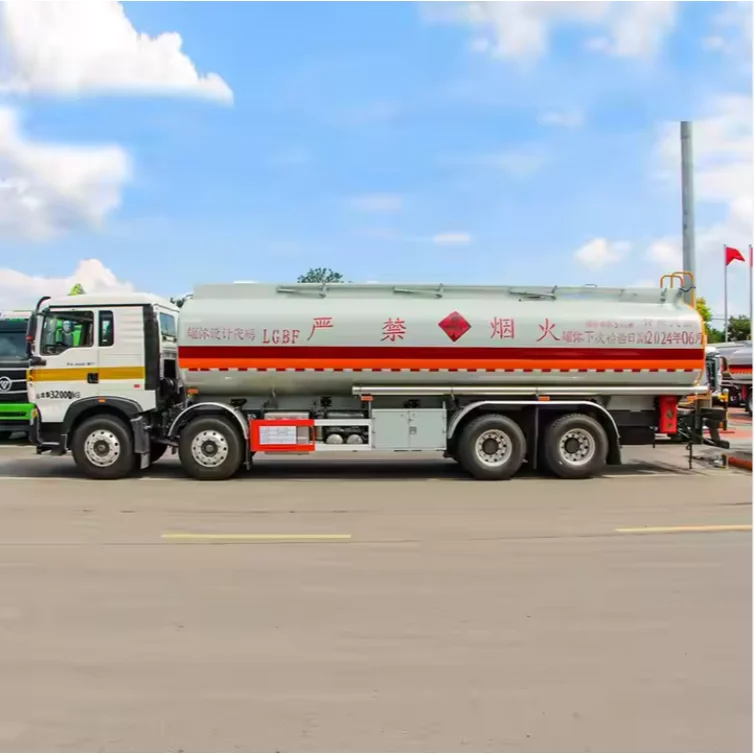

SINOTRUK HOWO New 5000L Steel Fuel Tank Truck Diesel Engine Manual Transmission 8x4 Drive New Generation Diesel Tanker Truck
- Category: >>>
- Supplier: Hubei Tri-Ring International Co. Ltd.Hubei Ltd.
Share on (1601293213887):
Product Overview
Description
| [General Technical Parameters] | |
| Product Name | Fuel Tank Truck |
| Overall Dimensions(mm) | 11850*2500*3335 |
| Curb Weight(Kg) | 12905 |
| Loading Capacity(Kg) | 18900 |
| Total Mass(Kg) | 32000 |
| Tank Thickness(mm) | 5 |
| Tank Volume(m³) | 30.5 |
| Tank Body Material | Carbon Steel |
| Compartment | 2-6 As Customer Need |
| Operating Ambient Temperature (C) | -20~45 |
| Manhole Cover | European Standard |
| Emergency Shutoff Valve | Include |
| Oil Gas Recovery Valve | Include |
| Anti-overflow Alarm Device | Include |
| Fuel Loading Method | Bottom Filling |
| Gear Oil Pump Flow(m³/h) | 60 |
| Toolbox | As Required |
| [Chassis Technical Parameters] | |
| Chassis brand | HOWO |
| Drive Form | 8*4 LHD RHD Optional |
| Steering Device | Power Assisted Steering |
| Wheelbase(mm) | 1800+4575+1400 |
| Engine Brand | SINOTRUK/MC07H.35-60 |
| Horse Power(Kw) | 257 |
| Engine Displacement(ml) | 7360 |
| Engine Emission Standard | Euro 6 |
| Number of Engine Cylinders | 6 |
| Fuel Type | Diesel |
| Gearbox | 9 Speed Forward 1 Reverse |
| Front/Rear Axle(t) | 6.5/7+1.85 |
| Suspension | Multi Leaf Springs |
| Brake System | Front/Rear Drum Full Air Braking |
| Tires Spec | 12R22.518PR |
| Cab Configuration | Single row cab,air conditioning,radio,MP3 and USB port,ABS |
| Rated Voltage | 24V,DC |
| Cab Color | White,other color is optional |

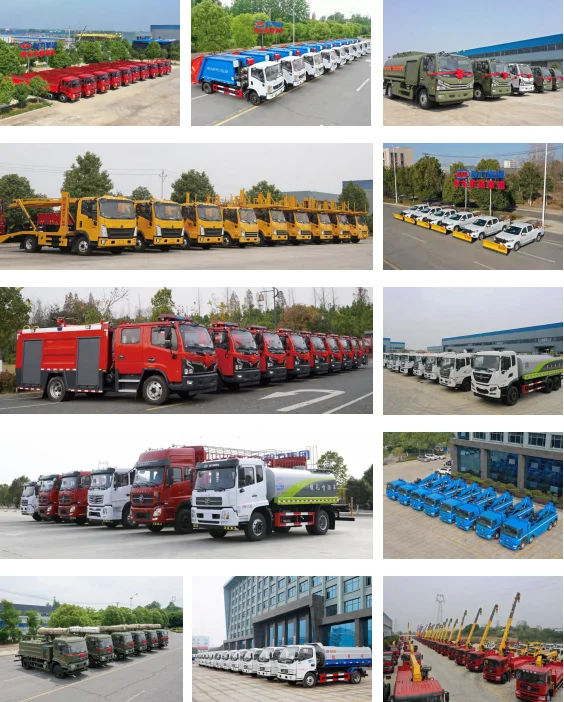

Batch departure (partial)

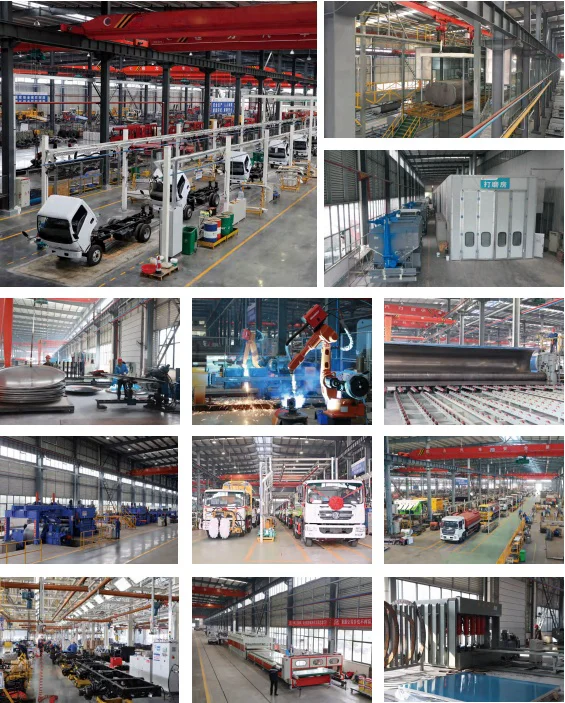

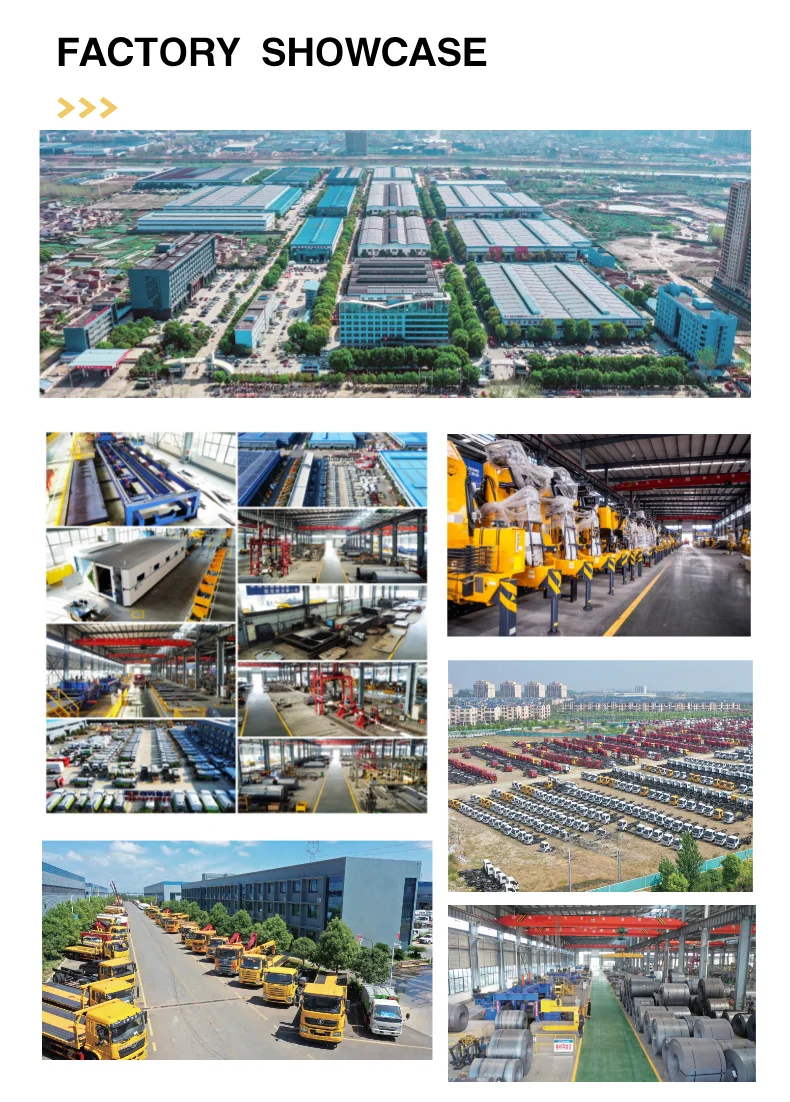

Production equipment (part)

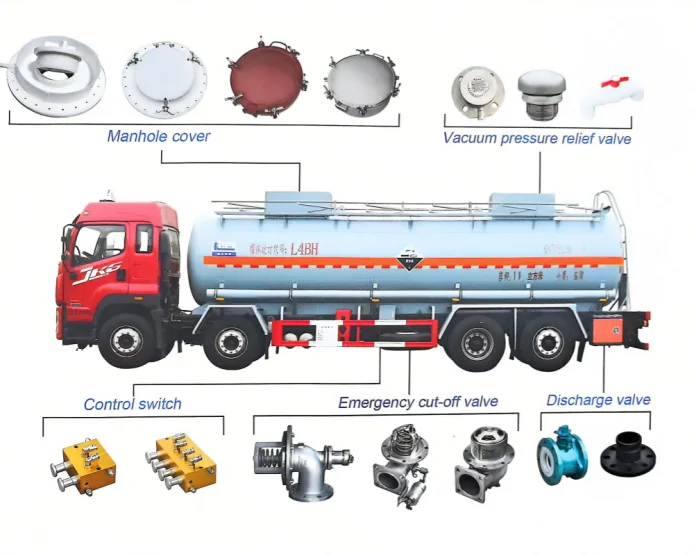

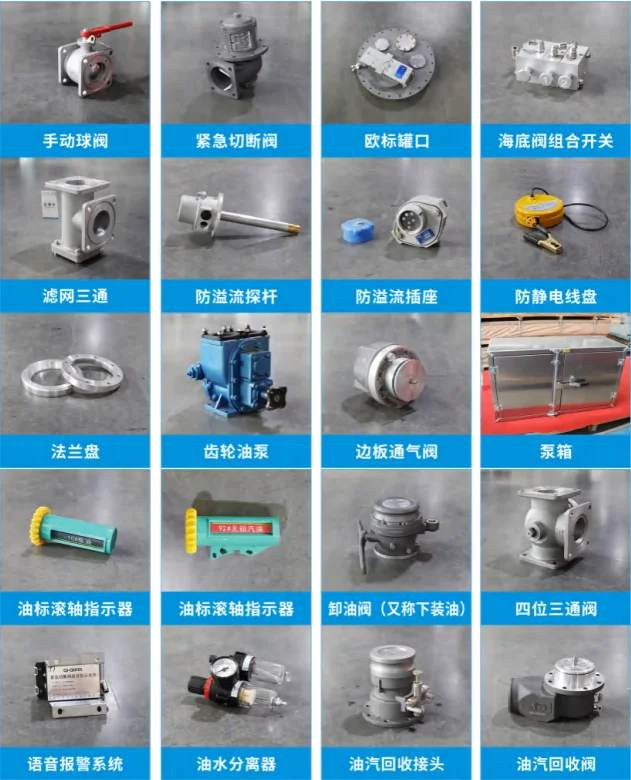

Common accessories for oil trucks
