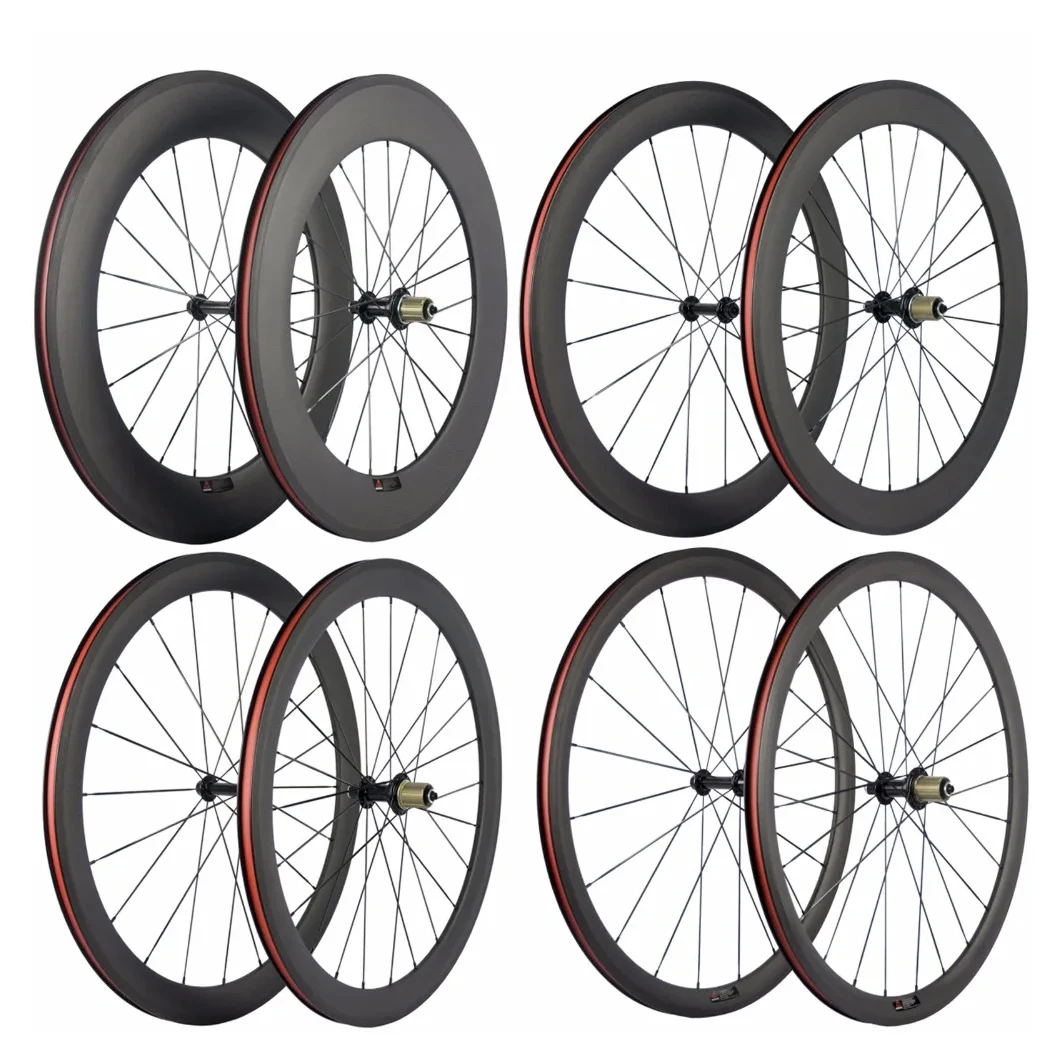

Carbon bicycle Wheelset 35/38/45/50/55/60/88mm depth 700C 25mm wide UltLight cycle carbon rim DISC brake rarchet system wheels
Carbon bicycle Wheelset 35/38/45/50/55/60/88mm depth 700C 25mm wide UltLight cycle carbon rim DISC brake rarchet system wheels
Carbon bicycle Wheelset 35/38/45/50/55/60/88mm depth 700C 25mm wide UltLight cycle carbon rim DISC brake rarchet system wheels
Carbon bicycle Wheelset 35/38/45/50/55/60/88mm depth 700C 25mm wide UltLight cycle carbon rim DISC brake rarchet system wheels
Carbon bicycle Wheelset 35/38/45/50/55/60/88mm depth 700C 25mm wide UltLight cycle carbon rim DISC brake rarchet system wheels
Carbon bicycle Wheelset 35/38/45/50/55/60/88mm depth 700C 25mm wide UltLight cycle carbon rim DISC brake rarchet system wheels
Carbon bicycle Wheelset 35/38/45/50/55/60/88mm depth 700C 25mm wide UltLight cycle carbon rim DISC brake rarchet system wheels

Carbon bicycle Wheelset 35/38/45/50/55/60/88mm depth 700C 25mm wide UltLight cycle carbon rim DISC brake rarchet system wheels

Share on (1601293259145):


Price:

Quantity:


Product Overview

Description


these are the best popular wide for rim brake,hub and spokes and rims finish can customed to build your dream bike wheels!










Rims XL premium lighter model,and with our rachet system hub ,build with pillar 1420 spokes,to make the wheels lighter! STD normal weight build with pillar 1423 spokes



For bike store after you order and test the first  wheels,then you know the quality ,the others all we have discount price for more order,please contact me to Co-operation.

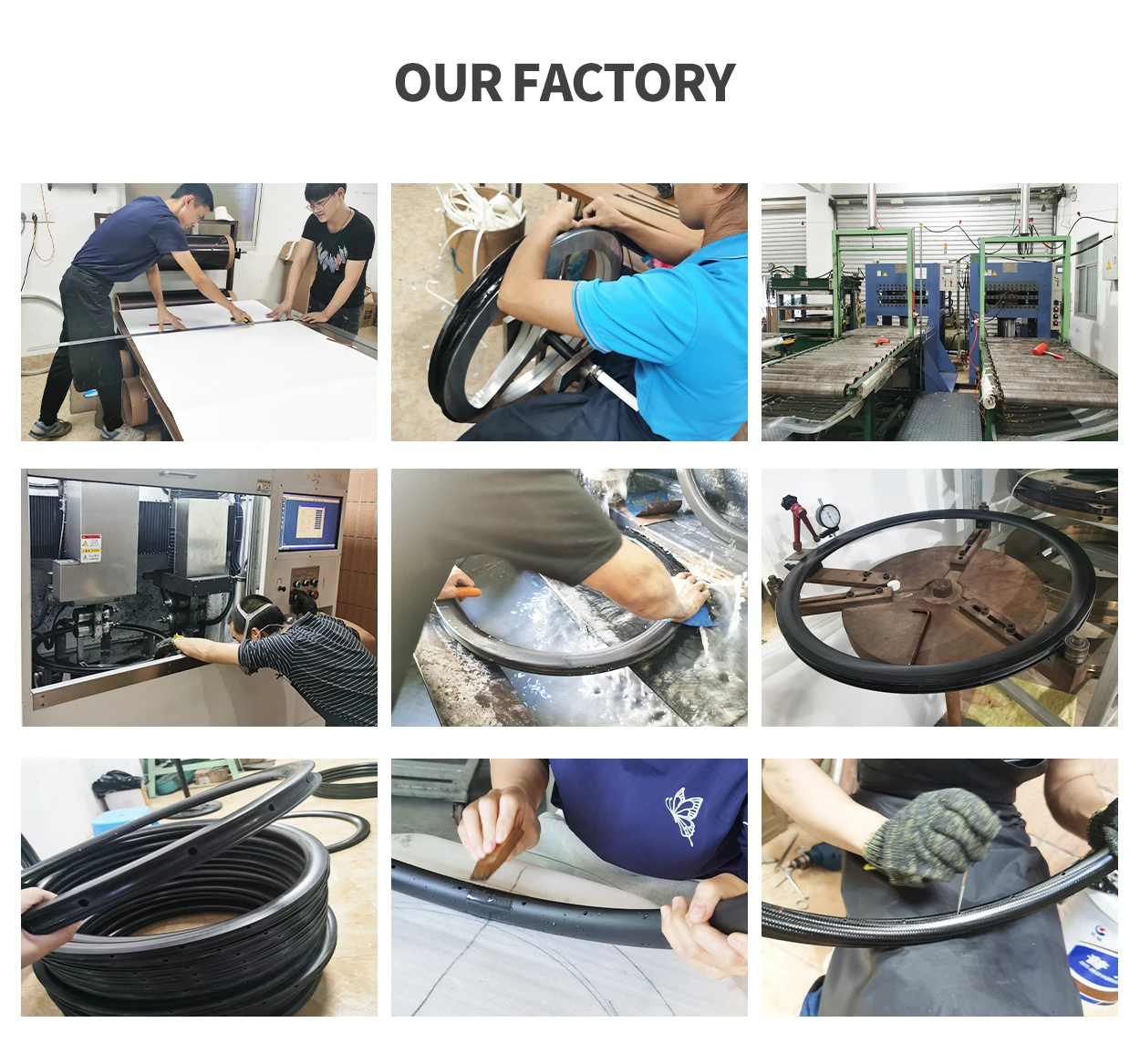

At DFS, we make high-performance rims and other cycling parts from premium carbon fiber.
1.The special material formula makes the rim stiffer, the quality more stable, and it will not deform after long-term use (general rims will deform in about a year, which will appear as bulging spoke holes, bending, and deflection of the rim)
2.The unique production process optimizes the finished product and further enhances the strength of the rim.
3.Lighter rims are made of T700 and T800, with reinforcements at key positions, which not only reduces weight but also increases strength, achieving both rigidity and softness.









Our materials are Toray T700/T800, better ratio, better design, stronger resin, more scientific stacking, so that our carbon fiber rims have good enough quality!

If you're looking for or looking for carbon fiber wheels, try ours, our rims are competition grade. One day you will look at the wheels on the car and exclaim, "It's been a few years, I can't find a reason to change to a new wheel!"



any question just text me , Welcome bicycle shops to cooperate with us!





















  • Rim Model: R25 for road bike

  • Material: Toray T700 & T800 Premium Carbon Fiber

  • Size: 29”/700C (ETRTO 622mm)

  • Intended Use: Road

  • Bead Type: Clincher

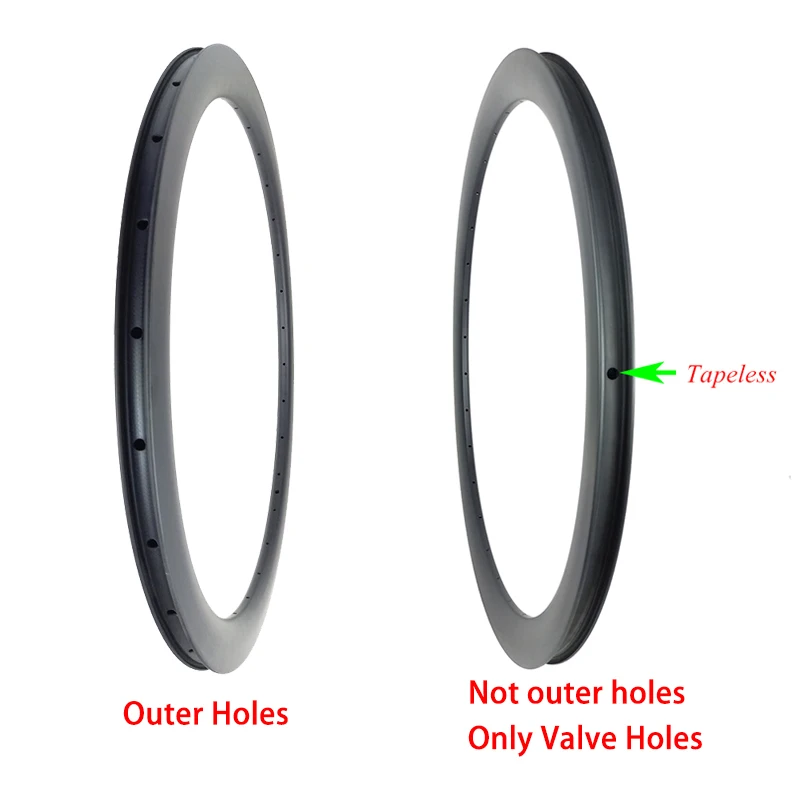

  • Tubeless Capable: Yes

  • Inner/Outer Width: 18mm/25mm

  • Depth: 35/38/45/50/55/60/88mm

  • ERD:570mm/564mm/550mm/540mm/530mm/520mm/464mm

  • Max Cyclist Weight (on flat ground): 135kg/ 298lbs

  • Spoke Hole Angle: ±5°~±8°

  • Spoke Tension: 120~135kgf front disc side and rear drive side

  • Max Tire Pressure (with 25C): 120psi/ 8.27bar

  • Recommended Tire Width: 21C-38C

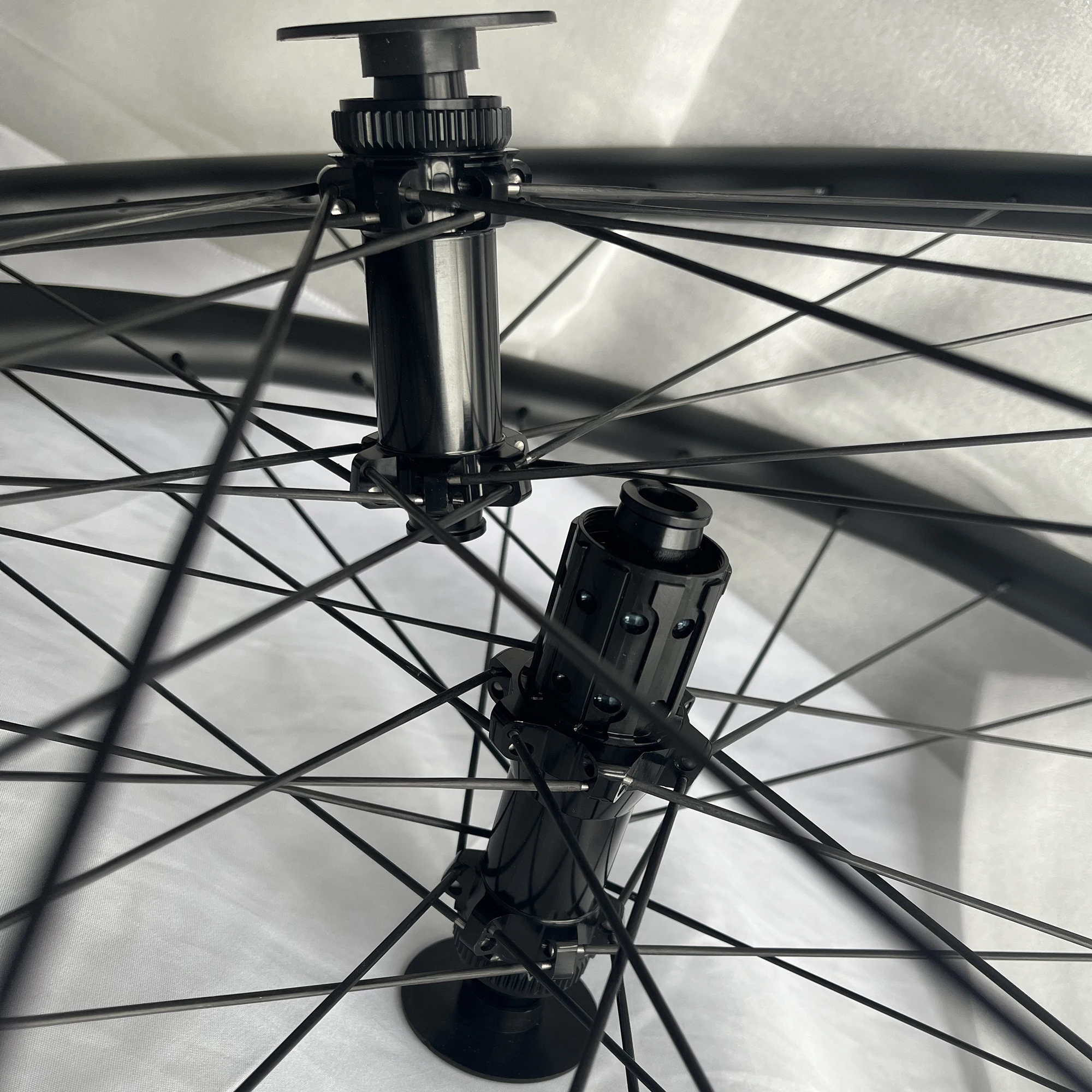

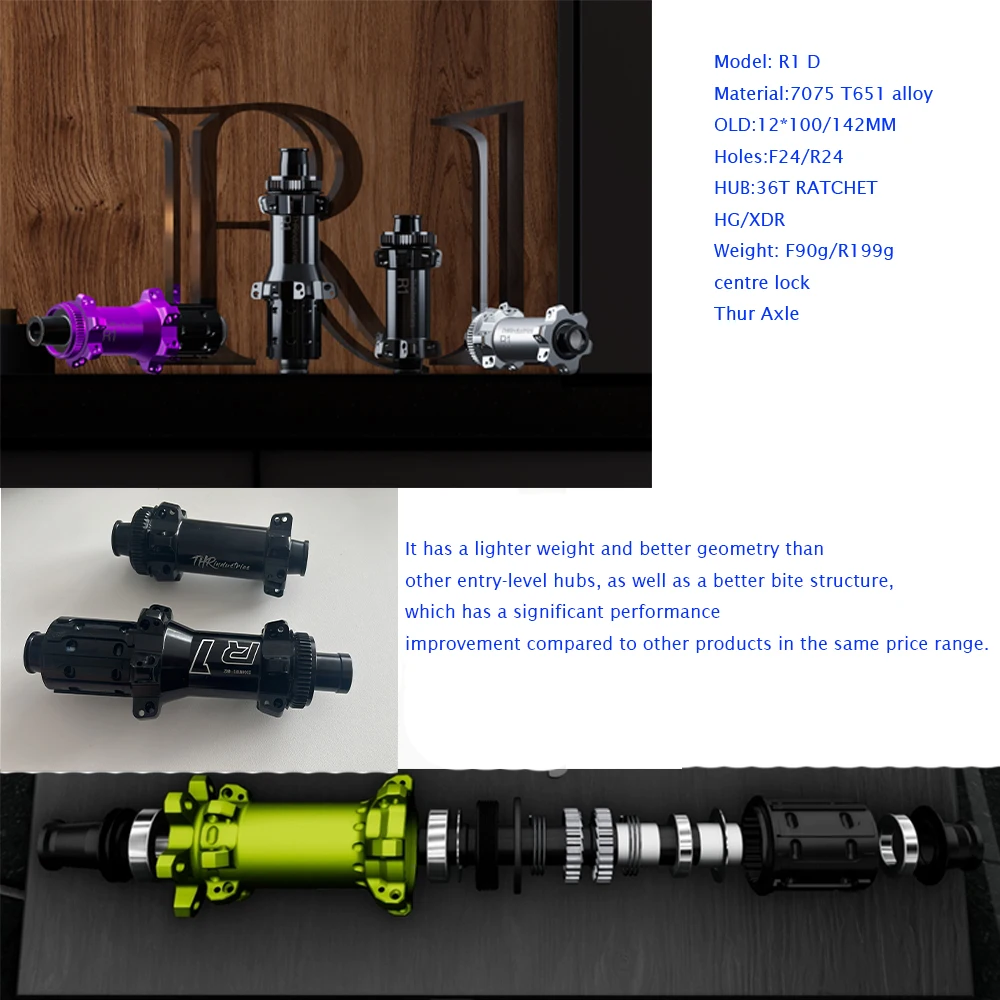

  • Hubs:HUb:R1 DISC rachet system only 286g hub black

















Other Parts

















Leave a note at checkout or contact us if you want spare spokes or nipples.

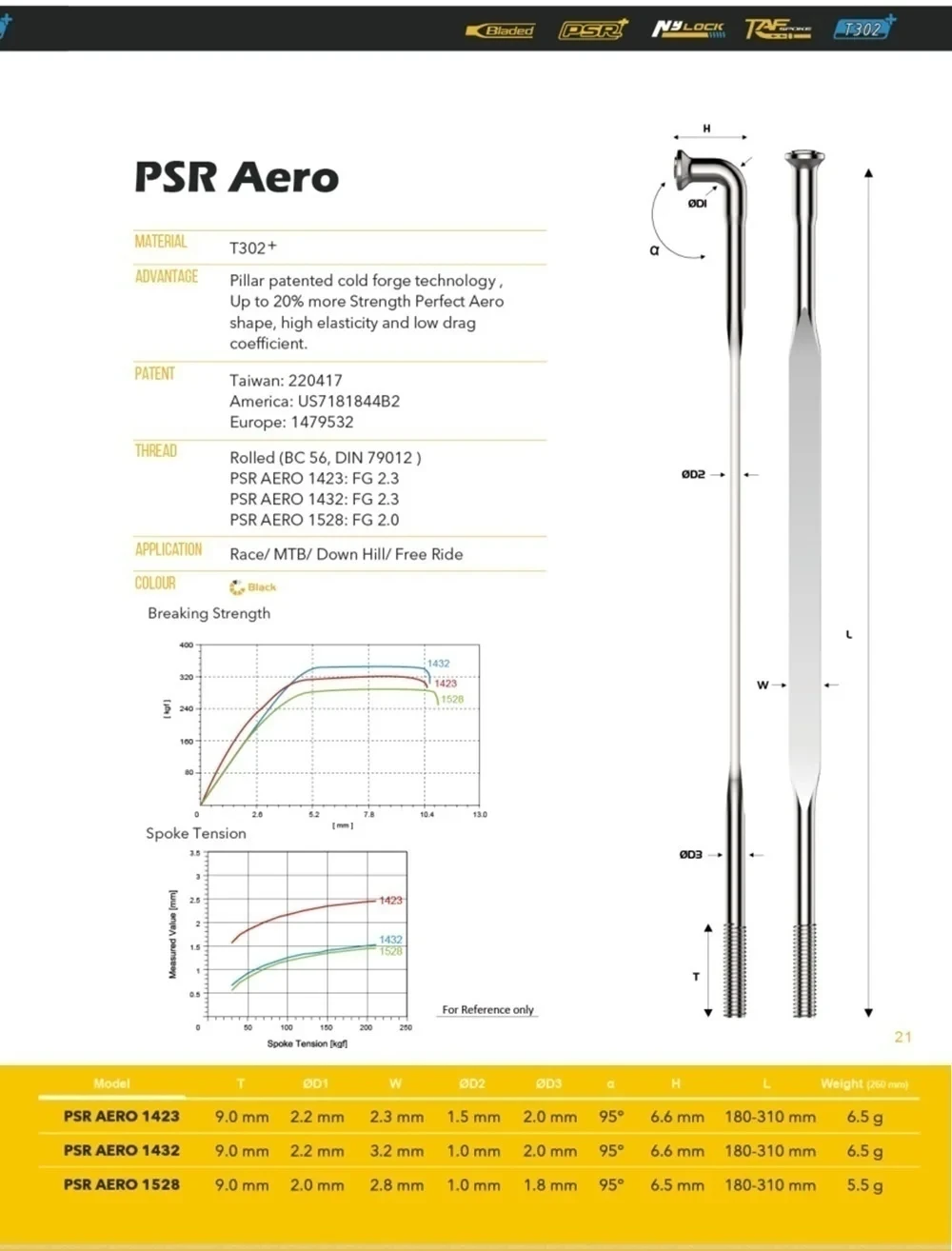

  • Spokes: Pillar Aero 1420 (4.3g)MATCH the PREMIUM XL lighter rim, Pillar Aero X-TRA 1423(6.5g) build with STD weight rim

  • Nipples: Aluminium Black




Flatness:<0.2mm
Roundness:<0.5mm
Casette body:SHIMANO(XDR avaliable)
Warranty:2 year
Quality control:
All pass EN standard test
