Product Overview
Description
Our Advantage
Product Description

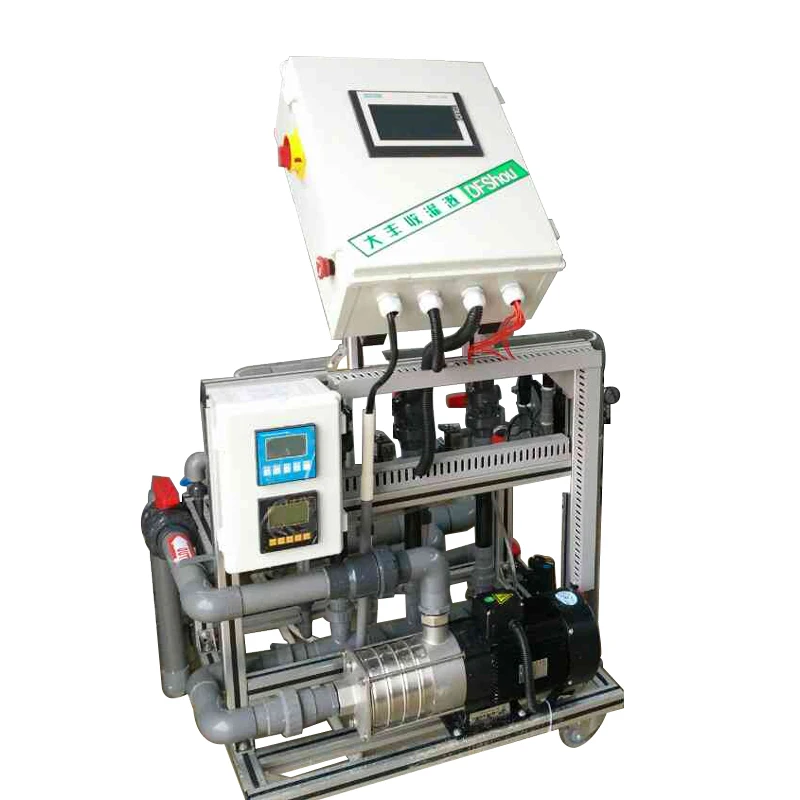

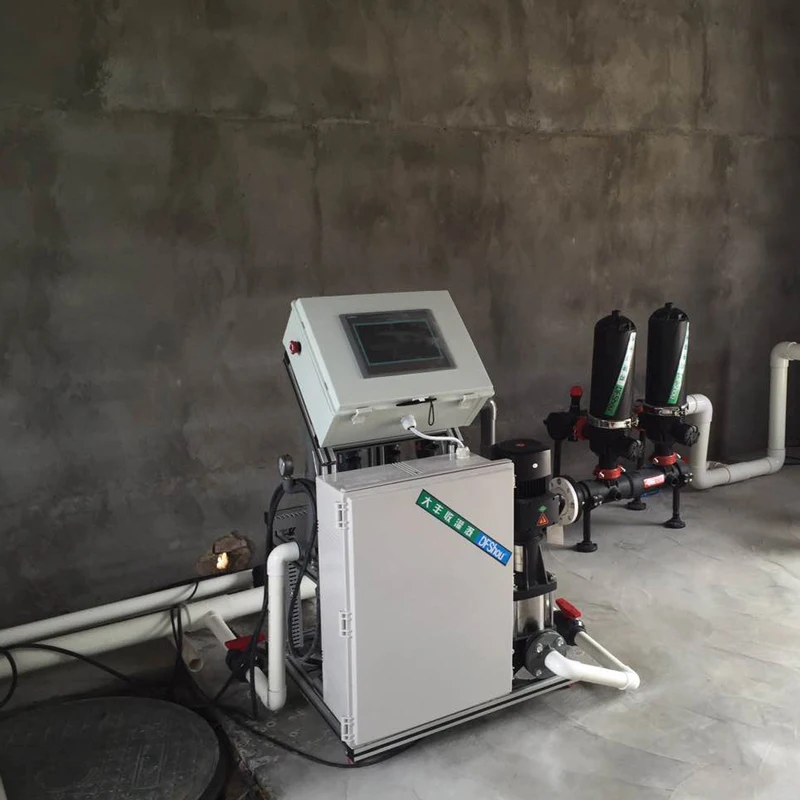

Intelligent Fertigation System
Composition:
Mainly consists of suction ways, flowmeter, EC sensor and indicators, PH sensor and indicators, fertilizing pumps, control systems and control cabinets, etc.
Working principle
In addition to the automatic control of the hydraulic control valve for field irrigation, it is also possible to automatically suction or inject the mixed fertilizer/acid into the irrigation system through the monitoring of the EC, pH and flow rate. The suction of the fertilizers and acid in the dosing channels is based on the Venturi principle.
Features
1.The combination of fertilization and control can control the operation of the external hydraulic control valve in addition to the suction channel and the fertilizer injection pump, and can also control a main valve or a water pump to meet the user's requirements. Extremely accurate and reliable, prevents water and fertilizer waste while reducing environmental pollution.
2.There are two modes of manual control and automatic control. The two modes can be switched freely. Optional mobile phone remote connection control with Android or IOS system.
3.The suction channel adopts DFSGG Venturi suction device, the system is reliable and easy to install and maintain system. With 3 channels as standard. which can be equipped up to 8. The suction volume of single suction channel can be adjusted from 25L/H up to 1000L/H.
4.EC, PH sensor can monitor the EC and PH value of the fertilizing liquid in real-time and display it in EC and PH panel. It is convenient for the user to adjust the rate of fertilization in real-time according to the need. The amount of fertilizer can be adjusted by controlling the valve on the fertilization channel. Ensures very precise and homogeneous nutrient dosing for greenhouse crops.
5.With system inlet pressure monitoring and alarm function, it has the automatic protection function. When abnormal operation of the equipment, the system can automatically stop.
6.All operation interfaces are in English and industrial-grade LCD touch screens are used to facilitate the user's observation, operation and use at the scene. (Language can be set by your requirements)
7.Using advanced intelligent sensor technology, PLC technology, computer control technology, control system adopts 2-tier network topology, Siemens PLC and industrial grade 1 LCD touch screen at the bottom. Easy to operate, reliable performance.
8.Rich historical records and data curves, storage methods can be saved and exported with commonly used SD card or U disk. And there is optional remote control for remote viewing
Note: The machine will always welcome to be customized according to your requirements
Buyer Feedback
Company Information
Packaging & Shipping
FAQ
1.Q: Are you a manufacturer or a trading company?
A: We are a MANUFACTURER specializing in micro-irrigation systems, sprinkler irrigation systems, and garden irrigation systems for many years; our factory has passed both IS09001 and IS014001 environmental management system certifications.
2. Q: How much is the shipping cost of the samples?
A: If you need some samples for testing, we can make them according to your requirements. You should pay the shipping cost of the sample and our sample cost,while the samples cost can be refundable after you place the order if the amount meets our requirement.
3.Q: How long can I expect to receive the samples?
A:The samples will be ready for delivery within one day. The samples will be sent via express and arrive in 5-10 days.
4. Q: Can we print our logo or company name on your products or packaging?
A: Of course you can.
5.Q: How to order?
A: Please send your purchase order to us via the platform or email,Include the following information.
1) Product information-quantity, specifications (size, material, process and packaging requirements, etc.)
2) Delivery time requirements.
3) Transportation information-company name, street address, telephone and fax numbers, destination seaport.
4) The contact information of the freight forwarder (if available in China).
1) Product information-quantity, specifications (size, material, process and packaging requirements, etc.)
2) Delivery time requirements.
3) Transportation information-company name, street address, telephone and fax numbers, destination seaport.
4) The contact information of the freight forwarder (if available in China).
