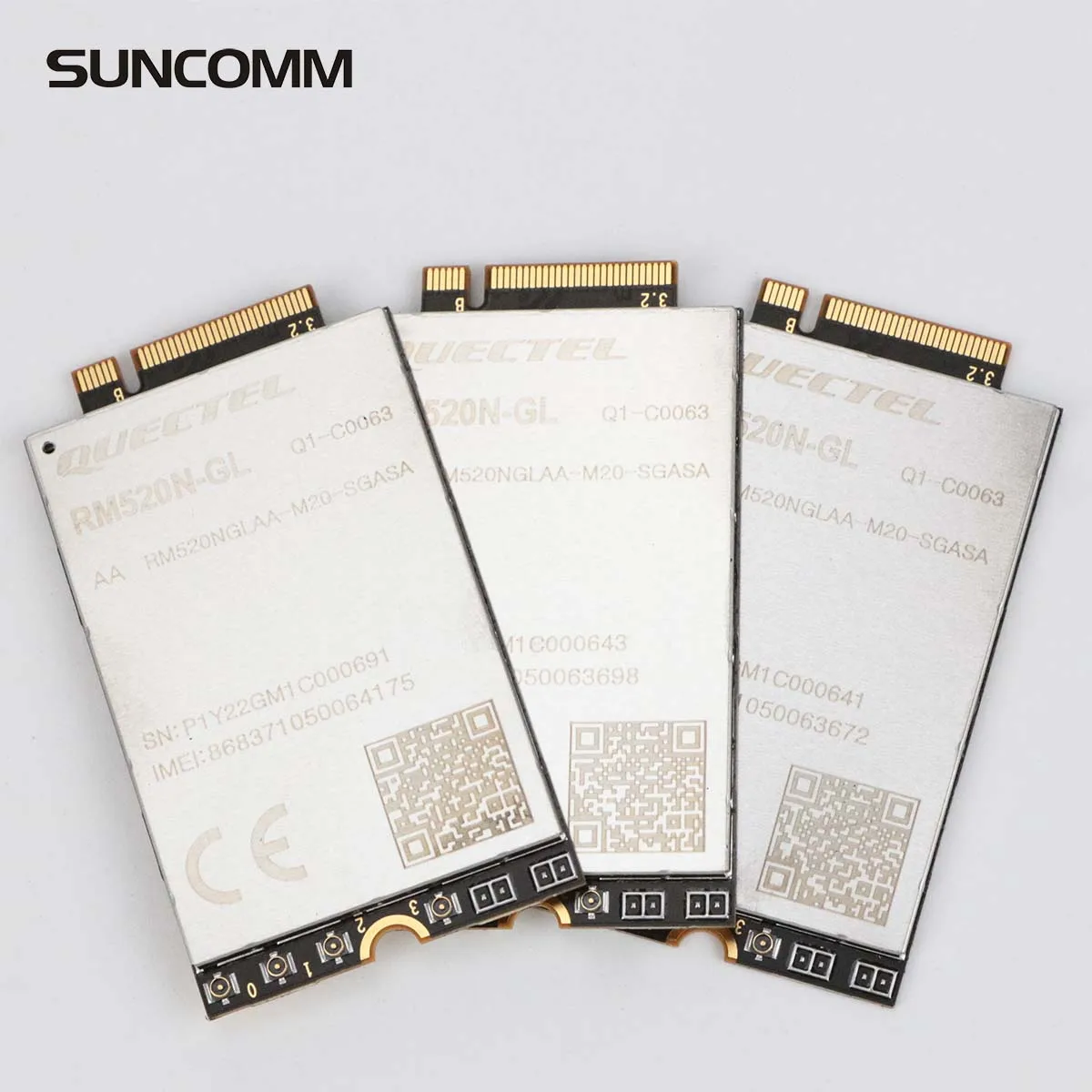

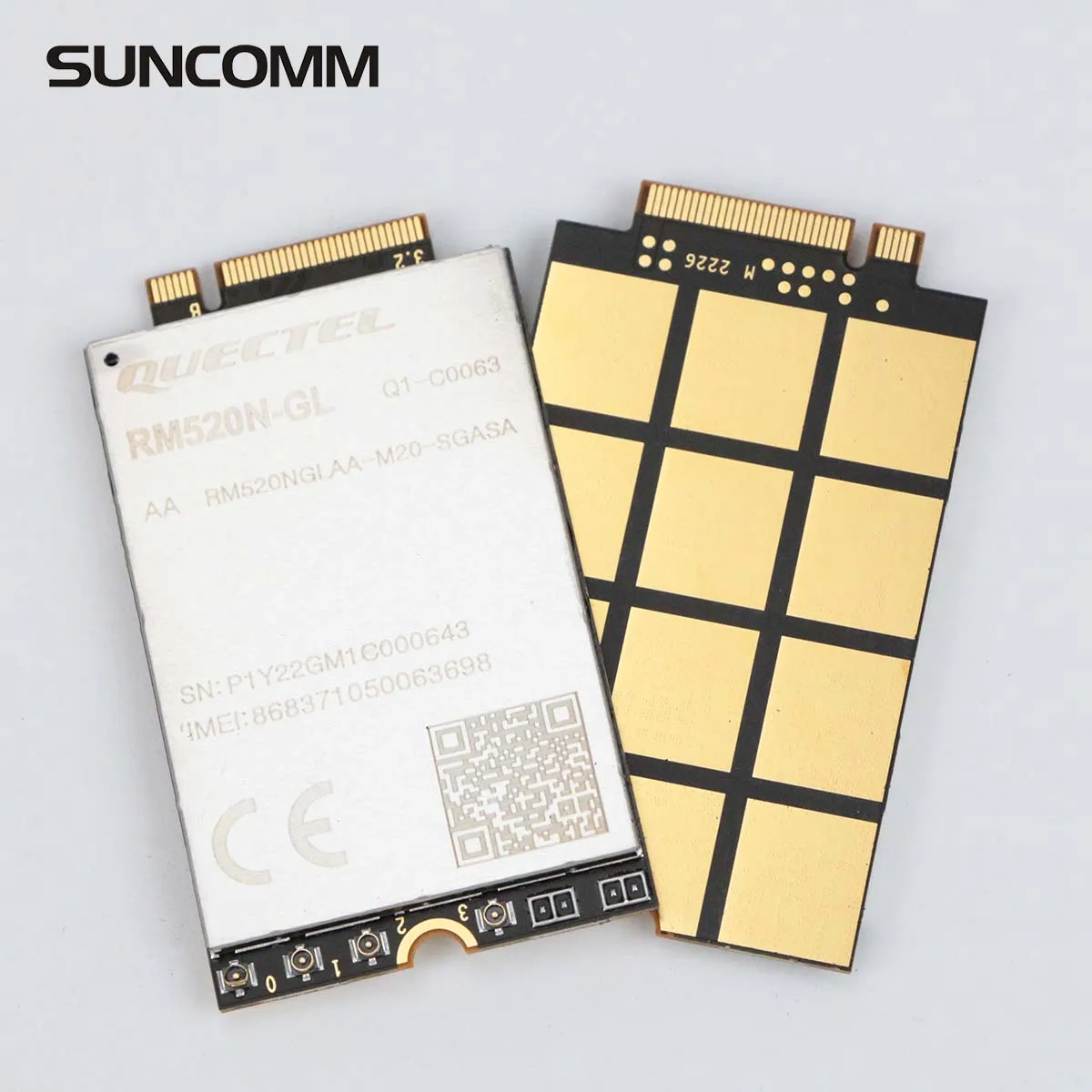

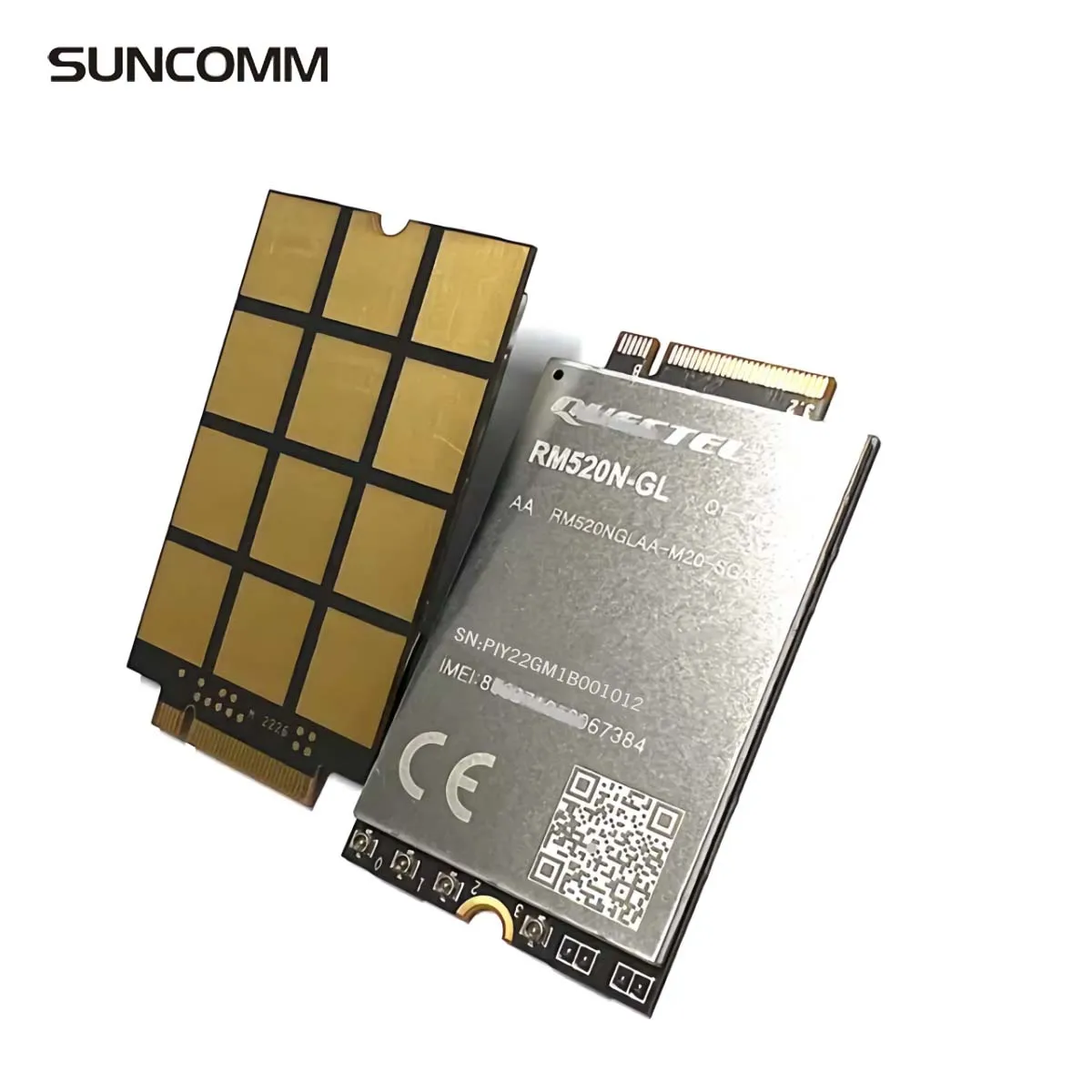

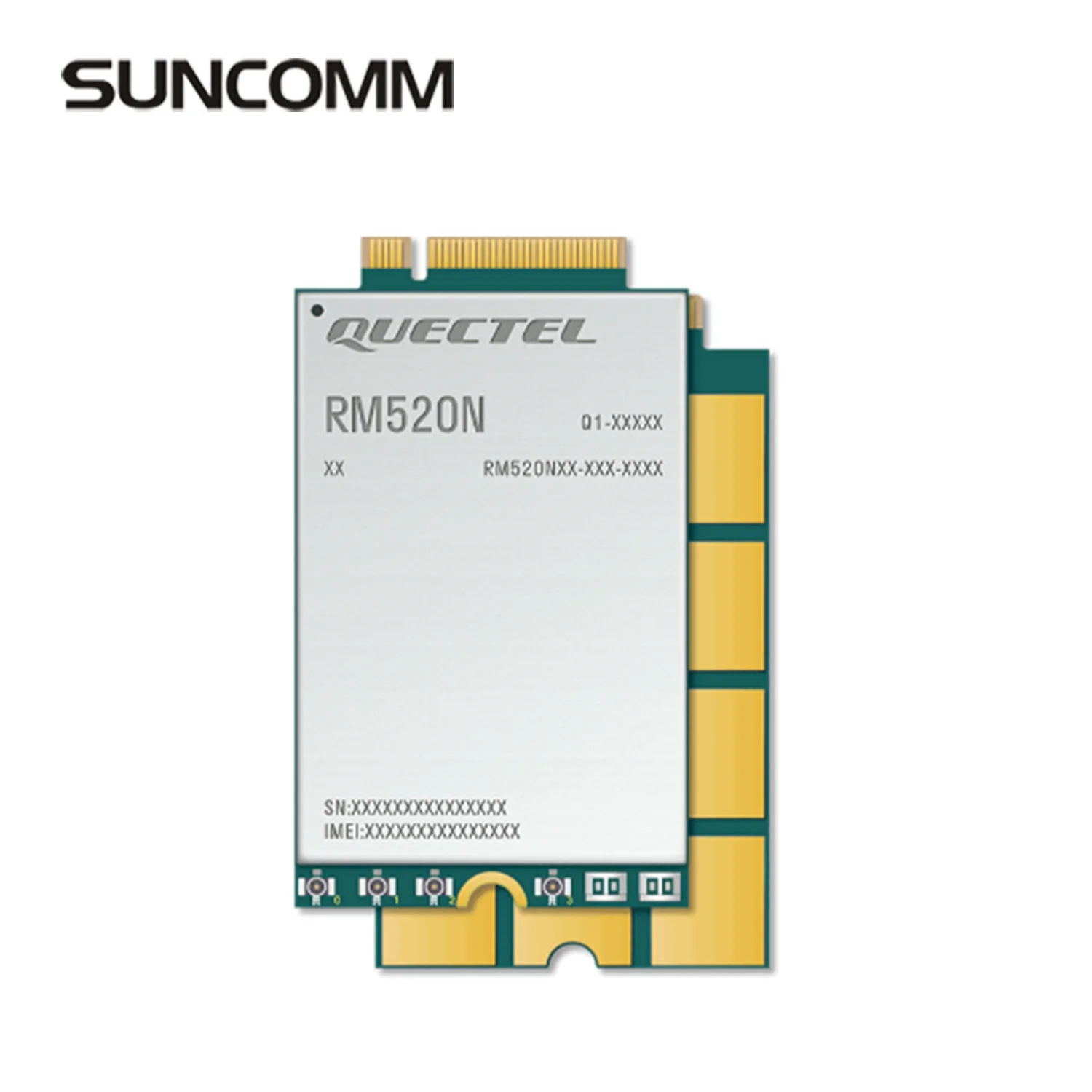

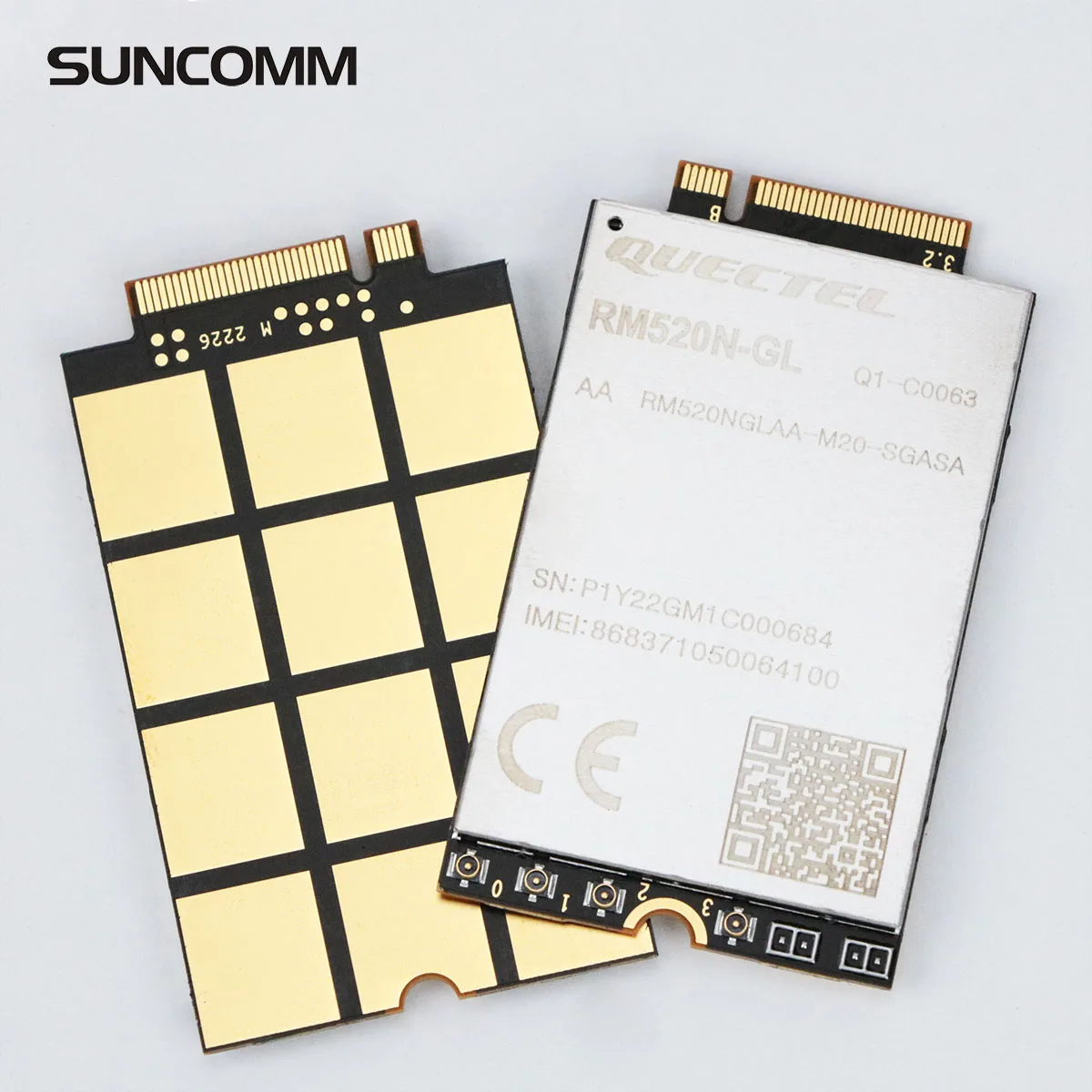

5G NSA/SA Quectel RM520N GL IoT/eMBB supports 5G Sub 6 GHz Module mode 5G Communication Module
- Category: >>>
- Supplier: SHENZHEN SUNCOMM INDUSTRIAL CO. LTD.SHENZHEN LTD.
Share on (1601293293892):
Product Overview
Description
Why Choose Us
Product Details
RM520N-GL is an industrial-grade module for industrial and commercial applications only.
The Global version RM520N-GL nearly covers all the mainstream carriers worldwide. The module supports
Qualcomm® IZatTM location technology Gen9C Lite (GPS, GLONASS, BDS and Galileo). The integrated GNSS receiver
greatly simplifies the product design and provides quicker, more accurate and more dependable positioning
capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB and PCIe drivers for
Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of eMBB and IoT
applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged
tablet PC, video surveillance and digital signage.
The Global version RM520N-GL nearly covers all the mainstream carriers worldwide. The module supports
Qualcomm® IZatTM location technology Gen9C Lite (GPS, GLONASS, BDS and Galileo). The integrated GNSS receiver
greatly simplifies the product design and provides quicker, more accurate and more dependable positioning
capability.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB and PCIe drivers for
Windows 7/8/8.1/10, Linux, Android) extend the applicability of the module to a wide range of eMBB and IoT
applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged
tablet PC, video surveillance and digital signage.
5G Sub-6 | RM520N-GL | |||
Region / Operator | Global | |||
Dimensions (mm) | 30.0 × 52.0 × 2.3 | |||
Weight (g) | Appr. 8.7 | |||
Supply Voltage Range | 3.135–4.4 V, typical 3.7 V | |||
Power Consumption | 195 μA @ Power down 4.7 mA @ Sleep 51 mA @ USB 2.0, Idle 70 mA @ USB 3.0, Idle | |||
Temperature range | ||||
Operating temperature | -30 °C ~ +75 °C | |||
Extended temperature | -40 °C ~ +85 °C | |||
Band information | ||||
5G NR | NSA | n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 | ||
SA | n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/ 28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/ 76/ 77/ 78/ 79 | |||
LTE | LTE-FDD | B1/ 2/ 3/ 4/ 5/ 7/ 8/ 12/ 13/ 14/ 17/ 18/ 19/ 20/ 25/ 26/ 28/ 29/ 30/ 32/ 66/ 71 | ||
LTE-TDD | B34/ 38/ 39/ 40/ 41/ 42/ 43/ 48 | |||
LAA | B46 | |||
UMTS | WCDMA | B1/ 2/ 4/ 5/ 8/ 19 | ||
GNSS | GPS/GLONASS/BDS/Galileo | |||
Certification | ||||
Regulatory | GCF/ PTCRB/ CE/ Anatel*/ CCC/ RCM/ IC/ FCC/ JATE*/ TELEC*/ KC*/ NCC* | |||
Carrier | T-Mobile*/ AT&T*/ Verizon*/ Deutsche Telekom* | |||
Others | RoHS | |||
Data Rate (Max.) ① | ||||
5G SA Sub-6 | DL 2.4 Gbps; UL 900 Mbps | |||
5G NSA Sub-6 | DL 3.4 Gbps; UL 550 Mbps | |||
LTE | DL 1.6 Gbps; UL 200 Mbps | |||
WCDMA | DL 42 Mbps; UL 5.76 Mbps | |||
interface | ||||
(U)SIM × 2 USB 2.0 × 1 USB 3.0/3.1 × 1 PCIe 4.0 × 1 Antenna (Sub-6/GNSS) × 4 | ||||
Voice | Digital Audio and VoLTE (Voice over LTE) (Optional) | |||
Outstanding Features | ||||
(U)SIM Card Detection, eSIM（optional） | ||||
DTMF*，DFOTA（support） | ||||
