CE EPA EURO 5 diesel fuel spider crane portable lifting crane machine build 3 ton crawler 2t 3t 5t 8t mini spider crane
- Category: >>>
- Supplier: Henan Lichi Intelligent Equipment Co. Ltd.Henan Ltd.
Share on (1601293357148):
Product Overview
Description
Product Description
The spider crane complements traditional cranes, addressing hoisting and construction challenges in specialized environments and confined spaces. With excellent accessibility, it significantly enhances both safety and efficiency during operations. As society progresses, hoisting and handling are becoming increasingly mechanized, and commercial plazas are rising. Spider crane rentals offer the ability to maneuver and adapt in tight spaces, enabling smooth and efficient hoisting and handling.
| Model | KB3.0 B | KB3.0 A | KB3.0E | ||||
| diesel engine+electric motor | gasoline engine+electric motor | battery+electric motor | |||||
| Capacity | 2.95T*1.3m | ||||||
| Working Radius | 8.25m*0.15T | ||||||
| Ground Lifting Height | 9.6m (4 falls) | ||||||
Winch Device | winch | Driven by hydraulic motor, two speeds | |||||
| Hook Speed | low speed 5.3m/min high speed 10.2m/min | 0-10.8m/min | |||||
| Rope type | φ8mm×110m (max) | ||||||
Telescopic System | Boom Form | U type automatic 5 section | |||||
| Boom Length | 2.66m-8.98m | ||||||
| Telescopic Length/Time | 25sec( fully extended) | 20sec( fully extended) | |||||
| Up and Downs | Boom Angle/Time | 0~75°/18sec | |||||
Slew System | Slew Angle/ Speed | 0-360°/40sec | |||||
Outrigger | Outrigger Active Form | manual adjustment for the 1 section, automatic for the 2,3 section | |||||
| Maximum Extended Dimensions | 4290mmX3885mm | ||||||
Traction system | Walking Way | driven by hydraulic motor, high/low speed | |||||
| Walking Speed | 0-1.6,0~2.9km/ h | 0-2.5km/ h | |||||
| Grade Ability | 20° | ||||||
| Ground Length×Width | 1000mm×200 mm | ||||||
Electric Motor | Model | YYB112M-4(Three-phase AC asynchronous motor) | |||||
| Voltage | AC380V(50Hz) | ||||||
| Power/Speed | 4kw/1440 min-1 | ||||||
| Dimension | Length×Width×Height | 2890mm×800mm×1700mm | |||||
| Tank Capacity | 40L | ||||||
| Vehicle weight | 2400Kg | 2240Kg | 2400Kg | ||||
We Have More Series Of Products, Click Here To Learn More
Hot Sale

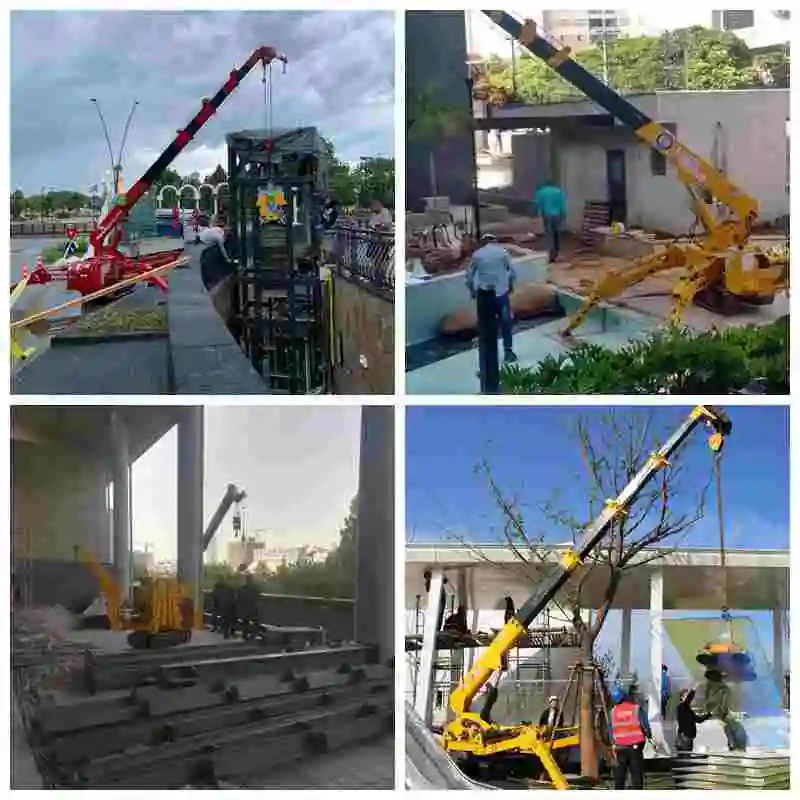

Application

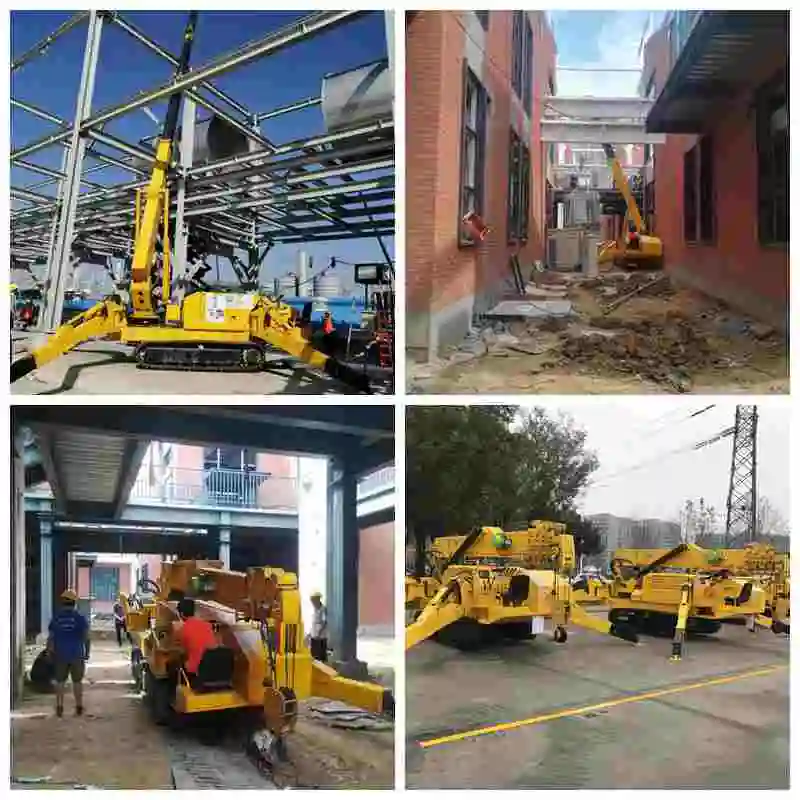

Spider cranes are commonly used in confined or hard-to-reach spaces where traditional cranes cannot operate efficiently. They are ideal for urban construction sites, indoor installations, and projects in places like shopping malls, warehouses, and high-rise buildings. Their compact size and mobility make them perfect for navigating tight spaces, lifting heavy loads in narrow corridors, or working on multi-story buildings. Spider cranes are also used in bridge construction, maintenance of utilities, and other situations requiring precise, flexible lifting in challenging environments.

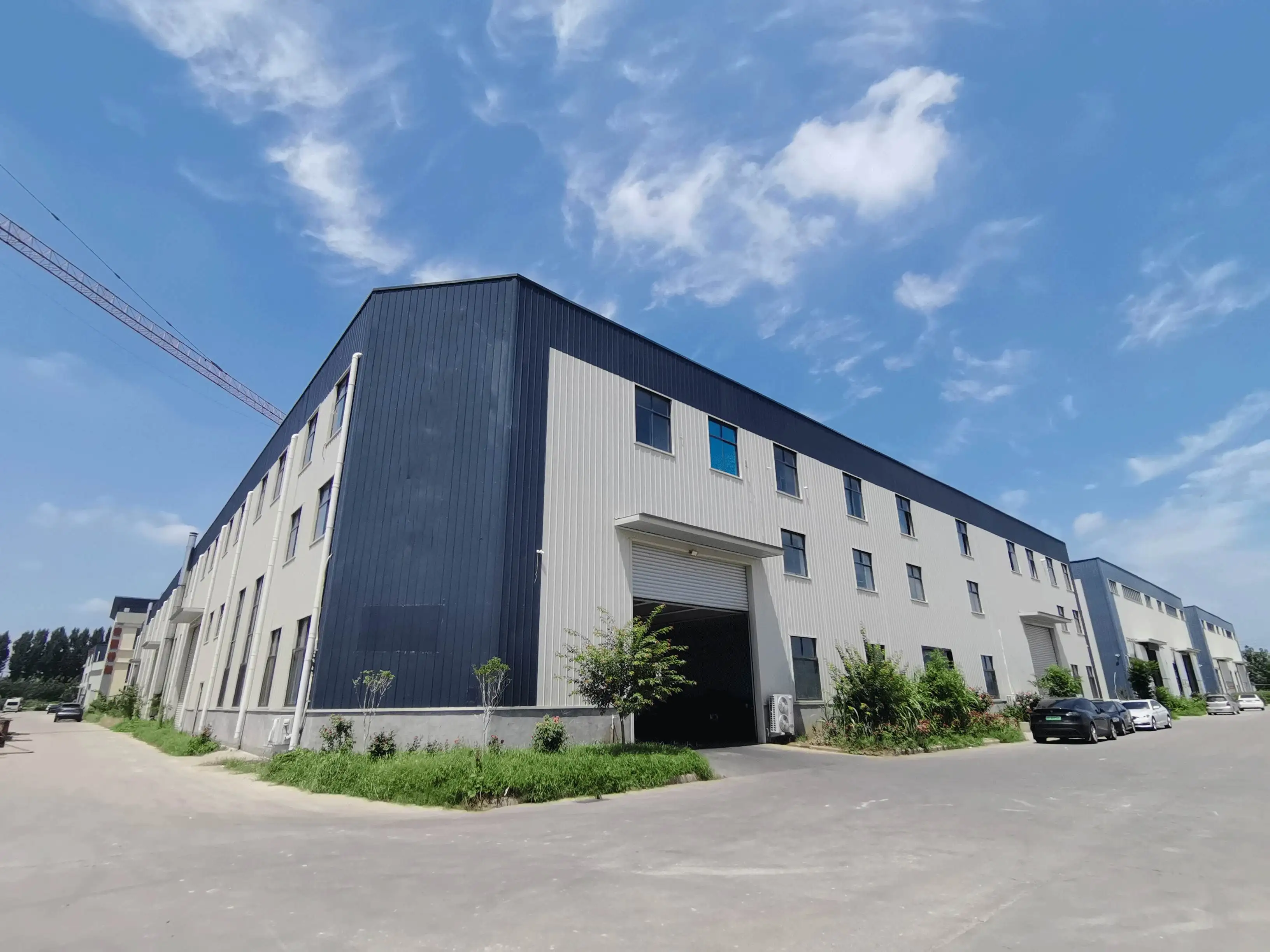

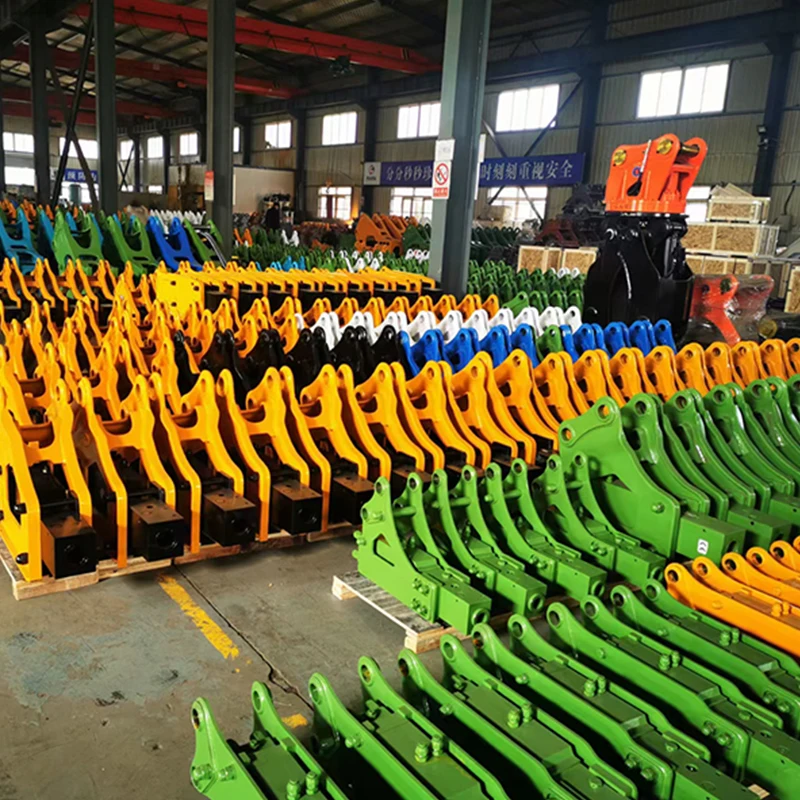

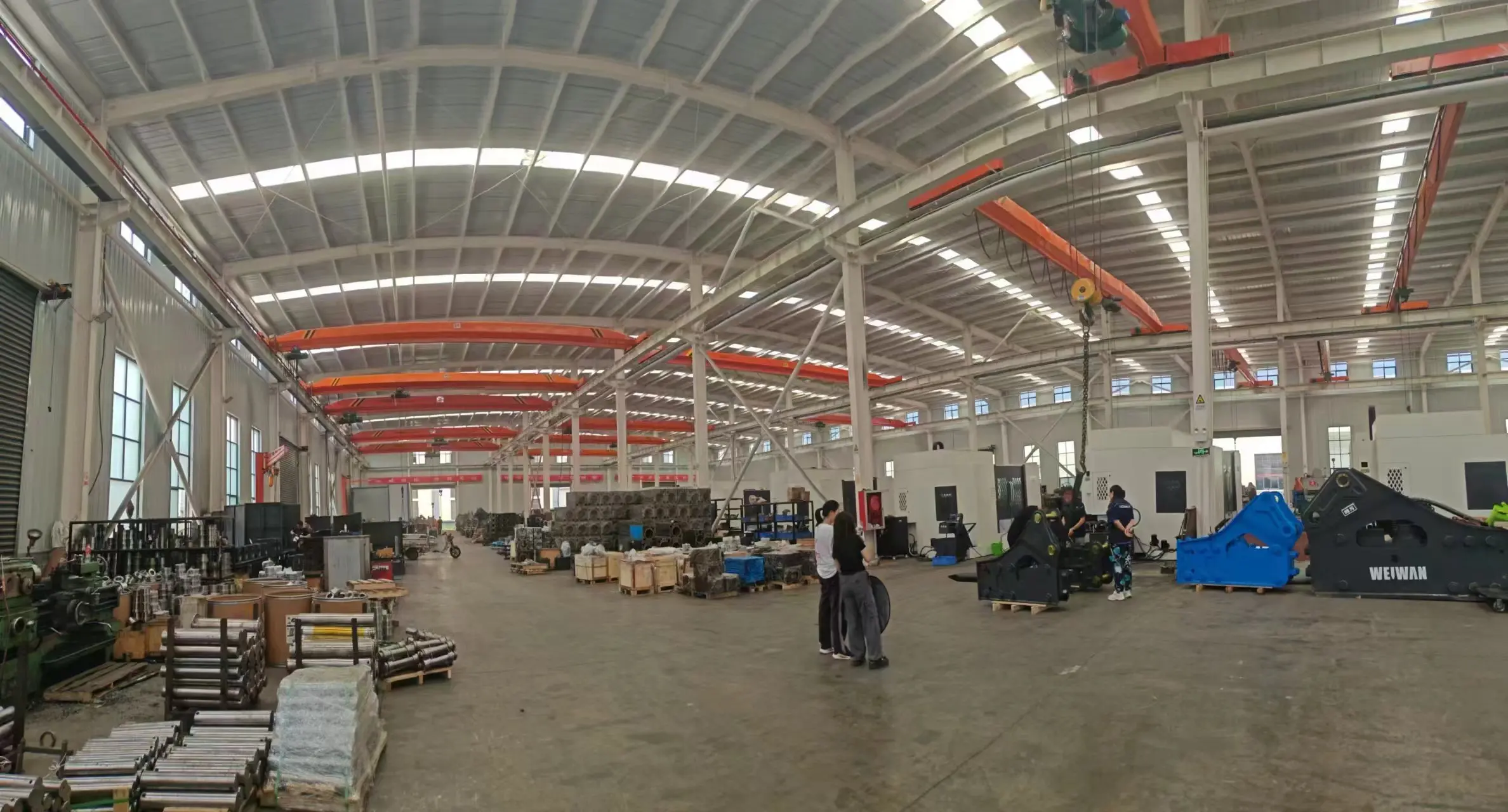

Company Information

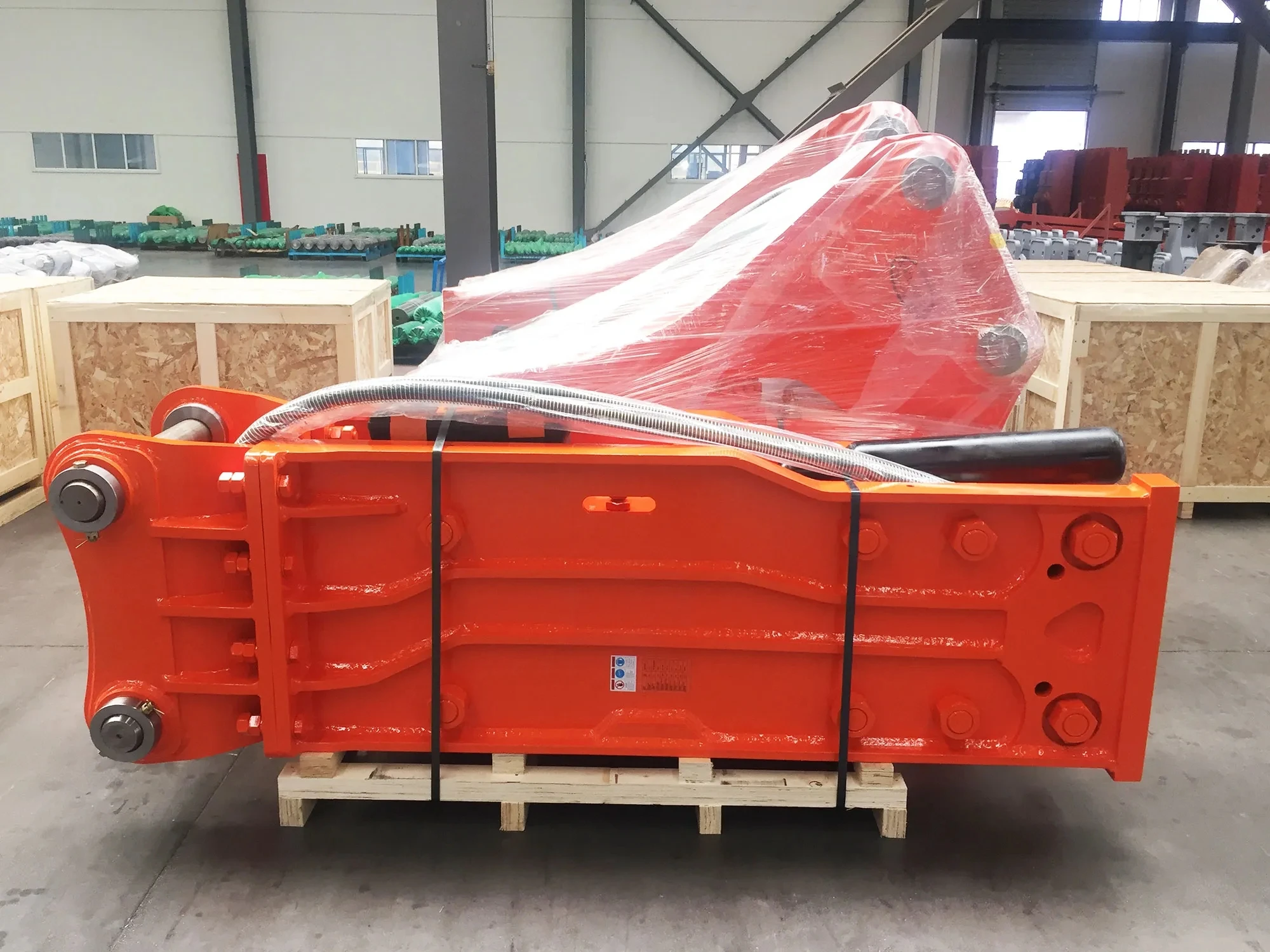

Henan Lich Intelligent Equipment Co., Ltd. was established in 2002 and is a professional company that provides comprehensive solutions and products for breakers. LICHMACH has established good cooperative relations with many internationally renowned brands in the field of construction machinery, and has accumulated expertise and talent reserves in this field over the years. More importantly, it has established strategic partnerships with many internationally renowned brands. LICHMACH has been involved in the field of construction machinery for breakers for twenty years. It has established partnerships with many well-known brands such as Carter, Komatsu, JCB, and provides many different types of breakers based on customized services. All of this ensures that LICHMACH can provide the best products and services with rich technical accumulation and manufacturing experience. LICHMACH's philosophy is to always provide the best quality products at the most affordable price, provide a one-stop solution for LICHMACH's customers, and make efforts for those who want to develop their own brands locally. LICHMACH looks forward to a cooperative relationship with you.
SINOMACH is already involved in engineering machinery field for dozens of years, which R&D centers and factories are spreading all over our country. It has established joint venture partnership with several well-known brands in the workd such as Hyundai, komatsu, TEREX,etc., and supply many products based on OEM fabrication service. All these guarantee us to be capable for providing best products and service with rich technology accumulation and fabrication experience.
Have the ability of self export to ensure that the goods arrive at the customer's destination in good condition.
FAQ
Q1:What about your warranty?
A1:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
Q2:What about your spare parts?
A2:LICHMACH is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
Q3:What about your Installation & Maintenance?
A3:LICHMACH is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
Q4:What about your training?
A4:LICHMACH offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
Q5:What about your Technical Advice?
A5:LICHMACH can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
Q2:What about your spare parts?
A2:LICHMACH is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
Q3:What about your Installation & Maintenance?
A3:LICHMACH is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
Q4:What about your training?
A4:LICHMACH offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
Q5:What about your Technical Advice?
A5:LICHMACH can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.
