Germany Thrust roller bearing 29326 E 29326E Spherical roller thrust bearing 29326 Bearings
Product Description
Spherical Roller Thrust Bearing 29326E, a top-tier component renowned for its superior operation, durability, and reliability in demanding industrial applications. This bearing is designed to and allow for misalignment of the shaft while accommodating heavy axial loads in one direction and heavy radial loads at relatively high speeds, making it an ideal choice for heavy-duty machinery and equipment. The dimensions of this 29326E bearing are 130x225x58mm.
High Load Capacity
The 29326 E Spherical Roller Thrust Bearing has been specifically engineered by to house a large number of rollers in order to optimise load distribution and support heavy radial loads and axial loads in one direction. This design provides consistently robust performance in challenging environments.
Self-Aligning Design
The 29326E bearing from automatically compensates for misalignment of the shaft in relation to the housing caused by things like shaft deflection. This key feature reduces the risk of premature failure and extends its service life.
Enhanced Durability
Manufactured with high-quality materials and advanced heat treatment processes, the 29326 E bearing is designed to ensure long-lasting durability and offer resistance to wear and tear.
Optimised Internal Geometry
The internal design of the 29326E bearing minimises friction and heat generation during operation. This enhances operational efficiency and reduces maintenance requirements.
Detail of spherical roller thrust bearing
Item | 29326 Thrust roller bearing |
Model number | 29326E,29326M |
Dimension | 130*225*58mm |
Weight | 8.17kg |
Stock | available |
Certification | ISO9001:2008 standard |
Feature | low voice,high speed,long life,low vibration |
Market | Homeland,South East Asia,Middle East,Europe ,Africa and so on |

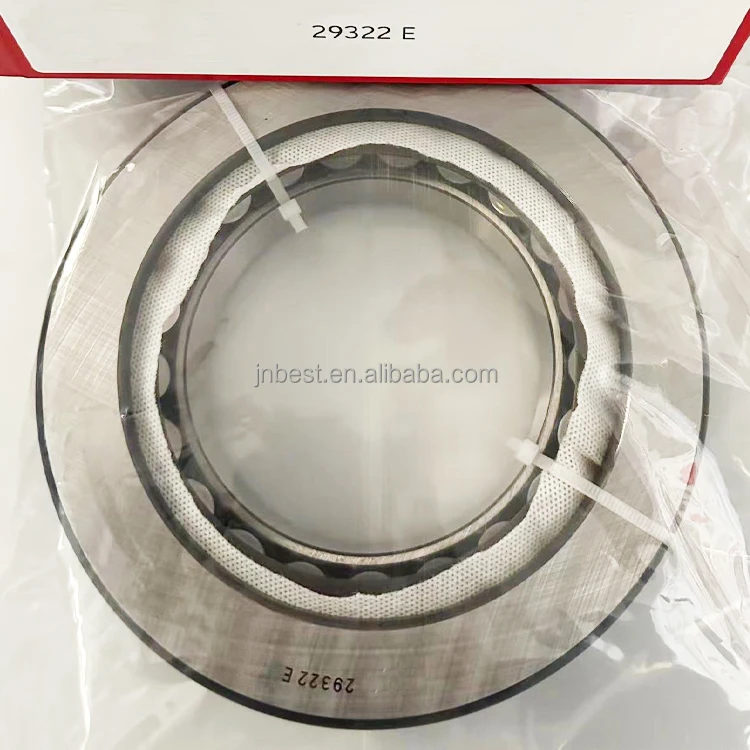

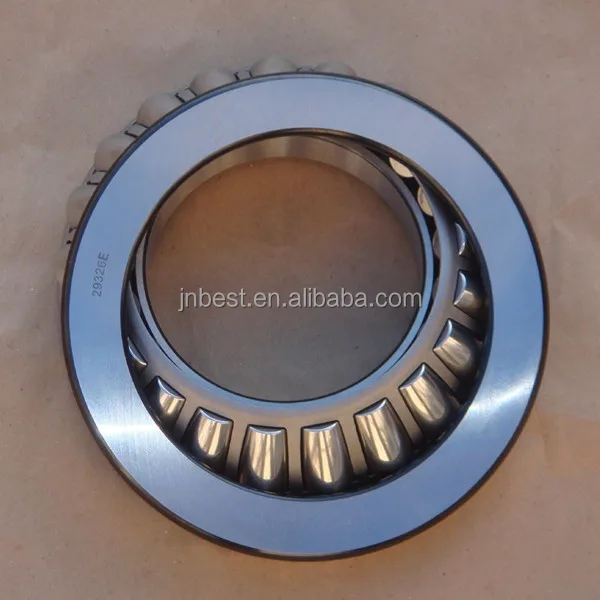

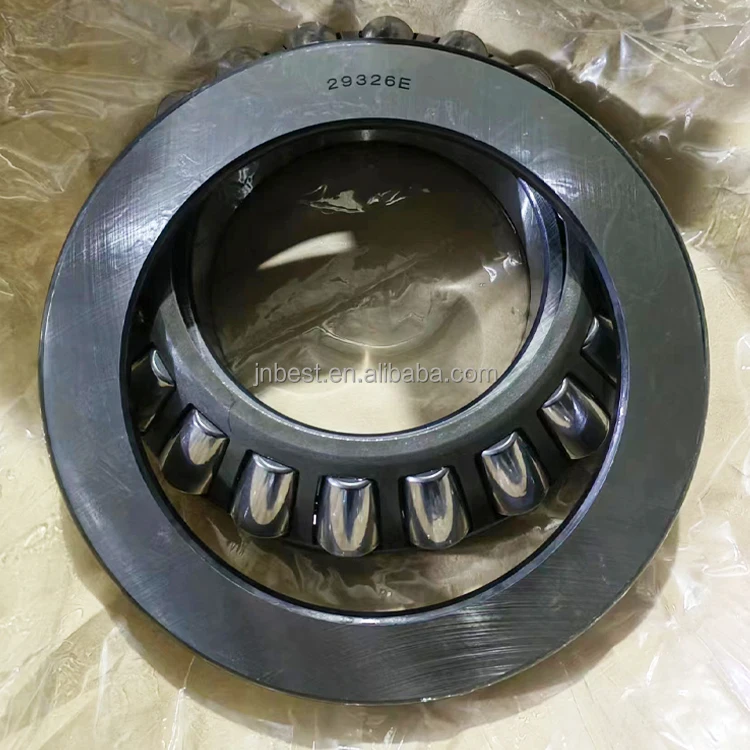

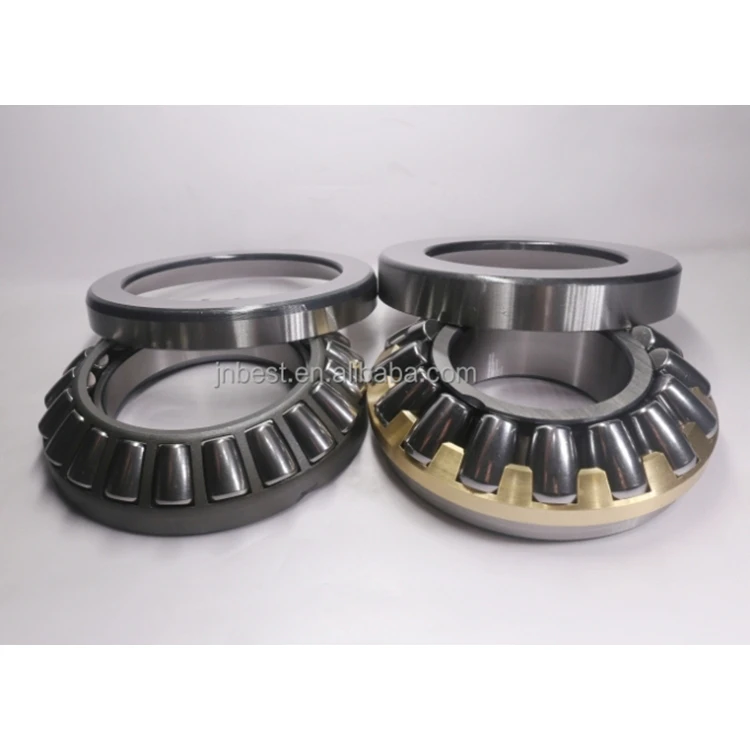

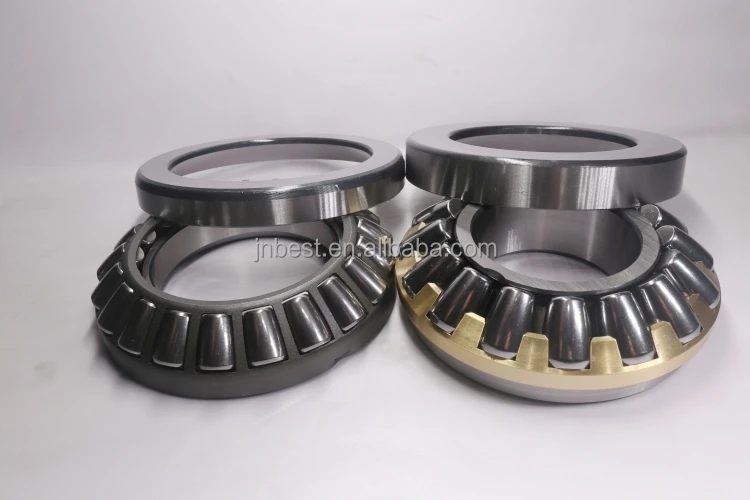

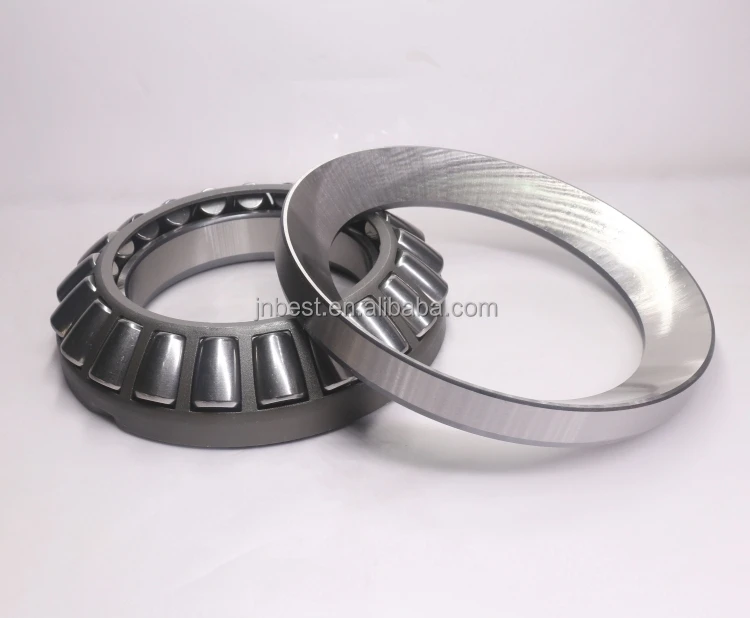

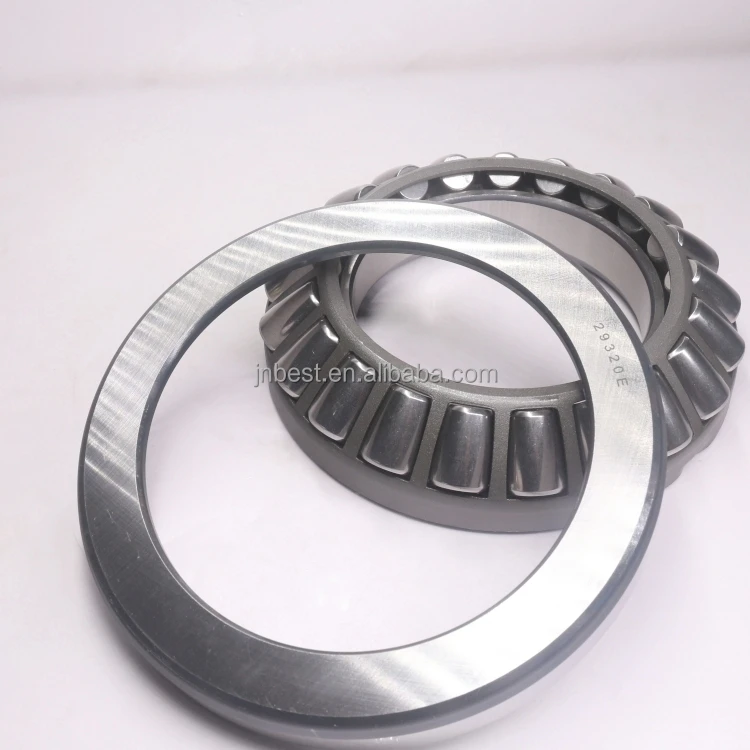

Detailed Images

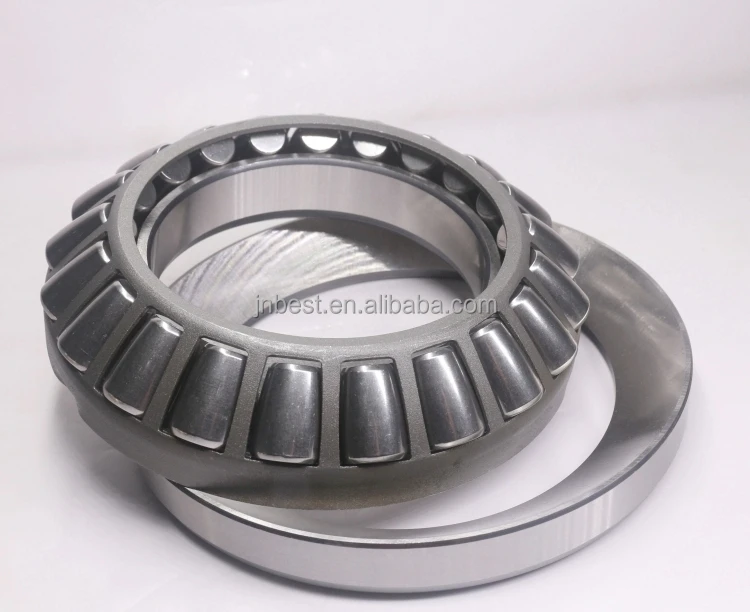

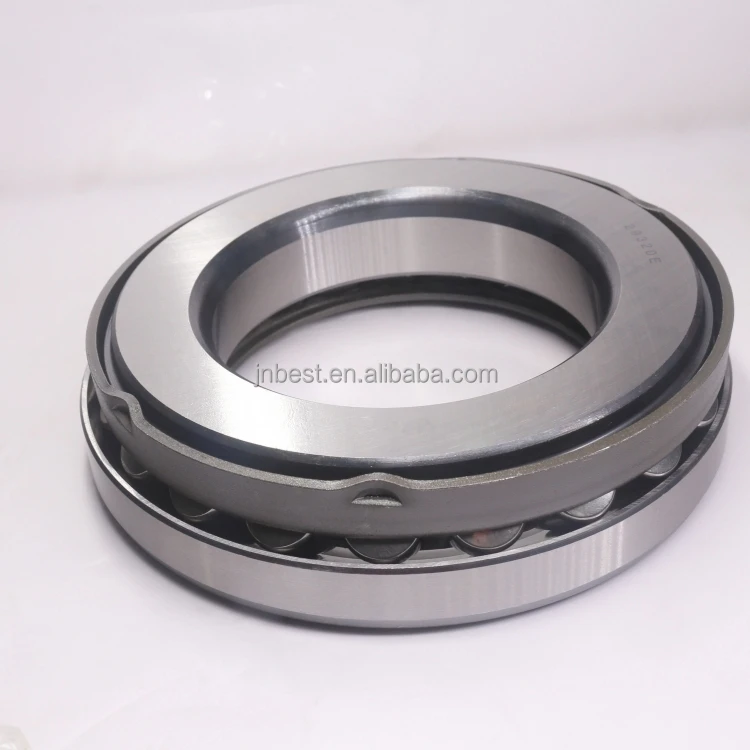

29326E Spherical roller thrust bearings have specially designed raceways and asymmetrical rollers. The bearings can accommodate axial loads acting in one direction and simultaneously acting radial loads. The load is transmitted between the raceways via the rollers at an angle to the bearing axis, while the flange guides the rollers.
Depending on their series and size the spherical roller thrust bearings are manufactured to two basic designs:
Bearings with no designation suffix
Bearings with no designation suffix are fitted with a machined prong-type brass cage as standard. The cage is guided by a sleeve held in the shaft washer bore. The shaft washer, cage and rollers form a non-separable unit.
Bearings with an E designation suffix
E-design bearings have larger rollers and an optimized internal design for increased load carrying capacity.
E-design bearings up to size 68 are fitted with a stamped window-type steel cage, which forms a non-separable unit with the shaft washer and rollers.
E-design bearings from size 72 and larger are fitted with a machined prong-type cage. This type of cage is guided by a sleeve held in the shaft washer bore. The shaft washer, cage and rollers form a non-separable unit.
Depending on their series and size the spherical roller thrust bearings are manufactured to two basic designs:
Bearings with no designation suffix
Bearings with no designation suffix are fitted with a machined prong-type brass cage as standard. The cage is guided by a sleeve held in the shaft washer bore. The shaft washer, cage and rollers form a non-separable unit.
Bearings with an E designation suffix
E-design bearings have larger rollers and an optimized internal design for increased load carrying capacity.
E-design bearings up to size 68 are fitted with a stamped window-type steel cage, which forms a non-separable unit with the shaft washer and rollers.
E-design bearings from size 72 and larger are fitted with a machined prong-type cage. This type of cage is guided by a sleeve held in the shaft washer bore. The shaft washer, cage and rollers form a non-separable unit.
Germany Thrust roller bearing 29326 E 29326E Spherical roller thrust bearing 29326 Bearings
Company Information
We can provide one-stop service, saving you time and cost. In addition to Germany Thrust roller bearing 29326 E 29326E Spherical roller thrust bearing 29326 Bearings, we can also provide you with other types of bearings, well-known brands are in stock.
