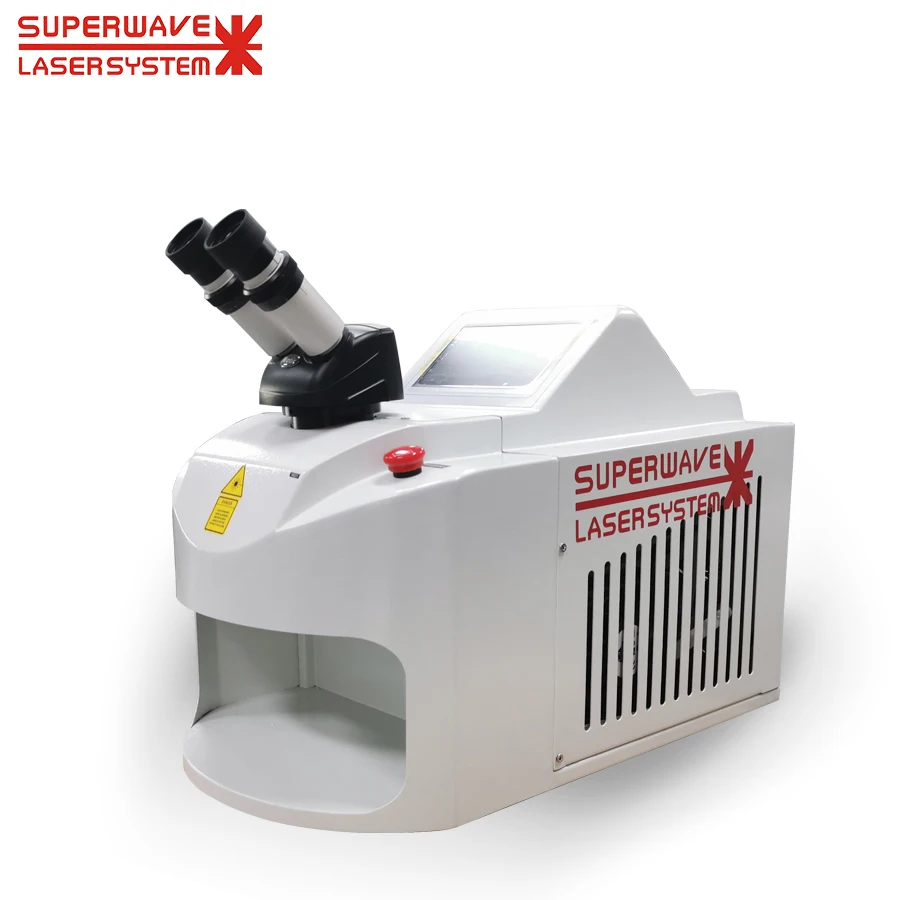

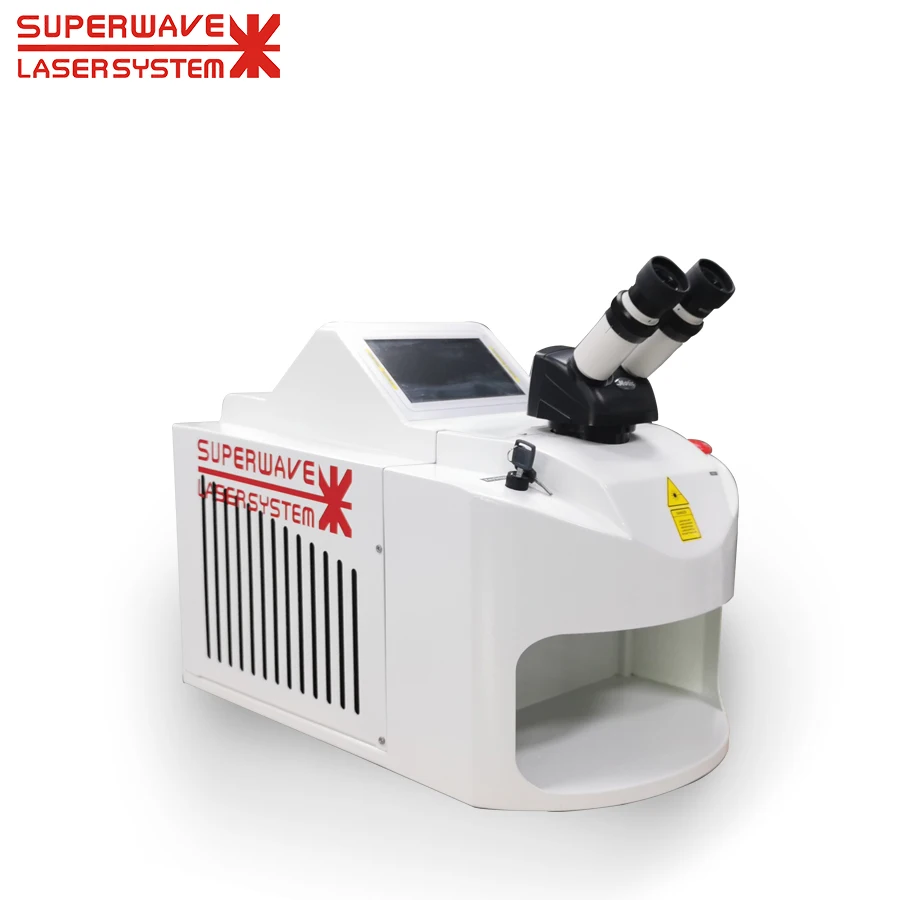

Mini Laser Spot Welding Machine For Gold Silver Jewelry Portable Spot Welder 60W/100W

Data sheet

Description

The fiber continuous welding machine use fiber laser source as the laser generator, whole machine free maintenance, no consumables, strong welding effect and more fine weld seam.It is widely used for stainless steel, carbon steel, alloy, brass, aluminum, galvanized sheet seam welding.

Features

1. Machine is small, it takes small space and easy to carry.

2. Touch screen integrated with CCD display, convenient to adjust spot size on screen, clear to see the welding spot location.

3. Energy, pulse width, frequency and spot size can be adjusted in a large range to realize different welding effects.

4. Ceramic cavity imported from the Britain. Jewelry laser welder  is corrosion resistant and high temperature resistant, and it has 8-10 years service life. The life of xenon lamp is more than 8 million times.

5. Use the most advanced light shielding system to protect eyes.

6. No need filler wire, welding fast, spot distributed evenly, deformation small, has a good welding surface.

7. Unique YAG crystal cooling method to improve the beam quality and xenon lamp lifetime, reducing the use of cost.

8. Environmental friendly.

Application

K-Gold, brass, Stainless steel, and their alloys. It is mainly used for manufacturing and repairing jewelries, as well as precisely welding a variety of micro and heat-sensitive parts, just like nickel straps of batteries, hairsprings, watch components, down-leads of chips.

1. Which incoterm can support?

All the incoterms can support, we will select suitable freight as your request.

2.What is the warranty?

General is 1 year, it can extend by discussion, we will free take charge of any problem within warranty (except man-made damage). After the warranty, we will still do our best to help to keep the machine running well.

3. How to use the machine?

There are Engiliash manual and guide videos, also we will provide support at any time. If any problems, we can send pictures and video to guide, also we can remote to solve problems.

4.How pay?

T/T, Paypal, Western Union. Other payment need confirm with us.

We promise:

1. Any questions with prompt reply.

2. Welcome to send samples for test, we will freight free to send it back.

Please let us know what materials will be processed? What about size and thickness?
