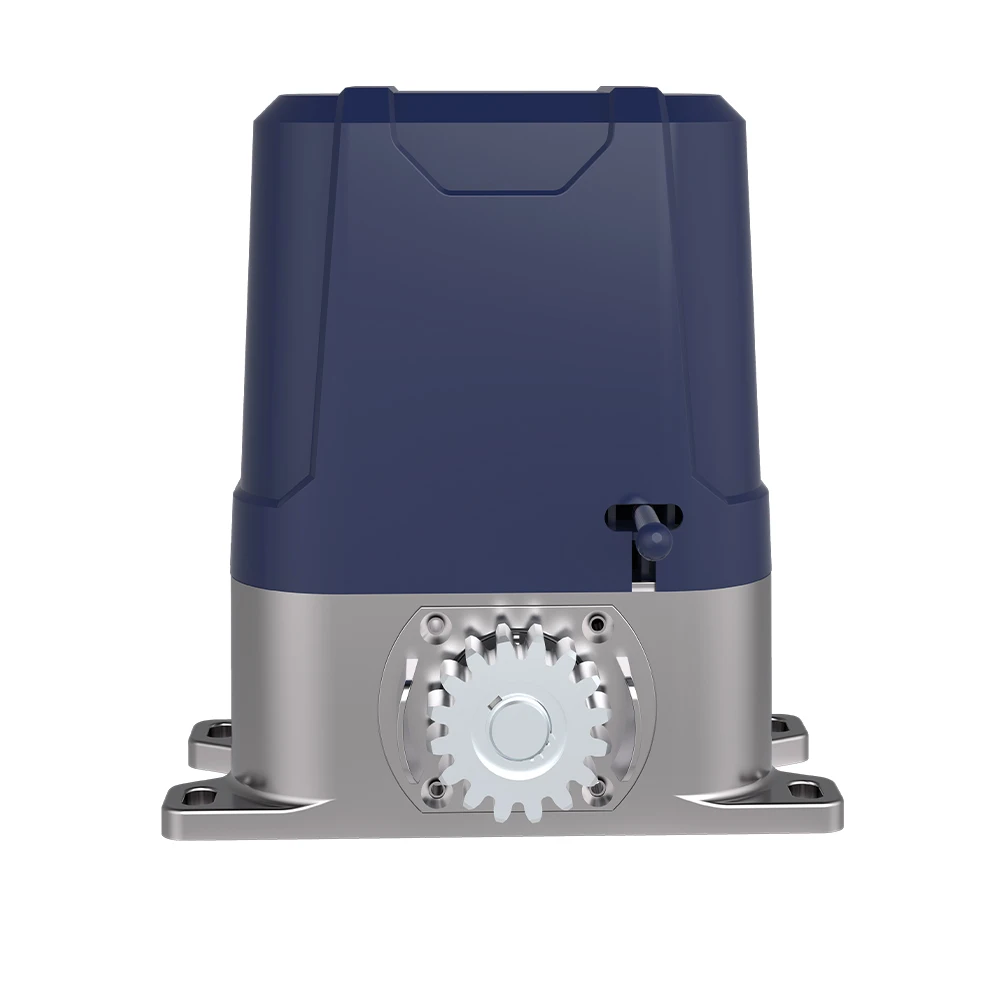

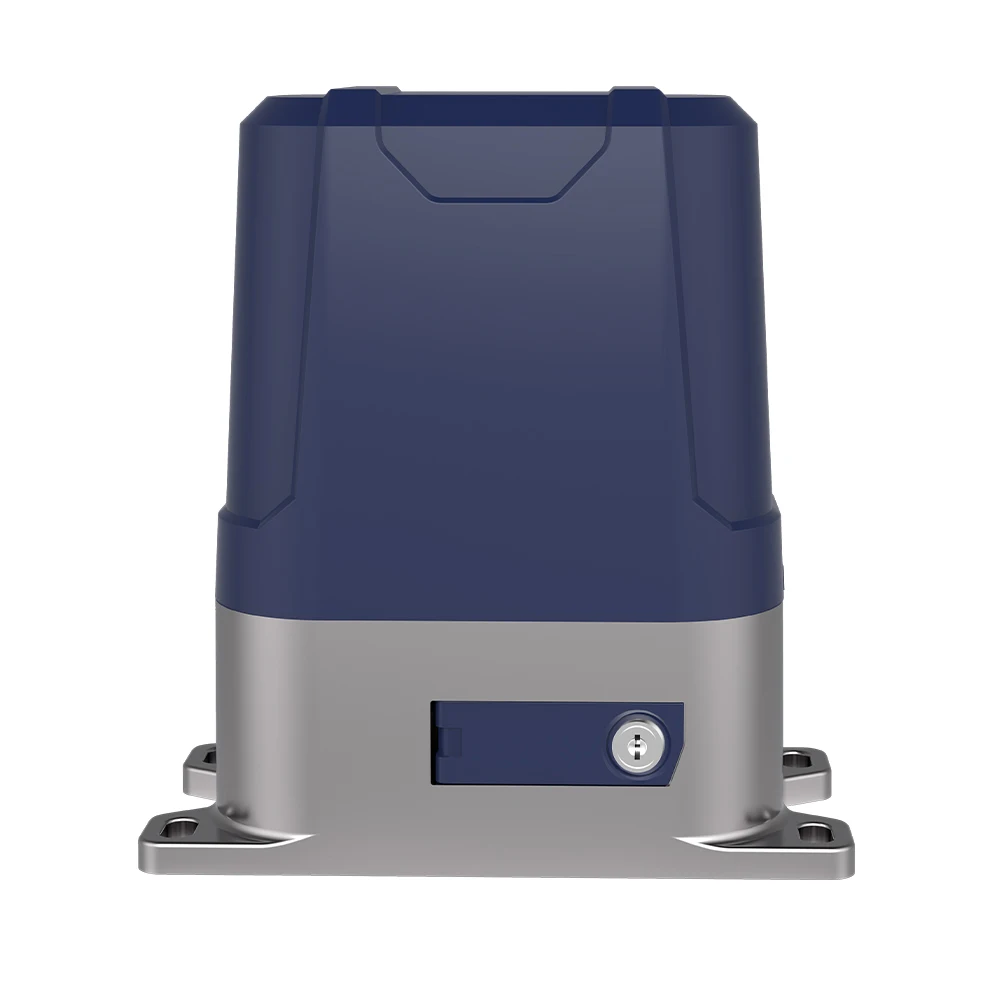

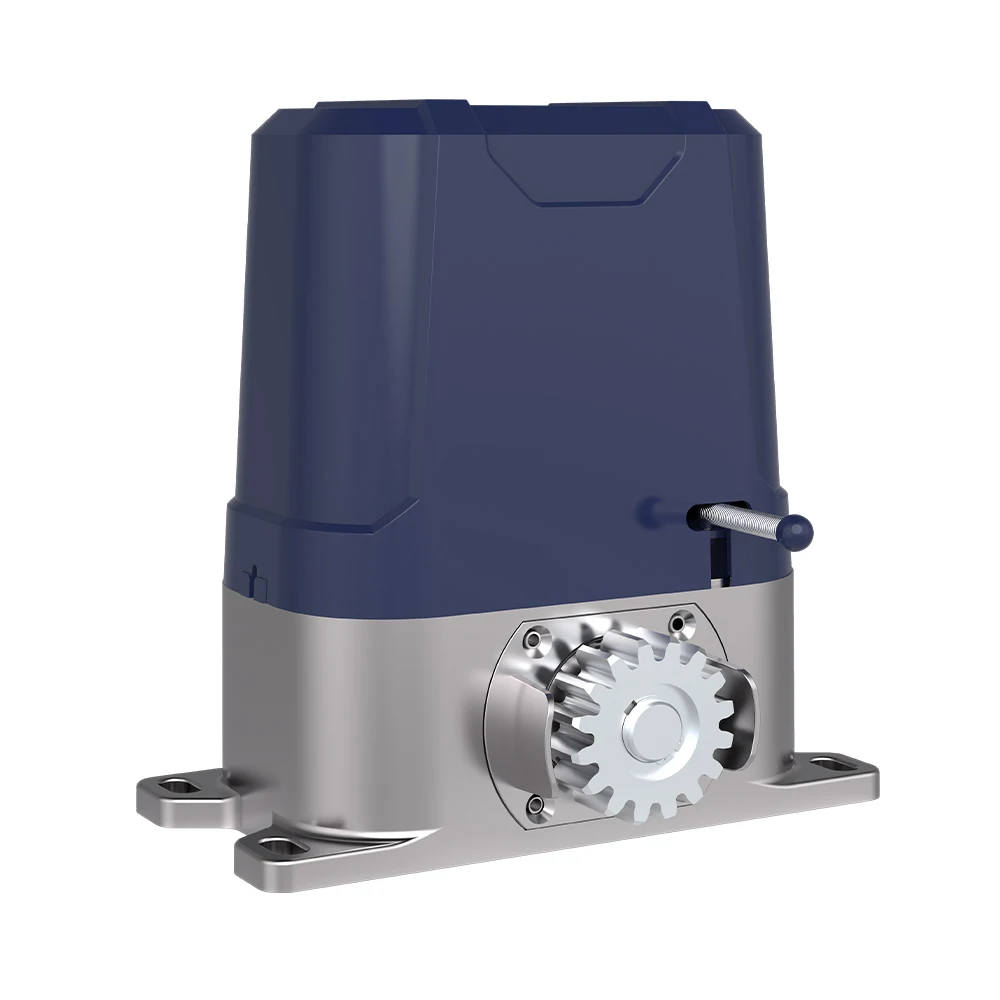

PYM N2208 JUJIANG 1000KGS Sliding Door Motor Automatic Gate Motor

PYM N2208 JUJIANG 1000KGS Sliding Door Motor Automatic Gate Motor

Category: >>>
Supplier: Quanzhou Autoga Machinery Co. Ltd.Quanzhou Ltd.

Price:$39.00-52.00

Quantity:

Product Overview

Description

Products Show

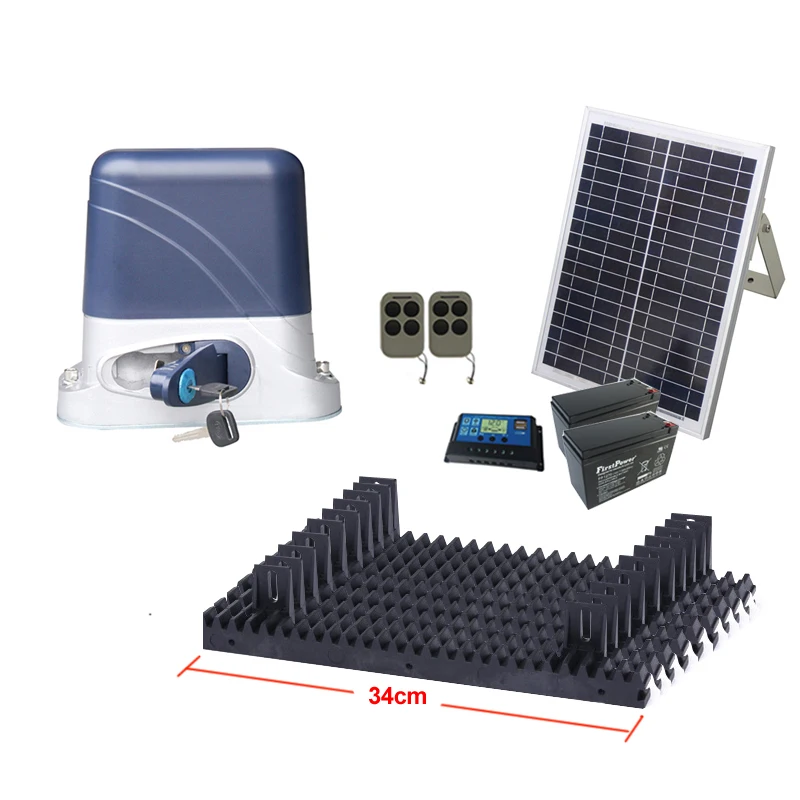

Gate Opener Kit Gate Opener Gsm Solar Power

Gate Opener

	PYM-N2208
Rated Voltage	220V±10%/110V±10%
Max loading weight	1000kg
Gear modulus	M=4
Open/close speed	20cm/s
Electric motor	220VAC/110VAC
Rated motor power	310W
Output speed	50r/min±10%
Output Torque(N.m)	22N.m
Limit switch	Spring /magnetic
Working termperature	-20°C～+55°C

Control board

Model	EGB-02
Voltage	220V/110V
Modulation	ASK
Frequency	433.92Mhz
Board Memory	50 pcs remote control
Output Voltage	AC 24V

Function

Single button control circularly /three buttons control can be choosed
Alarm lamp interface
Automatic closing time adjustable
Pedestrian mode
Condominium mode
Limit switch NC/NO optional
Photocell NC/NO optional
Switch power on/off button at board
Open and close motor senstivity setting seperately
Terminal for open only , close only for external control device.
Adjustable resistance sensitivity
Gate will auto stop and re-open when an obstacle is encountered

Packing & Delivery

Packing Details : 1 set for 1 standrad carton, 50 cartons for 1 pallets,

Delivery Details : 3-30 days after order of sliding gate opener
