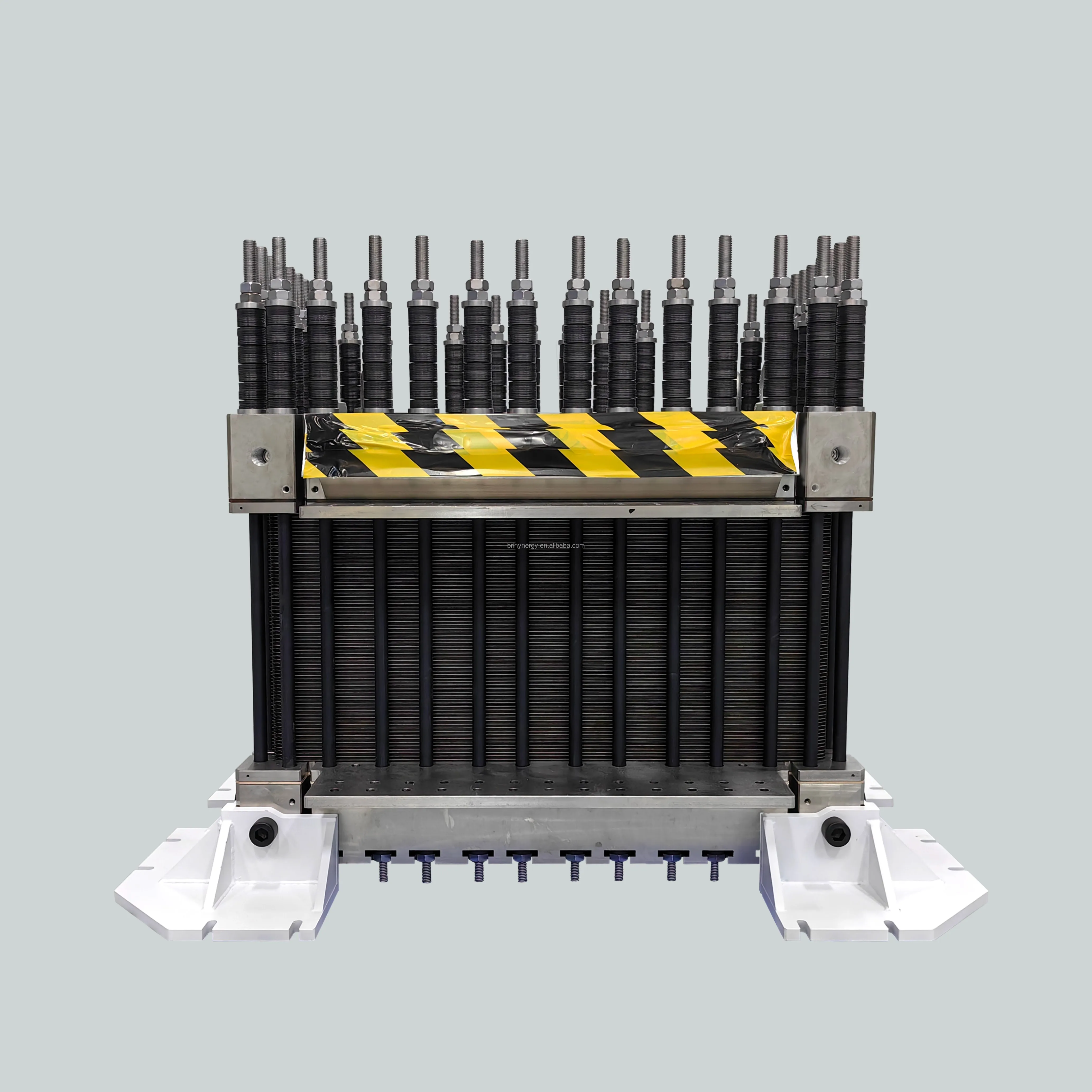

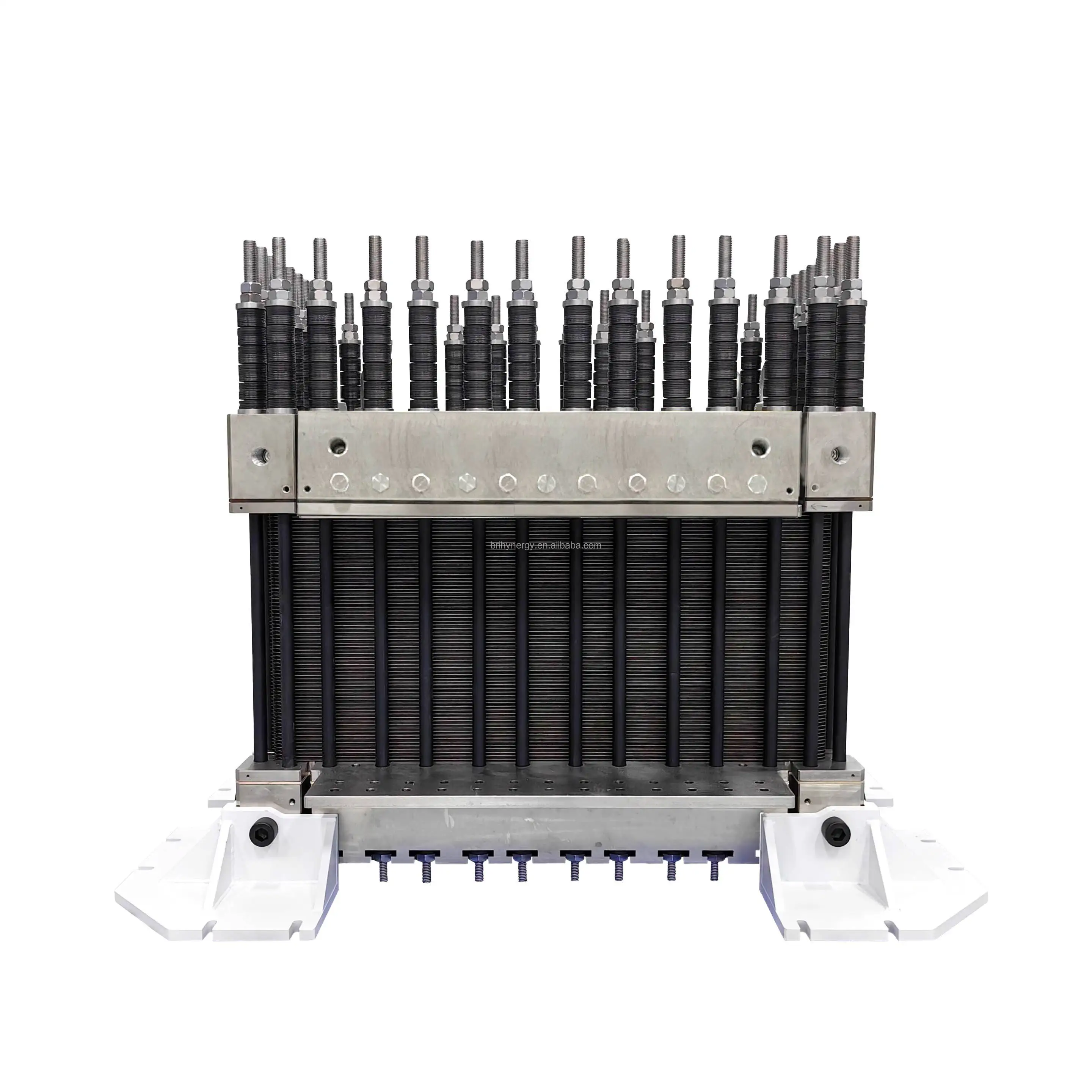

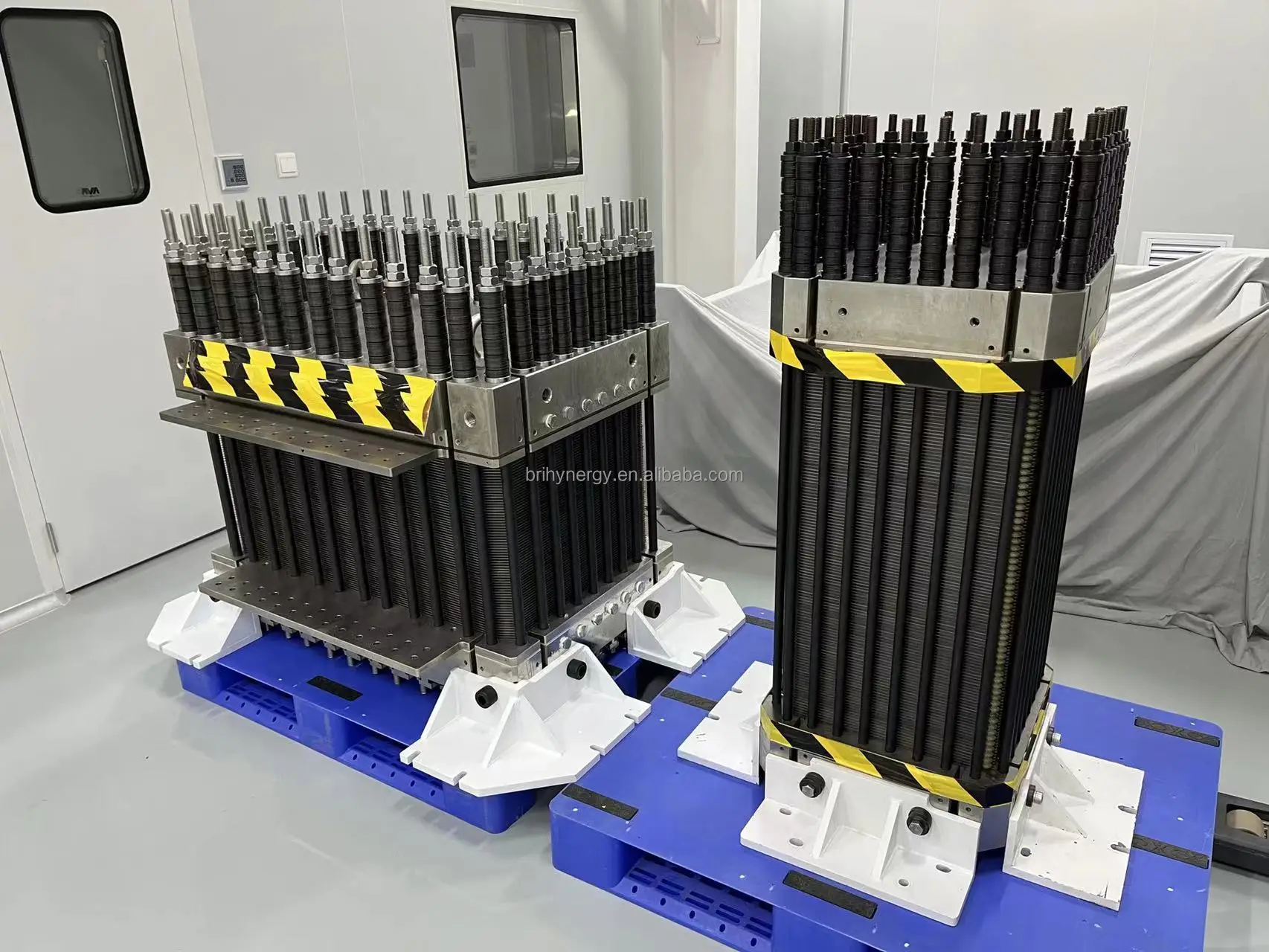

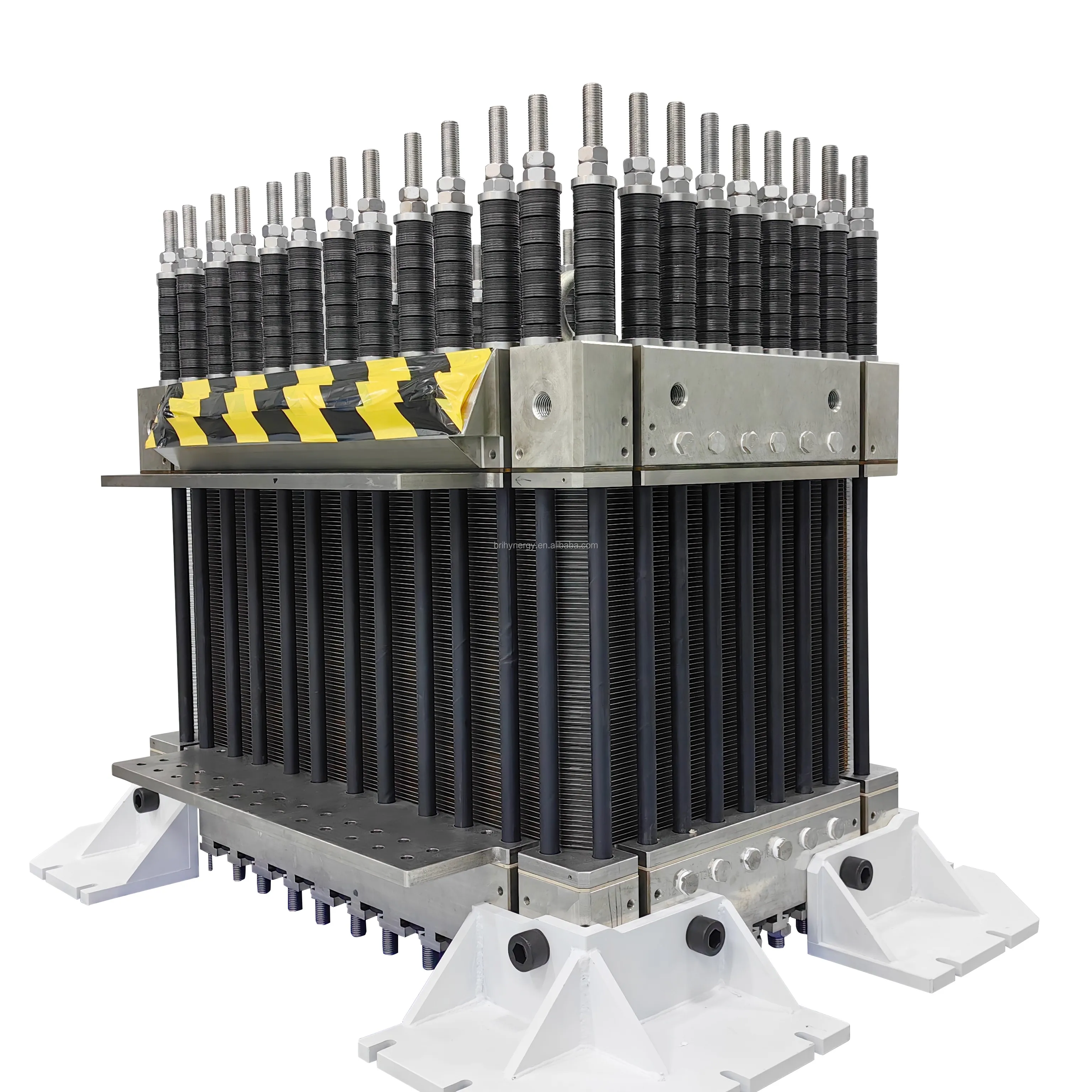

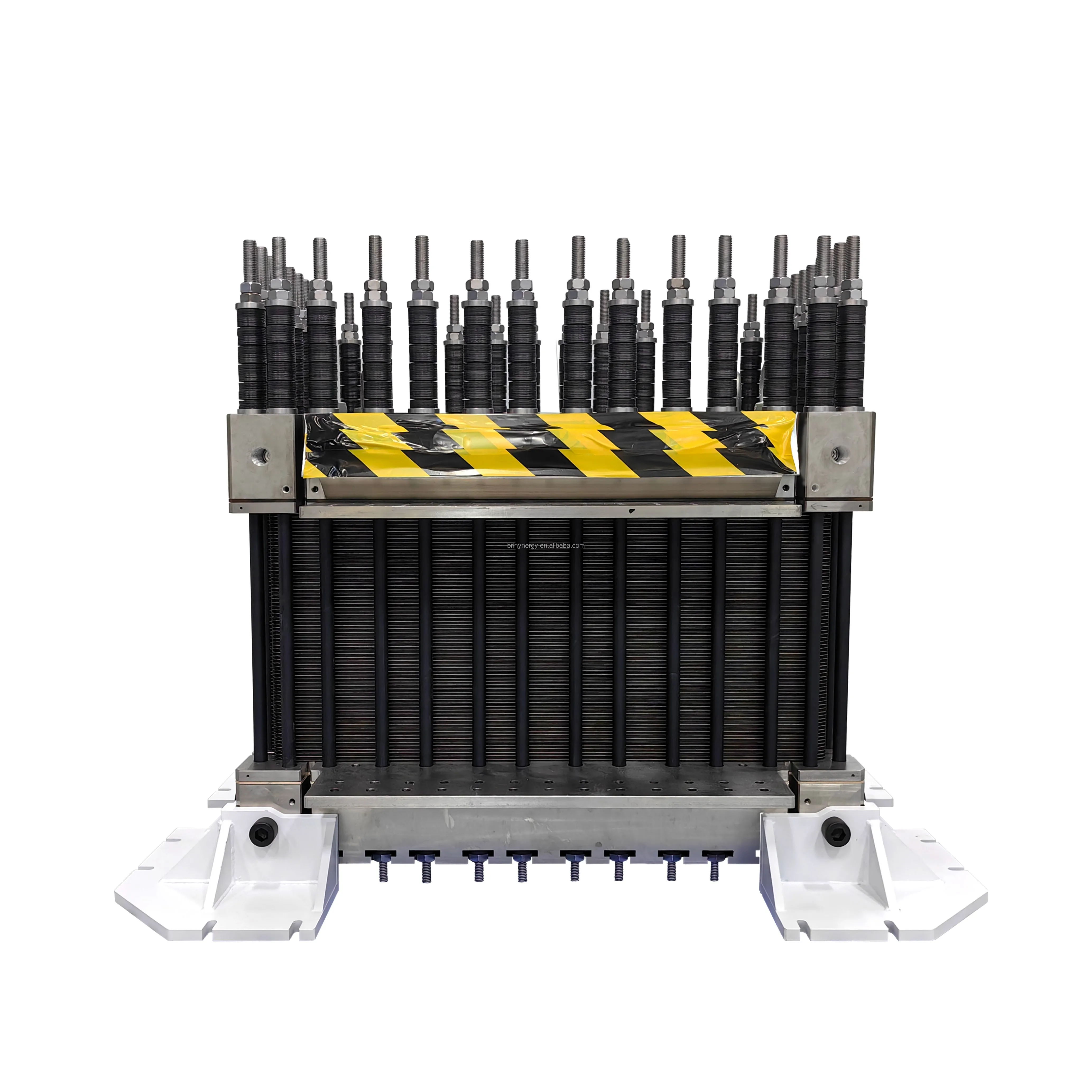

High quality industrial hydrogen electrolyzer manufacturer Large pure water electrolytic hydrogen generator for 10 Nm3/h
- Category: >>>
- Supplier: BriHyNergy (Shenzhen) Co. LtdBriHyNergy Ltd
Share on (1601293785259):
Product Overview
Description
Specifications | Unit | S45 | ||
Input | ||||
Stack Power Consumption | kW | 190 | ||
DC Power Consumption | kWh/Nm3 H2 | 4.2（rated Power） | ||
Feed Water Quality | μS/cm (ISO 3696:1987 Grade 1) | ≤0.1 | ||
Water Flow rate | m³/h | 11 | ||
Current density | A/cm² | 2 | ||
Cells | Pcs | 83 | ||
Rated Current | A | 1300 | ||
Rated Voltage | V | 146 | ||
Rated Temperature | ℃ | 60±5 | ||
Ambient Temperature | ℃ | 10-40 | ||
Output(H2) | ||||
Volume | Nm3/h | 45 | ||
Mass | kg H2/day | 97 | ||
Hydrogen Output Pressure | Barg | 5 to 35(adjustable) | ||
Oxygen Side Pressure | Barg | 5 to 35(adjustable) | ||
O2 in H2 | % | ≤0.1（dry basis） | ||
H2 in O2 | % | ≤ 0.6（dry basis） | ||
Purity | % | 99.999 (After purification) | ||
Performance Parameters | ||||
DC efficiency | %HHV | 84 | ||
Start Up Time | Warm/Cold | 10s/8min | ||
Response time | s | Seconds | ||
Water Consumption | L/h | 63 | ||
Power Range | % | 5~150 | ||
Design life | hours | 80,000 | ||
Mechanical Parameters | ||||
Quantity | 1 | 1 | ||
Size (W×L×H) | mm | 650*650*1000 | ||
Weight | kg | 780 | ||
Compliance | ISO 9001:2015、ISO 14001:2015、ISO 45001:2018、CE、ASME | |||
