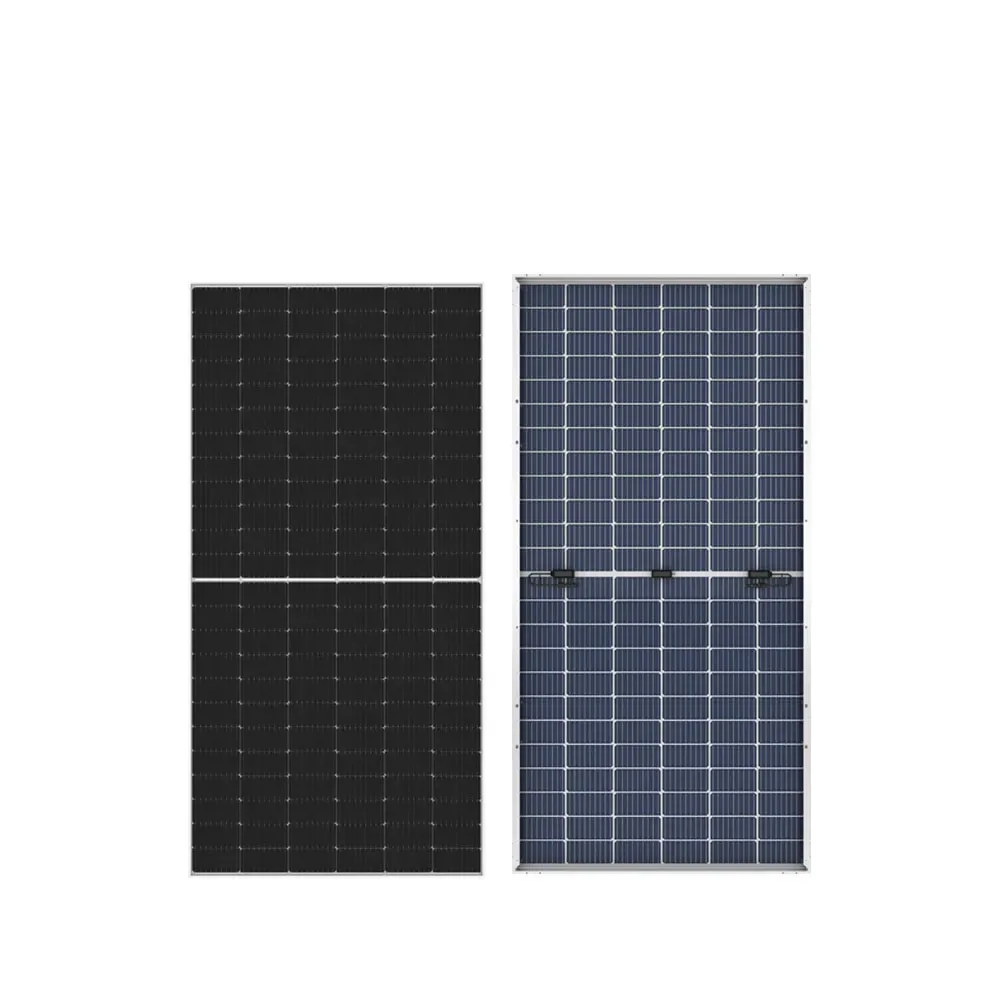

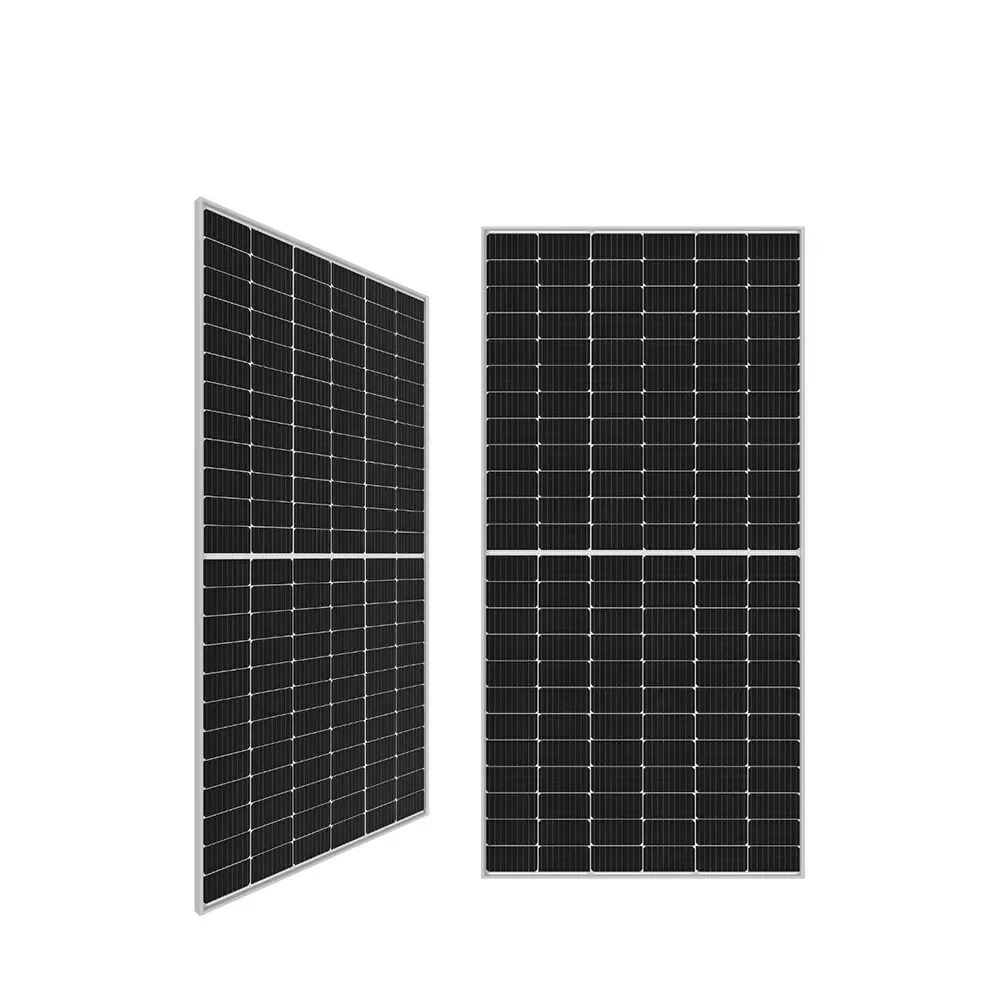

530W 550W Monocrystalline Silicon Solar Module High Efficiency Solar Cell Panel
- Category: >>>
- Supplier: Wuxi Roywell Motortech CorporationWuxi Corporation
Share on (1601293794029):
Product Overview
Description
Products Description
Electrical Performance Parameters STC | ||||||||||
Model | HC530W | HC535W | HC540W | HC545W | HC550W | |||||
Peak Power Watt- Pmax (W) | 530 | 535 | 540 | 545 | 550 | |||||
Maximum Power Voltage- Vmp(V) | 41.20 | 41.40 | 41.60 | 41.80 | 42.00 | |||||
Maximum Power Current- Imp(A) | 12.87 | 12.92 | 12.98 | 13.04 | 13.10 | |||||
Open Circuit Voltage- Voc (V) | 49.02 | 49.22 | 49.42 | 49.62 | 49.82 | |||||
Short Circuit Current- Isc (A) | 13.74 | 13.79 | 13.85 | 13.91 | 13.97 | |||||
Module Efficiency (%) | 20.60 | 20.70 | 20.80 | 21.10 | 21.30 | |||||
Power Output Tolerance (W) | 0 ~ +5 | |||||||||
STC | Irradiance 1000W/m², Cell temperature 25℃, Air Mass AM1.5 | |||||||||
Operational Temperature | -40~+85℃ | |||||||||
Maximum System Voltage | 1500V DC(IEC/UL) | |||||||||
Nominal Max Fuse Rating | 25A | |||||||||
Temperature Characteristic | ||||||||||
Temperature Coefficient(Pmax) | -0.34%/℃ | |||||||||
Temperature Coefficient(Voc) | -0.250%/℃ | |||||||||
Temperature Coefficient(Isc) | +0.048%/℃ | |||||||||
Structural Performance | ||

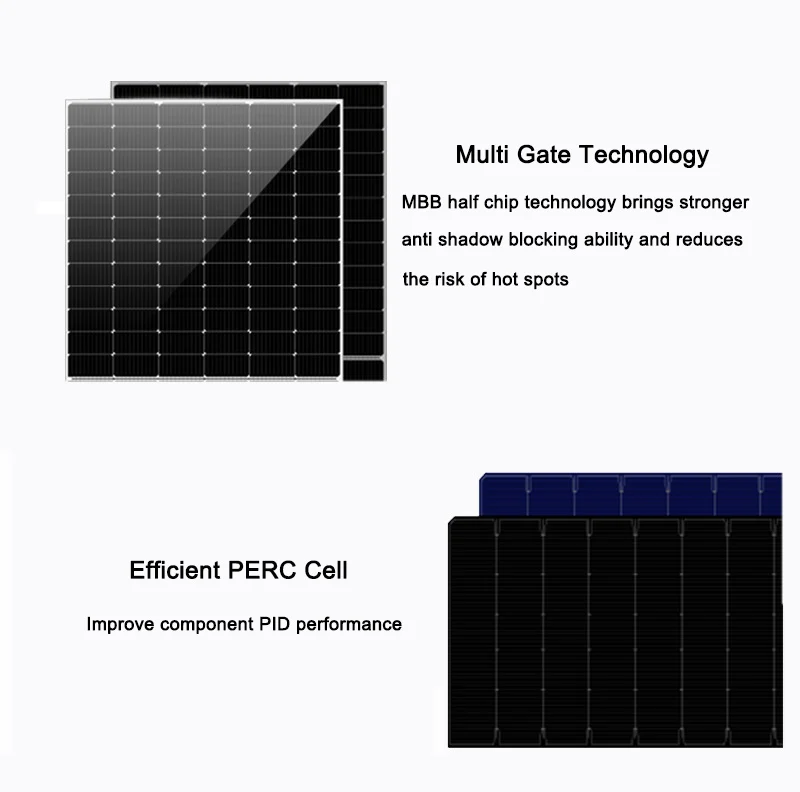

Solar Cell Type | 182mm Mono-crystalline (Half Cell) | |
Cell number | 144pcs (6*24) | |

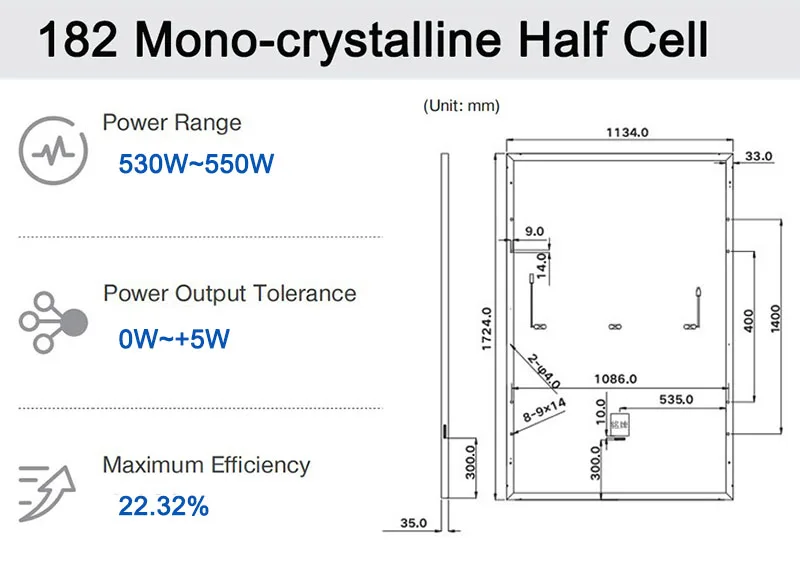

Dimensions | 2278*1134*35mm | |

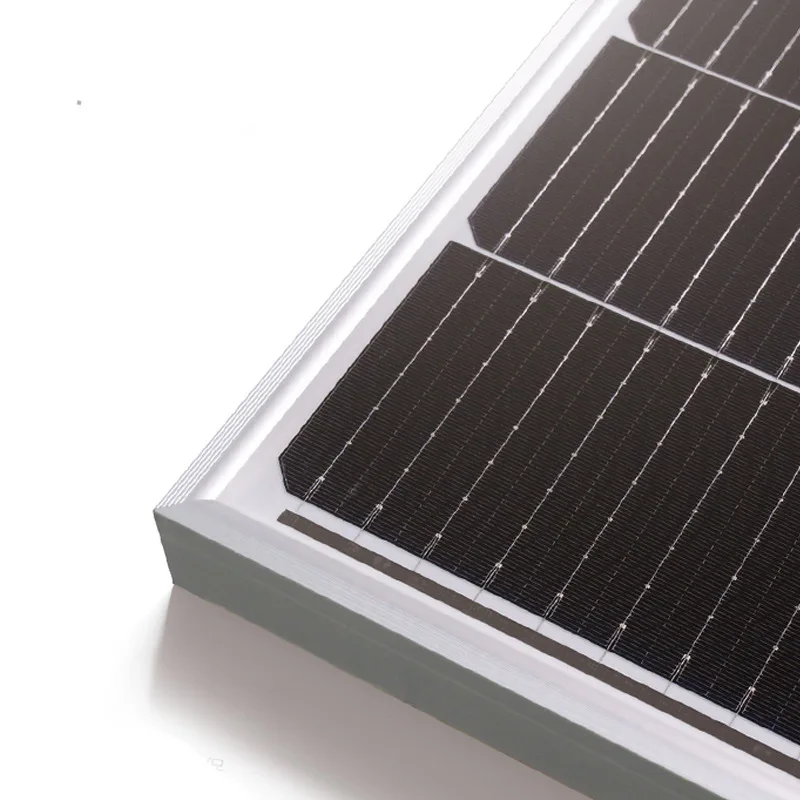

Front Glass | 3.2mm, anti-reflective coating, high transparent tempered glass | |
Back Sheet | Black TPT | |
Frame | Anodized aluminium | |

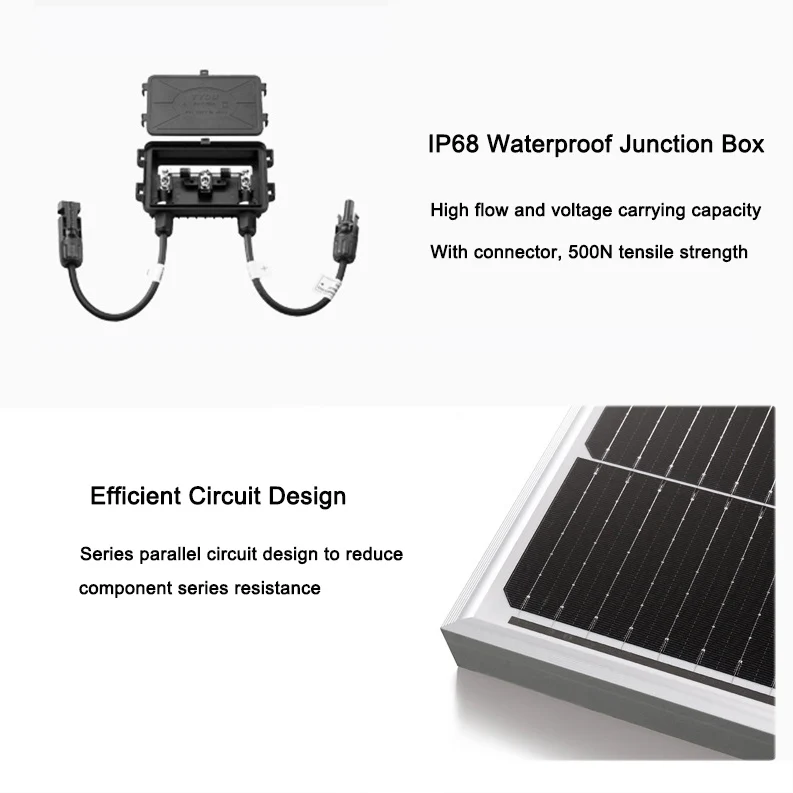

Junction Box | Protection class IP68, with bypass diodes | |
Connector | MC4 compatible | |
Cable | 4mm² Solar cable; (+) ≥400mm, (-) ≥200mm | |
Per Pallet | 31pcs | |
Per Containe(40HQ) | 620pcs | |

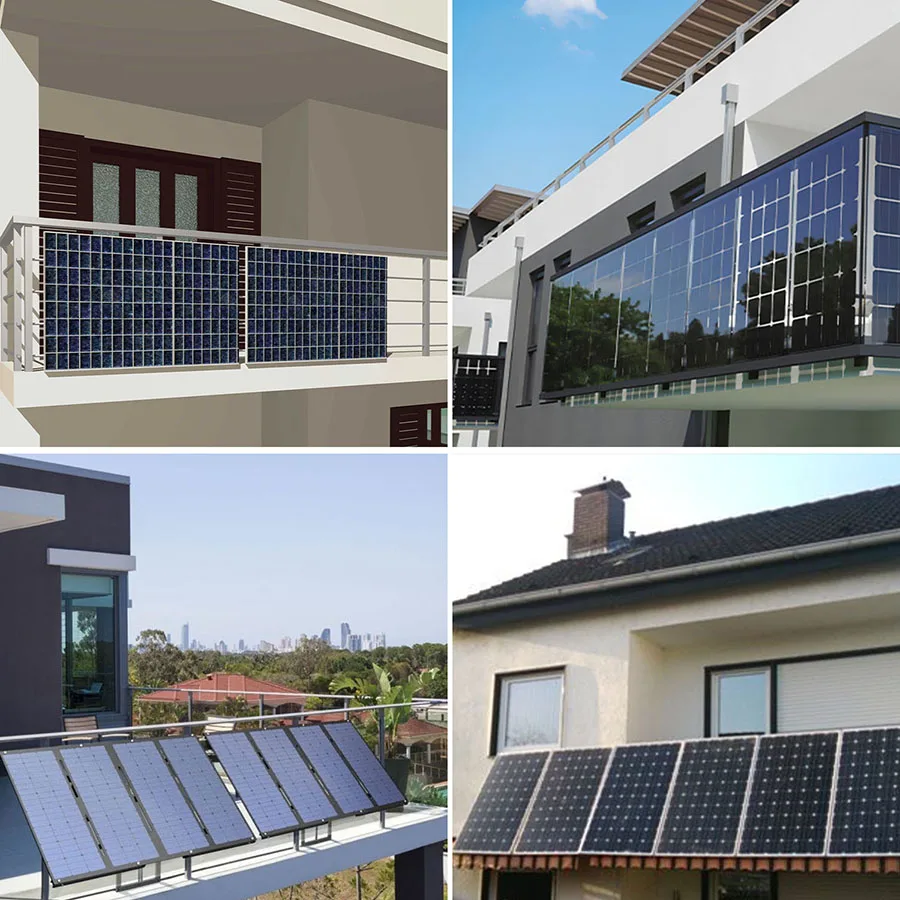

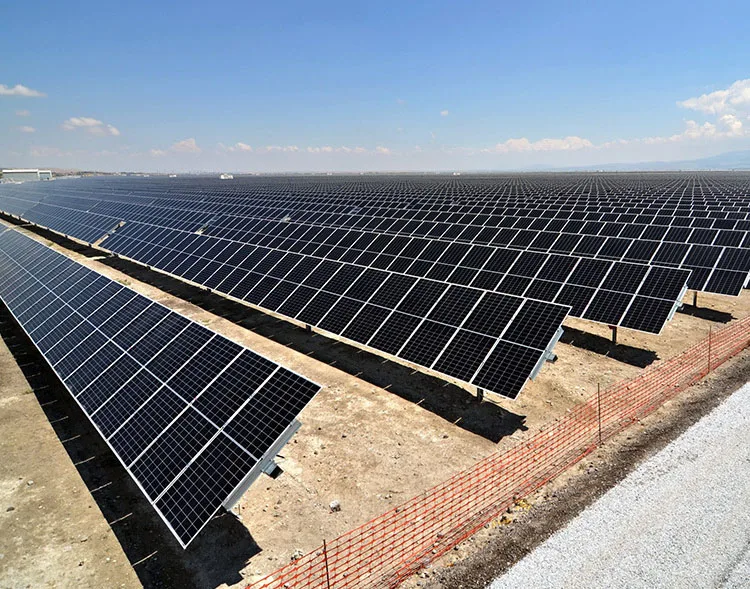

Our Projects
Company Profile

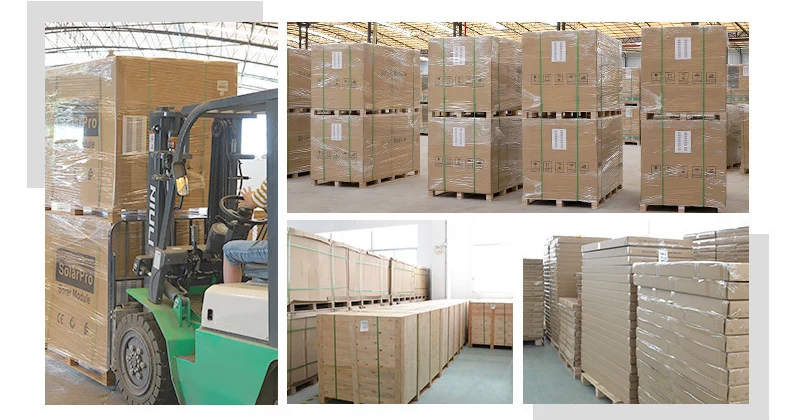

Packaging
