48Volt 10kWh Power Wall Mounted Lithium Battery LiFePO4 200ah 48V 51.2V 600Cycles LFP Battery With Bluetooth and WiFi
- Category: >>>
- Supplier: Shenzhen Yichen S-Power Tech Co. Ltd.Shenzhen Ltd.
Share on (1601293798030):
Product Overview
Description
Products Description

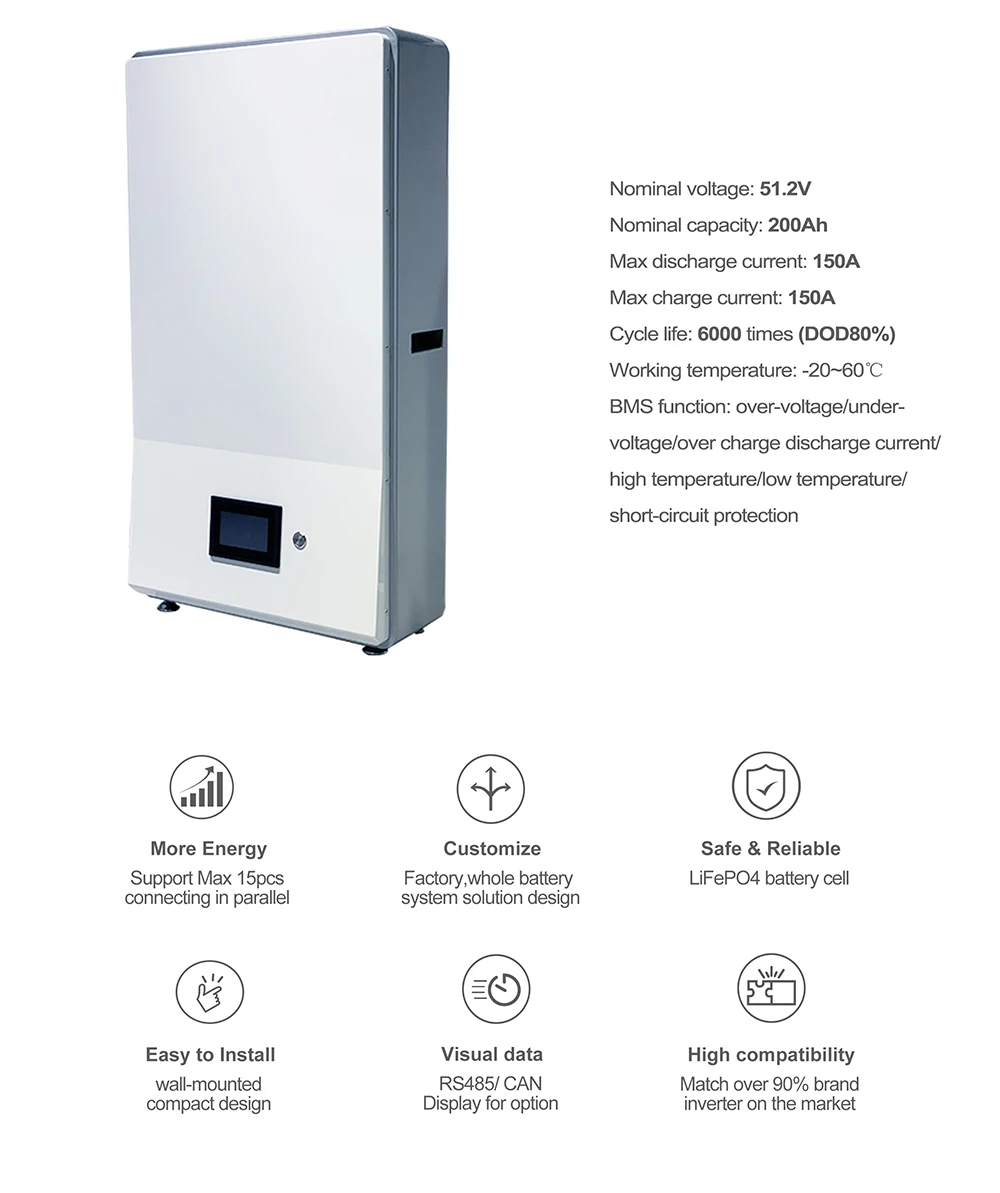

48Volt 10kWh Power Wall Mounted Lithium Battery LiFePO4 200ah 48V 51.2V 600Cycles LFP Battery With Bluetooth and WiFi
YICHENLFP 51.2V 200Ah LiFePO4 lithium battery solar energy storage system adopts the latest Home Energy Storage System (HESS) battery system. With rich experience and advanced techniques, it features fashionable design, high energy, high power density, long service life, and easy installation and expansion, all of which reflect the real requirements of the end users and the strongest technical capability.
YICHENLFP 51.2V 200Ah LiFePO4 lithium battery It is a kind of environmentally friendly backup power system. Compared with other products in the market now, this kind of product experiences a lower rate of capacity loss. With
state-of-the-art power conversion and energy storage technologies, our energy storage system (ESS) offers high-efficiency power conditioning capabilities for demand management, power dispatch, renewable energy smoothing, etc. Our ESS can provide comprehensive energy storage for residential, commercial and utility applications. Our Li-ion battery portfolio covers cells, 48V modules, cabinets (indoor/outdoor) and containers, which offer customers excellent scalability and adaptability to a wide variety of requirements.
state-of-the-art power conversion and energy storage technologies, our energy storage system (ESS) offers high-efficiency power conditioning capabilities for demand management, power dispatch, renewable energy smoothing, etc. Our ESS can provide comprehensive energy storage for residential, commercial and utility applications. Our Li-ion battery portfolio covers cells, 48V modules, cabinets (indoor/outdoor) and containers, which offer customers excellent scalability and adaptability to a wide variety of requirements.
Product Paramenters
Electrical Characteristics | Model number | YCSTLFP48200 |
Nominal Voltage | 51.2 V | |
Nominal capacity | 200 Ah | |
Energy | 10.24KWh | |
Internal Resistance | ≤ 10mΩ | |
Cycle life | ≥6000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Cut-off Voltage | 58.4±0.2V |
Charge Mode | 0.2C to 58.4V, then 58.4V,charge current to 0.02C (CC/CV) | |
Standard Charge Current | 20A | |
Max. Charge Current | 150A | |
Standard Discharge | Continuous Current | 20A |
Max. Continuous Current | 200A | |
Discharge Cut-off Voltage | 40V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP65 | |
Case | Metal Case | |

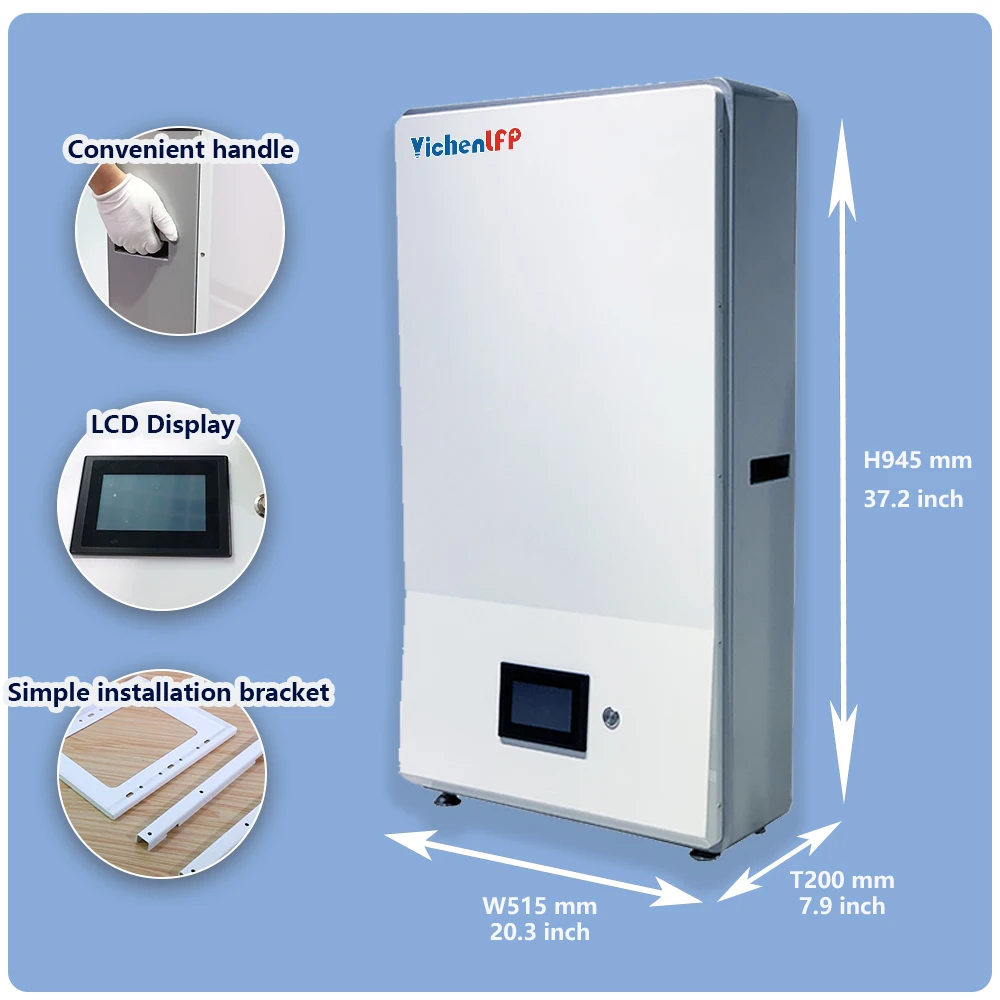

Dimensions (mm) | 515x200x945mm (or customize) | |
Weight | 85kg | |
Terminal | M8 Large Current Termnals | |
Function | Custom LCD, Blue tooth | |
Color | White( support customization) |
5KWh Stackable Home Battery
1. LiFePO4 Battery 48V100Ah 5KWh for each module
2. Wall Mounted and Stackable Type
3. Maximum 16 units in parallel connection to expand capacity
2. Wall Mounted and Stackable Type
3. Maximum 16 units in parallel connection to expand capacity
5KWh Wall-mounted Home Battery
1. LiFePO4 Battery 48V100Ah 5KWh for each module
2. Lighter weight, smaller size
3. Display: LCD
4. Environmentally friendly non-toxic, non-contaminating, no rare metal
2. Lighter weight, smaller size
3. Display: LCD
4. Environmentally friendly non-toxic, non-contaminating, no rare metal
Related Products
Model No. | Voltage | Capacity | Dimension | Weight |
12V | 60Ah | L260*W167*H210mm | 7kg | |
12V | 70Ah | L260*W167*H210mm | 8kg | |
12V | 80Ah | L260*W167*H210mm | 9kg | |
12V | 100Ah | L330*W174*H220mm | 11kg | |
12V | 120Ah | L406*W173*H236mm L330*W174*H220mm | 13kg | |
12V | 150Ah | L406*W173*H236mm L330*W174*H220mm | 15kg | |
12V | 200Ah | L406*W173*H236mm | 18kg | |
12V | 250Ah | L520*W268*H230mm | 22kg | |
12V | 300Ah | L520*W268*H220mm | 30kg | |
12V | 400Ah | L520*W268*H220mm | 39kg | |
24V | 50Ah | L330*W174*H220mm | 11kg | |
24V | 60Ah | L330*W174*H220mm | 12kg | |
24V | 100Ah | L520*W268*H230mm | 18kg | |
24V | 150Ah | L520*W268*H220mm | ||
24V | 200Ah | L520*W268*H220mm | 39kg | |
48V | 50Ah | L520*W268*H230mm | 18kg | |
48V | 100Ah | L520*W268*H220mm | 39kg |
Why Choose YichenLFP Battery?
We are good at producing lithium battery
Customizable temperature protection control circuit
When the temperature of the battery is below 0°C , it's charge and discharge efficiency will decrease. And the battery's life will be reduced. At this time, the low temperature protection of the BMS will take effect . When the temperature is too low , the BMS will forcibly interrupt the charge and discharge process to protect the battery. Besides, we have added the function of low temperature heating . When detecting that the battery is in an environment below 0 ℃ , the circuit board will heat the battery slowly to create a suitable charging and discharging environment for the battery.
Active equalization module
Certification support
About production:
1. Our current production capacity is about 5300KWH / Month ( ≈ { 48V 100Ah } * 1000pcs / Month ) . If your monthly demand exceeds 5300KWH and you need our production , Please contact our salesperson three months in advance.
2. We are a medium-sized battery manufacturer . In addition to samples , the customization of individual products required by individuals will lead to very high
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .
costs for you. The cost of some customization requirements such as mold opening may even be much higher than the retail price . Therefore, if you buy them for personal use,we recommend Purchasing directly by local merchants .
Business Cooperation
As a medium level manufacturer in the development, we are more flexible and efficient in responding to medium volume orders. In addition, the potential of new energy is very promising. So we are looking for the agents and warehouses all over the world. If you are interested in working with us, please enter the command in the message: Cooperation.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
About US
Shenzhen Yichen S-Power Tech Co., Ltd. founded in 2015, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service. The founder has more than 12years experience with Lithium battery. We focus on design and development of High Voltage, Large Capacity Long cyclelife LiFePO4 battery, LTO Battery and system, offer global technical support, Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products. Currently, we can support CANBUS / Bt App / Rs485 / Rs232 / solution, and developed battery self-heating and Self-cooling(Water cooling). Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power. These products are used on Solar, Home storage battery, UPS, AGV, RVcar, Telecom Base Station, Golf Trolley Cart, Fishing Boat, Car Start-Stop system battery.
The products passed TUV , UL , CE , CSA , CEC , JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co., Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
The products passed TUV , UL , CE , CSA , CEC , JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co., Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
Our Workshop & equipment
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes, we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product, 2~5 days; For customized product, 3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system, Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity, high performance battery packs for 12v / 24v / 48v / 80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V / 460V / 614V Aircraft tractors, heavy truck, Mine train,110v / 220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes, welcome!
Q5: What is the lead time for the mass order?
Generally speaking, about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal, Western union, Escrow; and Mass order by T/T.
Q7: What kind of certificate can offer?
CE, RoHS, UN38.3, MSDS, etc, If need IEC-62133, PSE and others, please consult with us.
