Hot Sale 80t/h Asphalt Drum Mix Plant Manufacturer
- Category: >>>
- Supplier: Henan Sinoroader Heavy Industry CorporationHenan Corporation
Share on (1601293801430):
Product Overview
Description
Model | Capacity | Measurement Accuracy | Total Power (kW) | Fuel Consumption (kg/t) | ||||
Aggregate | Bitumen | Coal | Oil | |||||
DHB-40 | 40t/h | ±1.5% | ±1% | 75 | 10-13 | 5.5-7 | ||
DHB-60 | 60t/h | ±1.5% | ±1% | 128 | 10-13 | 5.5-7 | ||
DHB-80 | 80t/h | ±1.5% | ±1% | 165 | 10-13 | 5.5-7 | ||
DHB-100 | 100t/h | ±1.5% | ±1% | 200 | 10-13 | 5.5-7 | ||

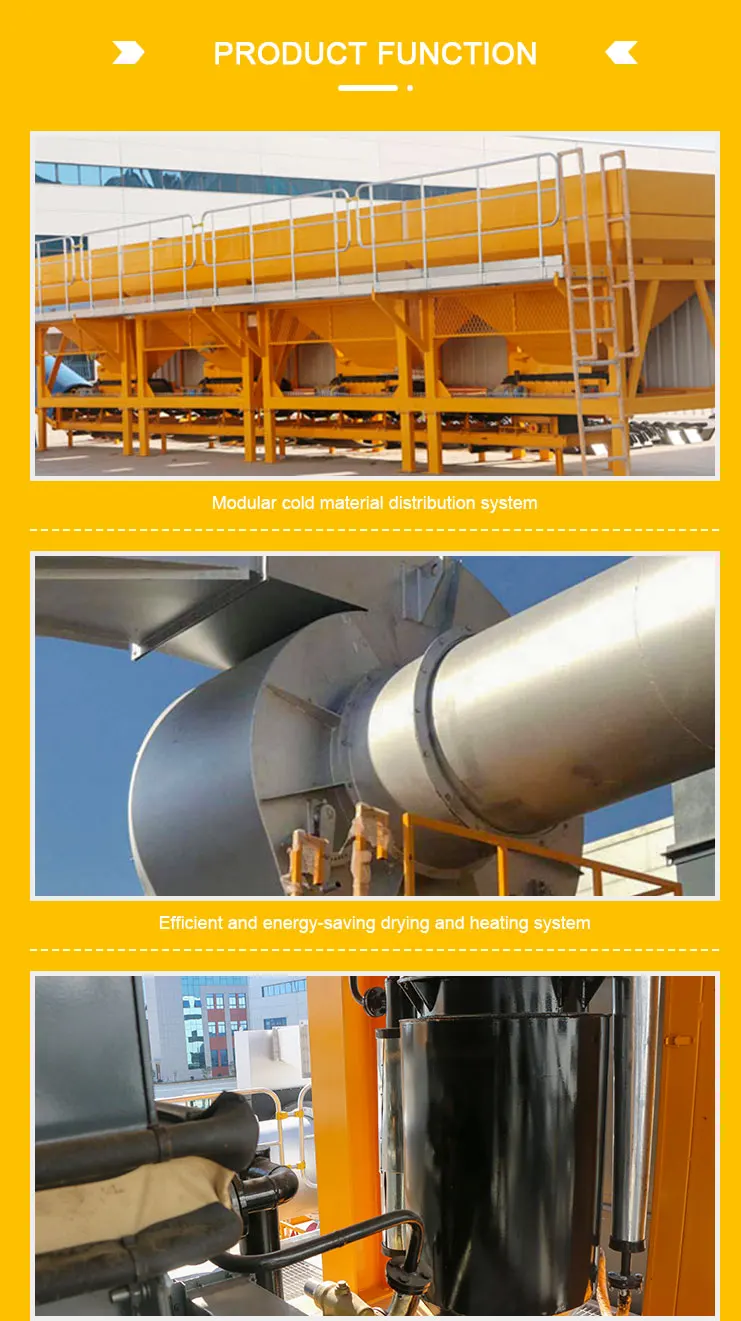

1.The aggregate hopper is equipped with big size stone sieve, to keep big size stones away.
2.Aggregate feeding is controlled by frequency inverter.
3.The side face of hoppers is equipped with fence to keep safety.
2.Aggregate feeding is controlled by frequency inverter.
3.The side face of hoppers is equipped with fence to keep safety.
1.The Middle screen can take away the aggregates which size is over 25 mm;
2.The belt is mounted with tensioning device.
2.The belt is mounted with tensioning device.

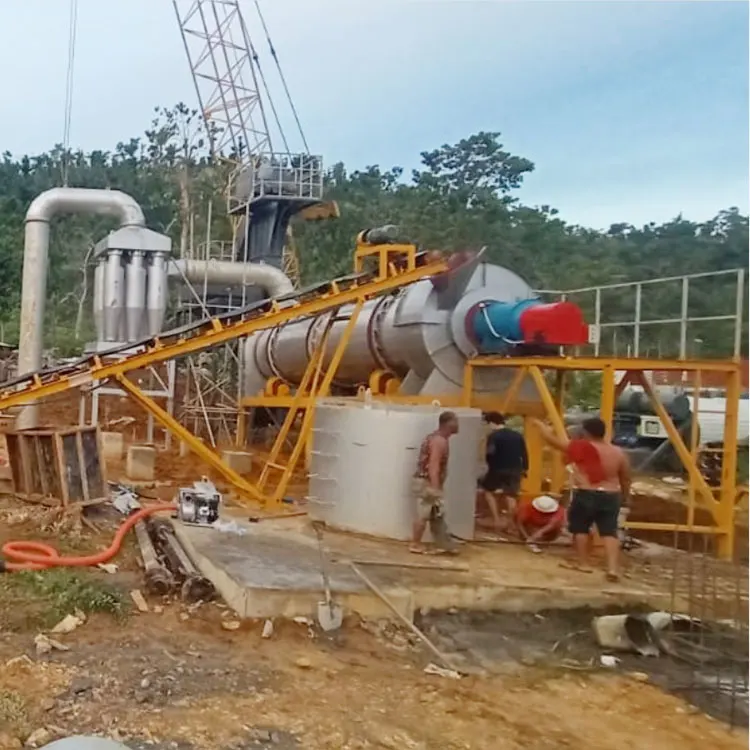

1.The drum dryer inclined angle: 3°
2.Burner: Oil burner
3.Surface of the drum dryer is with insulation to save the energy.
2.Burner: Oil burner
3.Surface of the drum dryer is with insulation to save the energy.
Finished product silo is used to temporarily store the asphalt mixture before truck loading. It mainly includes stand columns,
storehouse, ladders, etc.
storehouse, ladders, etc.
1.Elevator is vertical bucket elevator .
2.Component: rack, plate chain lifting, hopper, tension device and shell;
3.Function: take the mixture into finished goods hopper
2.Component: rack, plate chain lifting, hopper, tension device and shell;
3.Function: take the mixture into finished goods hopper

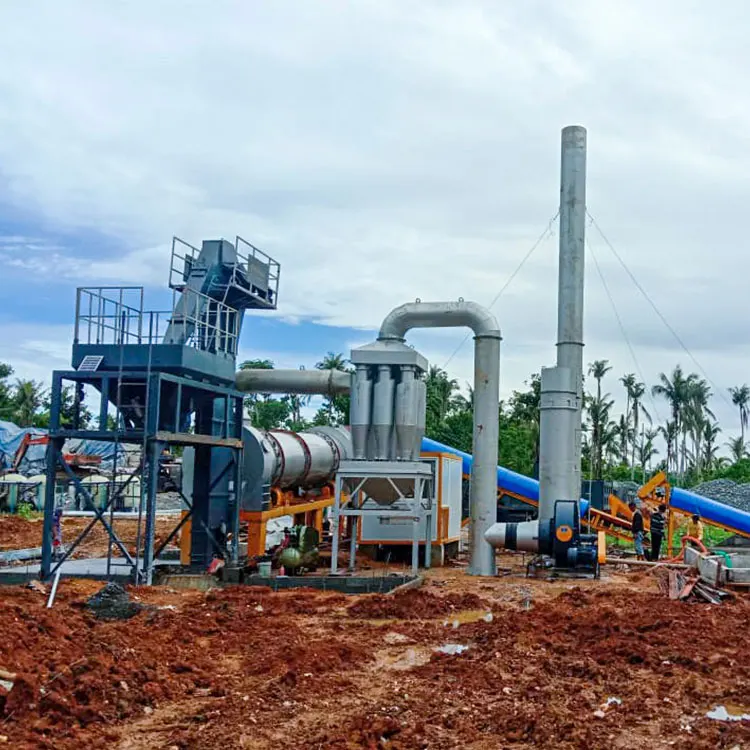

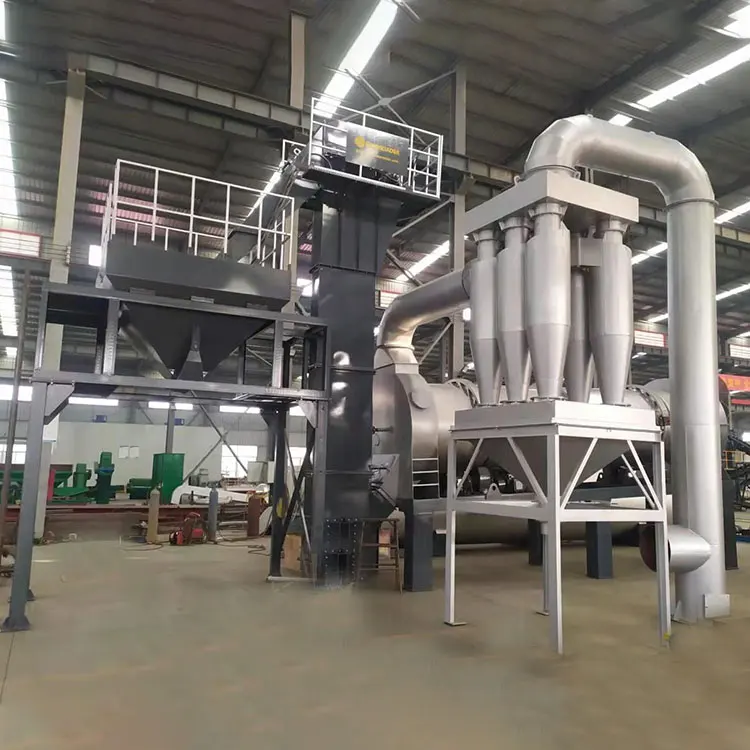

1.Standard configuration is cyclone dust filter as the primary dust collecting system.
2.The secondary level dust filter(for option) is the wet dust filter (or bag house dust filter) when the working place has higher
environmental requests.
2.The secondary level dust filter(for option) is the wet dust filter (or bag house dust filter) when the working place has higher
environmental requests.
1.PLC control system, auto start/firing, safety monitoring, automatic fault protection.
2.Weighing control system.
3.Control room:3000×2200×2500mm.
4.The Main electrical elements can be international brand or domestic brand.
2.Weighing control system.
3.Control room:3000×2200×2500mm.
4.The Main electrical elements can be international brand or domestic brand.
Q1.Are you factory or a trading company?
A: We are factory and a professional manufacturer of asphalt mixing plant.
Q2: What is the delivery time?
A: 30-50days after receiving advance payment
Q3: What is the payment terms?
A: T/T. L/C are all accept.
Q4: Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking,etc.
Q5: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q6: Which countries your equipment have been exported?
A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi,
Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q7: Do you provide overseas erection and training service?
A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.
Q8: How about the price?
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can.
A: We are factory and a professional manufacturer of asphalt mixing plant.
Q2: What is the delivery time?
A: 30-50days after receiving advance payment
Q3: What is the payment terms?
A: T/T. L/C are all accept.
Q4: Can I visit your factory?
A:Of course. We warmly welcome you to visit our factory. And we provide you great services like airport pick up, hotel booking,etc.
Q5: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q6: Which countries your equipment have been exported?
A:Thailand, Philippines, Indonesia, Myanmar, Russia, Bangladesh, Kazakhstan, Uzbekistan, Russia, Romania, Somalia, Kenya, Malawi,
Nigeria, Togo, Mozambique, Oman, South Africa, America, Peru, Chile, Colombia, Venezuela, Australia, etc.
Q7: Do you provide overseas erection and training service?
A:Yes, we can send experienced engineers to your country, guide erection and commissioning and train your workers how to operate the plant.
Q8: How about the price?
A: We are manufactory, not dealer, so we can give you a lower price than those trade companies can.
