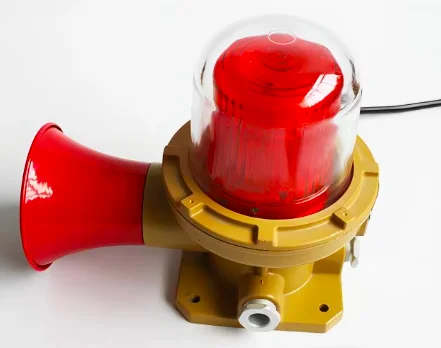

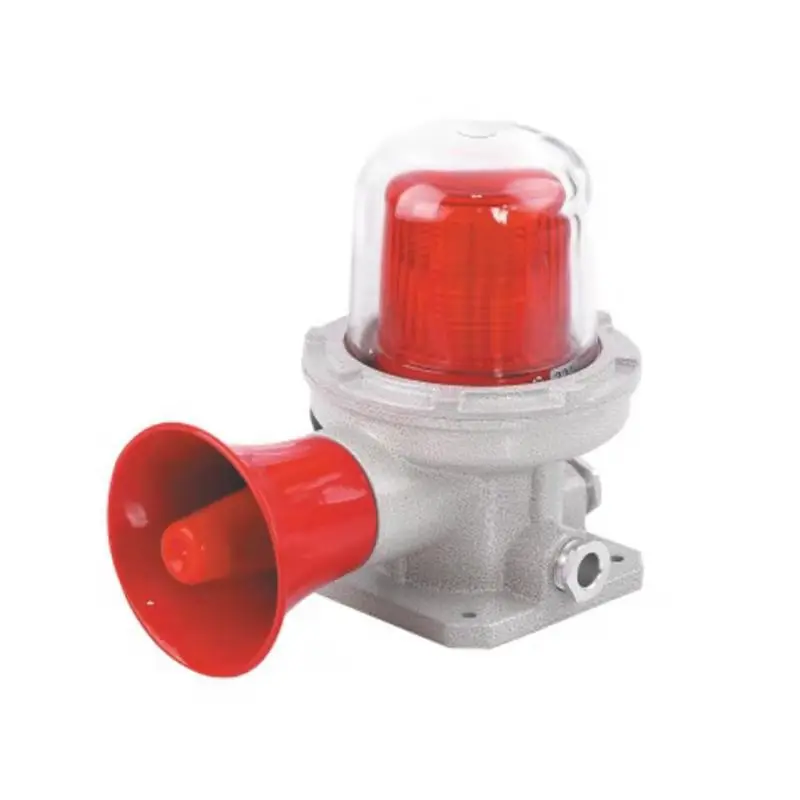

ATEX IP66 WF2 Anti Explosive Warning Light Siren Alarm Systems Red Steady Rotating Flashing Strobe Safety Fixture
- Category: >>>
- Supplier: Changzhou Maxtree Technology Co. Ltd.Changzhou Ltd.
Share on (1601293842136):
Product Overview
Description
Product Parameters

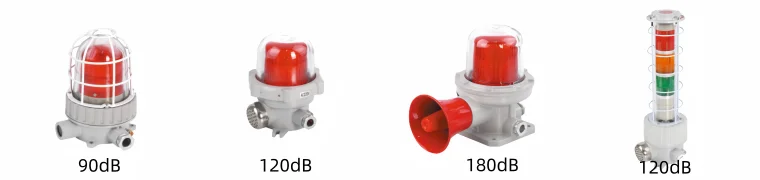

ITEM | MODEL | POWER | WEIGHT | DECIBEL | |||
#BHJ | BHJ-01 | 5W | 1.8KG | 90dB | |||
BHJ-02 | 10W | 1.8KG | 120dB | ||||
BHJ-03 | 20W | 2.2KG | 180dB | ||||
BHJ-04 | 20W | 2.8KG | 120dB | ||||
OTHERS | For more product information and customized content, please contact us! | ||||||
COMMON | Work Mode: | Rotate/Flash/ Strobe/Steady | Light Color: | Red/Yellow/ Blue/Green | |||
Light Source: | LED | Voltage: | AC220V,50Hz (Customizable) | ||||
EX Mark: | Exd IIC T6 Gb/ DIP A20 TA,T6 | IP Grade: | IP65/IP66 | ||||

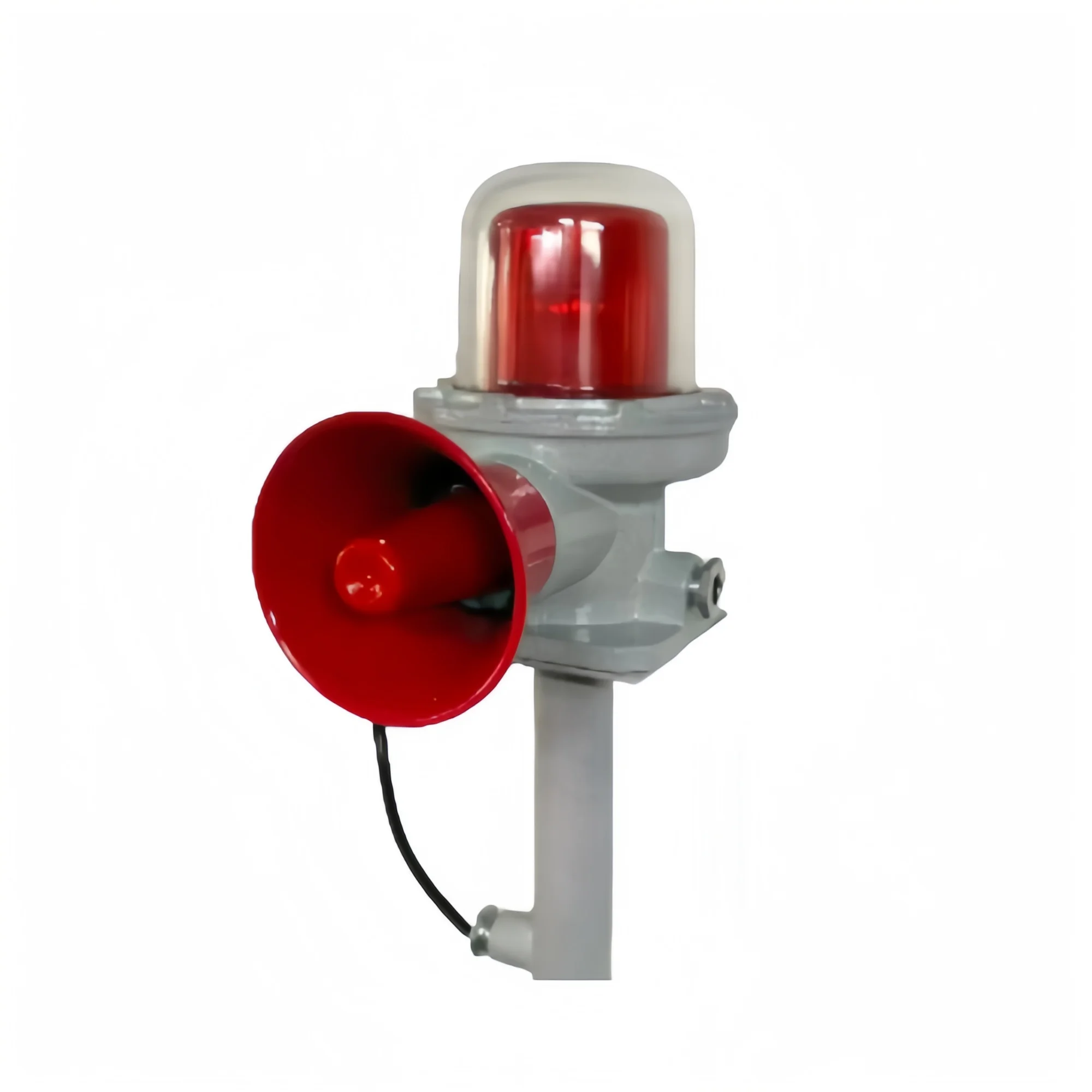

Anti-corrosion Grade: | WF1/WF2 | Mounting: | Pole Mounted/ Seating Mounted | ||||
Cable Entry: | G3/4~Φ10mm~Φ14mm | Outside Dimension: | ф164*430mm | ||||
Flash Frequency: | 150 times/min | Lifespan: | 100000Hours | ||||
Emergency Start Time: | <0.3s | Terminal Block: | ≤2.5mm² wire can be connected | ||||
Working Temperature: | -40ºC~50ºC | Electric Current: | 0.07A | ||||
Power Factor: | >/=0.97 | Power Efficiency: | >/=90% | ||||
Voice Broadcast Model: | 1. The volume can be adjusted. 2. Default is 1 voice,multiple voices can be customized.Customization period is 1-3 days. | ||||||
CERT | ATEX,CE,IP65 | ||||||

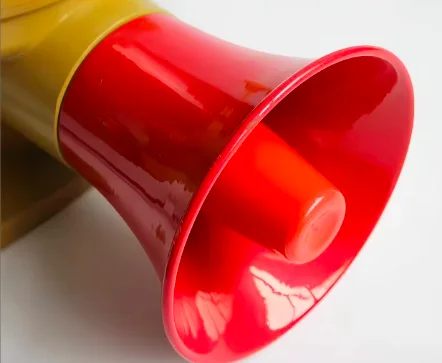

FEATURES | ●The housing is made of special aluminum alloy, and the surface is specially anti-corrosion treated with powder spraying and high-voltage electrostatic spraying. ●The aluminum alloy is equipped with a heat sink for better heat dissipation. ●The tempered glass transparent cover is impact-resistant and has high light transmittance. ●High-strength stainless steel exposed fasteners. ●The inner lampshade has four optional light colors: red, blue, yellow and green. ●Equipped with ultra-bright LED light source with long life. ●Steel pipe or cable wiring can be selected. ●High-quality gaskets are used to seal between the mounting module, housing and optical components to achieve optimal performance in humid and corrosive environments. ●Large speakers, smooth and loud sound, and wider propagation range. ●Save energy, maintenance and installation costs. | ||||||
APPL | ●Warehouse ●Manufactory ●Oil Refining ●Industry ●Offshore Oil Platforms ●Zone 1 and Zone 2 ●As signs or signal alarms around the top of buildings ●Places with high protection requirements and humidity ●For IIA, IIB, IIC explosive gas environments ●For temperature groups T1~T6 ●For other dangerous environment for general lighting and operational lighting ●For energy saving renovation projects and maintenance & replacement for difficult places | ||||||
Product Description
An explosion-proof warning light is a specialized lighting device designed to operate safely in hazardous environments where the presence of flammable gases, vapors, or combustible dust could lead to an explosion. These lights are engineered with robust construction and sealed enclosures to prevent any sparks or arcs from igniting the surrounding atmosphere. They typically feature durable materials such as stainless steel or aluminum and are equipped with specially designed lenses to maximize light output while ensuring safety.
Our aviation obstruction lights serve as crucial safety signals, alerting aircraft to potential hazards like tall buildings and communication towers. With cutting-edge features such as automatic dusk-to-dawn sensors and durable weatherproof housing, our lights offer reliability and efficiency. Compliant with strict aviation regulations, they provide peace of mind to operators and pilots alike. Installed on skyscrapers, wind turbines, bridges, and other elevated structures, our obstruction lights are vital for preventing collisions and ensuring the safety of air and ground personnel. Rely on our lights for consistent performance and heightened aviation safety.
Preassembled and preconfigured multi-segment LED tower light indicators replace conventional stack lights, which often require
time-consuming assembly and complex wiring. Various tower light models result in customized solutions, including a choice of ac or dc supply power, three audible output options, standard or high light intensities and quick-disconnect or pre-wired options.
time-consuming assembly and complex wiring. Various tower light models result in customized solutions, including a choice of ac or dc supply power, three audible output options, standard or high light intensities and quick-disconnect or pre-wired options.
LED lamp bead costs little and works long with efficient lighting.With Steel mesh cover and special glass,which are anti-collision and anti-drop.
The glass cover with PVB film has excellent isolation, which can prevent arc sparks caused by lighting from contacting with flammable gases and causing explosions.

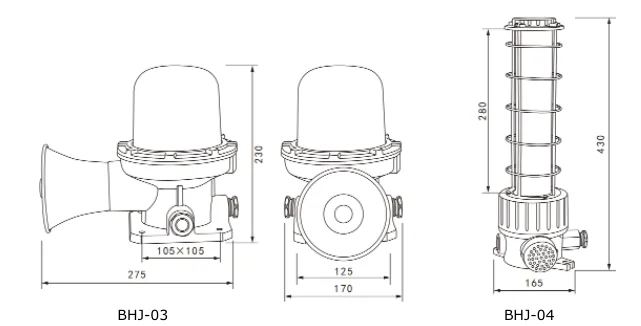

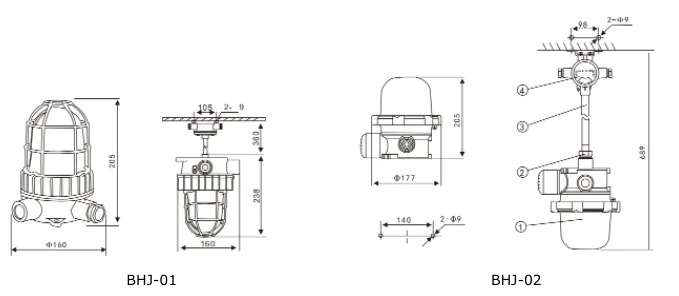

Installations&Dimensions

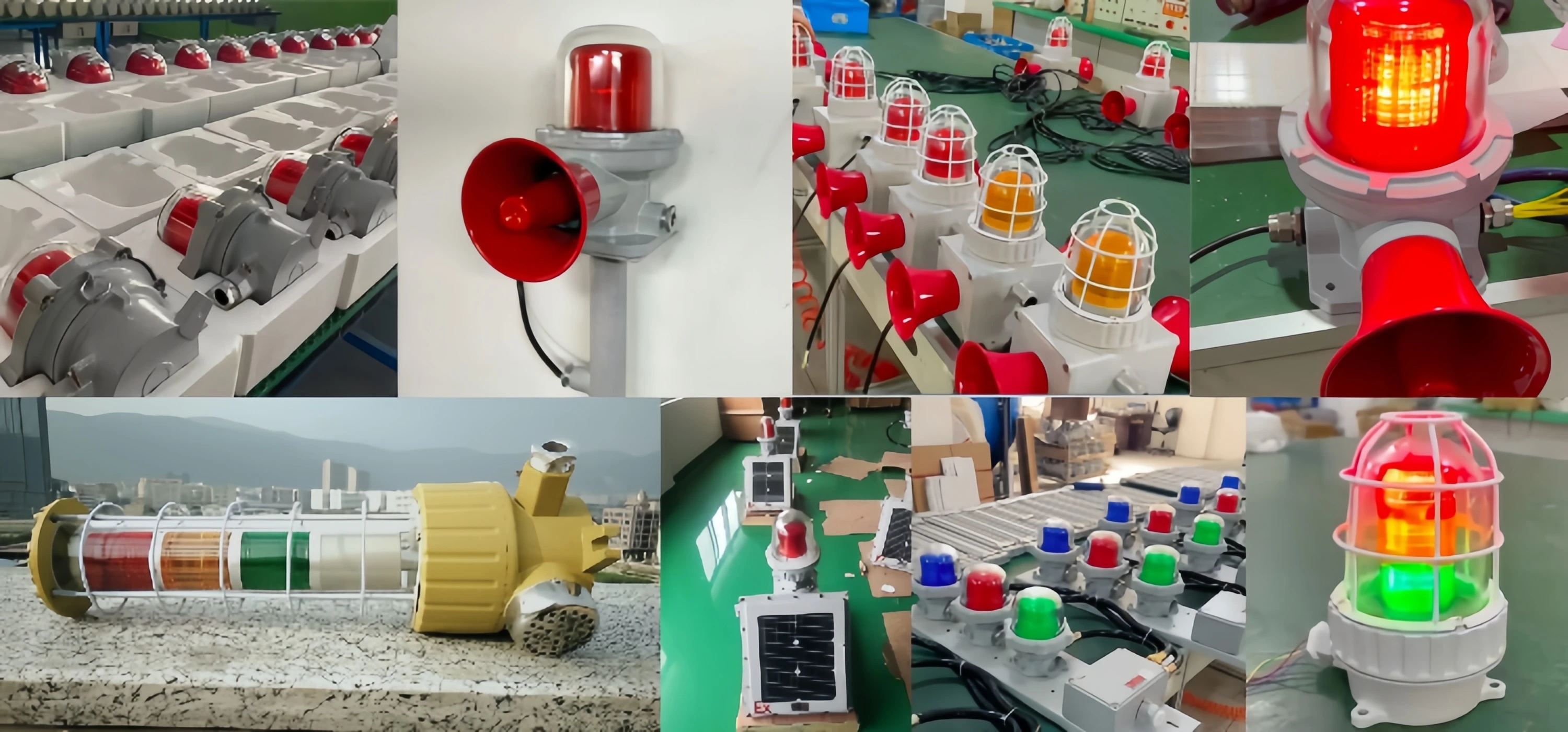

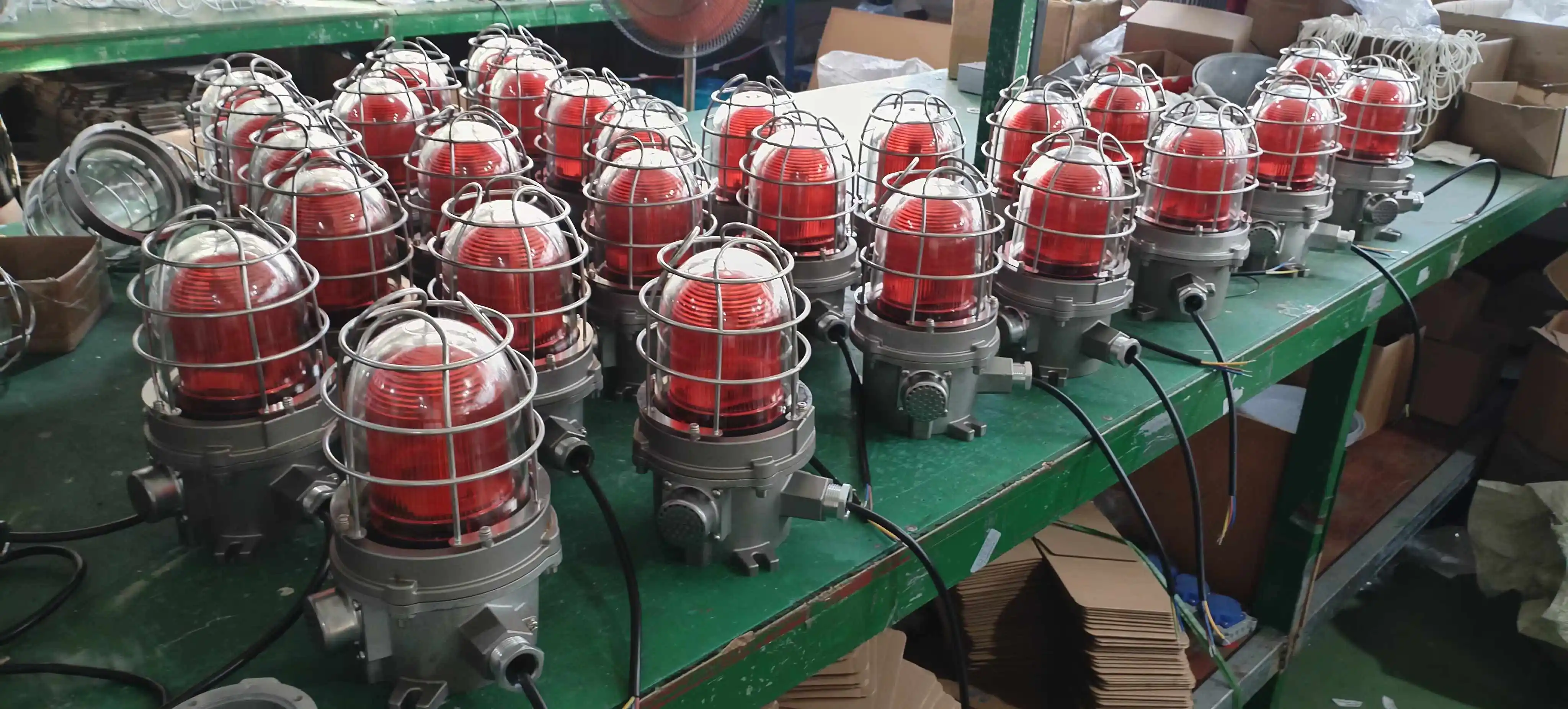

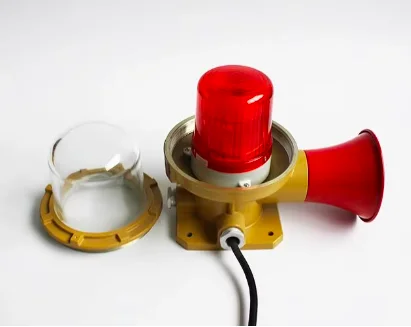

Real Photos

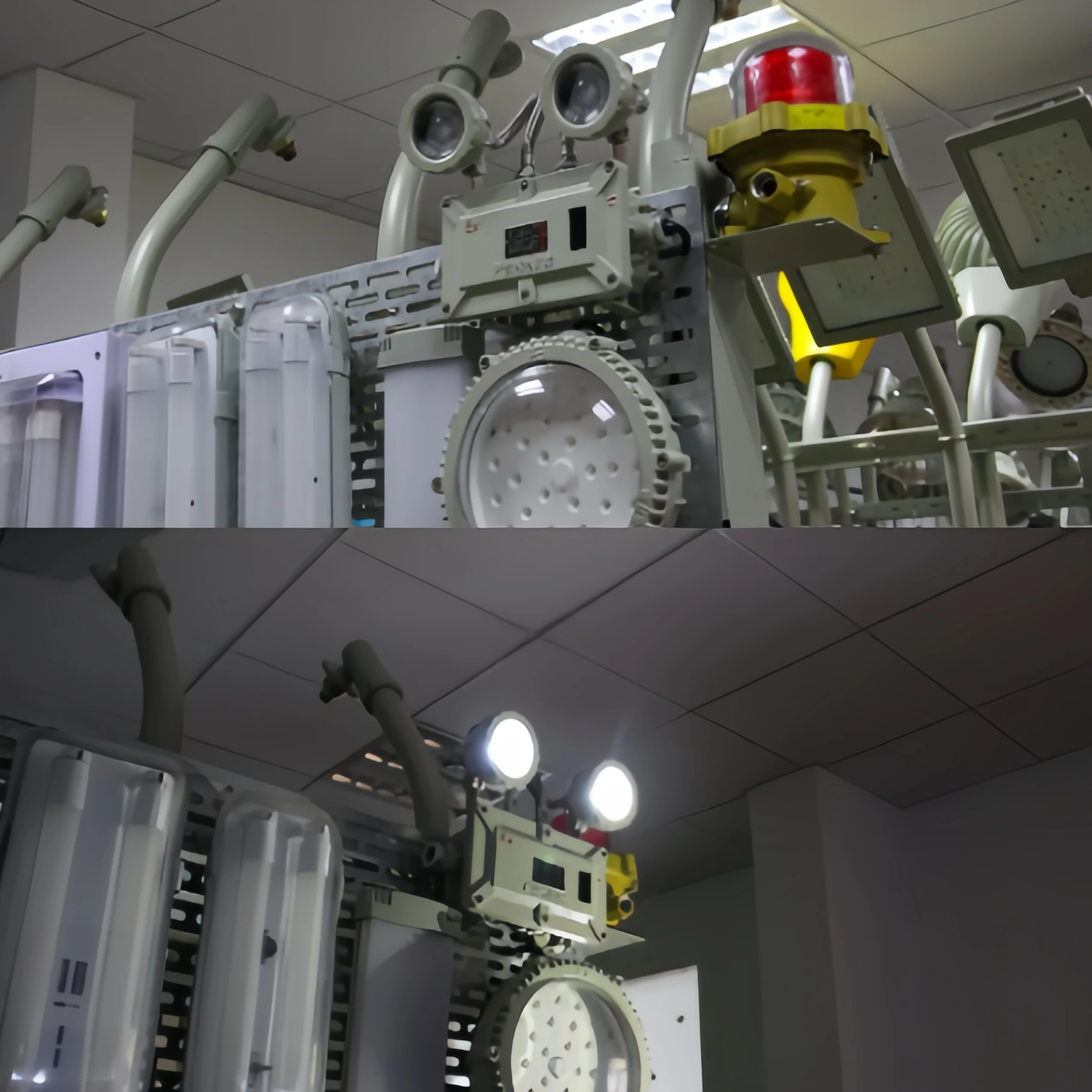

Customer Feedback
Product Application
Product Applications：
●Warehouse
●Manufactory
●Oil Refining
●Industry
●Offshore Oil Platforms
●Zone 1 and Zone 2
●As signs or signal alarms around the top of buildings
●Places with high protection requirements and humidity
●For IIA, IIB, IIC explosive gas environments
●For temperature groups T1~T6
●For other dangerous environment for general lighting and operational lighting
●For energy saving renovation projects and maintenance & replacement for difficult places
●Manufactory
●Oil Refining
●Industry
●Offshore Oil Platforms
●Zone 1 and Zone 2
●As signs or signal alarms around the top of buildings
●Places with high protection requirements and humidity
●For IIA, IIB, IIC explosive gas environments
●For temperature groups T1~T6
●For other dangerous environment for general lighting and operational lighting
●For energy saving renovation projects and maintenance & replacement for difficult places
