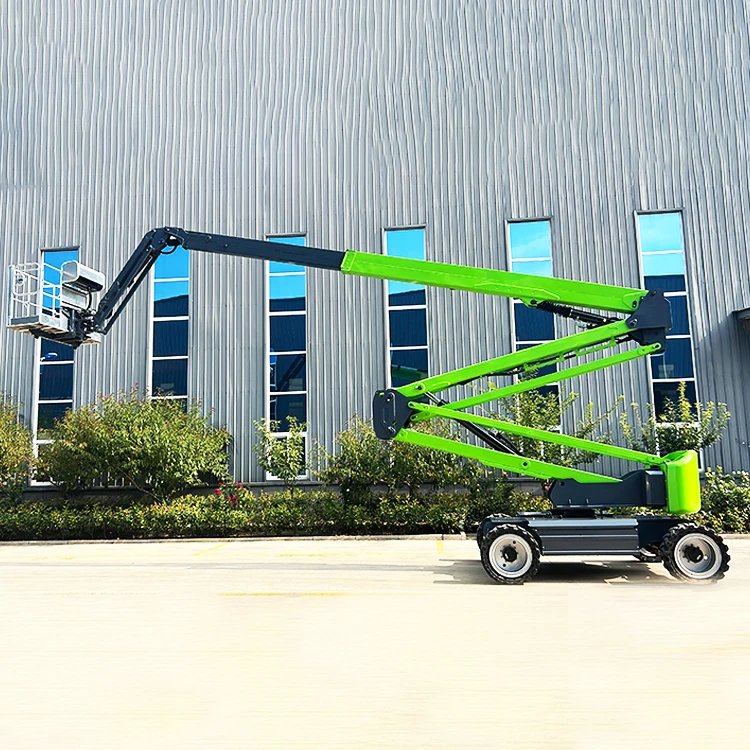

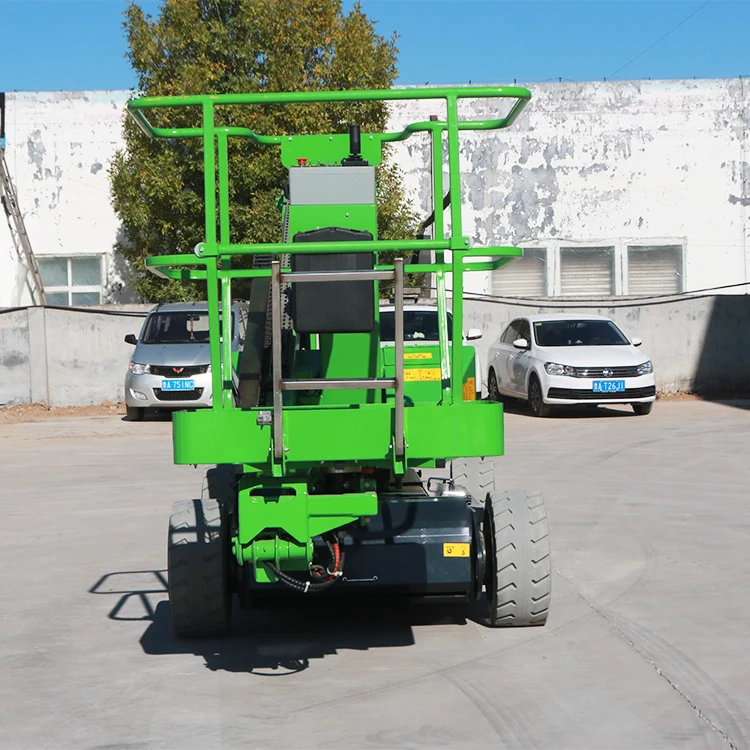

TONLITA Boom Lifting Equipment 12 Meter 18 Meter Articulated Boom Lift
TONLITA Boom Lifting Equipment 12 Meter 18 Meter Articulated Boom Lift
TONLITA Boom Lifting Equipment 12 Meter 18 Meter Articulated Boom Lift
TONLITA Boom Lifting Equipment 12 Meter 18 Meter Articulated Boom Lift
TONLITA Boom Lifting Equipment 12 Meter 18 Meter Articulated Boom Lift
TONLITA Boom Lifting Equipment 12 Meter 18 Meter Articulated Boom Lift
TONLITA Boom Lifting Equipment 12 Meter 18 Meter Articulated Boom Lift

TONLITA Boom Lifting Equipment 12 Meter 18 Meter Articulated Boom Lift

Share on (1601293971646):


Price:$7,200.00-9,800.00

Quantity:


Product Overview

Description





Product Description


Boom Lift Series

Boom lift series offers platform height from 8 to 56 meters, with electric and diesel power developed on the same platform, applicable for a wide range of aerial jobs, Boom Lifts of 9~26m are suitable for standard container transport.



DESCRIPTION
Model :V12M
Max. Working height: 13.5m
Max. Platform height ：11.5m

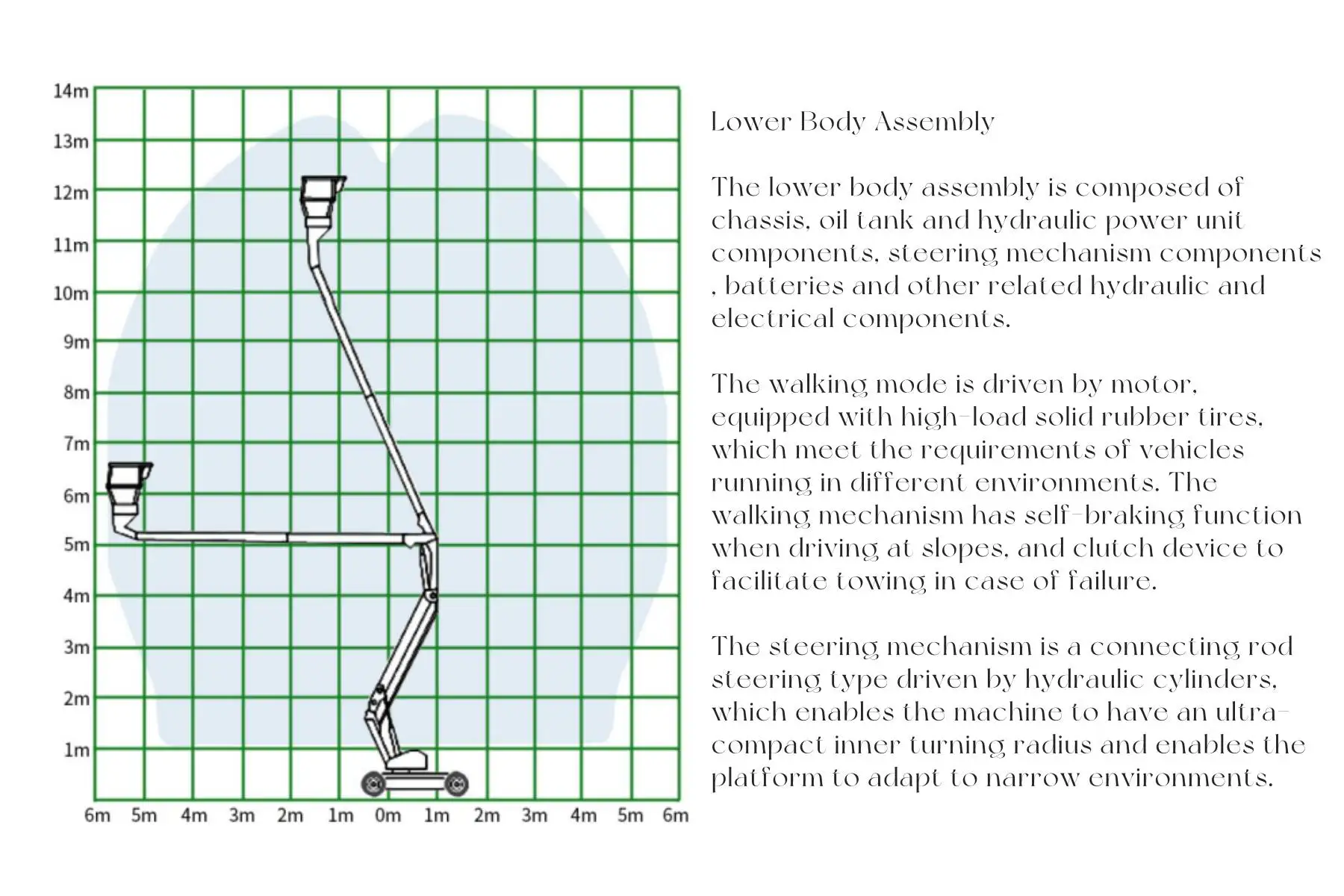

Max. Operating radius ：5.63m
Max. Spanning height ：5.4m
Platform floor size ：1.26×0.712×1.13 m
Length（stowed）：4.04m
Height（stowed）：2.05m
Width（stowed）：1.50m
Wheelbase ：2.00m
Productivity
Platform capacity (SWL)：215kg
Max. drive speed (stowed):4-5km/h

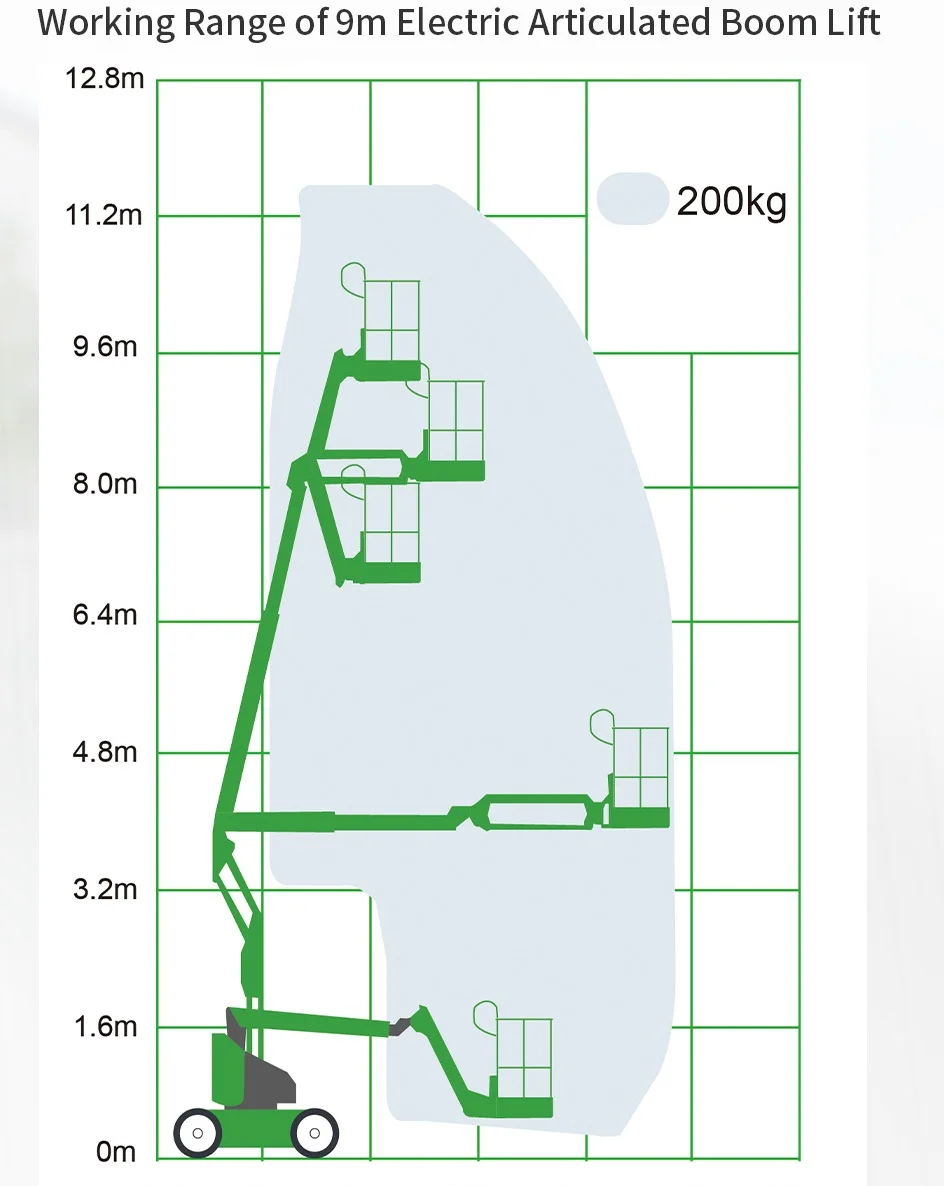

Model V09
Max. Working height :11.5m
Max. Platform height : 9.5m
Max. up and over clearance : 4.5m
Max. Working radius : 6.2m
Platform dimensions : 1.4*0.7m
Width : 1.27m
Wheelbase : 1.75m
Productivity
Max. Lift capacity : 200kg
Number of Platform Occupants : 2
Platform rotation : ±80°
Jib rotation : ±70°
Turntable rotation : 355°
Drive speed-stowed : 4.8km/h

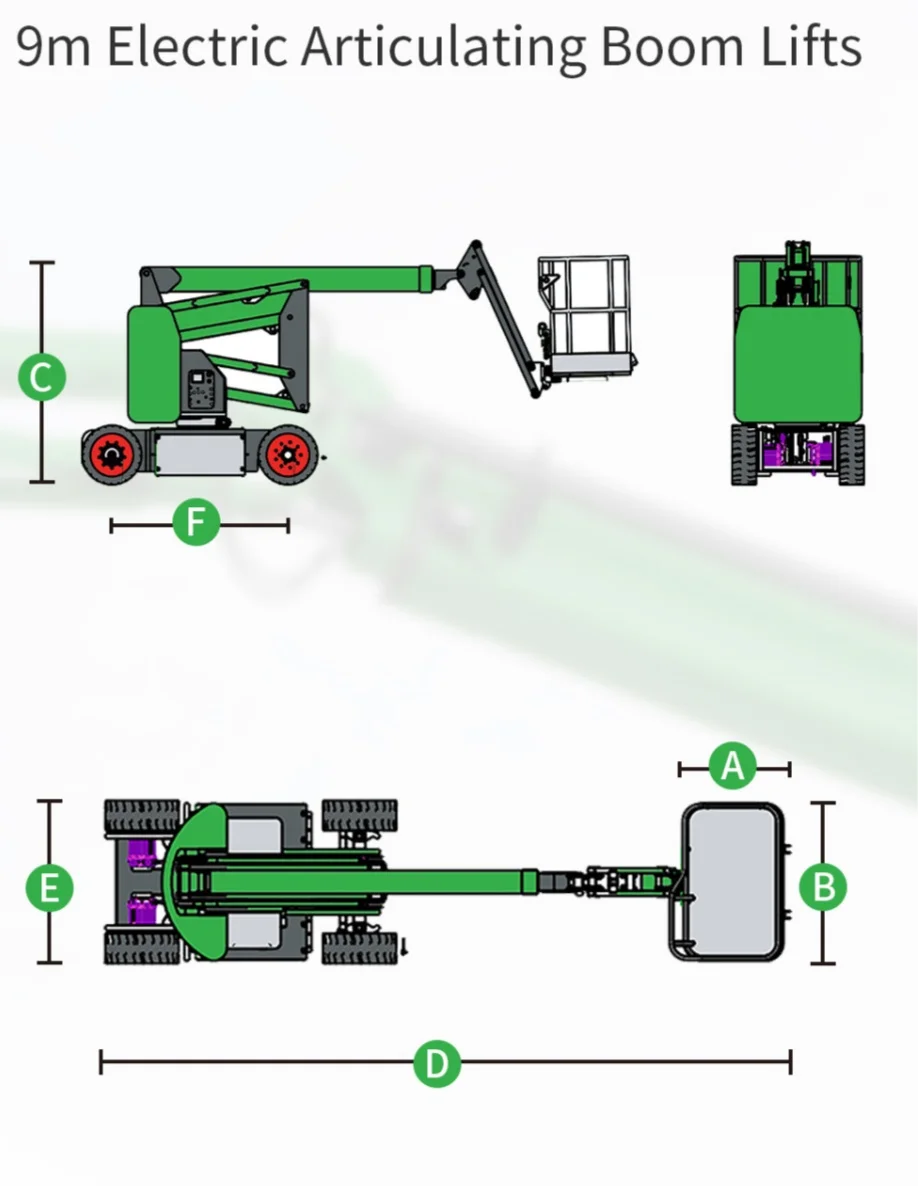

Specification


Specifications
Model
V09
Max. Working height
11.5m
 Max. Platform height
9.5m
Max. up and over clearance
4.5m
Max. Working radius
6.2m
Platform dimensions
1.4*0.7m
Productivity
Max. Lift capacity
200kg
Number of Platform Occupants
2
Platform rotation
±80°
Turntable rotation
355°
Drive speed-stowed
4.8km/h
Power
Battery
48V/320Ah
Pump motor
4kw
Drive motor
3.3kw
Control voltage
24V


Product Details

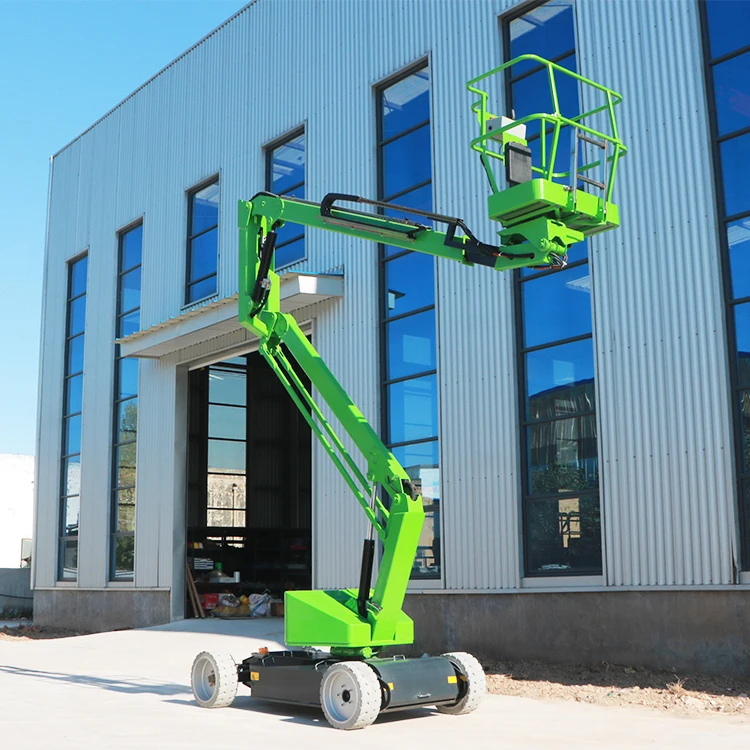

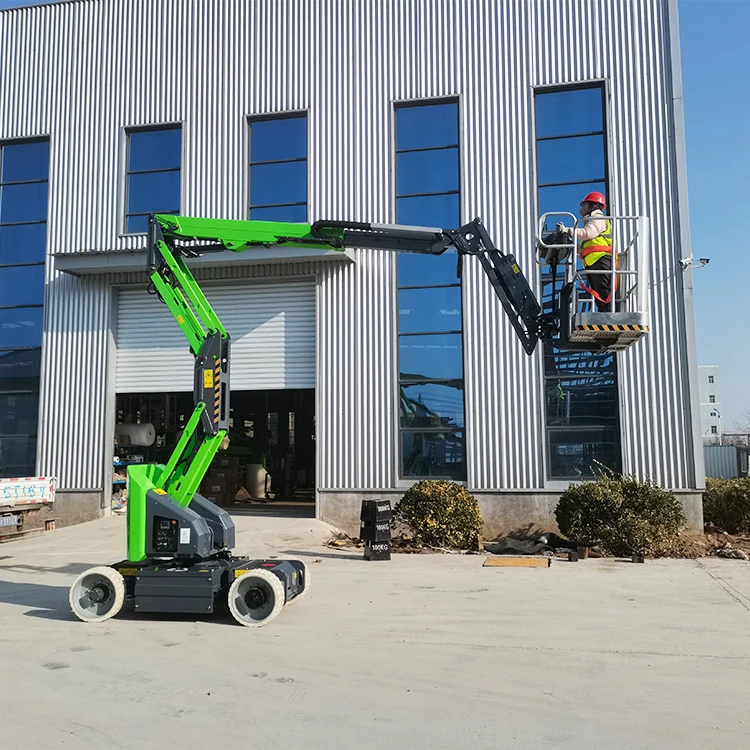

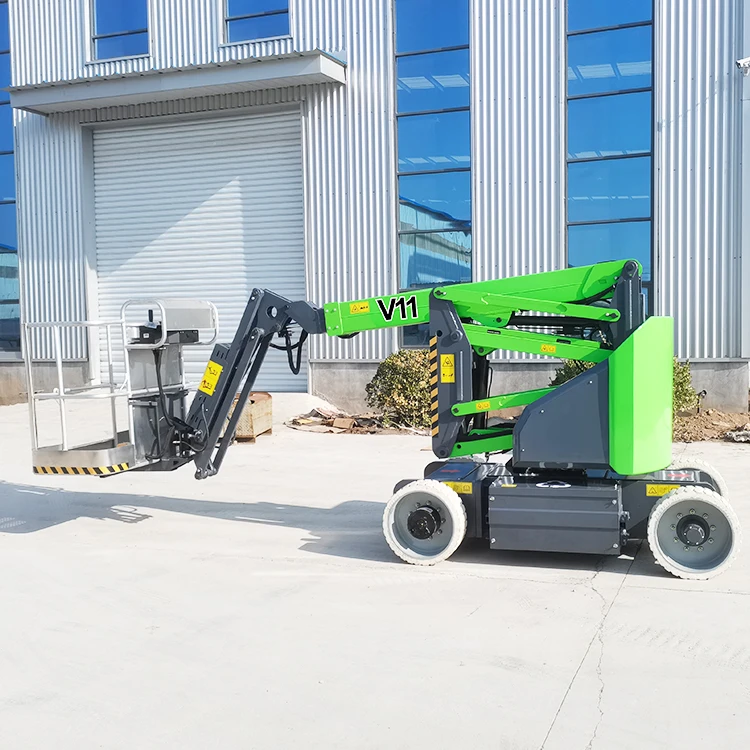

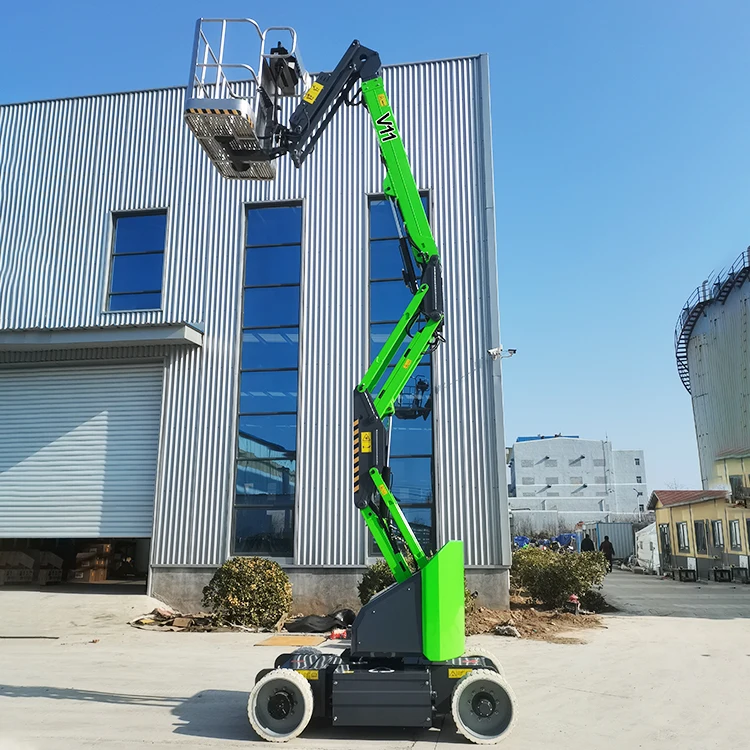

Electric Articulating Boom Lift
Electric Articulating Boom Lift has a maximum working height of 11.5 to 22.5 meters, with a maximum load of 350kg. It is electric-powered and articulating boom design provide a sustainable and flexible solution for accessing elevated areas, Lithium and Lead-acid batteries are an option based on our work need.






Product Introduction

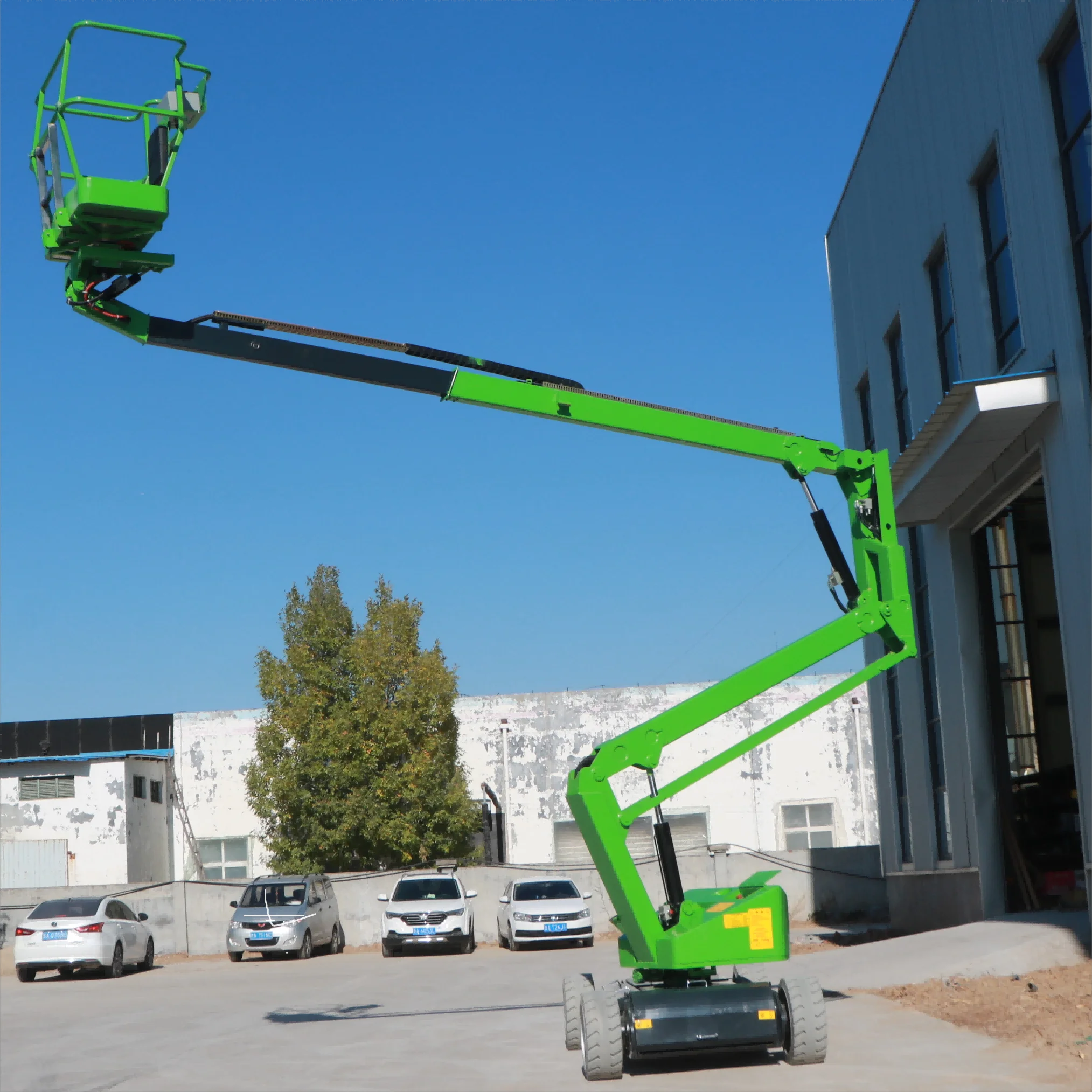

Articulated Boom Assembly
The composite mechanism of folding boom and sleeve telescopic boom makes the movement is used to make the movement of the mechanism more flexible and improves the work efficiency.

Using high strength materials reduces the weight of the entire articulated boom assembly, and increases the stability of the
machine.


The Electrical System

Main functions of electrical system:
Steering and driving control of the chassis; The rotation of the turntable, the rise and fall of the articulated boom and the telescopic action of the extended boom.

Implemented security protection measures:
The control system integrates the tilt sensor device to limit the machine's rise and walk under dangerous ground conditions;

Overload alarm system, it will warn automatically if the machine exceeds the safety load capacity;

The handle integrates the interlock switch to prevent the machine from acting if touching accidentally;

When the machine loses power, the ground operator can use the equipped hand pump to retract the telescopic arm;

When the machine is in the raised state, it is automatically limited to low speed driving;

The two wheels are automatically locked when parking, and when driving, it will release the brake automatically to the hydraulic pressure.

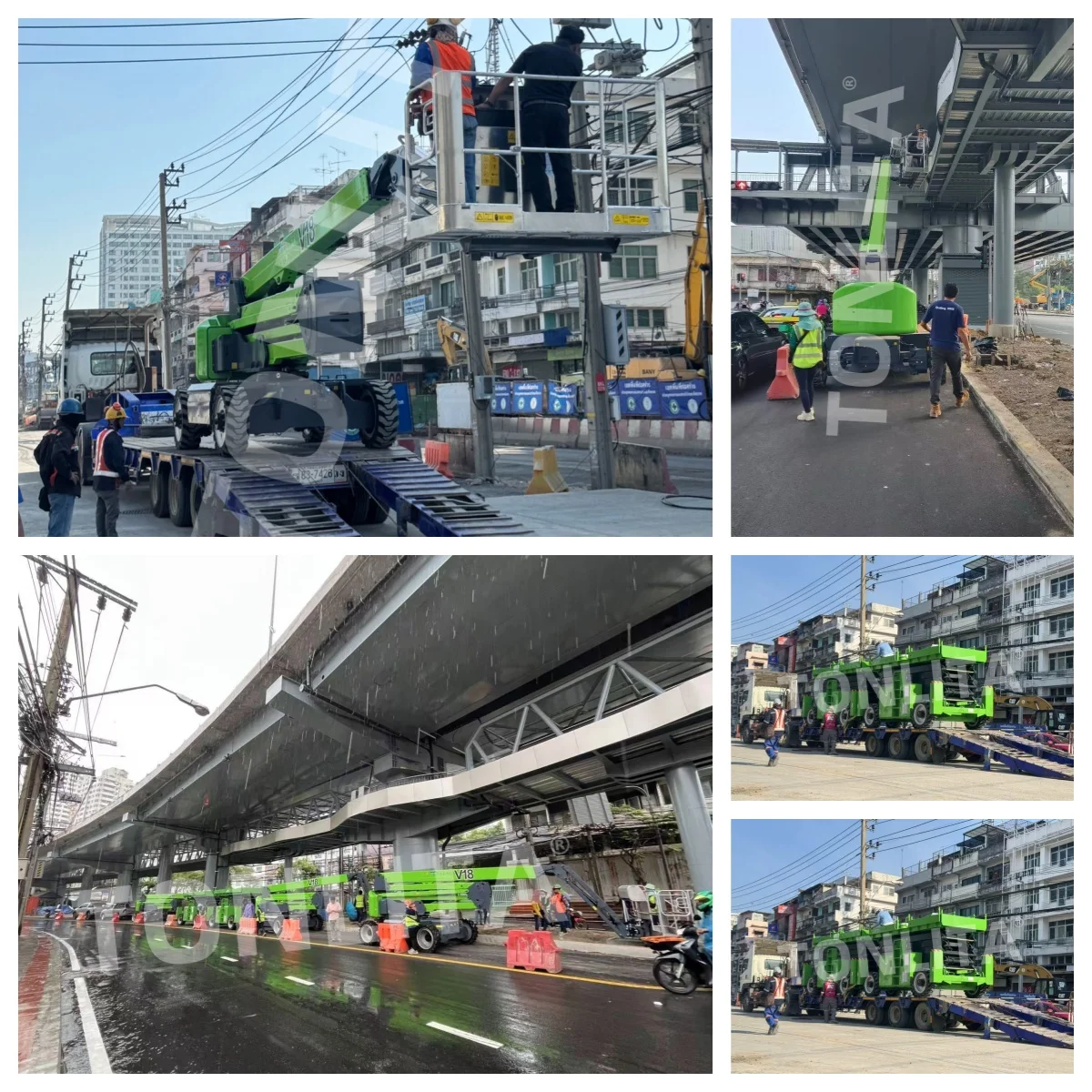

Our Customer
