China XCMGLW500KN 5ton mini 3m3 bucket capacity front end Wheel loader for sale
- Category: >>>
- Supplier: Qingdao Dawnshine Import & Export Co. Ltd.Qingdao Ltd.
Share on (1601293971673):
Product Overview
Description
Product Description

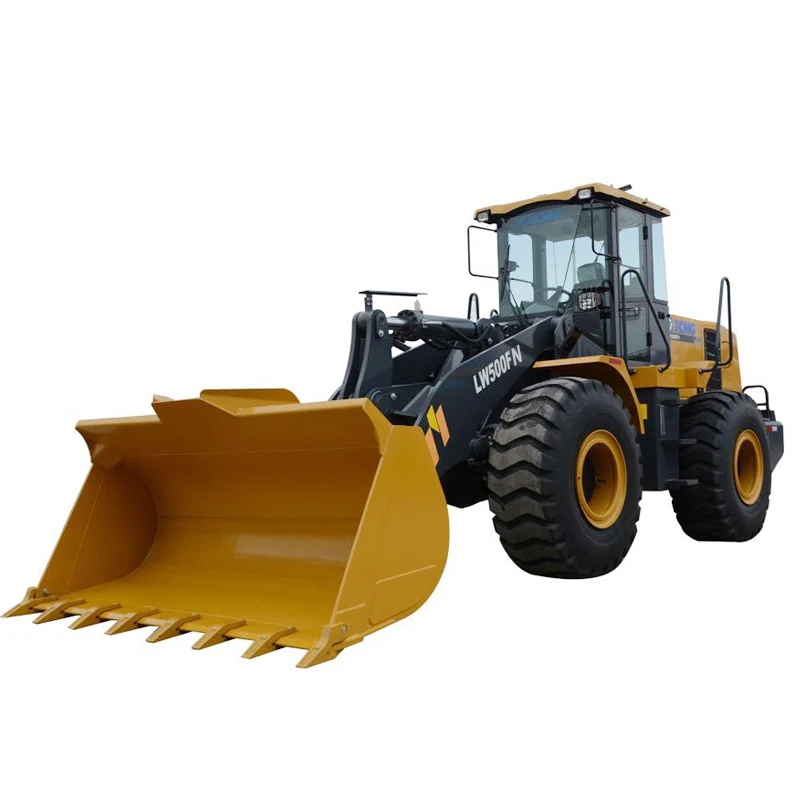

XCMGLW500FN front end loader farm tractor wheel loader
LW500KN wheel loader is the latest cross-generation product developed by XCM-G on the basis of the globalized technologic resources.
Focusing on the customer value and emphasizing the customer experiences, XCMG’s new generation loader boasts outstanding advantages (such as efficiency) in the fields of engineering constructions and aggregate yards.
Focusing on the customer value and emphasizing the customer experiences, XCMG’s new generation loader boasts outstanding advantages (such as efficiency) in the fields of engineering constructions and aggregate yards.
Model Characteristics:
1. XC - - MG’s exclusive high torque and high efficiency drive chain features reasonable matching.
2. The front frame adopts the box structure with integrally cast lugs and the rear frame adopts the special-shaped box beams welded from variable stiffness bent plates, featuring high carrying capacity.
3. The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.
4. With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field adaptability.
5. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
6. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.

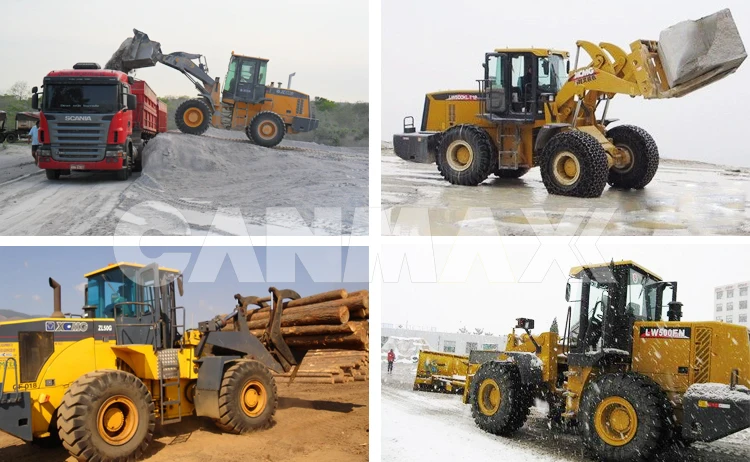

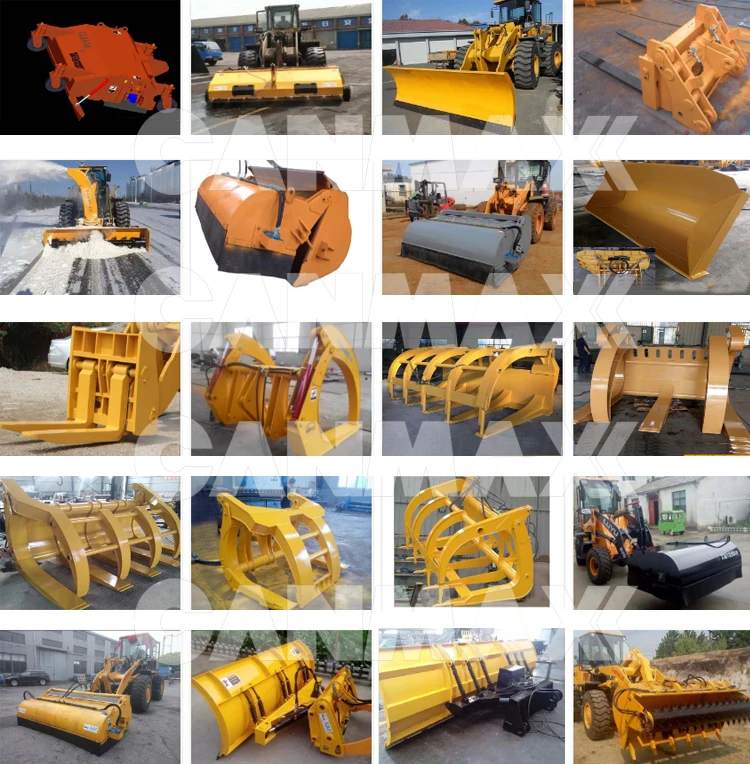

Variety attached tools meeting requirements of different working conditions:

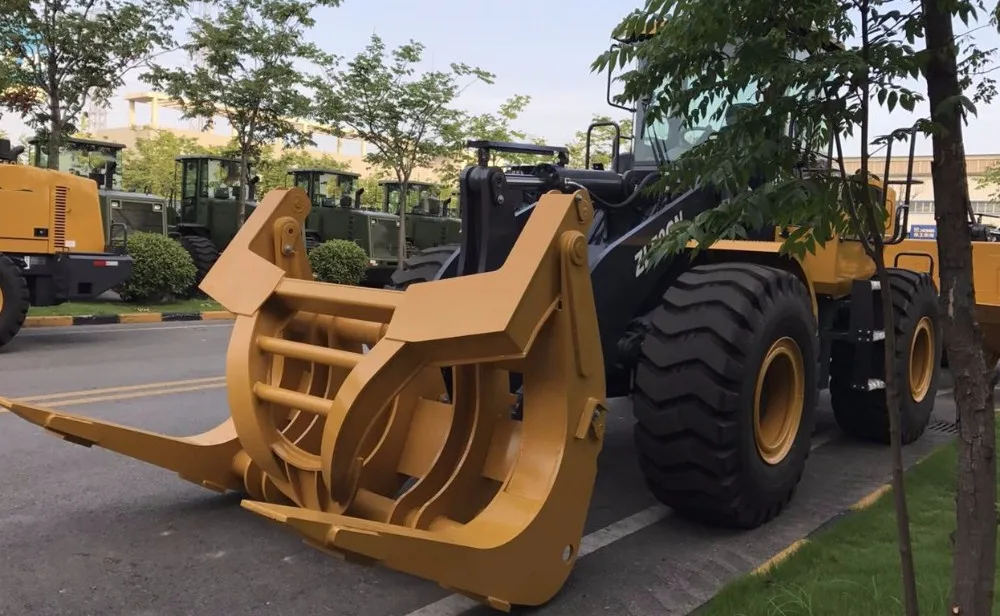

Clipping plier I (paired teeth)/ Clipping plier II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/
Pallet fork/ Snowplow.
1. XC - - MG’s exclusive high torque and high efficiency drive chain features reasonable matching.
2. The front frame adopts the box structure with integrally cast lugs and the rear frame adopts the special-shaped box beams welded from variable stiffness bent plates, featuring high carrying capacity.
3. The hinged joints between front and rear frames adopt the structure of rolling bearings + knuckle bearings, featuring high carrying capacity and working stability.
4. With short wheelbase and small turning radius, this product features high mobility and flexibility and outstanding field adaptability.
5. The ergonomically design cab adopts integral skeleton structure, delicate interior trim parts, and sound insulation and noise reduction measure, featuring broad visual field, super-large space, and high operation comfort.
6. The diversified configurations and complete attachments comprehensively adapt to the construction needs in different regions and under different working conditions.
Variety attached tools meeting requirements of different working conditions:
Clipping plier I (paired teeth)/ Clipping plier II (staggered teeth)/ Toad's mouth clamp/ Port plier/ Grasping grass machine/
Pallet fork/ Snowplow.

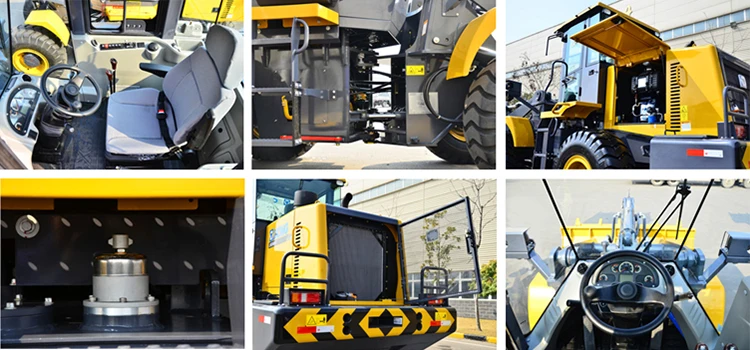

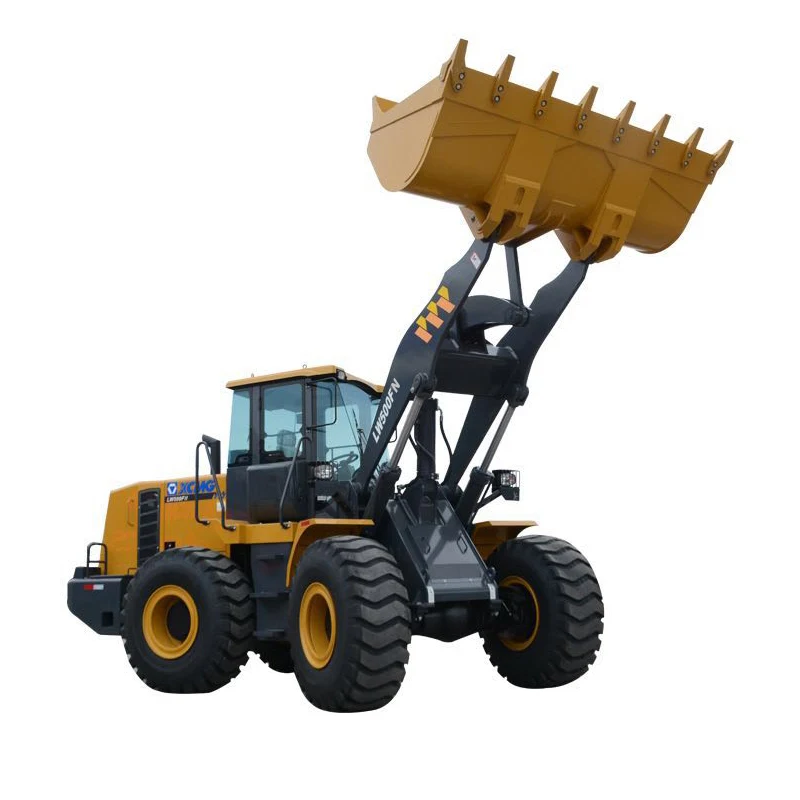

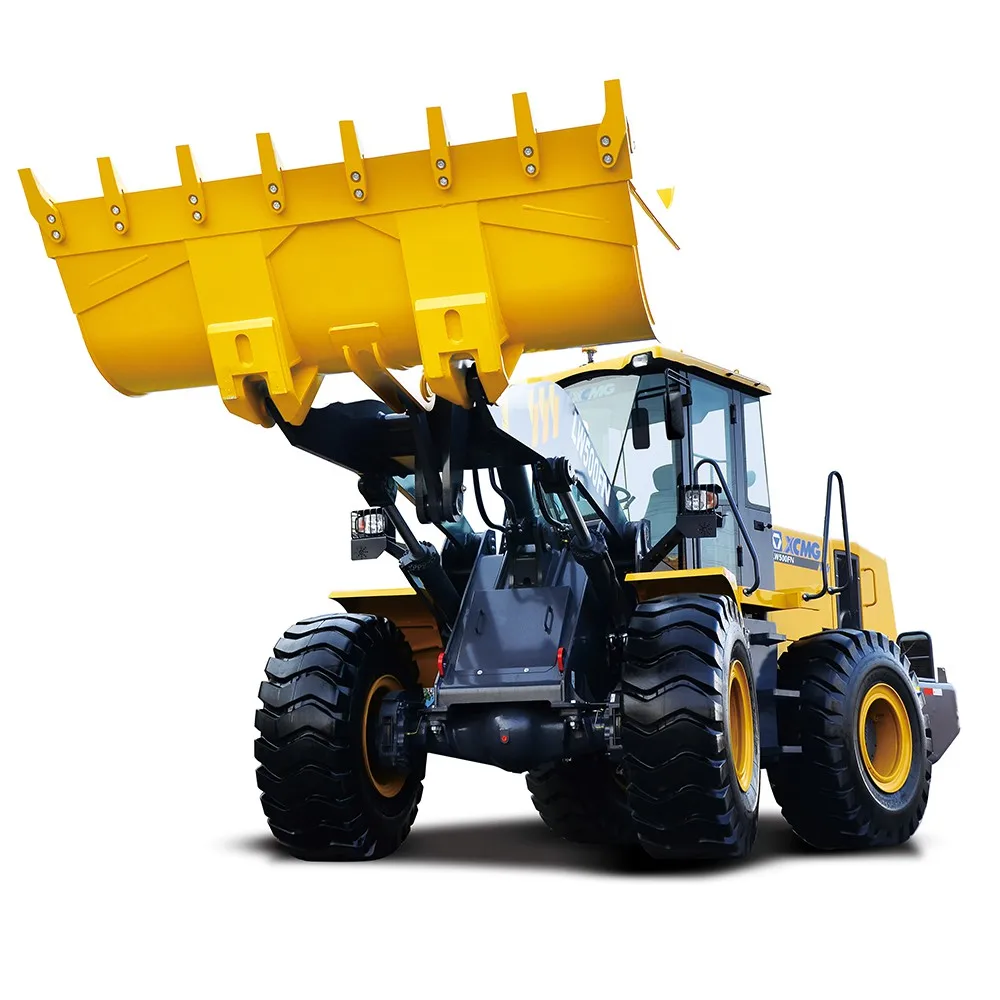

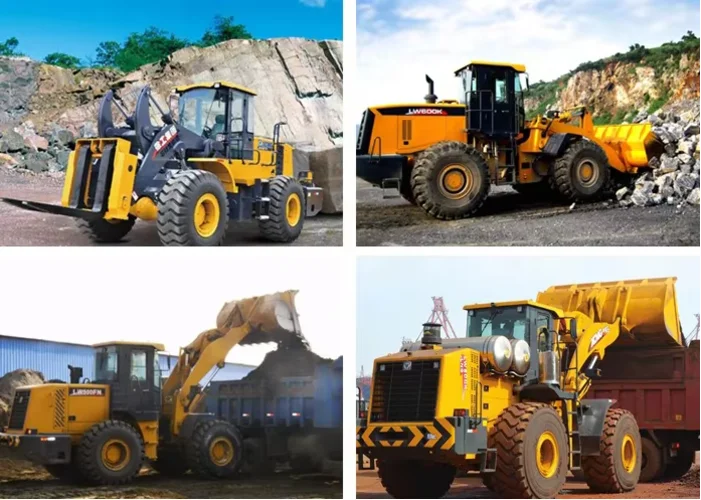

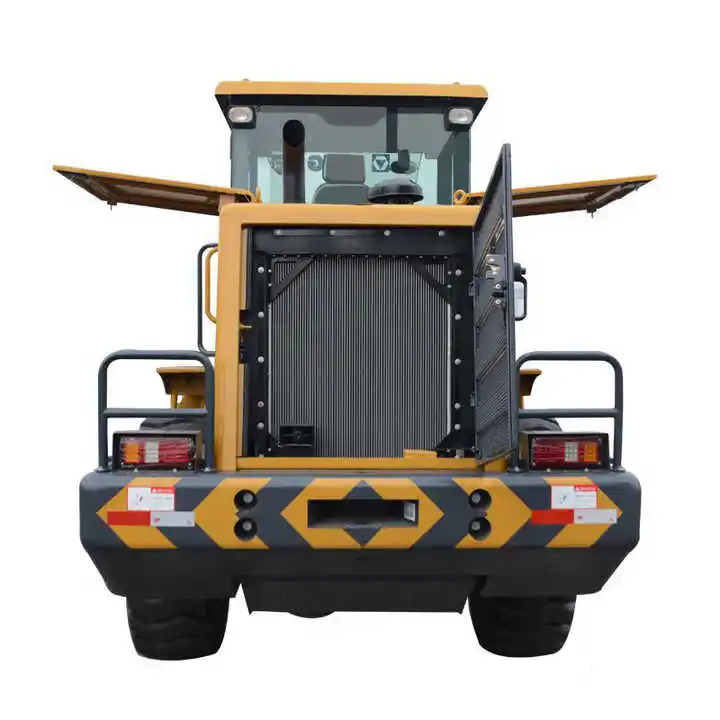

Product Picture
Product Parameter
| Description | Unit | lw500FN | lw500K | lw500KN | ZL50G | ZL50GN | Wl50GU | LW500K-LNG | ZL50G-Super |
| Rated operating load | kg | 5000 | 5000kg | 5000kg | 5000 | 5000 | 5000 | 5000 | 5000 |
| Bucket capacity | m³ | 2.5~4.5 | 3 | 2.7~4.5 | 2.5~4.5 | 2.5~4.5 | 3 | 3 | 3 |
| Machine weight | kg | 16900 | 17200 | 17200 | 17500±300 | 17500 | 17500 | 17600 | 17500 |
| Dump clearance at maximum lift | mm | 3150~3560 | / | 3150~3560 | 3100~3780 | 3100~3780 | 3170~3750 | 3170~3750 | 3090 |
| Reach at maximum lift | mm | 1100~1190 | / | 1100~1190 | 1100~1220 | 1100~1220 | 1130 | 1200~1360 | 1130 |
| Wheel base | mm | 2960 | / | 3300 | 3300 | 3300 | 3300 | 3300 | 3300 |
| Tread | mm | 2250 | 2250 | 2250 | 2250 | 2250 | 2250 | 2265 | 2250 |
| Height of hinge at maximum lift height | mm | 4112 | 4112 | 4112 | 4112 | 4112 | / | / | / |
| Working height(fully lifted) | mm | 5510 | / | 5407 | / | 5510 | / | / | 5370 |
| Max.breakout force | kN | 170 | 175±5 | 170 | 175±5 | 175 | / | 170 | 170 |
| Hydraulic cycle time-raise | s | ≤6 | 6 | ≤6.5 s | ≤6 | ≤6S | 6 | ≤5.9 | 6 |
| Total hydraulic cycle time | s | ≤10.5 | 11 | ≤11 s | ≤10.5 | ≤11S | 11 | ≤10.9 | 11 |
| Min. turning radius over tyres | mm | 5950 | 5925±50 | 5925 mm | 5925±50 | 5925 | 5925 | 5925 | 6400 |
| Articulation angle | ° | 35 | 35 | 30 º | 38 | 38 | 38 | 38 | 35 |
| Gradeability | ° | 28 | 28 | 45 º | 30 | 30 | 30 | 28 | 30 |
| Tyre size | 23.5-25-16PR | 23.5-25-16PR | 23.5-25-16PR | 23.5-25-16PR | 23.5-25-16PR | 23.5-25-16PR | 23.5-25-16PR | 23.5-25-16PR | |
| Overall machine dimension L×W×H) | mm | 7910×3016×3515 | 8515*3000*3465 | 8870*3000*3350 | 8225*3016*3515 | 8225*3016*3515 | 8165*3016*3485 | 8225*3016*3515 | 8225×3016×3515 |
| Model | WD10G220E21 | WD10G220E21 | WD10G220E21 | WD10G220E21 | SC110B220G2B1 | WD10G220E21 | SDEC SC9DT280G2 | WD10G220E23 | |
| Rated Power | kW | 162 | 162 | 162 | 162 | 162 | 164 | 170 |
Packaging & Shipping
1.Seaworthy Package with Plywood case/Pallet
2.Shipping with container ship and roller ship and bulk ship.
.

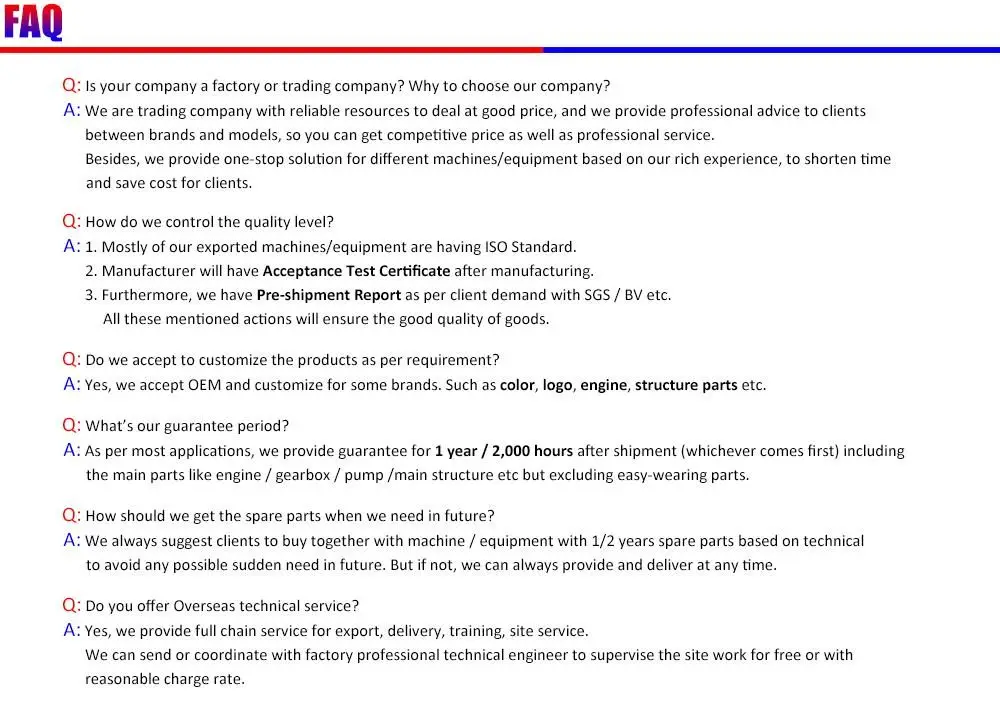

FAQ
With Clients
We have clients from 30 more countries in Africa, South Amercia, Mid-east countries, Southern-East Asia Countries. we dealing all kind brand of trucks construction machinery.
After Sales Service
1. Reply your inquiry in 12 working hours;
2. 12years experienced staffs answer all your questions;
3. Customer's design is available for certain products(OEM);
4. Spare parts for all types of trucks and machinery with reasonable price;
5. Quality first, service first, price first.
