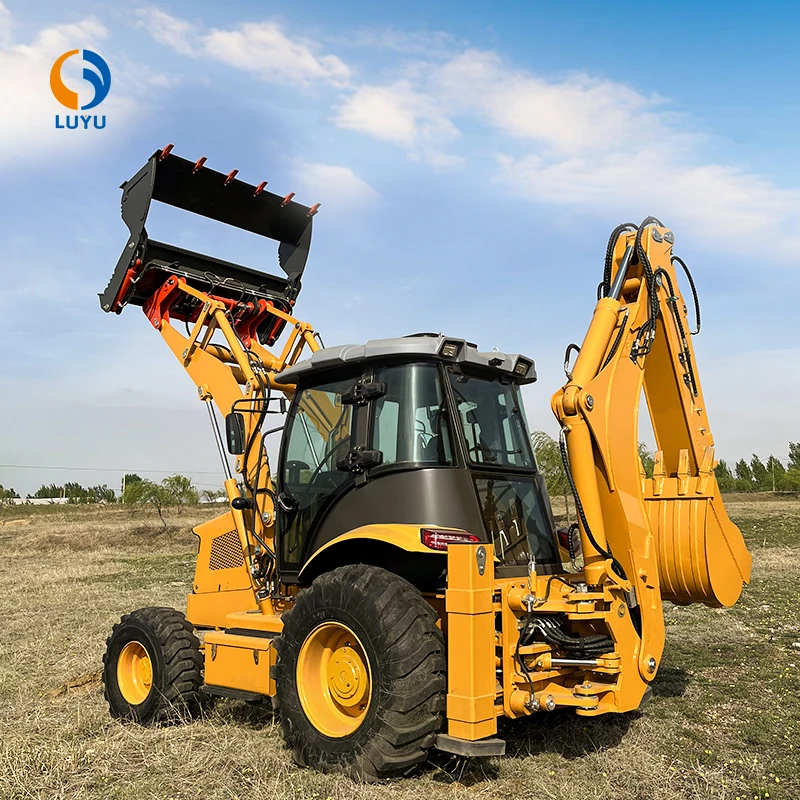

Backhoe Mini Loader Front End Loader Tractor Excavator for Construction Tasks
- Category: >>>
- Supplier: Shandong Luyu International Trade Co. LTDShandong LTD
Share on (1601294046887):
Product Overview
Description
Our advantage:
1、Our sales staff has 10 years of business experience and can communicate well in English and Spanish
2、A can of self-spray paint and a tool box are provided with the car, which is convenient for repainting if there is a bump.
3、We can recommend suitable accessories according to your different working scenarios.
4、24-hour troubleshooting response through telephone, whatsapp,WeChat, etc。
* Complex after-sales services can be provided offline face-to-face
2、A can of self-spray paint and a tool box are provided with the car, which is convenient for repainting if there is a bump.
3、We can recommend suitable accessories according to your different working scenarios.
4、24-hour troubleshooting response through telephone, whatsapp,WeChat, etc。
* Complex after-sales services can be provided offline face-to-face
5. Specialized After-sale service team design department.//CE/ISO9001/EPA Agency Certification! Three-factor authentication is more
assured！Support color and LOGO customization, tell me the color you like, we can customize production according to your preferences.
assured！Support color and LOGO customization, tell me the color you like, we can customize production according to your preferences.

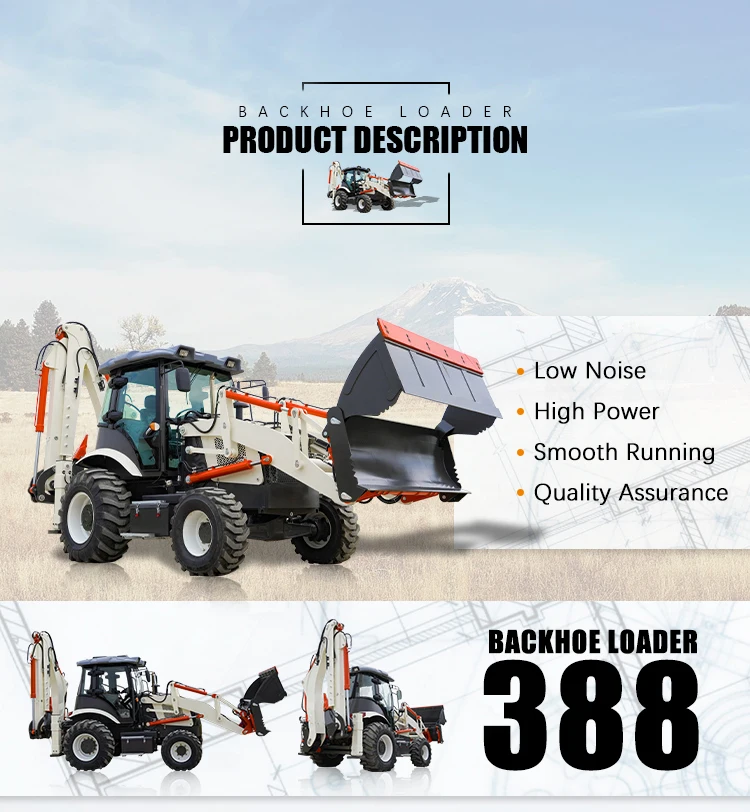

Product Description

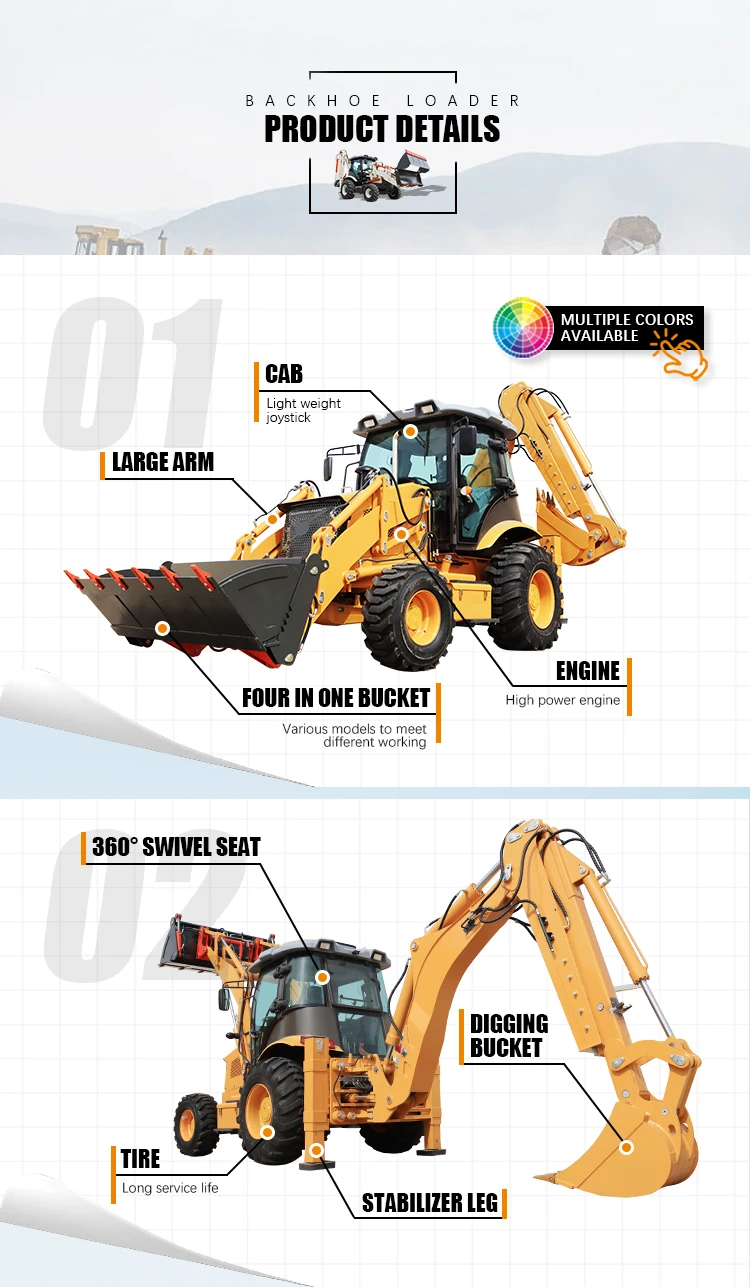

Product Details
Our Advantages
The Main Performance Parameter of Backhoe Loader ASG388 | ||||||
Overall dimensions | Engine | |||||
Dimension（L*W*H）（mm） | 6150*2350*3763 | Model | YuDong 4105 Supercharged | |||
Wheelbase(mm) | 2200 | Type | Turbocharged | |||
Wheel track(mm) | 1850/2200mm | Rated(kw) | 85 | |||
Min. Ground Clearance(mm) | 300mm | Rated speed(r/min) | 2400 | |||
Min. turning radius(mm) | 6580 | Number of cylinders - bore | 4-105 | |||
Performance Parameters | transmission system | |||||
System pressure(Mpa) | 28 | Transmission | Fixed-axis powershift | |||
Overall weight(kg) | 8320 | Number of gears | Front 2 and back 2 | |||
Max. speed(km/h) | 22 | Torque converter | YJ280 | |||
Max. climbing capacity(°) | 35 | |||||
Excavation parameters | Axle | |||||
Max. digging depth(mm) | 4000/5200 | Type | Wheelside reduction bridge | |||
Excavation unloading height(mm) | 4500/5300 | Tires | ||||
Max. digging radius(mm) | 5800/7100 | Specification | 14-17.5/19.5L-24 | |||
Max. lifting height（mm） | 6060/7200 | Travel brake | Air top oil caliper disc brake | |||
Hopper capacity(m³) | 0.3 | Parking brake | Handbrake | |||
Excavator slewing angle（°） | 190 | |||||
Loading parameters | Oil volume | |||||
Max. unloading height（mm） | 2742 | Fuel Tank(L) | 100 | |||
Max. unloading distance(mm) | 1062 | Hydraulic oil tank(L) | 100 | |||
Loading bucket capacity(mm) | 1 | |||||
Other | ||||||
Drive type | Four-wheel drive | |||||
Variable speed form | Hydraulic variable speed | |||||
Manipulation System | Electromagnetic hydraulic pilot control | |||||
Company Profile
Exhibition
Certifications
Packing&Shipping
FAQ
Q:Why should l choose luyu instead of other brands?
A: We are one of the top three manufacturers of small machinery industry.With 20 years' exporting experience, Luyu has been a well known brand in the market now you can see Luyu machines in more than 50 countries What we can provide：
* Superior Quality: Our machines are CE certified, ensuring they meet the highest European safety and environmental standards.
* Comprehensive After-Sales Service:
* One year warranty
* 20 years of experience in construction machinery industry
* 24-hour troubleshooting response through telephone, whatsapp,WeChat, etc
* Complex after-sales services can be provided offline face-to-face
A: We are one of the top three manufacturers of small machinery industry.With 20 years' exporting experience, Luyu has been a well known brand in the market now you can see Luyu machines in more than 50 countries What we can provide：
* Superior Quality: Our machines are CE certified, ensuring they meet the highest European safety and environmental standards.
* Comprehensive After-Sales Service:
* One year warranty
* 20 years of experience in construction machinery industry
* 24-hour troubleshooting response through telephone, whatsapp,WeChat, etc
* Complex after-sales services can be provided offline face-to-face
Q:Can l see the loader production progress after order?
A:Yes,during production. we could take some photos/videos for your reference
Q: How long is your delivery time?
A:In the case of stock, it is usually 10-15 days. Others calculate the time according to the quantity of your order.
Q:How do I receive the goods?
A:We have professional transport agents,which can deliver goods to various ports, FOB, CIF,etc.Please provide detailed address, we can also provide door-to-door service for you.
Q:How do I pay?
A: We accept 30% T/T in advance , balance before shippment. If you have other needs, you can also contact us.
Q:What kind of service can l get from you if l buy? How can l get parts?
A:
* A can of self-spray paint and a tool box are provided with the car, which is convenient for repainting if there is a bump.
* We have professional after sales department to support for you at any time. We also have partner in America, India, Thailand,could provide support for spare parts
Q:Is it convenient to see visit your factory and how go there?
A:Welcome everyone to come to visit our factory,Make sure your trip date we will arrange it for you. If it is not convenient to arrange the trip temporarily, you can also video factory inspection.
Q: How long is your delivery time?
A:In the case of stock, it is usually 10-15 days. Others calculate the time according to the quantity of your order.
Q:How do I receive the goods?
A:We have professional transport agents,which can deliver goods to various ports, FOB, CIF,etc.Please provide detailed address, we can also provide door-to-door service for you.
Q:How do I pay?
A: We accept 30% T/T in advance , balance before shippment. If you have other needs, you can also contact us.
Q:What kind of service can l get from you if l buy? How can l get parts?
A:
* A can of self-spray paint and a tool box are provided with the car, which is convenient for repainting if there is a bump.
* We have professional after sales department to support for you at any time. We also have partner in America, India, Thailand,could provide support for spare parts
Q:Is it convenient to see visit your factory and how go there?
A:Welcome everyone to come to visit our factory,Make sure your trip date we will arrange it for you. If it is not convenient to arrange the trip temporarily, you can also video factory inspection.
Q:What is the recommended maintenance schedule?
A: Regular maintenance includes checking and changing oil, inspecting hydraulic fluid, and cleaning filters. Refer to the manual for specific intervals.
A: Regular maintenance includes checking and changing oil, inspecting hydraulic fluid, and cleaning filters. Refer to the manual for specific intervals.
