CNRM HDSW H02 Spool winder with HMI PLC system and Touch screen changer for 5000d 70000d of rope yarns and baler twine
- Category: >>>
- Supplier: Shandong Haidai Intelligent Machinery Co. Ltd.Shandong Ltd.
Share on (1601294069662):
Product Overview
Description

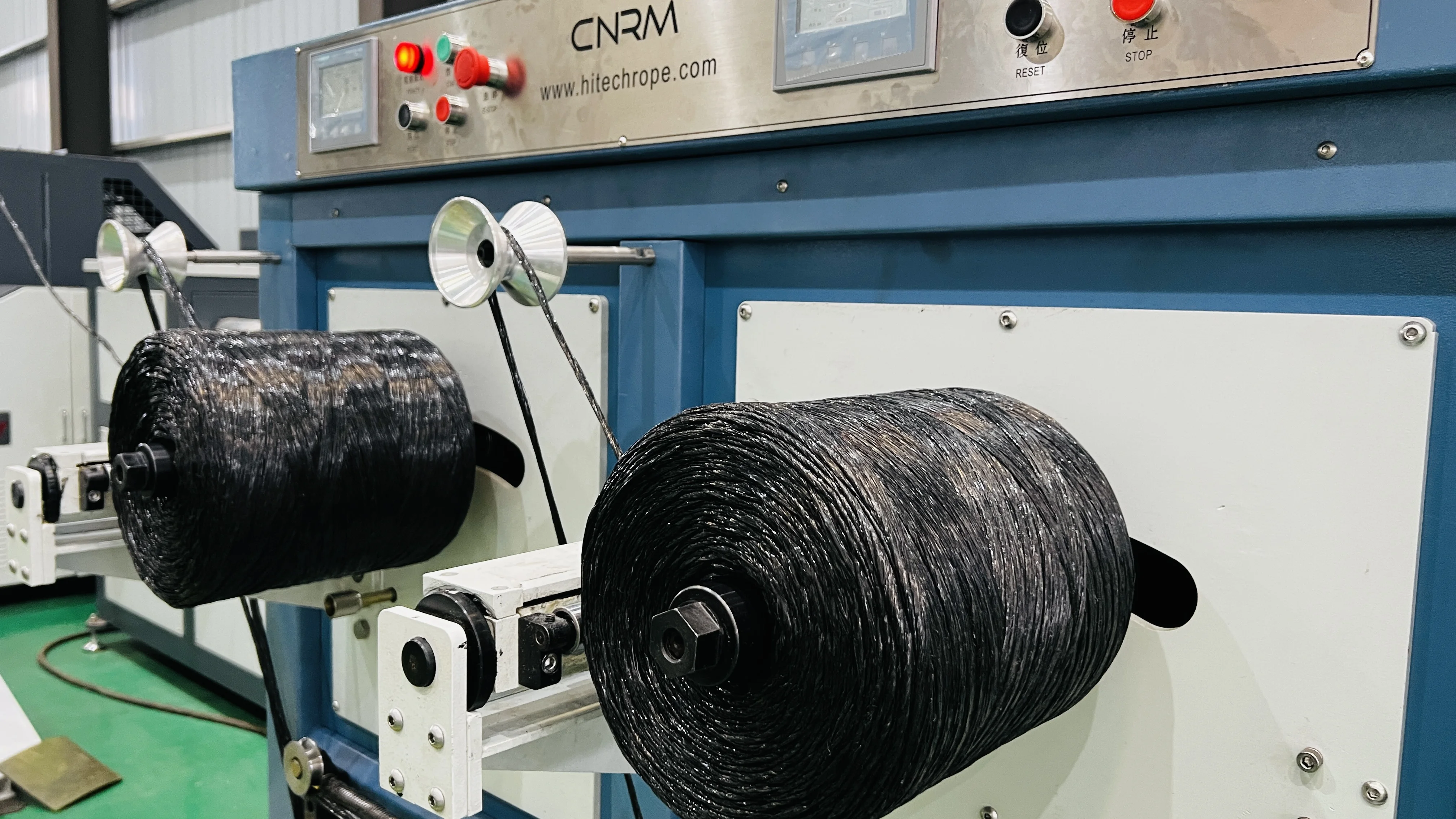

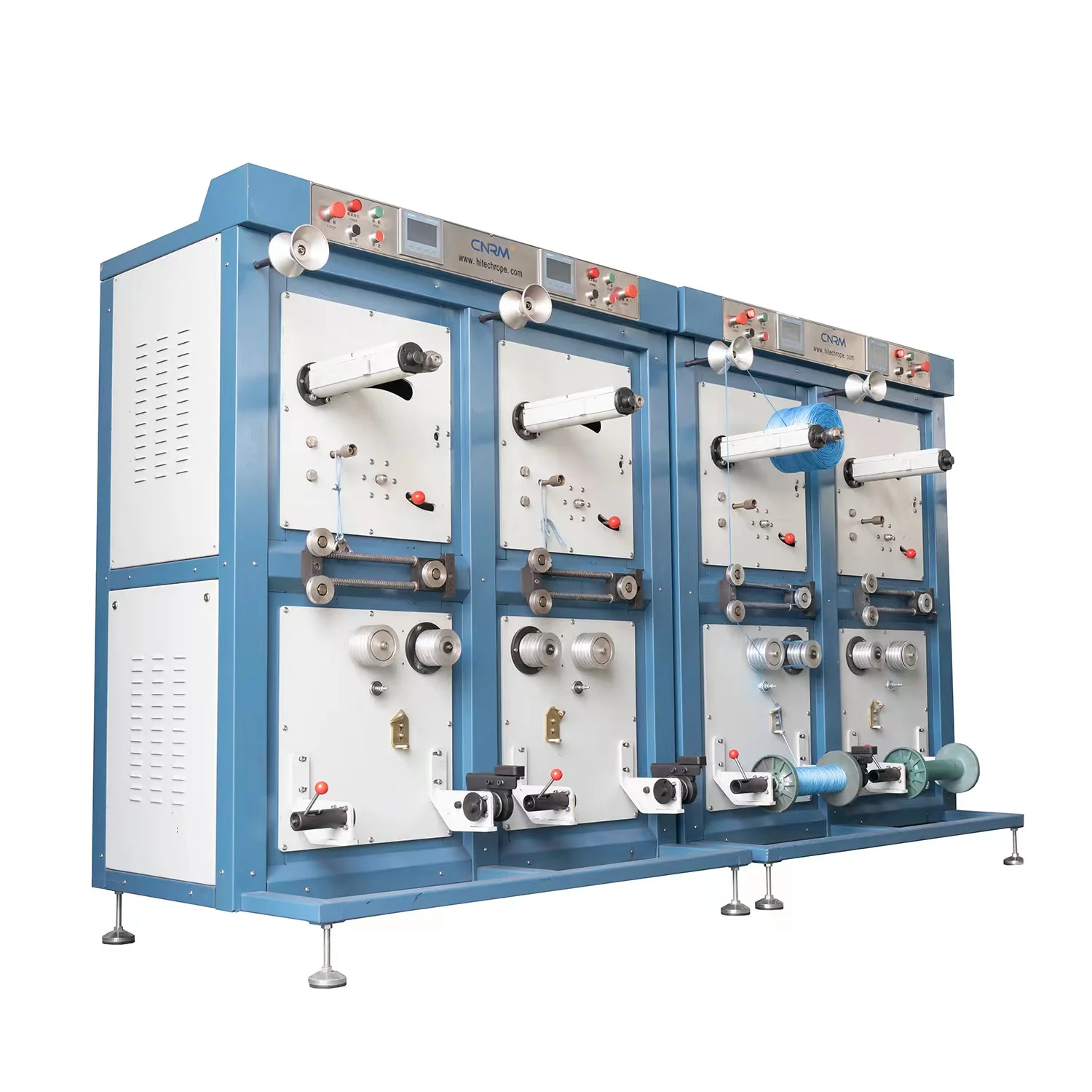

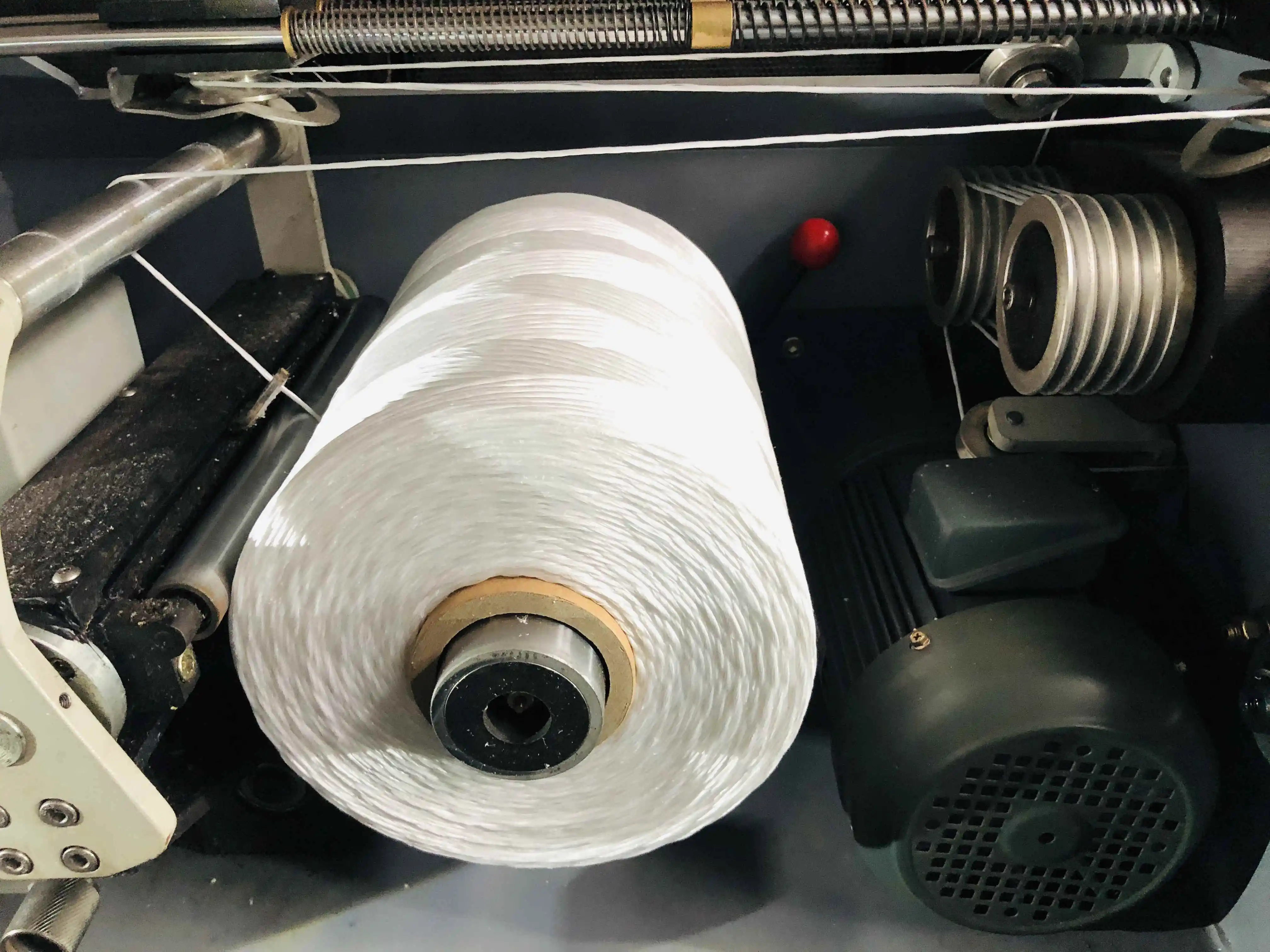

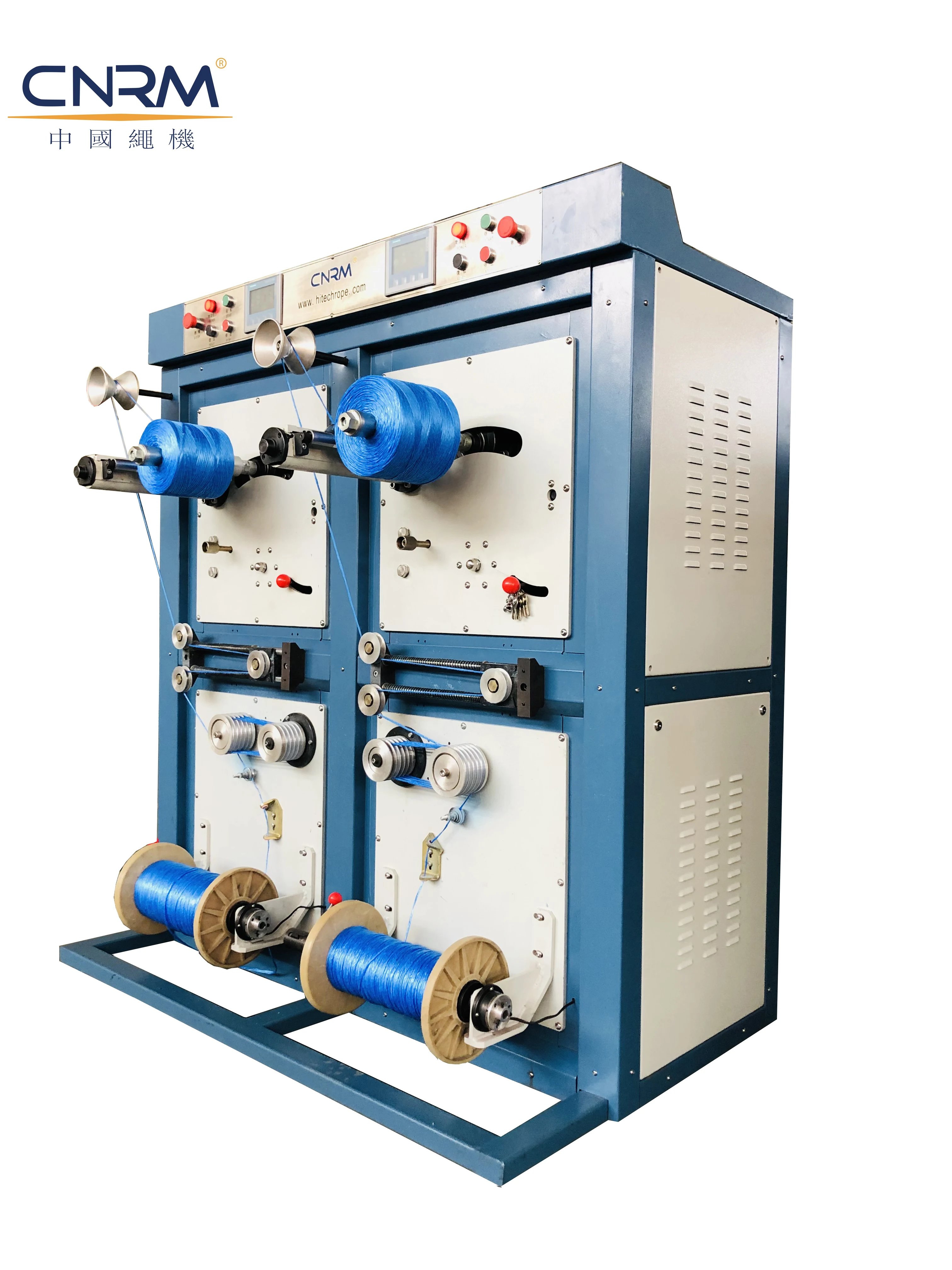

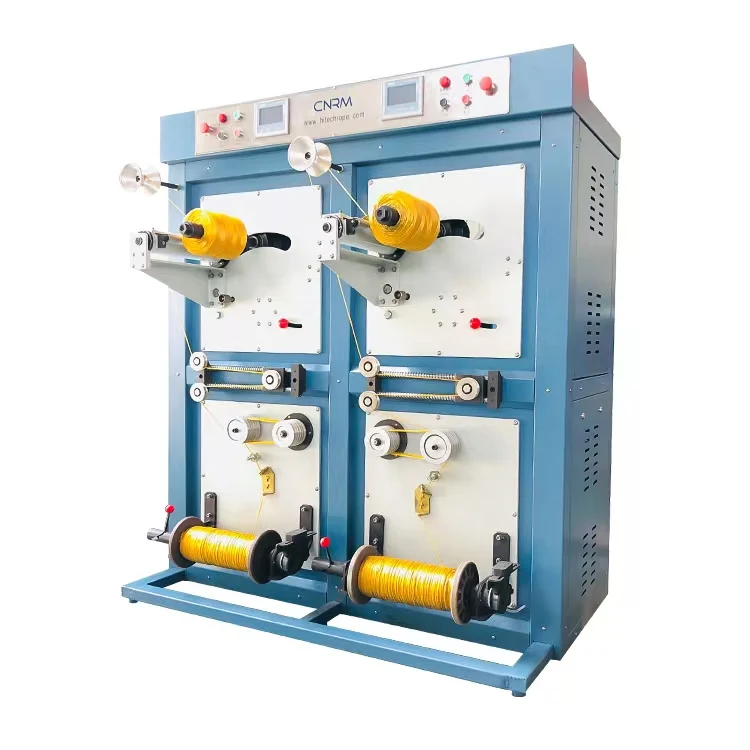

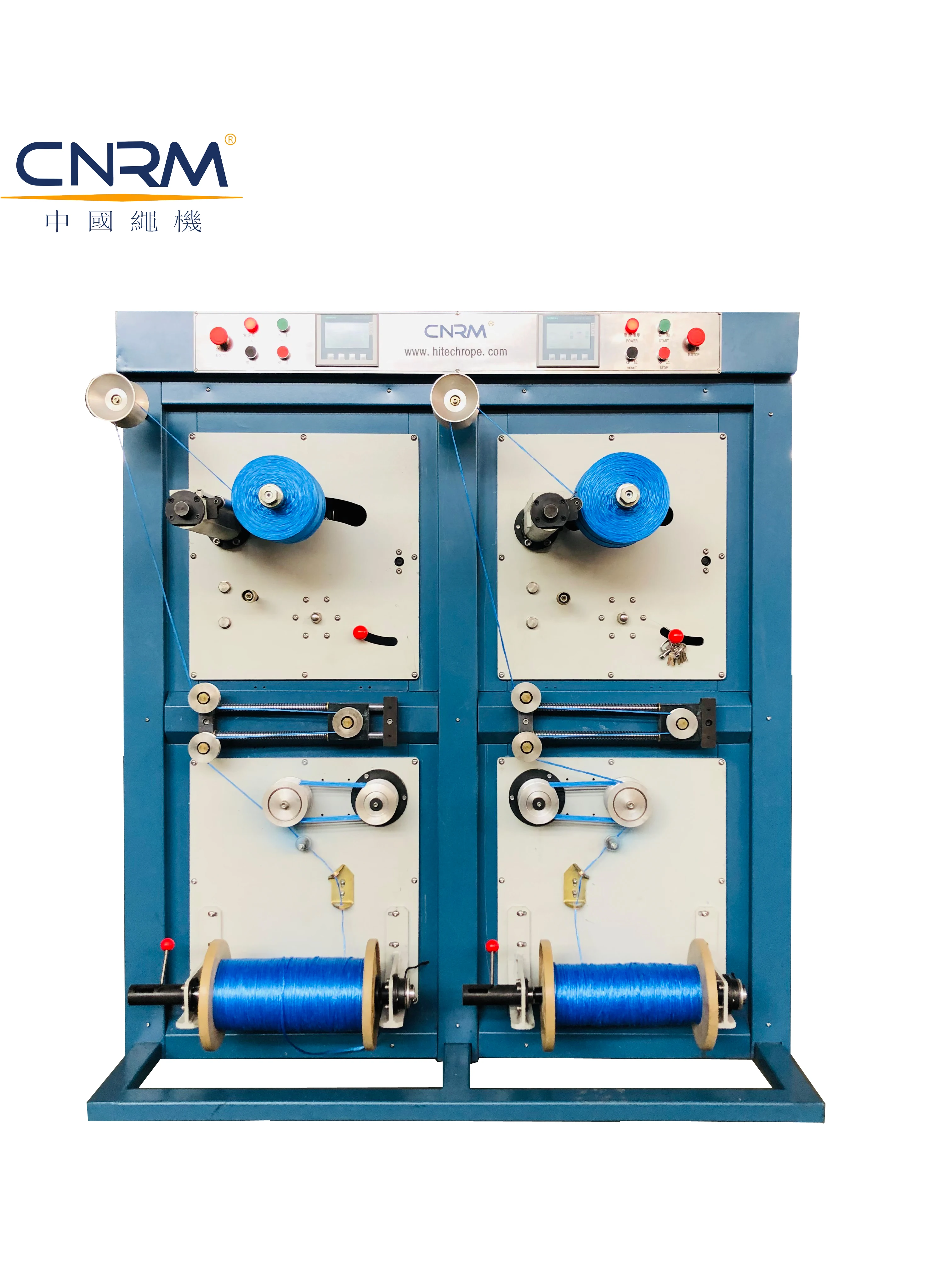

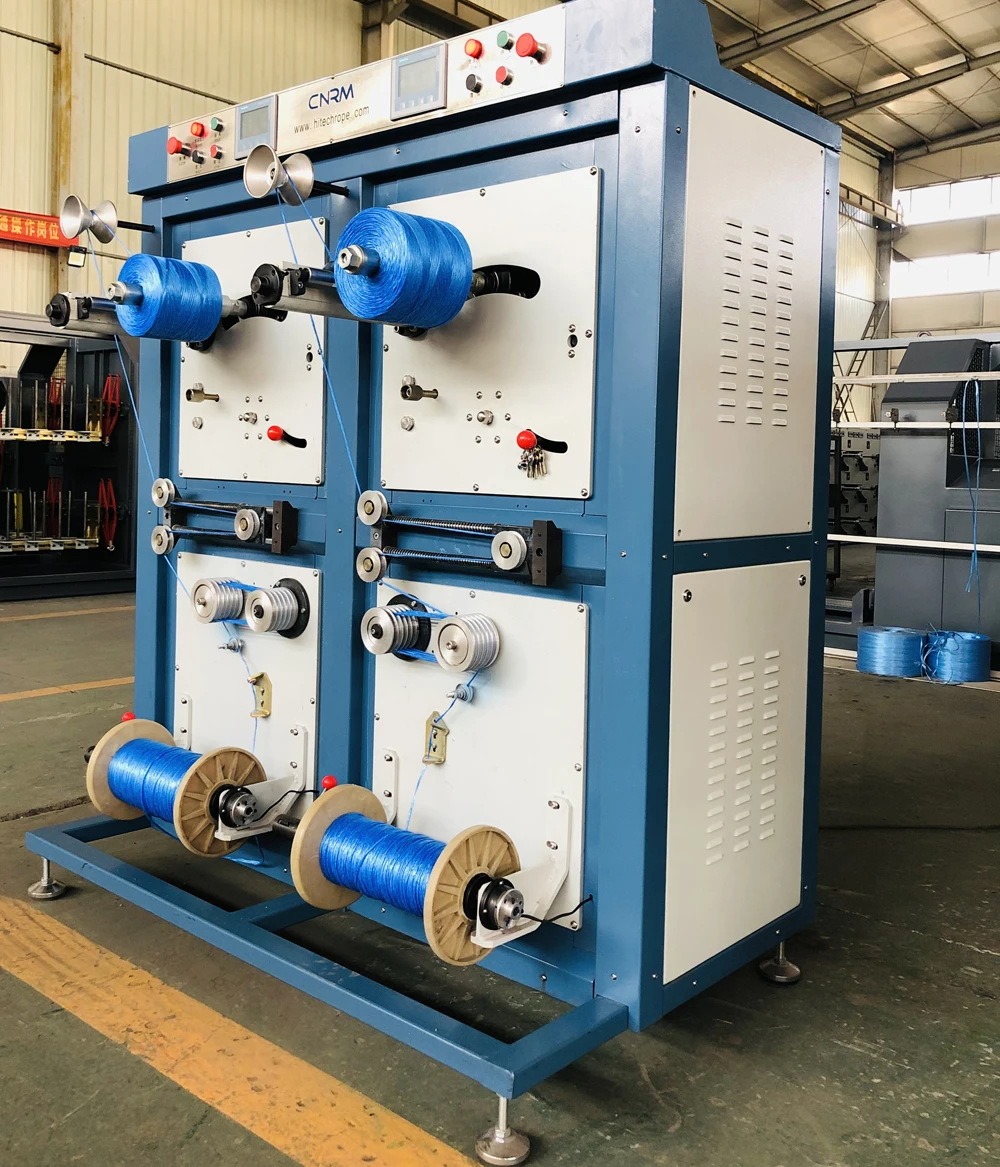

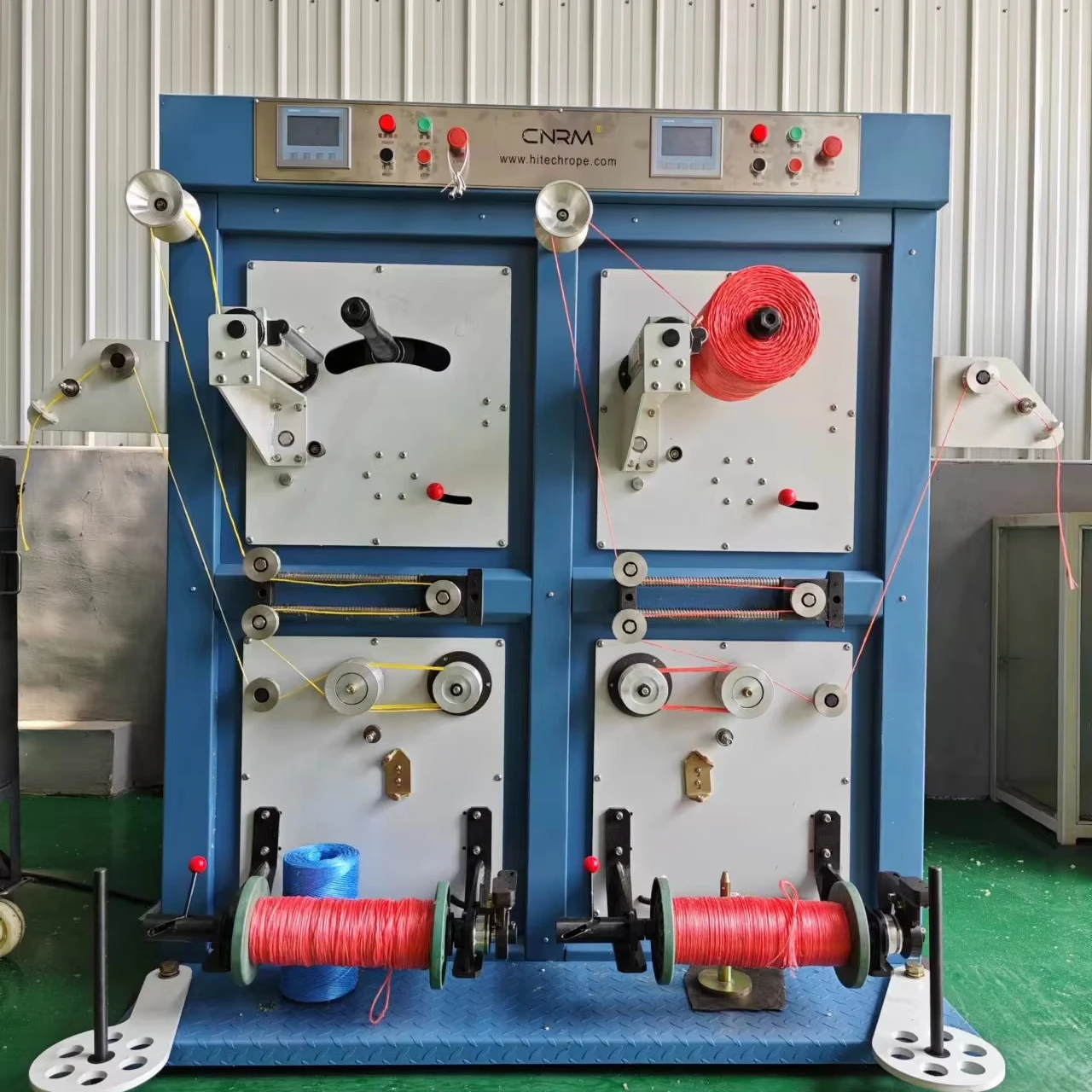

Spool Winder
Different Type Spool Winder
This series machines are mainly for spool winding.Spool shape: cylinder-shaped with paper tube and without paper tube.
Suitable for yarn: plastic twine rope. sisal jute cotton twine rope.
Spool size: 2" upto 12"
Suitable for yarn: plastic twine rope. sisal jute cotton twine rope.
Spool size: 2" upto 12"
Product Application of High Speed PP Raffia Twine Spool Winder Machine
It's a kind of newly-designed machine with high speed, low noise, tubeless. The machine is suitable for different material of fiber, such as plastic mono-filament yarn,raffia yarn,flat yarn, split film yarn and etc.
Twine Size | 5,000d-70,000d |
Traverse distance | 6inch,8inch,10inch,12inch |
Take-up spool weight | 1kg--10kg |
Motor rated speed | 1500rpm |
Output power,Max | 7 Kw |
Winding speed,Max | 400m/min |
Dimension of machine | 1500x927x1680mm |
Advantage
Suitable for PP PE monofilament yarn twine , danline twine, cotton twine, pp multifilament twine etc.
Spool shape: 4"-12" with paper tube or without.

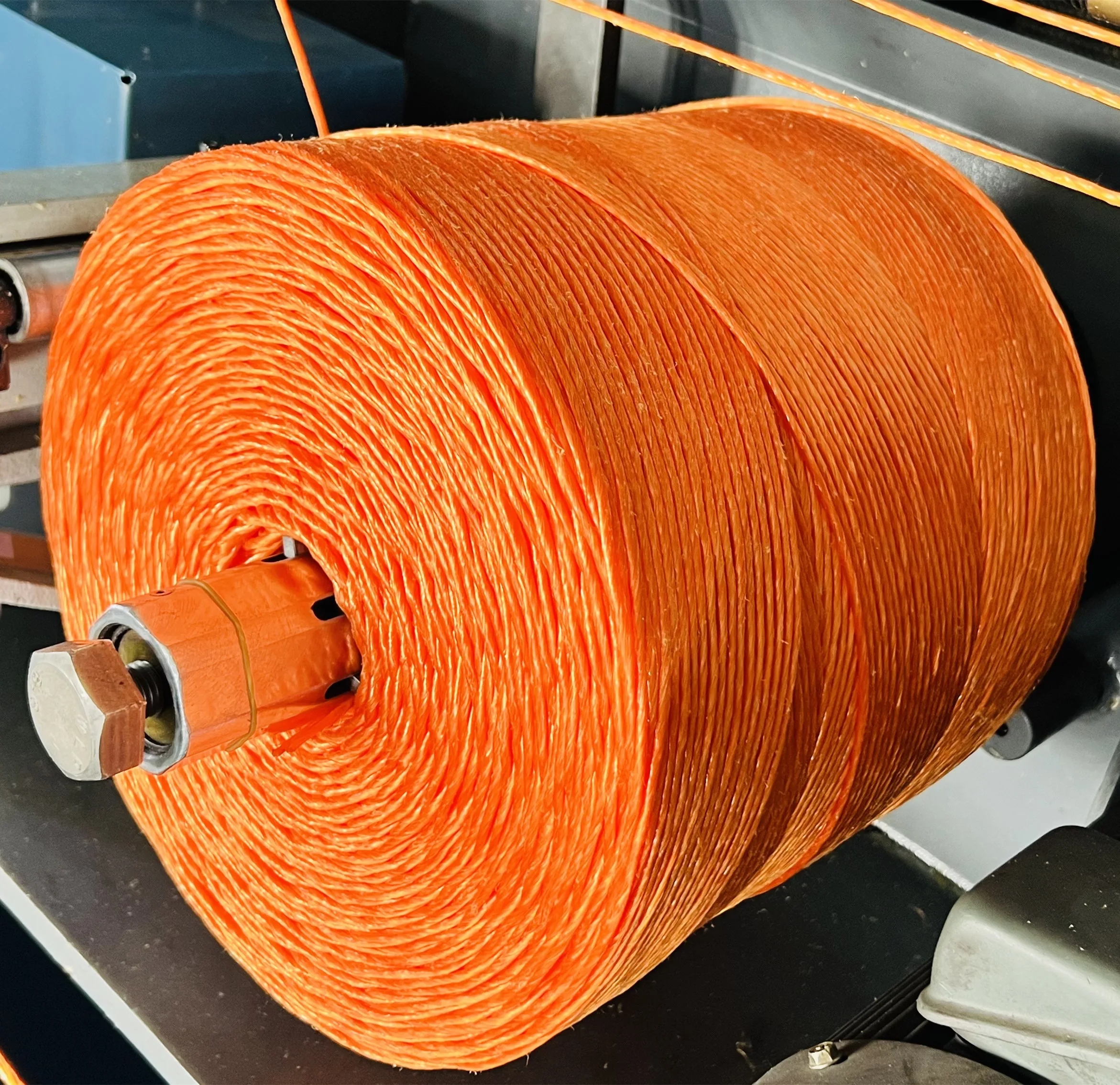

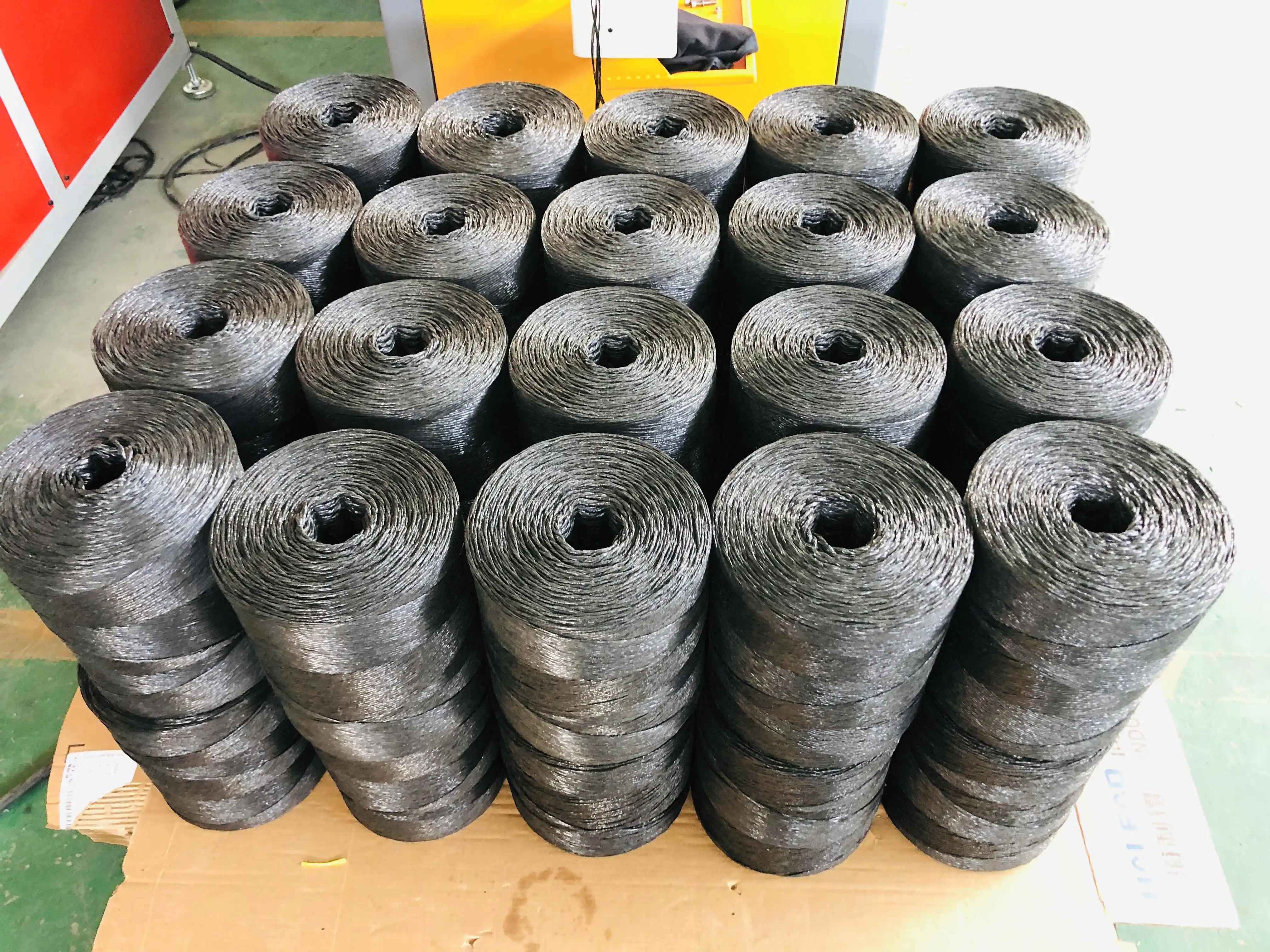

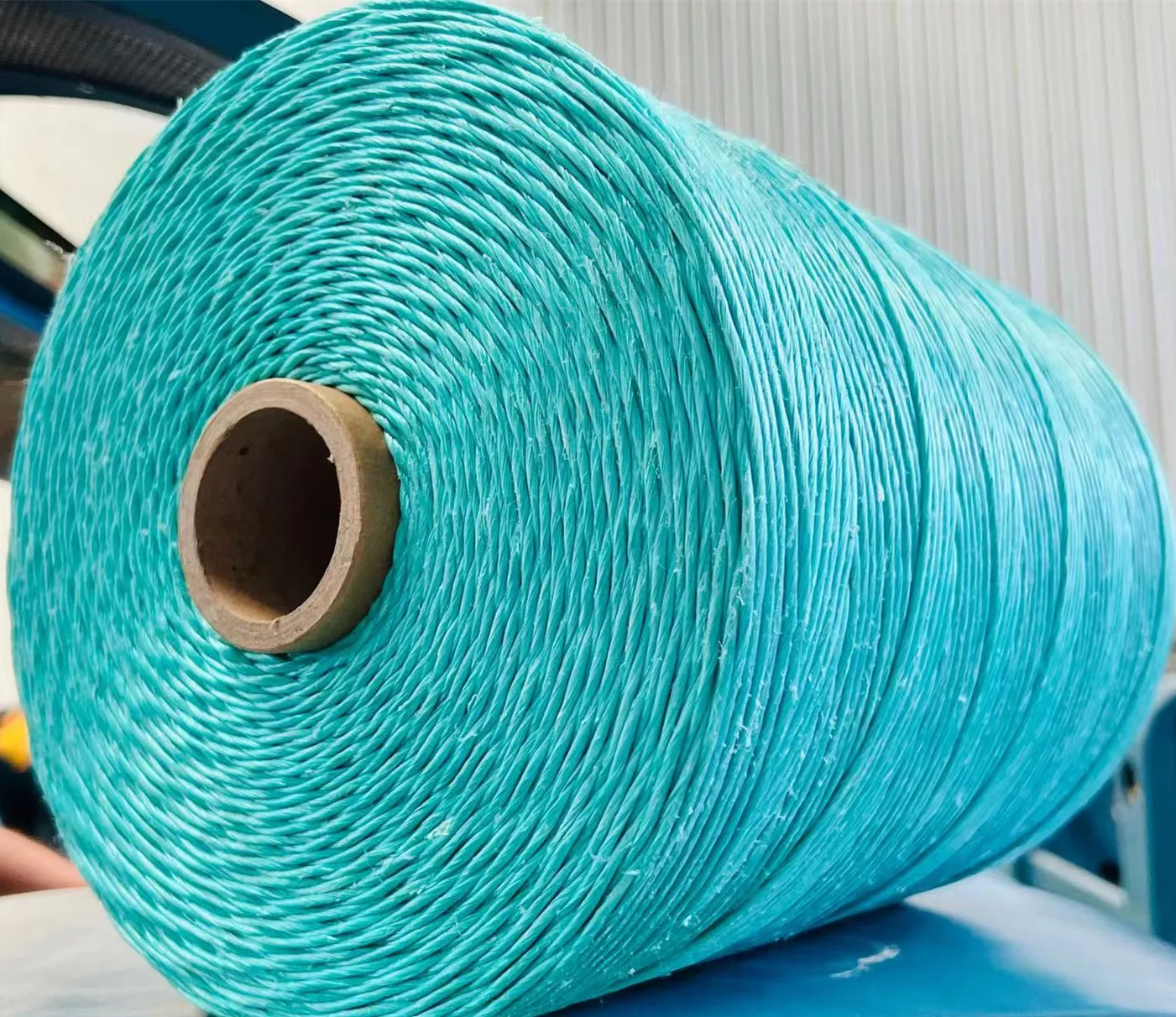

Good final shape
Advantage
Suitable for PP split film, PP film baler twine.
Spool size: 4" upto 12"
Good final product shape
Main Features
1. Multiple purposes. It only needs to replace the winding mandrel and the bidirectional shaft to complete the 6-inch, 8-inch and 10-inch shafting operations. , It is very convenient to use and replace.

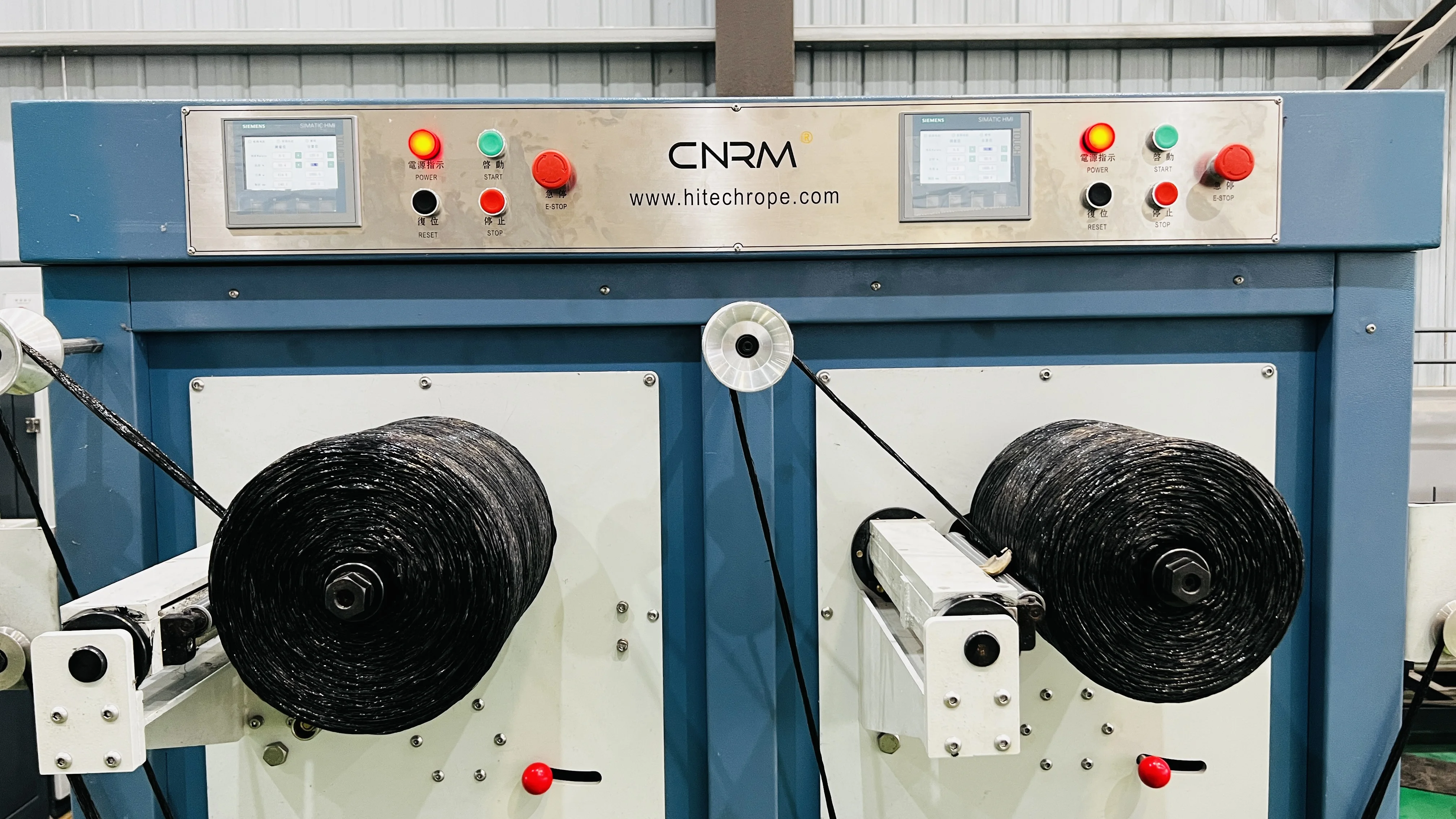

2. Frequency conversion drive + PLC control. By inputting parameters on the touch screen, the entire shafting process and the shaft hardness can be automatically controlled.
3. Touch screen displays real-time parameters such as spindle diameter, spindle speed, length measurement, etc., and it can stop when the set value is reached. The operation of the operator is intuitive and convenient.
4. This machine can be not only used for on-line twine winding but also can be used for twine roll pay-off bobbin. It is not only convenient to replace the wire rollers during pay-off and reeling. It also equipped with a brake device.
5. This machine is equipped with a density adjustment device on the shaft, which can adjust the density of the forming winding according to user needs.
2. Frequency conversion drive + PLC control. By inputting parameters on the touch screen, the entire shafting process and the shaft hardness can be automatically controlled.
3. Touch screen displays real-time parameters such as spindle diameter, spindle speed, length measurement, etc., and it can stop when the set value is reached. The operation of the operator is intuitive and convenient.
4. This machine can be not only used for on-line twine winding but also can be used for twine roll pay-off bobbin. It is not only convenient to replace the wire rollers during pay-off and reeling. It also equipped with a brake device.
5. This machine is equipped with a density adjustment device on the shaft, which can adjust the density of the forming winding according to user needs.

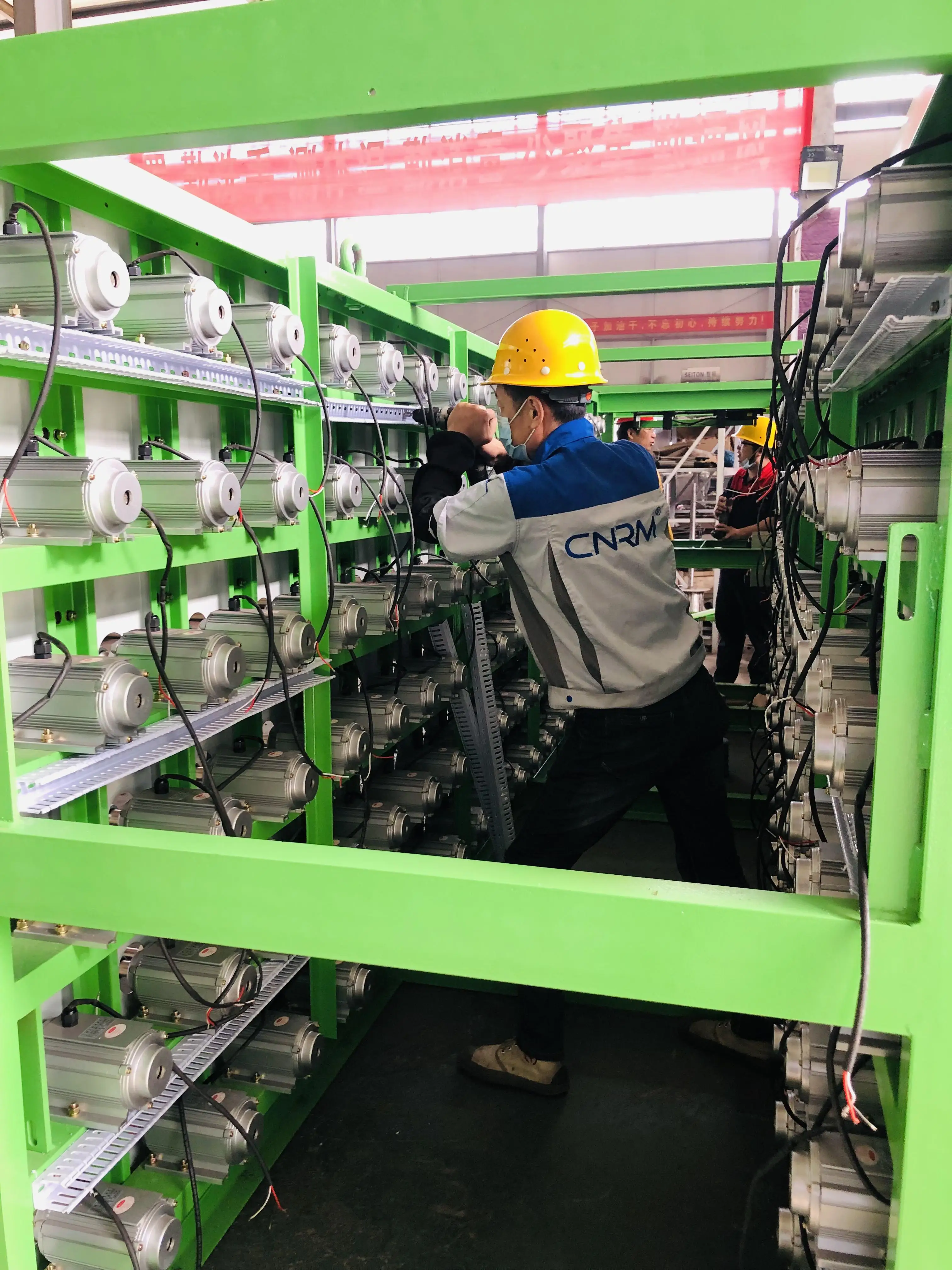

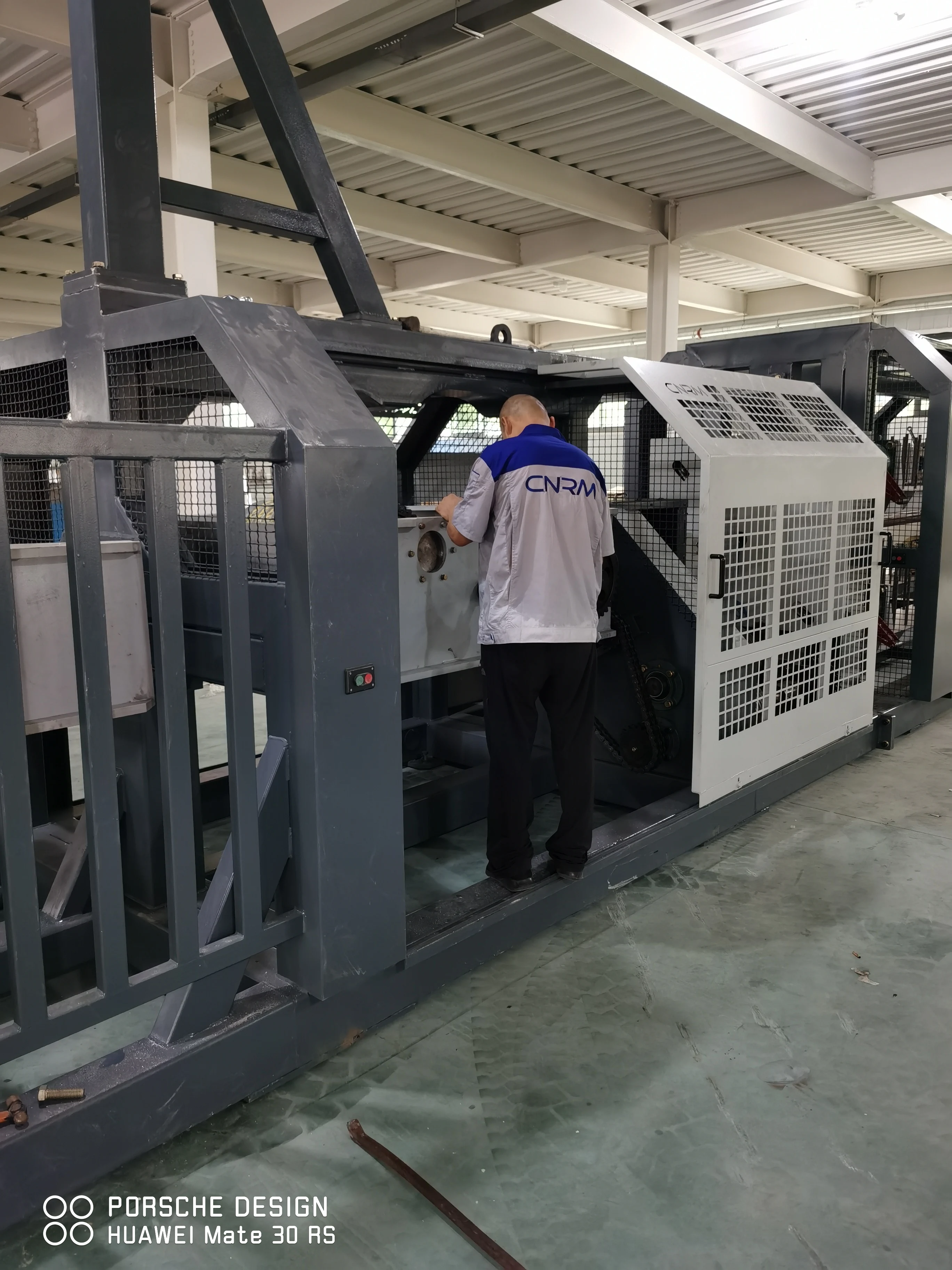

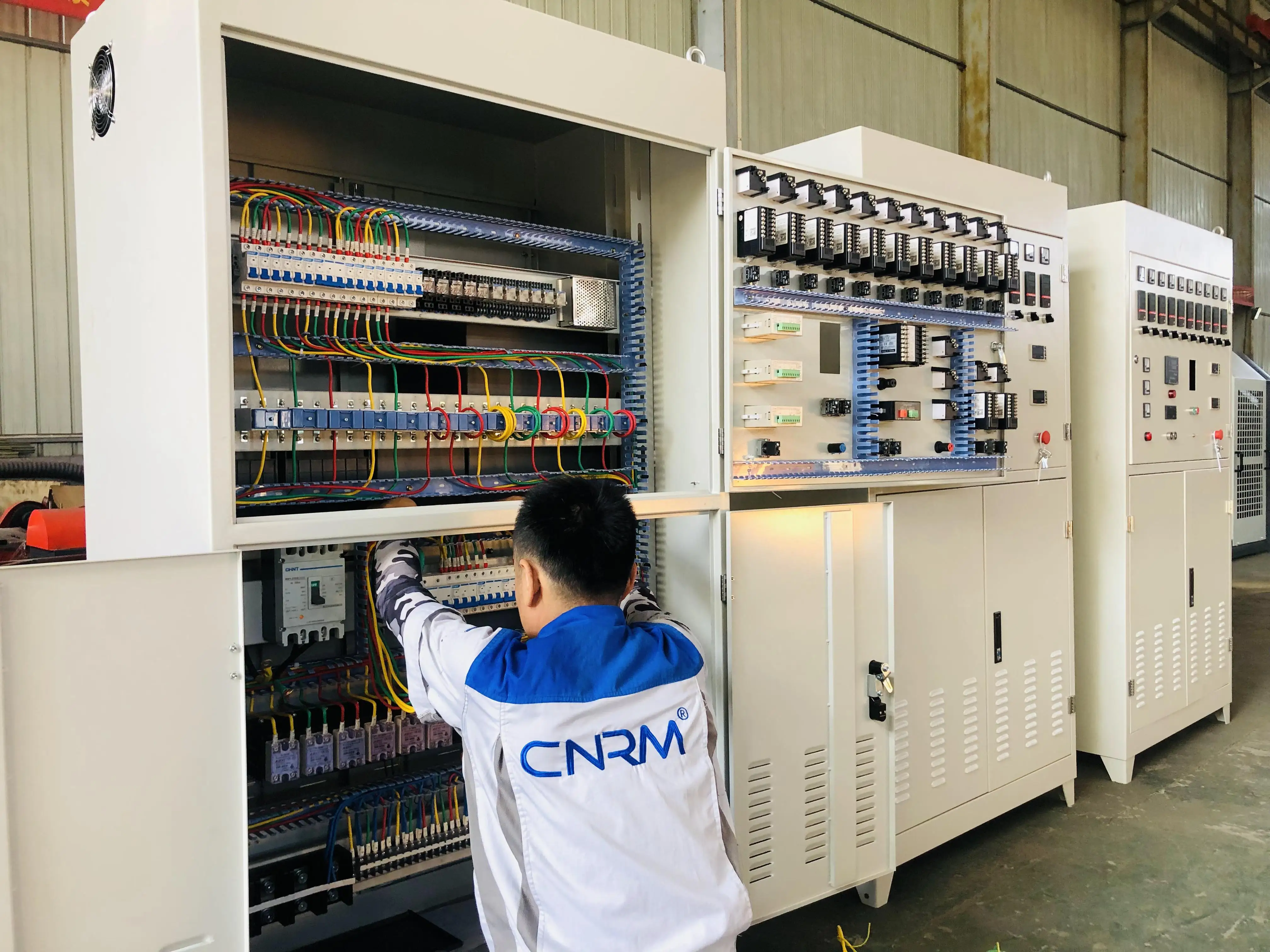

CNRM Employees are welding and assembling machines

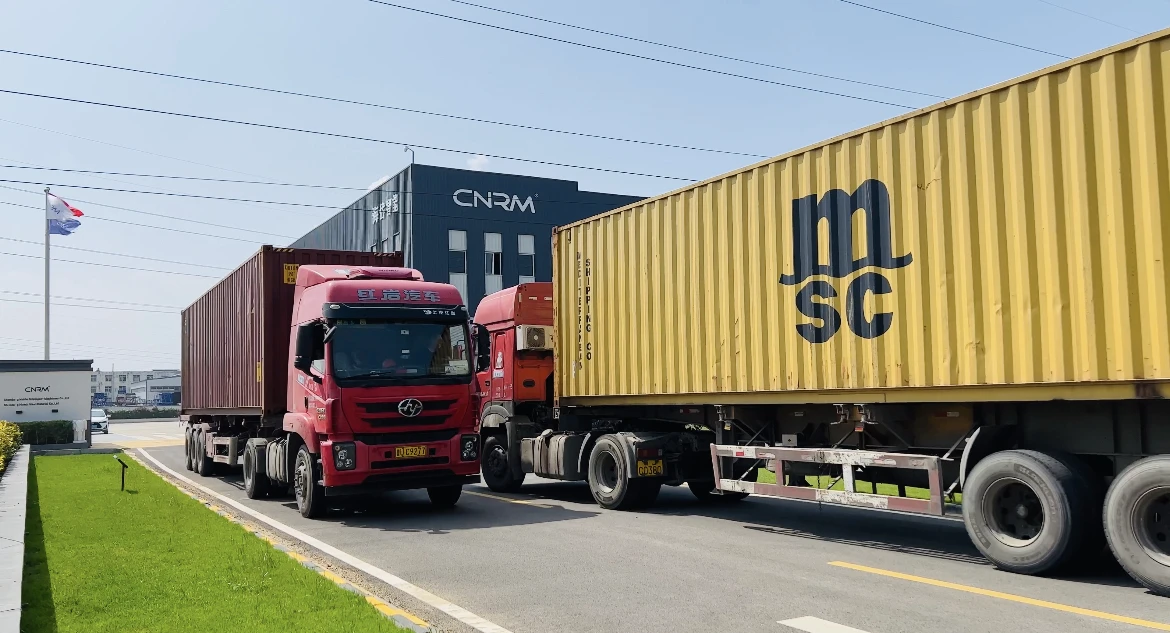

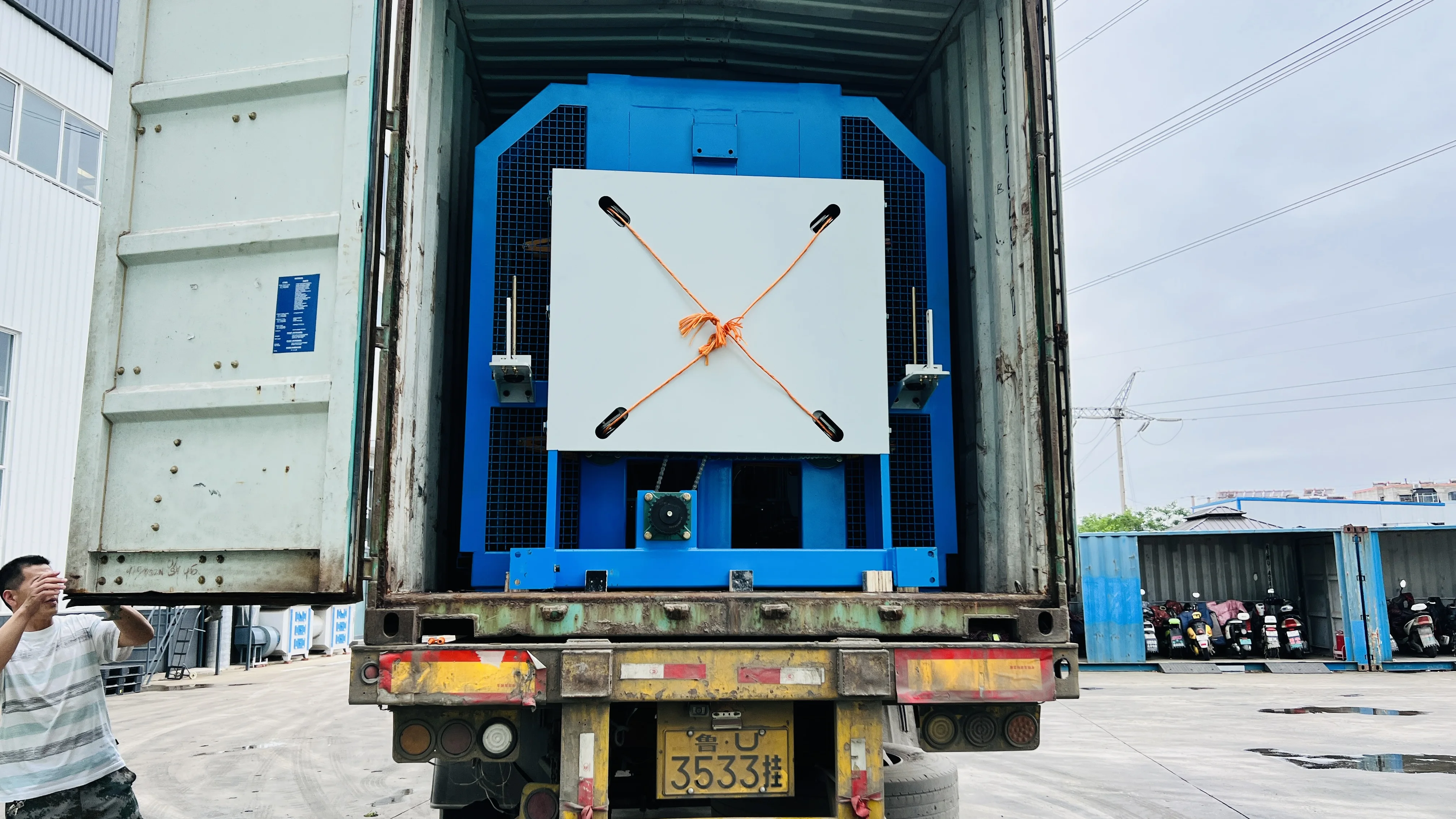

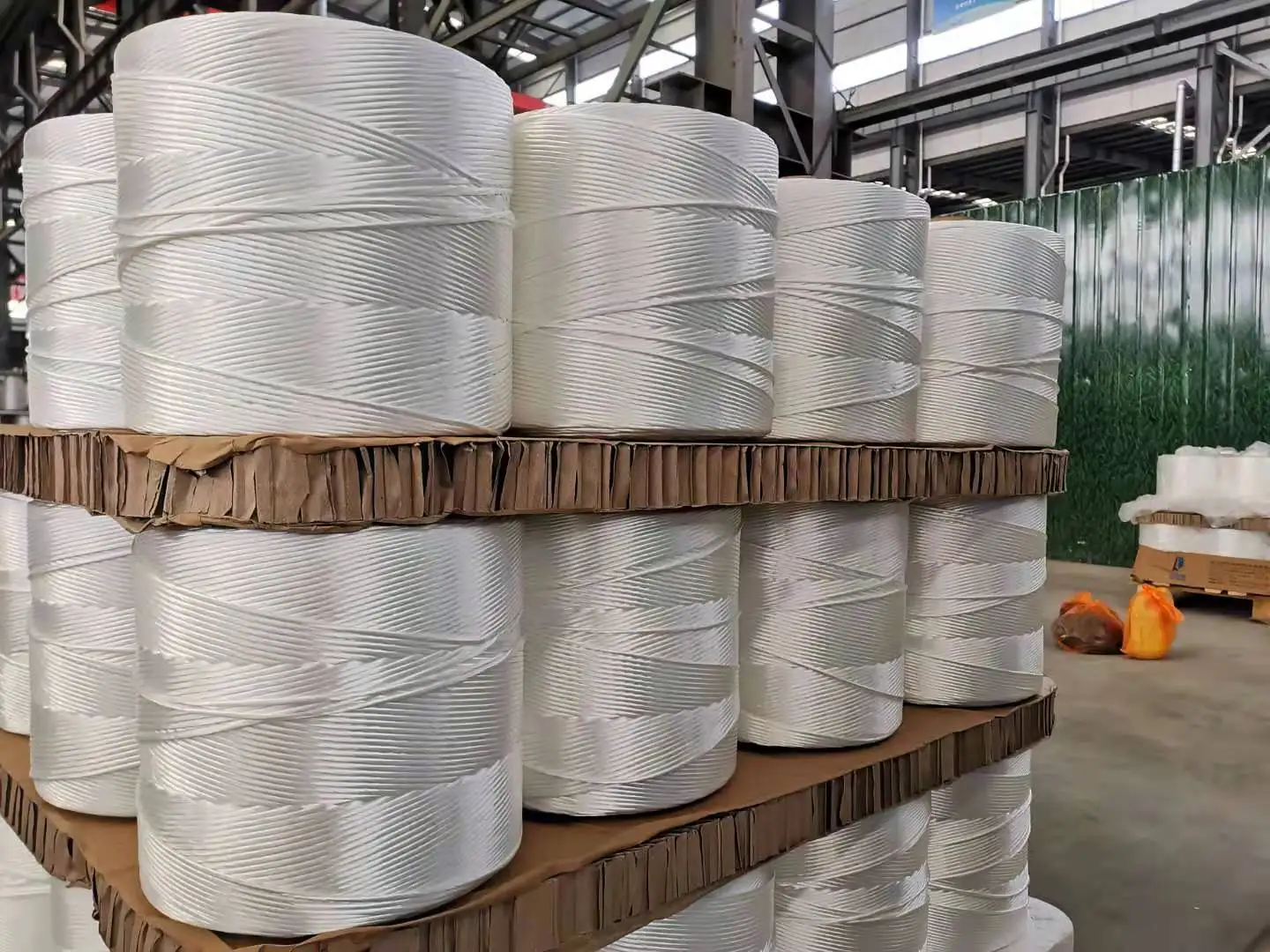

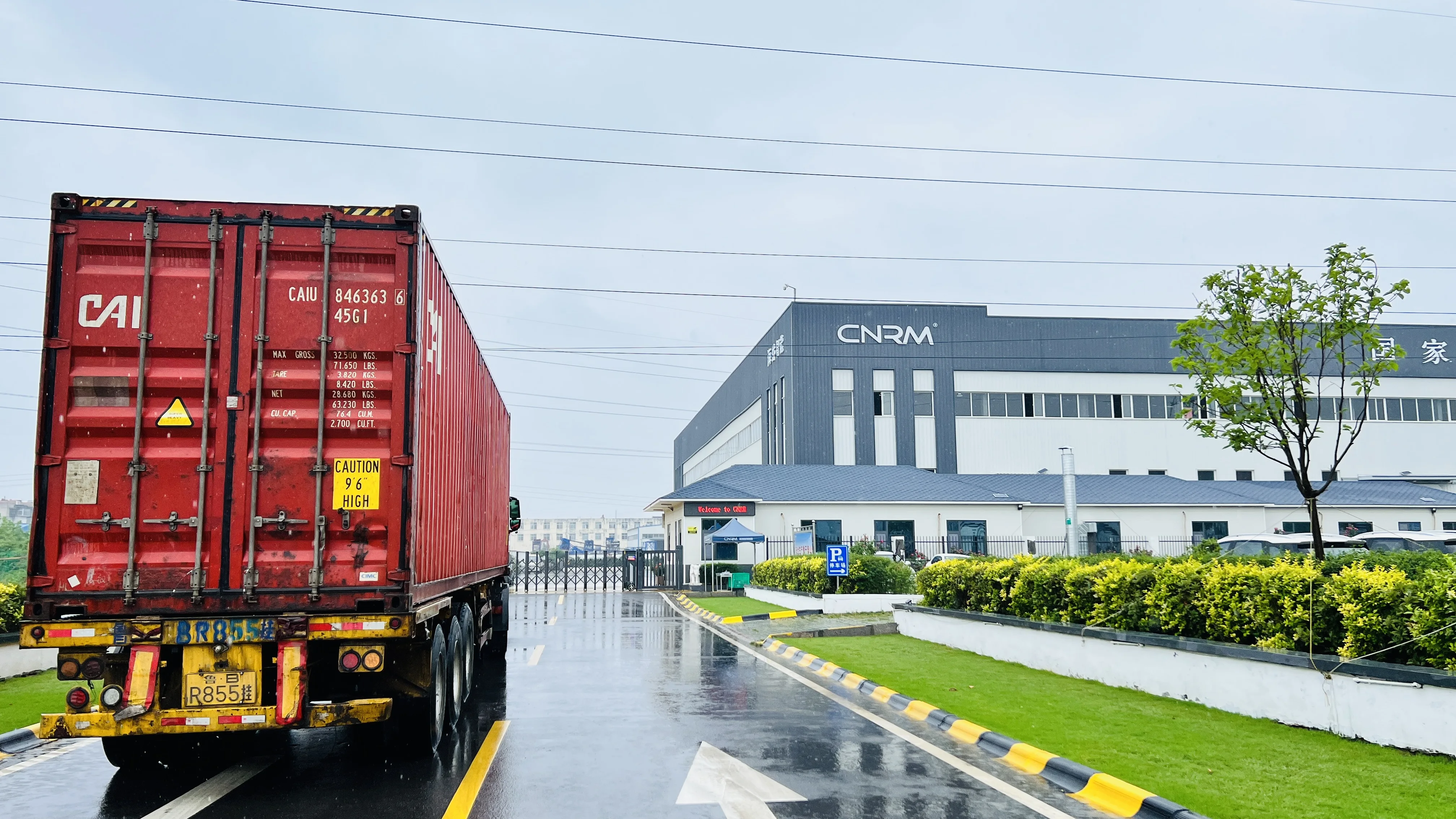

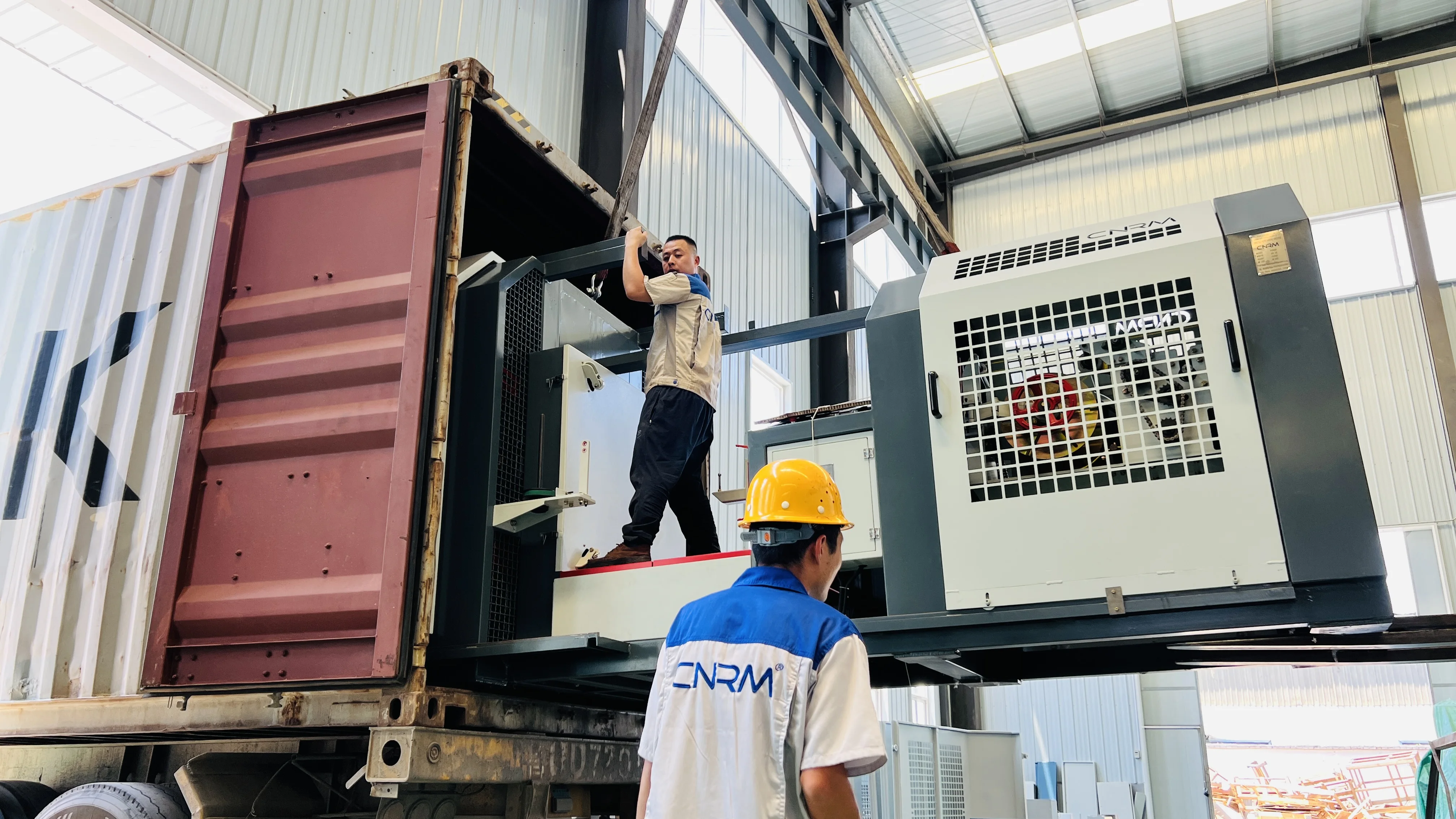

Delivery&Packing

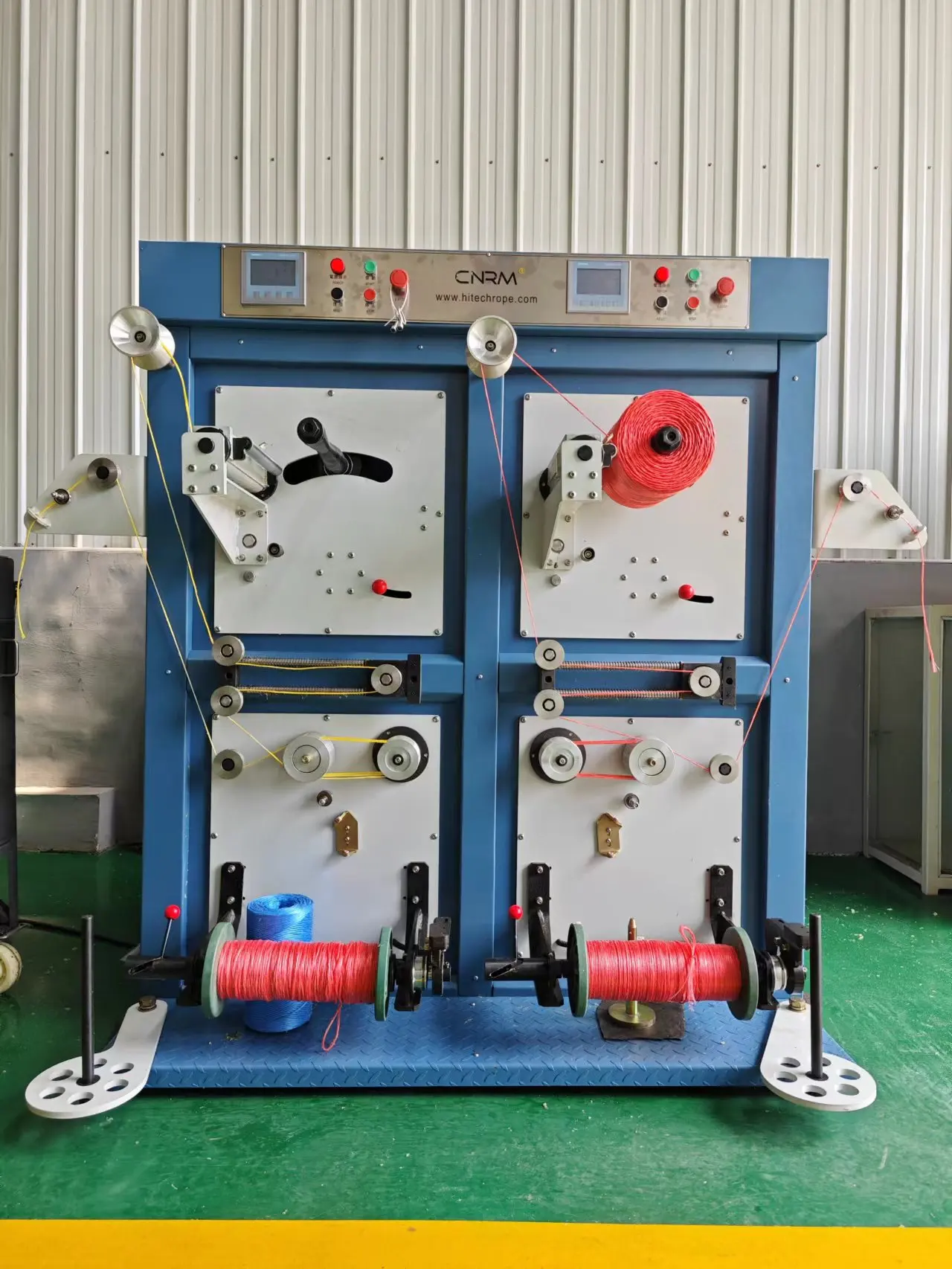

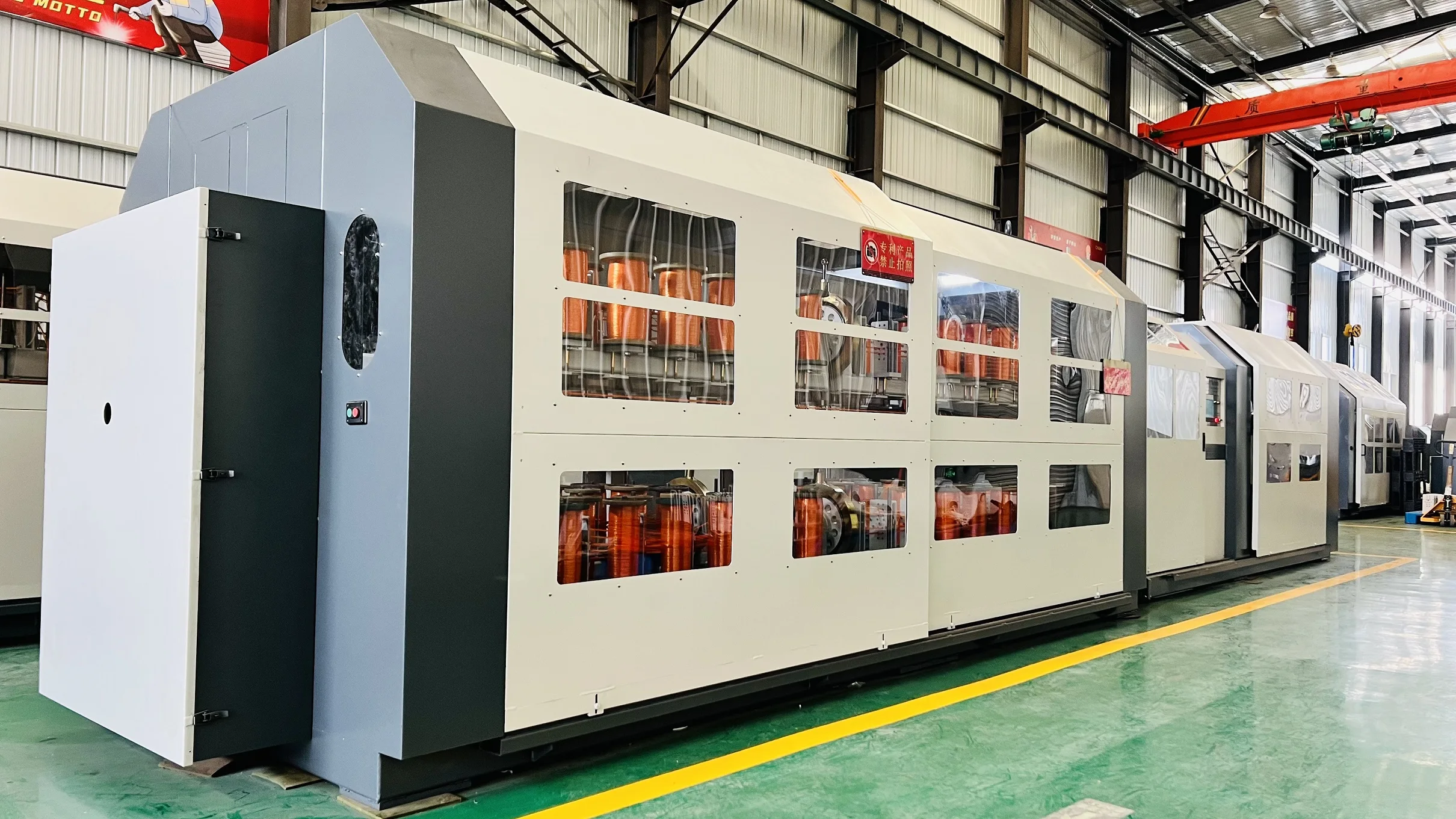

Other related machines

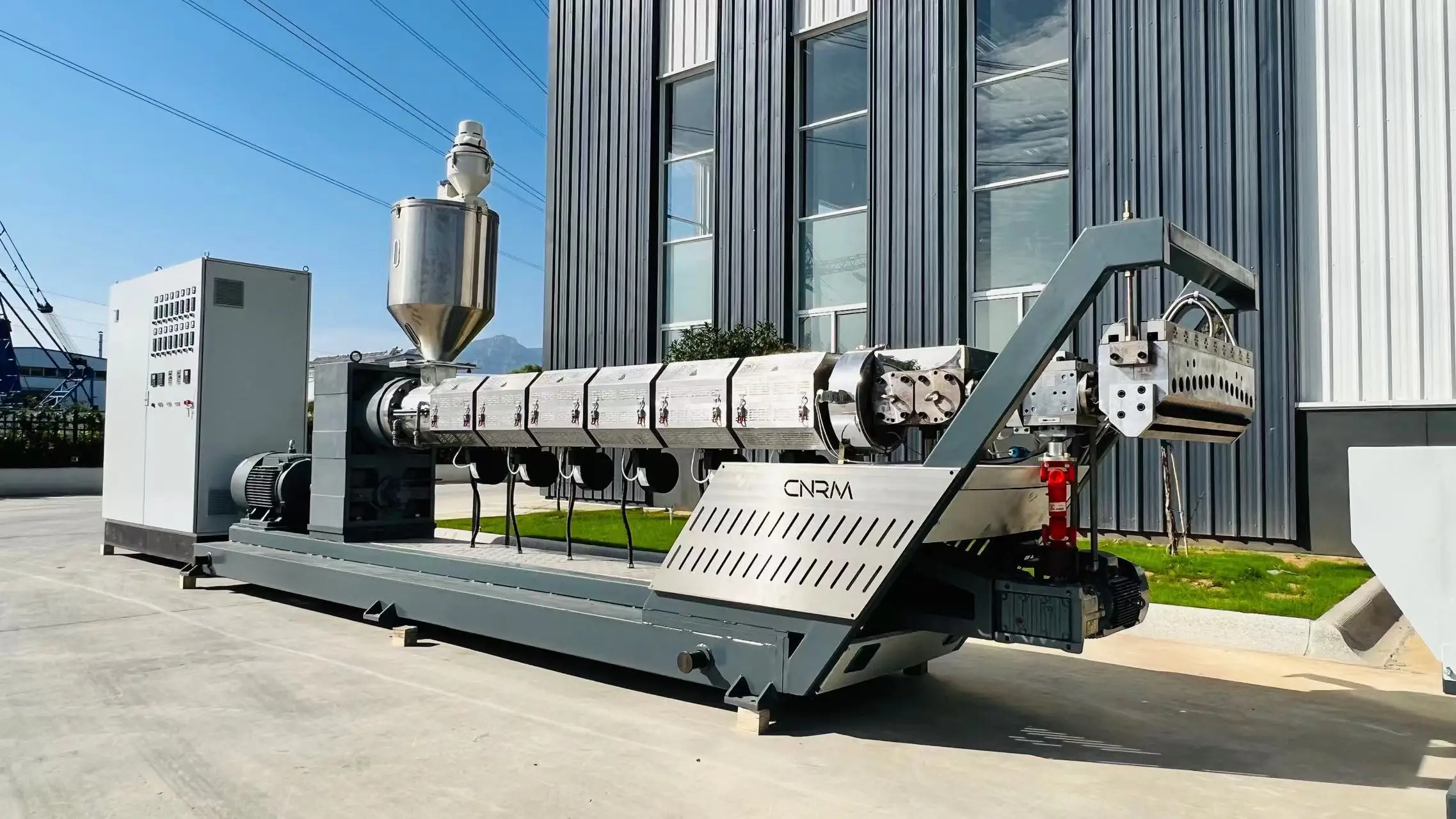

CNRM Extrusion series & Rope machines are very popular in customers........if u are also interested in them,pls clicked as below for more information:

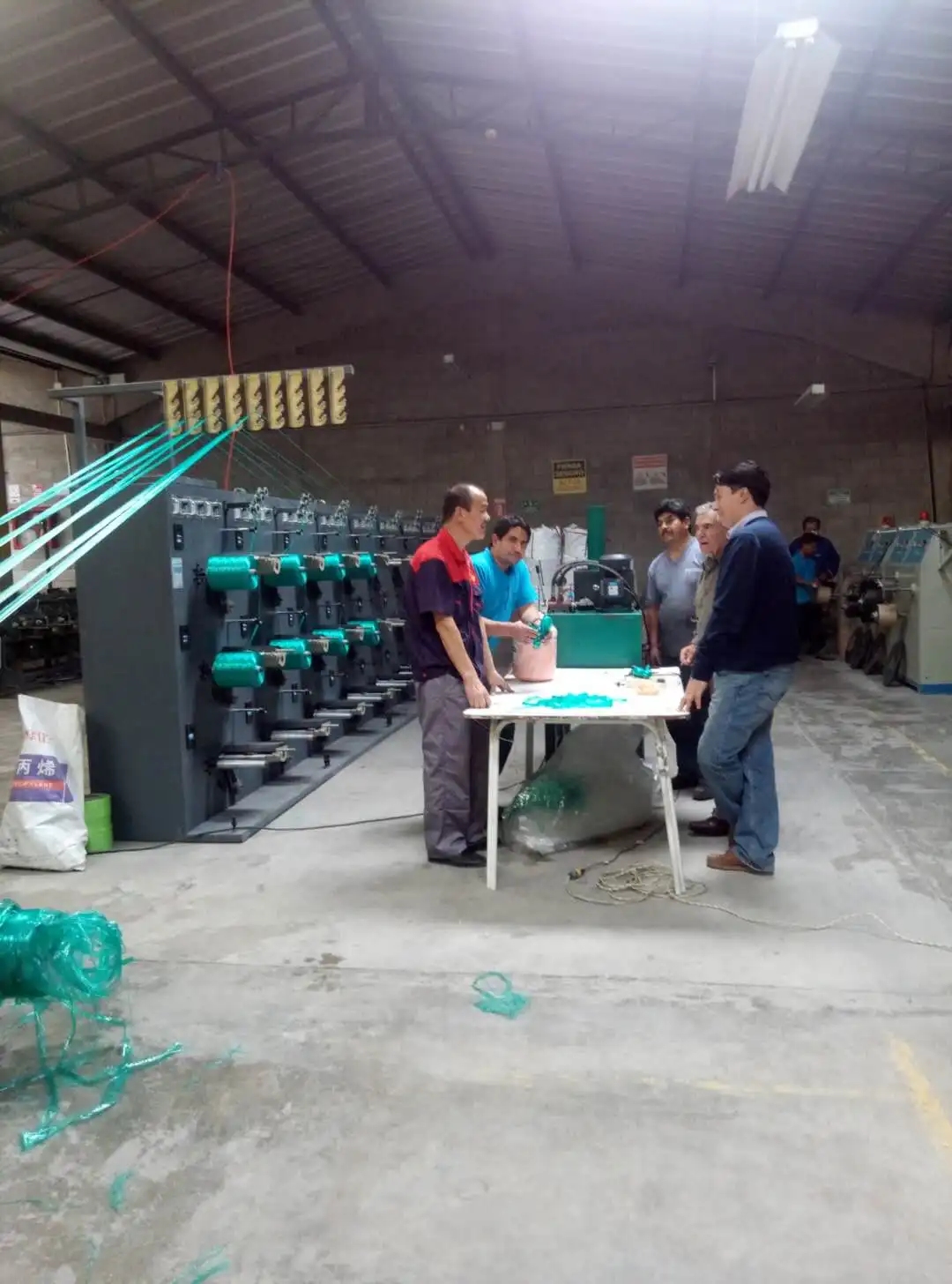

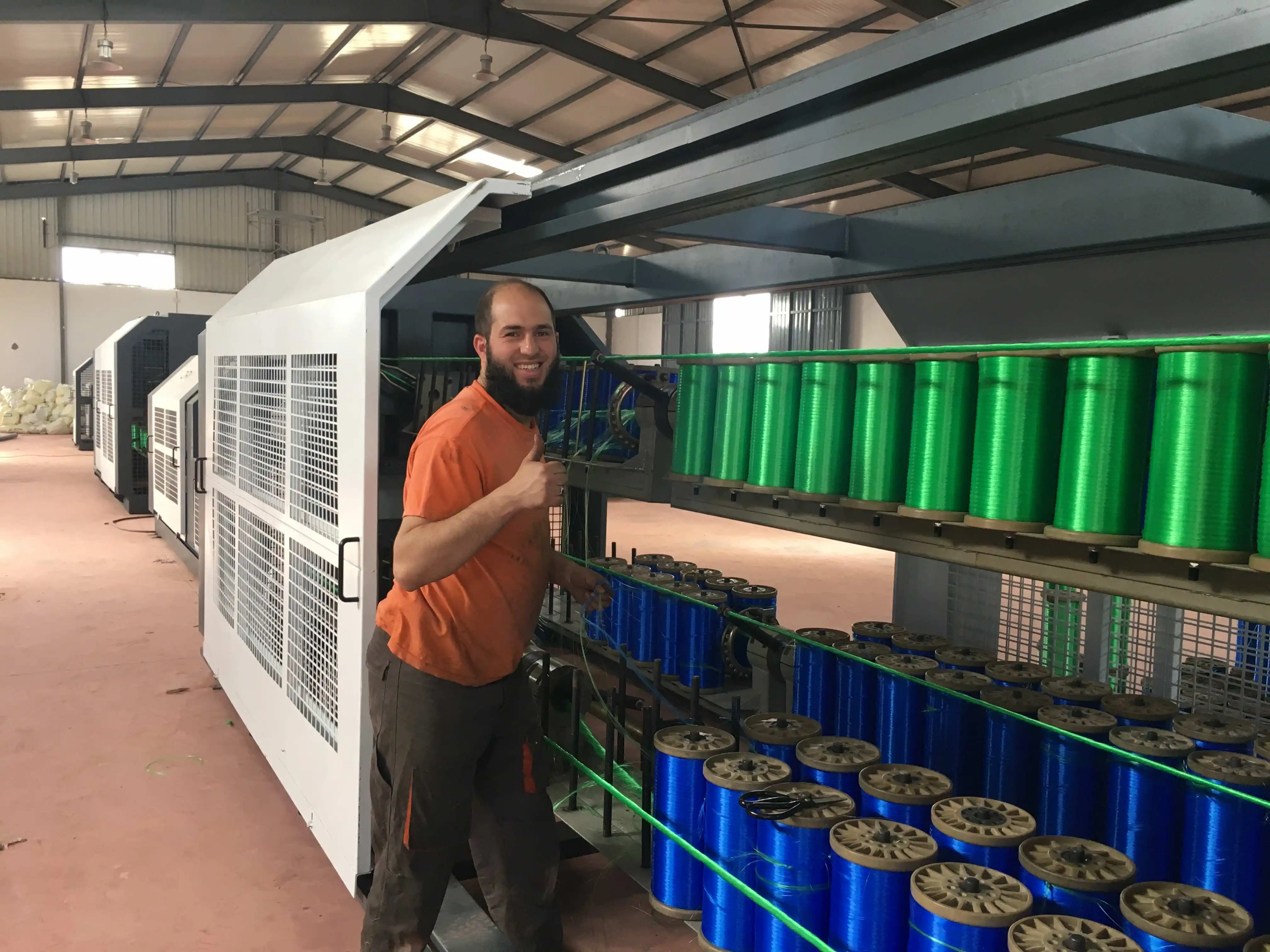

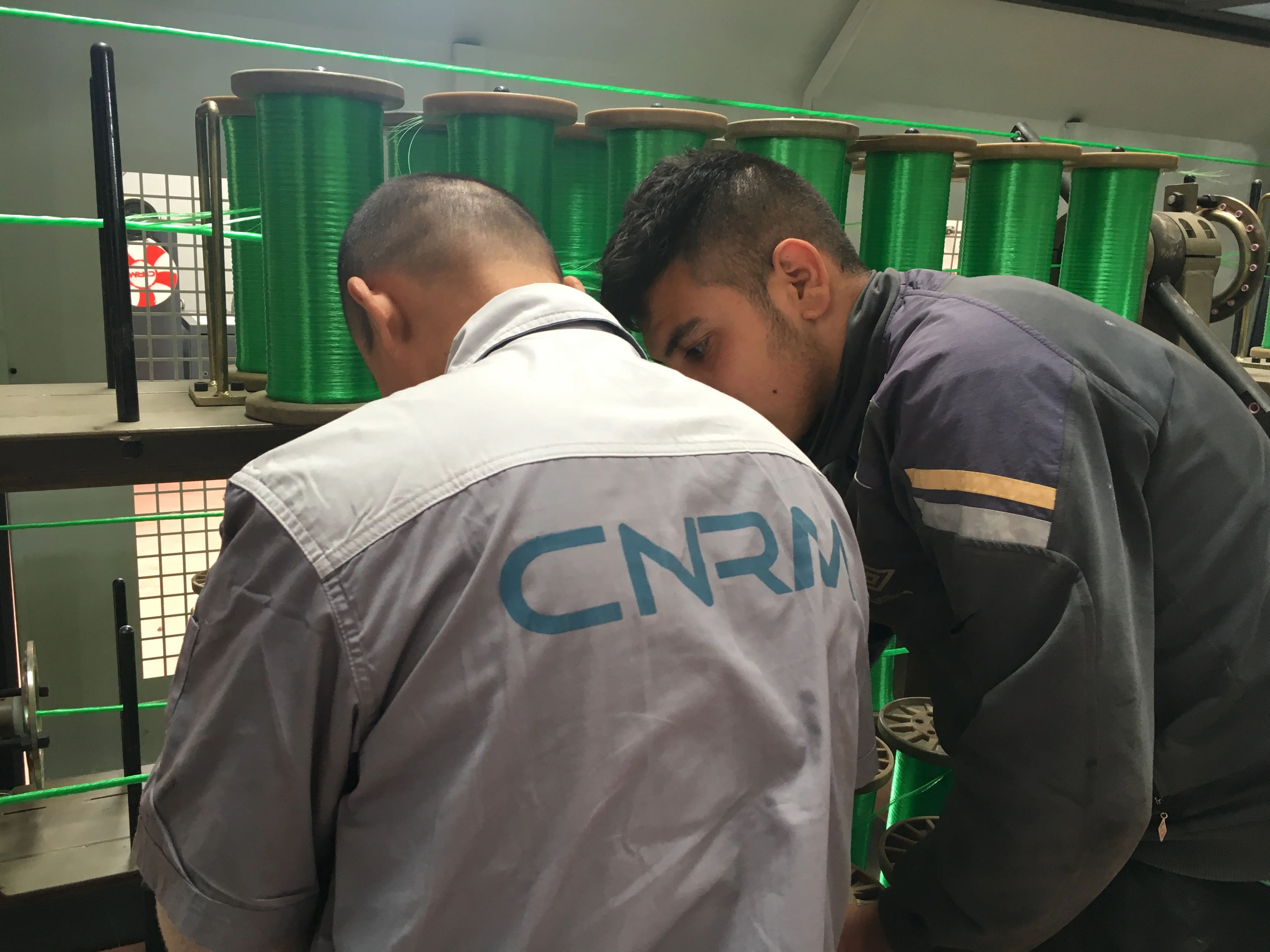

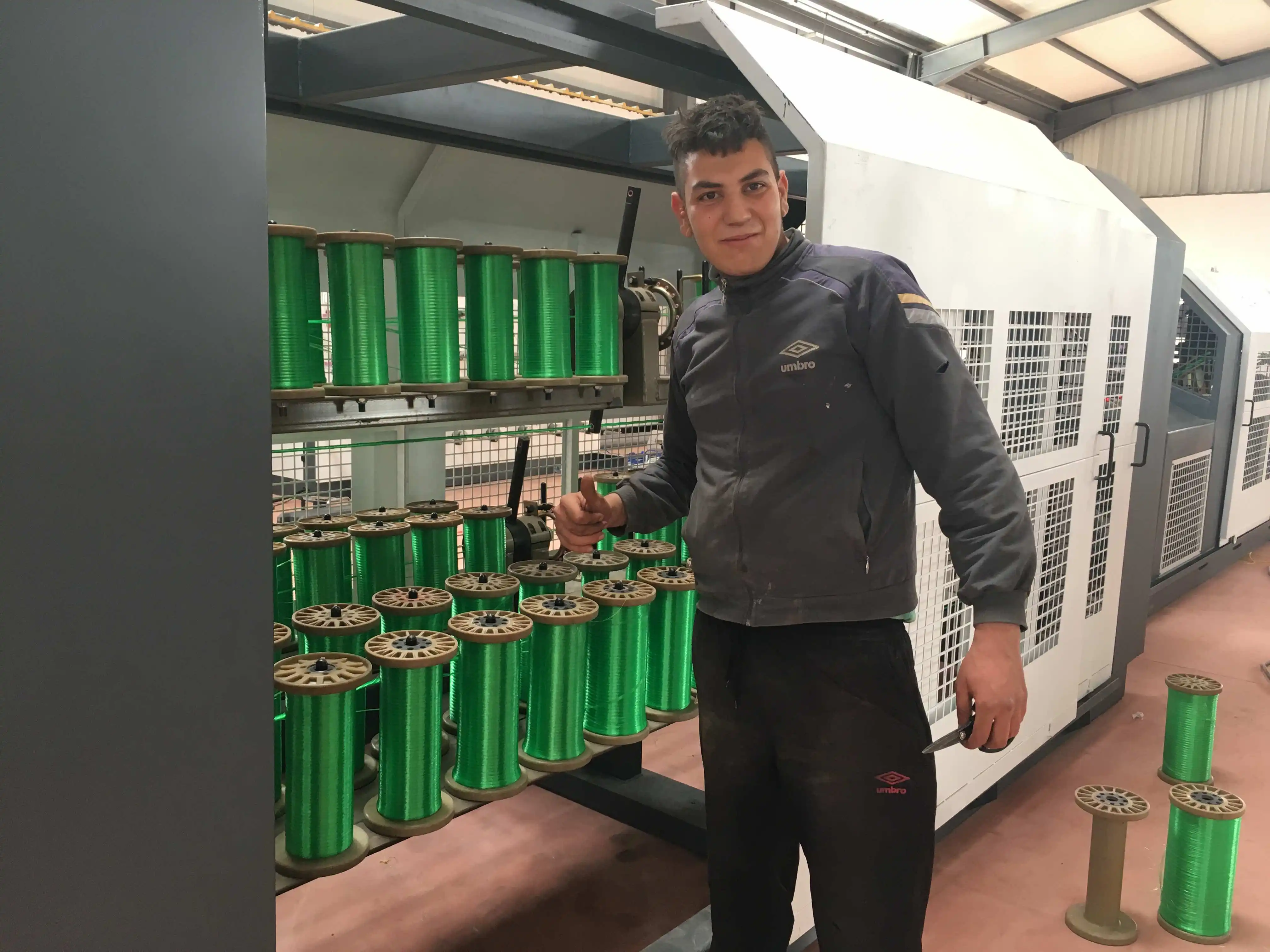

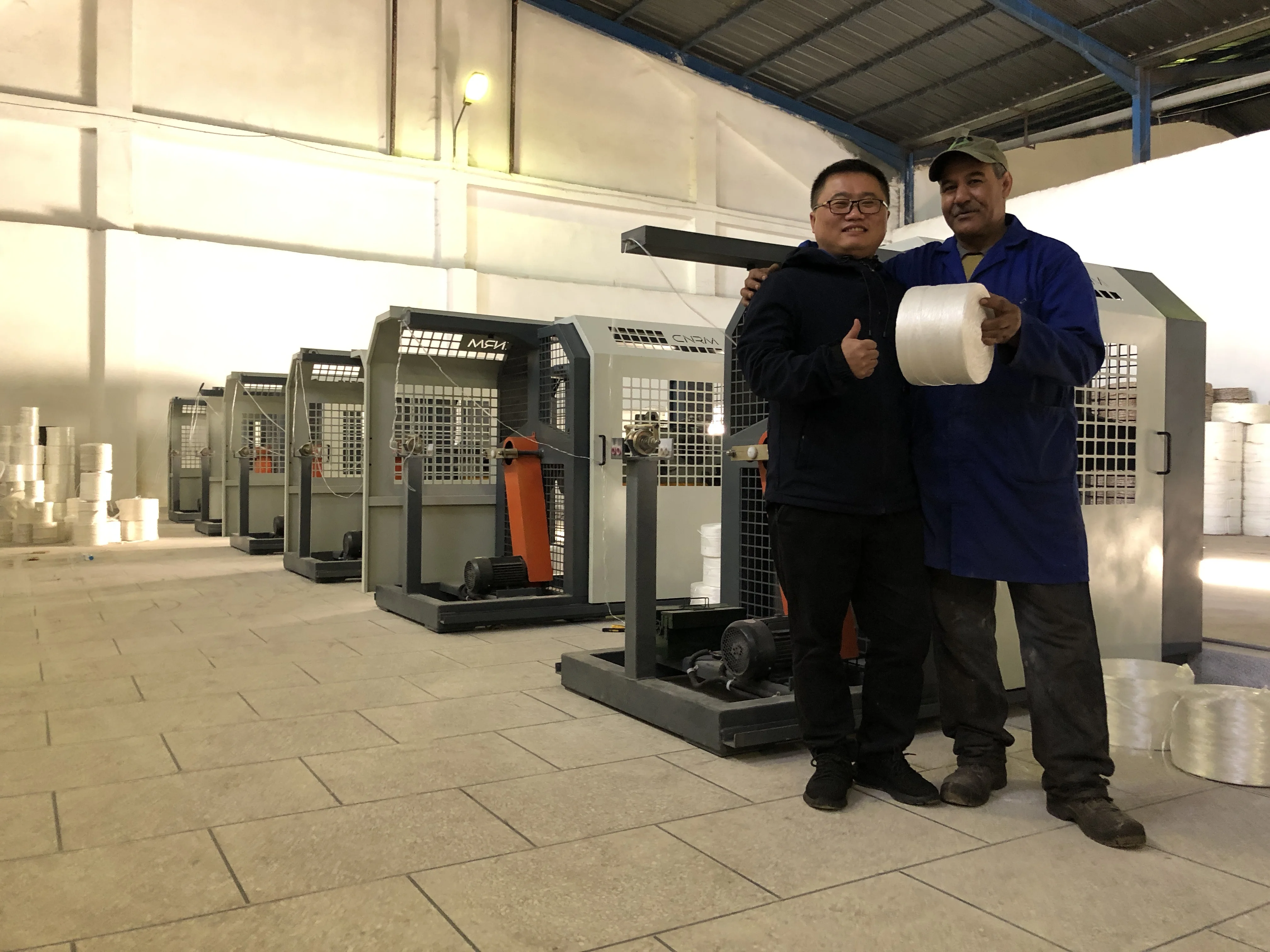

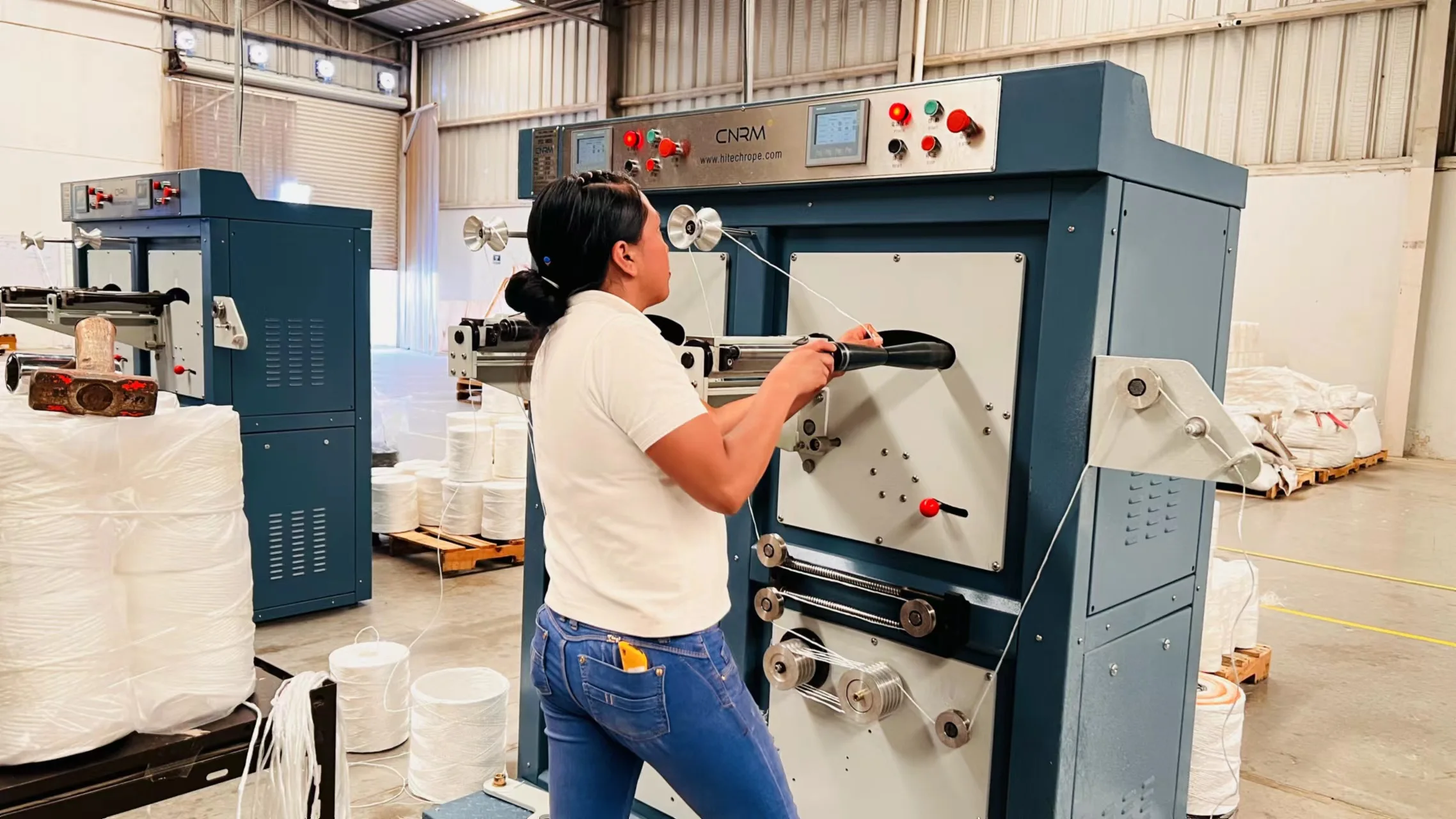

CNRM Clients View from different countries
1.Installation Services
Installation Services are available with all new spool winding machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Installation Services are available with all new spool winding machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.

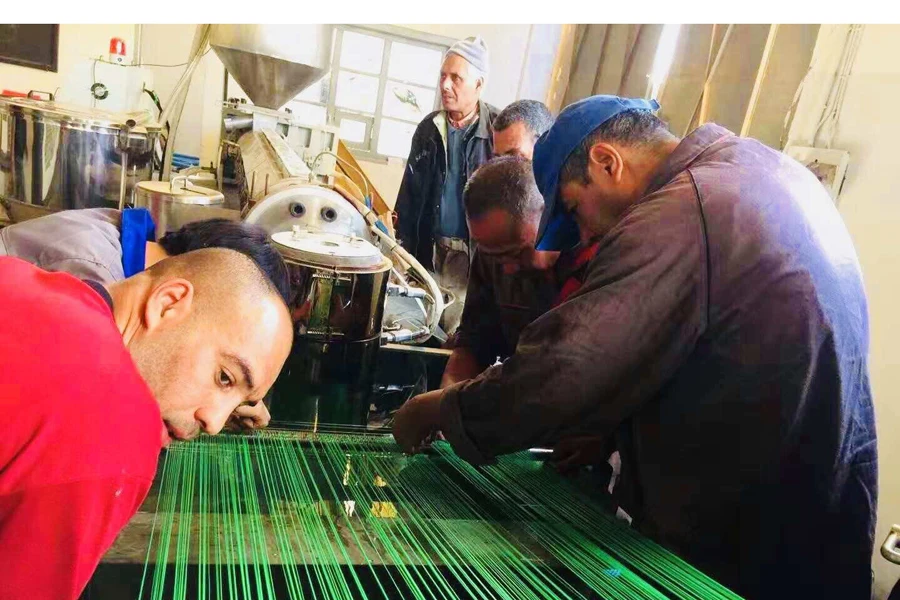

2.Clients Training Services
We can train your staff to use your equipment systems properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

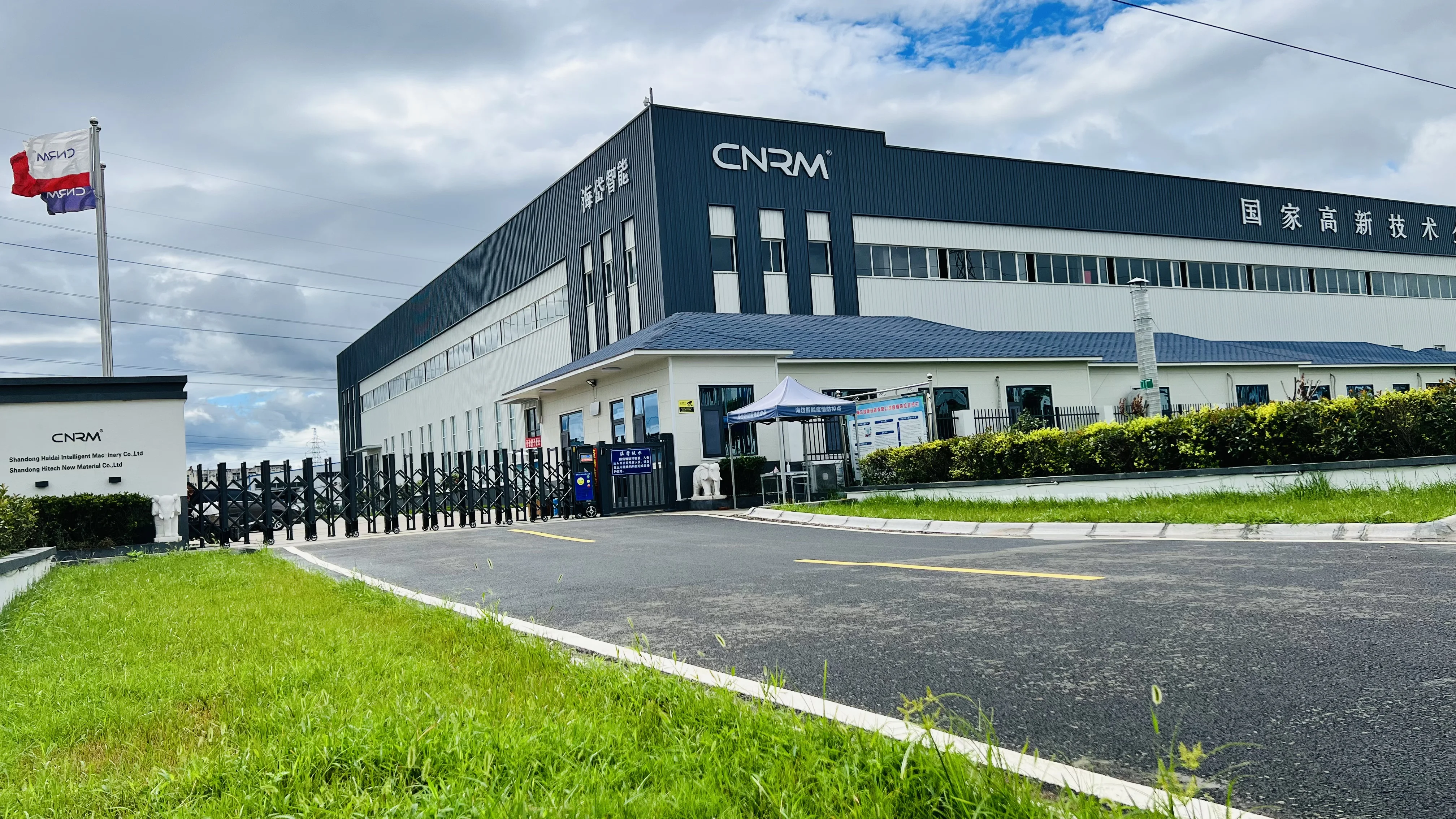

CNRM Brief Introduce
CNRM Shandong Haidai Rope Machinery Science Technology Co.,Ltd located on the Shengzhuang Industrial Park ,Taian City, Shandong Province,is science technology and innovation enterprise ,an initiative co-founded by science technology researchers who researched rope product and rope machine for many years, relying on Kyoto Institute of Technology , Donghua University and other universities and Science research institutions at home and abroad. Our company devotes the Research and Development, Production ,Service and Training for all kinds of rope ,twine, net ,webbing and automatic rope &net making machine .
CNRM has achieved industrialization and large-scale production from research and innovation during 10 more years in the rope and net field. Our rope and net machinery mainly including: Extruder, Ring Twister,Twisted Rope Making Machine, Braided Rope Machine, Ball Winder, Spool Winder, Coiling Machine , Hank Winding Machine and Package Machine and more than 10 kinds series
production; Our Rope ,Twine ,Net and Webbing production including :all kinds of twisted rope and braided rope ,net , twine more than 30 series and 500 kinds of products from the plastic ,chemical fiber, natural fiber and high performance fiber.
CNRM product performance has reached international and domestic advanced technology level with unique design concept, advanced manufacturing technology, perfect quality guarantee. CNRM Shandong Haidai Rope Machinery Science Technology Co.,Ltd will continue adhering to the " best and perfect" service concept, and providing customers with considerate service ,excellent products, professional design and first-class quality .
Welcome customers all over the world to visit CNRM and hope to establish long-term relationship with each other and CNRM will be always be with you in 365 days.............thanks.............
CNRM has achieved industrialization and large-scale production from research and innovation during 10 more years in the rope and net field. Our rope and net machinery mainly including: Extruder, Ring Twister,Twisted Rope Making Machine, Braided Rope Machine, Ball Winder, Spool Winder, Coiling Machine , Hank Winding Machine and Package Machine and more than 10 kinds series
production; Our Rope ,Twine ,Net and Webbing production including :all kinds of twisted rope and braided rope ,net , twine more than 30 series and 500 kinds of products from the plastic ,chemical fiber, natural fiber and high performance fiber.
CNRM product performance has reached international and domestic advanced technology level with unique design concept, advanced manufacturing technology, perfect quality guarantee. CNRM Shandong Haidai Rope Machinery Science Technology Co.,Ltd will continue adhering to the " best and perfect" service concept, and providing customers with considerate service ,excellent products, professional design and first-class quality .
Welcome customers all over the world to visit CNRM and hope to establish long-term relationship with each other and CNRM will be always be with you in 365 days.............thanks.............
