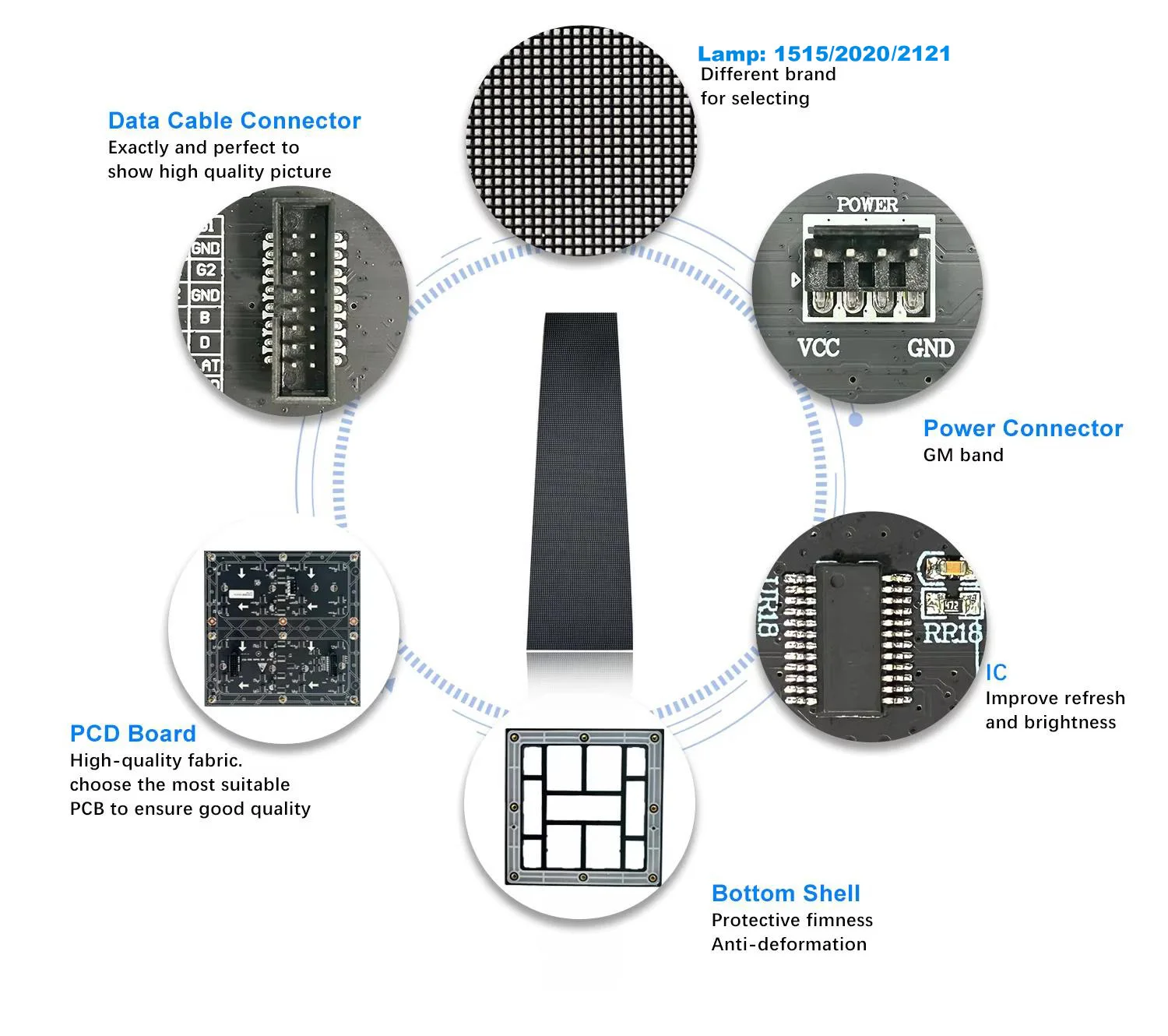

PN | P2.604 |

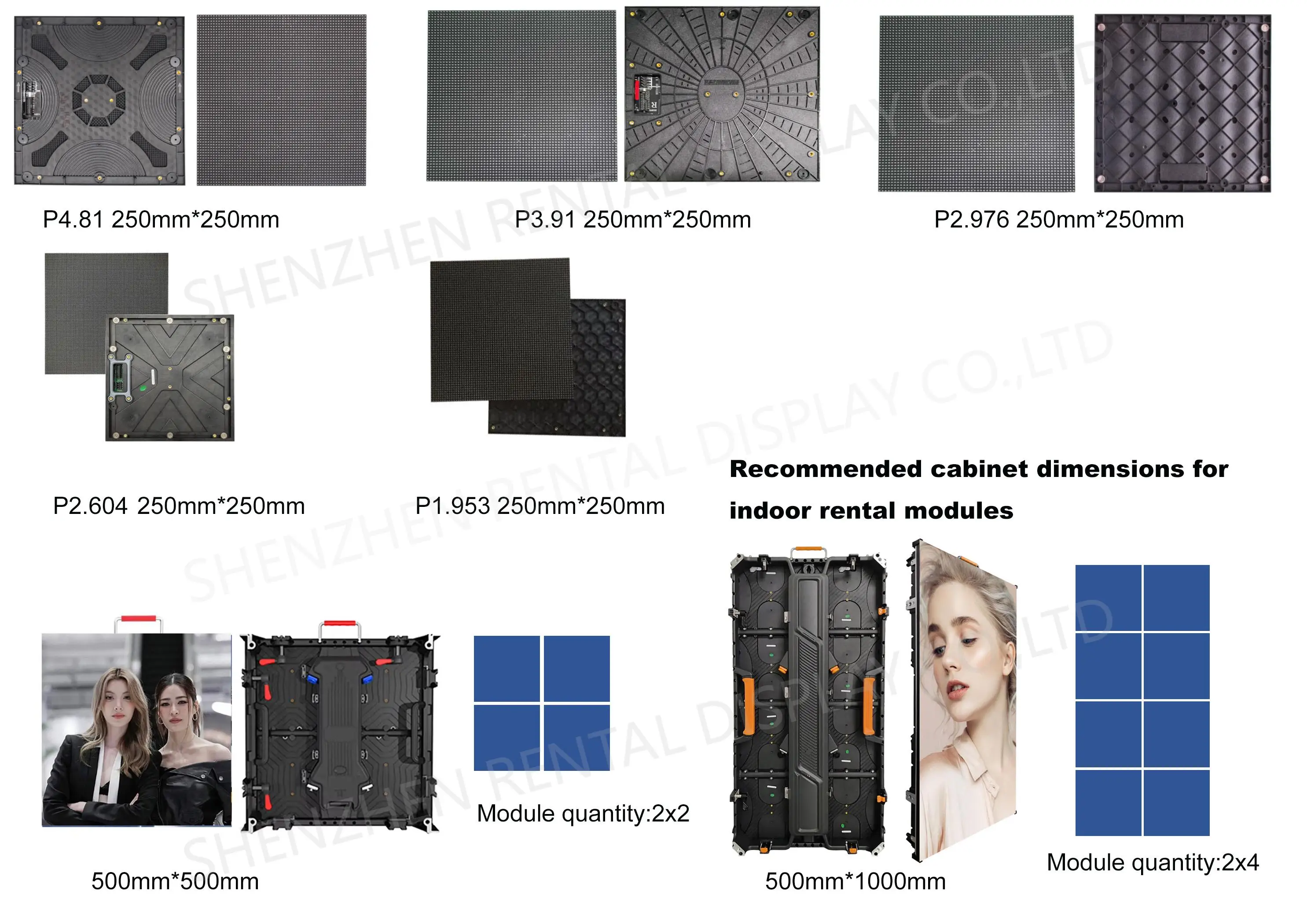

Module size | (W)250*250mm(H) |

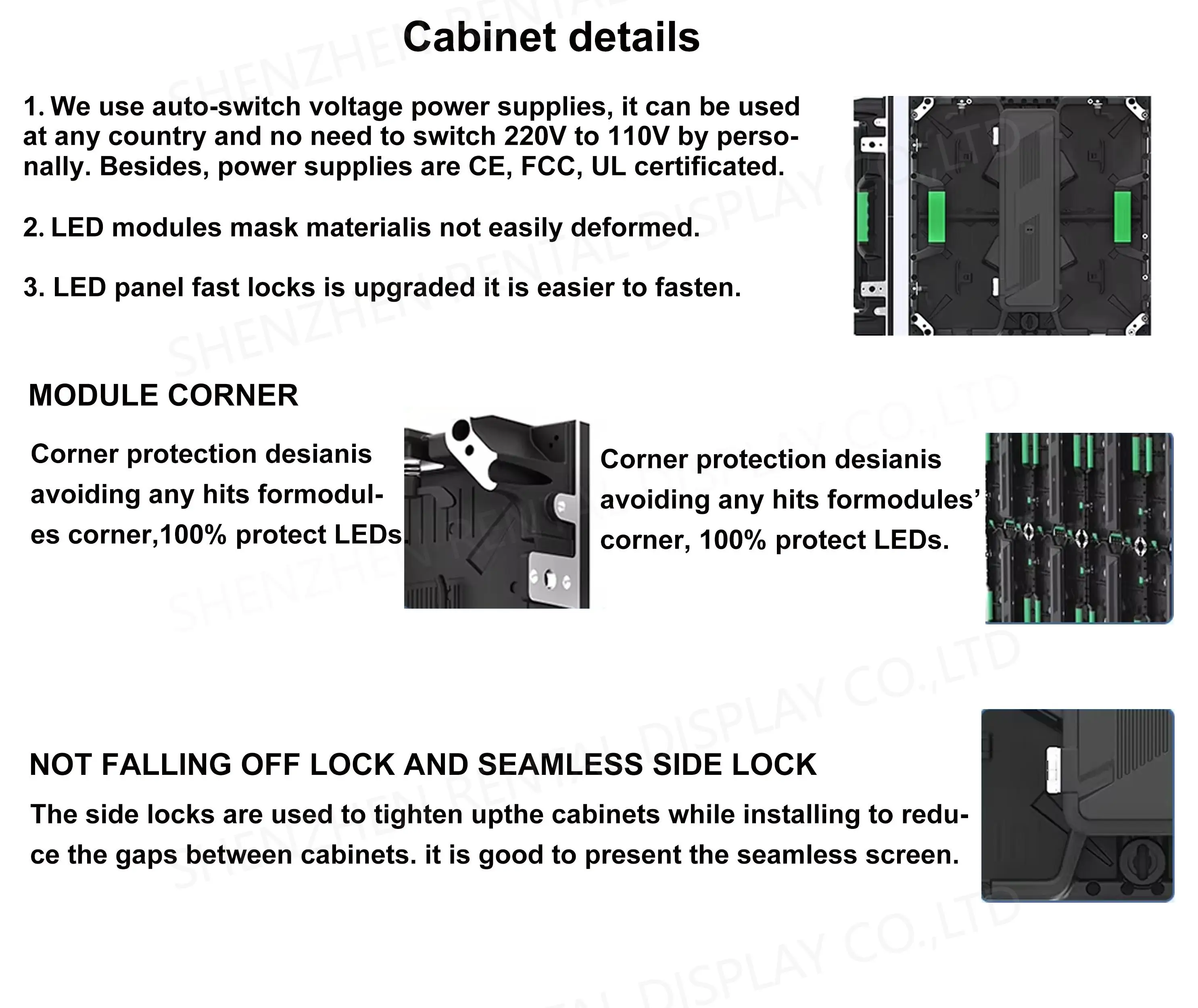

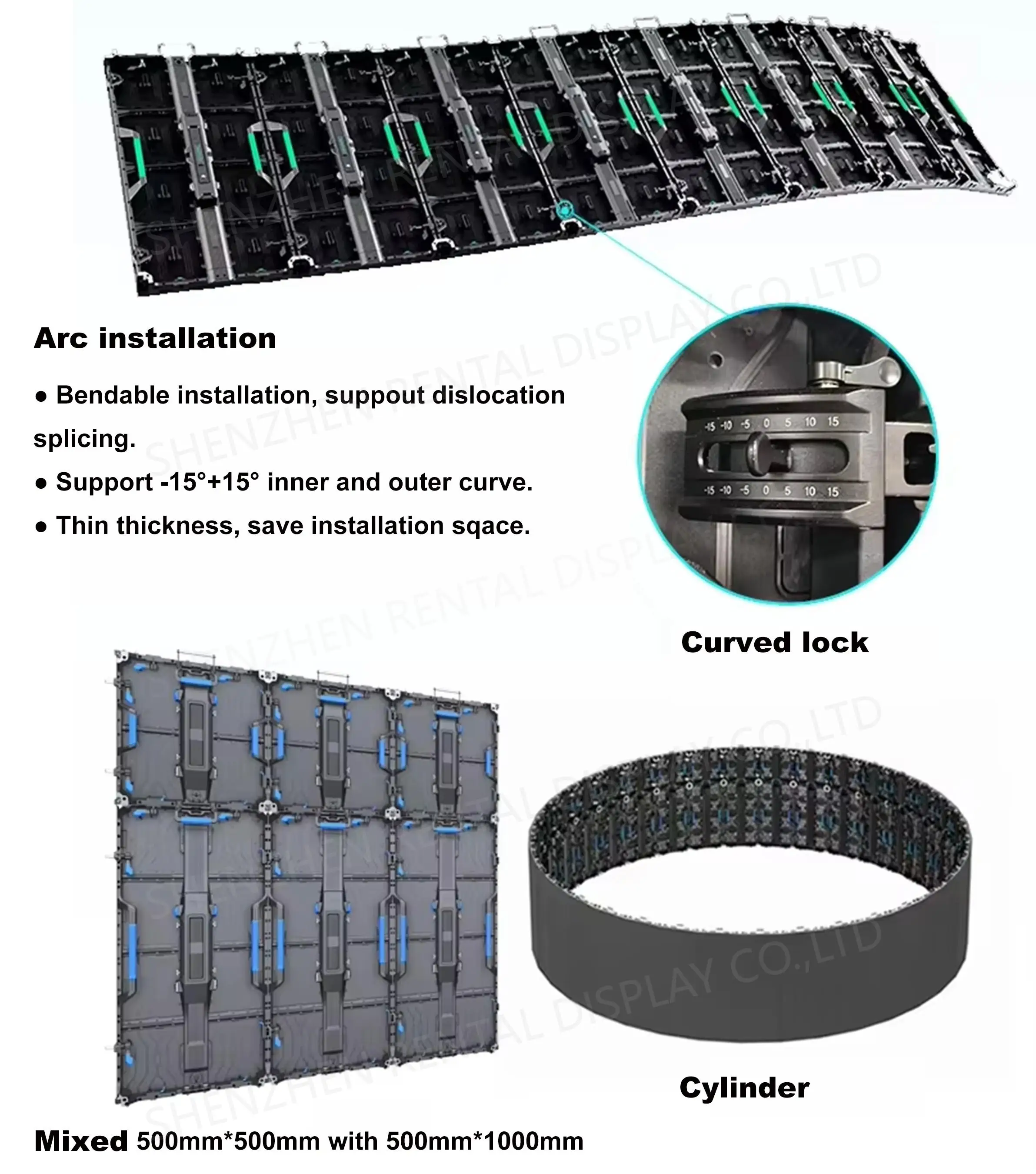

Cabinet size | (W)500*1000mm(H) |
Pixel pitch (mm) | 2.604mm |
Pixel Density | 147456 /m² |
Pixel configuration | 1R1G1B |
LED specification | SMD1515 |
Module resolution | 96dot*96dot |
Module resolution | 192dot*384dot |
Module weight | 0.45KG |
Panel current | 4-4.5A |
Max Power | 22.5W |
Module thickness | 12.1 mm |
Number of unit cabinet per square meter | 2 PCS |

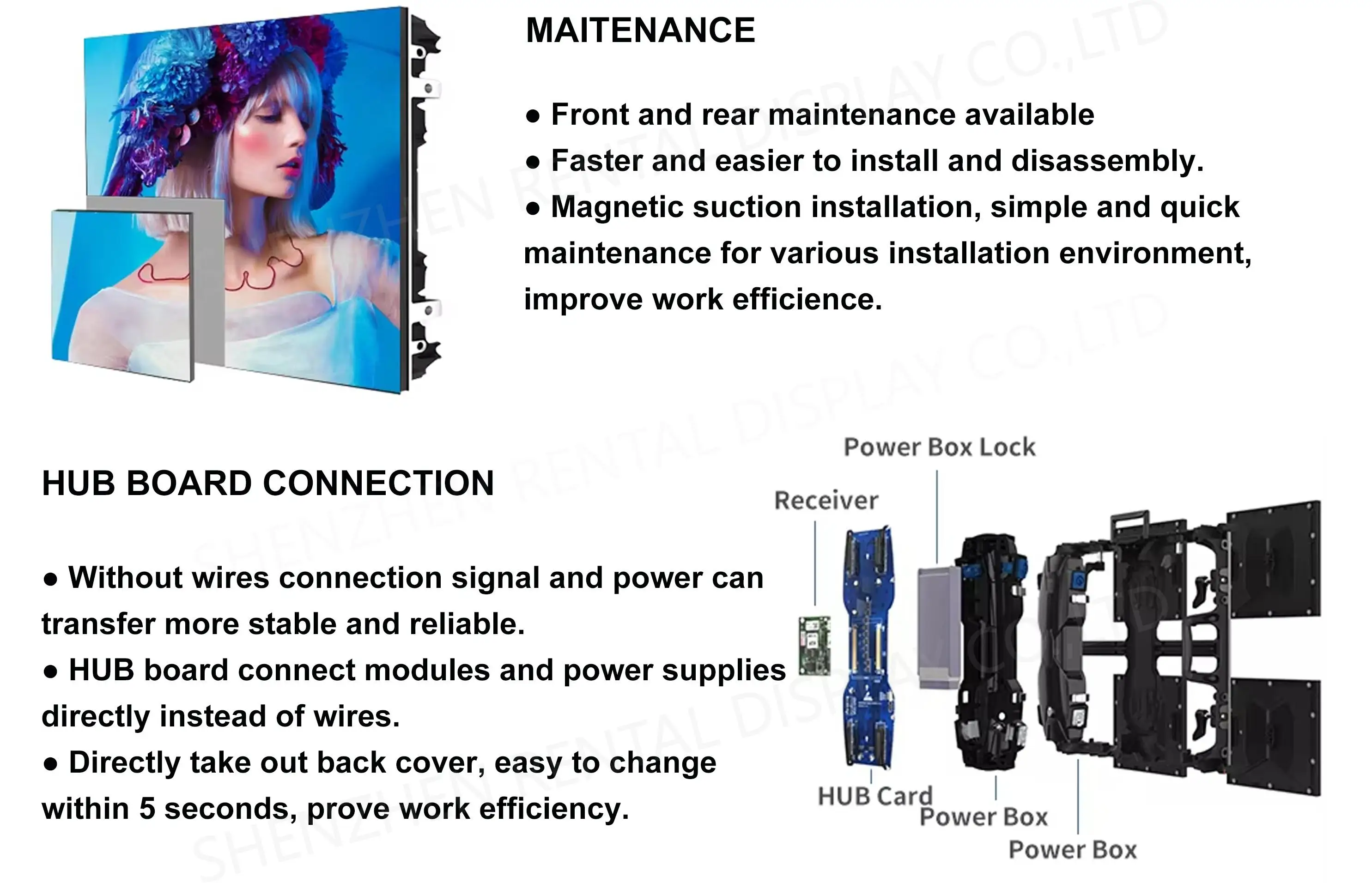

Port type | HUB75 |
Best viewing angle | Horizontal>170Vertical>120 |
Best viewing distance | 3M~30M |
Working temperature | -20°~60° |
Driving device | 1/32 Scanning |
Refresh frequency | 1920-3840 HZ/s |
Brightness | 800cd/m² |
Life span | 100000 Hours |
Driving type | Constant drive |
