Product Overview
Description
Products Description
Hydraulic placing machine is an extension of the traditional placing machine, an intelligent concrete placing machine, on the basis of the traditional placing machine to improve the operation of the inconvenience and personnel costs and pouring efficiency of a new type of placing machine.
1.Mobility: Mobile hydraulic placing machines are usually designed to be lightweight and easy to carry, suitable for multi-point placing on construction sites.
2.Hydraulic Operation: Driven by hydraulic system, it can efficiently and smoothly carry out placing operations and adapt to different working environments.
3.Quick setup: It can be quickly installed and disassembled, saving time and improving construction efficiency.
4.Wide range of application: It can be used for conveying and laying concrete, mortar and other materials, and is widely used in construction sites, bridge construction and other occasions.
5.Environmental adaptability: For places with large terrain undulations, it can easily cope with complex construction conditions by virtue of its flexibility.
Product Paramenters
Mobile Hydraulic Concrete Placing Boom | ||||||||||||
Project name | HGY13 | HGY15 | HGY17 | HGY19 | HGY21 | HGY23 | ||||||
Max. working radius | 13m | 15m | 17m | 19m | 21m | 23m | ||||||
Tilt working range | 0°~84° | 0°~89° | 0°~84° | 0°~84° | 0°~84° | -4°~90° | ||||||
Slewing working range | Full Rotary | |||||||||||
Motor power of hydraulic washing system | 4kw | 4kw | 5.5kw | 7.5kw | 22kw | 22kw | ||||||
Working pressure of hydraulic system | 20mpa | 16mpa | 20mpa | 20mpa | 32mpa | 32mpa | ||||||
Slewing speed | 0.46r/min | 0.2-0.3/min | 0.2-0.3/min | 0.2-0.3/min | 0.2-0.3/min | 0.2-0.3/min | ||||||
Concrete pipe specification | ∅125*4 | |||||||||||
Length of hose at arm end | 3m | |||||||||||
Outrigger span | 4000*4000mm | 4231*4231mm | 5167*5167mm | |||||||||

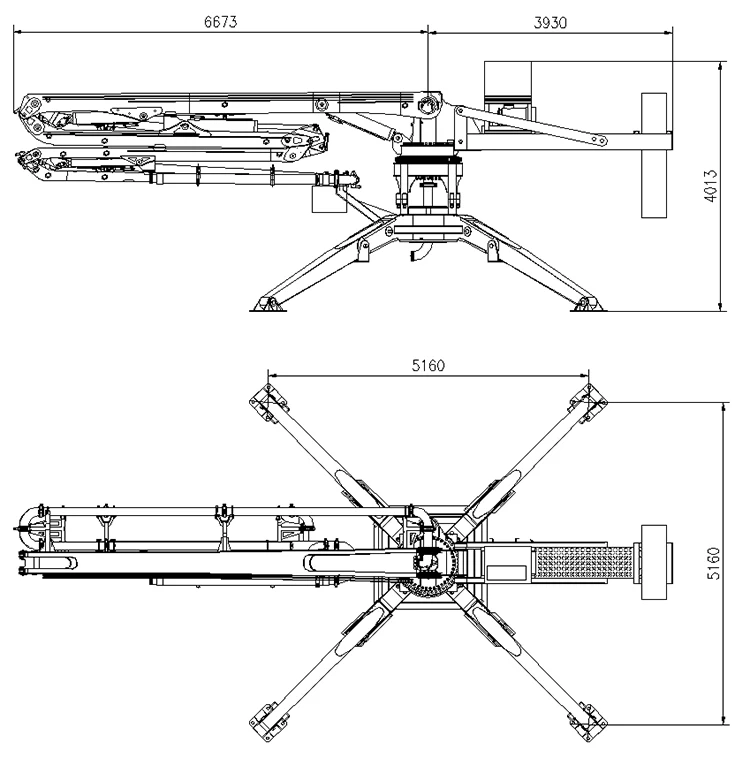

Overall size of the machine | 8900*4000*2585 | 6000*5000*4000 | 6670*5730*4510 | 6500*4800*4600*5312 | 6839*5089 *5060*5800 | |||||||
Slewing angle | 360° | 360° | 360° | 360° | 360° | 360° | ||||||
Weight (self-weight/counterweight T) | 2.7/4.3 | 3.23/5.43 | 5/7.2 | 5.3/7.5 | 7.7/9.9 | 8/10.2 | ||||||
Details Images
Certifications
FAQ
1.Factory
Q: Are you Concrete Boom Hydraulic Placing Spreader manufacturer?
A: We are the Rotary Tillage manufacturer. Chinacoalmachine Machinery factory address is:Jining cirty, Shandong province, China.
2. Packing
Q: What is the container size of Concrete Boom Hydraulic Placing Spreader?
A: The actual size can adjust with how many you need.
3. Lead time
Q: How many days it takes before you deliver the Concrete Boom Hydraulic Placing Spreader to us?
A:For these Rotary Tillage, we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
4. Quality
Q: How do your quality control systems operate?
A: We have professional designer team, and employ experienced engineers to strictly guarantee the production.Meanwhile our factory owns ISO9001 and is CE and SGS certified.
5. Warranty
Q: How to identify the quality about Concrete Boom Hydraulic Placing Spreader for sale?
A: Our Crawler Rotary Tillage have a12 months warranty after sale.
