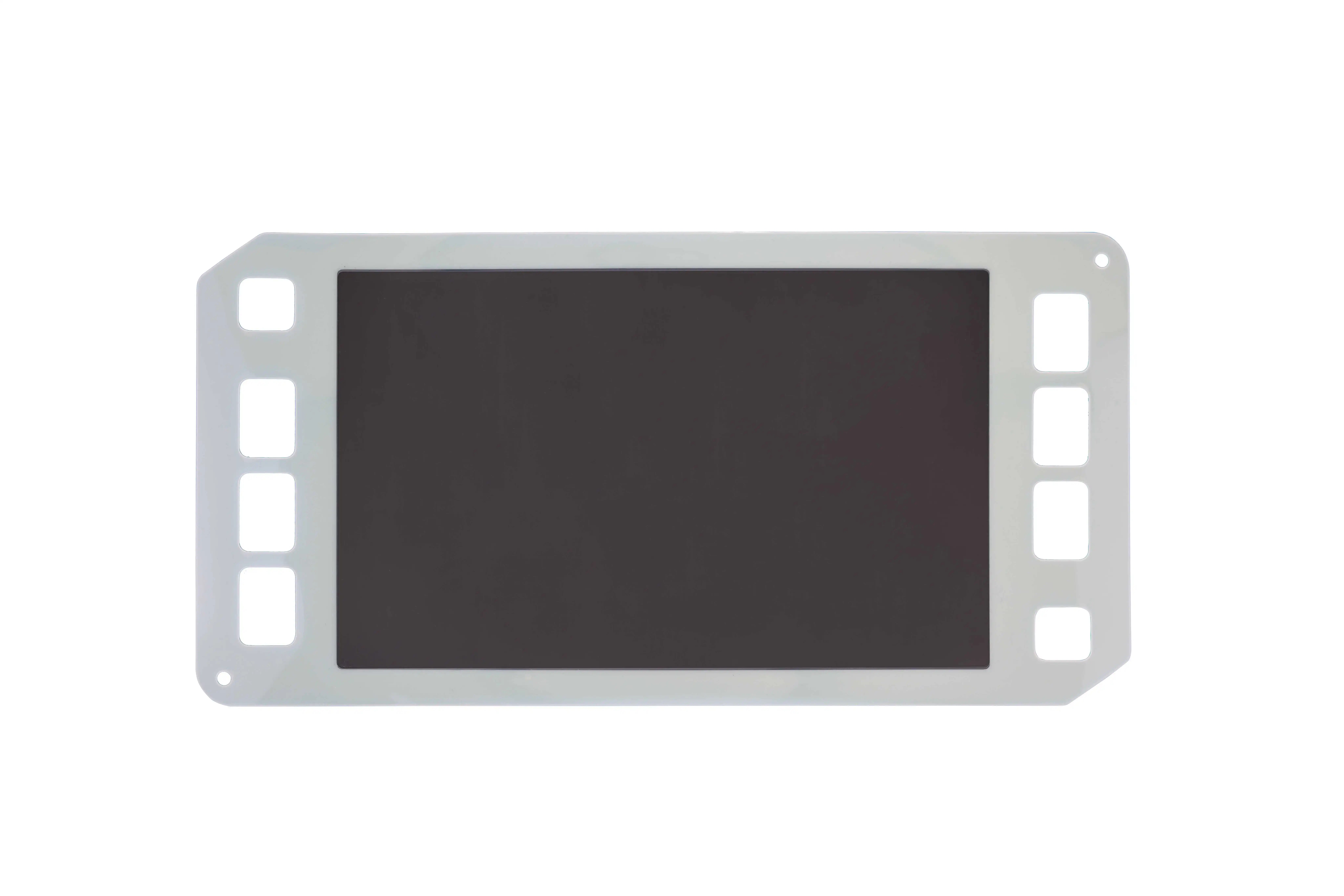

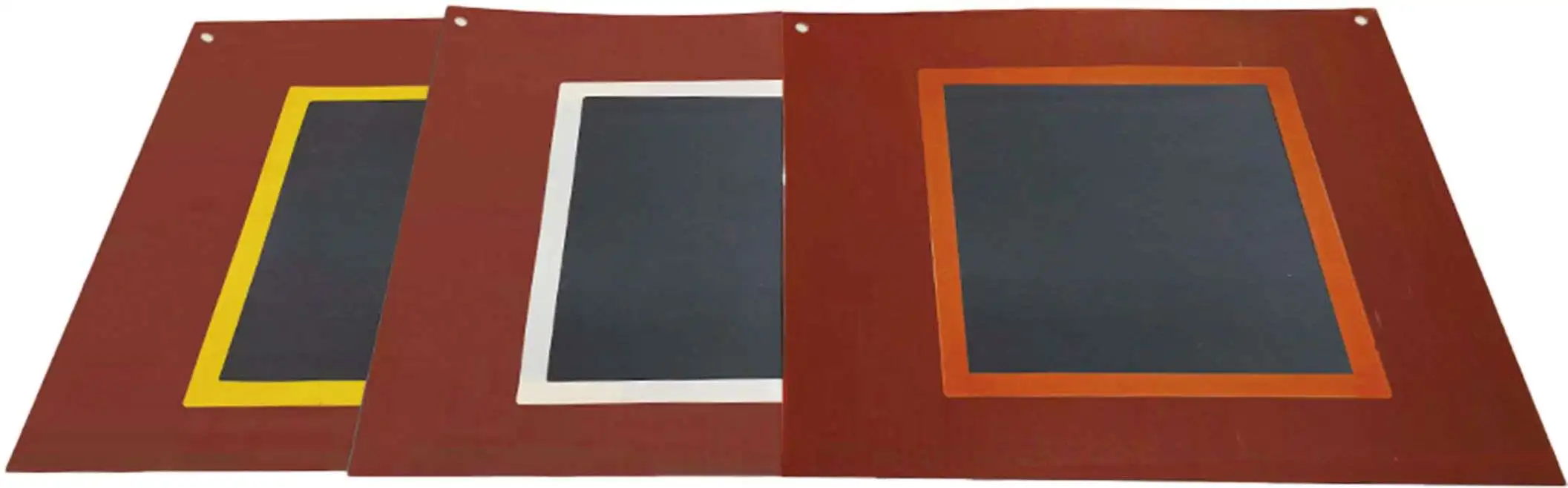

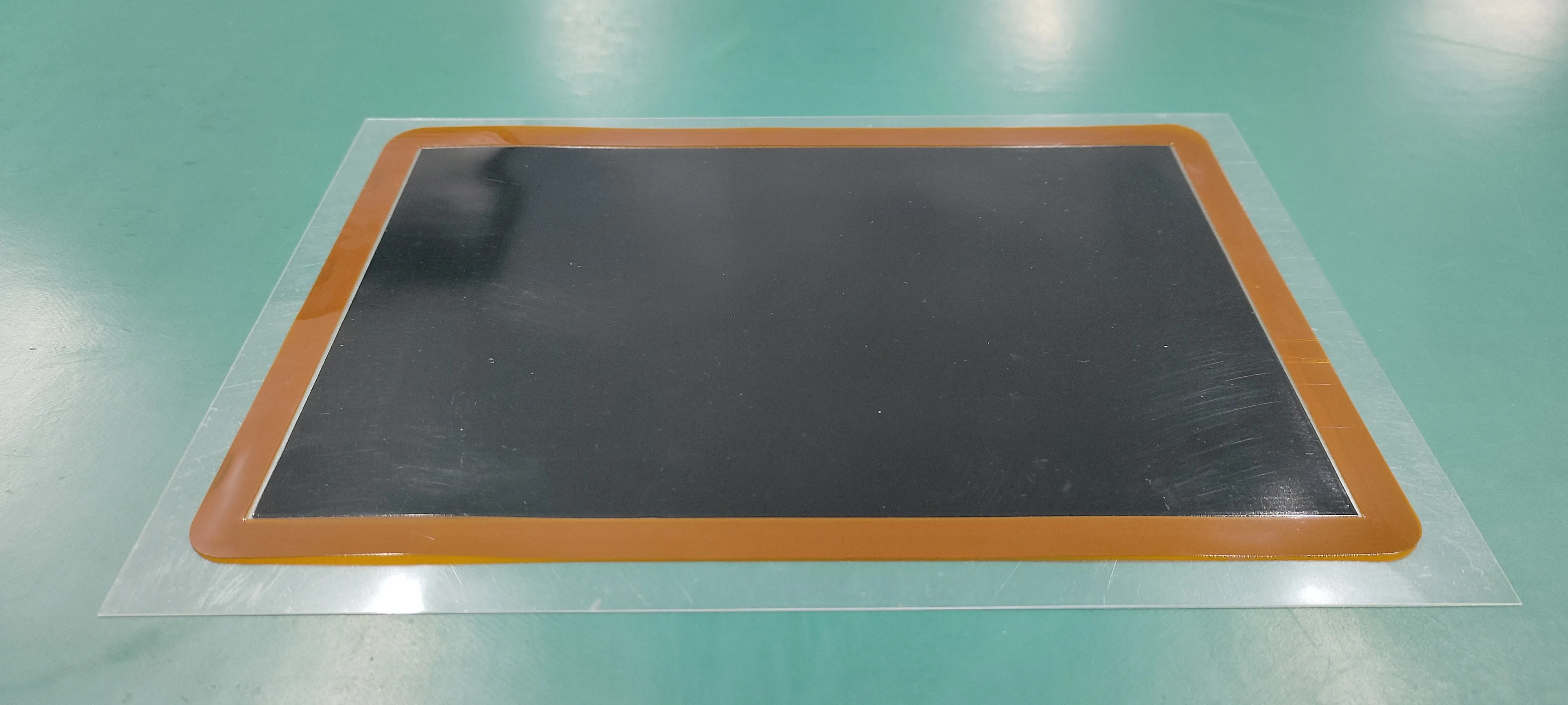

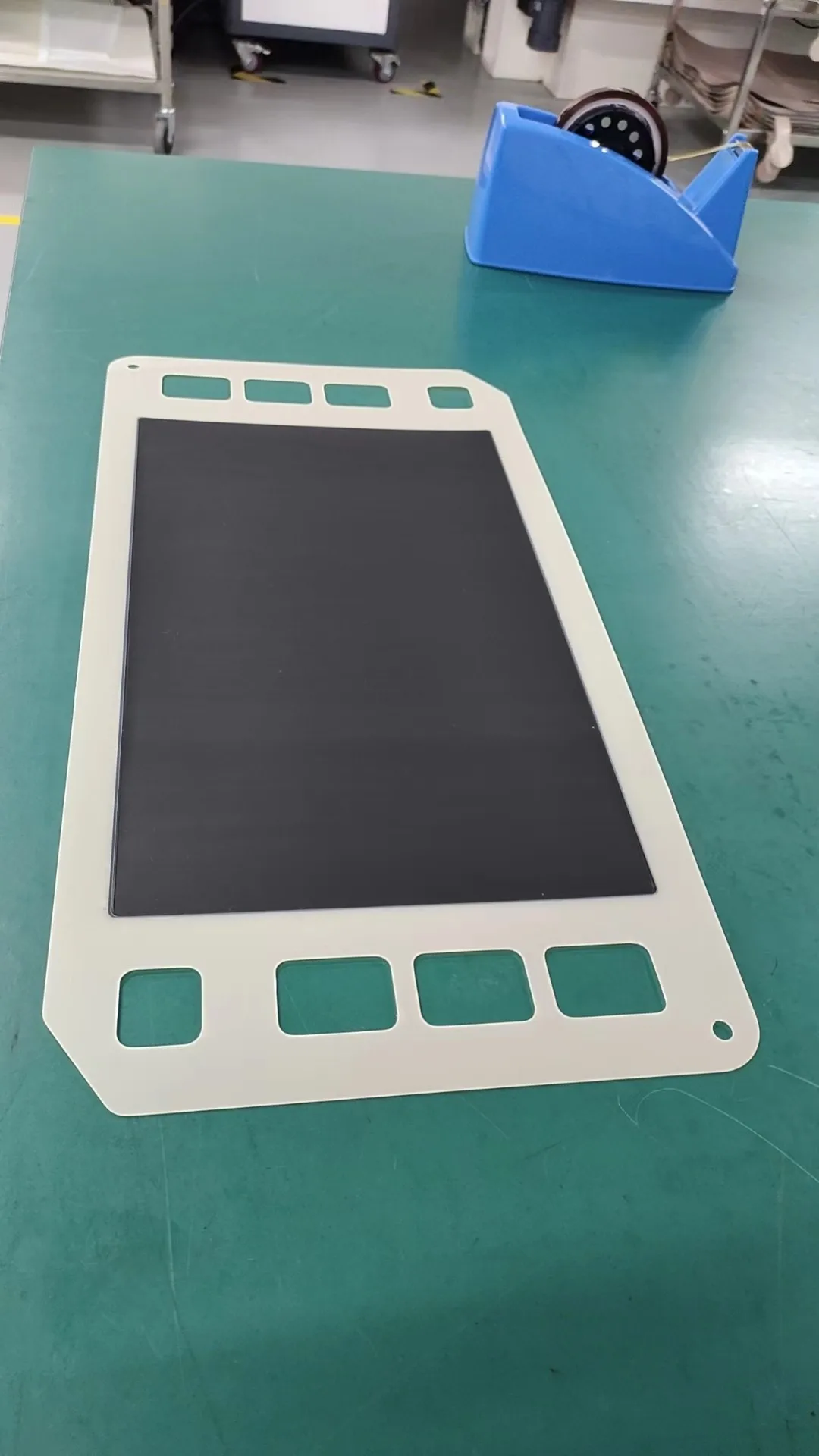

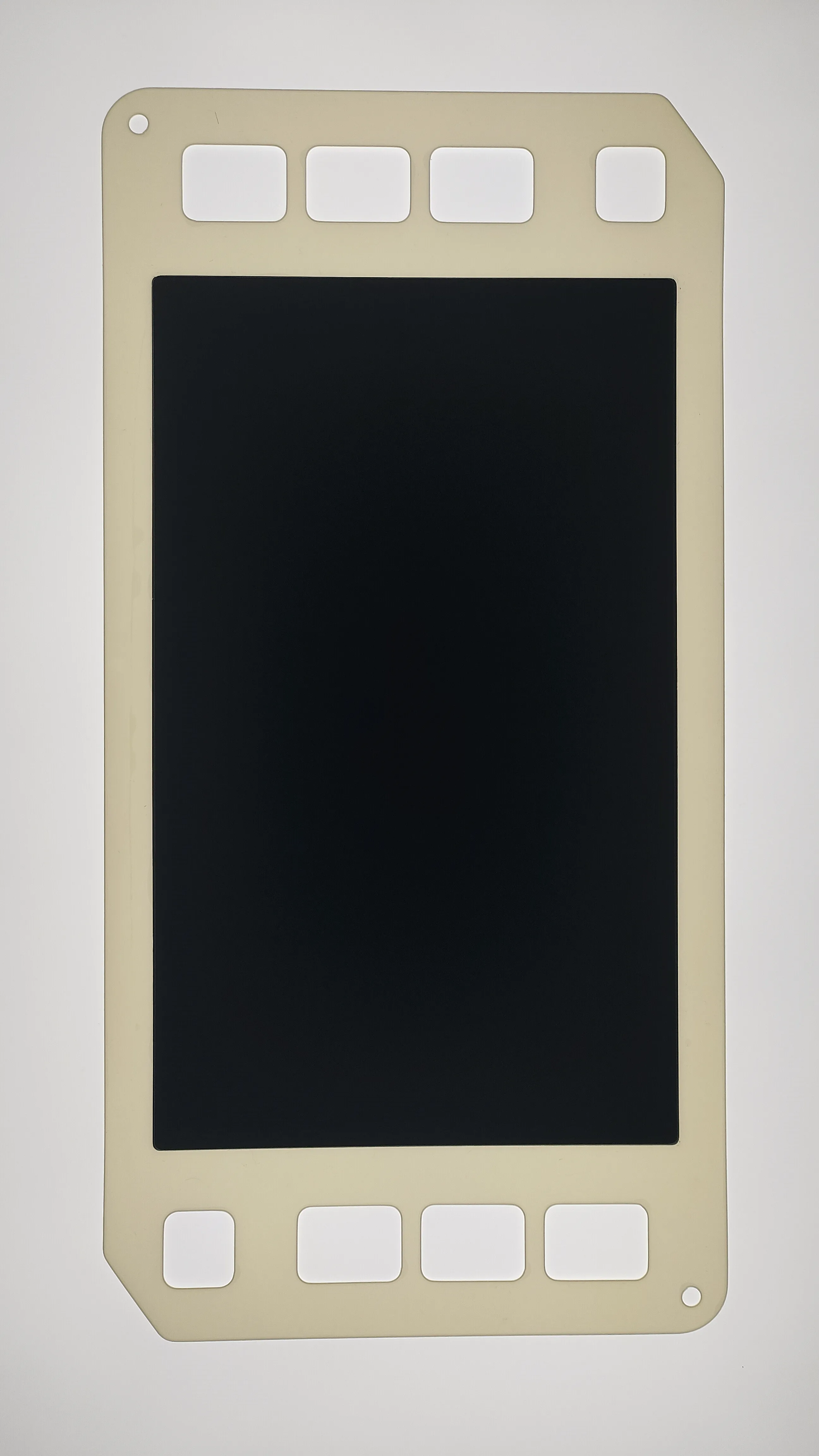

New Energy Hydrogen kettle Raw Material PEM electrolytic stack Components MEA with BriPEM 801
New Energy Hydrogen kettle Raw Material PEM electrolytic stack Components MEA with BriPEM-801
New Energy Hydrogen kettle Raw Material PEM electrolytic stack Components MEA with BriPEM-801
New Energy Hydrogen kettle Raw Material PEM electrolytic stack Components MEA with BriPEM-801
New Energy Hydrogen kettle Raw Material PEM electrolytic stack Components MEA with BriPEM-801
New Energy Hydrogen kettle Raw Material PEM electrolytic stack Components MEA with BriPEM-801
New Energy Hydrogen kettle Raw Material PEM electrolytic stack Components MEA with BriPEM-801

New Energy Hydrogen kettle Raw Material PEM electrolytic stack Components MEA with BriPEM 801

Share on (1601294146004):


Price:$1,000.99-2,000.90

Quantity:


Product Overview

Description





Models
BriMEAtm-801
BriMEAtm-802
BriMEAtm-115
BriMEAtm-117
Application scenarios
Hydrogen health products
Industrial-grade PEM
Stack/System
Industrial-grade PEM
Stack/System
Industrial-grade PEM
Stack/System
Performance in PEM electrolyzer
≤1.75@1A/cm2
≤1.8@3A/cm2
≤2.0@3A/cm2
≤2.1@3A/cm2
DC power consumption
(kwh/Nm3H2)
/
≤4.30
≤4.78
≤5.02
H2 Content in O2 (%)
/
≤0.25%
≤2%
≤1.6%
Operating temperature (°C)
Ordinary temperatures
60-65
60-65
60-65
Operating pressure (MPa)
atmospheric
3MPa
3MPa
3MPa
Active area (cm2)
1-40
100-5000
100-5000
100-5000
Coating method
Roll to roll coating
Product stucture
3 in 1   or   5 in 1
Framing material
PEN/PI/PPS(Customizable)
