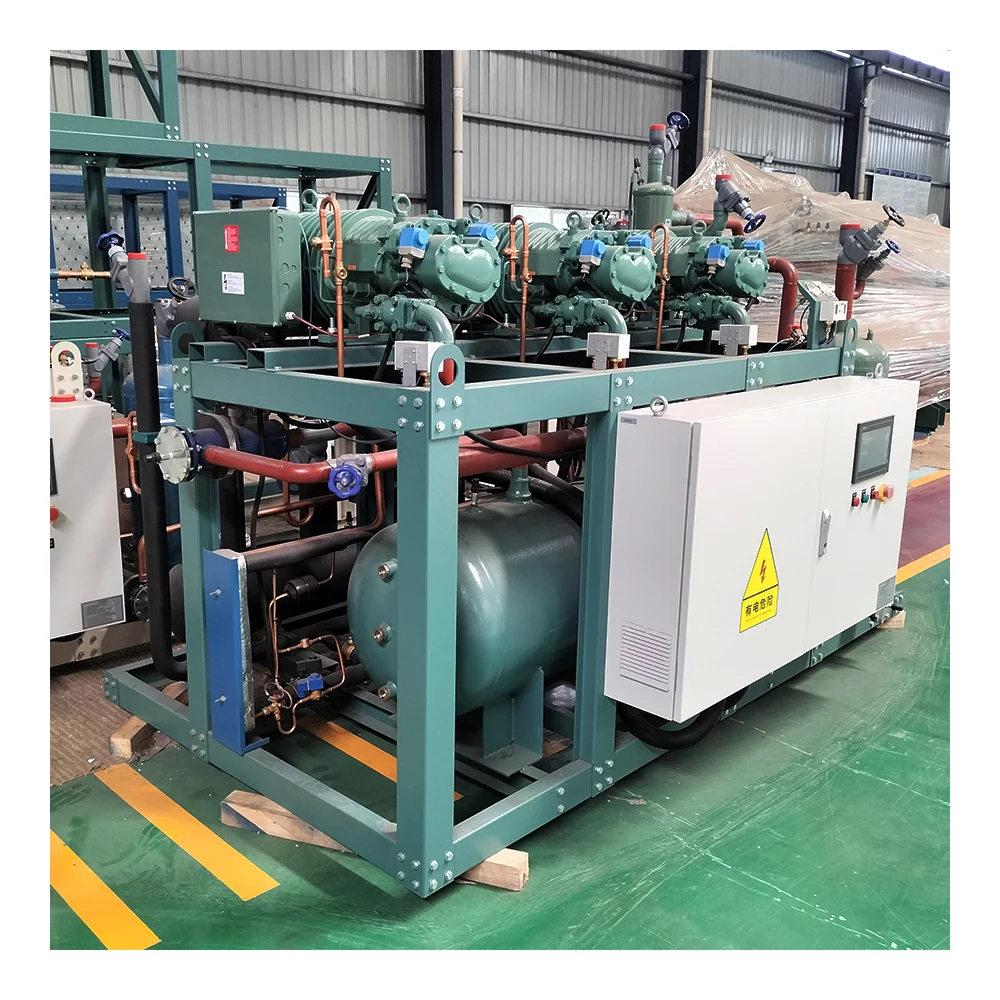

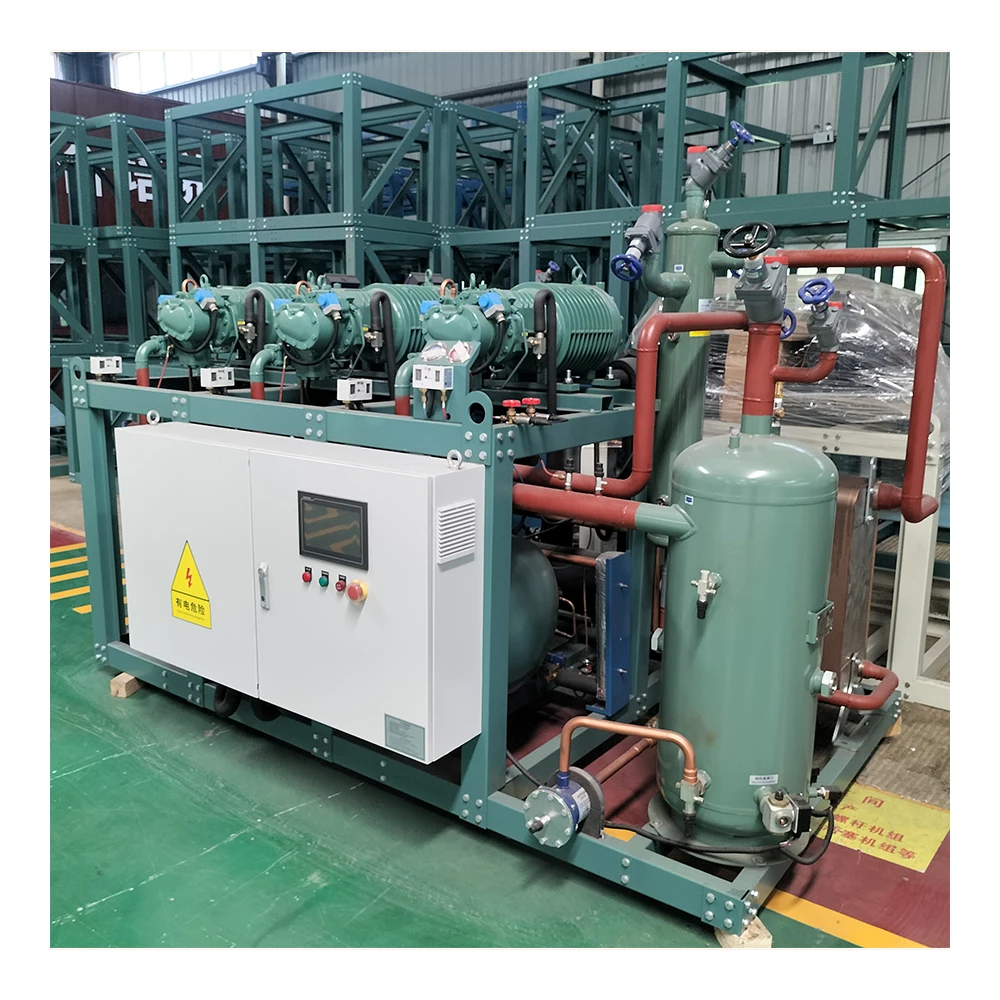

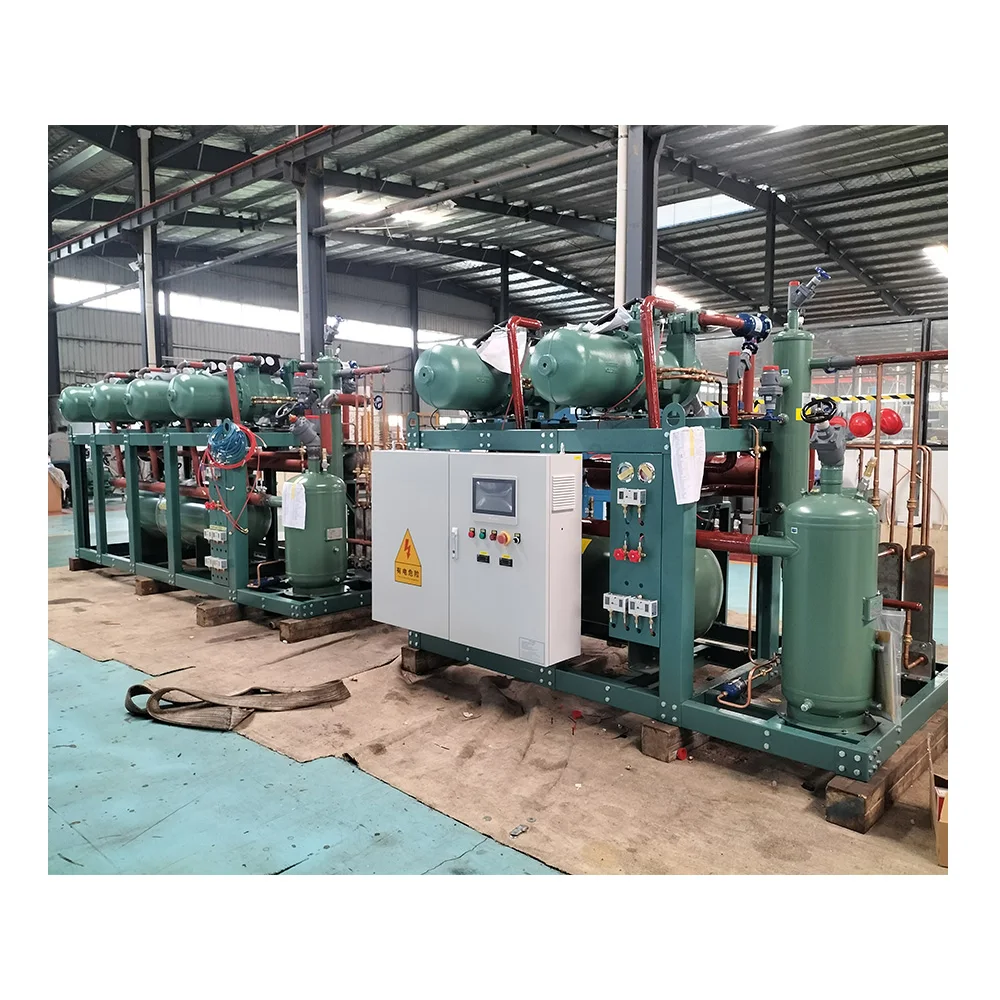

Screw compressor air cooled condensing unit for vegetable cold storage room

Product Overview

Description

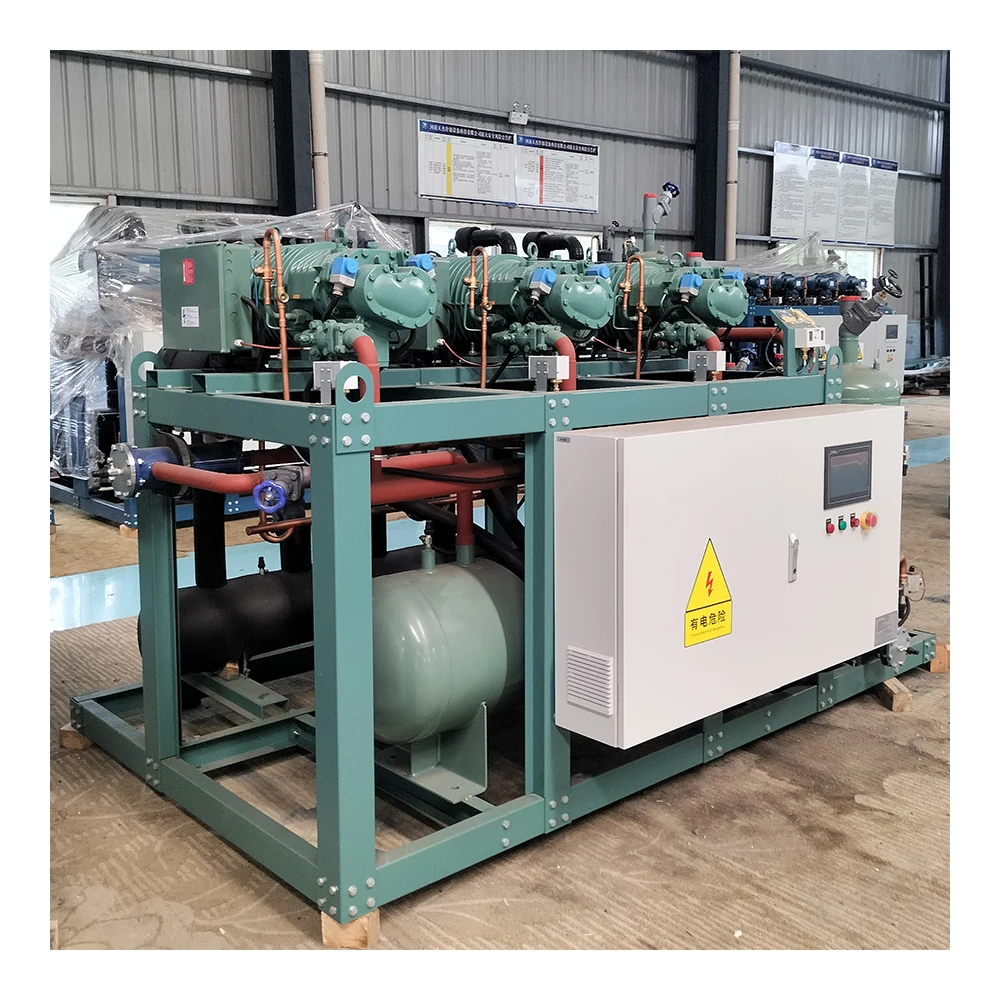

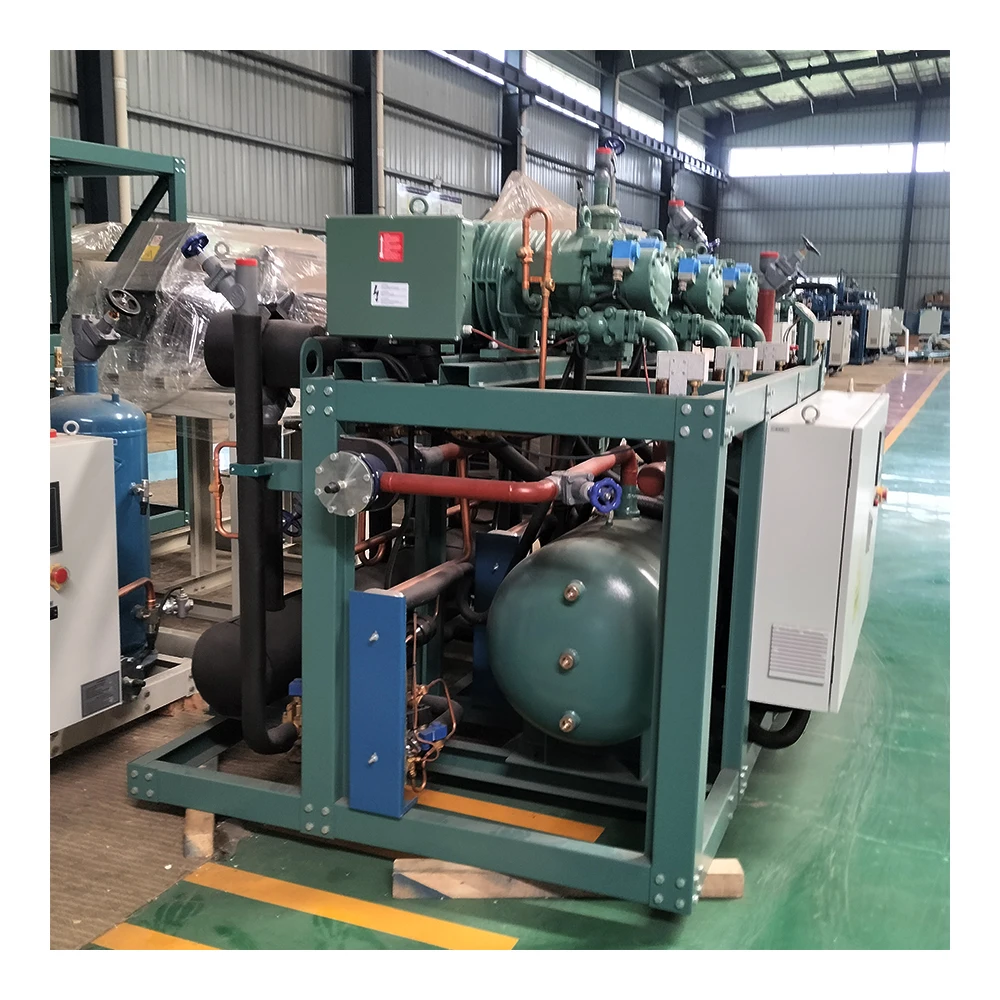

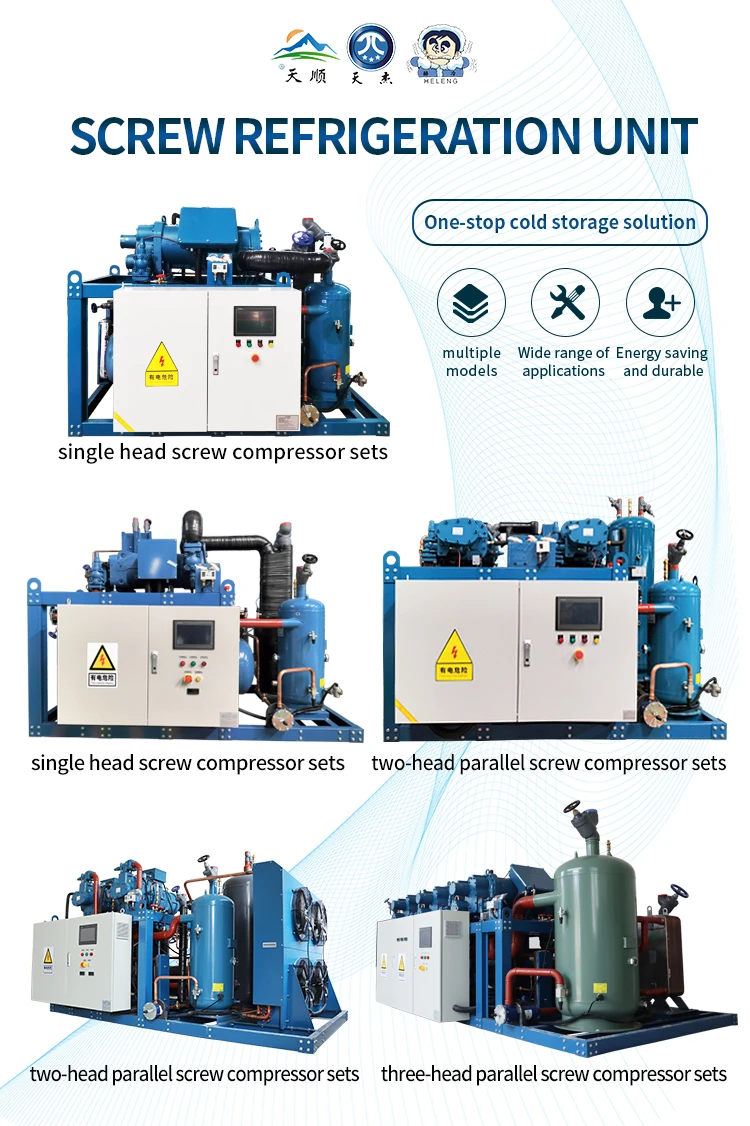

Screw compressor air cooled condensing unit for vegetable cold storage room

Tianshun Refrigeration Equipment Co. Ltd developed screw compressor racks series according to the manufacturing process of refrigeration industrial. Adopt the most advanced world famous compressors, matched with high efficient condenser, microcomputer control elements, professional design, advanced manufacturing processes and strict testing to ensure safe operation. Compact
structure, smooth operation, excellent energy regulation system, low noise, easy operation, safe and reliable and many other advantages. This series units adhering to our concept of science and technology innovation, contains many leading technology to provide users with the perfect solutions. They are widely used for machinery, electronics, plastic, textiles, food, medicine, chemical and renewable energy industries and other fields, make the modern industrial production more safe, efficient and stable.

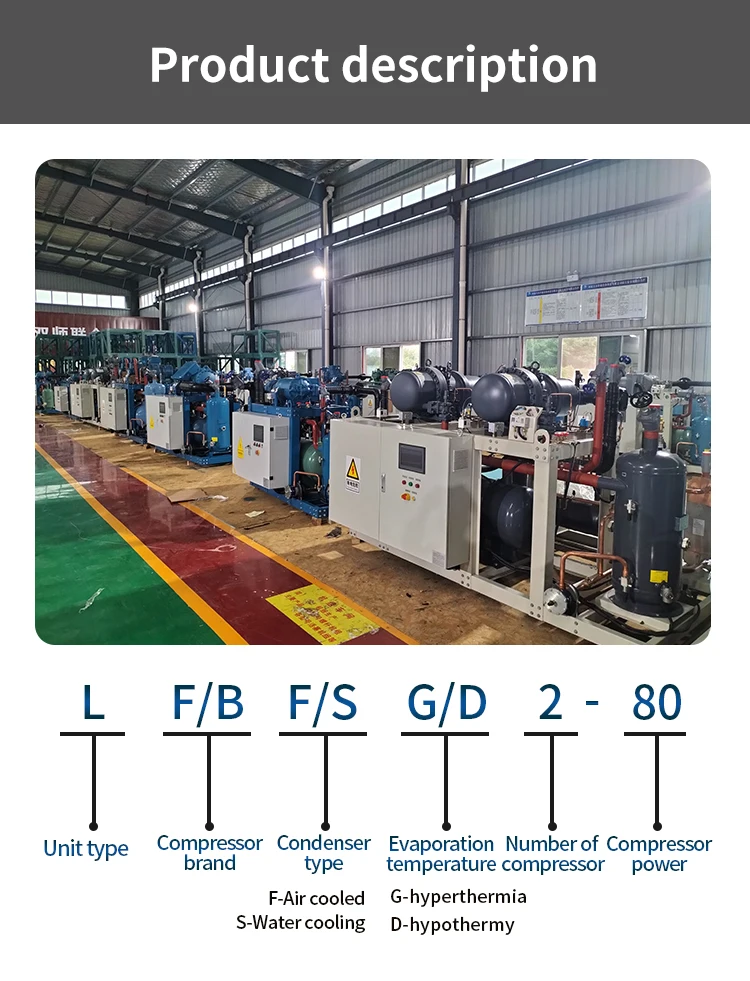

Condensing Unit Model No.			LFFG-40	LFFG-50	LFFG-60	LFFG-70	LFFG-80	LFFG-90	LFFG-100
Applicable Temperature			-5℃~8℃
Refrigerant			R22
Power Supply			380V/50HZ
Compressor	Type		Semi-hermetic Screw Type
	Model		FVRH-40-120	FVRH-50-140	FVRH-60-160	FVRH-70-200	FVRH-80-230	FVRH-90-270	FVRH-100-300
	Energy adjustment		75%-100%		50%-75%-100%
Compresor cooling capacity and power	0℃Evaporative Temperature	(W) Cooling capacity	104.2	136.8	181.5	199.3	248.4	271.7	294.1
		(KW) Power	32.9	41.2	55.1	60.0	71.0	78.2	85.3
	-5℃Evaporative Temperature	(W) Cooling capacity	85.7	112.5	149.4	164.0	204.4	223.6	242.0
		(KW) Power	31.5	39.5	52.7	57.5	68.0	74.9	81.7
	-10℃Evaporative Temperature	(W) Cooling capacity	69.8	91.8	121.8	133.7	166.8	182.5	197.5
		(KW) Power	30.2	37.8	50.5	55.0	65.2	71.8	78.3
Joint	(diameter:mm) Suction joint		54	66	76	76	76	108	108
	(diameter:mm) Liquid Outlet Joint		28	35	35	35	35	42	42
	(diameter:mm) Suction joint		42	42	54	54	54	66	66
	(diameter:mm) Liquid Inlet Joint		35	35	35	35	35	54	54
Shape Size	A(mm)		1700	2150	2300	2300	2600	2600	2600
	B(mm)		670	680	770	770	850	850	850
	C(mm)		1100	1100	1250	1250	1300	1300	1300

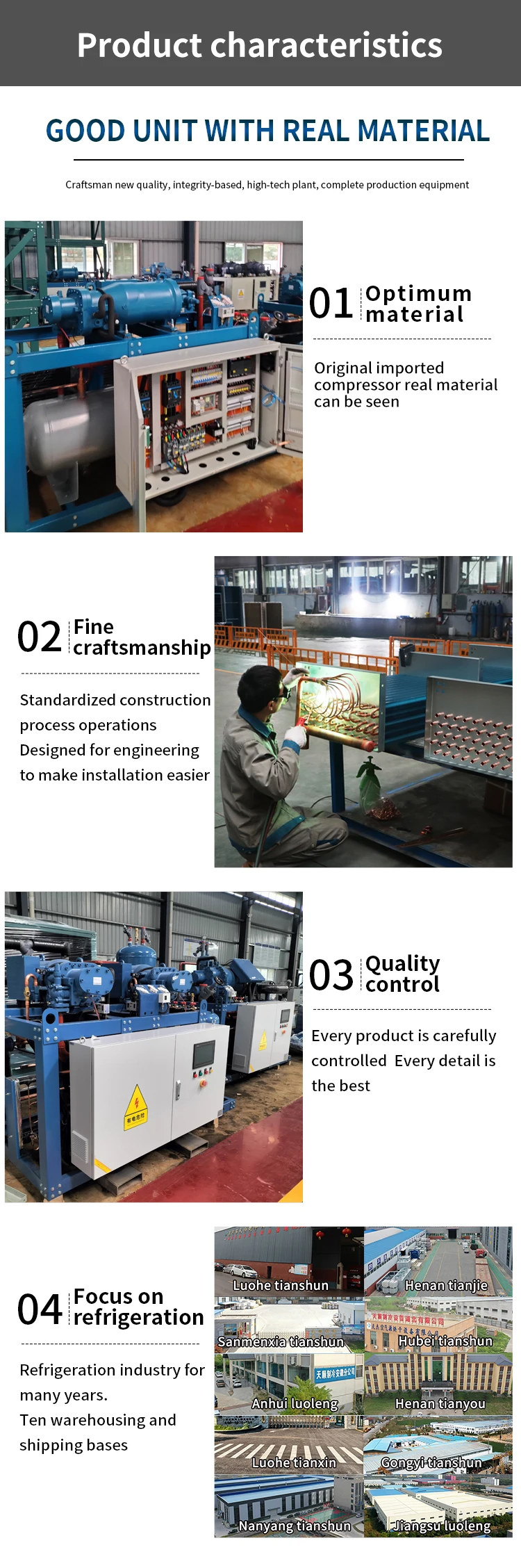

Characteristics:
1Screw parallel refrigeration unit,compact structure and good-looking figure;
2.Scientific designs,steady air flow air,can fully exert heat-transfer capacity of the condensing unit;
3.Rational performance design,high energy efficiency;
4.Axial fan,good-looking figure,low processing noise level;
5.Convenient design for maintain(front board can be easily take down);
6.We keep in touch well with our supplier,to guarantee material quality and production lead time of every order.
7.Various brand of compressor for your choice;
8.Fits different refrigerant:R134A,R404A,R507A,R22.
