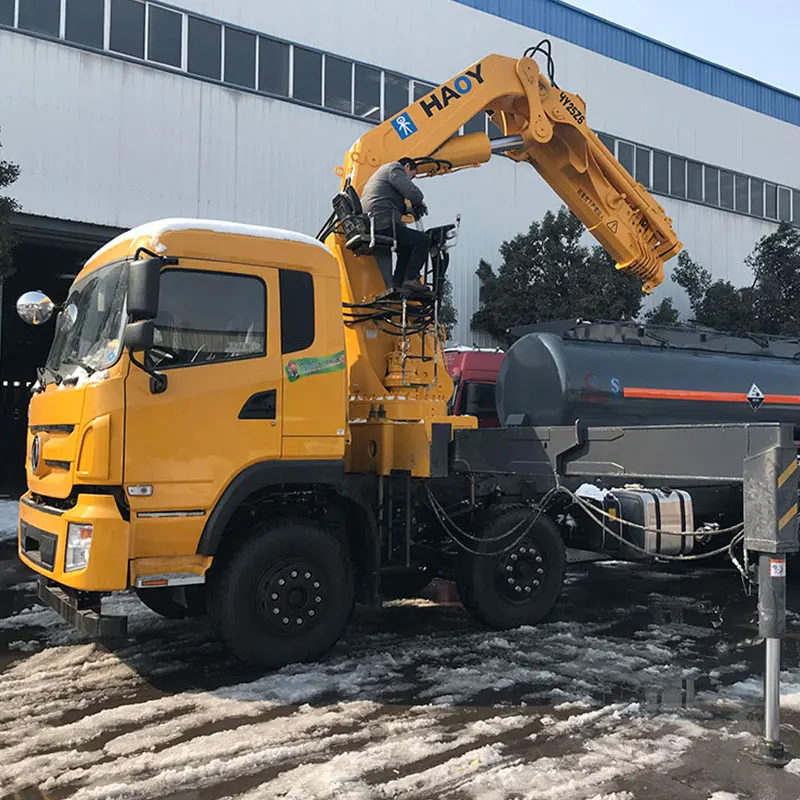

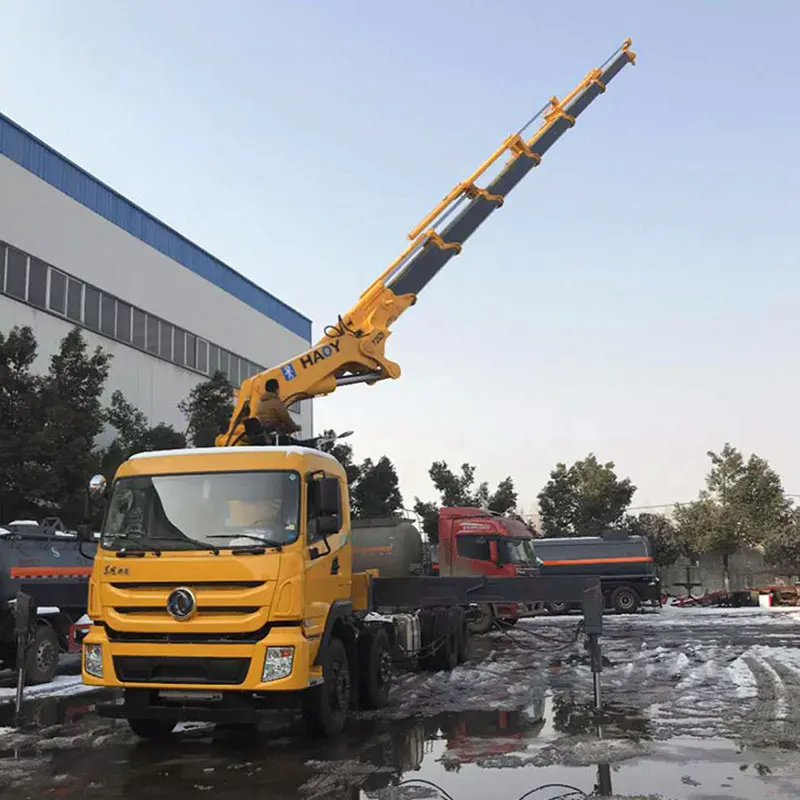

30 ton construction mobile hydraulic remote control knuckle boom china manipulator truck mounted crane for sale
- Category: >>>
- Supplier: Xuzhou Haoyi Construction Machinery Technology Co. Ltd.Xuzhou Ltd.
Share on (1601294570511):
Product Overview
Description

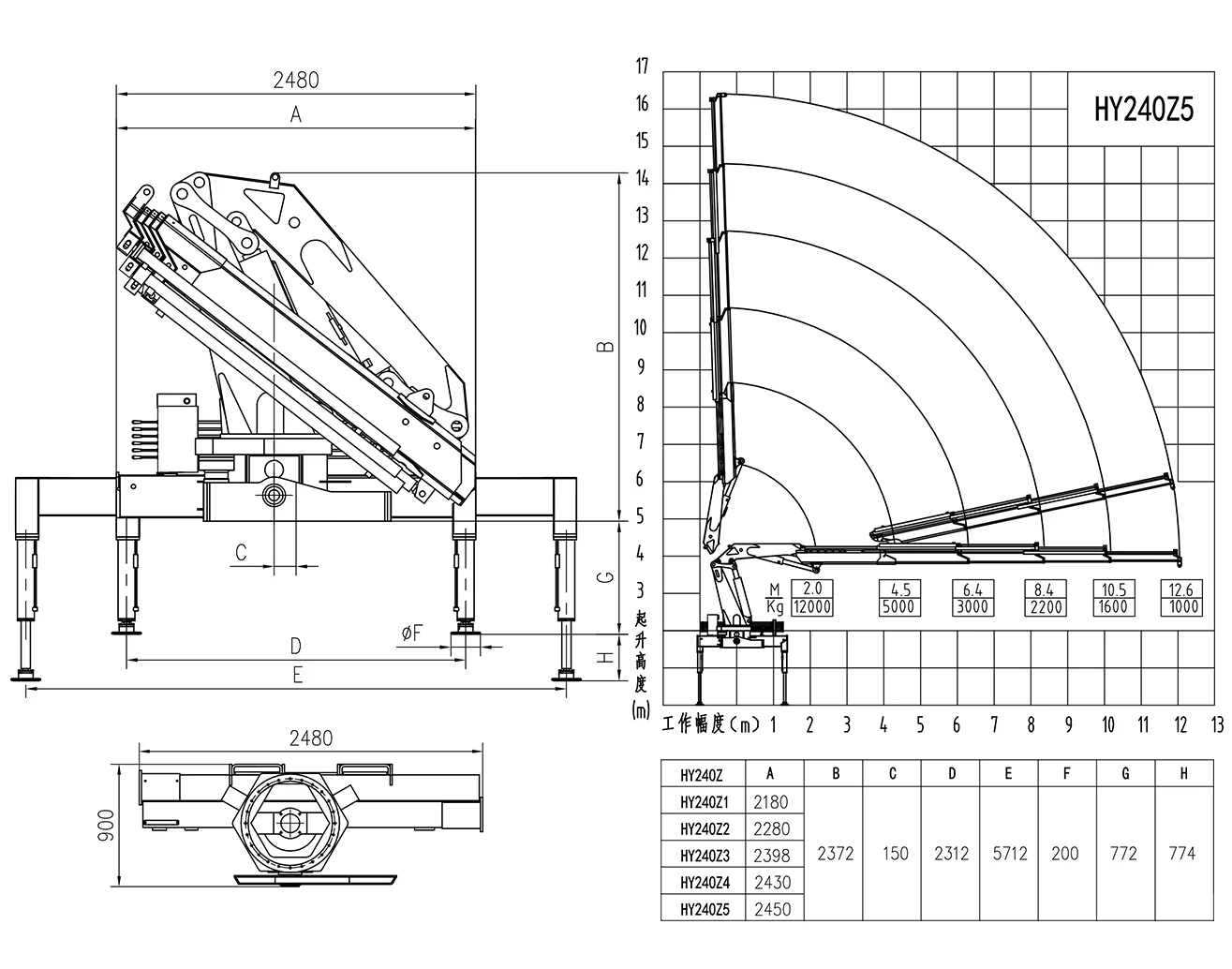

Item | Unit | HY240Z5 |
Max lifting moment | Ton.M | 24.0 |
Maximum lifting capacity | Kg | 12000 |
Max working radius | m | 12.6 |
Maximum working height | m | 16.2 |
System flow | L/min | 63 |
System pressure | MPa | 26 |
Slewing range | ° | 360 |

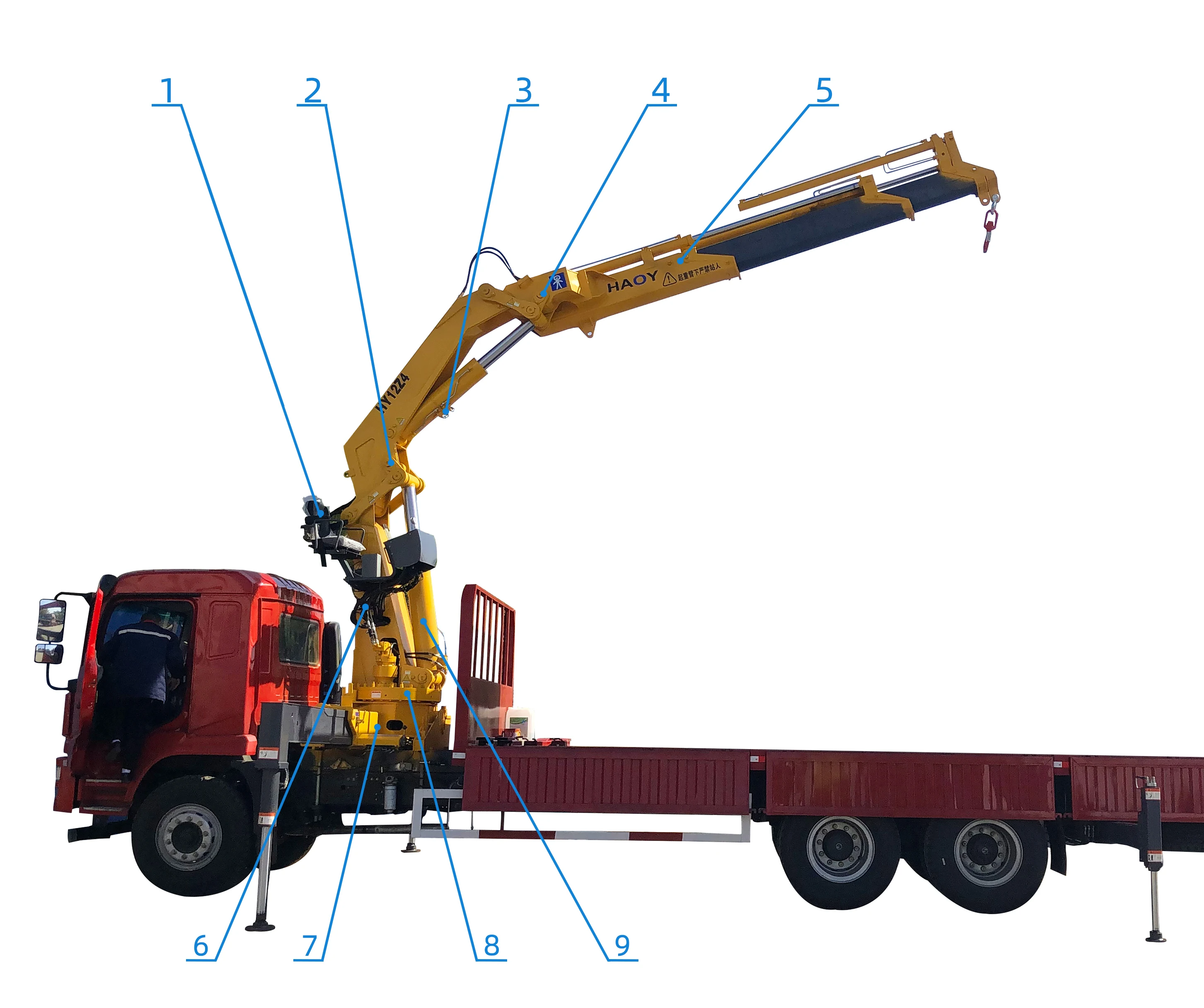

Seat Operation
Upper control, precise body feeling, wide field of view,
No blind spots
No blind spots
Copper Based Bushing
Oil-free copper-based casing.Good wear resistance, not easy to deform and crack, long service life
High Quality Balancing Valve
Original Imported Balance Pressure, Adjust Flow, Good Sealing,
Reliable and Durable
Reliable and Durable
Cable Agency
42CrMo alloy structural steel,galvanized to prevent rust, high strength and corrosion resistance
High Strength Steel Plate
Reduce Product Size and Weight, Improve Structural Safety
and Service Life
and Service Life
Pipeline
Working temperature -40℃~100℃. Wear-resistant, flame-retardant, anti-static and corrosion-resistant.
Three Point Bridge Bracket
The three-point bridge bracket protects the truck girder from even stress and will not deformation.
Swing Drive
Simple structure, small size, strong load-bearing capacity, high measurement accuracy, low failure rate
Hydraulic Cylinder
Adopt Combined Sealing, Resistant To High Temperature, Low Temperature, Moisture and Corrosion
1) How many years of your factory?
We have 13 years production and nearly 10 years experience, we exported to more than 50 countries & regions. And we are a manufacturer specialized in truck crane,pickup crane,aerial platform truck,marine crane.
2) Which kind of payment you can be accepted?
Normally both of T/T & L/C at sight are ok for us.Alibaba trade assurance,credit card,western union.
3) How about the delivery time?
20-40 working days after received 30% T/T or L/C.70% balance payment before shipping.
4) What's your warranty?
Normally is 1 year, if large quantities we can negotiate.We will mail the accessories to you for free if have
problems within one year.
problems within one year.
5) What's your MOQ?
MOQ: 1 set
6) Can you accept OEM service?
Yes for sure my friend.We provide logo,package,customized,and also can customized the product according to your requirements.
7) Optional Attachment?
Remote Control, Basket, Auger, Grapple, Top Seat, Rear Legs
