Product Overview
Description

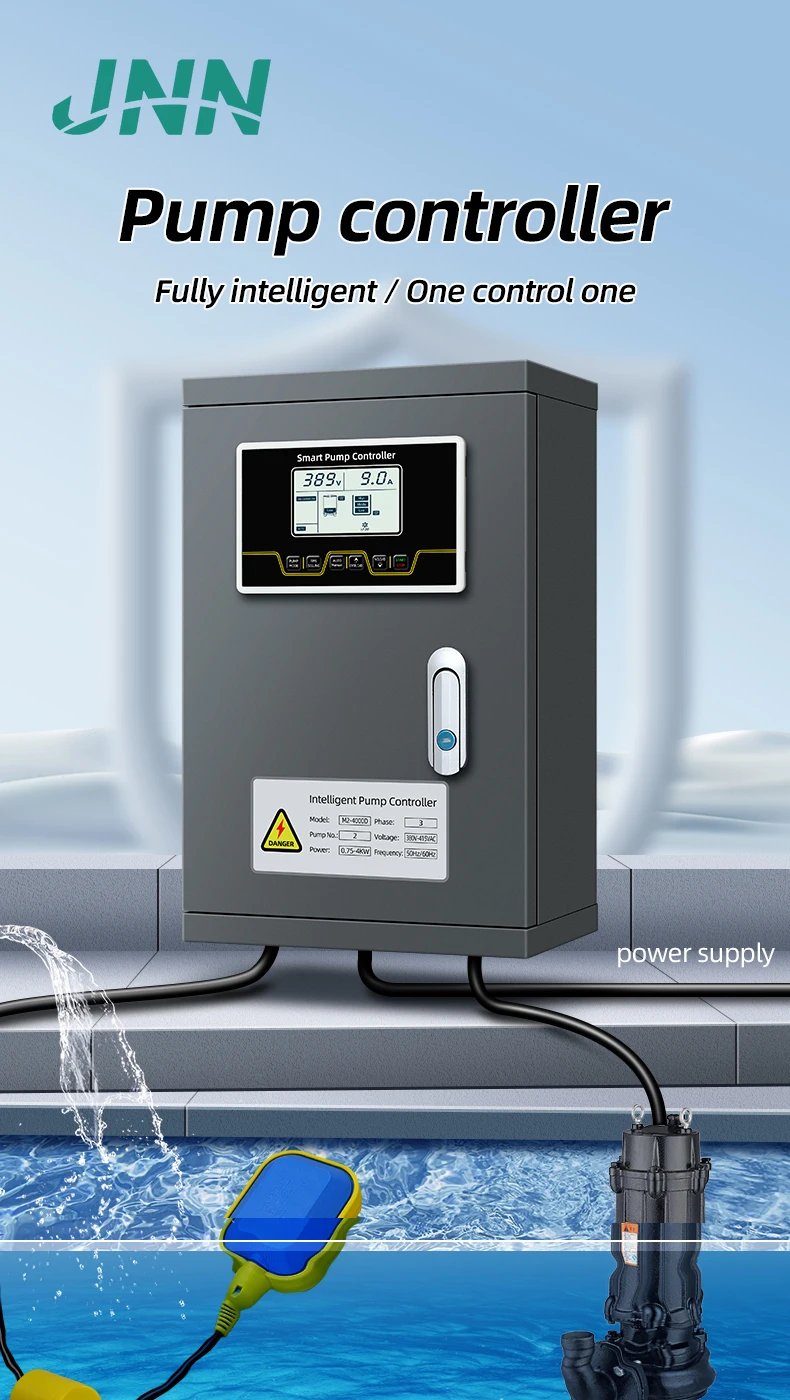

Description of Pump Controller

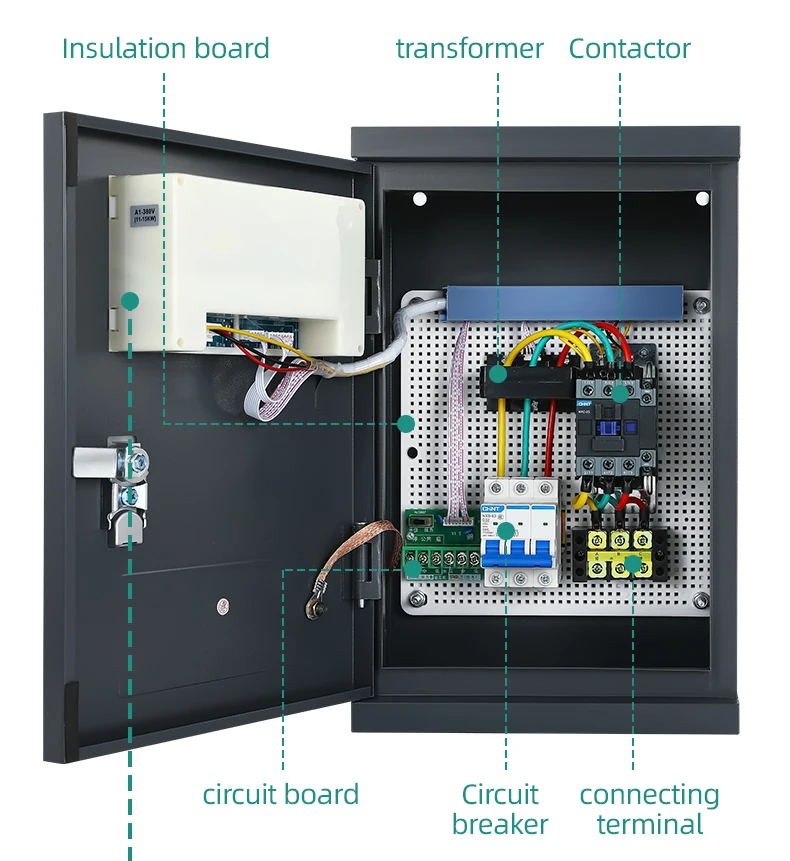

M series automatic pump controller of outdoor rainproof metal encloure, is an intelligent and economical system designed for
various pump,motors and motor-equipped devices.Pump Controller that start and stop pumps and devices that allow operator

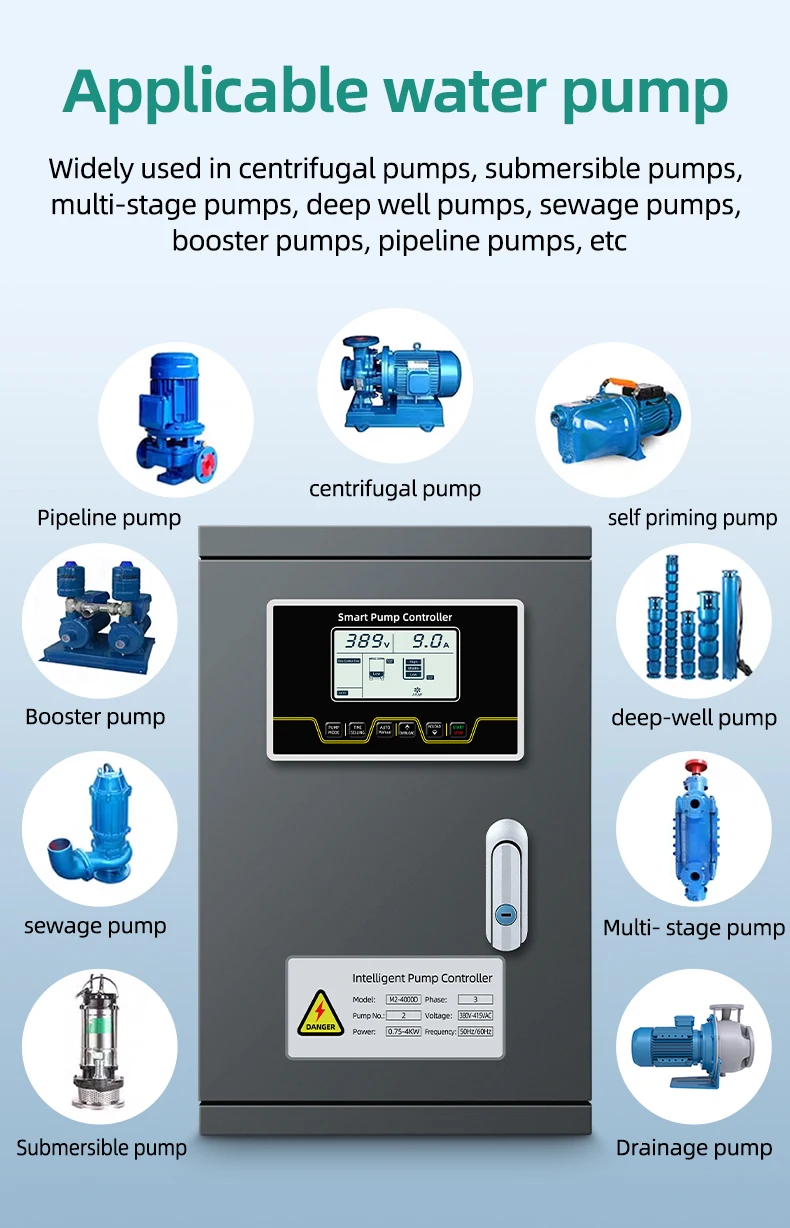

monitoring and control. Suitable for Surface pump,Sewage Pump,Booster pump,Submersible pumps,Pipeline pump,Self-priming
pump,Centrifugal pump,Multistage pump,Deep well pump,Borehole pump and etc.
various pump,motors and motor-equipped devices.Pump Controller that start and stop pumps and devices that allow operator
monitoring and control. Suitable for Surface pump,Sewage Pump,Booster pump,Submersible pumps,Pipeline pump,Self-priming
pump,Centrifugal pump,Multistage pump,Deep well pump,Borehole pump and etc.
Typical Applications for pump Controller
* Agricultural irrigation/ pumping
* Waste water treatment
* Pressure Booster Systems
* Drainage System
* Flood Control
* Water Tanks/Wells
* Cooling Towers
* Fishing Boat
* Waste water treatment
* Pressure Booster Systems
* Drainage System
* Flood Control
* Water Tanks/Wells
* Cooling Towers
* Fishing Boat
Produce Description
Product Features
Type | M1 | ||||||||
Model | M1-4KW | M1-7.5KW | M1-11KW | M1-15KW | M1-18.5KW | M1-22KW | |||
Rated Power | 0.75-4KIW | 1.1-7.5KW | 1.1-11KW | 2.2-15KW | 3-18.5KW | 4-22KW | |||
Rated Input Voltage | AC380V+10% or AC220V+10% (50Hz-60Hz) | ||||||
Qty.of Controlled Pump | Single pump | ||||||

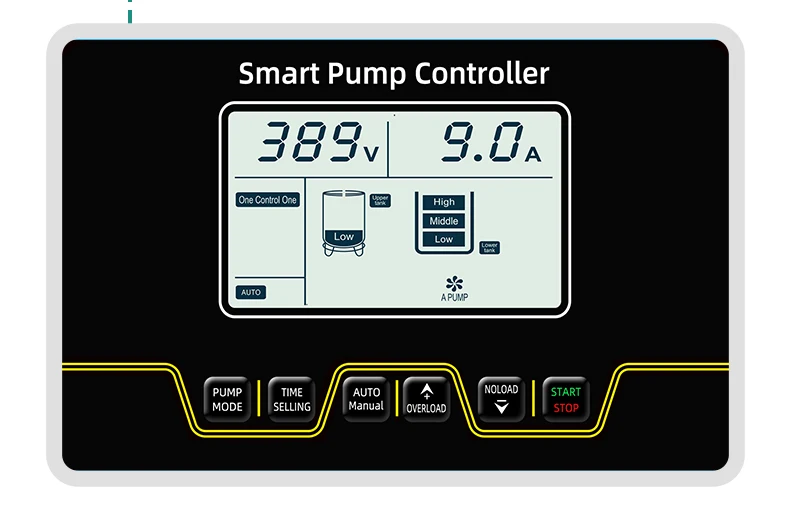

Display | LCD display | ||||||

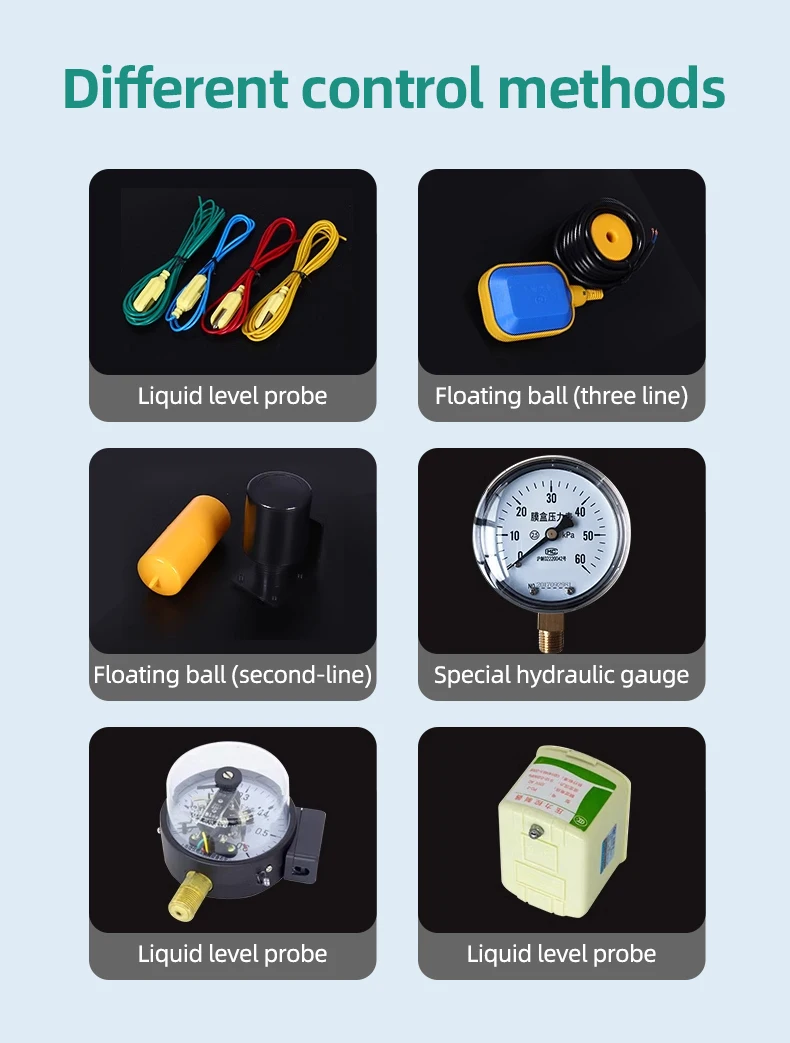

Signal Transmission Mode | Level float switch Level probe Pressure switch Electric contact pressure gauge | ||||||
Water Level Indication | High/Middle/Low | ||||||
Max.Control Distance | ≤2000m without strong electric and electromagnetic fields | ||||||
Main Parameters | 1,Rated voltage:AC380V+10%or AC220V+10%(50Hz-60Hz) 2,Rated power:0.75KW-22KW 3,Static consumption power: ＜3W 4,Water level: High/Middle/Low 5,Water tank: upper tank for water supply, lower tank for drainage 6,Max. control distance:s2000m without strong electric and electromagnetic fields 7,Time setting ON:0-99hours 8,Time setting OFF:0-999 minutes 9,Over-voltage/under-voltage: default AC304V-456V or AC176V-264V (adjustable) 10,Over-voltage/under-voltage trip time: ≤3 seconds 11,Overload/no load trip time:0-600 seconds(ajustable) 12,Phase loss trip time: ＜2 seconds | ||||||

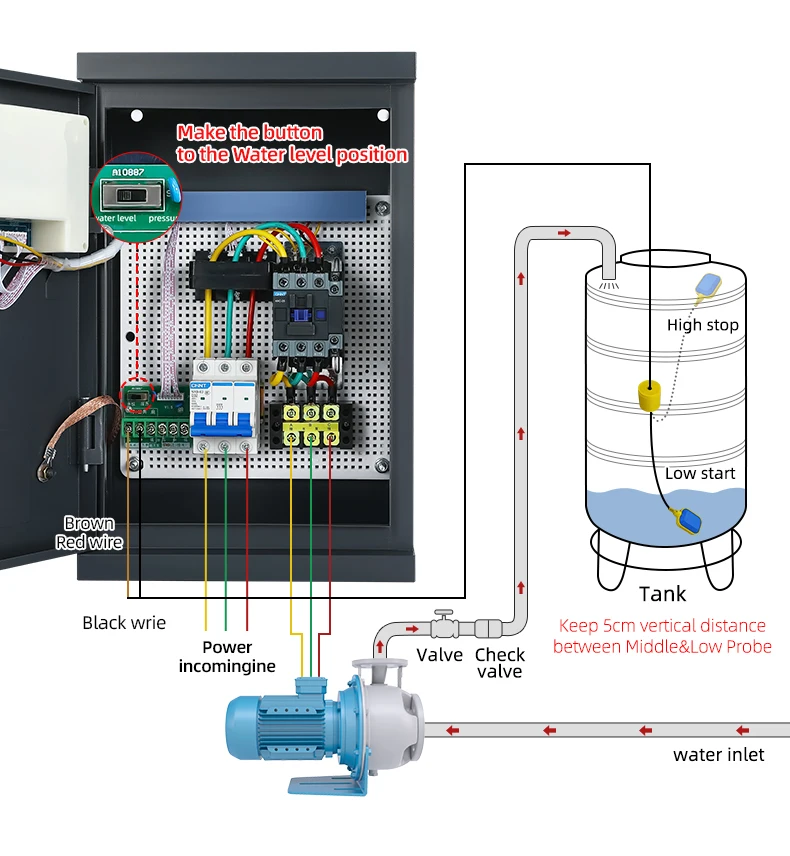

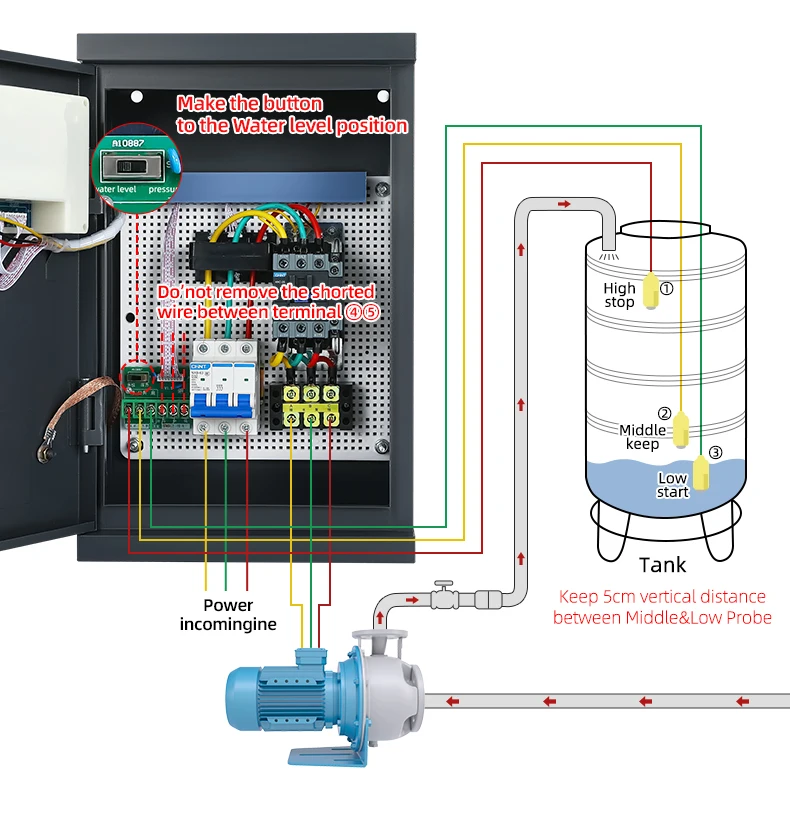

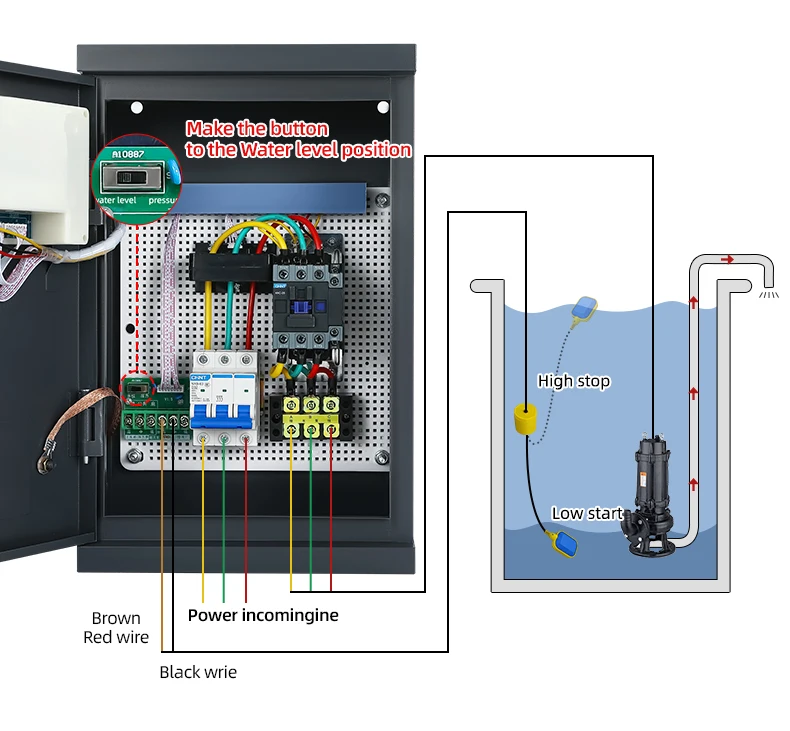

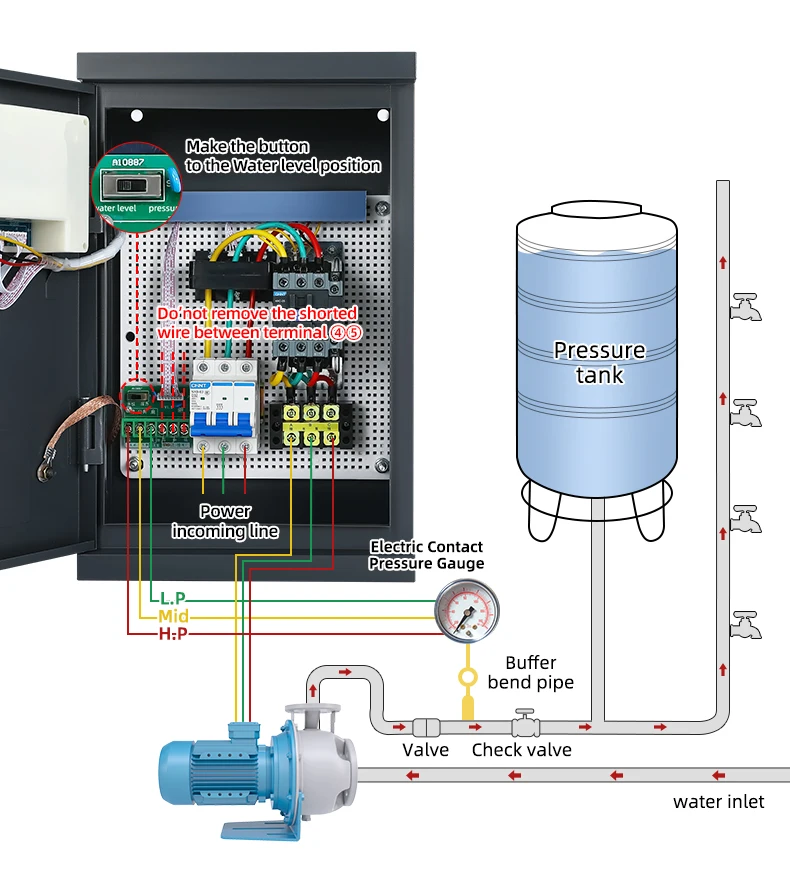

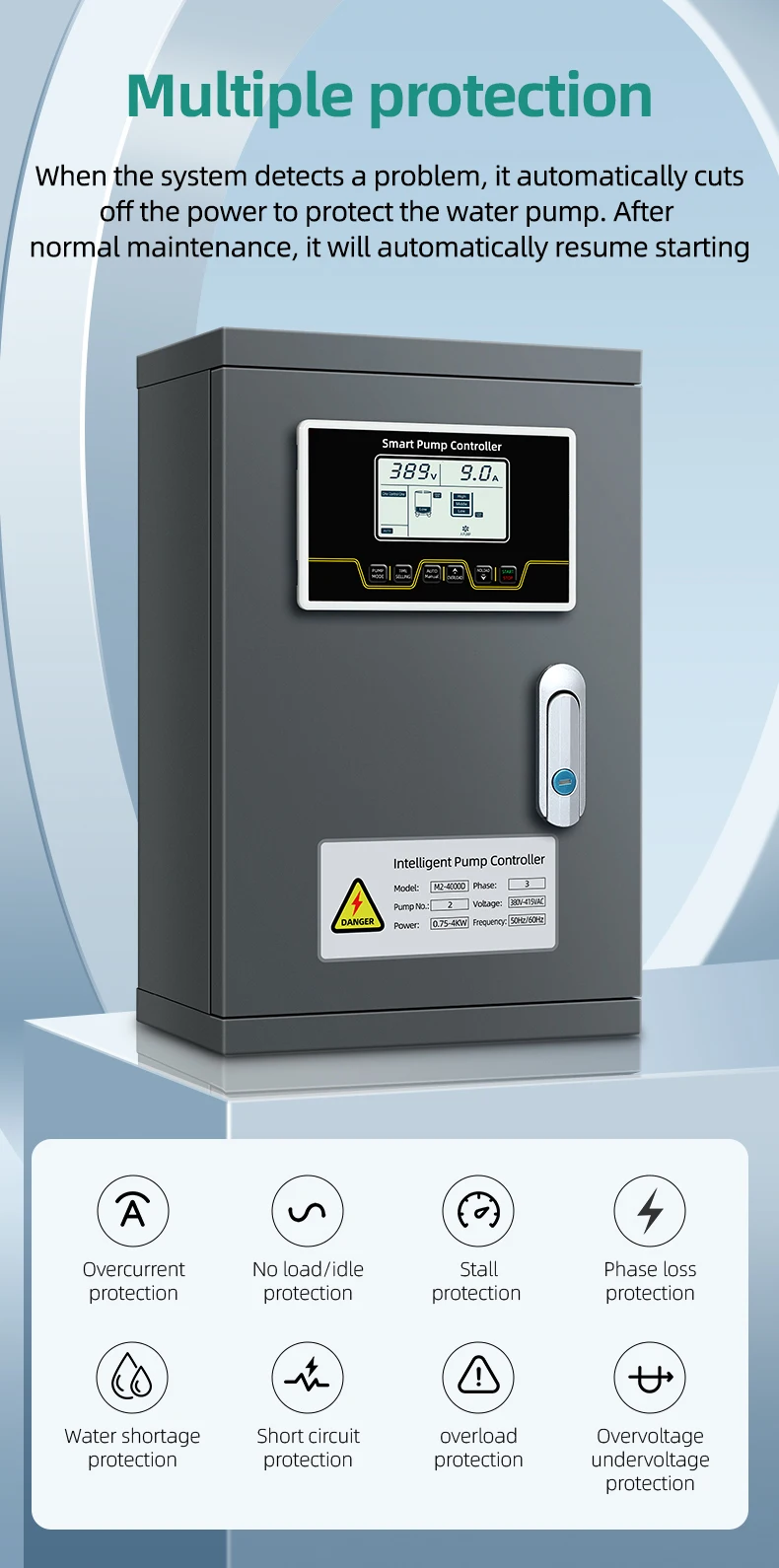

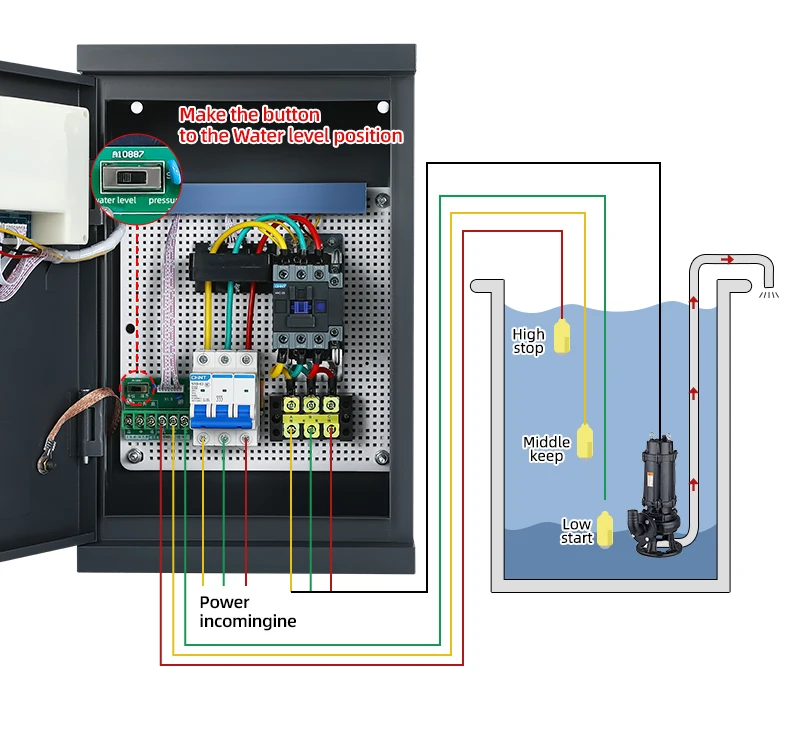

Main Functions | 1,Water level control: level probes or float switch 2,Pressure control: electric contact pressure gauge or pressure switch 3,User interface: a user-friendly interface for configuring settings, monitoring operation, and accessing diagnostic information. 4,Operation mode: automatic/manual starts and stops 5,Fault indication: failure record, latest 10 pump failure reasons display, audio/light alarms. 6,Anti-rust protection, long-term non-use of the pump,15 days to start once for 3 seconds. 7,Setting protection current for motor overload/no-load,no-load delay restart time adjustable. 8,Automatic restart when voltage comes to normal rating after over- voltage/under-voltage protection. 9,Automatic restart after power failure recovery. 10,Automatic restarting pump from dry running, restart time range 0-720 minutes adjustable. 11,Restore factory setting: press both "Overload"and" NO-Load" for 3 seconds. | ||||||

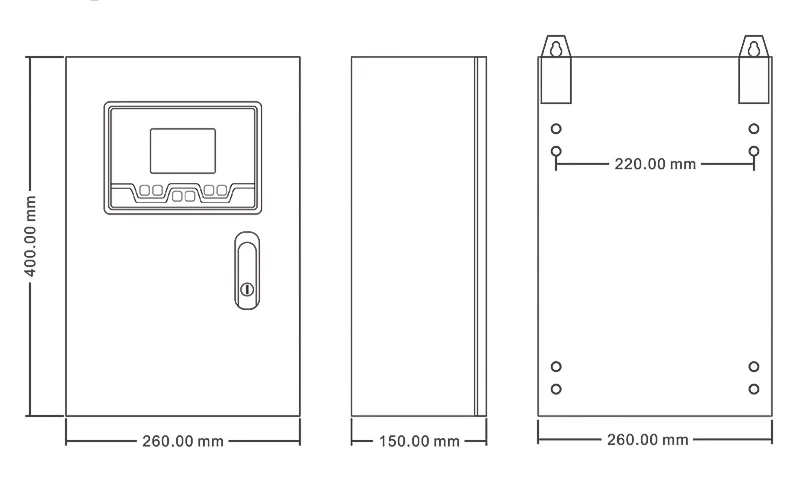

Product Size | 400x260x150mm | ||||||

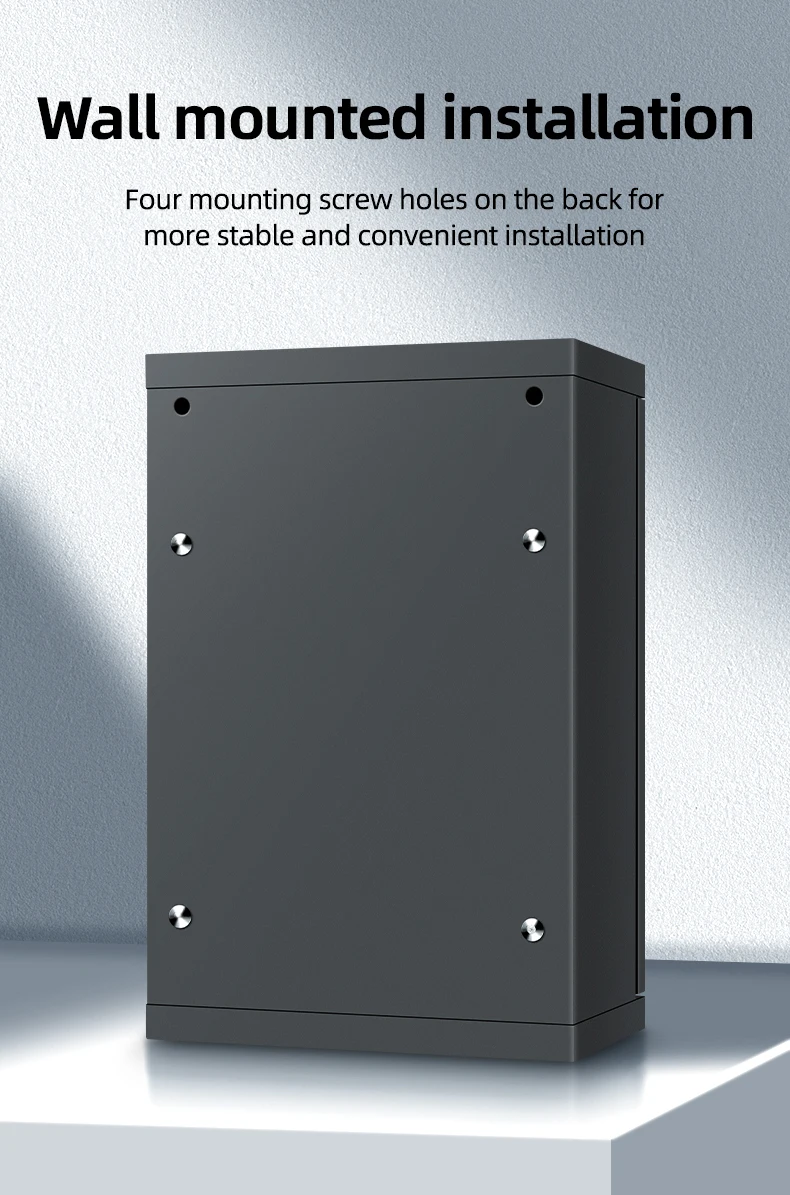

Working temperature Working humidity Degree of protection Install position | -25ºC-- +55ºC 20%--90%RH, no drips concreted IP54 Wall mounting | ||||||
Product Applications
Company Profile
FAQ
1) How to convert HP into KW ?
The conversion formula as: 1HP=0.74KW for example: 3HP=3x0.74KW=2.22KW
2) How to choose the powerof your pump controller?
Normally we need choose bigger power to run the water pump or motors,.If the pump rated power is 4KW,
Pump controller should choose 7.5KW. For Submersible pumps which used in the deep well, please check with us first.
Pump controller should choose 7.5KW. For Submersible pumps which used in the deep well, please check with us first.
3) Can I havethe samples of your pump controller?
Yes, we can send you the pump controller samples for your testing
. 4) Can you provide OEM or ODM?
Yes, we can make the ordes according to your detailed request. 5) What is your delivery time? It takes 3-5 days forsample orders, and 15-20 days for orders.
