30Kw 50Kw 100Kw Solar Panels System 100Kw Solar Panel Energy System Solar Energy Battery Storage System For Home
- Category: >>>
- Supplier: Guangzhou Whc Solar Technology Co. Ltd.Guangzhou Ltd.
Share on (1601294711148):
Product Overview
Description

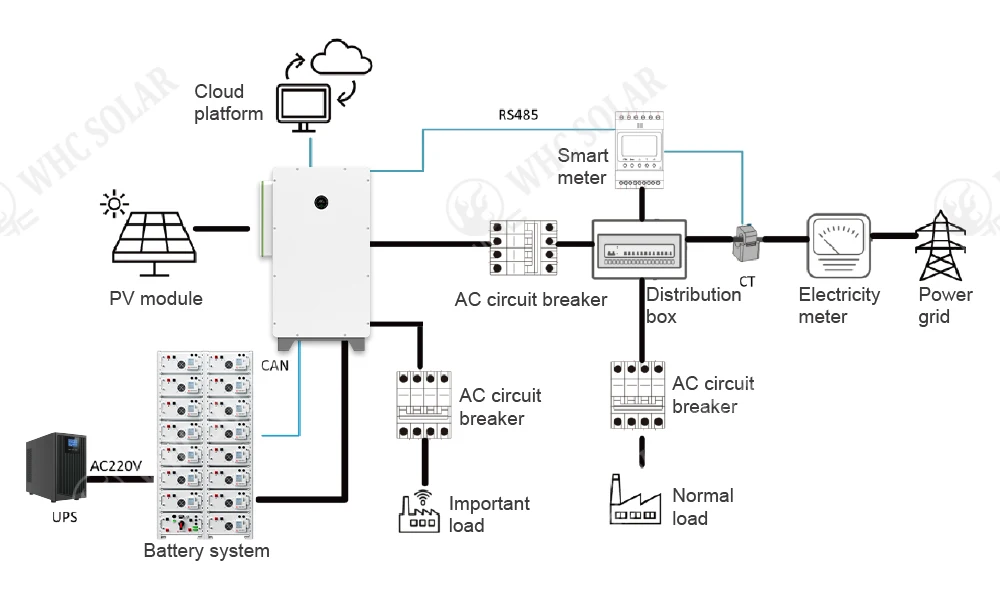

WHC Solar Energy System also known as off-grid solar system is the most costeffective typefor solar system. It is a complete solar setup that comes with highly efficient solar panels.off-grid solar inverter, lithium ion battery or gel battery and other standard solar accessories.This solar system will not only provides you continious electricity but will also reduce your heavy electricity bills.
Product Paramenters

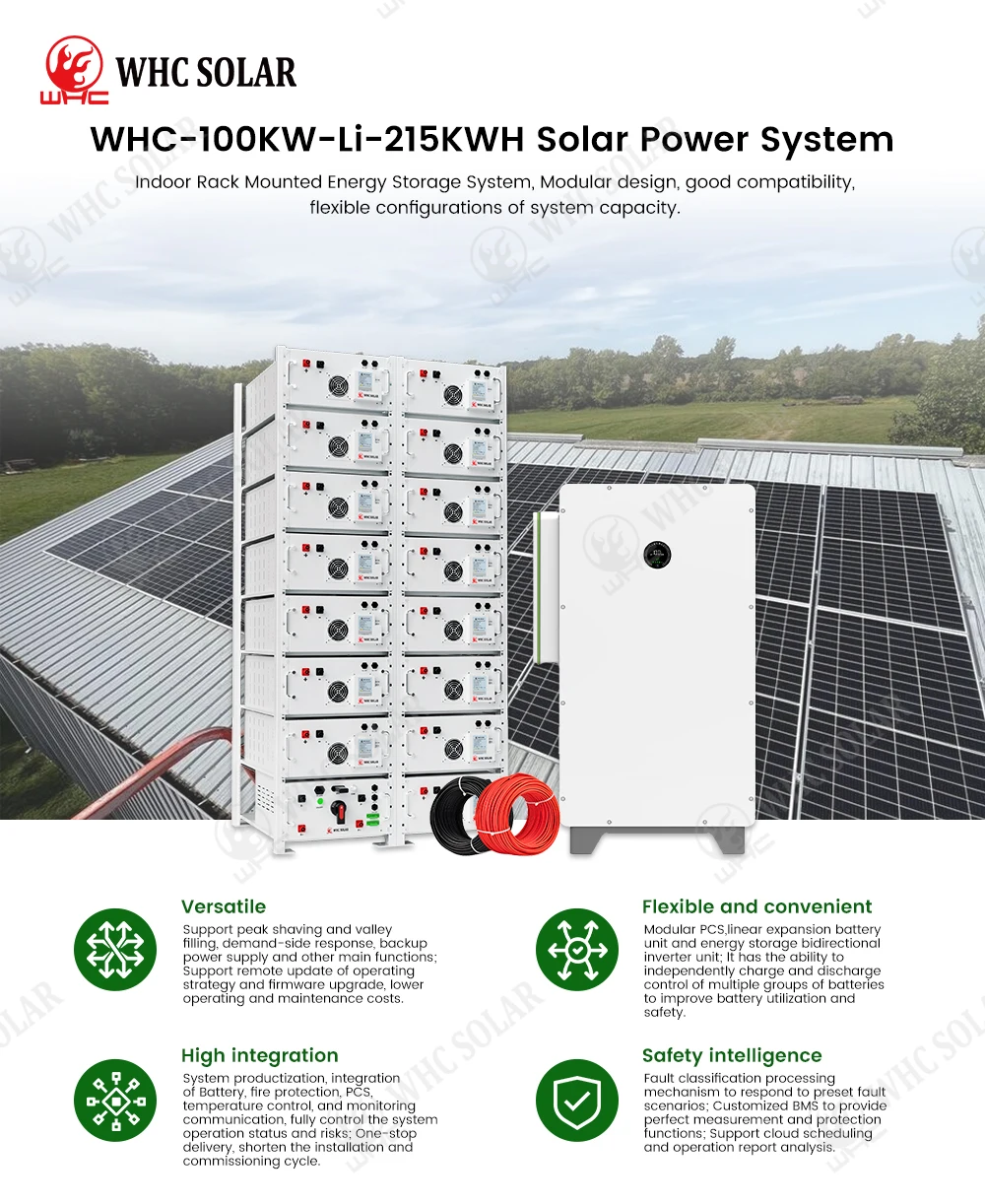

WHC-100KW-Li-215.04KWH Solar Energy Storage System Components List | ||
Item | Quantity | |
100kw/215.04kwh Solar Energy Storage System | 1 Set | |
550W solar Mono Panel | 180 Pieces | |
100KW Hybrid Inverter | 1 Piece | |
Battery Cable RV1*50m² 50cm | 16 Pieces | |
PV Combiner Box: N4 Plus | 1 Piece | |
PV Cable 1*10mm 100M | 4 Pieces | |
Solar Panel Bracket | 1 Set | |
MC4 solar Cable Connector | 30 Pieces | |
Solar PV Crimping Tool Kit | 1 Set | |
Product Details

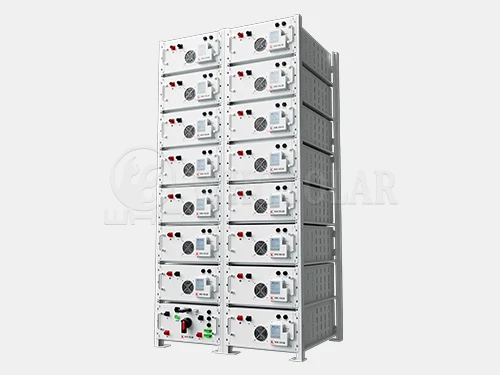

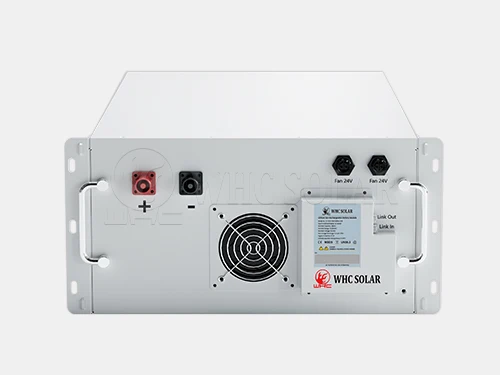

Battery Data
1. Battery Chemistry Lithium lron Phosphatee(LiFePo4)
2. Cell Spec: 3.2v/280Ah
3. String Coniguration: 1P240S
4. Rack Rated Energy Capacity: 215.04kwh
5. Nominal Voltage: 768V
6.Cycle:>6000(@25ºC,0.5C/0.5C)
2. Cell Spec: 3.2v/280Ah
3. String Coniguration: 1P240S
4. Rack Rated Energy Capacity: 215.04kwh
5. Nominal Voltage: 768V
6.Cycle:>6000(@25ºC,0.5C/0.5C)
AC Data
1.Max output power:100KW
2.Max output current:166.7A
3.Rated voltage:230V(single phase)/400v(3 phase)
4.Max Efficiency 98.2%
2.Max output current:166.7A
3.Rated voltage:230V(single phase)/400v(3 phase)
4.Max Efficiency 98.2%

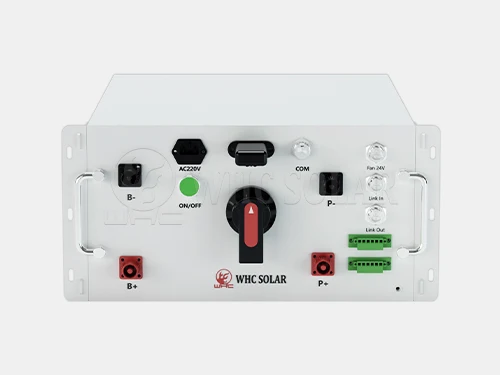

BMS Hight Box
1.Type:0-1500V,140A
2.2-Stage BCMU,BMU Architecture
3.High voltage control box
4.Ethernet communication and upgrade interface
5.Master-slave stable structure for system operation
2.2-Stage BCMU,BMU Architecture
3.High voltage control box
4.Ethernet communication and upgrade interface
5.Master-slave stable structure for system operation

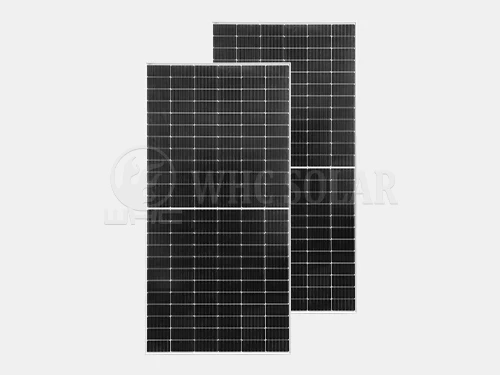

Mono Solar Panel
1.Model:WHC-550M-144
2.Voc:49.95V:Vmp:41.97V
3.IMP:12.97A:1SC:13.86A
4.Module Efficiency:20.9%
5.Operating Module Temperature:-40℃ to +85℃
6.Maximum System Voltage:1500V DC
2.Voc:49.95V:Vmp:41.97V
3.IMP:12.97A:1SC:13.86A
4.Module Efficiency:20.9%
5.Operating Module Temperature:-40℃ to +85℃
6.Maximum System Voltage:1500V DC

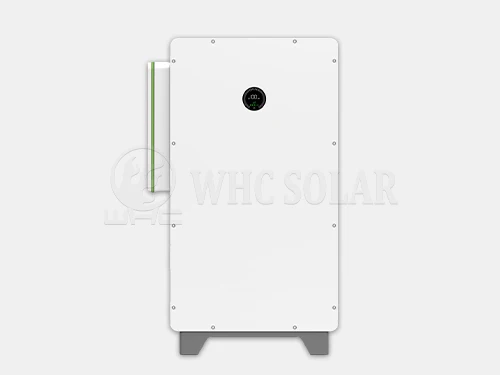

100KW Hybrid Inverter
1.Max PV input power:156KW
2.PV Open Circuit Voltage range:1000V
3.MPPT Working Voltage Range:180-800V
4.With Isolation Transformer, Automatic switching
2.PV Open Circuit Voltage range:1000V
3.MPPT Working Voltage Range:180-800V
4.With Isolation Transformer, Automatic switching

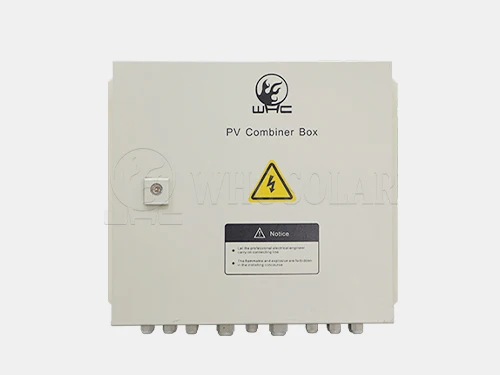

PV Combiner Box
1.Combiner Box: N4 Plus
2.Waterproof IP65
2.Waterproof IP65
3.Max Output Voltage: 1000V
4.DC Output Circuit Breake: Yes
5.Lightning Protection: Yes

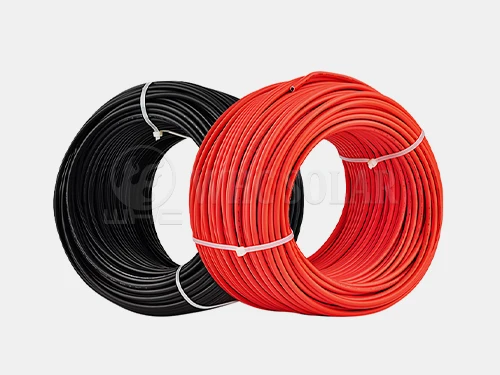

PV Cable
1.PV Cable 1*10mm 100M
2.Withstanding large temperature range
1.PV Cable 1*10mm 100M
2.Withstanding large temperature range
3.Humidity and water resistance
4.UV resistance
5.Acid and alkali resistance
6.Ozone resistance
4.UV resistance
5.Acid and alkali resistance
6.Ozone resistance

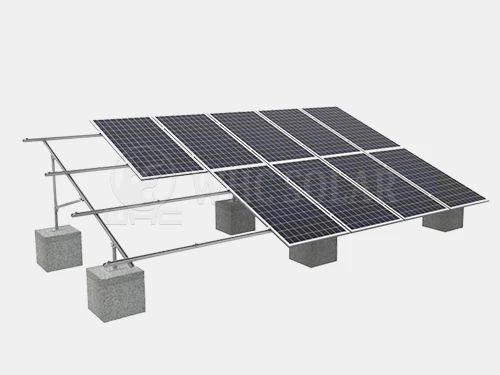

PV Mounting support
1. Solar Panel Bracket
2. wind load: 55m/s
3. Structure: Anodized Aluminum
4. Stainless Steel, Angle Adustable
2. wind load: 55m/s
3. Structure: Anodized Aluminum
4. Stainless Steel, Angle Adustable
MC4 Solar Cable
Connector
Connector
1. Rated Current: 30A
2. Rated Voltage: 1000VDC
3. Waterproof Protection: IP67
3. Waterproof Protection: IP67

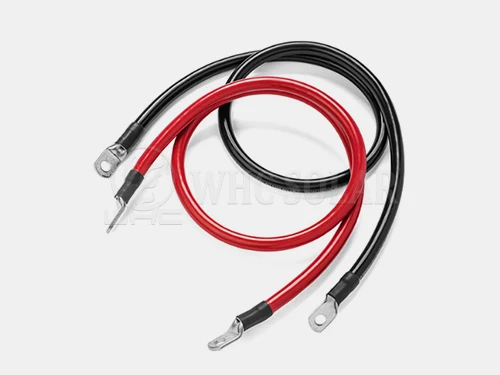

Battery Cable
1.Type: RV1*50mm² 50CM
2. Material: Pure Copper
3.Temperature Rating:-40°C-120°C,
2. Material: Pure Copper
3.Temperature Rating:-40°C-120°C,
More than 25 Years
Solar PV Crimping Tool Kit
1.Solar Crimping Tool
2.Wire Stripper
3.Connector Spanner Wrench
4.MC4 Solar Cable Connector*5
2.Wire Stripper
3.Connector Spanner Wrench
4.MC4 Solar Cable Connector*5

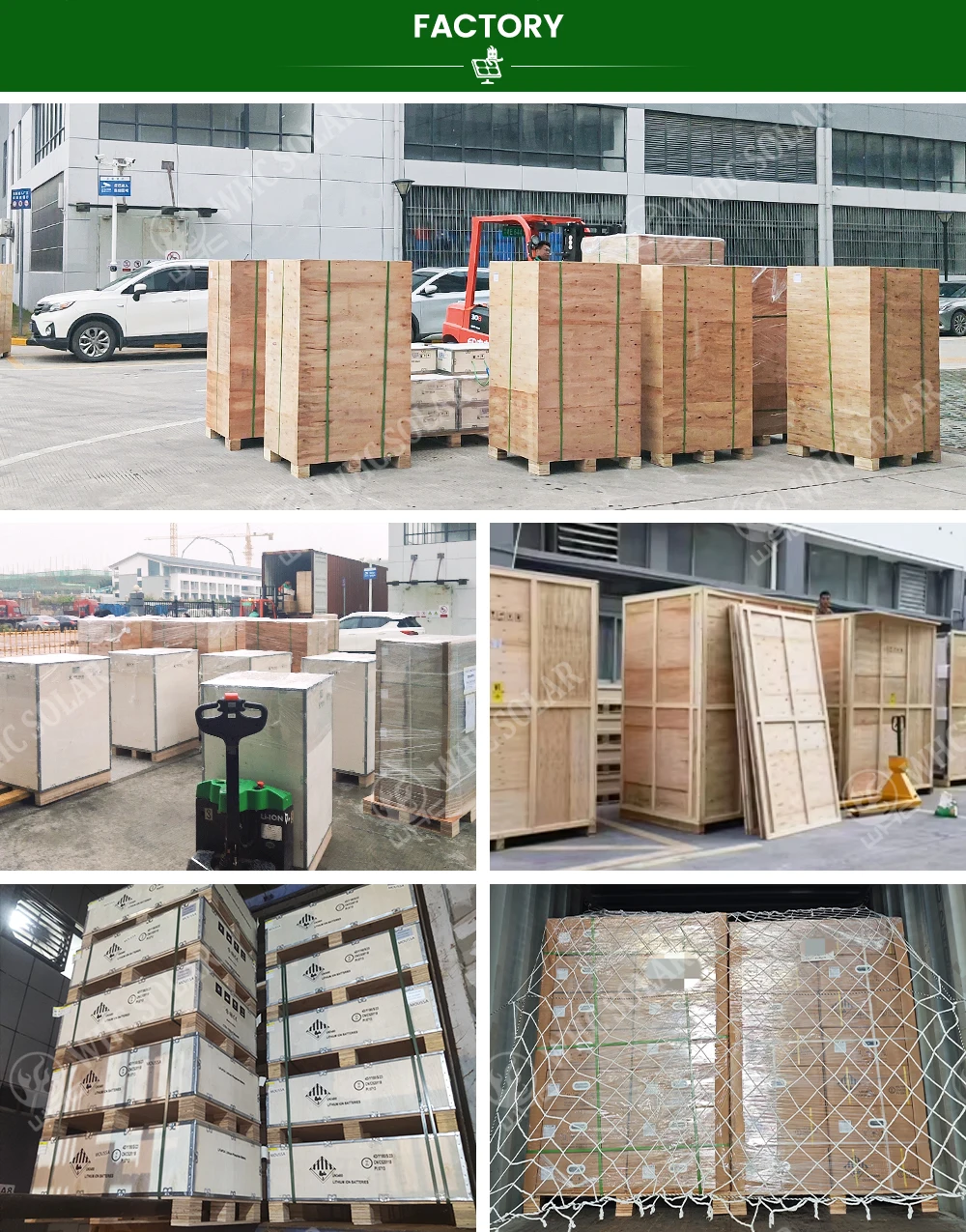

ABOUT FACTORY
Our factory has a total area of 200,000 square meters,use the advanced automatic production lines to ensure the
quality of our products and save the production cost, which make our price more competitive in the market. All of our products
certifed by CE and lEc, and a ful set of cerificates for gel and lithium batteries is also available, such as UN38.3, MsDs, etc
OUR MISSION:
Let the world not lack of electricity.
OUR VISION:
To be the No.1 Solar Battery Brand in Africa.
To Help 300 agents succeed in their solar business career.
quality of our products and save the production cost, which make our price more competitive in the market. All of our products
certifed by CE and lEc, and a ful set of cerificates for gel and lithium batteries is also available, such as UN38.3, MsDs, etc
OUR MISSION:
Let the world not lack of electricity.
OUR VISION:
To be the No.1 Solar Battery Brand in Africa.
To Help 300 agents succeed in their solar business career.
Company Profile
Guangzhou WHC Solar Technology Co.,Ltd was founded in 2009, which is a professional manufacturer specializing in the solar field for more than 15 years, including solar batteries, solar inverters, solar panels, solar controllers, solar street lights and solar water pump etc.
Our trademark“WHC SOLAR”has registered in 37 countries around the world. And we own 11 invention patents, providing customers with original market protection. We often attend solar energy industry exhibitions in German, USA, South Africa, Nigeria, Philippines, etc.
Our trademark“WHC SOLAR”has registered in 37 countries around the world. And we own 11 invention patents, providing customers with original market protection. We often attend solar energy industry exhibitions in German, USA, South Africa, Nigeria, Philippines, etc.
