10 Years Warranty Battery Lithium 48V For Hybrid Off Grid Solar And Storage System
- Category: >>>
- Supplier: Sunwave Technology Co. Ltd.Sunwave Ltd.
Share on (1601294896225):
Product Overview
Description
Products Description

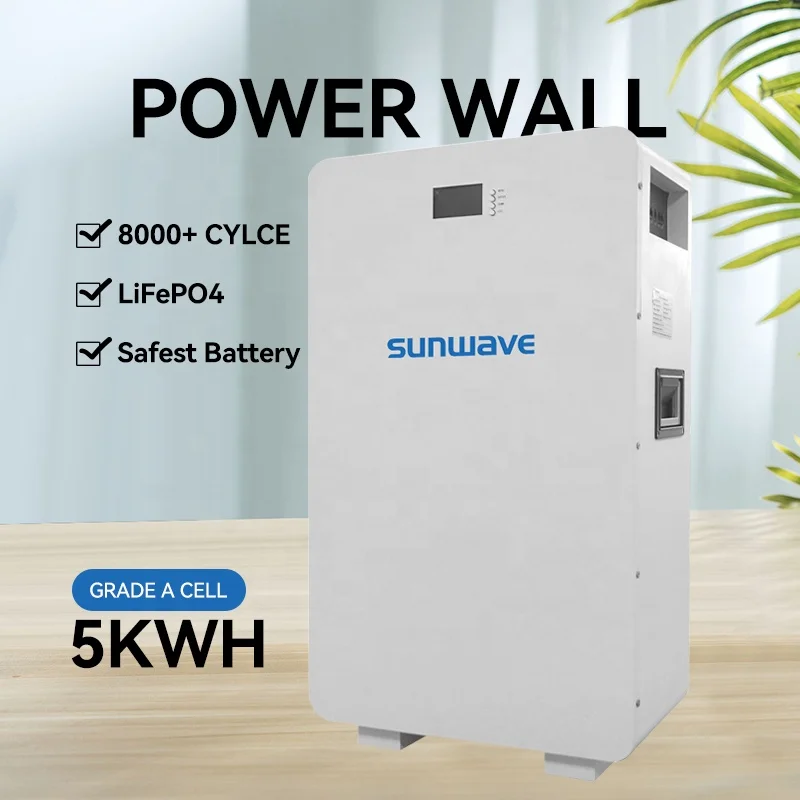

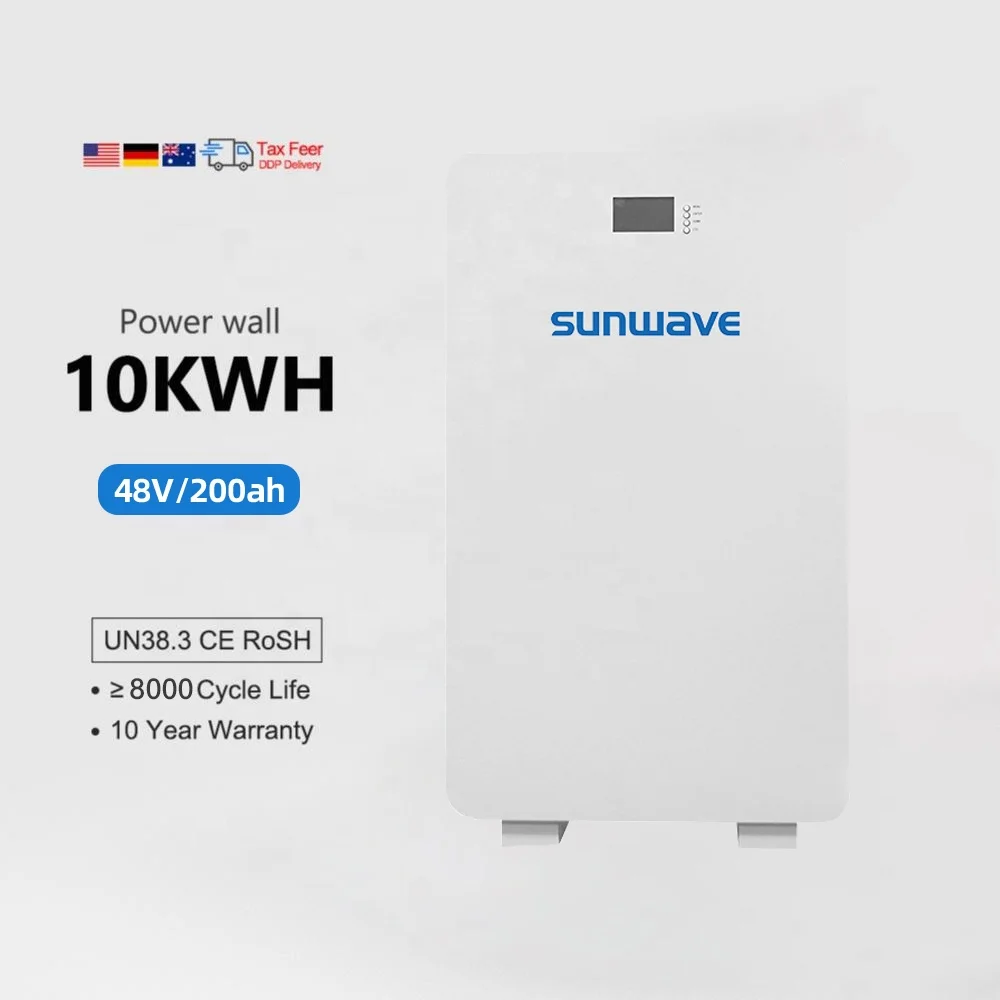

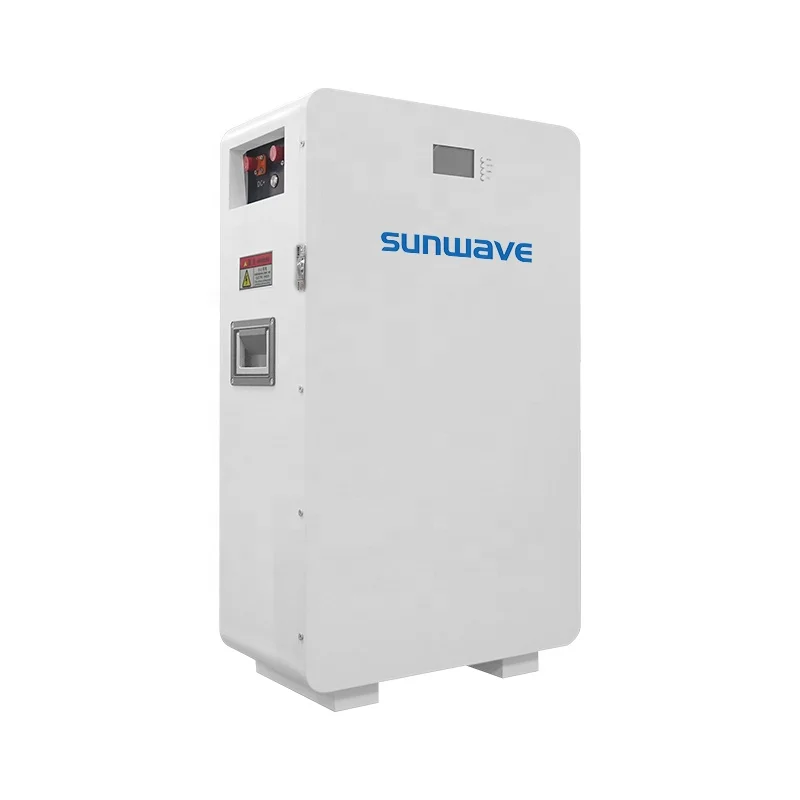

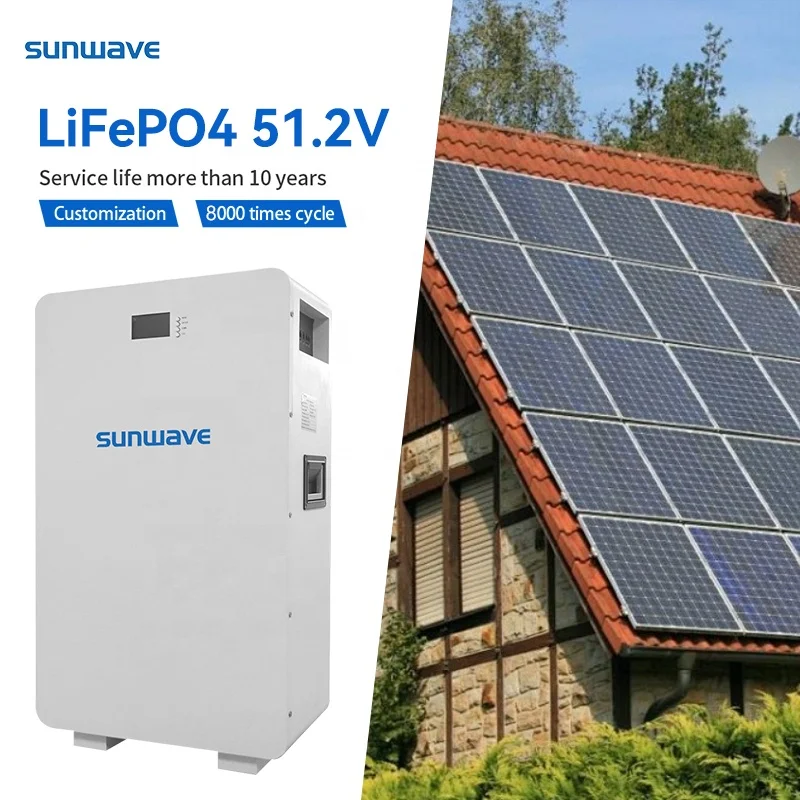

High Quality Storage Solar Batteries lithium ion battery for Solar System
1.Brand new Grade A lithium battery, more than 8000 times deep cycle, up to 90% DOD.
2.Compact with essential installation cables & accessories.
3.Built-in smart BMS, can perfectly match all solar inverters and solar projects.

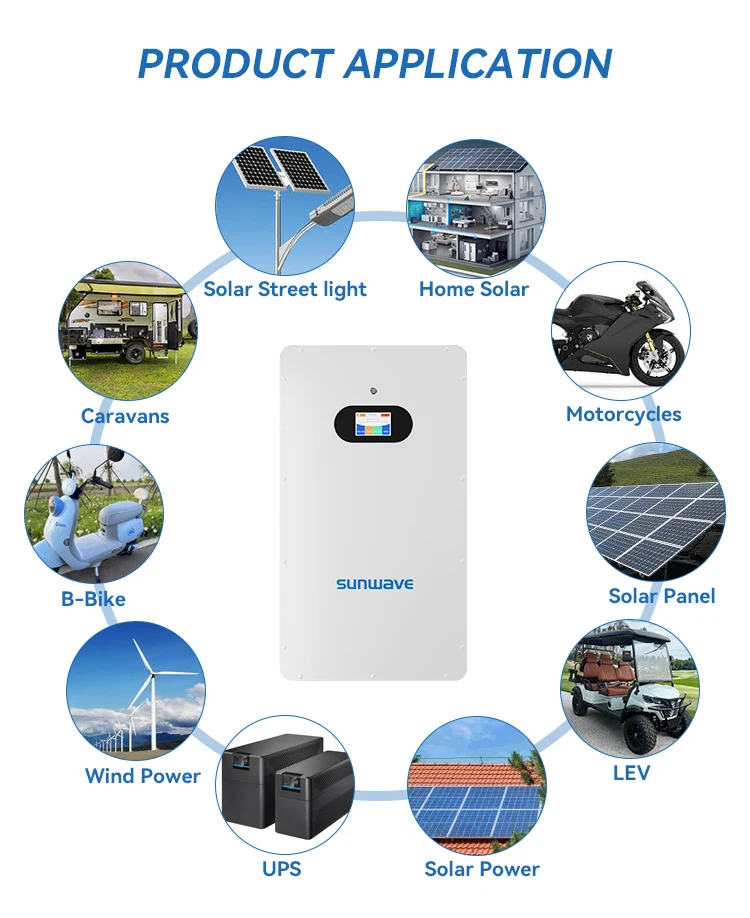

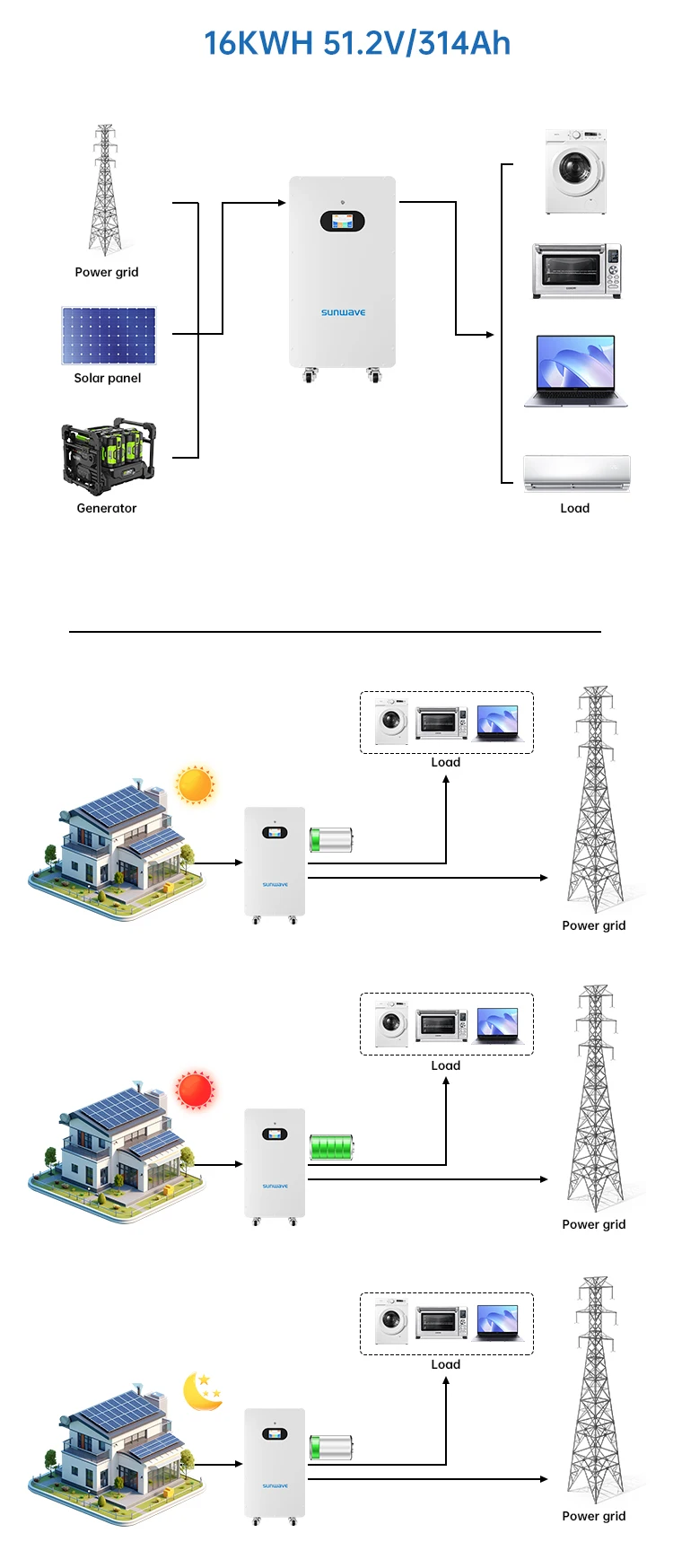

4.Wide Application for Solar Projects, UPS, 5G Station, Military Projects, Solar hybrid power system, home energy storage system.
5.We accept OEM with your logo design.
Product Specifications
PERFORMANCE SPECIFICATIONS | ||||||
Model | HZEB-LCT-5 | HZEB-LCT-10 | HZEB-LCT-16 | |||
Nominal Voltage | 51.2V | 51.2V | 51.2V | |||
Cell model/Configuration | 3.2V100Ah/16S1P | 3.2V206Ah/16S1P | 3.2V314Ah/16S1P | |||
Capacity(Ah) | 100Ah | 206Ah | 314Ah | |||
Rated Energy(kWh) | 5.12kWh | 10.55kWh | 16.08kWh | |||
Max.Charge/Discharge Current(A) | 50A | 100A | 150A | |||
Voltage Range(Vdc) | 44.8~57.6V | |||||
Scalability | Up to 15 parallel | |||||
Communication | RS232-PC,RS485(B)-BAT RS485(A) | |||||
Cycle Life | ≥8000Cycles@25℃,80%DOD | |||||
Design Life | ≥15Years(25℃) | |||||

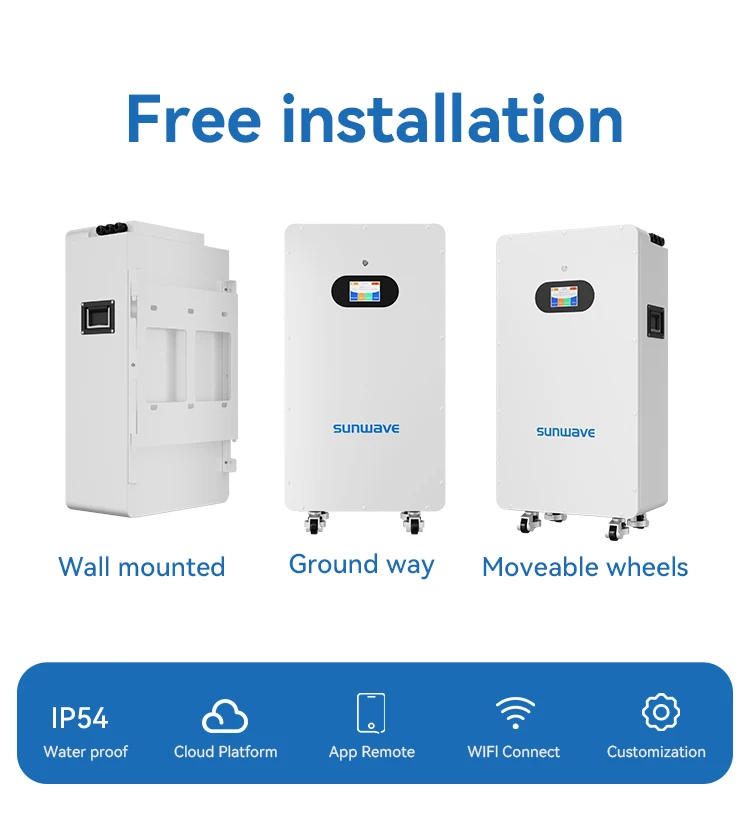

Installation Mode | Wall Mounnted | |||||
IP Grade | IP54 | |||||
SECURITY AND CERTIFICATION | ||||||
Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC | |||||
Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | |||||
Protection | BMS,Breaker | |||||
ENVIRONMENTAL SPECIFICATIONS | ||||||
Operating Temperature(C) | Charge 0°C~50°℃;Discharge-10℃~-50℃ | |||||
Altitude(m) | ≤2000 | |||||
Humidity | ≤95%(Non-condensing) | |||||

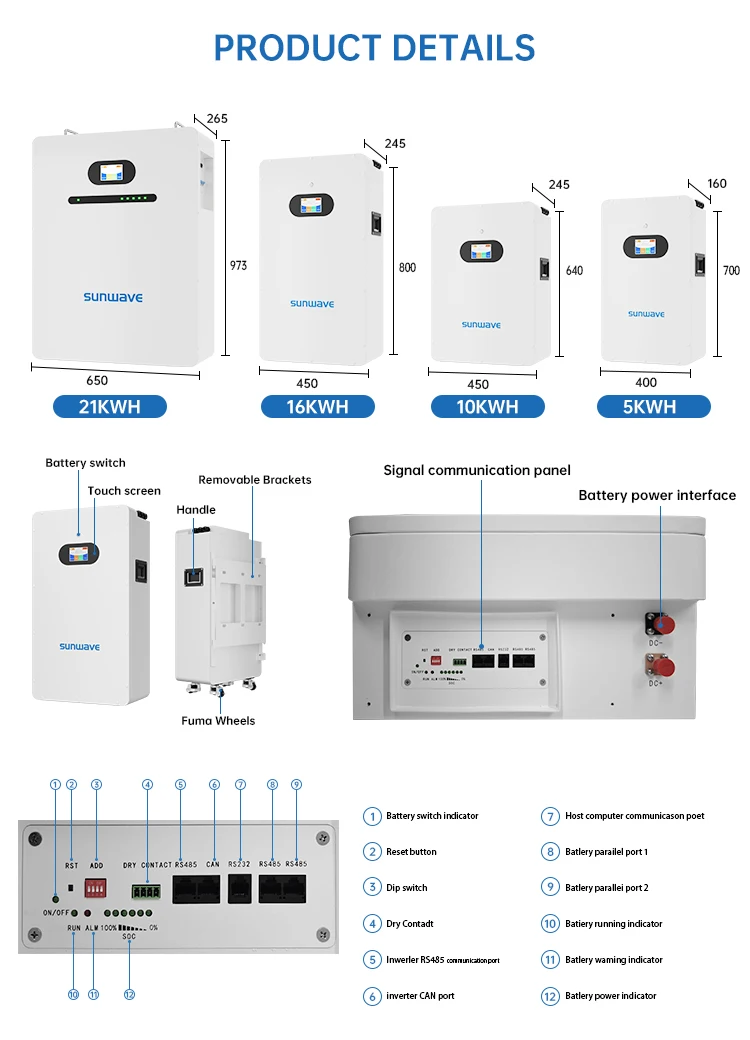

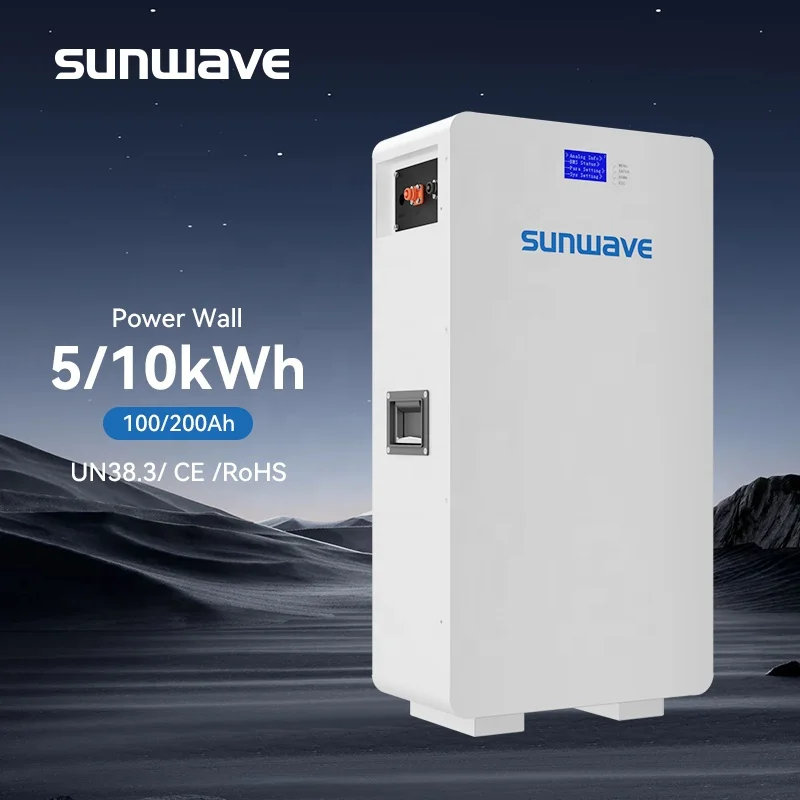

Product Details

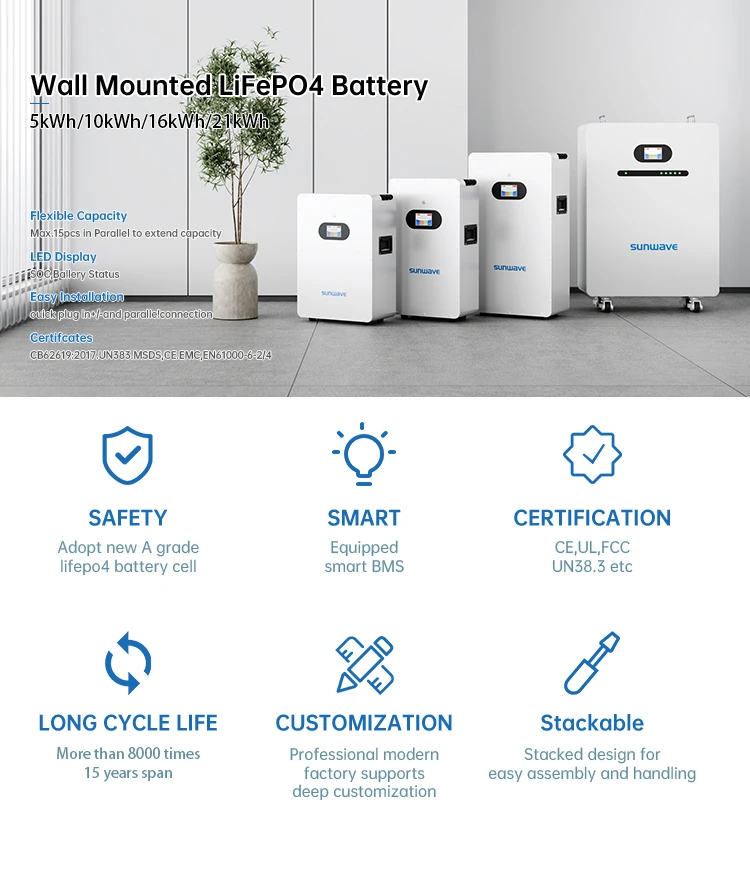

Product Advantages
Project Case
Why Choose Us
Certifications

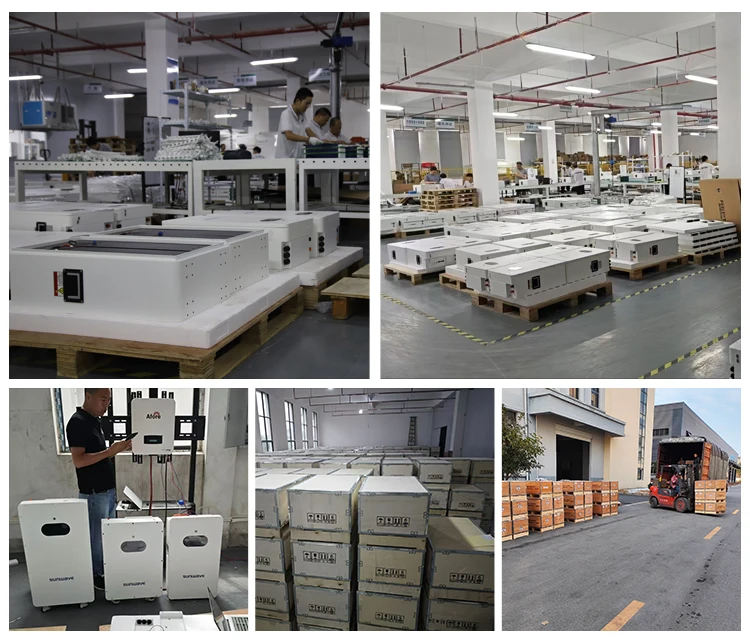

Production & Delivery
